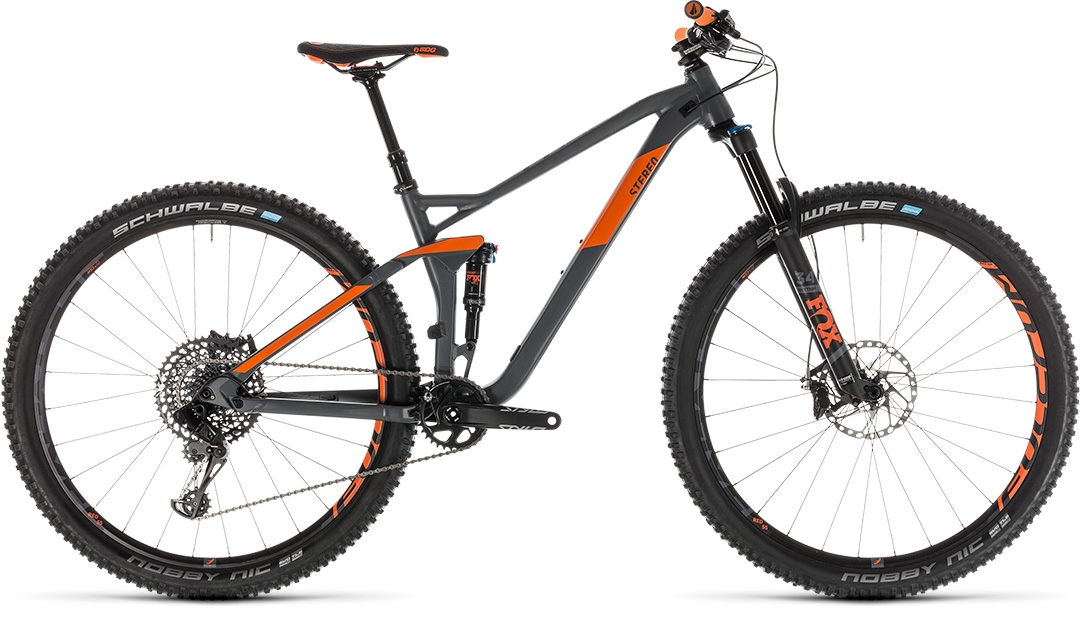

STEREO 120
TM 29

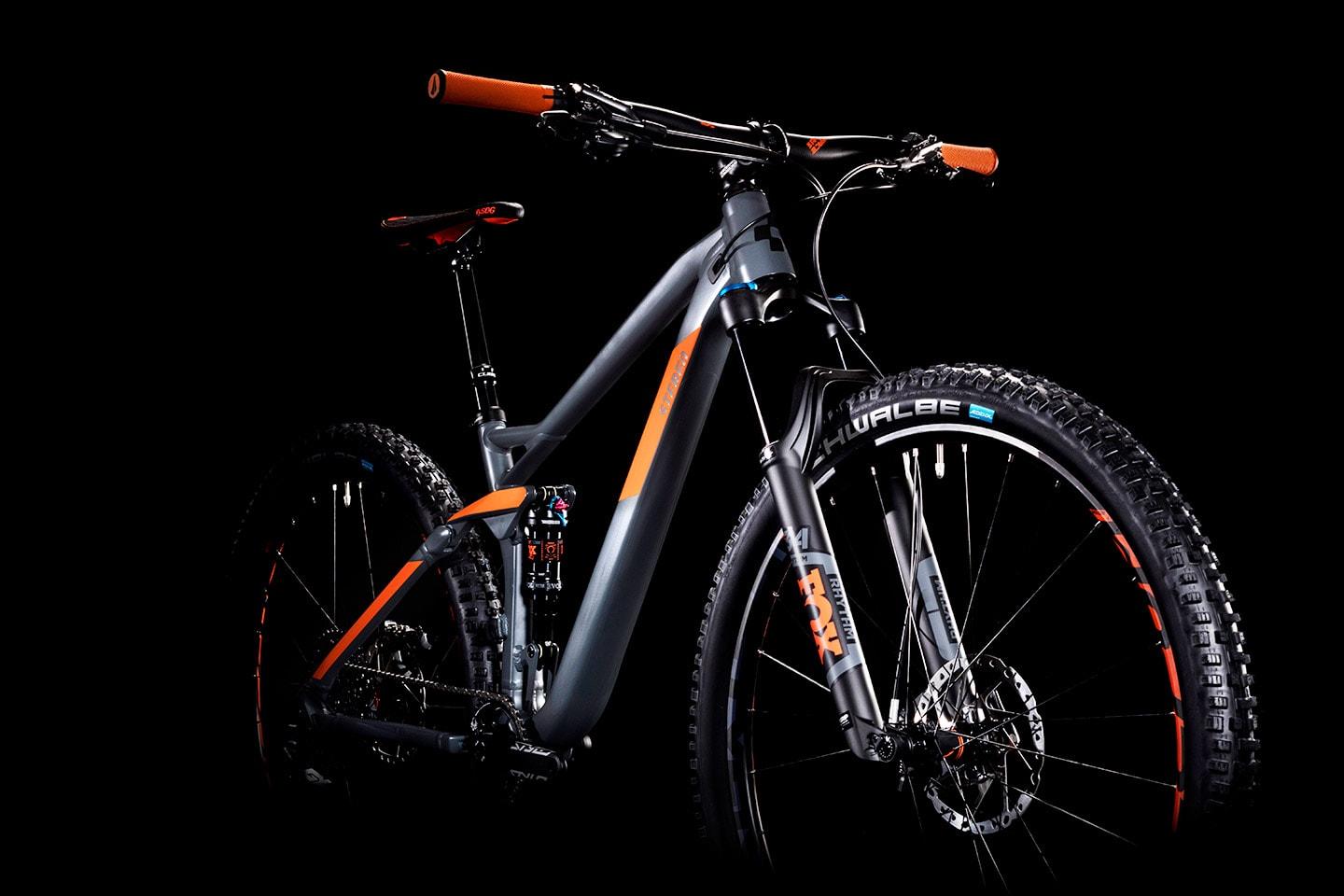

The CUBE Stereo 120 TM 29 is a new introduction for 2019. Built around our reworked, sleeker and more agile Stereo 120 chassis, we've equipped this versatile trail companion with everything you need to dissect the most technically demanding of singletrack with ease, time after time. This capable trail all-rounder is simply inspiring, whether you're using it to show your riding buddies a rapidly disappearing view of your back, or racking up the miles in an endurance event. The combination of sure-footed handling, easy-rolling 29er wheels, low weight and reliable components translates into endless singletrack miles with maximum riding smiles. A Fox 34 Rhythm fork and DPS EVOL shock work together to seamlessly dispatch whatever obstacle blocks your path, while the Fulcrum wheelset and Sram 1x12 Eagle drivetrain translate your pedal power into forward motion via the grippy, comfortable Schwalbe tyres. We're aware, of course, that power is nothing without control - which is why we selected Shimano's powerful XT hydraulic disc brakes with a four piston caliper up front. Ride more, ride futher, ride in more comfort... with the Stereo 120 TM 29.
AUSSTATTUNG
| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |

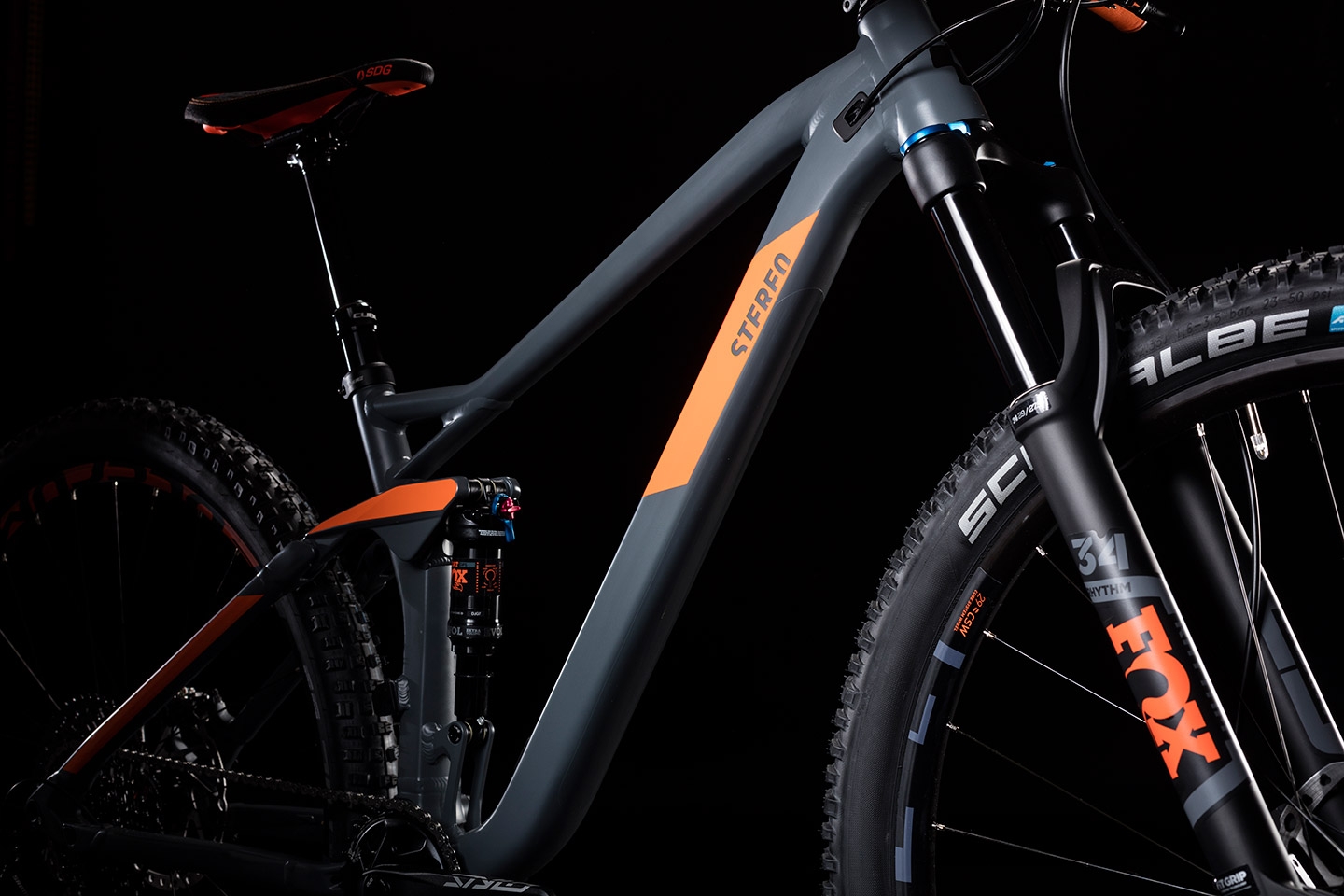

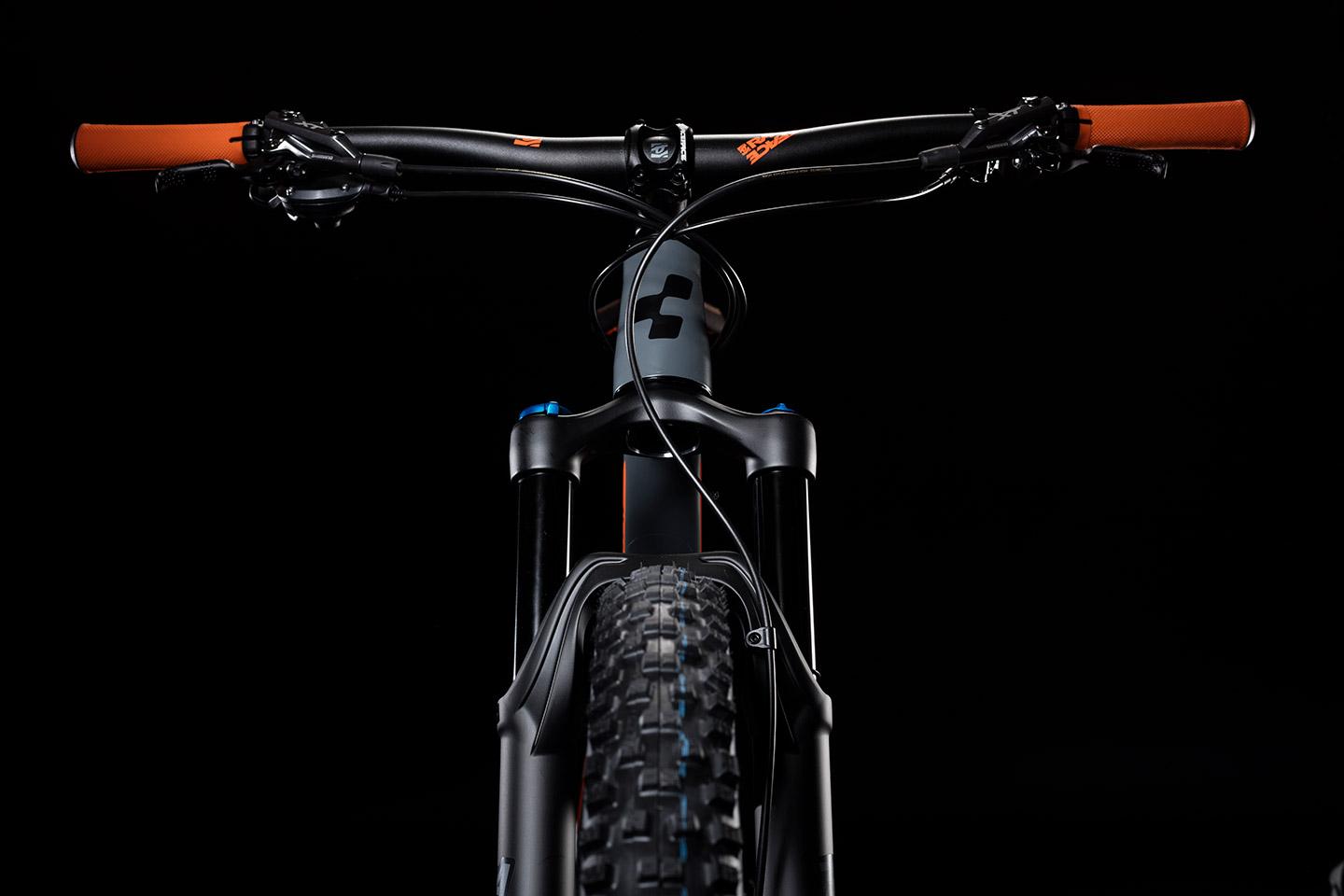

| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm |

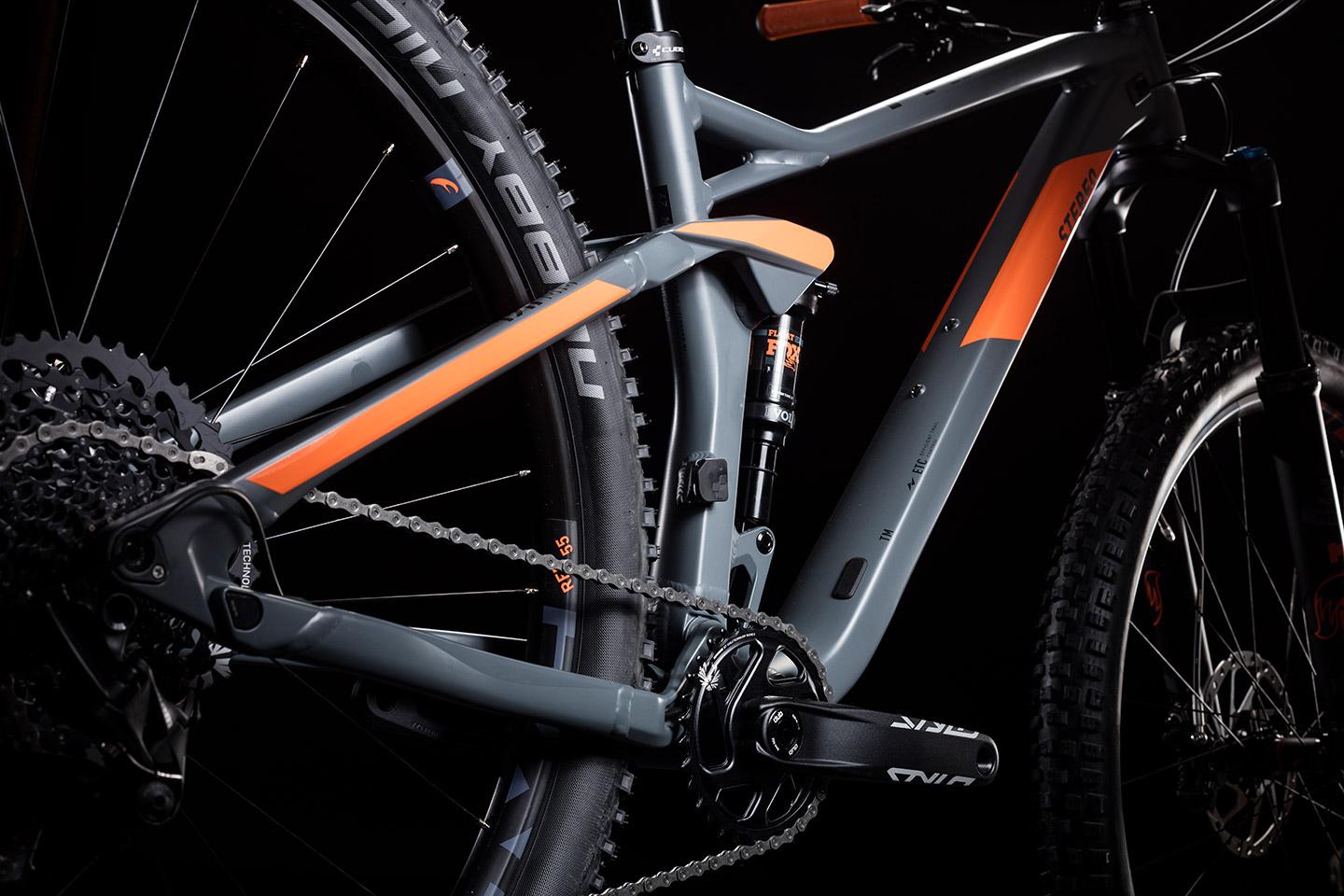

| SHOCK | Fox Float DPS EVOL, 190x45mm, Open/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8020 (front) / M8000 (rear), Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Sram GX Eagle™, 12-Speed |
| SHIFTERS | Sram NX Eagle™ |
| CRANKSET | Sram Stylo Eagle™ DUB 30T, Boost, 175mm |
| CASSETTE | Sram XG-1275, 10-50T |
| CHAIN | Sram NX Eagle™ |
| WHEELSET | Fulcrum Red 55 EM, 15x110mm / 12x148mm, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35 |

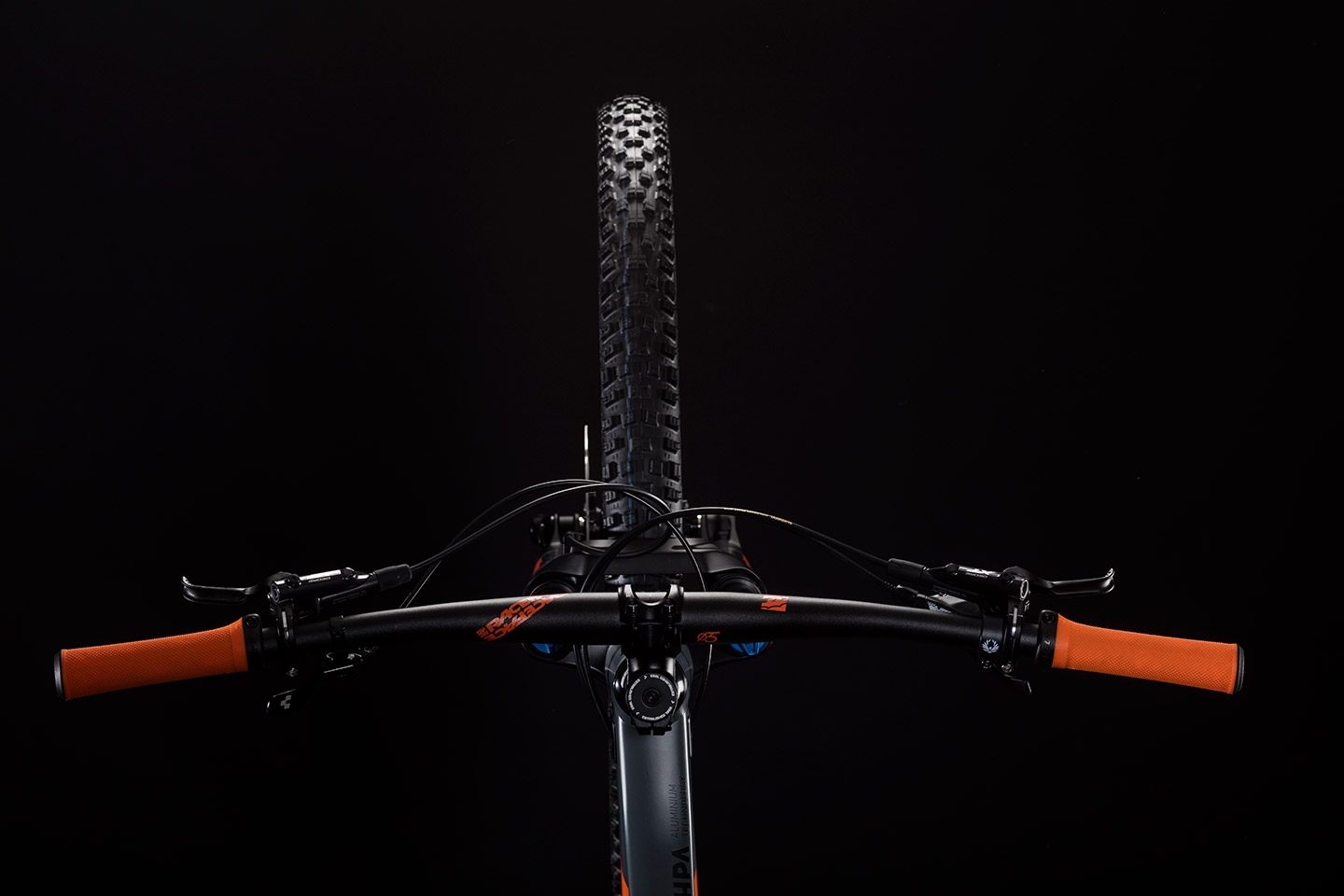

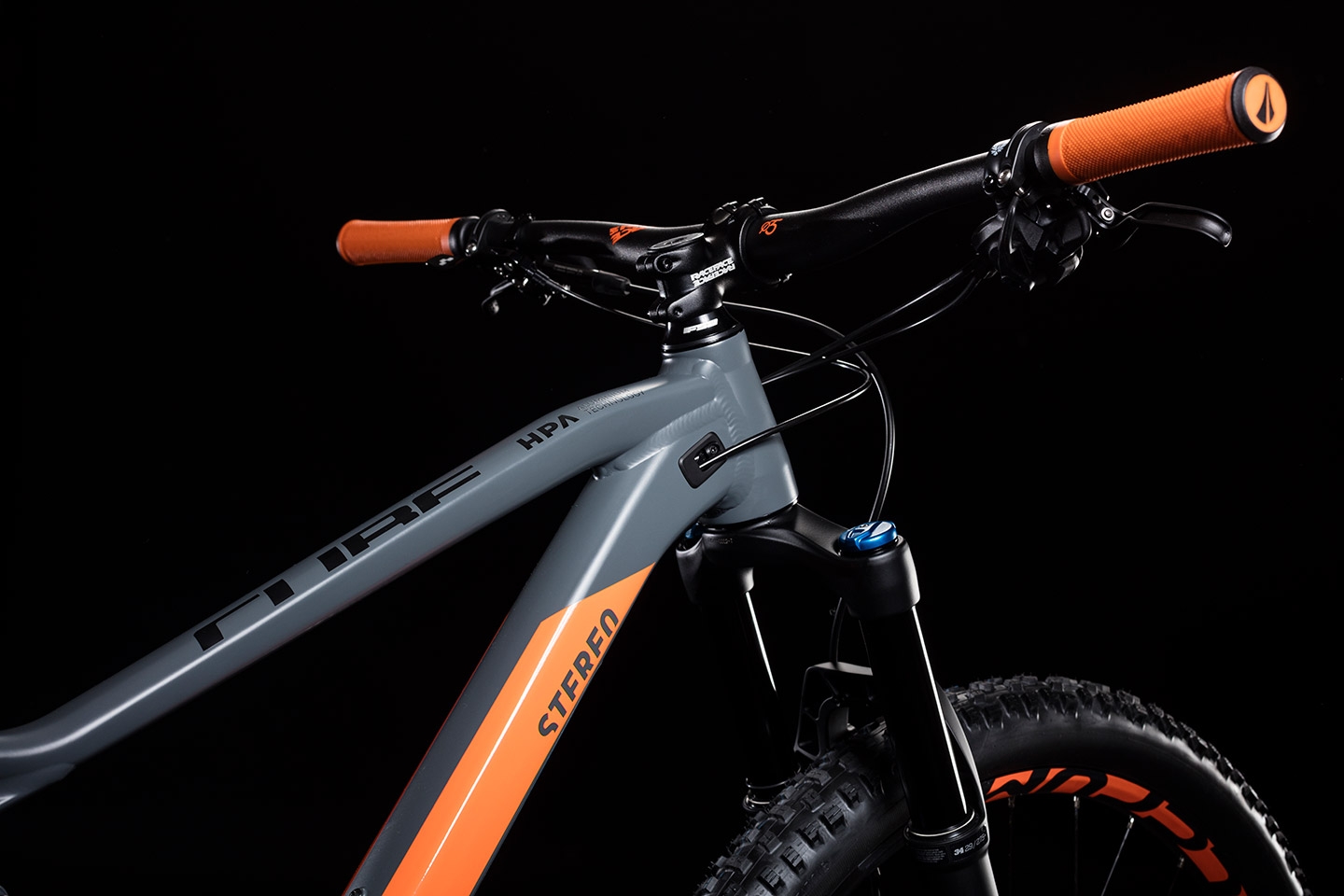

| HANDLEBAR | Race Face Ride 35 Riser, 760mm |
| GRIPS | SDG Slater |
| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6m, 480x150mm (440x120mm for smallest frame size) |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | SDG FLY MTN 2 |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 13,7 kg |
| COLOUR | grey´n´orange |
| ART. NO | 253250 |
GEOMETRY
It's tough to improve on something that's already so good, but we knew from redeveloping our other Stereo bikes that we could extract even more comfort, control and capability from the Stereo 120. Building around the smooth-rolling performance of 29er wheels, our design team tweaked every aspect of the Stereo 120 TM 29's frame. The triple butted, hydroformed tubes boast a sleek new silhouette, emphasised by a completely reworked rocker linkage with hidden pivots. By shaving material from where it's not needed and adding it where it is, then testing the resulting design to its limits in our own in-house test lab, we know for certain that we've created a chassis that's exactly the right combination of light, strong and stiff. Totally revised Agile Trail Geometry and Efficient Trail Control suspension kinematics work together to deliver an uncompromisingly smooth, intuitive and comfortable ride. The only thing missing... is you.
