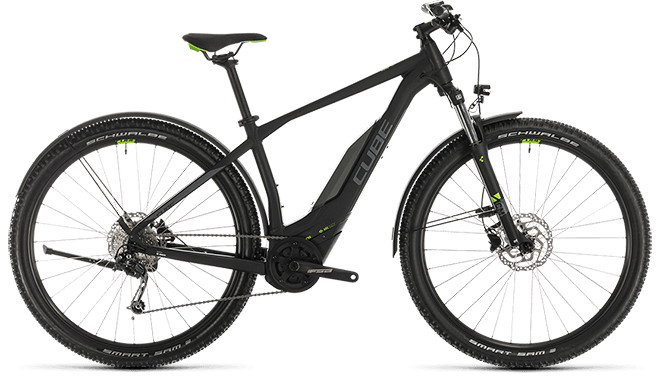

ACID HYBRID

ONE 400 ALLROAD 29

At CUBE we're all about rising to the challenge. So, when faced with the idea of combining the go-anywhere versatility of a mountain bike, the practical flexibility of a tourer and the ease-of-use of a Bosch e-bike, our engineering team didn't flinch - they got to work instead. The result is the Acid Hybrid ONE Allroad. We call it cross-mountain, and we reckon it's the perfect setup for busy folk looking for a bike that'll fit easily into their lives. For commuting we've equipped it with full-length mudguards, front and rear lights powered by the Bosch battery, a bell and a kickstand. Just jump on, and the office is a sweat-free ride away. For weekend adventuring the Suntour suspension fork, grippy and wide Schwalbe tyres, smooth Shimano 9-speed gears and powerful Shimano MT200 hydraulic disc brakes are all you need to explore off the beaten path. And, of course, it's all powered by Bosch's reliable, smooth and eerily quiet drive unit and battery, sleekly incorporated into the elegant frame design in such a way that you'll forget it's there. Double butting and advanced hydroforming have allowed our designers to shave weight wherever possible and add extra strength where it's needed, with the added reassurance of the Acid Hybrid ONE Allroad's frame having passed all of our extremely tough in-house safety tests. Combined with our Agile Ride Geometry, it's a combination that ensures safe, predictable handling in any situation from busy city streets to deserted forest trails. Jump on and ride wherever you fancy, because the Acid Hybrid ONE Allroad has got you covered.

AUSSTATTUNG

FRAMEAluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
SIZE15", 17", 19", 21", 23", Trapeze: 15", 17", 19"
FORKSR Suntour XCM ATB Coil, 100mm
BRAKE SYSTEMShimano BR-MT200, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano Deore RD-M592-SGS, 9-Speed
SHIFTERSShimano SL-M2010-9R, Rapidfire-Plus
CRANKSETFSA CK-602, 38T, 175mm
CASSETTEShimano CS-HG201, 11-36T
CHAINKMC X9
FRONT HUBShimano HB-TX505, QR, Centerlock
REAR HUBShimano FH-TX505, QR, Centerlock
RIMSCUBE EX23, 32H, Disc, Tubeless Ready
TYRESSchwalbe Smart Sam, K-Guard, 2.35
HANDLEBARCUBE Rise Trail Bar, 700mm
GRIPSCUBE Performance Grip
SEAT POSTCUBE Performance Post, 30.9mm
SEATCLAMPCUBE Varioclose, 34.9mm
SADDLENatural Fit Sequence
HEADSETFSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALSCUBE PP MTB
FRONT LIGHTAXA Compactline 20, 6-12V, DC
REAR LIGHTBusch&Müller Xeltec, DC
KICKSTANDCUBEstand Cmpt

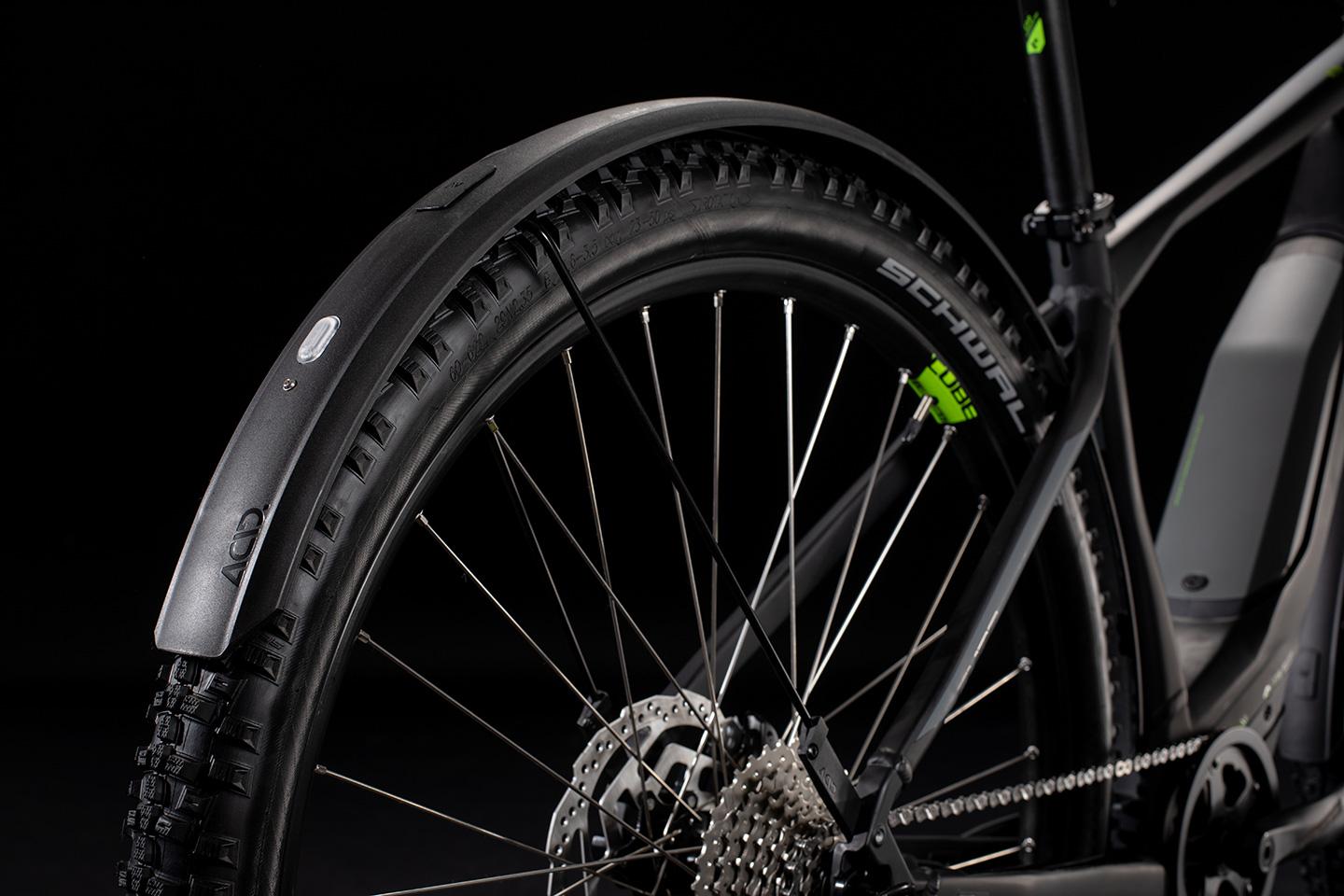

MUDGUARDSACID 65
BELLMini Bell
WEIGHT23,1 kg
COLOURblack´n´green
DRIVE UNITBosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
BATTERYBosch PowerPack 400

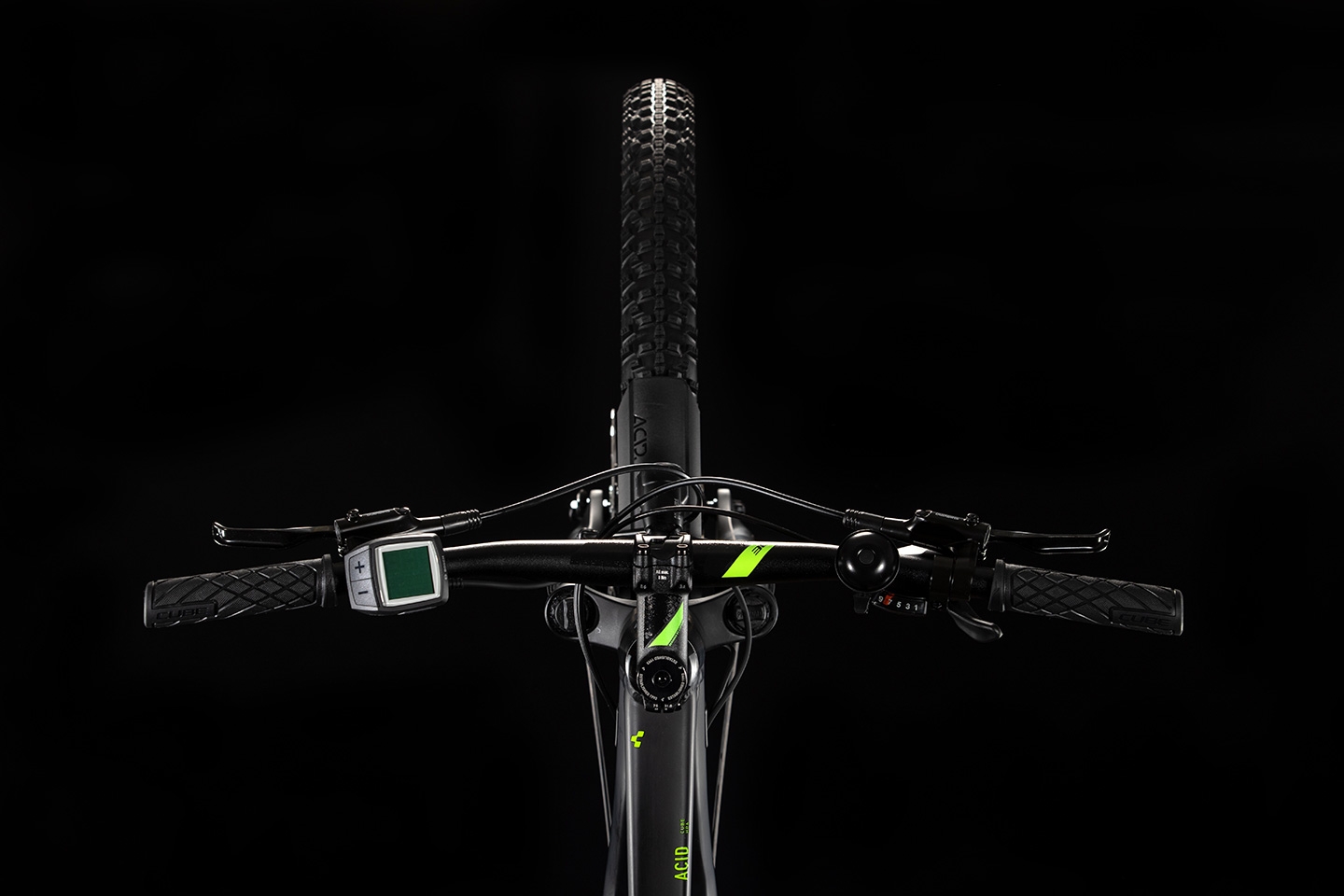

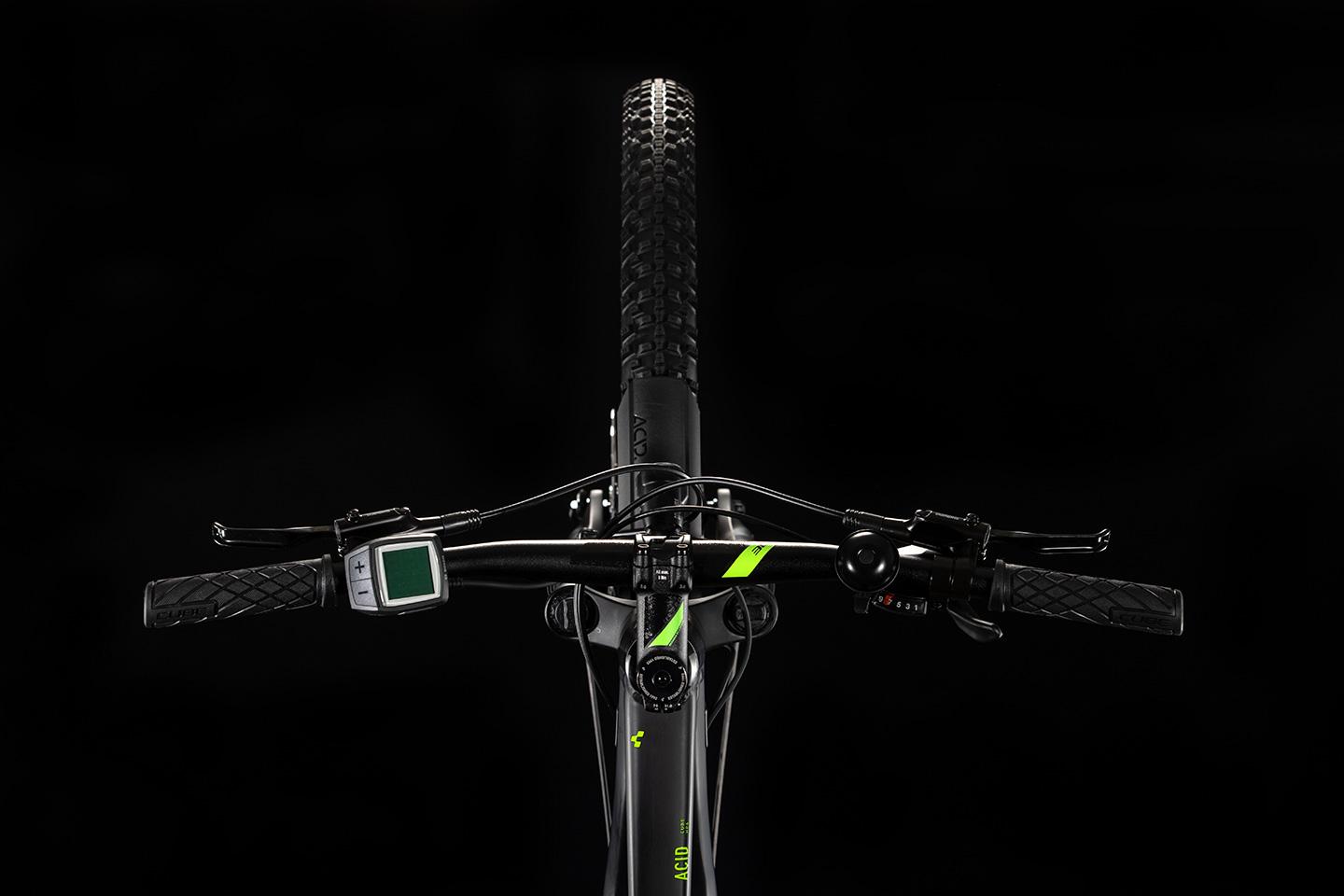

DISPLAYBosch Purion
CHARGERBosch 2A
ART. NO333150

GEOMETRY

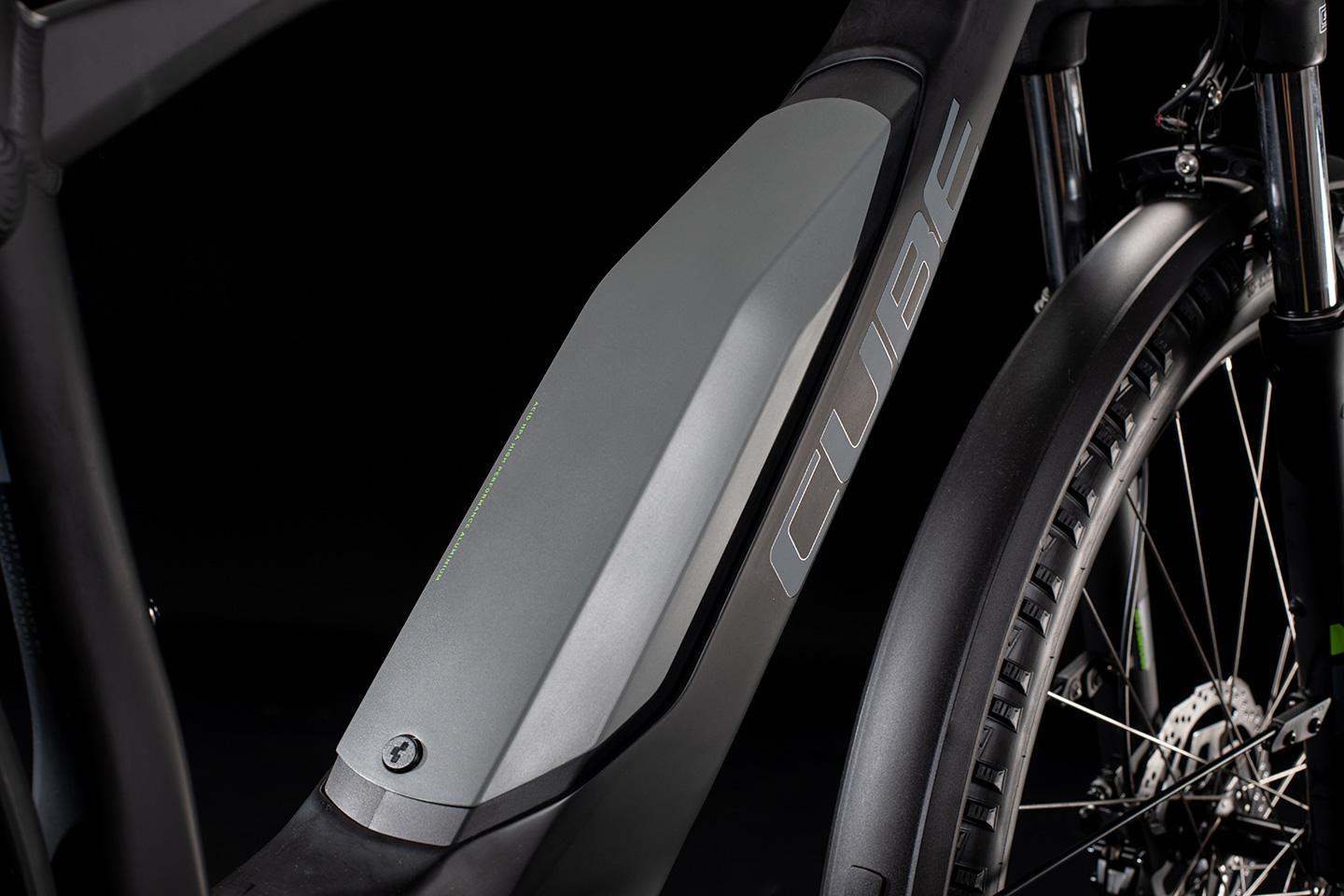

Our engineering team puts the same effort into every frame design, whether it's a range-topping race machine or an entry-level commuter. That's why we gave the Acid Hybrid an aluminium Superlite chassis with double-butted tubes, which shave weight where it isn't needed and add extra thickness where strength is important. Advanced hydroforming is what gives it its sleek looks and the elegant, oversized down tube houses both the Bosch drive unit and the battery. Our acclaimed Agile Ride Geometry gives the Acid Hybrid easy, intuitive handling to keep you safe, whether you're exploring a trail or riding to the office. Internally routed cables - including for a future dropper post upgrade - keep everything tidy, reduce maintenance and ensure your gear shifts stay precise. And integrated mudguard mounts mean it's a cinch to fit full-length fenders to help keep you dry on the road, all year round.

Bike details

porn_image
detail_image_0
detail_image_1
detail_image_2

MORE MODELS OF THIS SERIES

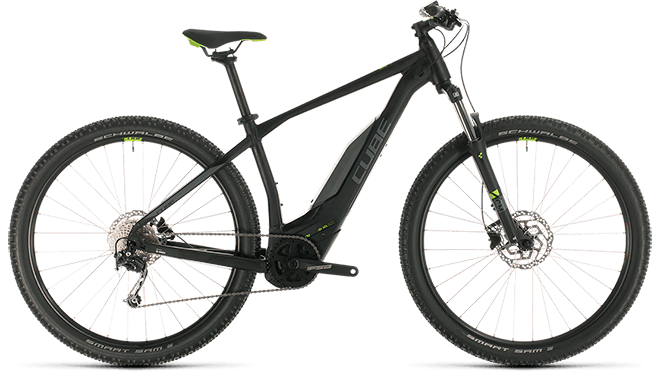

CUBE Acid Hybrid ONE 400 29 black´n´green 2020

ACID HYBRID

ONE 400 29
CUBE Acid Hybrid ONE 400 29 black´n´green 2020

ACID HYBRID

ONE 400 29
CUBE Acid Hybrid ONE 500 29 black´n´green 2020

ACID HYBRID

ONE 500 29
CUBE Acid Hybrid ONE 500 29 black´n´green 2020

ACID HYBRID

ONE 500 29
CUBE Acid Hybrid ONE 400 29 blue´n´orange 2020

ACID HYBRID

ONE 400 29
CUBE Acid Hybrid ONE 400 29 blue´n´orange 2020

ACID HYBRID

ONE 400 29
CUBE Acid Hybrid ONE 500 29 blue´n´orange 2020

ACID HYBRID

ONE 500 29
CUBE Acid Hybrid ONE 500 29 blue´n´orange 2020

ACID HYBRID

ONE 500 29

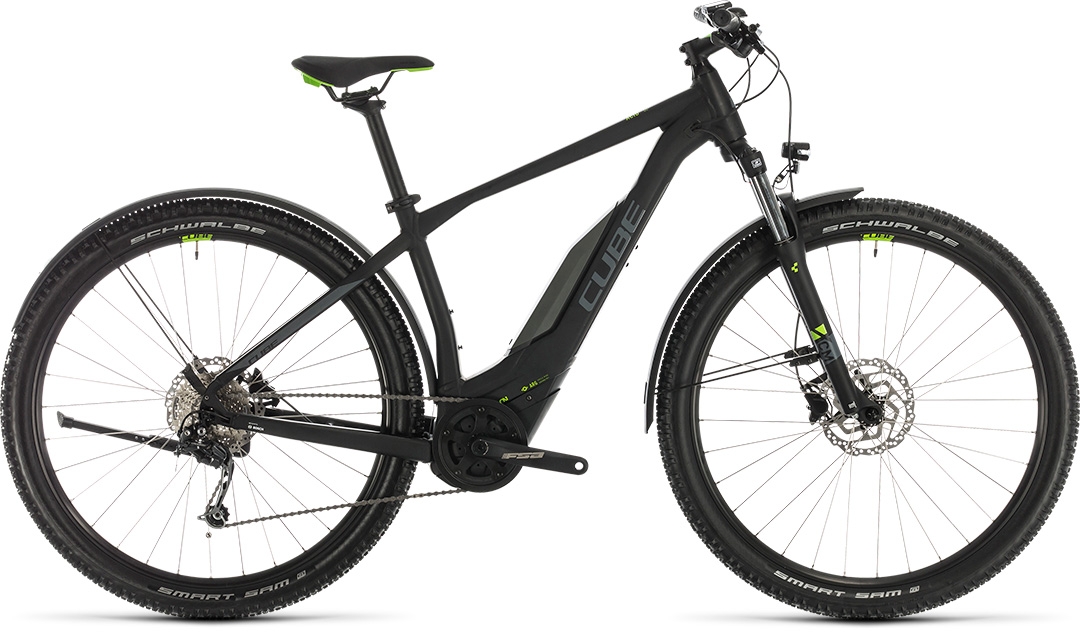

CUBE Acid Hybrid ONE 400 Allroad 29 black´n´green 2020
