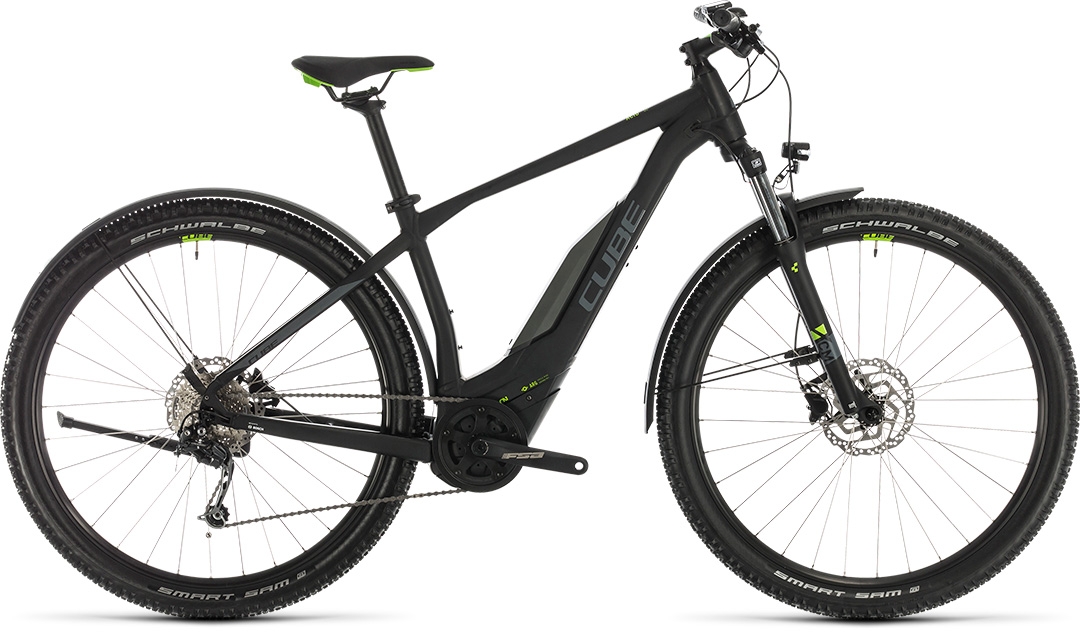

ACID HYBRID
ONE 500 ALLROAD 29

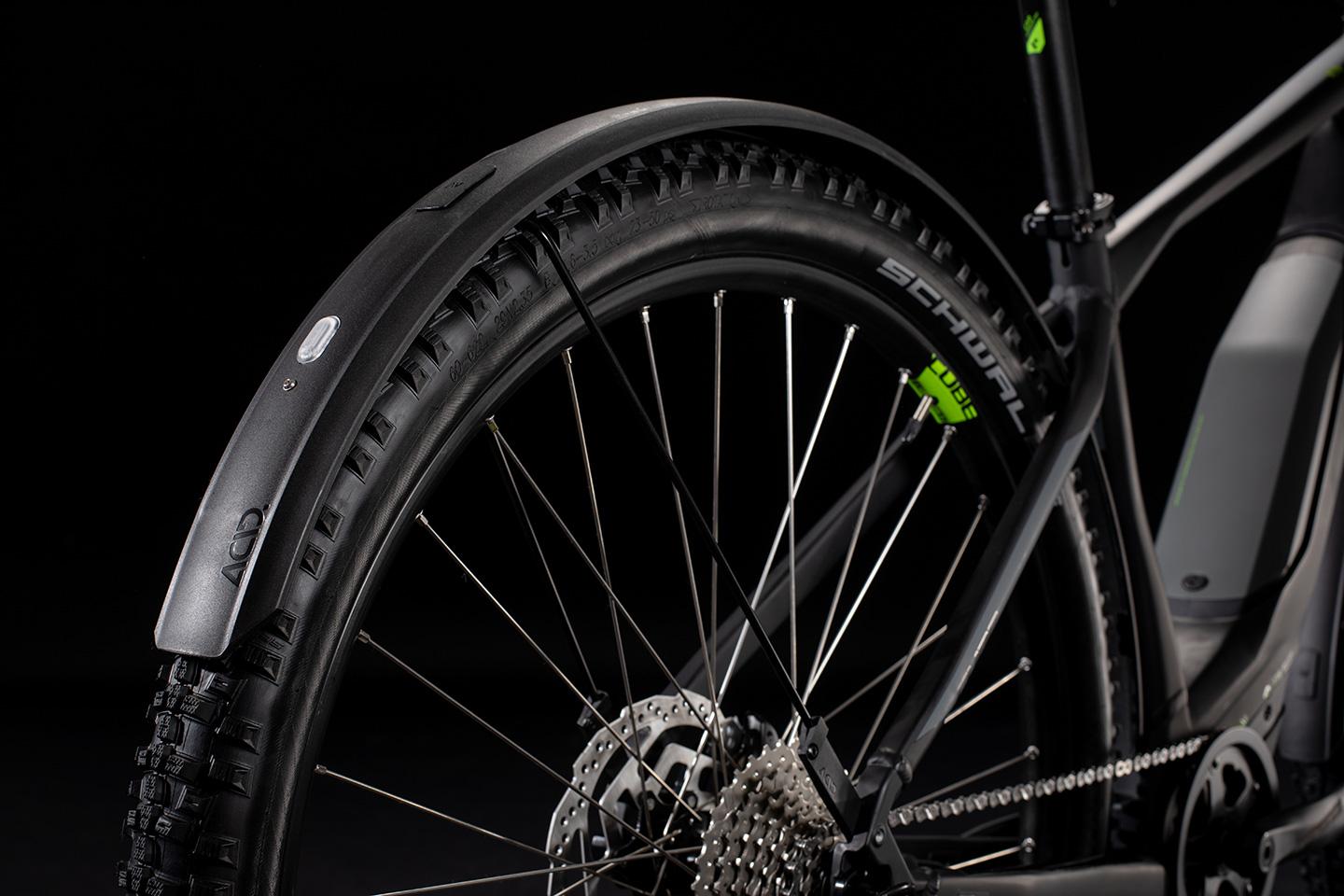

At CUBE we're all about rising to the challenge. So, when faced with the idea of combining the go-anywhere versatility of a mountain bike, the practical flexibility of a tourer and the ease-of-use of a Bosch e-bike, our engineering team didn't flinch - they got to work instead. The result is the Acid Hybrid ONE Allroad. We call it cross-mountain, and we reckon it's the perfect setup for busy folk looking for a bike that'll fit easily into their lives. For commuting we've equipped it with full-length mudguards, front and rear lights powered by the Bosch battery, a bell and a kickstand. Just jump on, and the office is a sweat-free ride away. For weekend adventuring the Suntour suspension fork, grippy and wide Schwalbe tyres, smooth Shimano 9-speed gears and powerful Shimano MT200 hydraulic disc brakes are all you need to explore off the beaten path. And, of course, it's all powered by Bosch's reliable, smooth and eerily quiet drive unit and battery, sleekly incorporated into the elegant frame design in such a way that you'll forget it's there. Double butting and advanced hydroforming have allowed our designers to shave weight wherever possible and add extra strength where it's needed, with the added reassurance of the Acid Hybrid ONE Allroad's frame having passed all of our extremely tough in-house safety tests. Combined with our Agile Ride Geometry, it's a combination that ensures safe, predictable handling in any situation from busy city streets to deserted forest trails. Jump on and ride wherever you fancy, because the Acid Hybrid ONE Allroad has got you covered.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| SIZE | 15", 17", 19", 21", 23", Trapeze: 15", 17", 19" |
| FORK | SR Suntour XCM ATB Coil, 100mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M592-SGS, 9-Speed |
| SHIFTERS | Shimano SL-M2010-9R, Rapidfire-Plus |
| CRANKSET | FSA CK-602, 38T, 175mm |
| CASSETTE | Shimano CS-HG201, 11-36T |
| CHAIN | KMC X9 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE EX23, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, K-Guard, 2.35 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Sequence |
| HEADSET | FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | AXA Compactline 20, 6-12V, DC |
| REAR LIGHT | Busch&Müller Xeltec, DC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 65 |
| BELL | Mini Bell |
| WEIGHT | 23,1 kg |
| COLOUR | black´n´green |
| DRIVE UNIT | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 333151 |
GEOMETRY

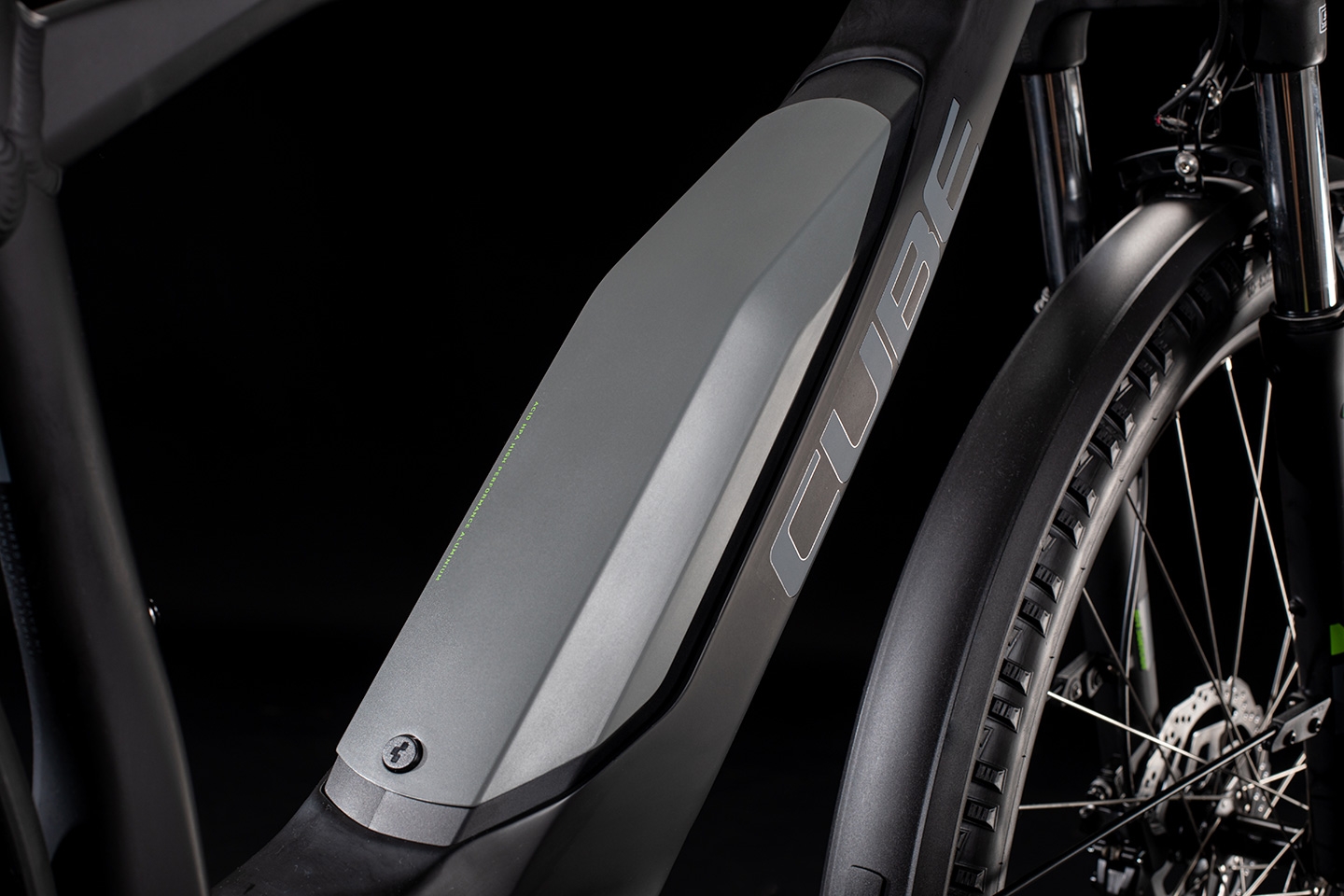

Our engineering team puts the same effort into every frame design, whether it's a range-topping race machine or an entry-level commuter. That's why we gave the Acid Hybrid an aluminium Superlite chassis with double-butted tubes, which shave weight where it isn't needed and add extra thickness where strength is important. Advanced hydroforming is what gives it its sleek looks and the elegant, oversized down tube houses both the Bosch drive unit and the battery. Our acclaimed Agile Ride Geometry gives the Acid Hybrid easy, intuitive handling to keep you safe, whether you're exploring a trail or riding to the office. Internally routed cables - including for a future dropper post upgrade - keep everything tidy, reduce maintenance and ensure your gear shifts stay precise. And integrated mudguard mounts mean it's a cinch to fit full-length fenders to help keep you dry on the road, all year round.
