CROSS
EXC

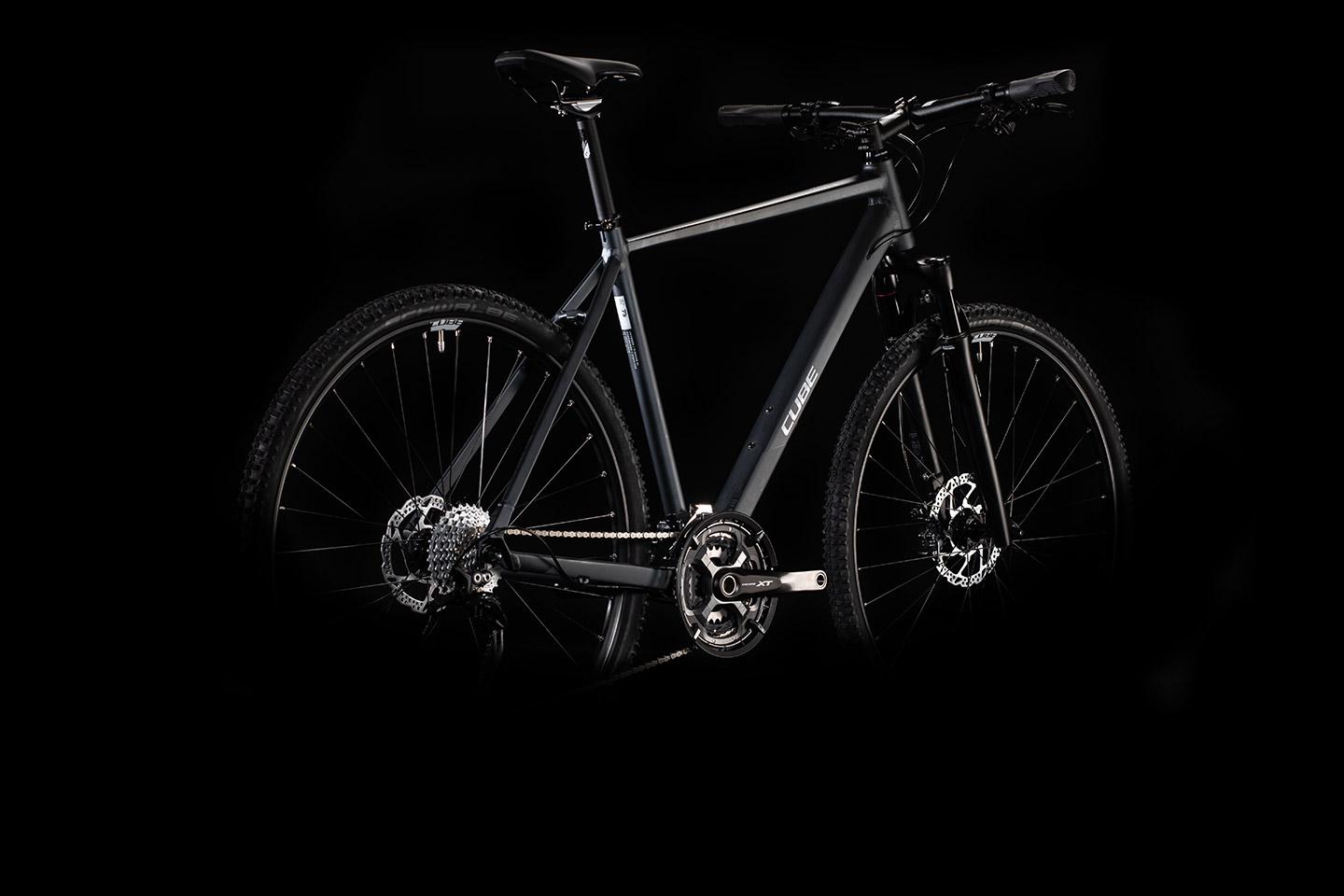

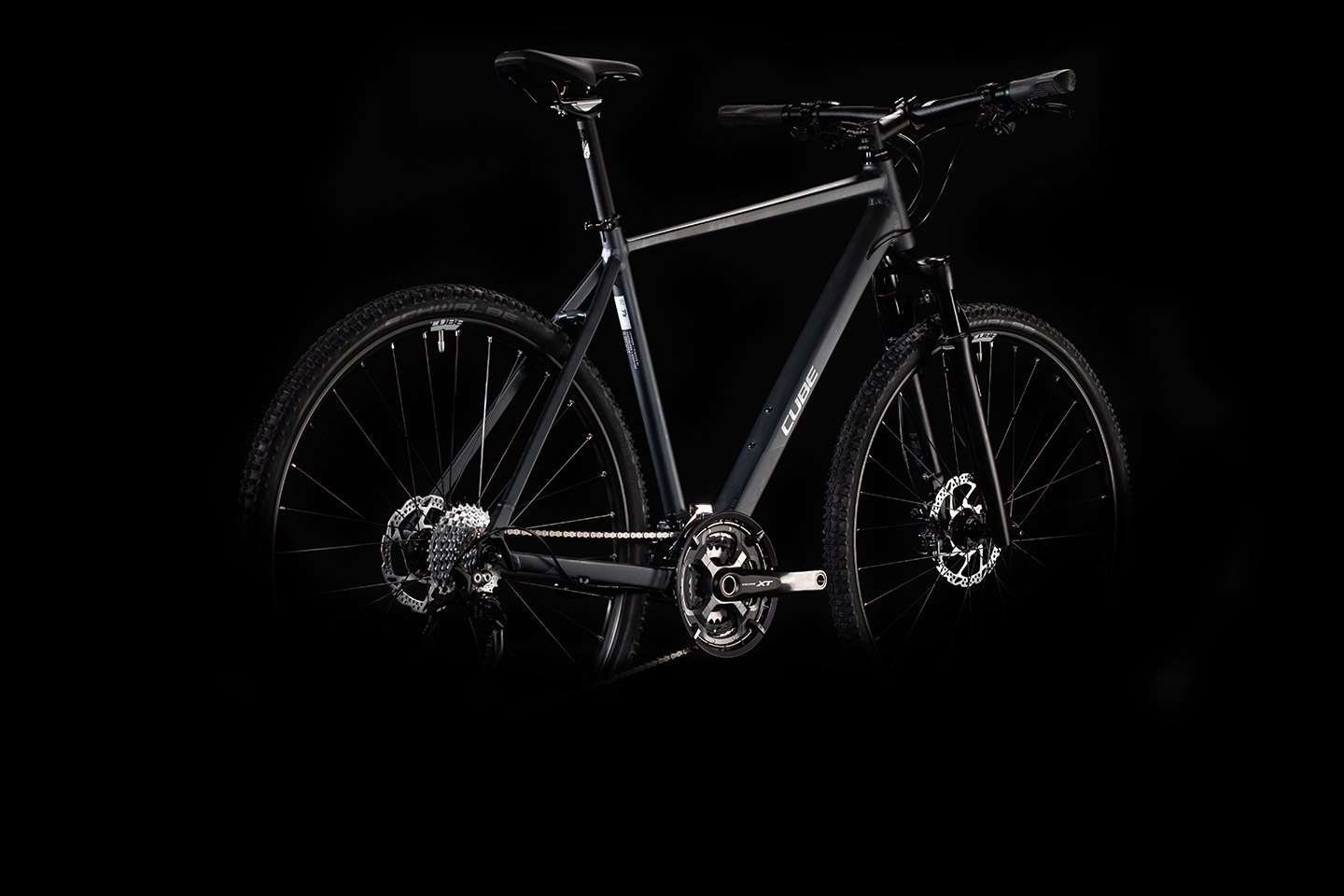

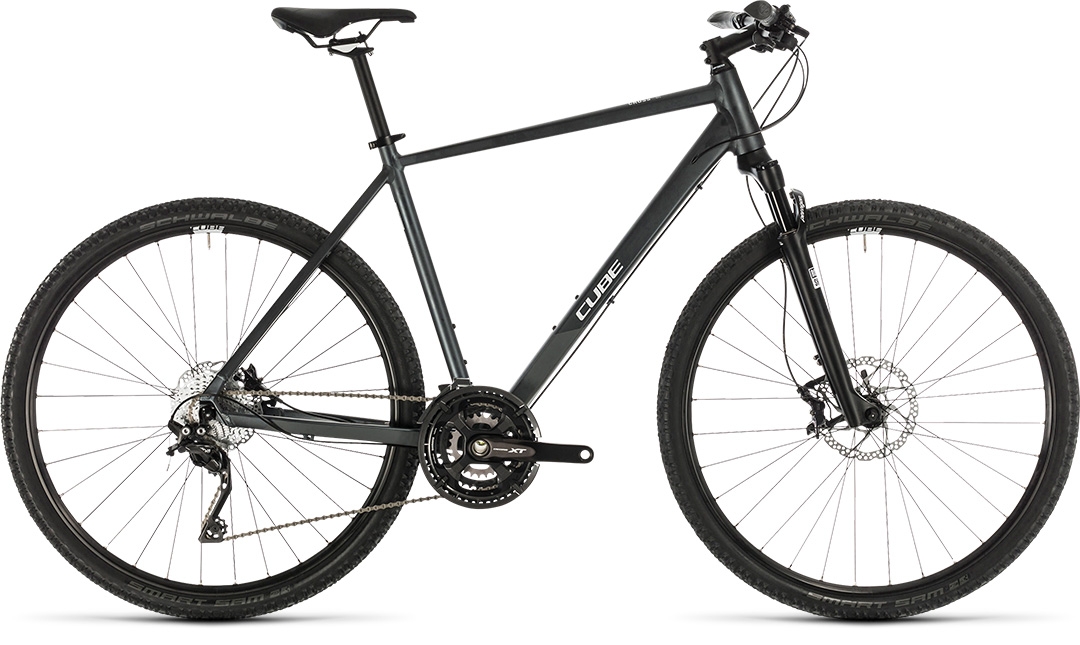

You know how it is - you're out for a ride and you just can't help taking the long route home, or trying out the turning you've never been down before. If that sounds like you, may we introduce you to the Cross EXC? A high-quality, lightweight aluminium chassis, superb RockShox Paragon Gold air suspension fork and Shimano XT transmission with hydraulic disc brakes mean you've everything you need at your fingertips for longer, more adventurous rides. Our engineering team's approach to the frame was uncompromising - their goal was to make the most efficient, stable and comfortable touring frame possible. To that end, they borrowed technologies and design cues from our mountain bike range. So, for example, the double-butted aluminium tubeset reduces weight without sacrificing strength, while the tapered head tube increases rigidity and steering accuracy - and Smooth Welding technology keeps the whole thing incredibly neat. We even designed the RILink carrier and mudguard mounts to be almost invisible, so you can accessorise your Cross EXC to meet your needs without spoiling its great looks. Whether you're inspired by the idea of more adventurous routes or just want a bike that's as reliable as it is fun to ride, choose the Cross EXC... and ride like you mean it.
AUSSTATTUNG
| FRAME | Aluminium Superlite Trekking Cross Taper Double Butted |
|---|---|
| SIZE | Men: 46, 50, 54, 58, 62, Trapeze: 46, 50, 54 |

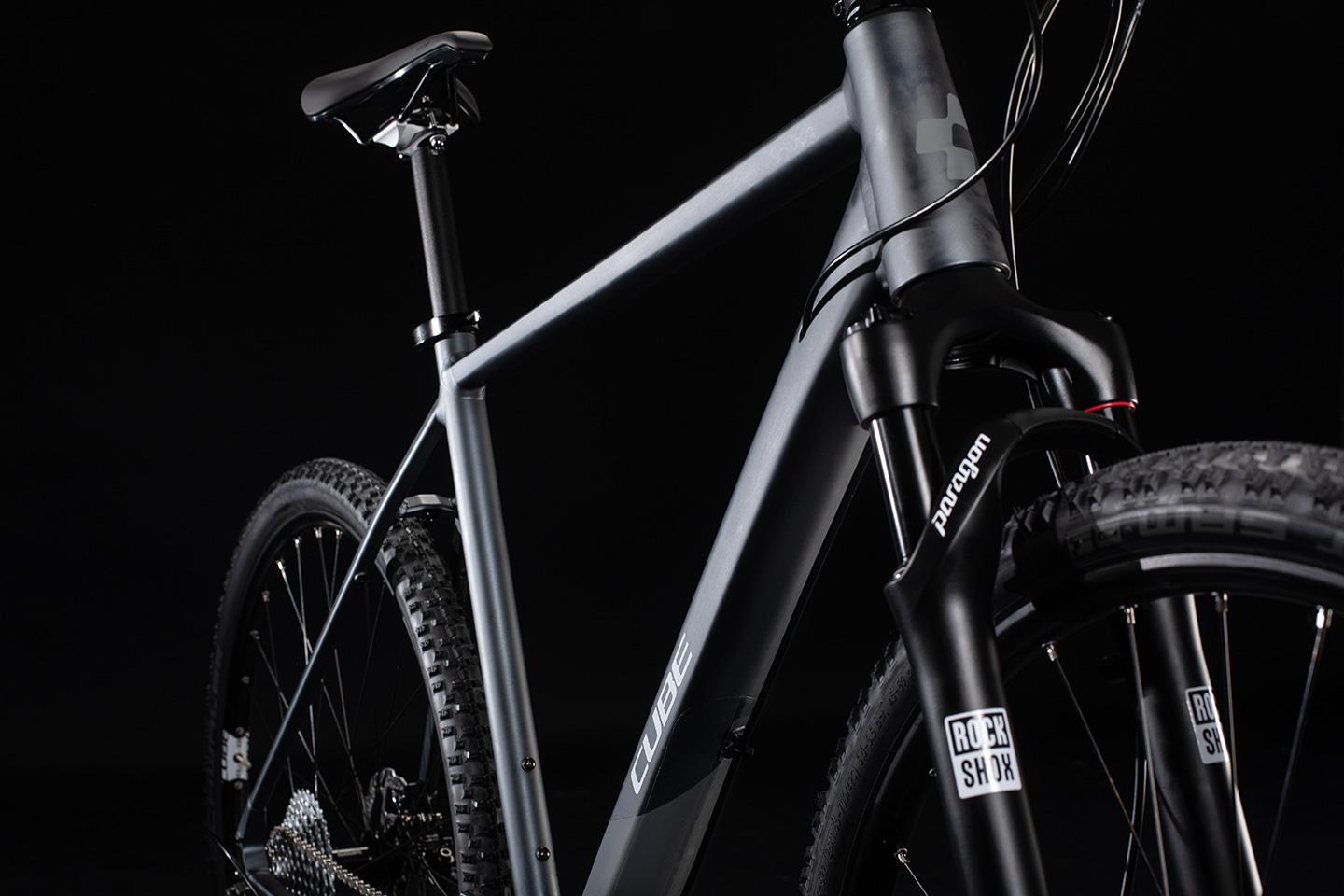

| FORK | RockShox Paragon Gold Taper, 65mm, Lockout |
| BRAKE SYSTEM | Shimano XT BR-M8100, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano XT RD-T8000, 10-Speed |
| FRONT DERAILLEUR | Shimano XT FD-T8000, Top Swing, 31.8mm Clamp |
| SHIFTERS | Shimano XT SL-T8000 |

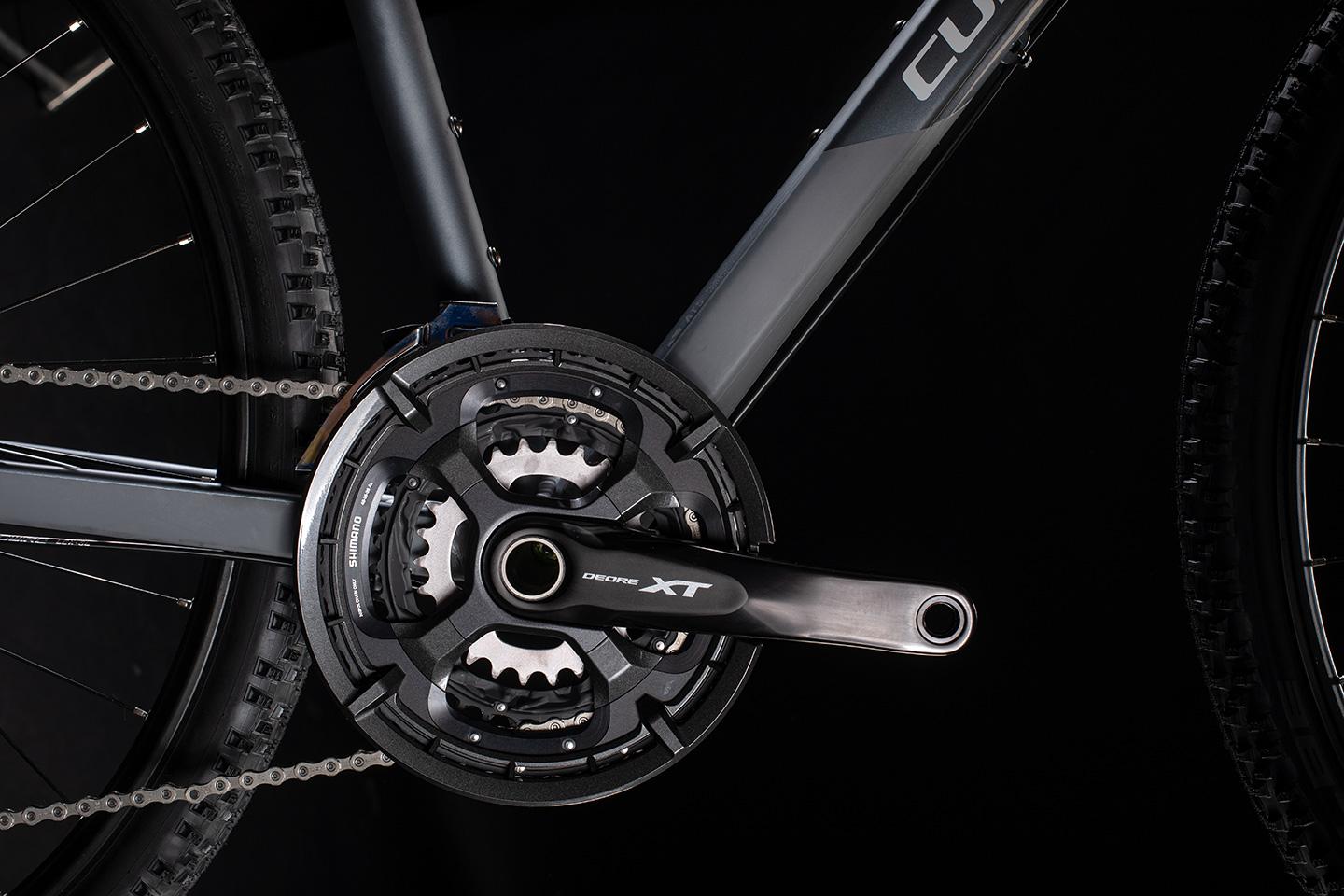

| CRANKSET | Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard |
| CASSETTE | Shimano CS-M771, 11-34T |
| CHAIN | Shimano CN-HG95 |
| FRONT HUB | Shimano XT HB-M8000, QR, Centerlock |
| REAR HUB | Shimano XT FH-M8000, QR, Centerlock |
| RIMS | CUBE EX21, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Performance Kevlar, 47-622 |

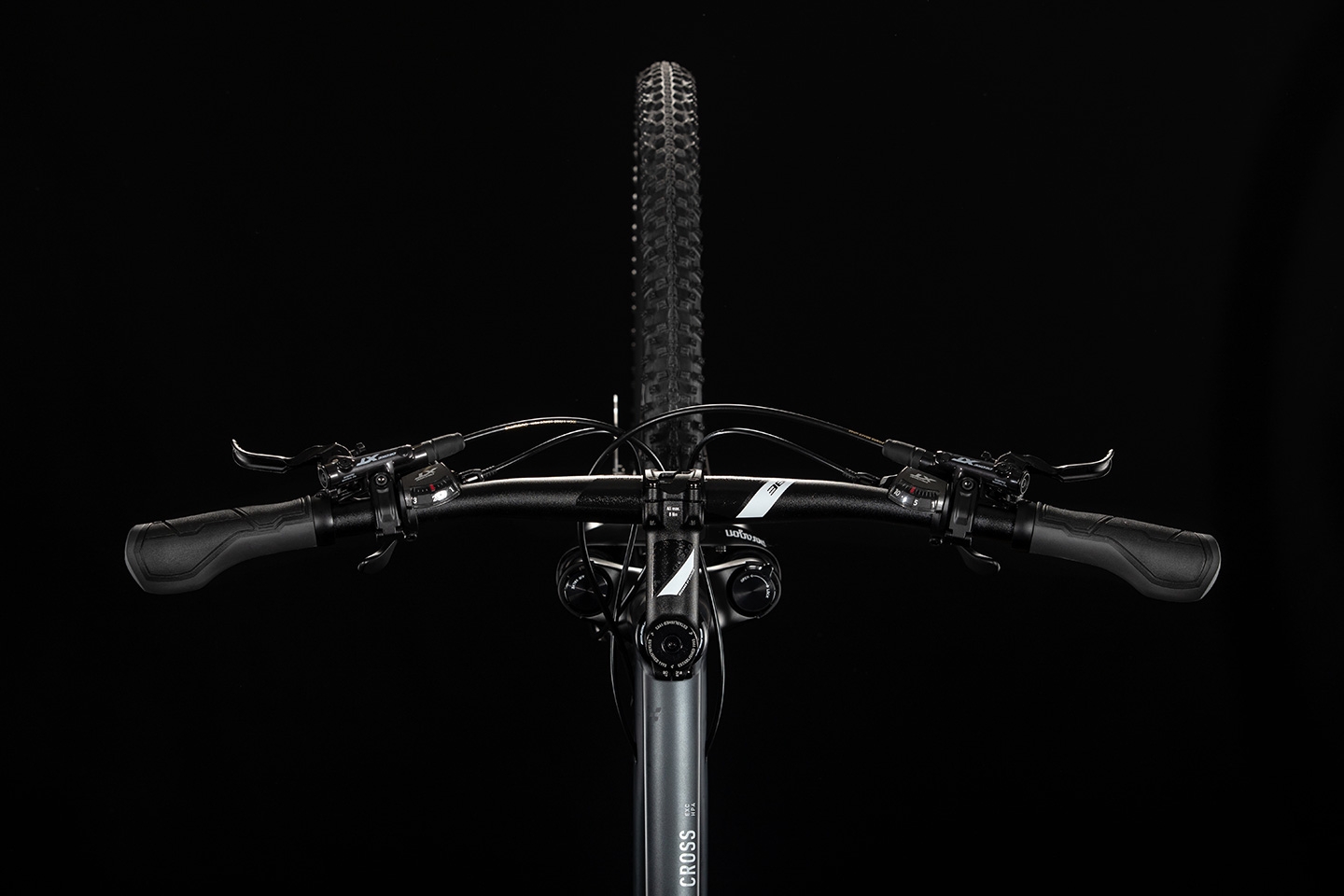

| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | Natural Fit All Terrain |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Natural Fit Sequence+ |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | CUBE PP MTB |
| WEIGHT | 11,9 kg |
| COLOUR | iridium´n´white |
| ART. NO | 345400 |
GEOMETRY

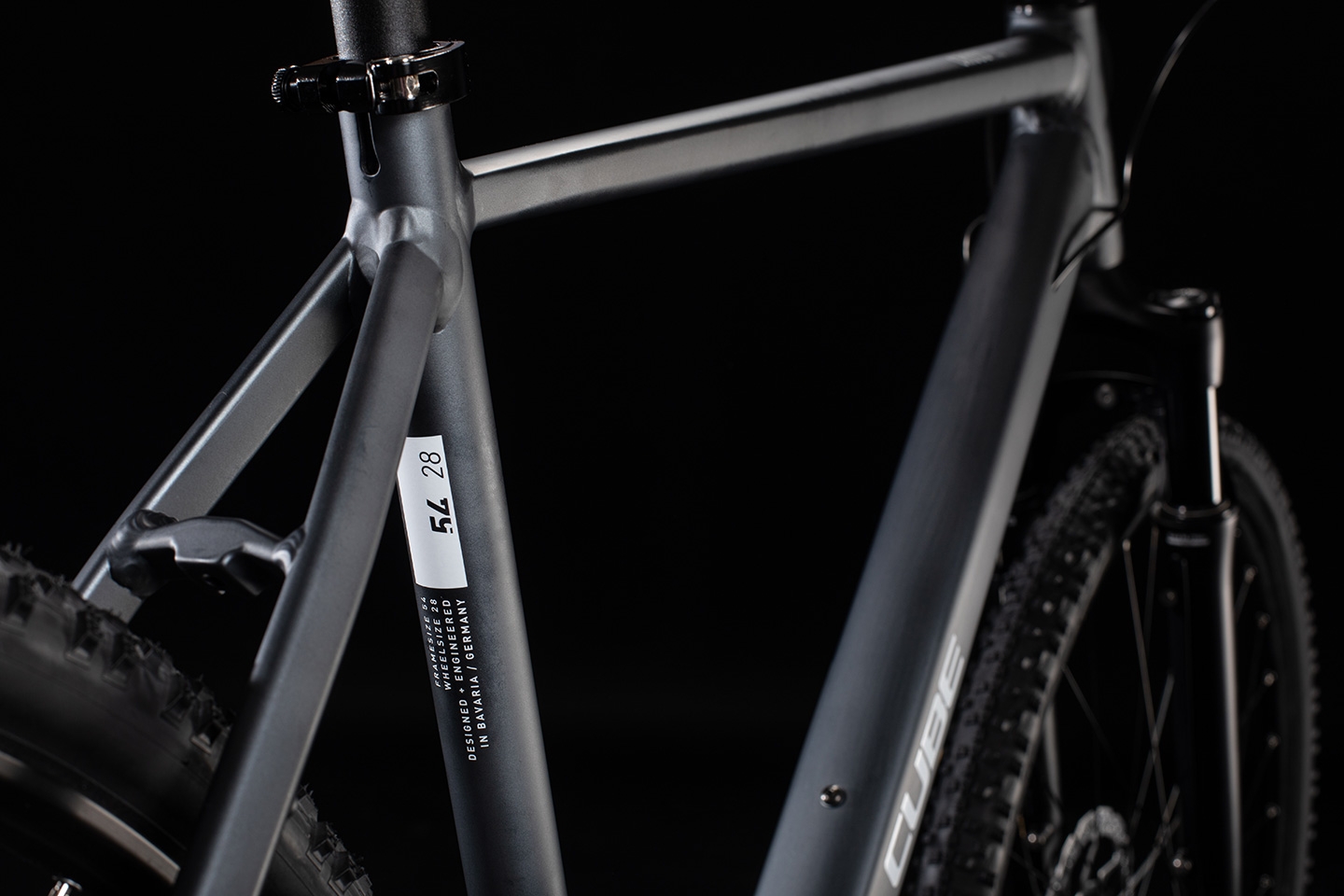

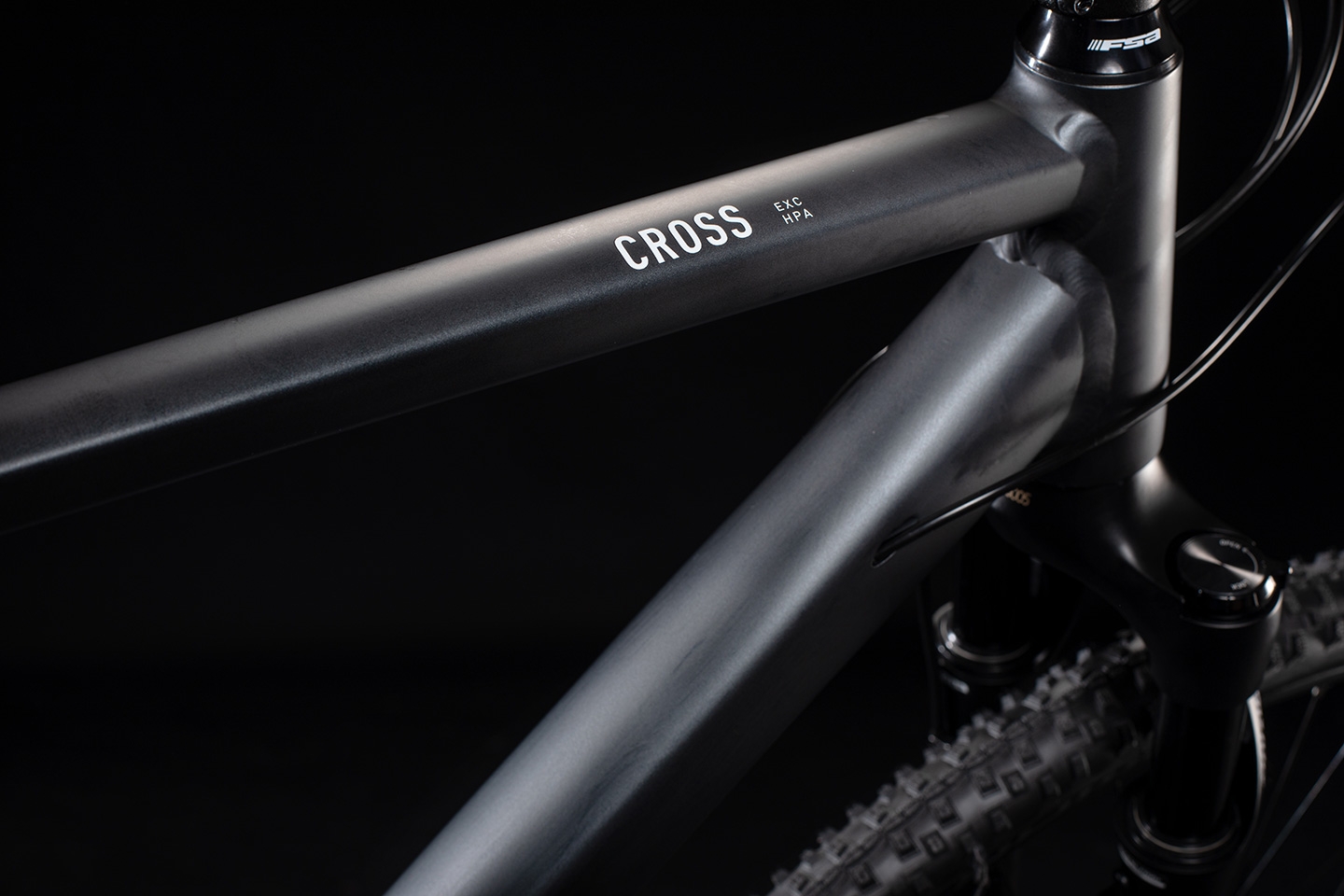

When they set out to design the Cross's aluminium frame, our engineers set themselves an ambitious goal: to increase efficiency, stability and riding comfort, all whilst reducing weight. That's why you'll find technologies in the Cross frame that ordinarily belong in much more expensive bikes. Whether it's the Smooth Welding technology we've employed to improve the appearance of frame joints or the sleek, double-butted aluminium tubes and neatly integrated luggage carrier and mudguard mounts, everything is here to improve both function and looks. A tapered head tube improves steering precision, while cables routed inside the down tube help keep your gears shifting smoothly for longer, with minimal maintenance.
