CROSS
ALLROAD

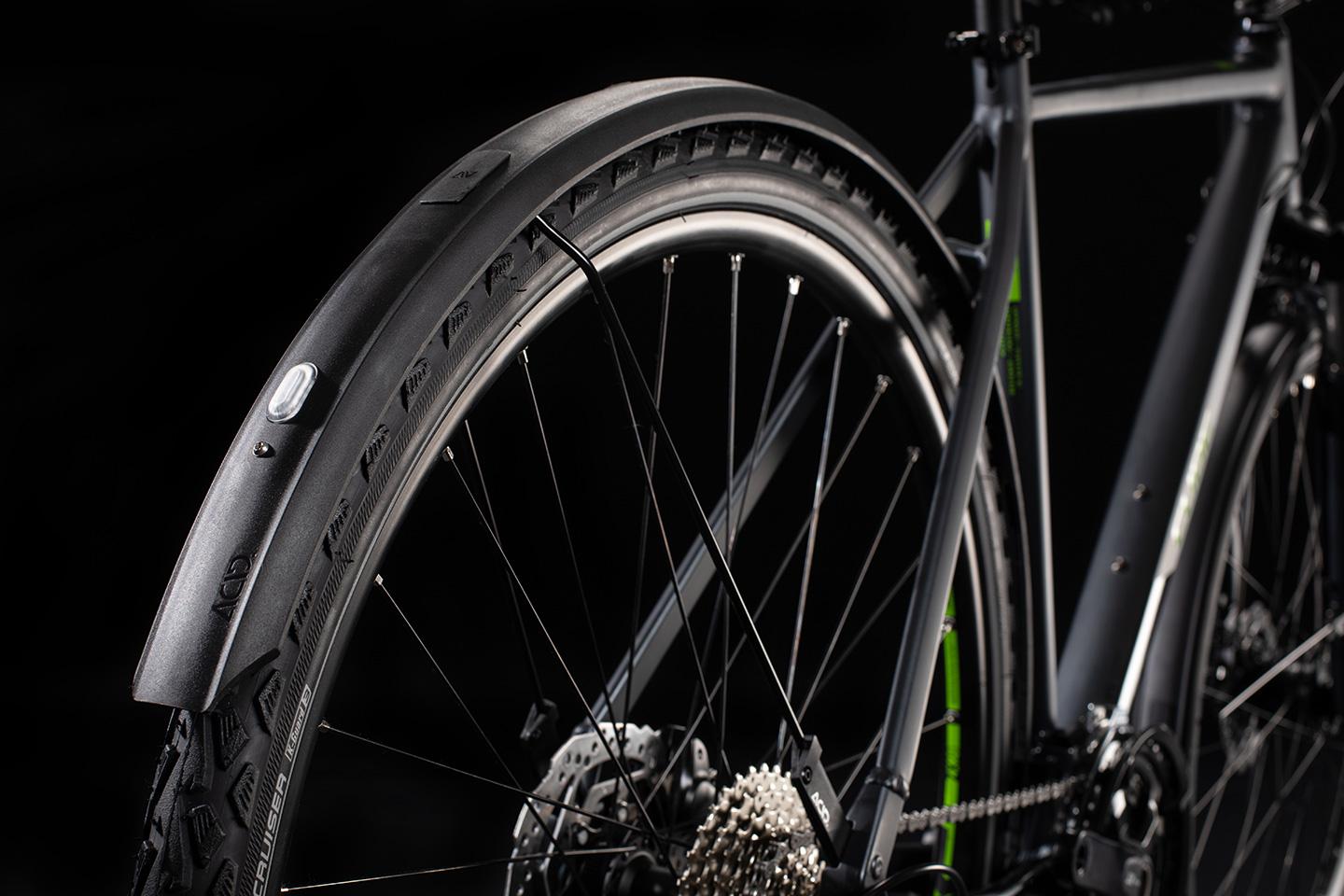

Some people will tell you that one bike can't do it all. All we can say is, they clearly haven't tried the Cross Allroad. Because this bike redefines versatility. Blending the sophisticated frame design of our Cross series with the added functionality of full-length mudguards and a built-in rear light and hub dynamo, this is a bike that's capable of tackling everything from the daily commute to extended weekend excursions. From the organic appearance of the Smooth Welding joints at the tapered head tube to the low-maintenance internal cable routing and RILink compatible carrier mounts, every detail is designed to enhance comfort, strength, durability and appearance. Shimano's slick, reliable 10-speed transmission is backed by the powerful all-weather stopping ability of hydraulic disc brakes and the comfort of a Suntour suspension fork. All roads, all weather, all seasons, all purposes: the Cross Allroad is the bike for all reasons.
AUSSTATTUNG
| FRAME | Aluminium Superlite Trekking Cross Double Butted |
|---|---|
| SIZE | Men: 46, 50, 54, 58, 62, Trapeze: 46, 50, 54 |
| FORK | SR Suntour NCX D LO, 63mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano XT RD-T8000, 10-Speed |
| FRONT DERAILLEUR | Shimano Deore FD-T6000, Top-Swing, 31.8mm |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard |
| CASSETTE | Shimano CS-HG500, 11-34T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano Alivio FH-M4050 |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Land Cruiser, Active, 47x622 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | Natural Fit All Terrain |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Natural Fit Sequence+ |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | Busch&Müller Lumotec IQ-XS N Plus |
| REAR LIGHT | Busch&Müller Xeltec |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | ACID 53 |
| BELL | Knog Oi |
| WEIGHT | 14,6 kg |
| COLOUR | iridium´n´green |
| ART. NO | 346300 |
GEOMETRY

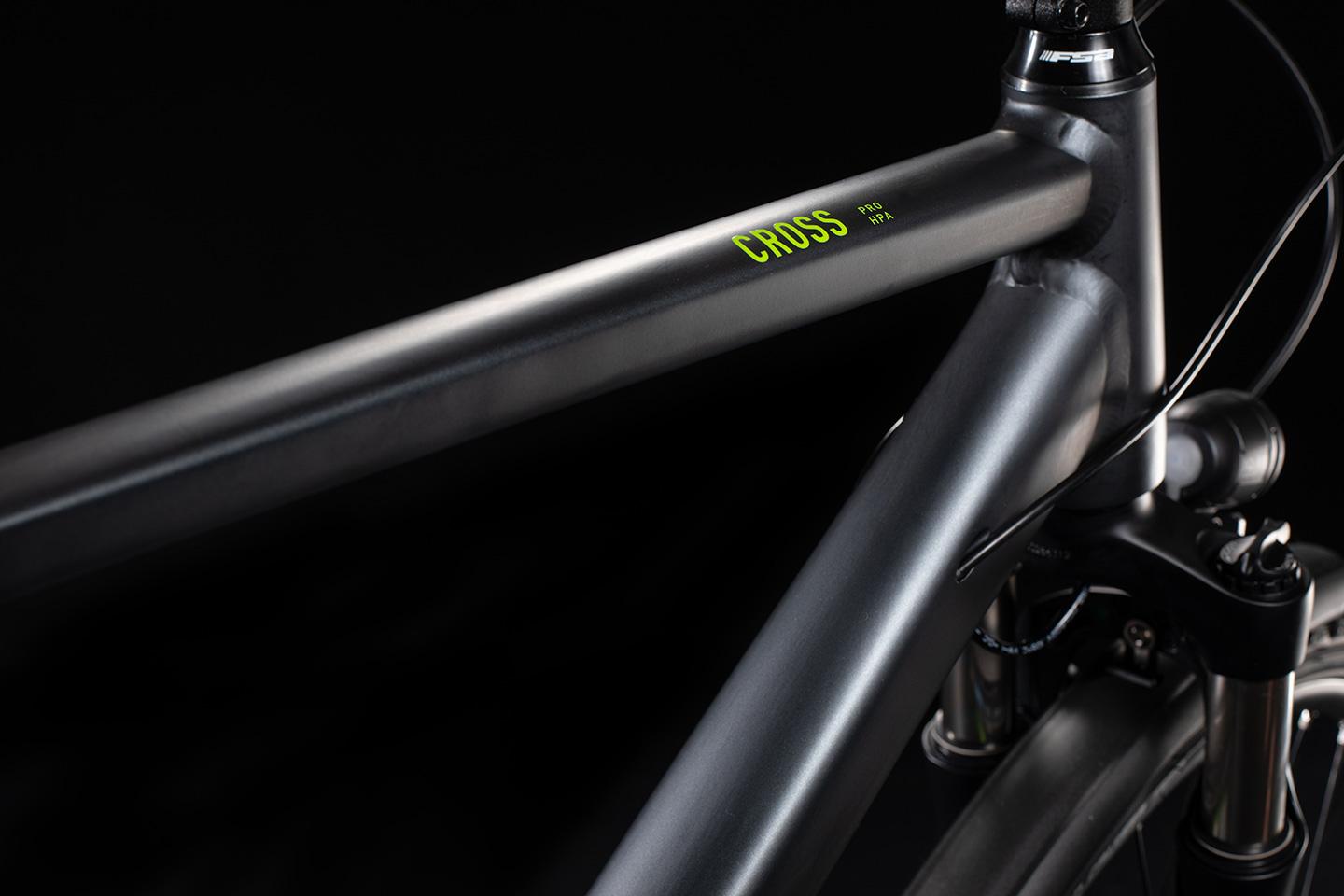

When they set out to design the Cross's aluminium frame, our engineers set themselves an ambitious goal: to increase efficiency, stability and riding comfort, all whilst reducing weight. That's why you'll find technologies in the Cross frame that ordinarily belong in much more expensive bikes. Whether it's the Smooth Welding technology we've employed to improve the appearance of frame joints or the sleek, double-butted aluminium tubes and neatly integrated luggage carrier and mudguard mounts, everything is here to improve both function and looks. A tapered head tube improves steering precision, while cables routed inside the down tube help keep your gears shifting smoothly for longer, with minimal maintenance.
