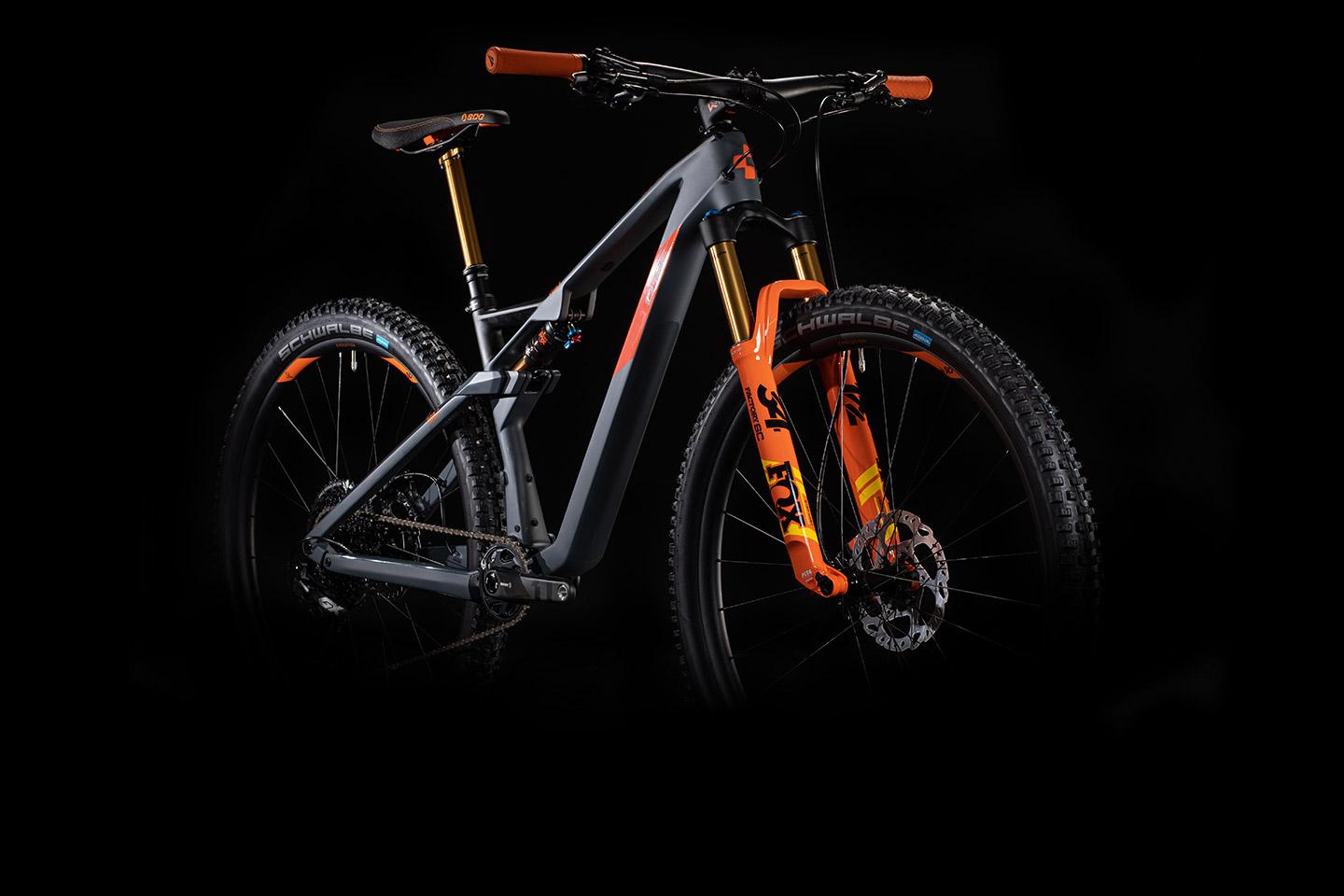

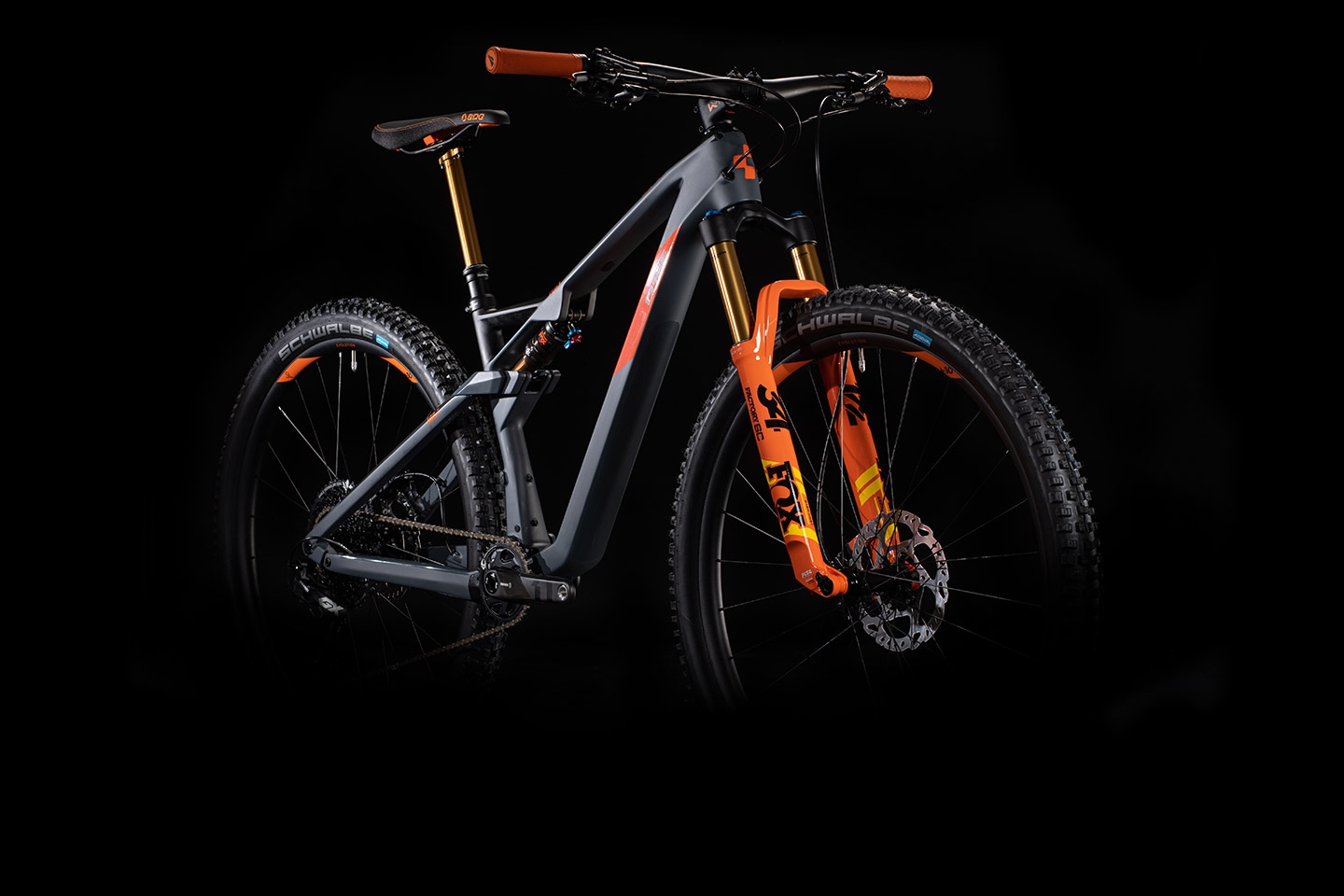

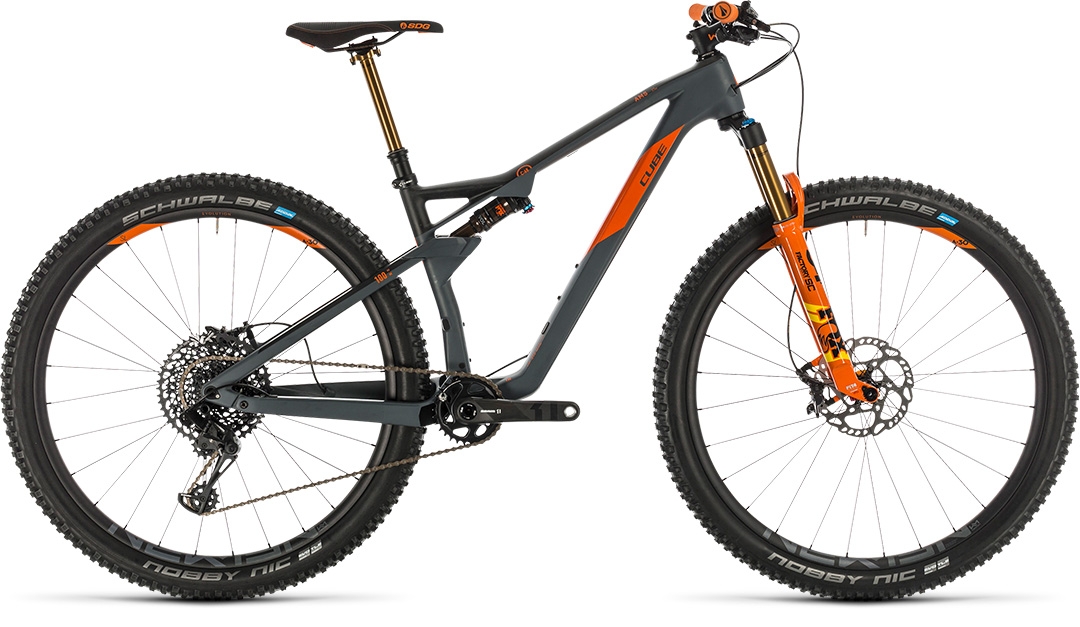

AMS 100 C:68
TM 29

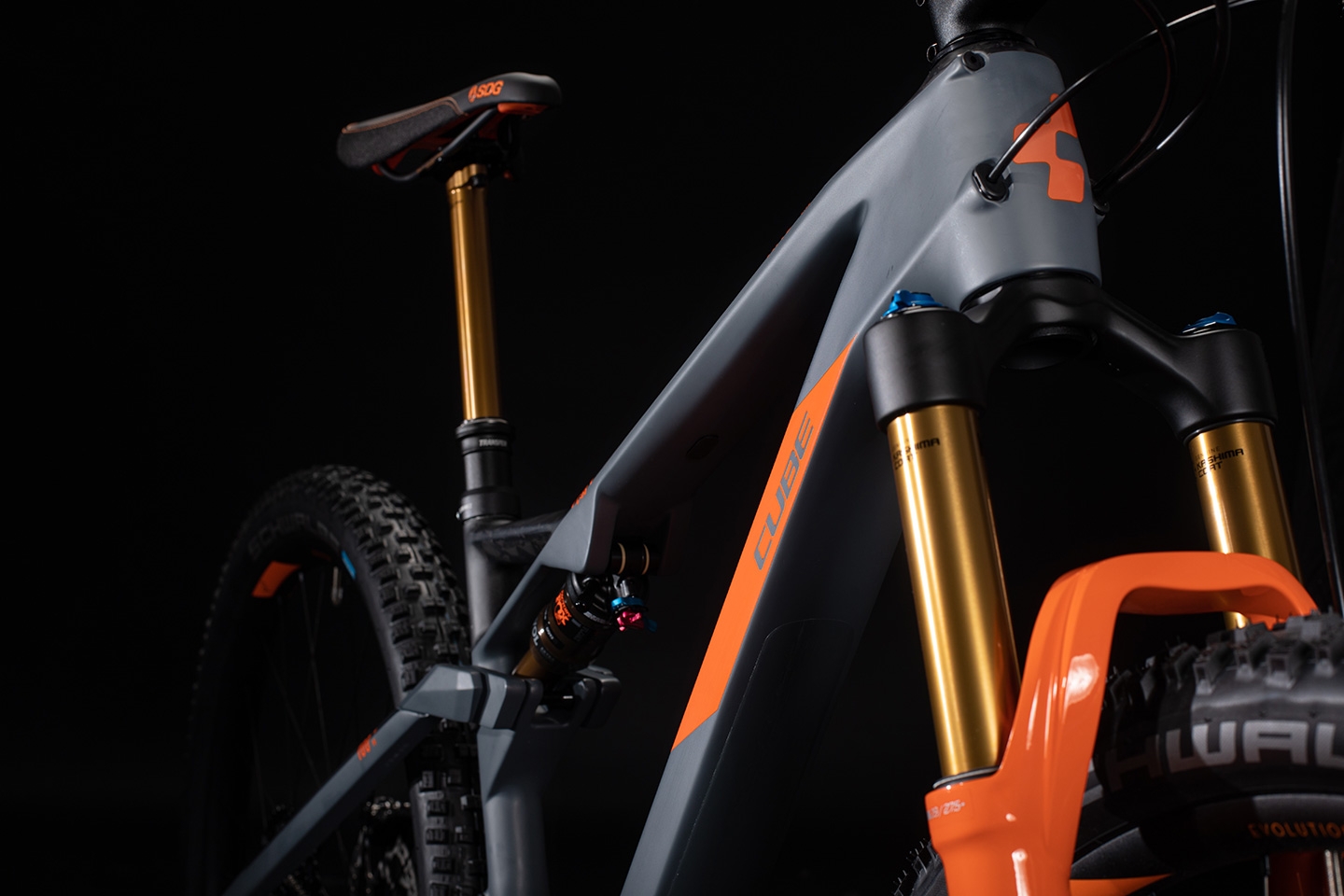

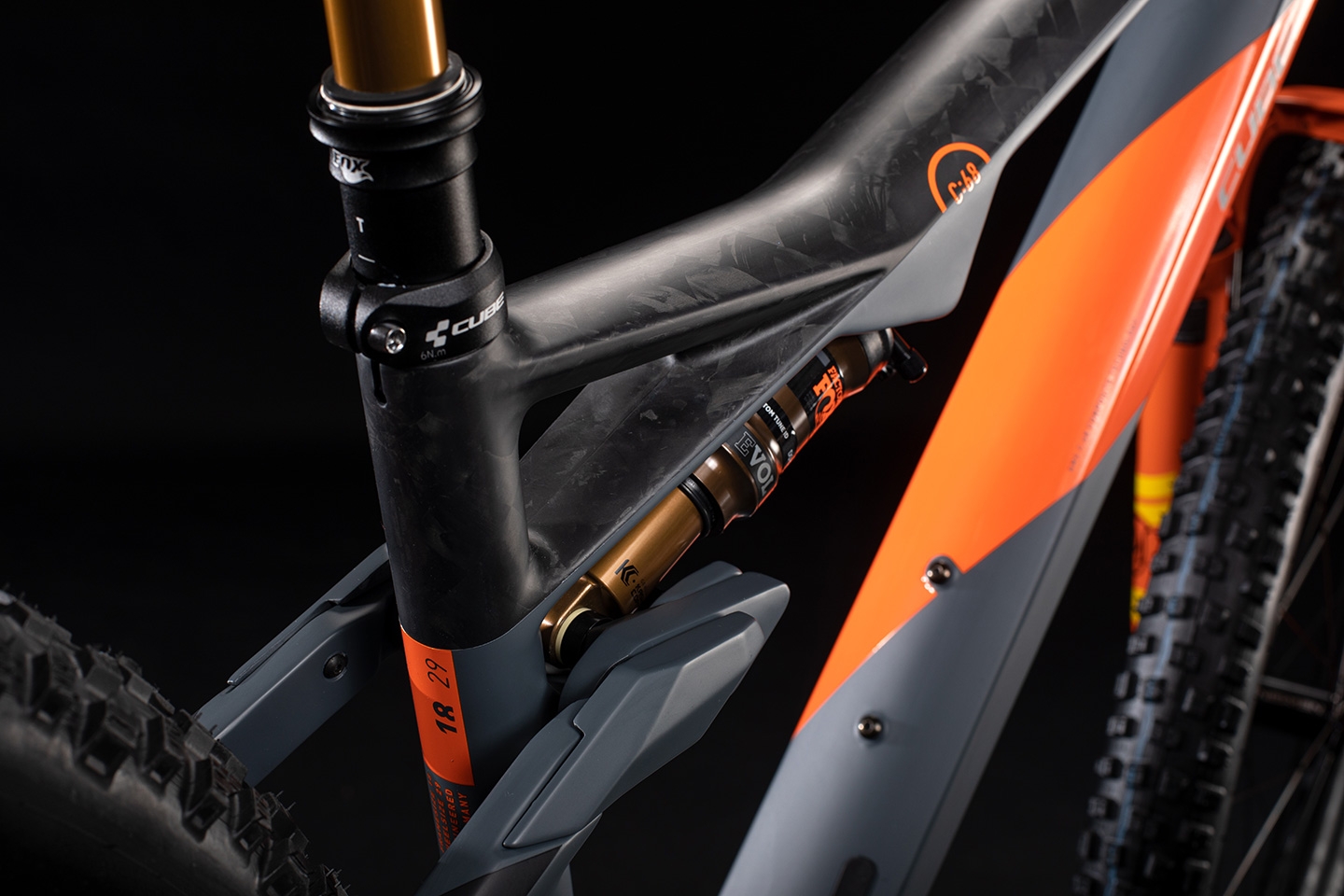

At CUBE we're great believers in the adage that you shouldn't always judge a book by its cover. That's why, with the AMS 100 C:68 TM 29, we've combined the race-ready speed of our AMS 100 platform with trail-tough components like a 120mm travel Fox 34 Float Factory fork, Fox Transfer Factory remote dropper post and wider-profile Newmen Evolution rims shod with grippy, big-volume 2.35in tyres. The result is a bike that doesn't just look fast, but is capable of taking even the most demanding of trails - or race courses - apart and reassembling them in smooth, easily digestible chunks of flat-out fun. Add Sram's stunning Eagle 1x12 drivetrain and powerful Shimano XT hydraulic disc brakes, and you've got a trail-devouring machine that's tough to beat. The low weight, incredible stiffness and efficient kinematics of the AMS 100 chassis are a key part of this bike's stunning performance. Using the proven potential of our four-bar linkage suspension and packaging it around our proprietary C:68 carbon construction, our designers have succeeded in combining low weight, ground-hugging comfort and control, and incredible rigidity for accurate steering and on-demand acceleration. From the tapered steerer to the Boost rear end and elegant rocker, it's a bike that delivers on the promise of its looks. Carbon-framed efficiency, race course-bred speed and trail-capable components: it's the CUBE Trail Motion creed.
AUSSTATTUNG

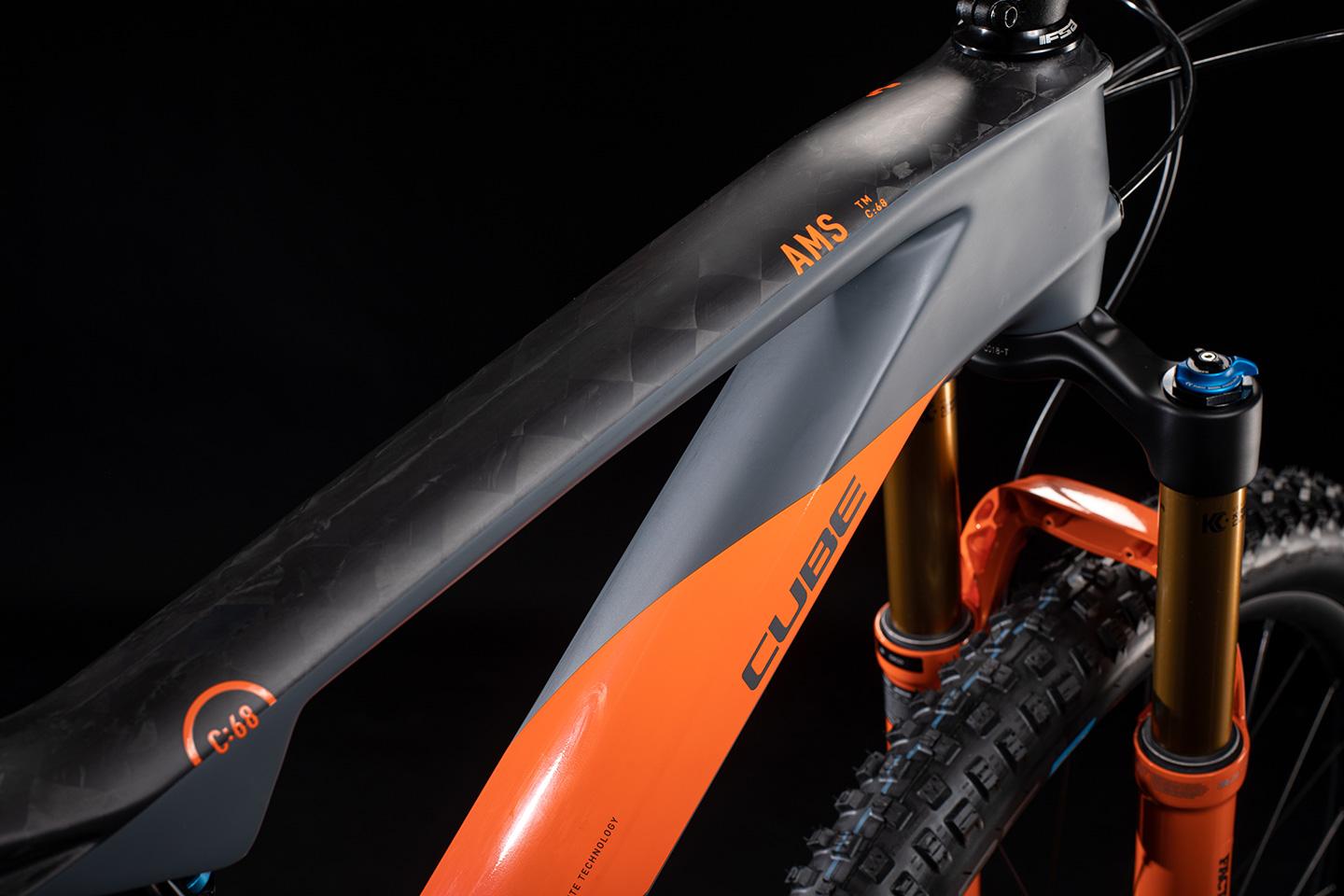

| FRAME | C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost 148, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 34 Float SC FIT4 Factory, Tapered, 15x110mm, 120mm, Kashima Coated |

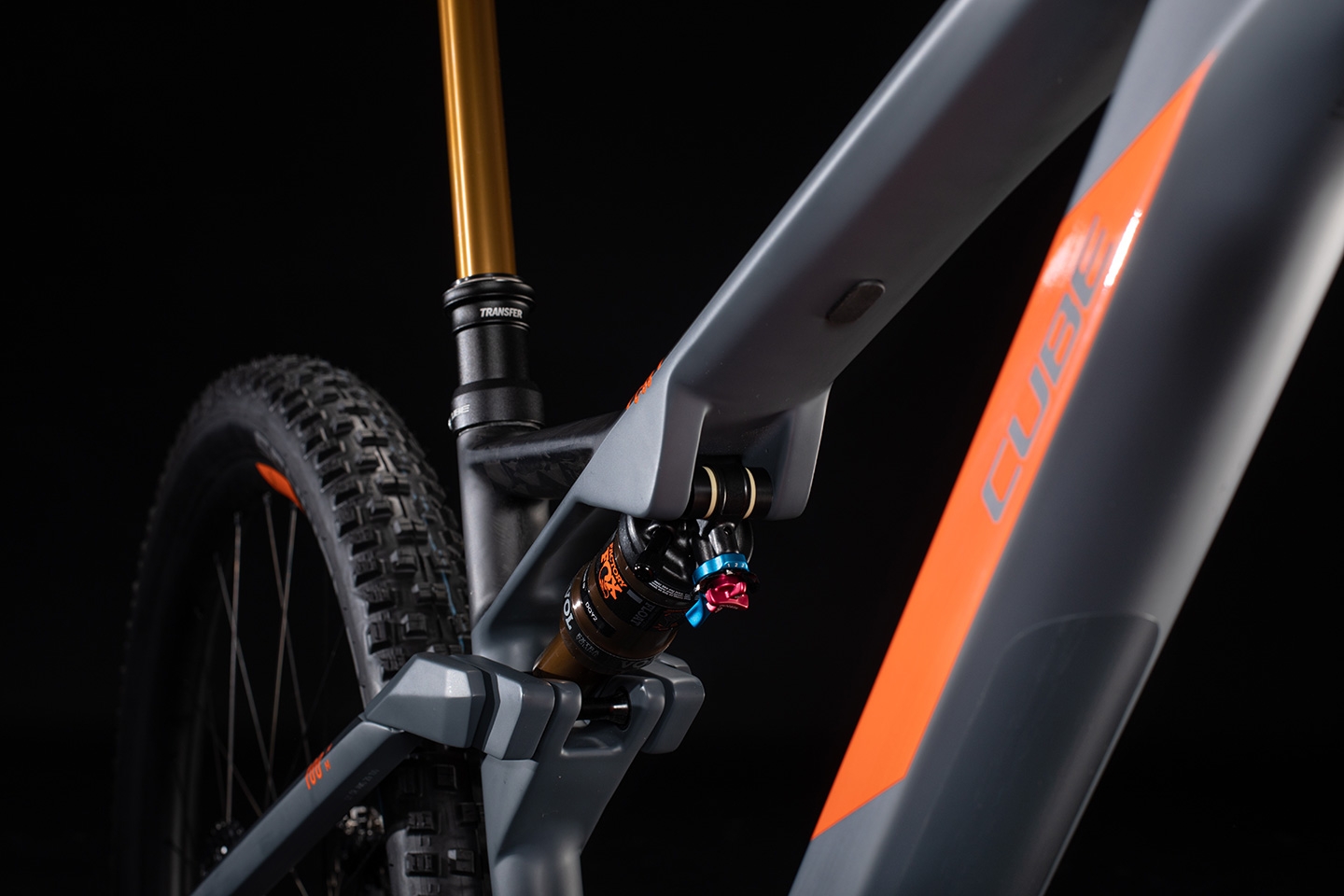

| SHOCK | Fox Float DPS Factory EVOL, 165x38mm, Kashima Coated |
| SHOCK HARDWARE | Front: 30x8mm, Rear: 30x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Sram GX Eagle™, 12-Speed |
| SHIFTERS | Sram GX Eagle™ Trigger |
| CRANKSET | Sram X1 Eagle™ Carbon Boost DUB, 30T, 175mm (170mm for 16" frame size) |
| CASSETTE | Sram XG-1275 Eagle™, 10-50T |
| CHAIN | Sram SX Eagle™ |
| WHEELSET | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35 |

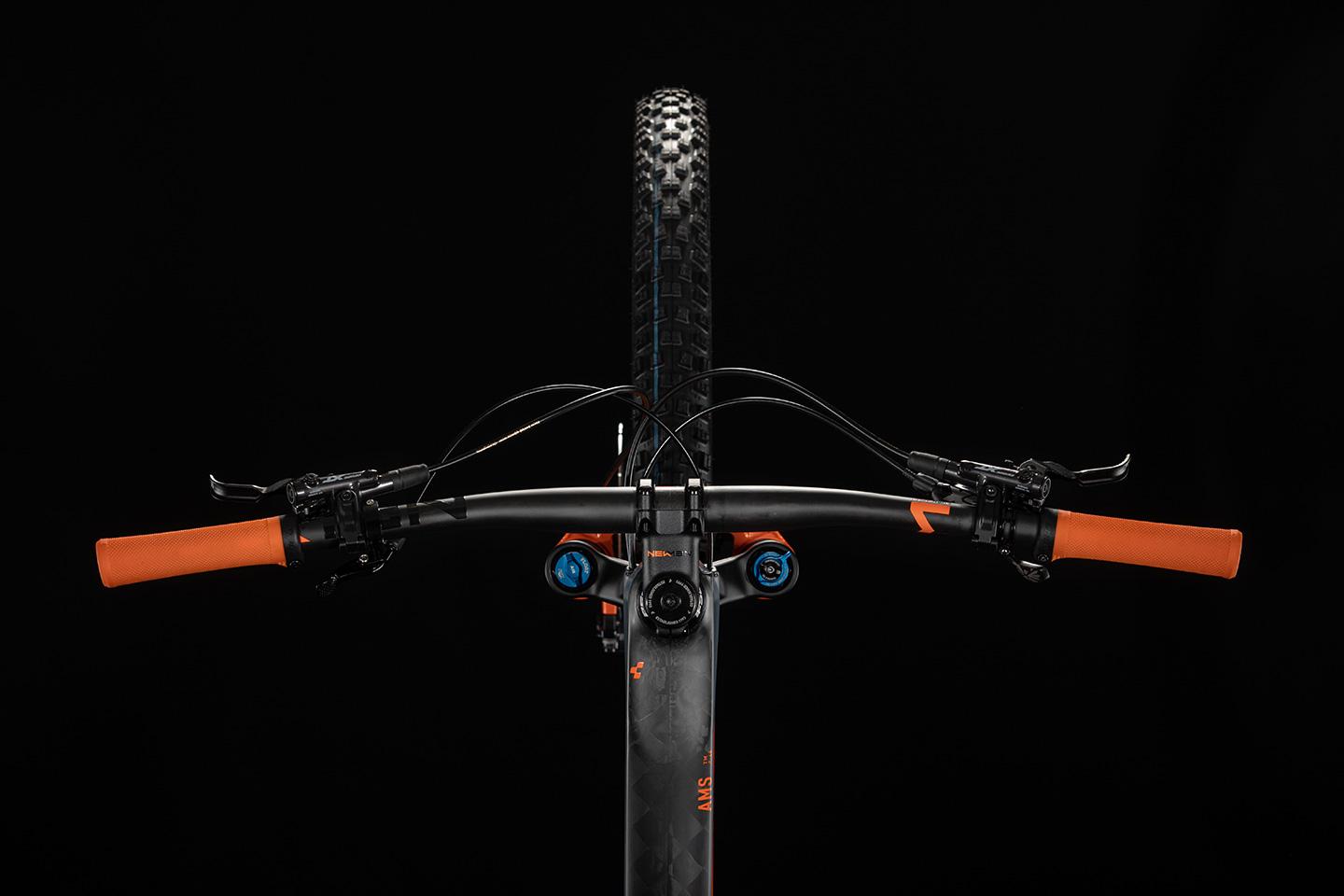

| HANDLEBAR | Newmen Advanced 318.20, Carbon, 750mm |
| GRIPS | SDG Slater |
| SEAT POST | Fox Transfer Factory 31.6mm, Kashima coated, 457x150mm (406x125mm for smallest frame size) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | SDG Radar |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 11,9 kg |
| COLOUR | grey´n´orange |
| ART. NO | 352200 |
GEOMETRY

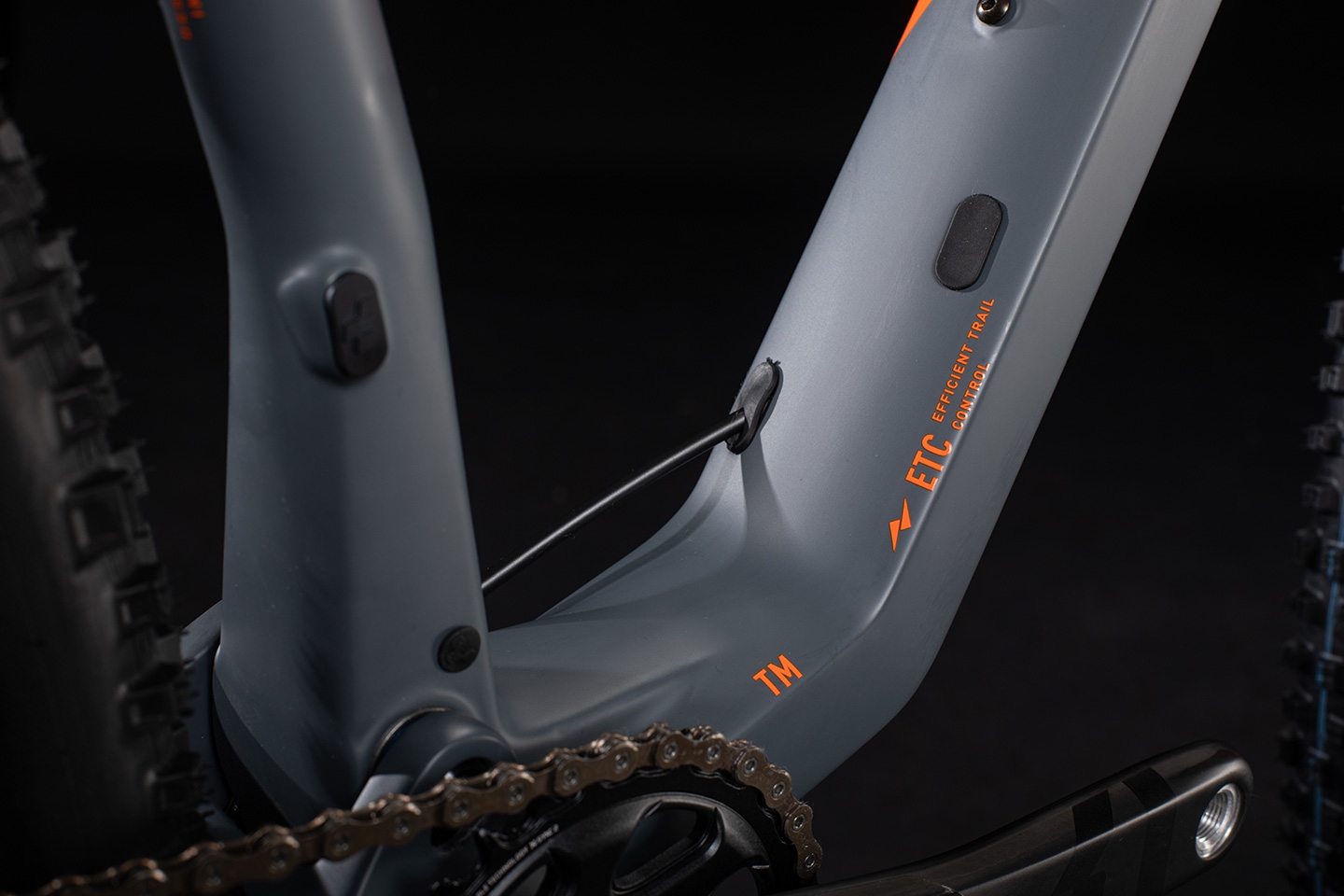

We've more than a decade and a half's experience making fast, light cross-country full-suspension bikes. Everything we've learnt during that time has gone into this frame. From the Boost 148 rear end and tapered head tube - which contribute to the AMS 100's superlative pedalling efficiency and uncannily accurate steering - to the superlight C:68 carbon construction and Advanced Twin Mold technology, everything about this frame serves one purpose: to make it the fastest way to get from A to B cross country. Stealth dropper post compatibility makes for a simple upgrade, internal cable routing keeps gear shifts clean even on the muddiest of race courses, and the super-clean appearance is given a helping hand by hiding bolts and pivots away.
