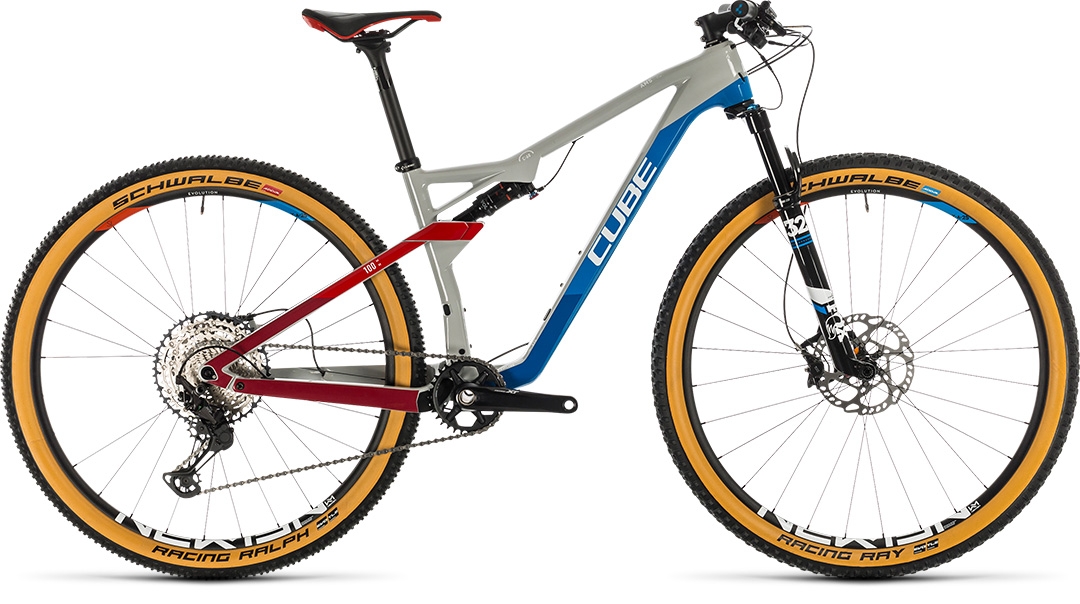

AMS 100 C:68
SL 29

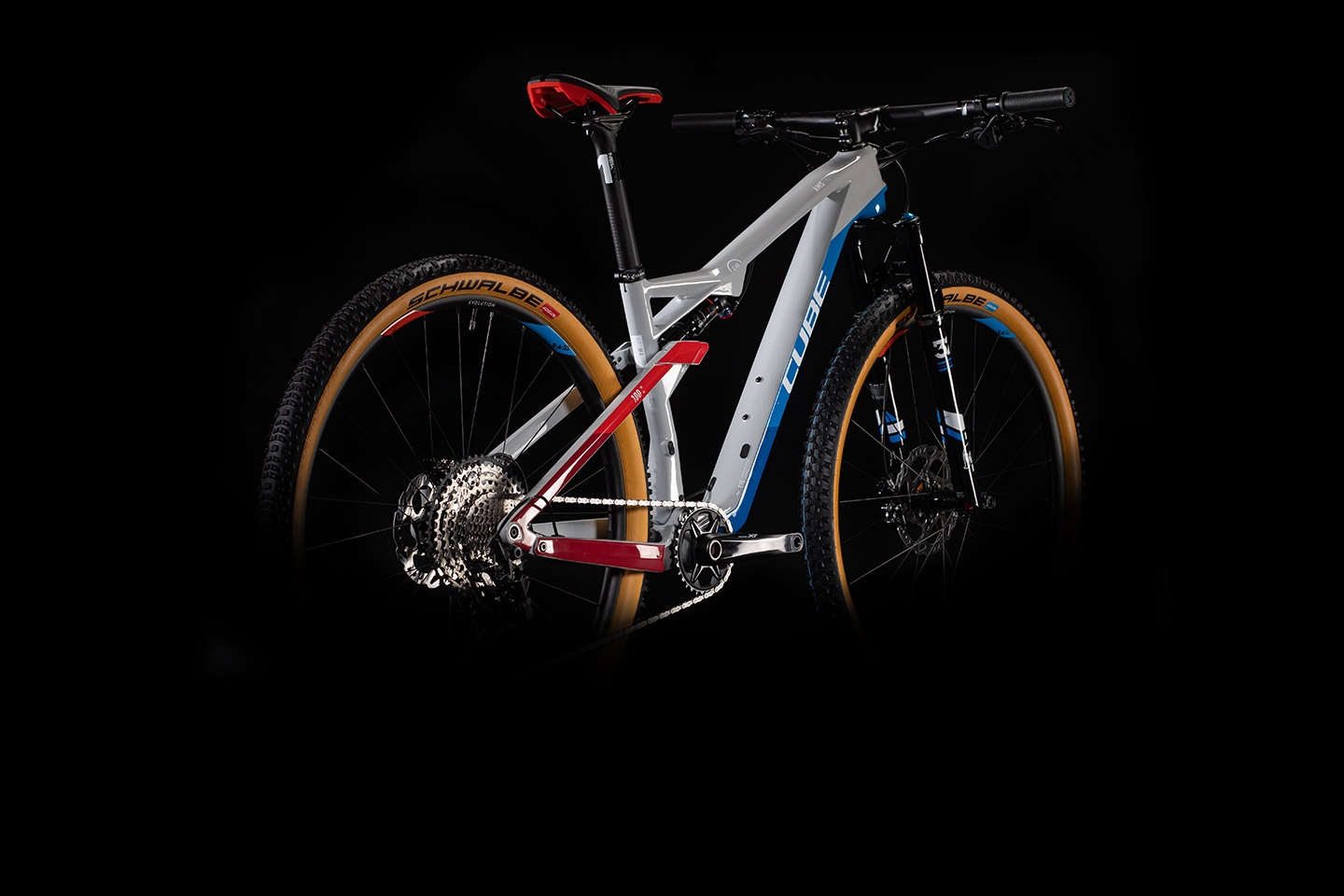

You know how it is. You've put the miles in over the winter, honed your training to perfection and marked off all the race weekends in the calendar. Now all you need is a bike that'll match your ambition - and that's where the AMS 100 C:68 SL 29 comes in. It's designed to perform in the toughest of race conditions, so that you can realise your true potential. Everything we've learnt over more than a decade and a half of building fast, light cross-country full-suspension bikes has gone into this frame. From the Boost 148 rear end and tapered head tube to the superlight C:68 carbon construction and Advanced Twin Mold technology, every feature is designed to help make this bike the fastest way to get from A to B cross country. The Fox Float DPS Performance Elite rear shock and Fox 32 Float Performance fork both feature remote lockout, whilst Newmen carbon cockpit components save vital grammes and ensure you're always in complete control. With Shimano XT hydraulic disc brakes and 12-speed transmission, you're assured of reliable forward propulsion and stopping in any and all weather conditions. The only thing missing from this race-winning machine... is you.
AUSSTATTUNG

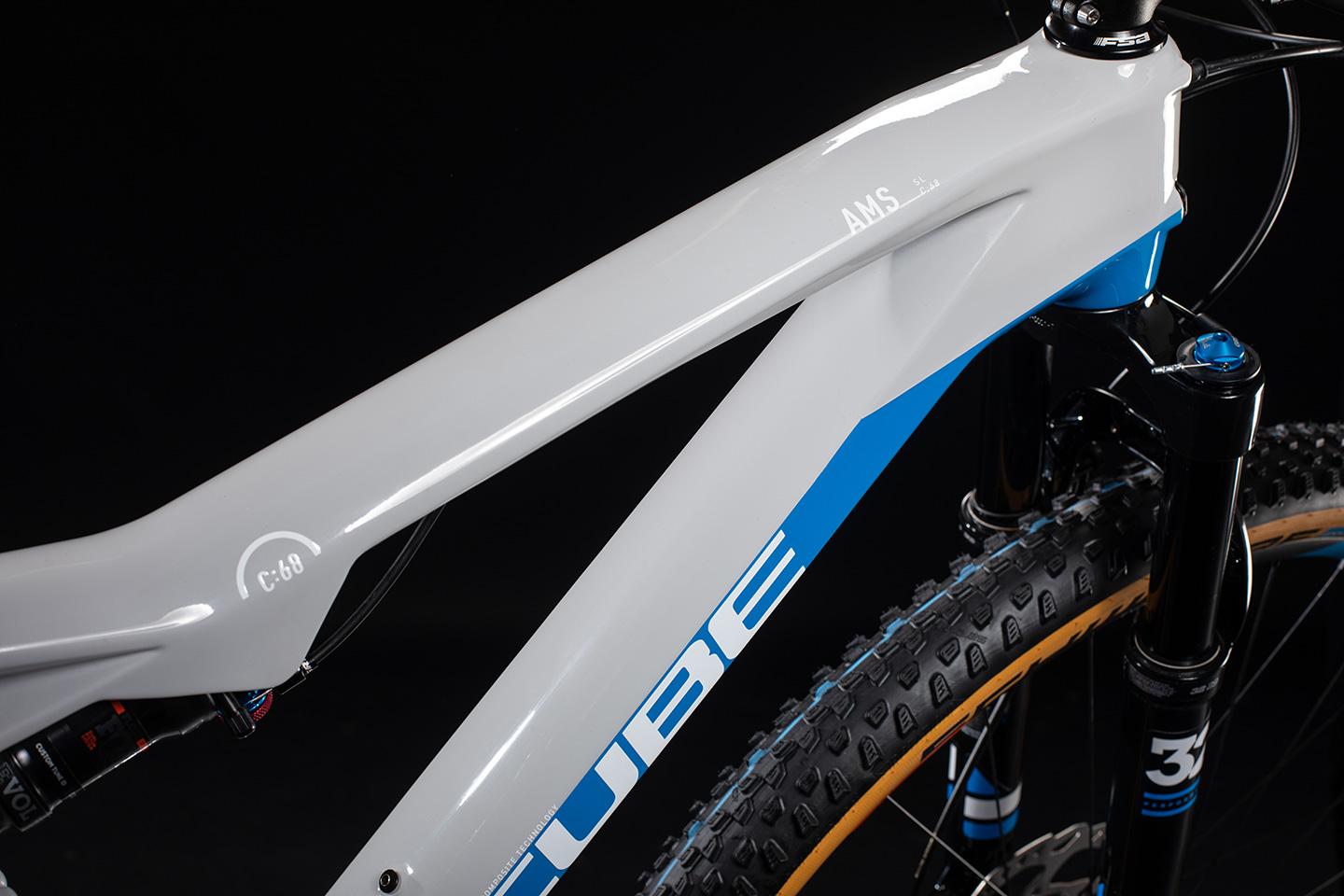

| FRAME | C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost 148, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |

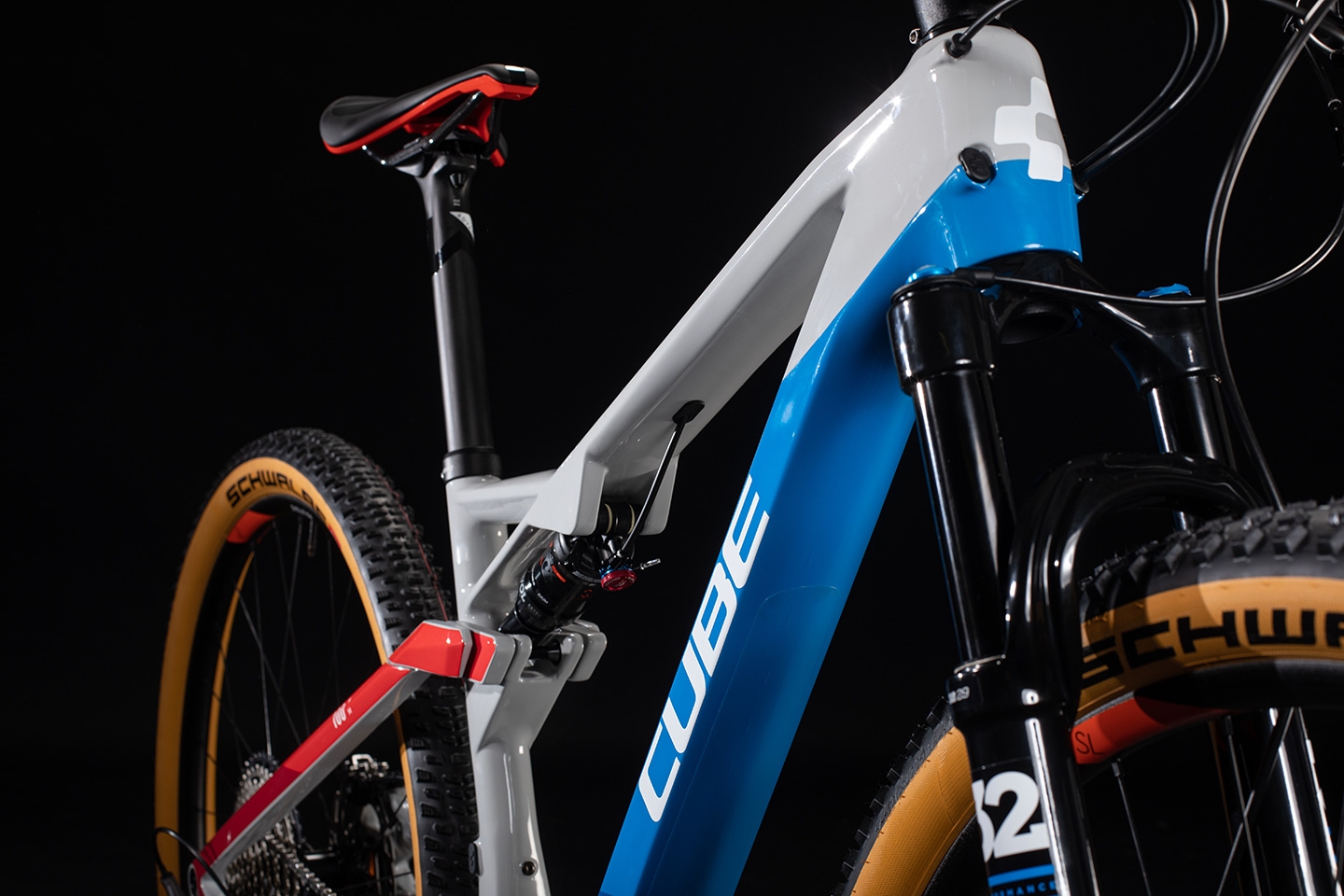

| FORK | Fox 32 Float SC, 2-Position Remote Lever, Tapered, 15x110mm, 100mm |

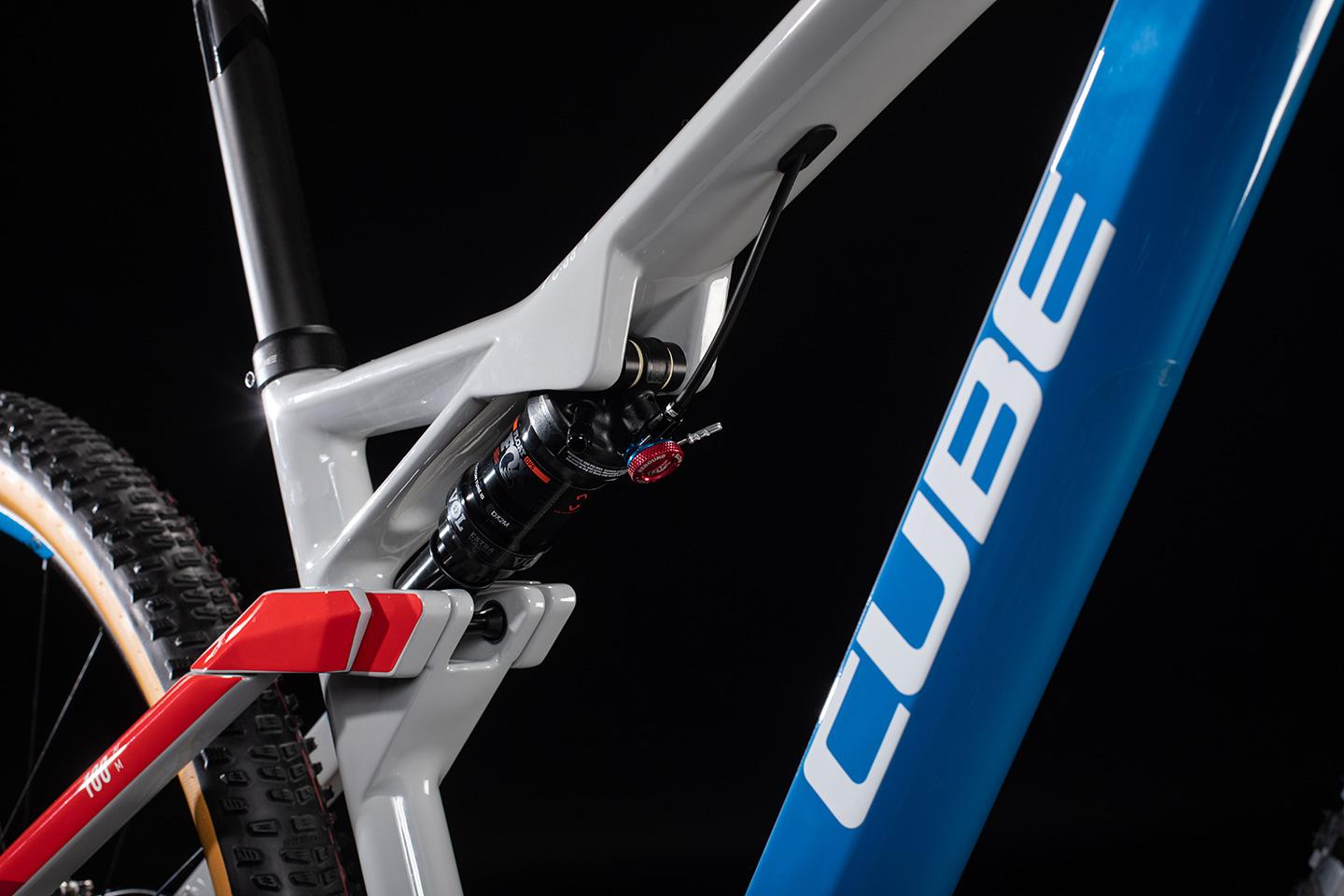

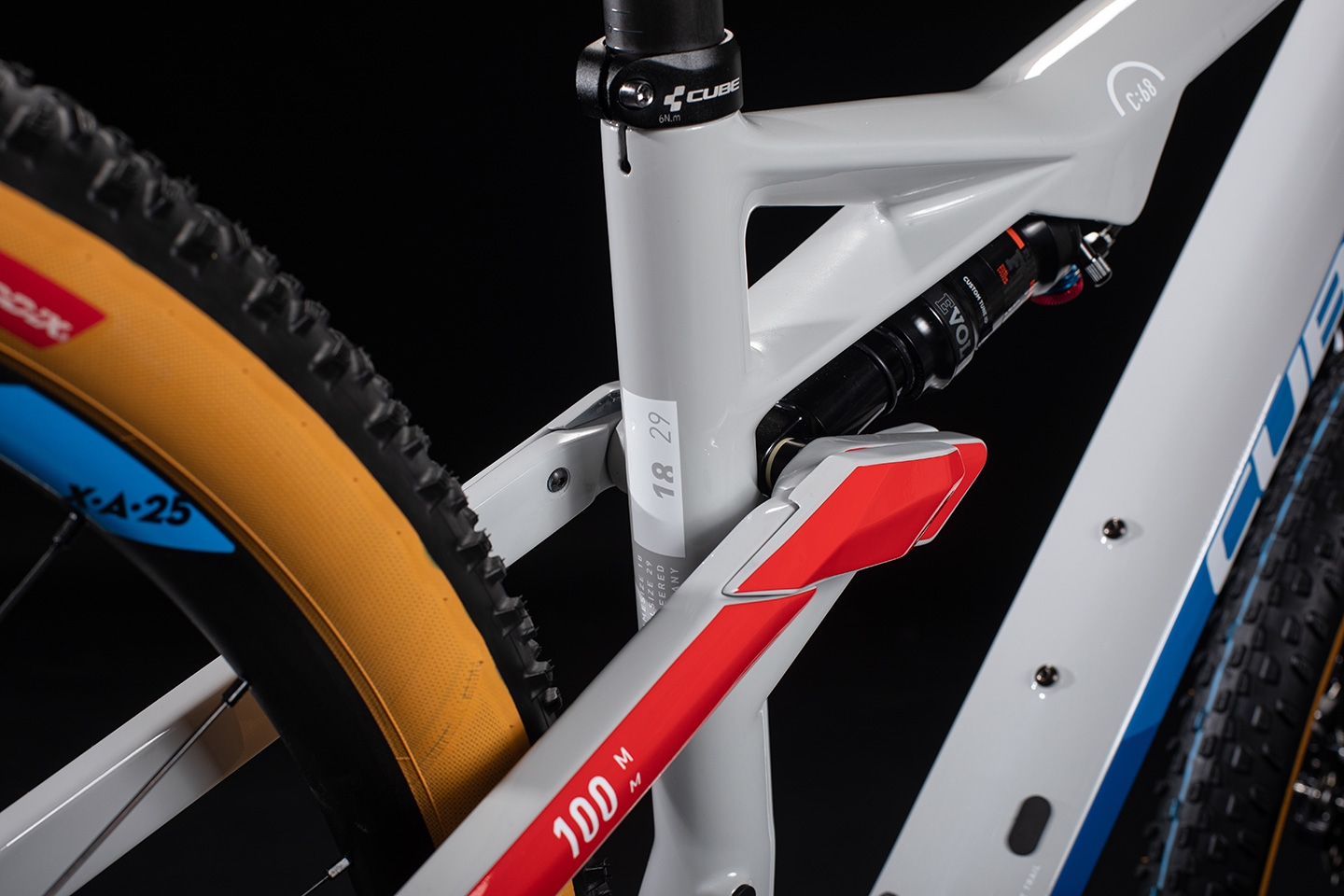

| SHOCK | Fox Float DPS Remote EVOL, 165x38mm, 2-Position Remote Lever |
| SHOCK HARDWARE | Front: 30x8mm, Rear: 30x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8100, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano SLX SL-M7100-I, Direct Attach |

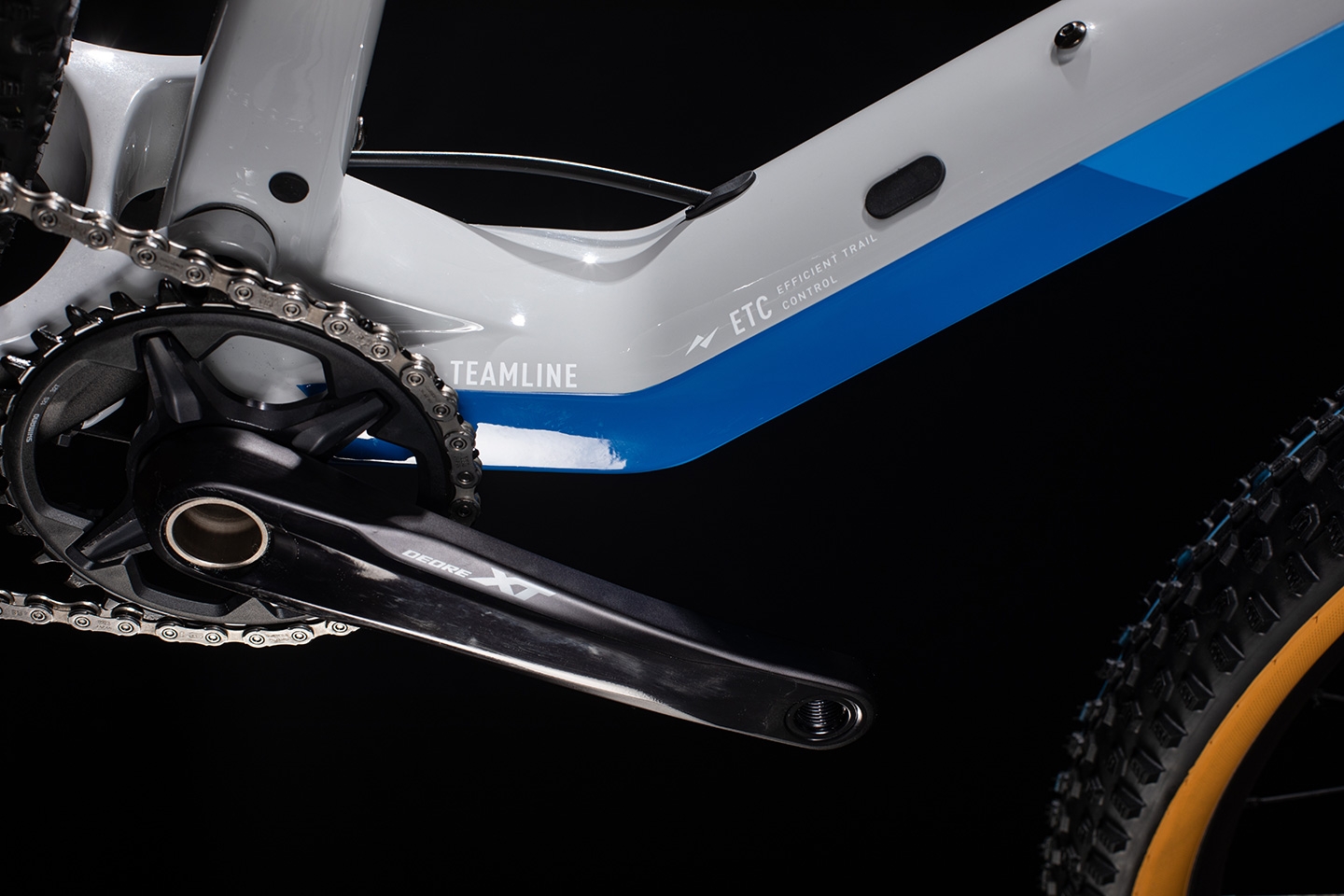

| CRANKSET | Shimano XT FC-M8100, Boost, 32T, 175mm (170mm for 16" frame size) |
| CASSETTE | Shimano SLX CS-M7100, 10-51T |
| CHAIN | Shimano CN-M7100 |
| WHEELSET | Newmen Evolution SL X.A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25, LiteSkin |
| REAR TIRE | Schwalbe Racing Ralph, Addix Speed, Kevlar, 2.25, LiteSkin |

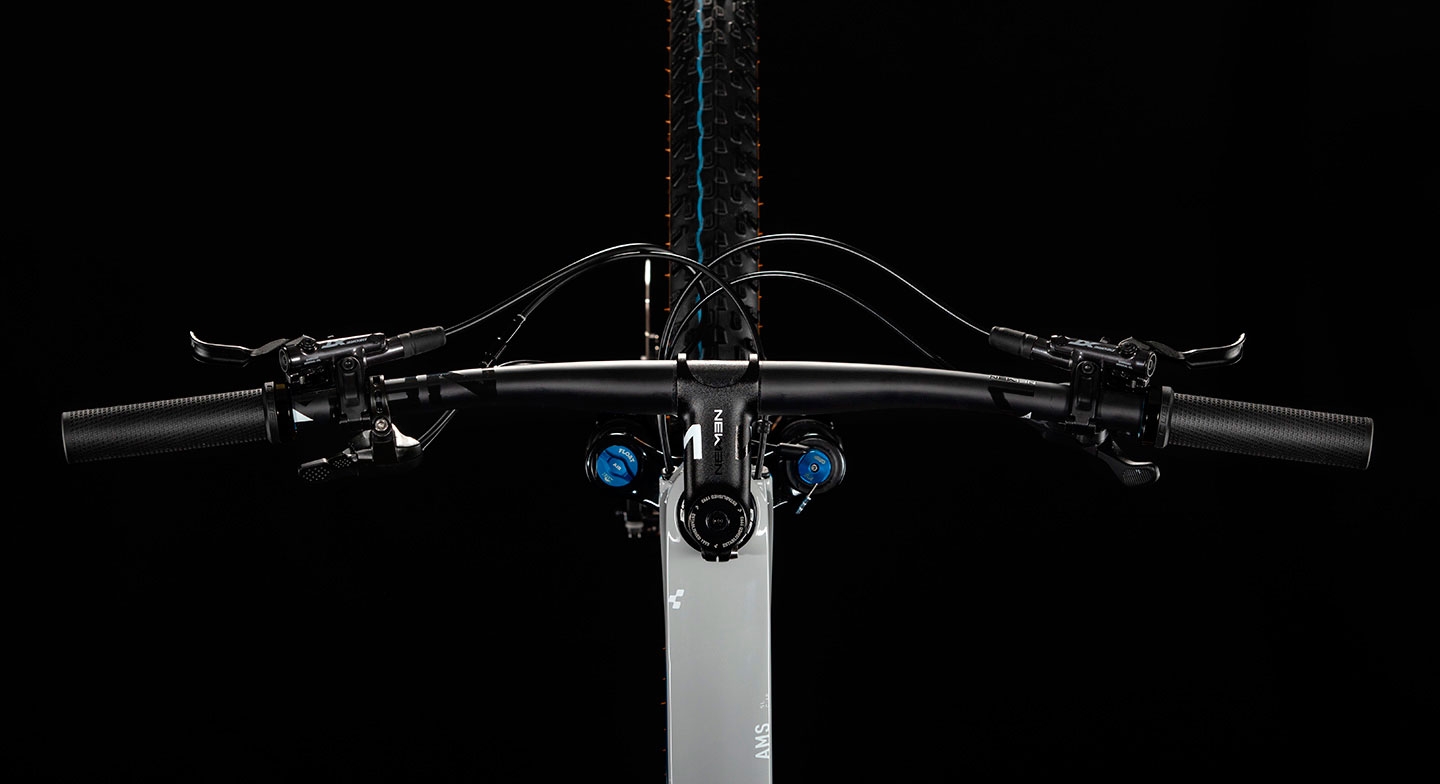

| HANDLEBAR | Newmen Advanced 318.0, Carbon, 740mm |
| GRIPS | CUBE Race SL Grip 29.5mm, 1-Clamp |
| SEAT POST | Newmen Advanced, Carbon, 31.6mm |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | Natural Fit Nuance SLT MTB |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 10,9 kg |
| COLOUR | teamline |
| ART. NO | 352300 |
GEOMETRY

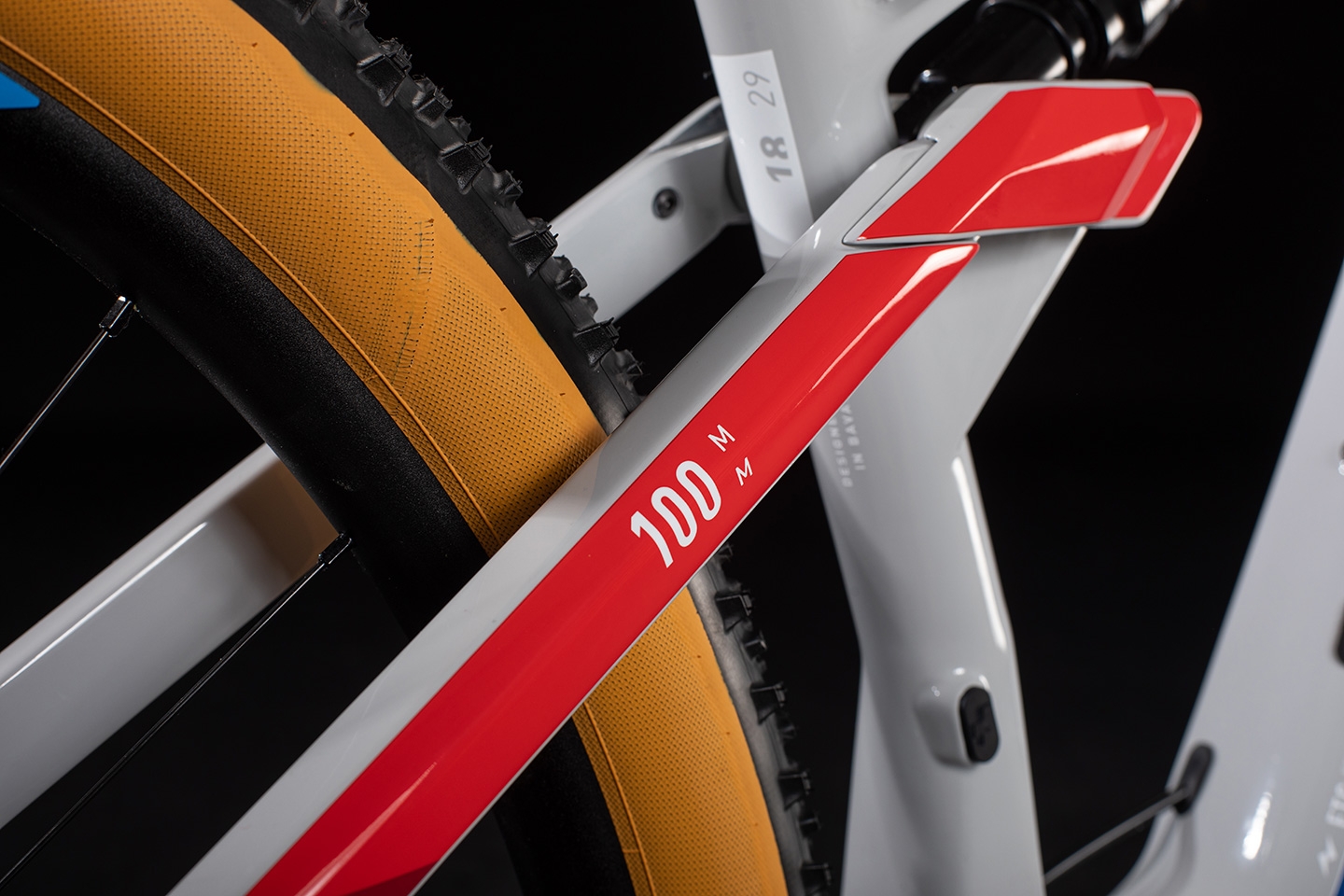

We've more than a decade and a half's experience making fast, light cross-country full-suspension bikes. Everything we've learnt during that time has gone into this frame. From the Boost 148 rear end and tapered head tube - which contribute to the AMS 100's superlative pedalling efficiency and uncannily accurate steering - to the superlight C:68 carbon construction and Advanced Twin Mold technology, everything about this frame serves one purpose: to make it the fastest way to get from A to B cross country. Stealth dropper post compatibility makes for a simple upgrade, internal cable routing keeps gear shifts clean even on the muddiest of race courses, and the super-clean appearance is given a helping hand by hiding bolts and pivots away.
