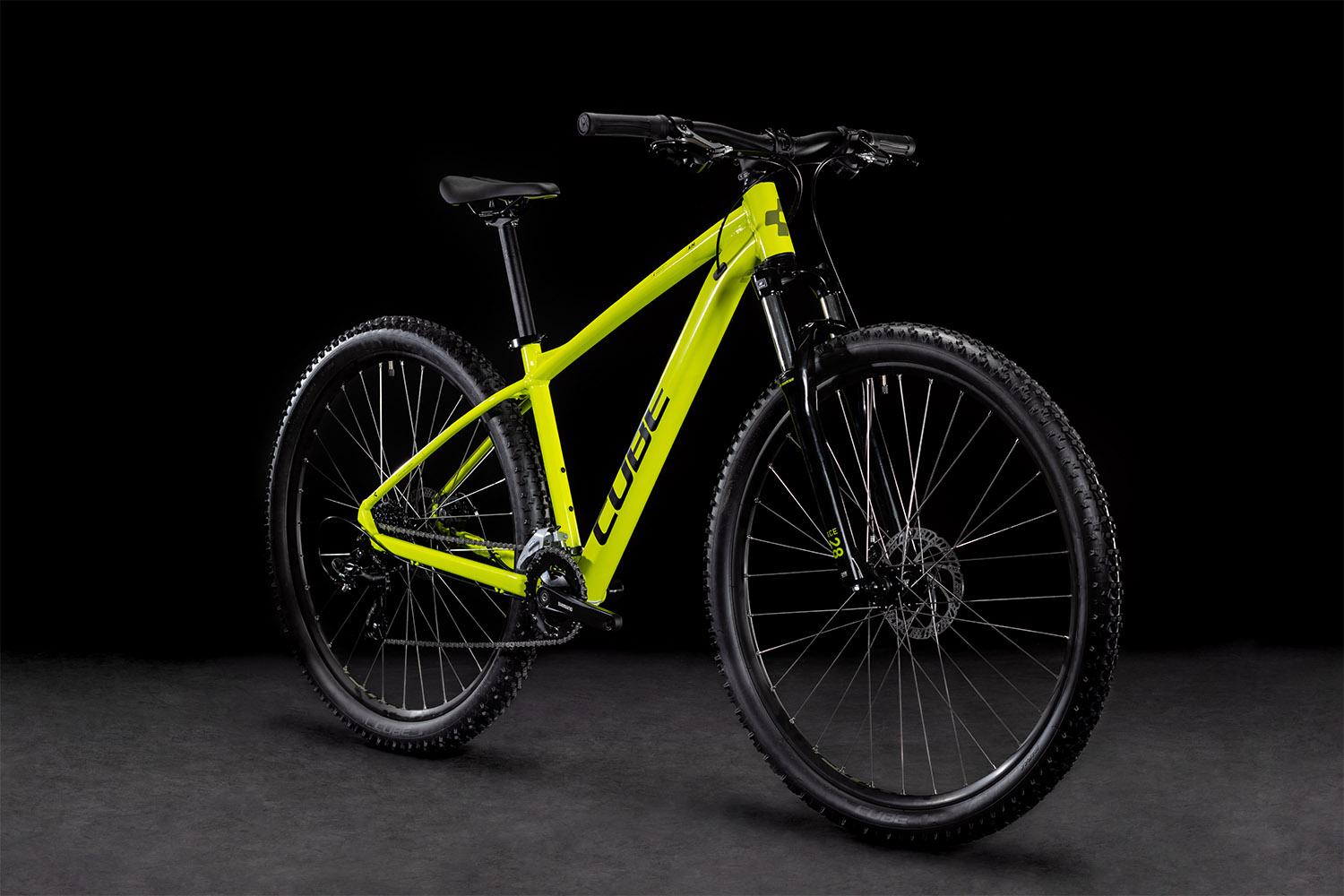

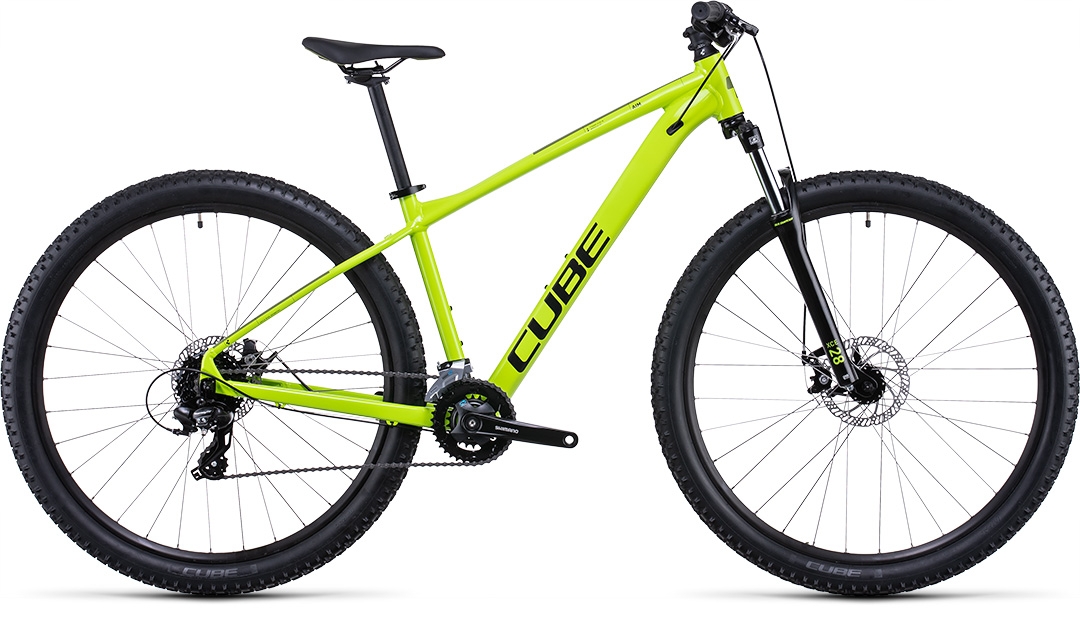

AIM
At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That's why, with the brand-new Aim, we started with a Suntour 100mm suspension fork and 2.25in tyres - for grip, comfort and control. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop. And SizeSplit, with a wider range of sizes than ever before, means every rider can find their ideal Aim.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
|---|---|
| SIZE | Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22") |
| FORK | SR Suntour XCE, 100mm |
| SUSPENSION FORK | SR Suntour XCE, 100mm |
| BRAKE SYSTEM | Tektro MD-280/U310R, Mech. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-TX800, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M315, Rapidfire-Plus |
| CRANKSET | Shimano FC-M315, 36x22T |
| CASSETTE | Shimano CS-HG200, 12-32T |
| CHAIN | KMC Z8.3 |
| FRONT HUB | CUBE Alloy Light, QR, 6-Bolt |
| REAR HUB | CUBE Alloy Light, QR, 6-Bolt |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | CUBE IMPAC Smartpac, 2.25 |
| STEM | CUBE Performance Stem, 31.8mm |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | ACID React |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | CUBE FPH863, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14,8 kg |
| COLOUR | green´n´moss |
| ART. NO | 501110 |
GEOMETRY

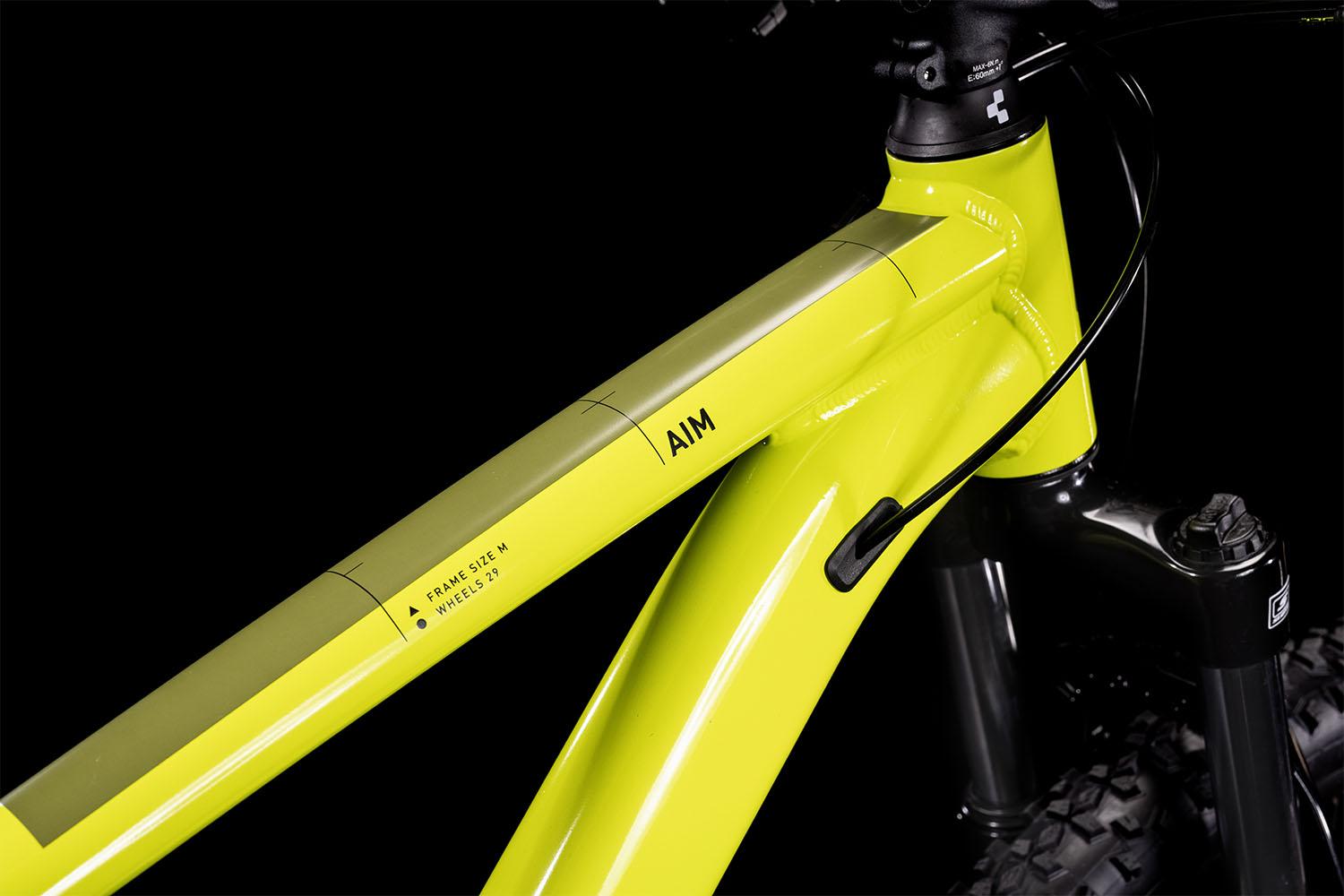

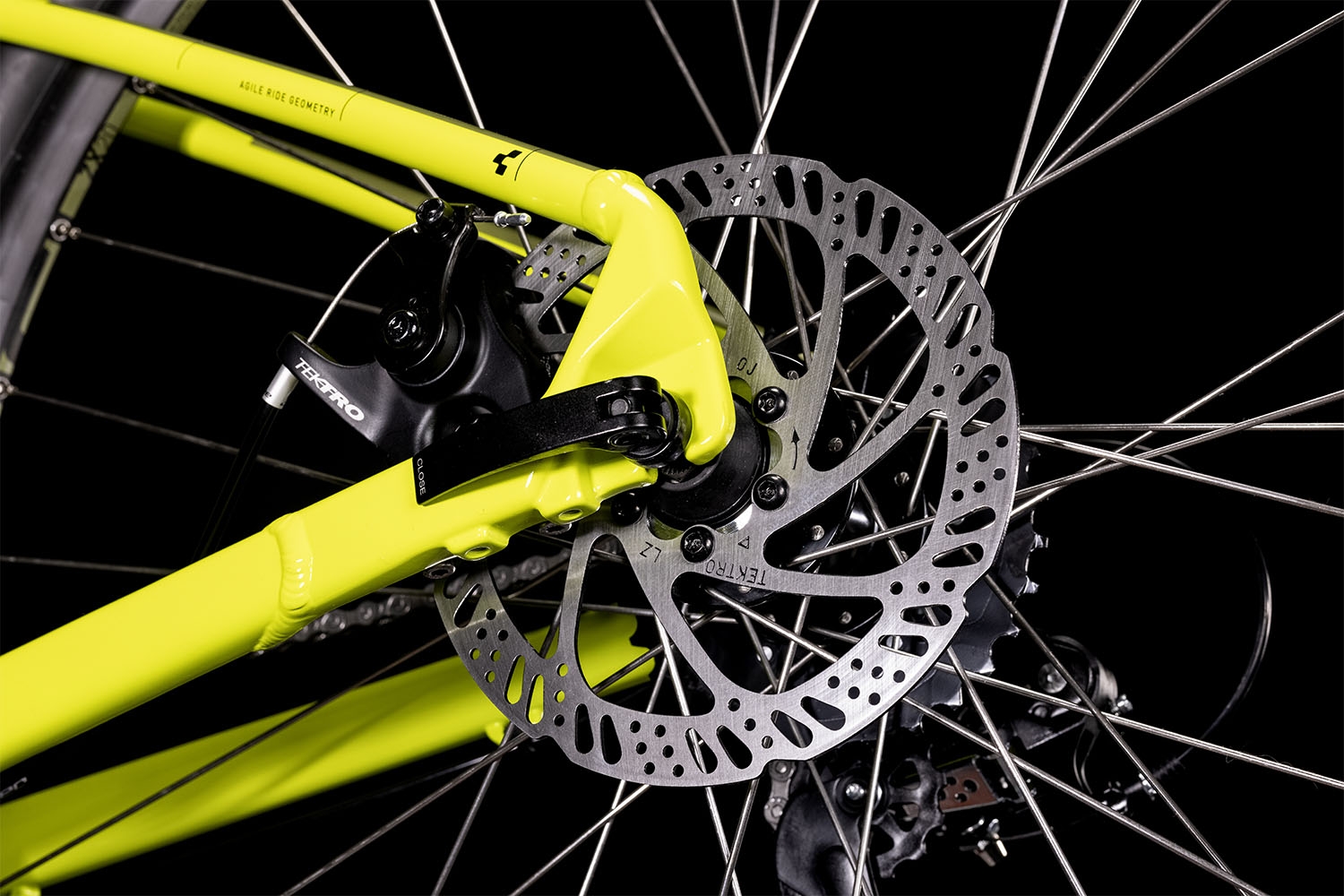

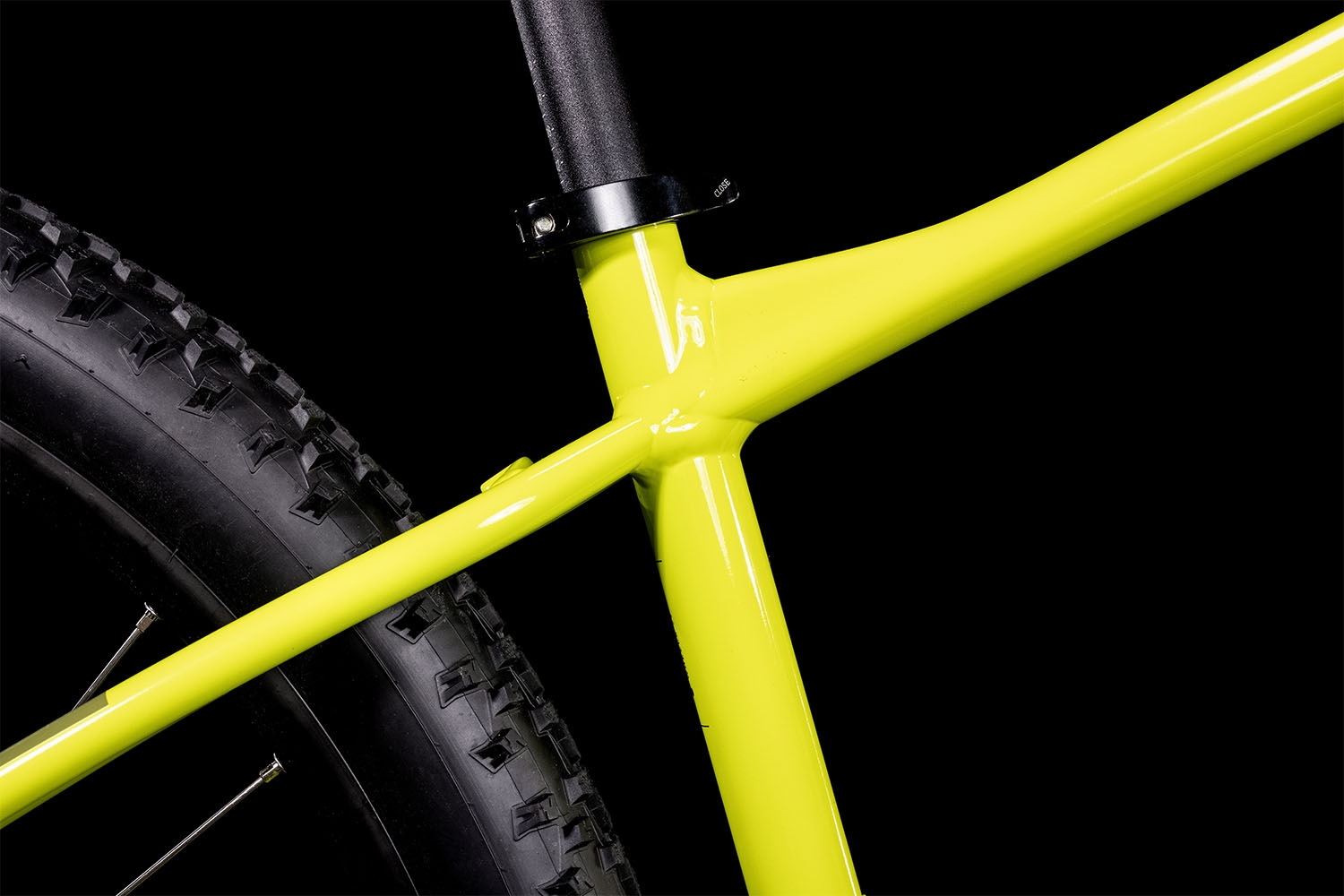

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.
