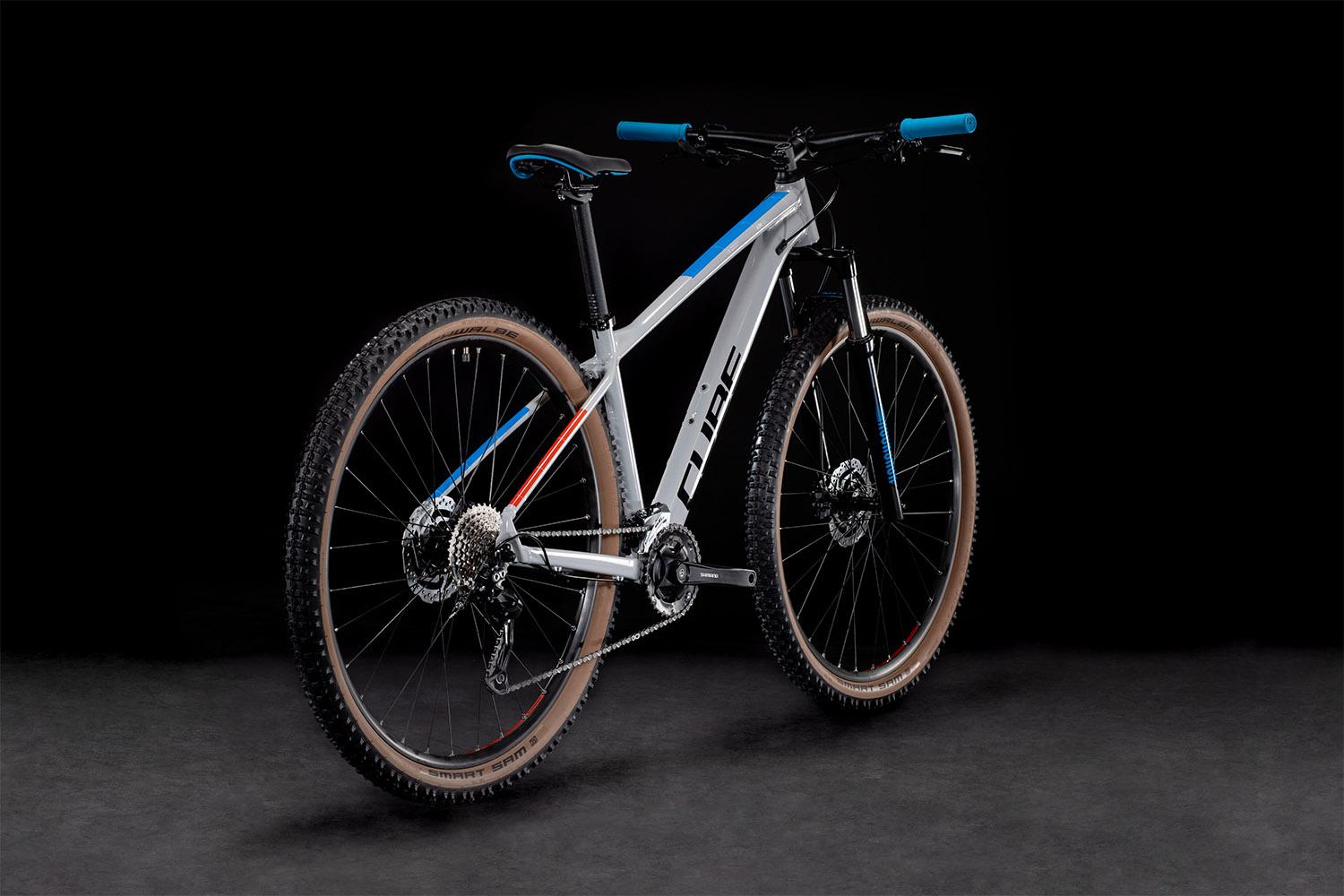

AIM
SL

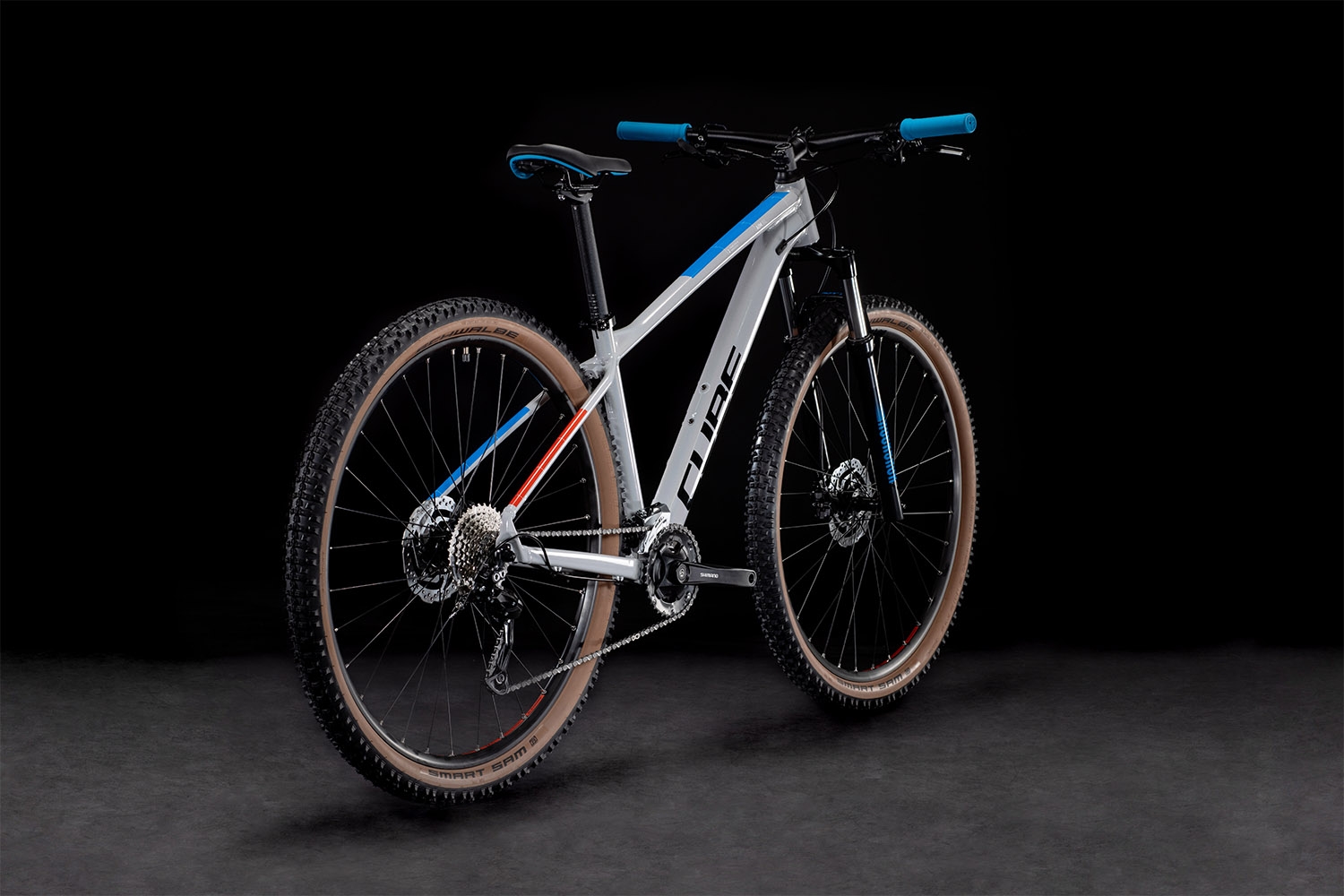

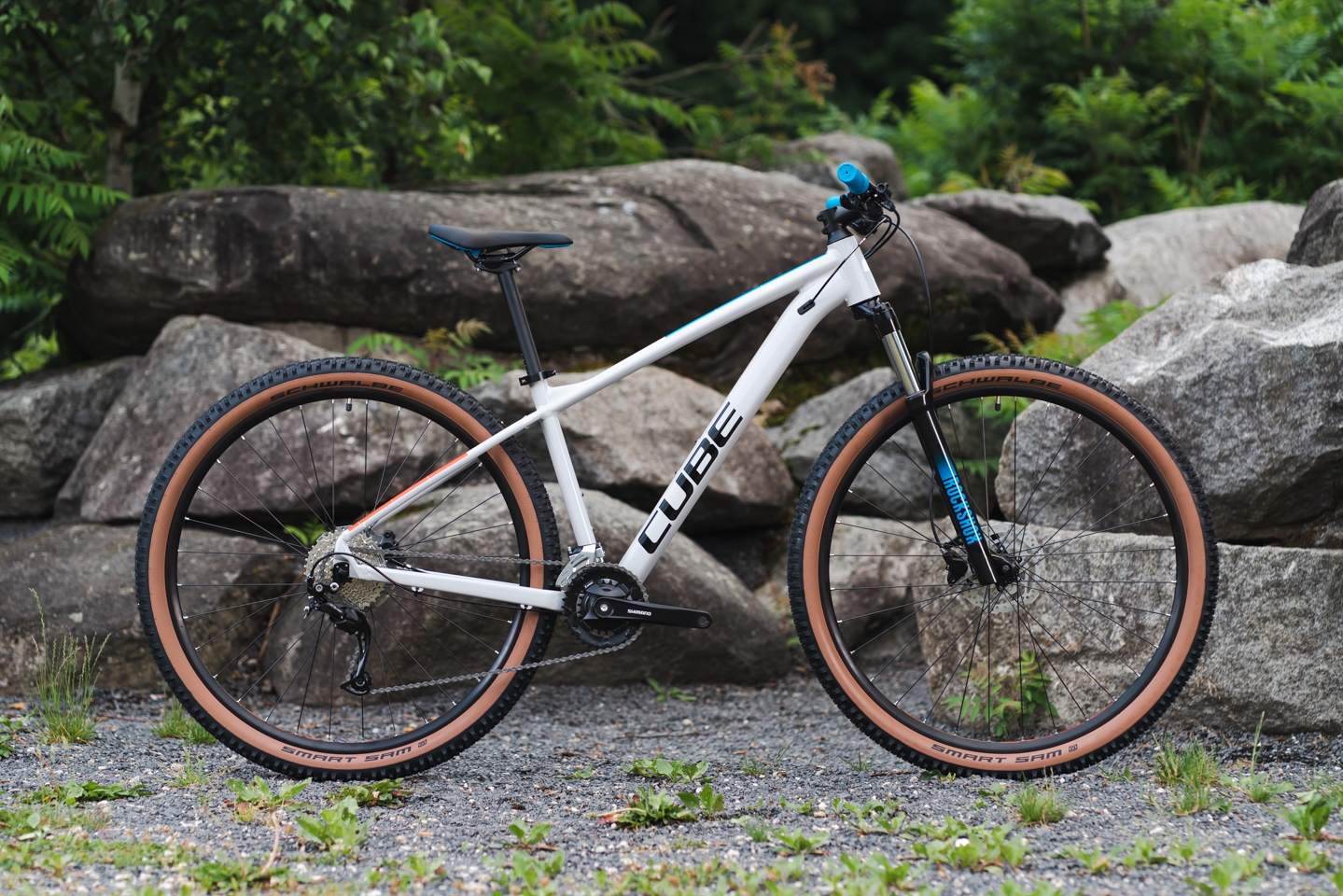

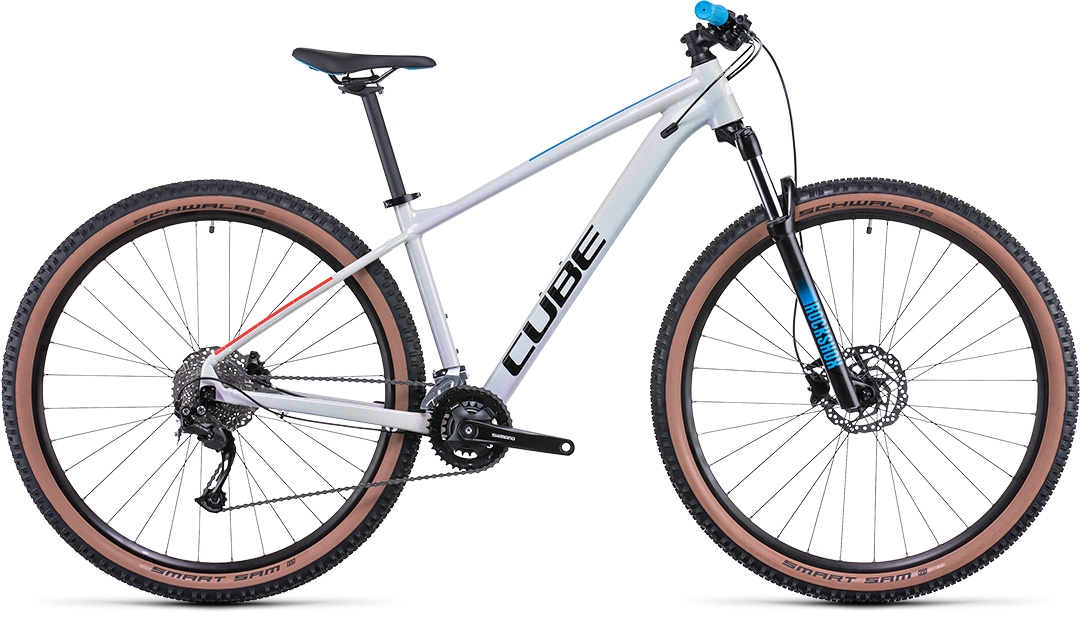

You know the saying, 'power is nothing without control'? It's the reason that the brand-new Aim SL features 100mm of smooth, RockShox-flavoured bump-swallowing travel - with lockout. Combined with the strong Shimano hydraulic disc brakes, tapered head tube and grippy 2.25in tyres, it's your guarantee of always being in full control, wherever your curiosity takes you. Wide-ranging Shimano 2x9 gears put the ideal ratio for any trail at your fingertips, and the frame's internal cable routing even allows for a future dropper post upgrade. What's holding you back?
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
|---|---|
| SIZE | Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24") |
| FORK | RockShox Judy Silver TK Coil, 100mm, Lockout |
| SUSPENSION FORK | RockShox Judy Silver TK Coil, 100mm, Lockout |

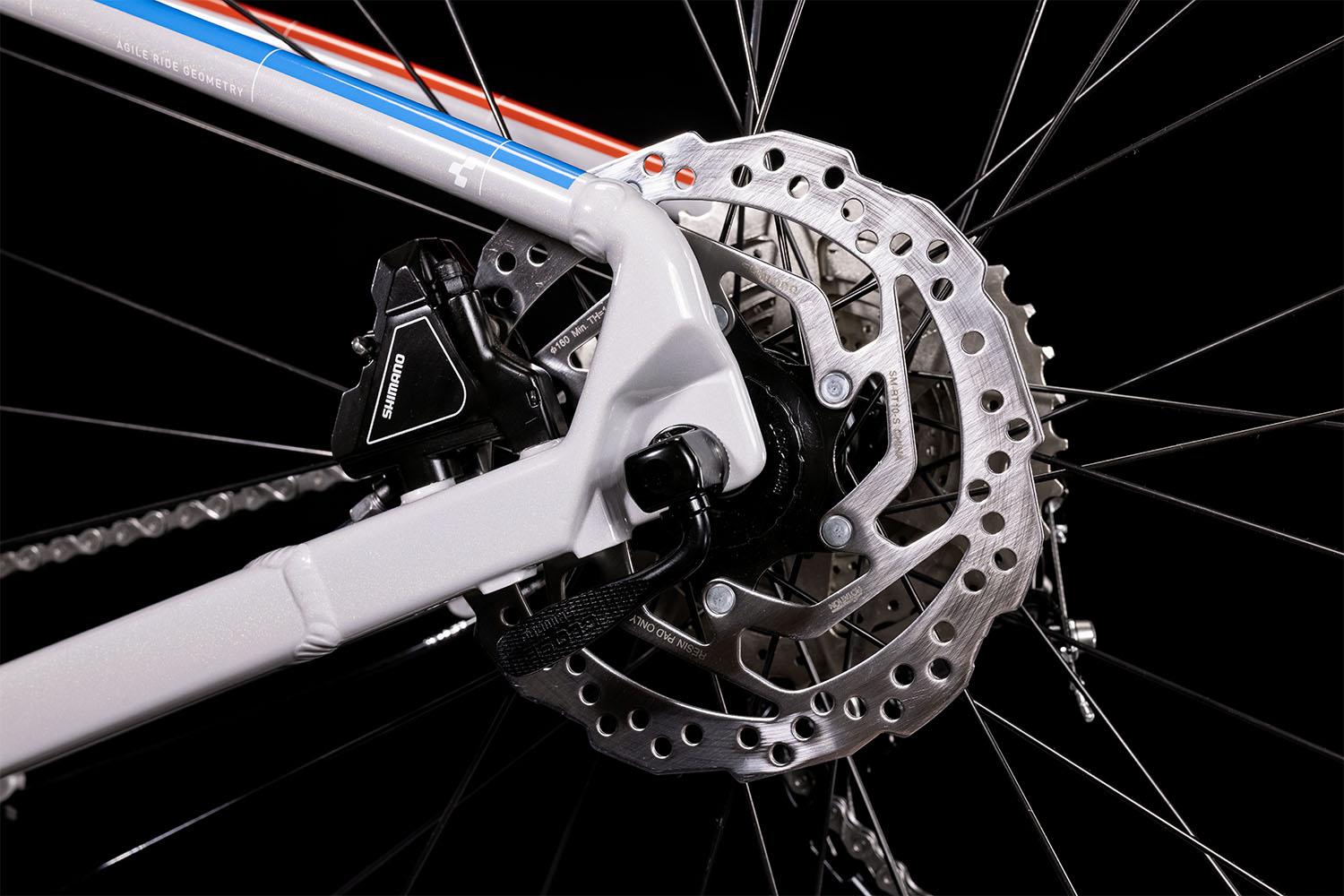

| BRAKE SYSTEM | Clarks Clout 1, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M3100-SGS, 9-Speed |
| FRONT DERAILLEUR | Shimano FD-M2020, Top Swing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M2010-9R, Rapidfire-Plus |
| CRANKSET | Shimano FC-MT101, 36x22T |
| CASSETTE | Shimano CS-HG201, 11-36T |
| CHAIN | KMC X9 |
| FRONT HUB | CUBE Alloy Light, QR, 6-Bolt |
| REAR HUB | CUBE Alloy Light, QR, 6-Bolt |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.25 |
| STEM | CUBE Performance Stem Pro, 31.8mm |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | ACID React |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated |
| PEDALS | ACID PP MTB |
| WEIGHT | 13,8 kg |
| COLOUR | prismagrey´n´blue´n´red |
| ART. NO | 501510 |
GEOMETRY

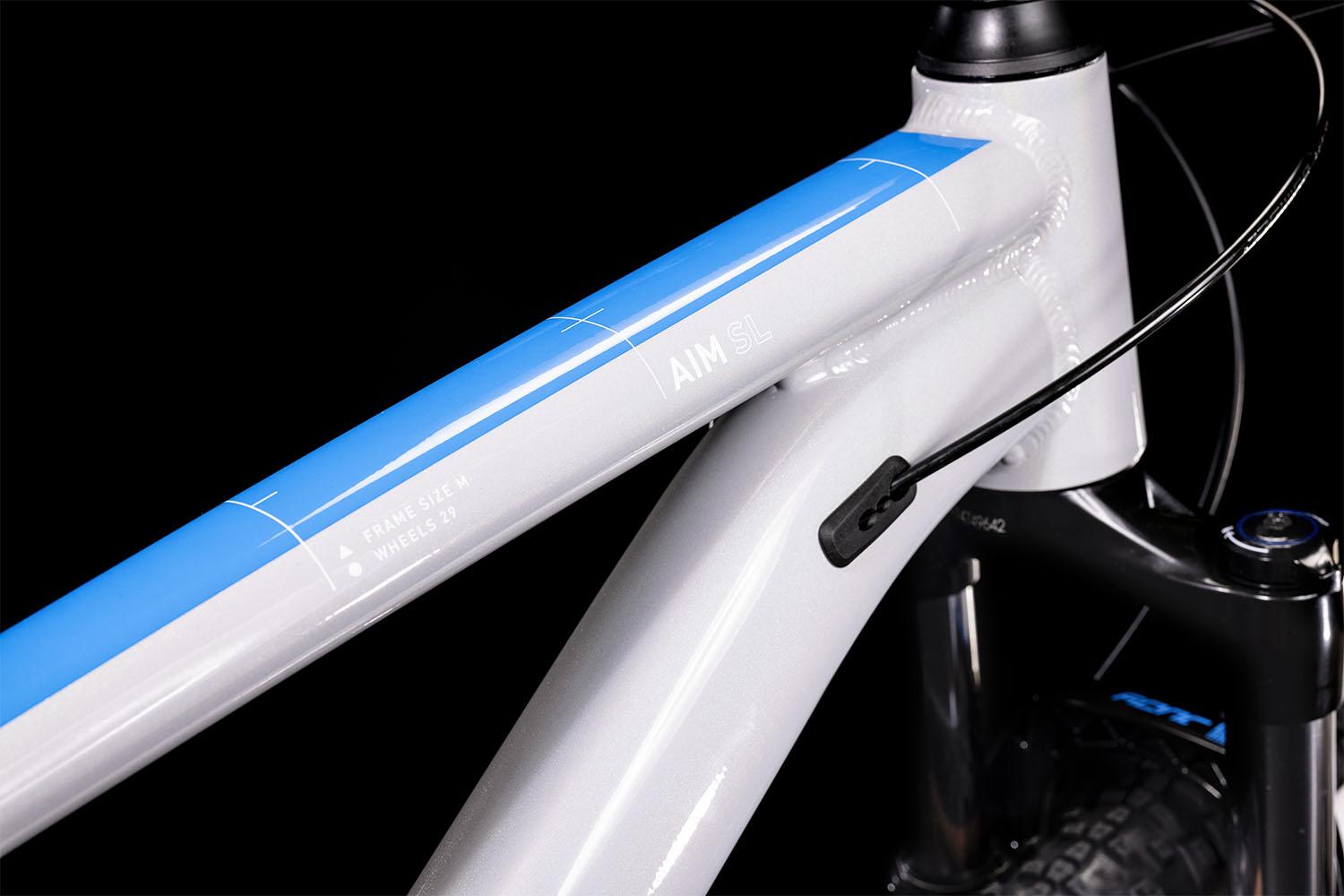

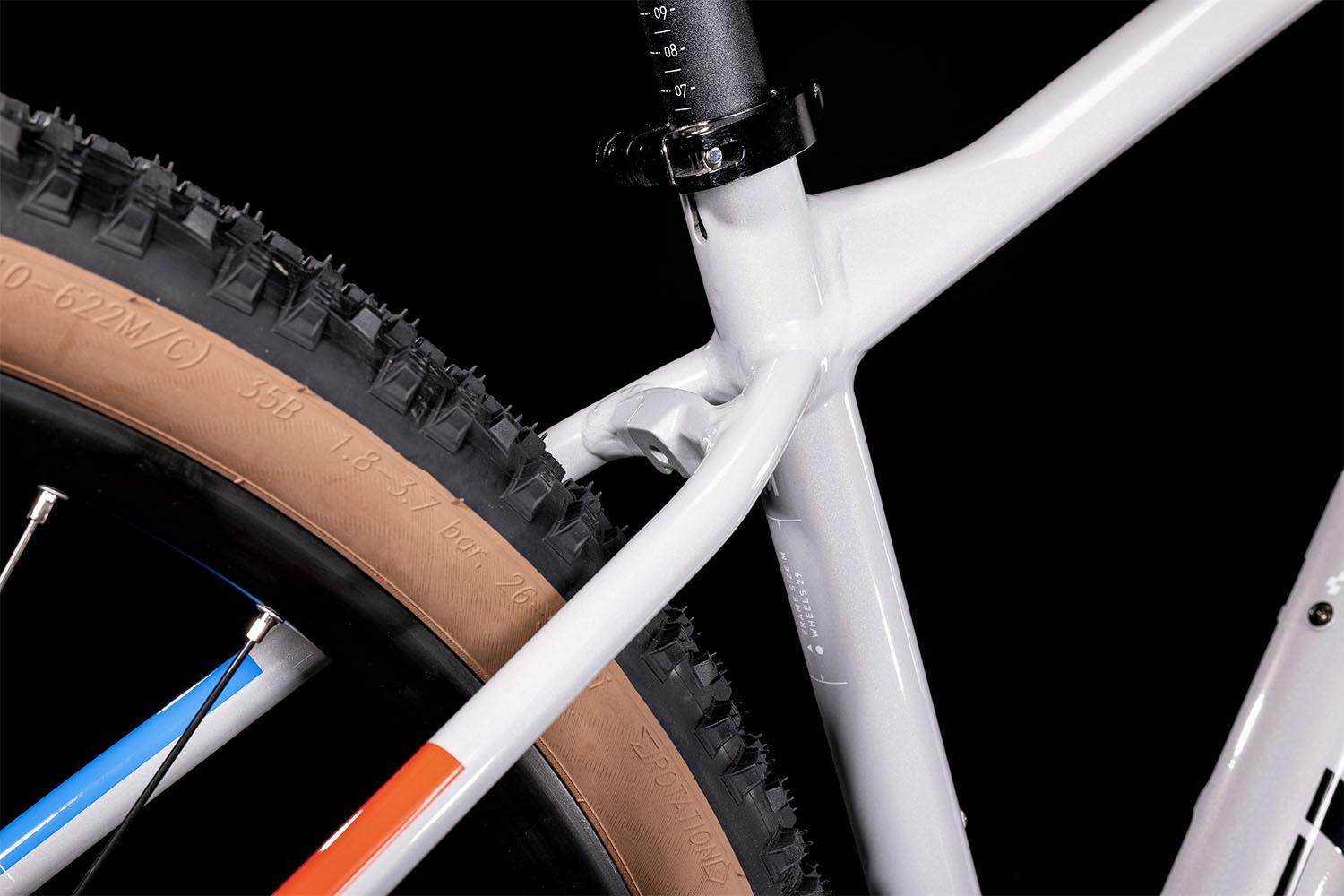

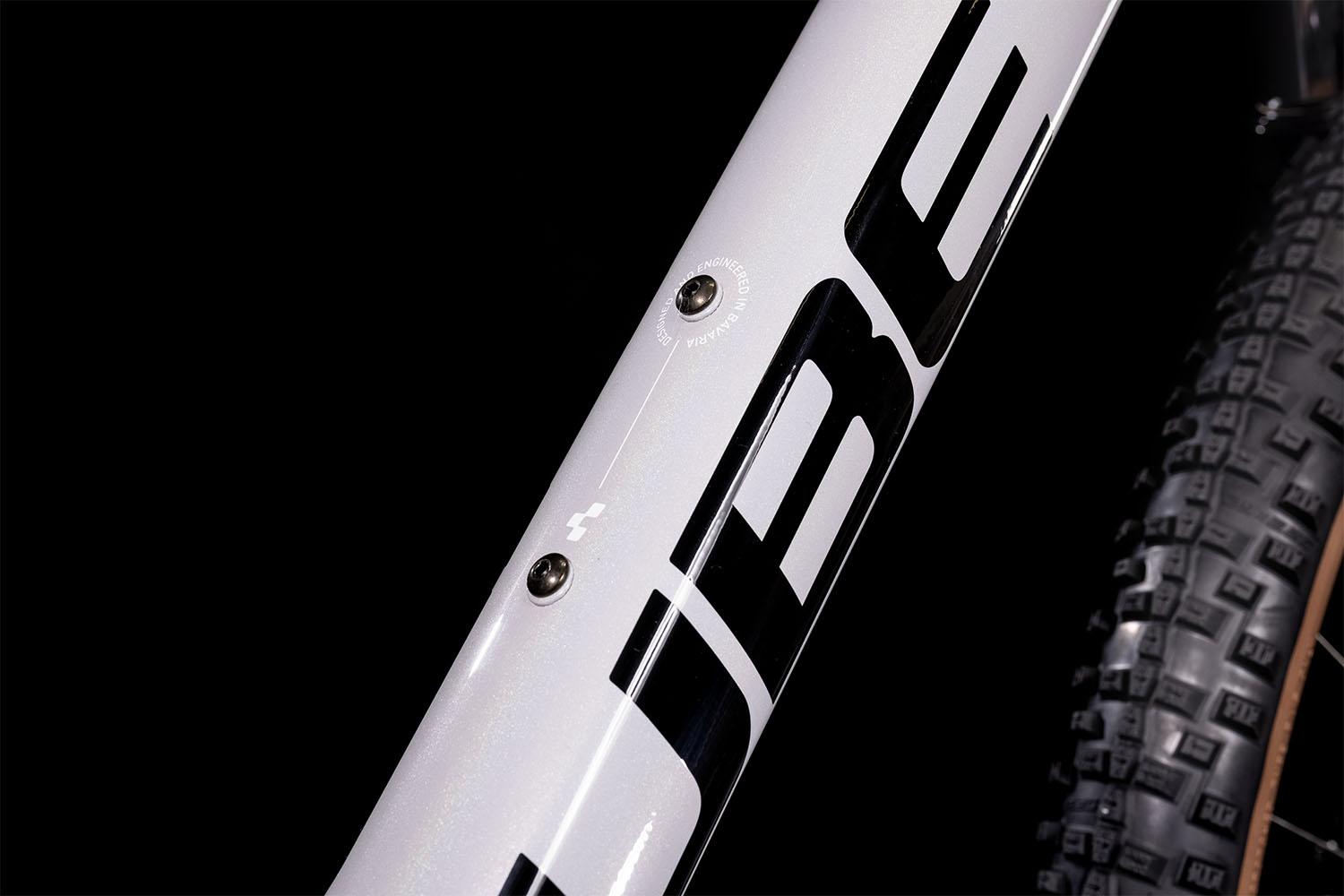

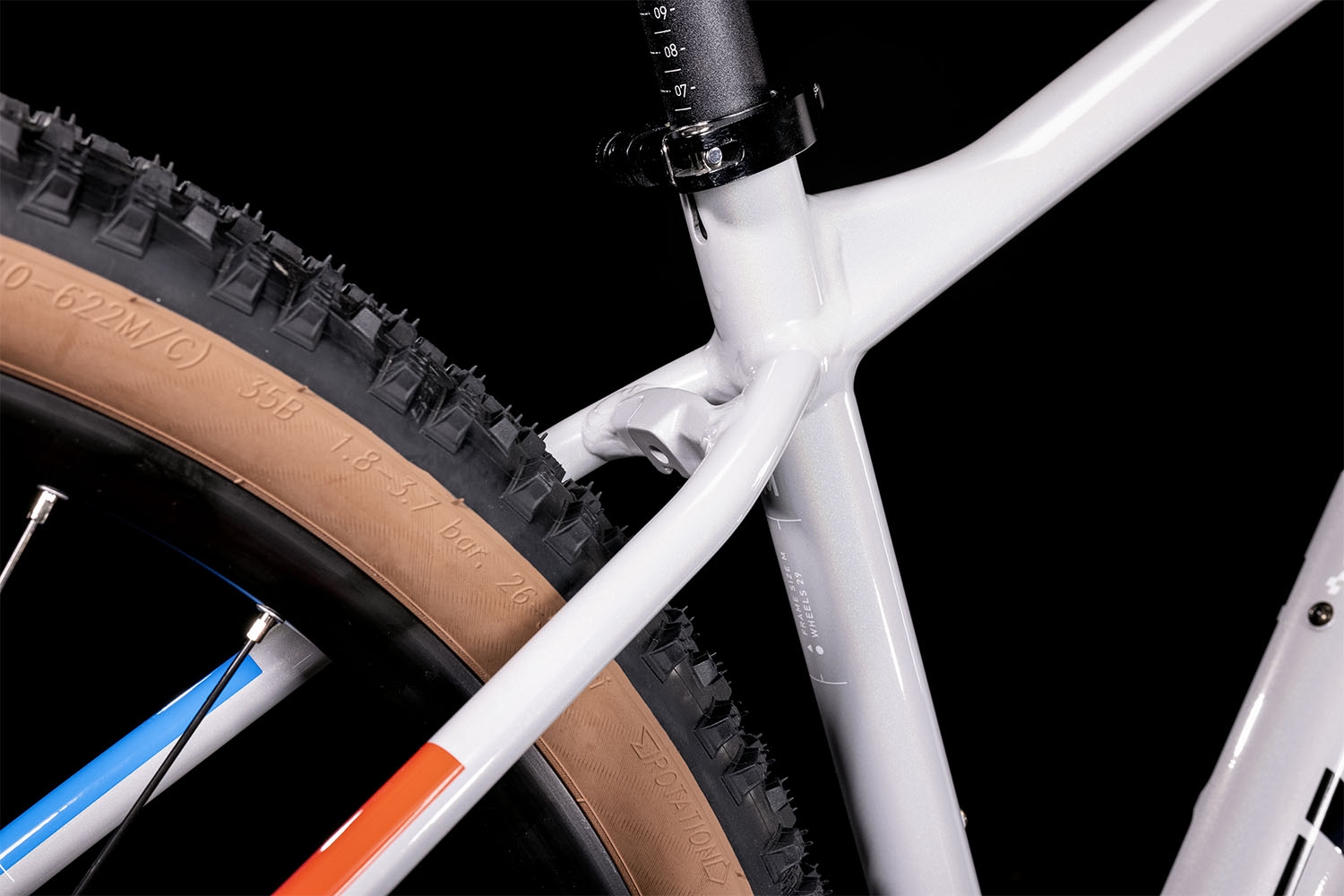

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.
