ELITE 240
PRO

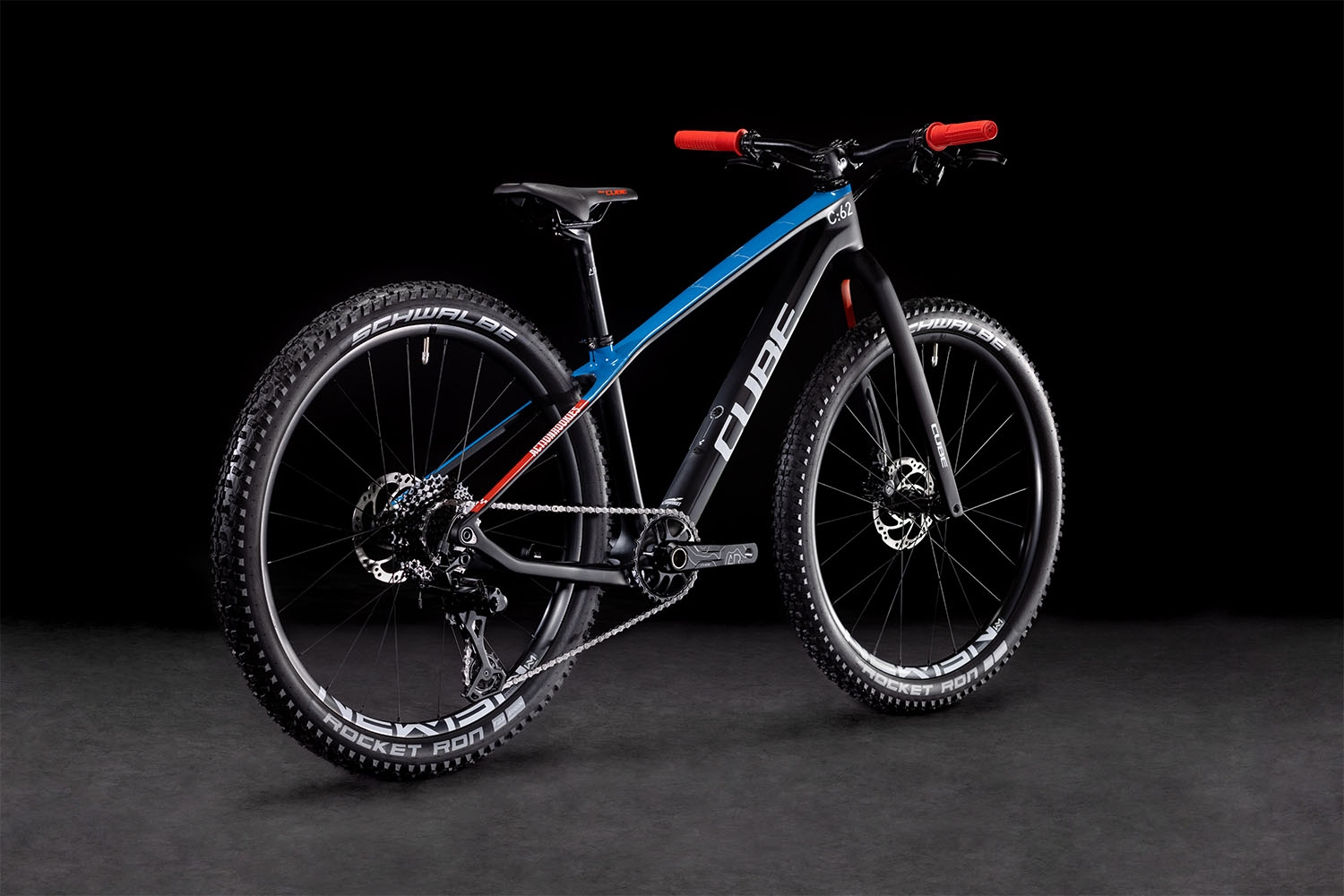

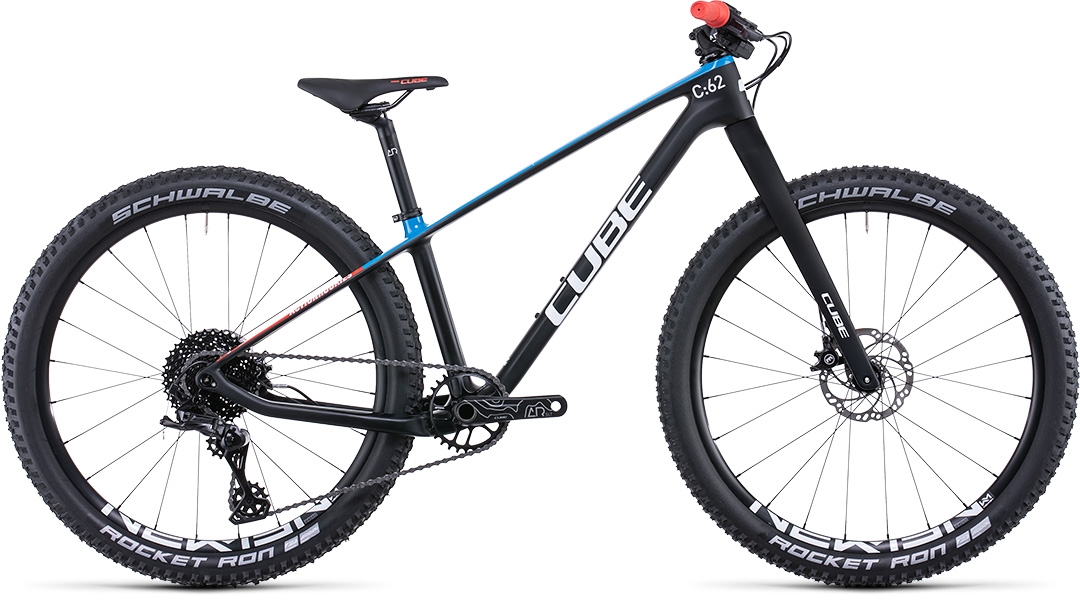

Even young riders know that speed wins races. It's the reason we developed our brand-new Elite 240 C:62 Pro, which takes everything we've learnt about building podium-capable racing mountain bikes and condenses it into pint-sized perfection. The full carbon frame and fork are just the lightweight start. We fitted Advent X 1x10 gears for their easy shifting, wide range and simple reliability. There's a headset limiter to prevent top tube damage in the event of a crash. A 12x100 thru axle up front and child-sized handlebars, grips and brake levers - with hydraulic discs - ensure accurate control at all times. And little touches like the ultra-lightweight Schwalbe Aerothan inner tubes and Newmen wheels are just the kind of details you'd expect from a thoroughbred.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, PressFit BB, Internal Cable Routing |
|---|---|
| SIZE | 24" |

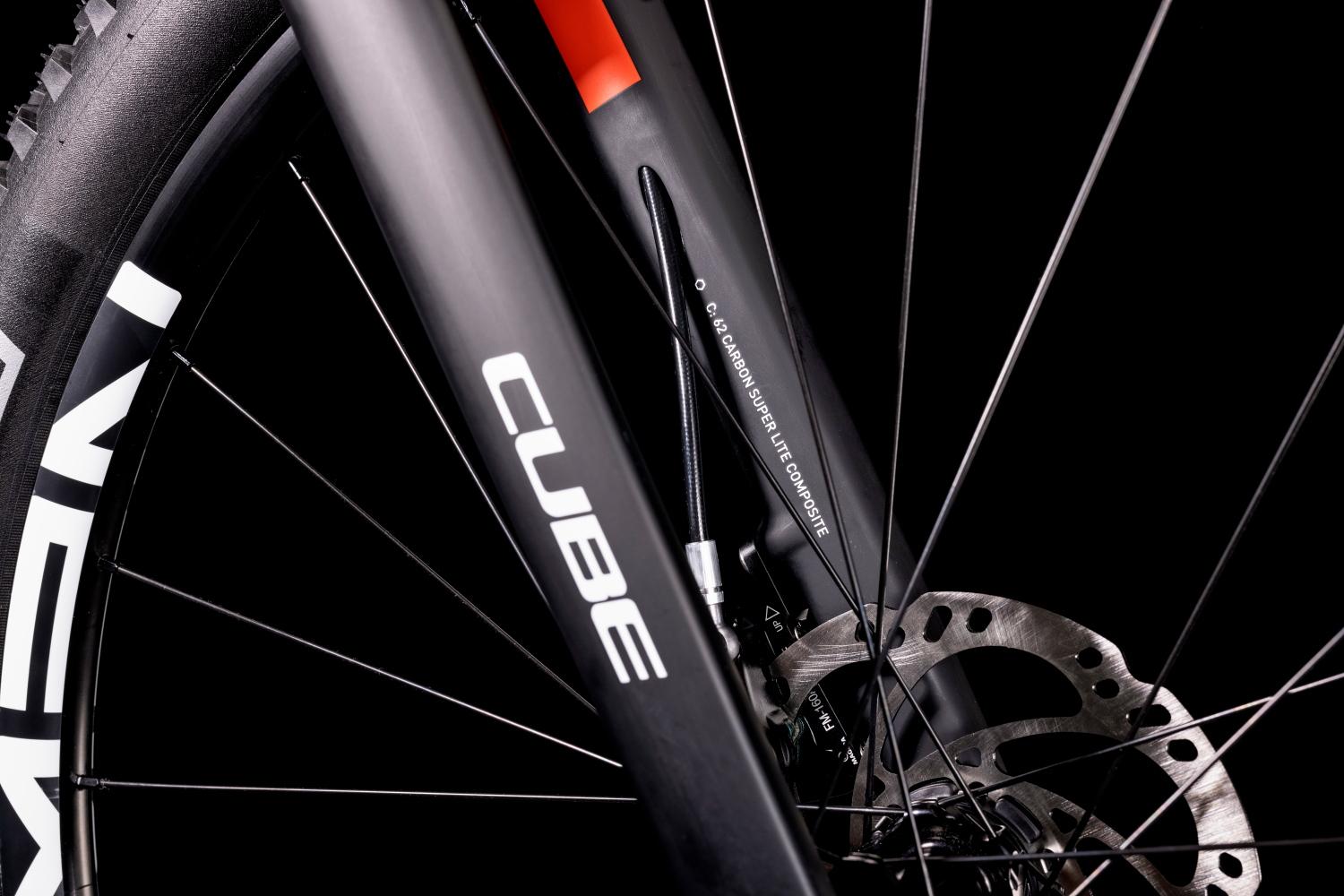

| FORK | CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |
| RIGID FORK | CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |

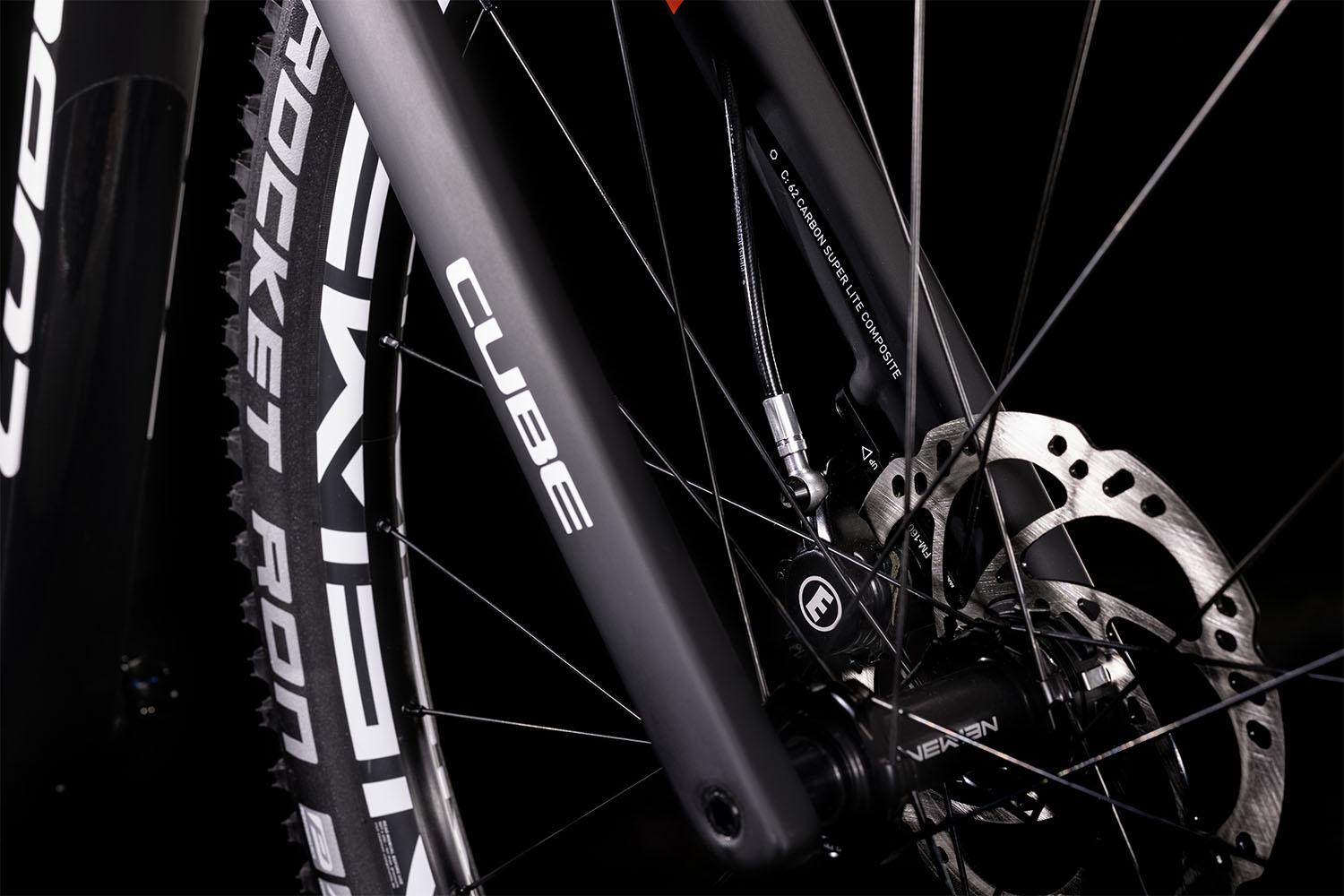

| BRAKE SYSTEM | Magura MT4, Flat Mount, Hydr. Disc Brake (140/140) |
| REAR DERAILLEUR | Microshift Advent X, RD-M6205AM, 10-Speed |
| SHIFTERS | Microshift Advent X SL-M9605 |

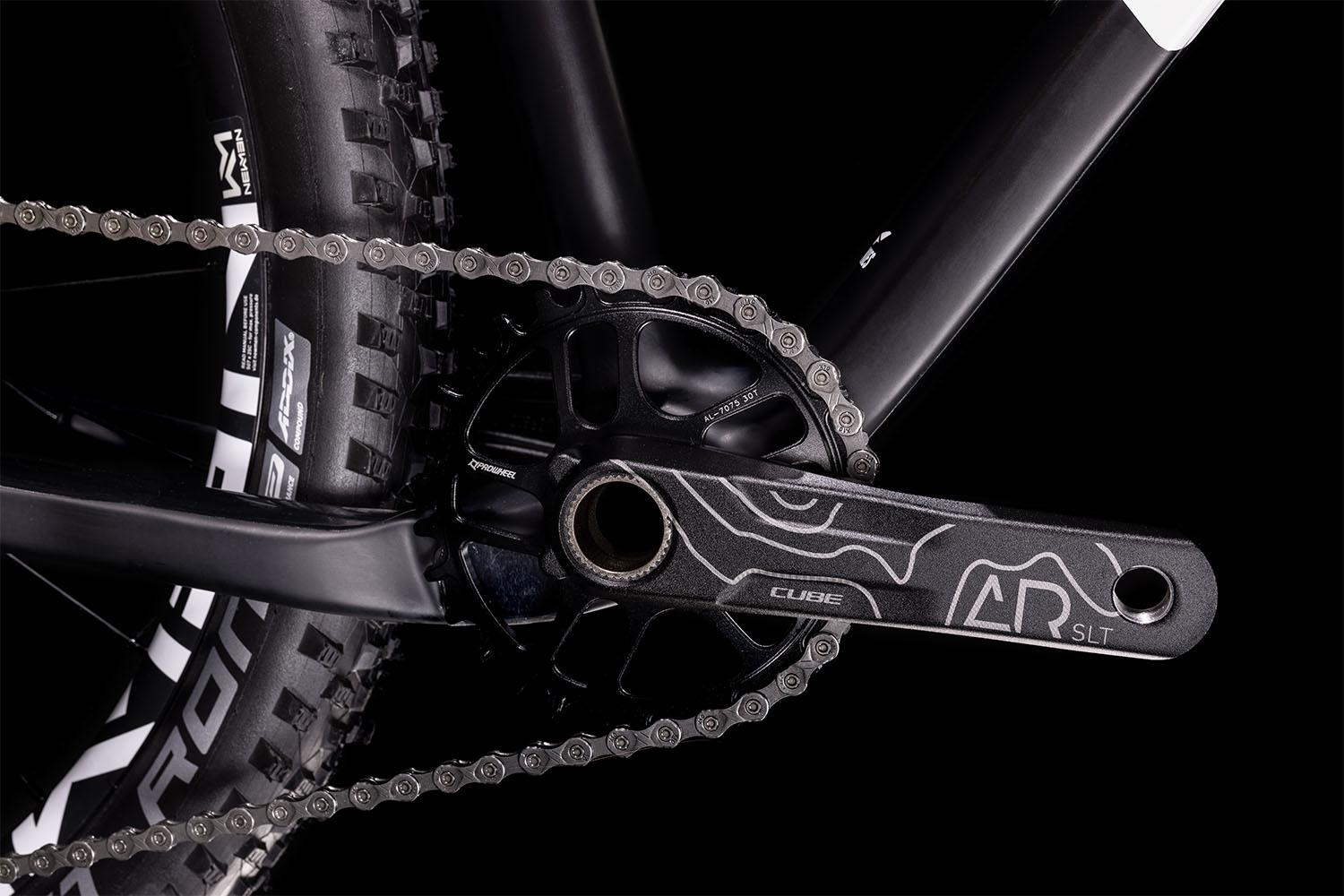

| CRANKSET | AR CUBE SL DMA 30T, 130mm |
| CASSETTE | Sunrace, 11-36T |
| CHAIN | KMC X10 |
| WHEELSET | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| TYRES | Schwalbe Rocket Ron Kevlar, 2.1 |
| STEM | AR CUBE Aluminium Lite |
| HANDLEBAR | AR CUBE Aluminium, 580mm, 25.4 |
| GRIPS | Natural Fit Kids Grip, Ø 19mm |
| SEAT POST | CUBE Prolight, 27.2mm |
| SEAT CLAMP | CUBE Superlight, 31.8mm |
| SADDLE | CUBE Kid |
| HEADSET | Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/8" |
| WEIGHT | 6,9 kg |
| COLOUR | carbon´n´blue´n´red |
| ART. NO | 523410 |
GEOMETRY

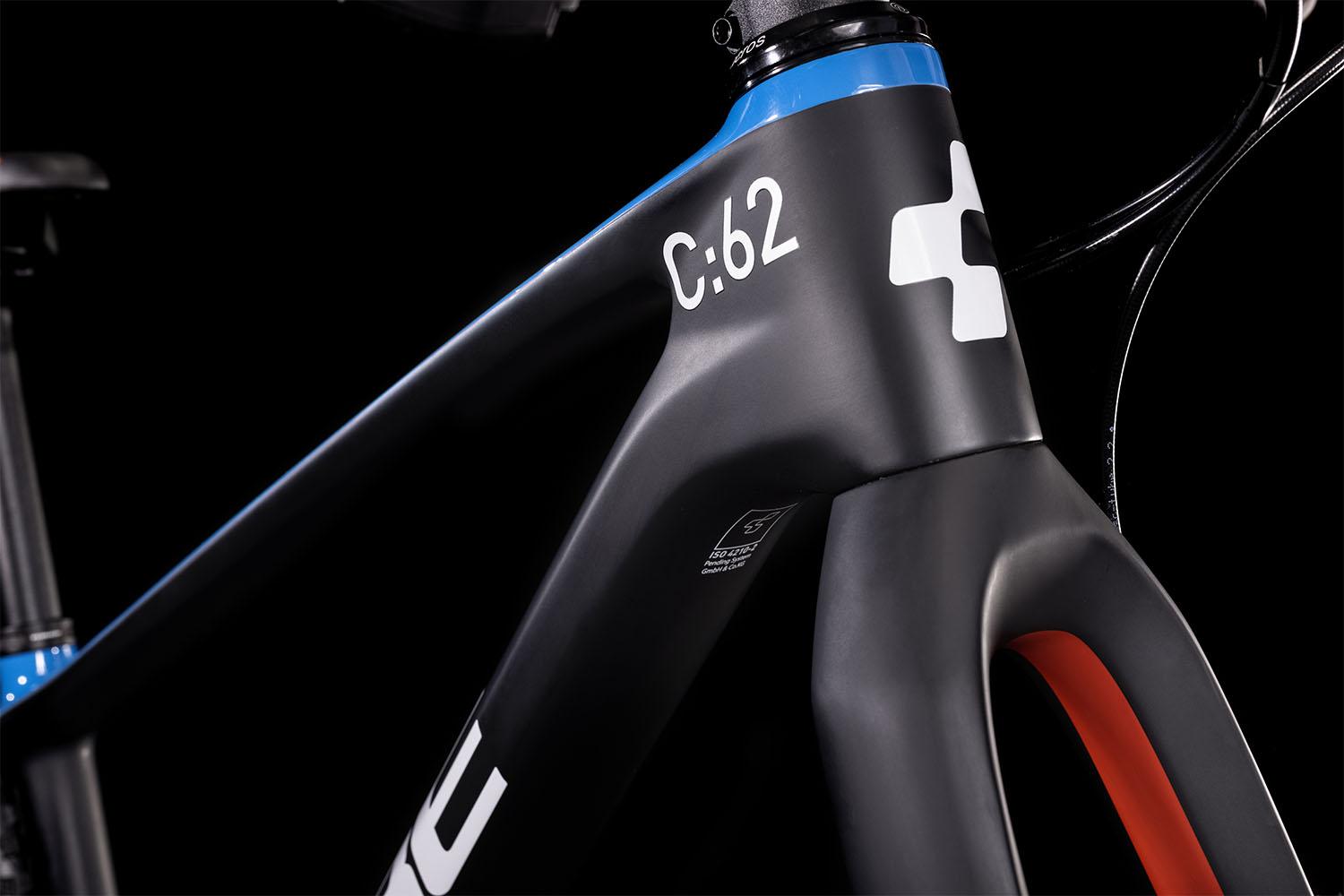

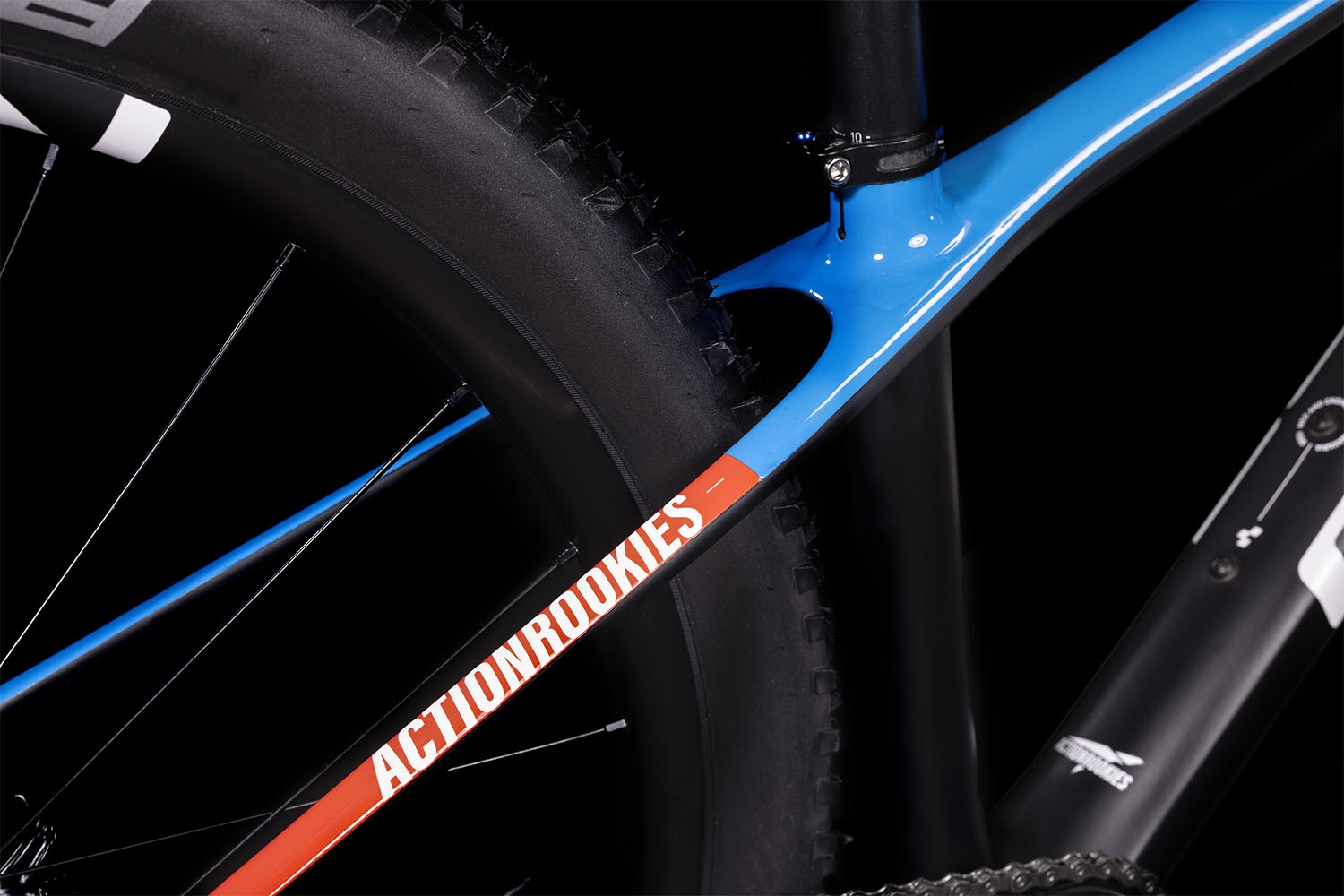

We know from working with elite racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Elite 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride. And cables are routed internally for long-lasting precise shifting, so mum and dad can spend less time tweaking and more time cheering.
