ELITE 240
SL
A really lightweight bike won't win races on its own. But it's a good starting point. For the junior whippet in your family, the Elite 240 C:62 SL ticks all the right boxes. Its lightweight carbon frame and fork - perfectly proportioned for smaller riders - are just the beginning. We chose light, tough Newmen wheels and ultra-light Schwalbe Aerothan inner tubes for quick acceleration. Powered them with a CUBE Action Rookies crank and Sram GX 1x11 transmission. And added child-proportioned handlebars, grips and brake levers - connected to powerful Magura MT8 Pro hydraulic discs - for perfect race day control, whatever the conditions. All that's left is to pedal... and win!
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, PressFit BB, Internal Cable Routing |
|---|---|
| SIZE | 24" |

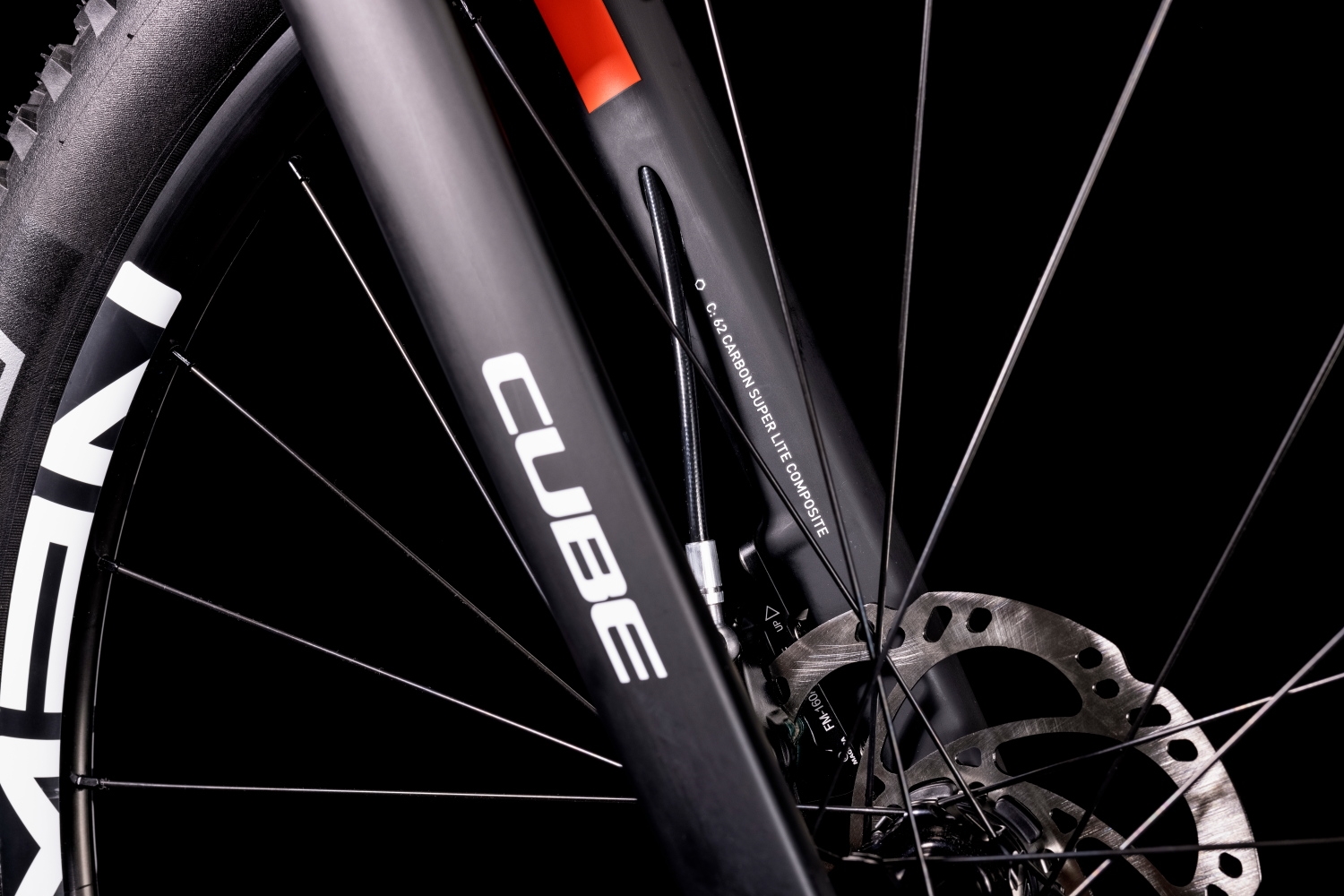

| FORK | CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |
| RIGID FORK | CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |
| BRAKE SYSTEM | Magura MT8 Pro, Flat Mount, Hydr. Disc Brake (140/140) |

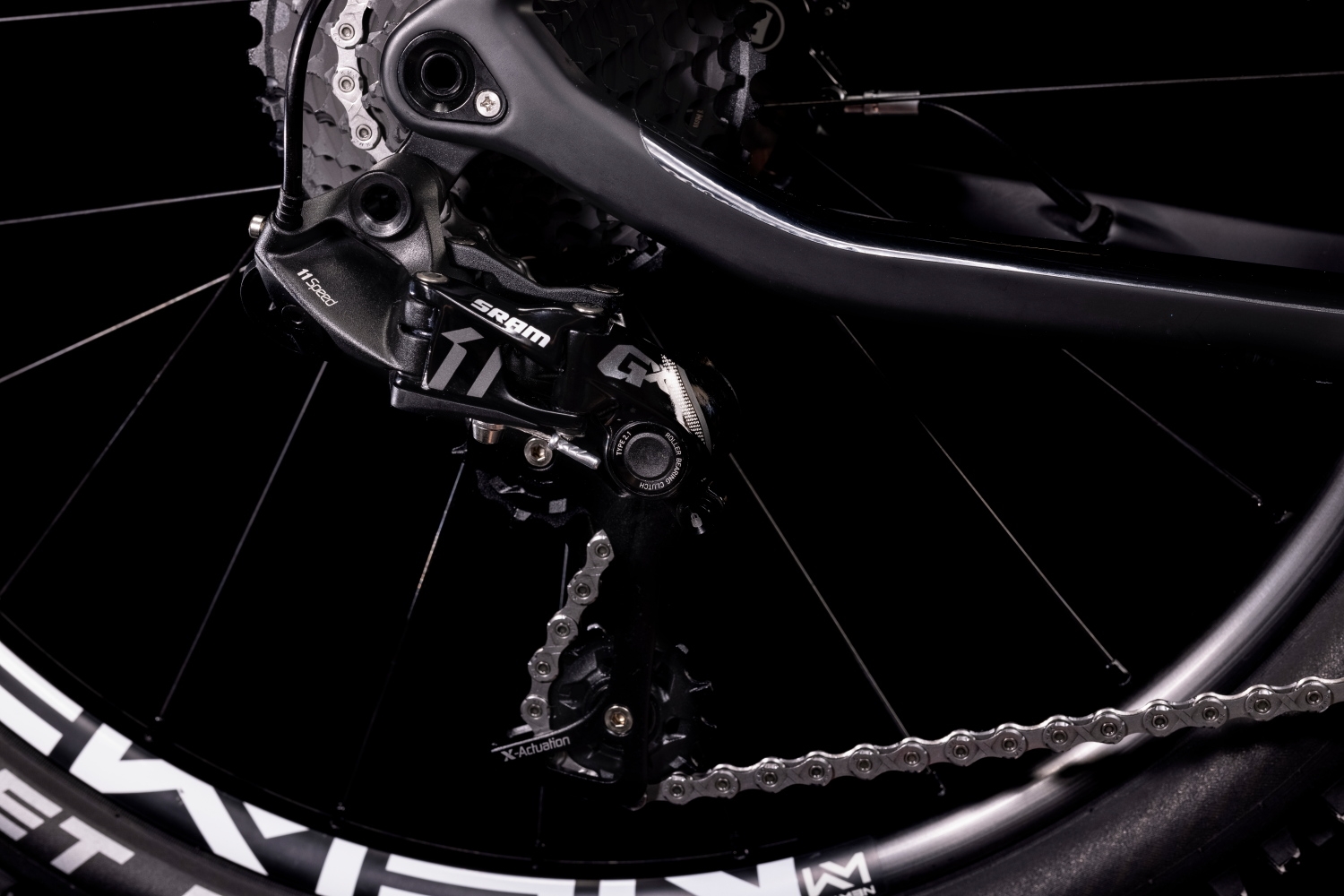

| REAR DERAILLEUR | Sram GX, 11-Speed |
| SHIFTERS | Sram GX Trigger |
| CRANKSET | AR CUBE SL DMA 30T, 130mm |
| CASSETTE | e*thirteen XCX Plus, 9-34T |
| CHAIN | KMC X11 |
| WHEELSET | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| TYRES | Schwalbe Rocket Ron Kevlar, 2.1 |
| STEM | AR CUBE Aluminium Lite |
| HANDLEBAR | AR CUBE Aluminium, 580mm, 25.4 |
| GRIPS | Natural Fit Kids Grip, Ø 19mm |

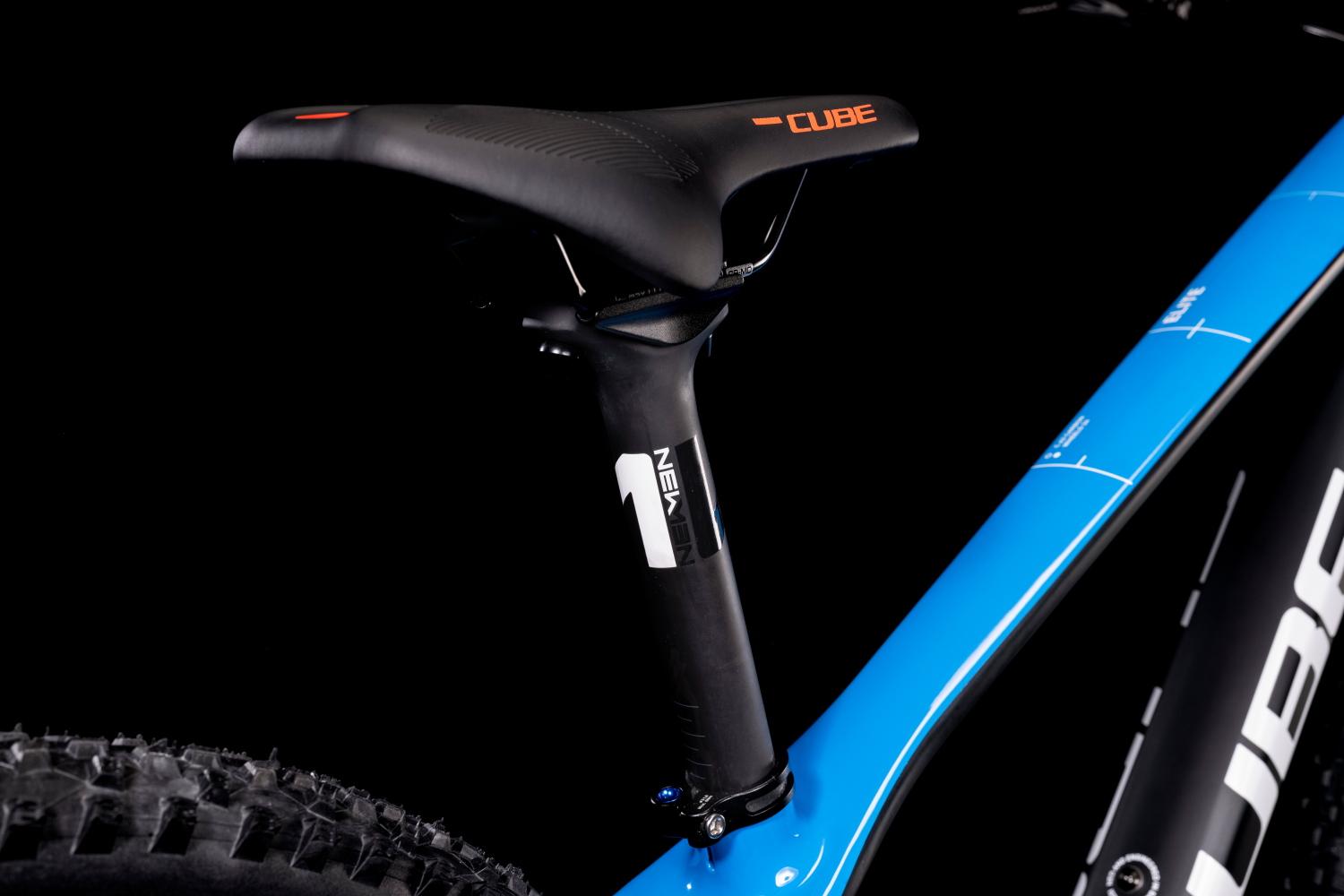

| SEAT POST | Newmen Advanced, Carbon, 27.2mm |
| SEAT CLAMP | CUBE Superlight, 31.8mm |
| SADDLE | CUBE Kid |
| HEADSET | Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/8" |
| WEIGHT | 6,7 kg |
| COLOUR | carbon´n´blue´n´red |
| ART. NO | 523420 |
GEOMETRY

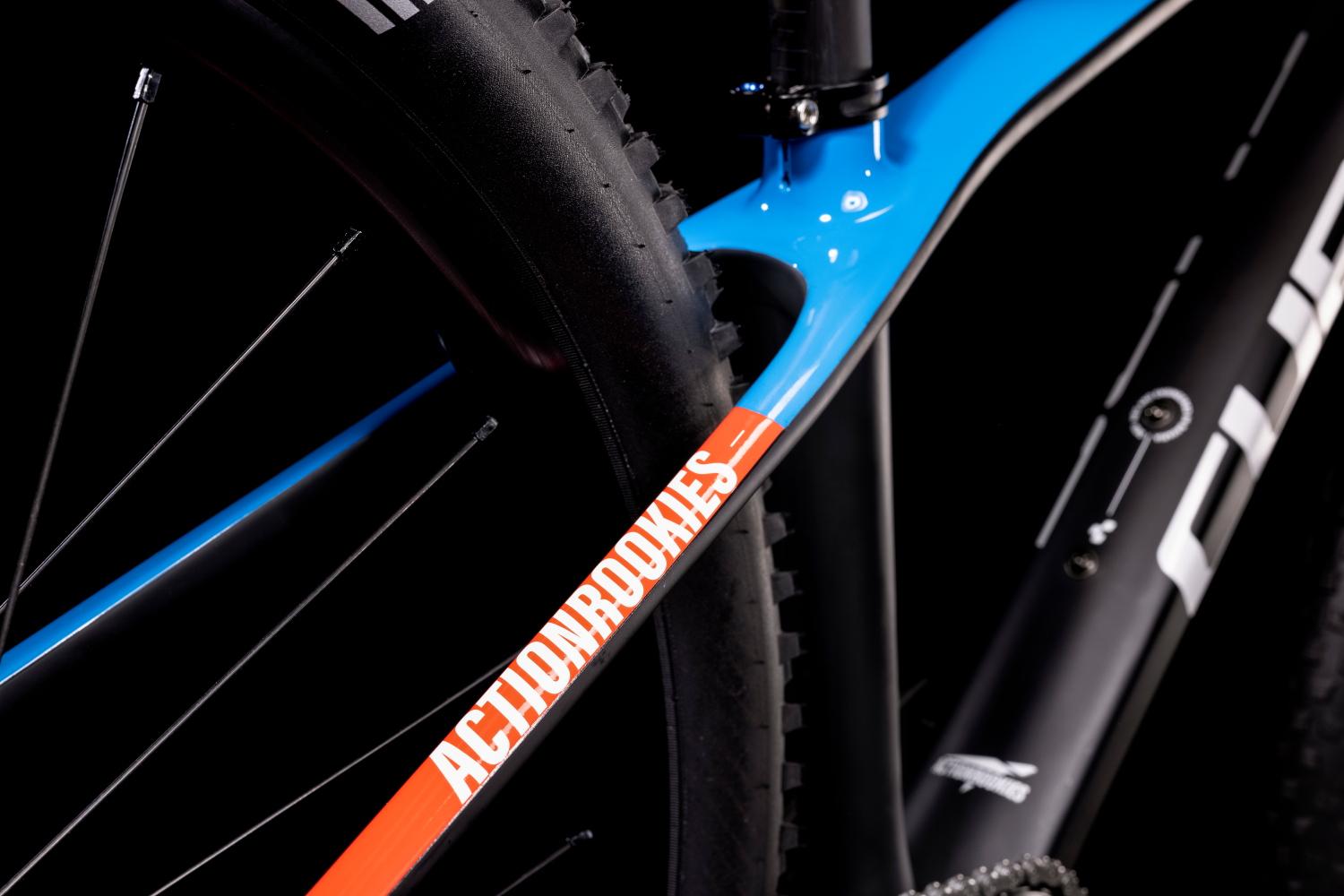

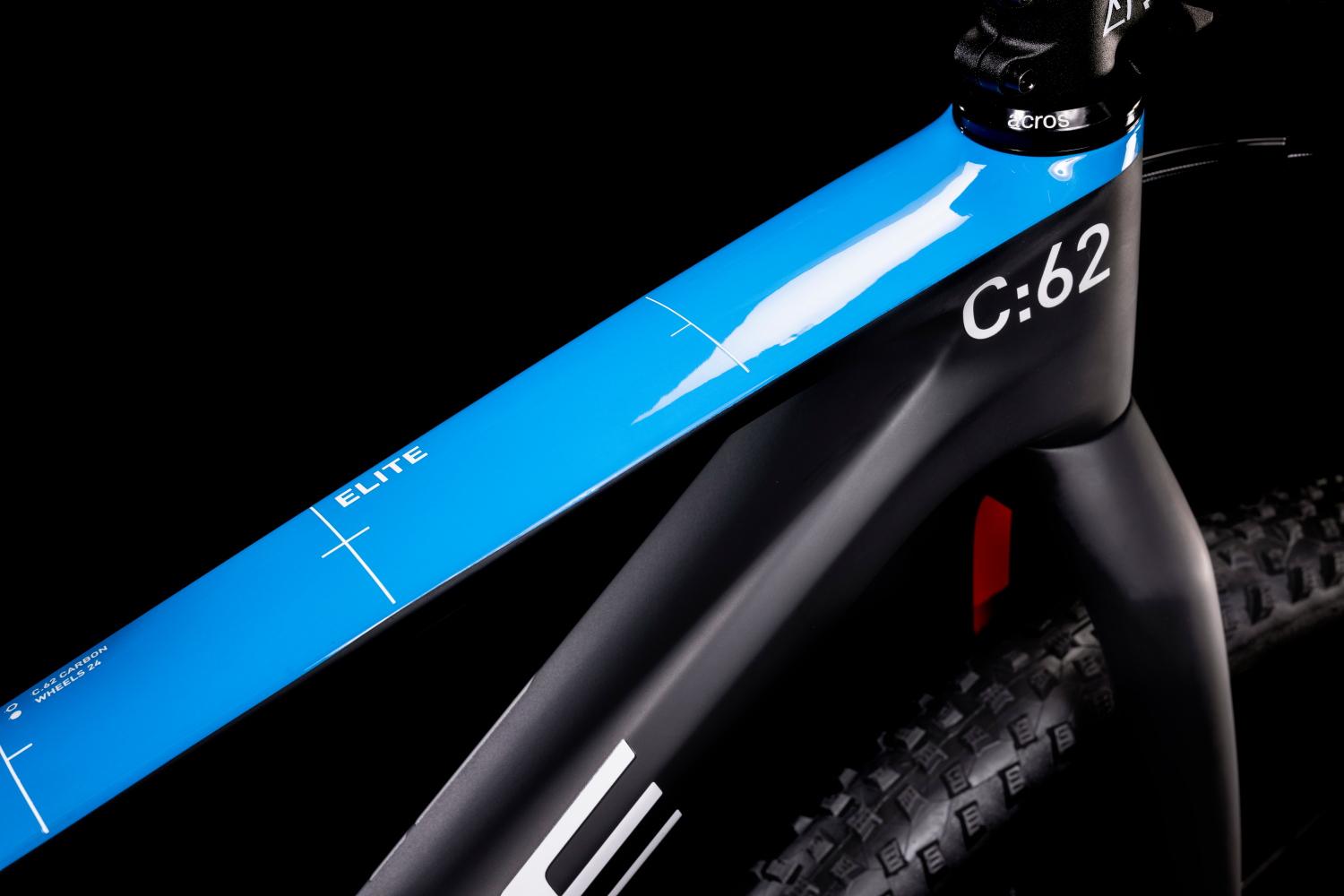

We know from working with elite racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Elite 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride. And cables are routed internally for long-lasting precise shifting, so mum and dad can spend less time tweaking and more time cheering.
