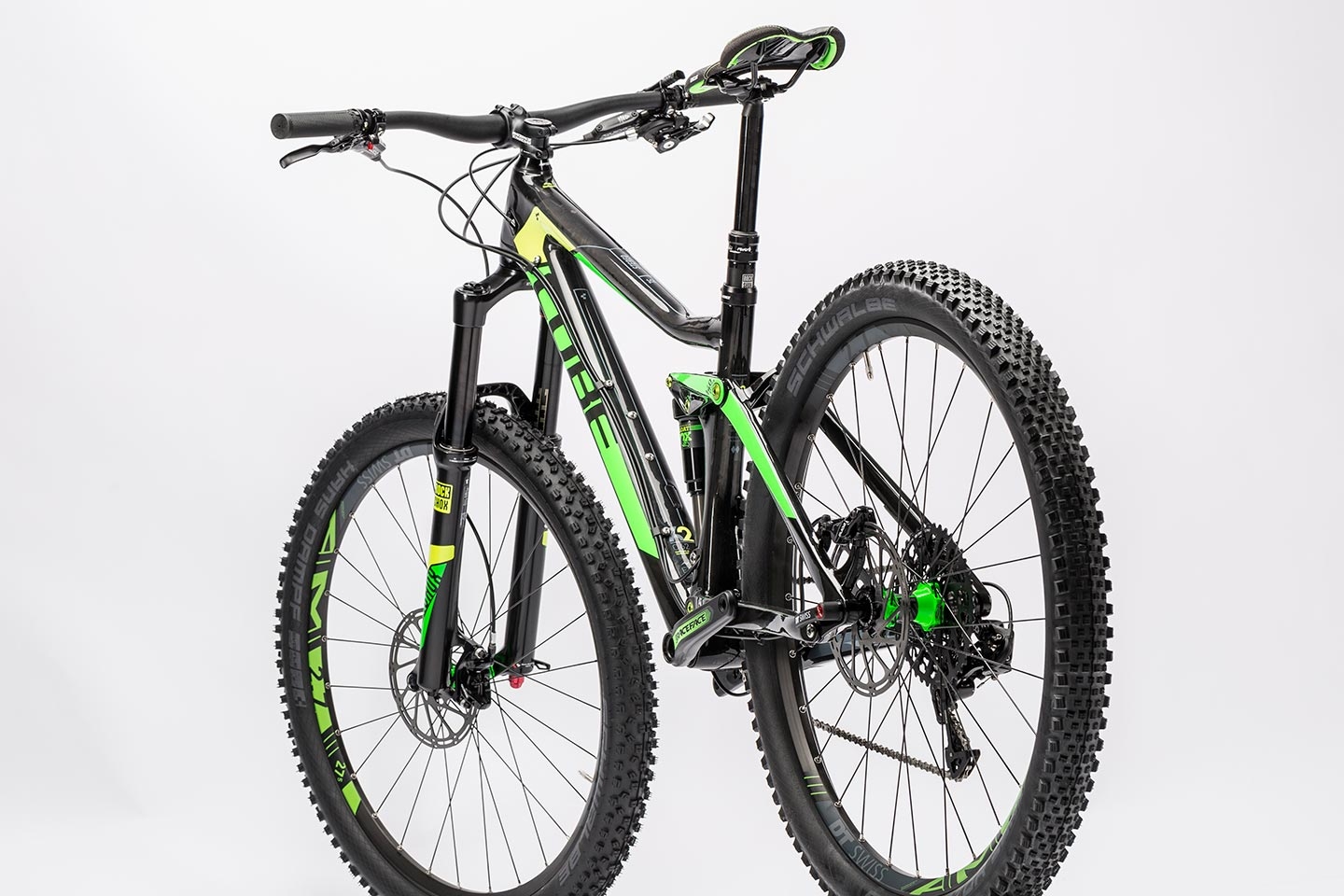

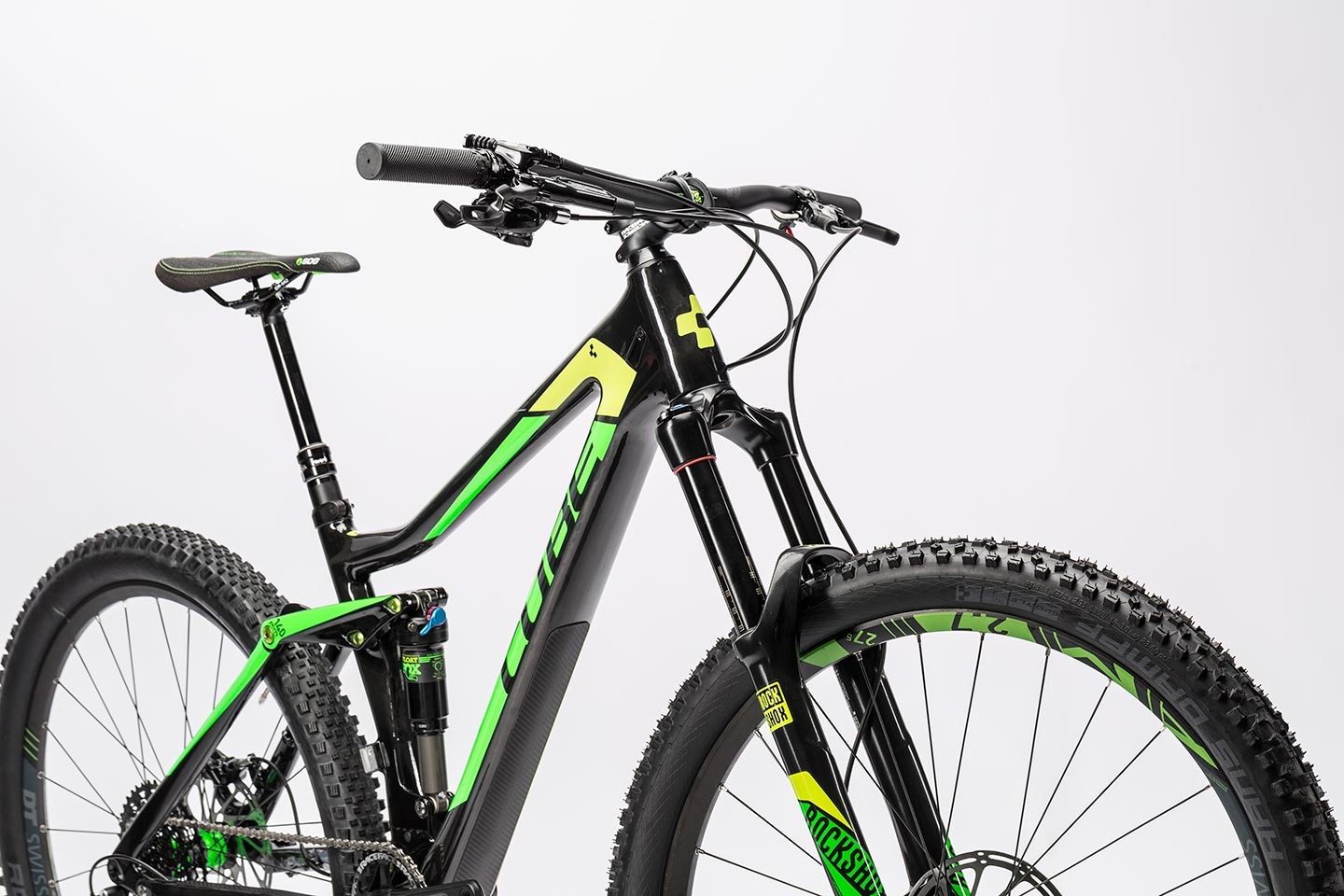

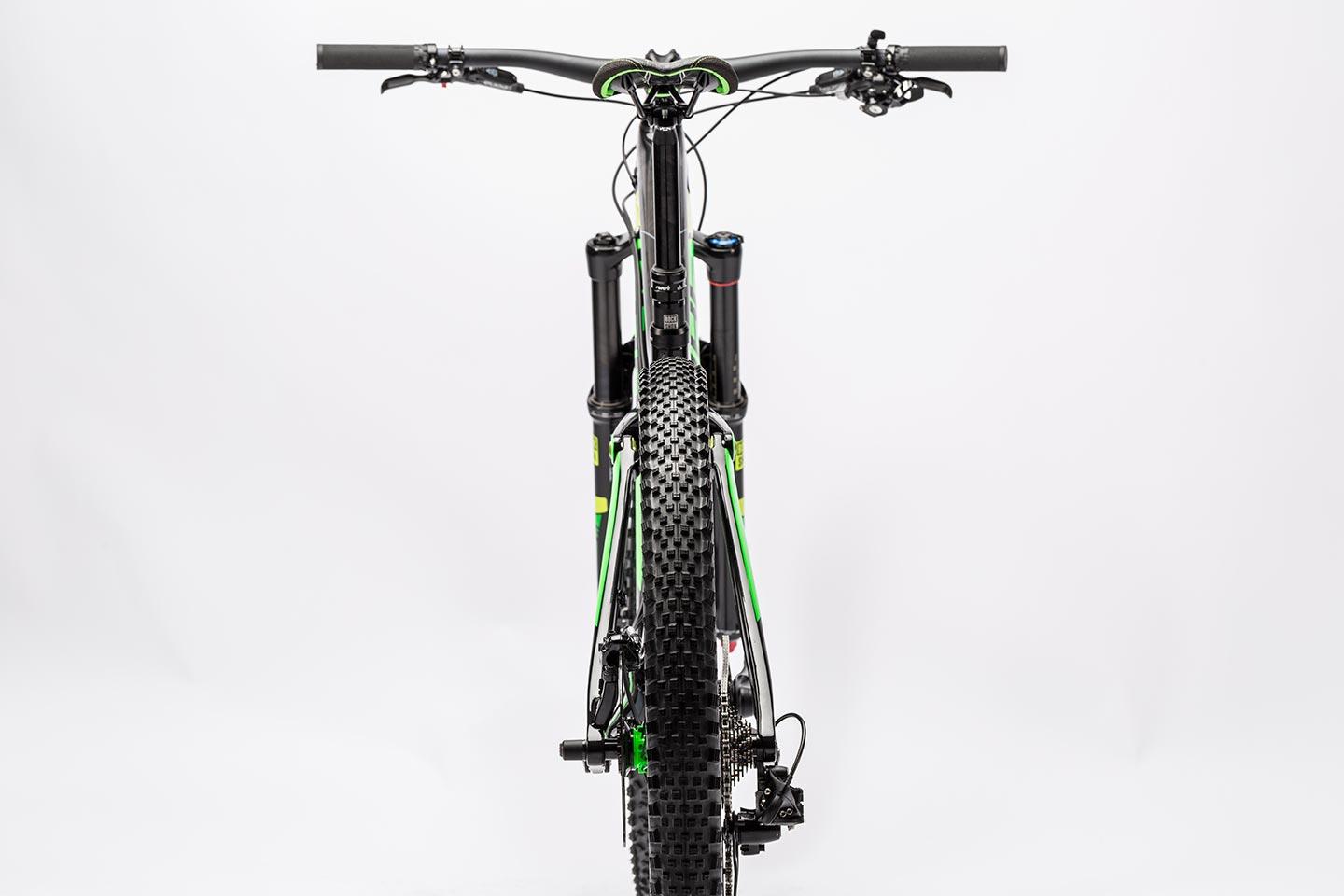

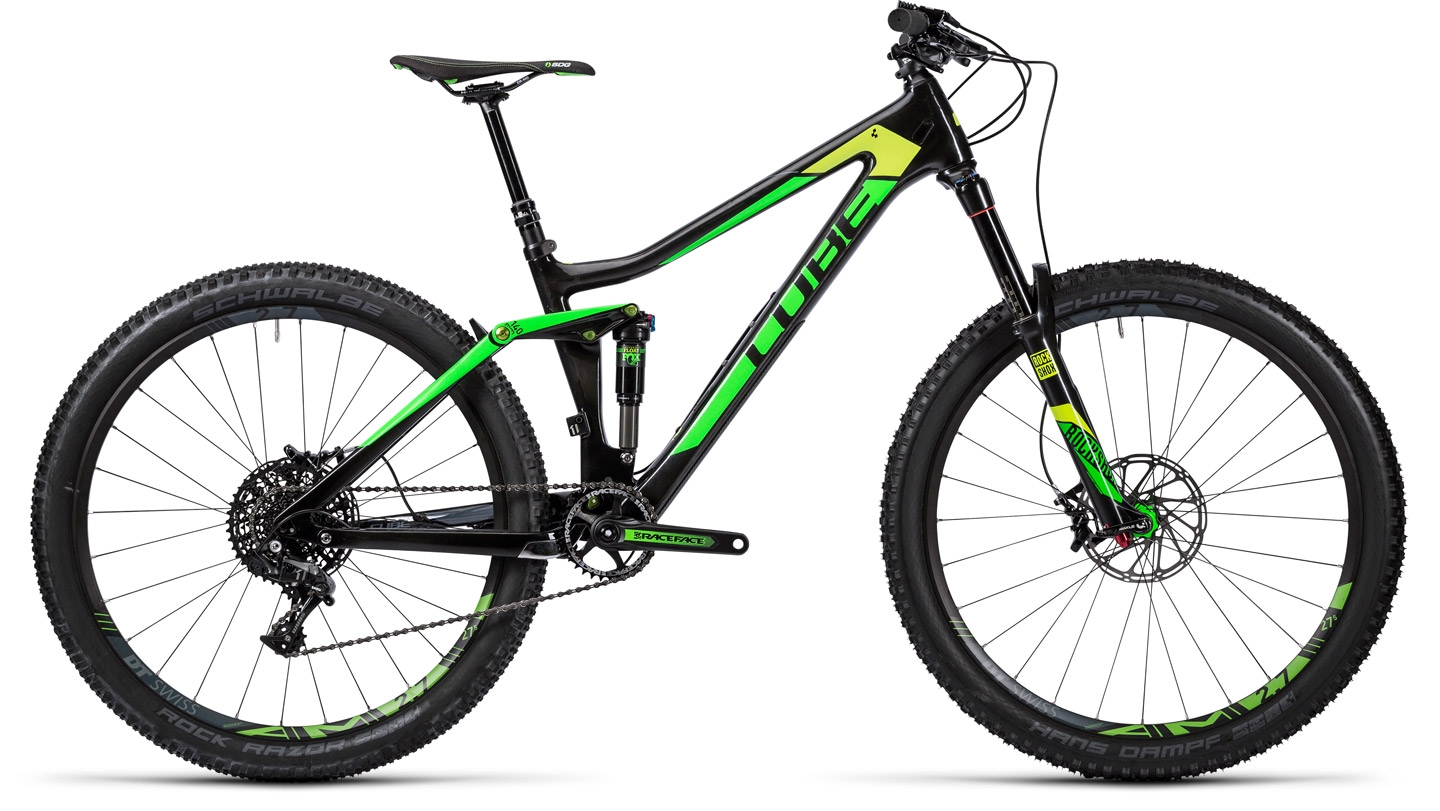

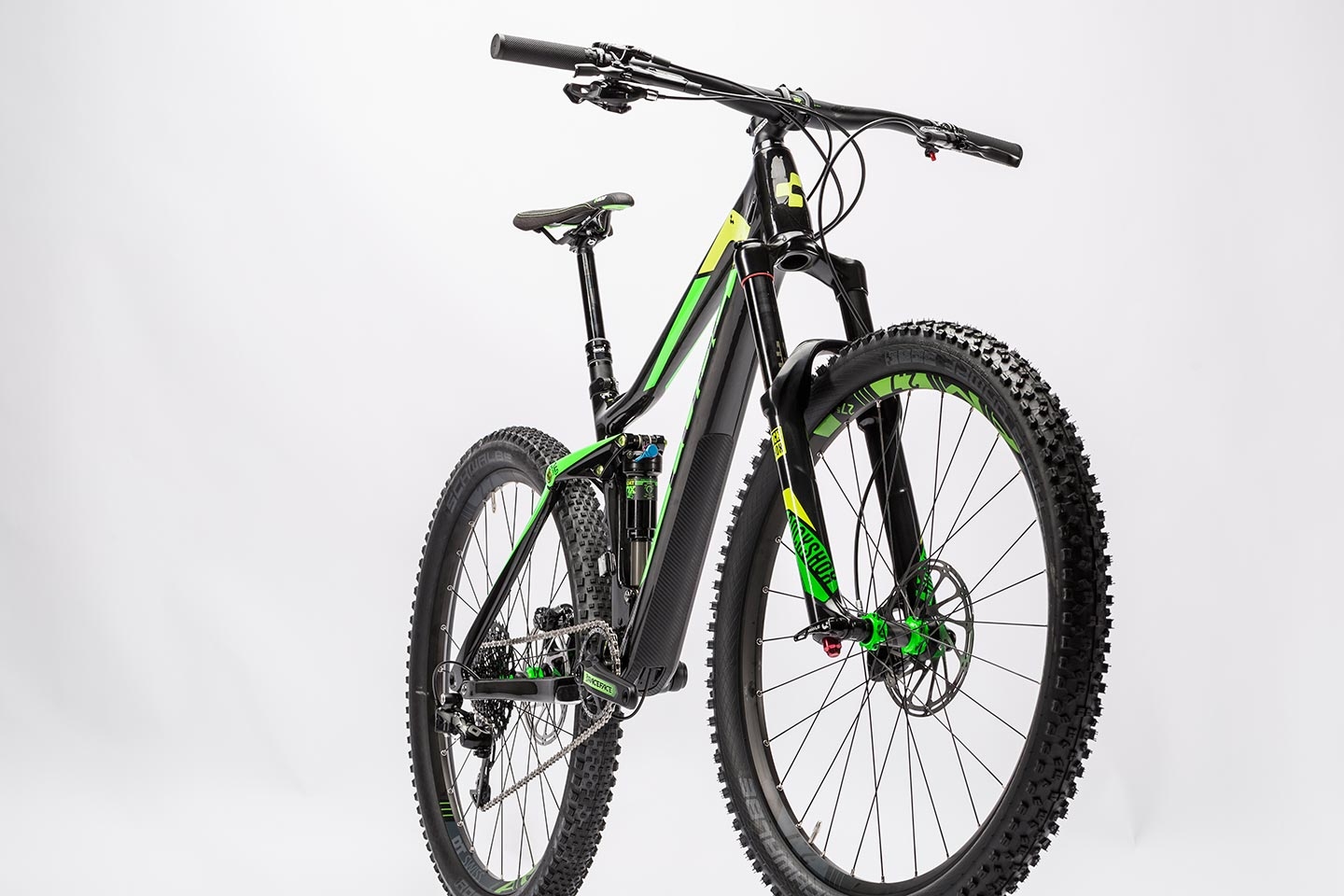

stereo 140 C:62
SL 27.5
Any bike in our range has to earn the right to wear the "superlight" SL badge. The Stereo 140 C:62 SL 27.5's low weight credentials include both the exceptionally C:62 full carbon frame and a selection of superior components - like the Sram XO1 1x11 gears. We didn't compromise with this bike. And that means that, whatever challenge you choose, from alpine singletrack to an endurance event, the Stereo SL will be more than up for it.
AUSSTATTUNG

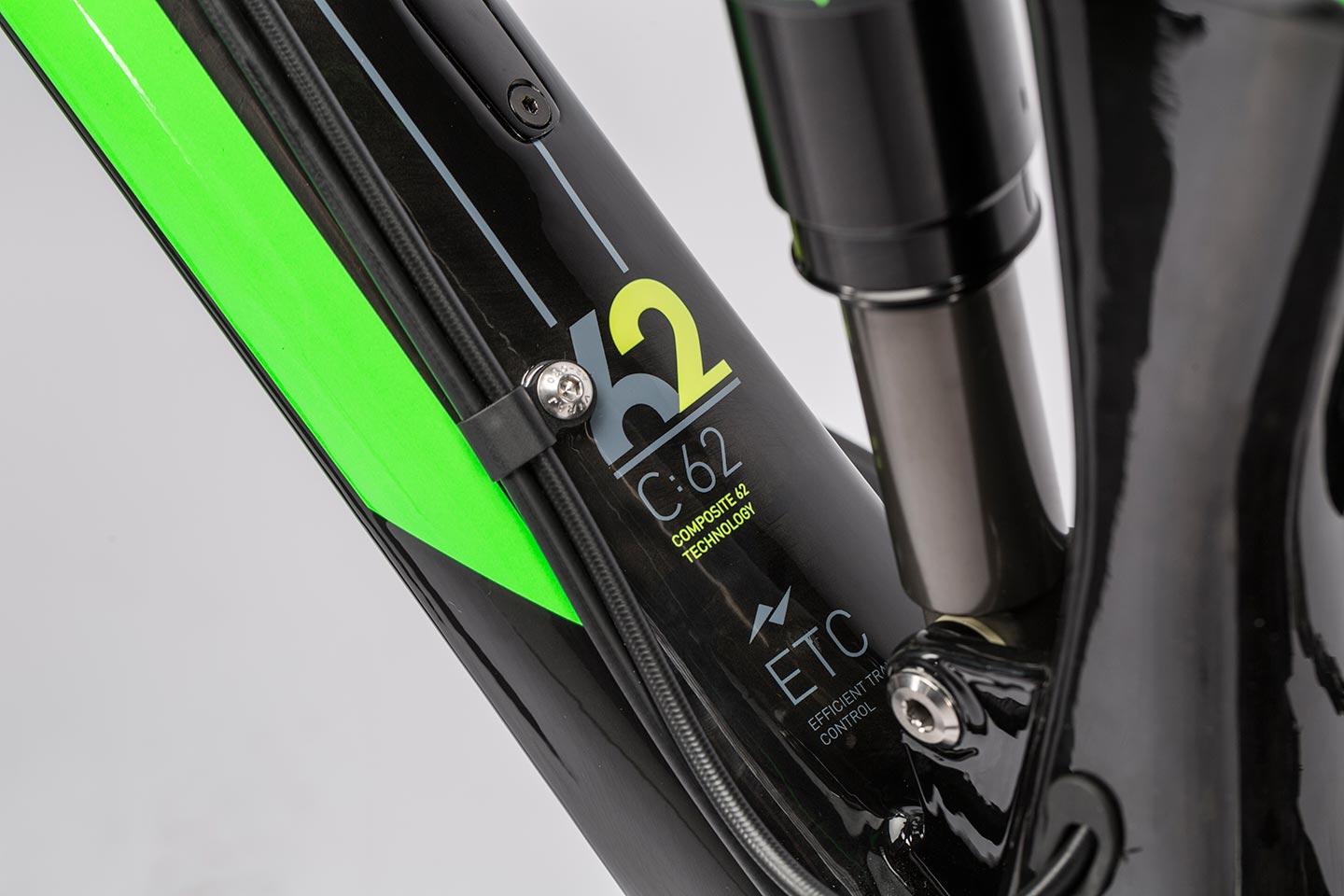

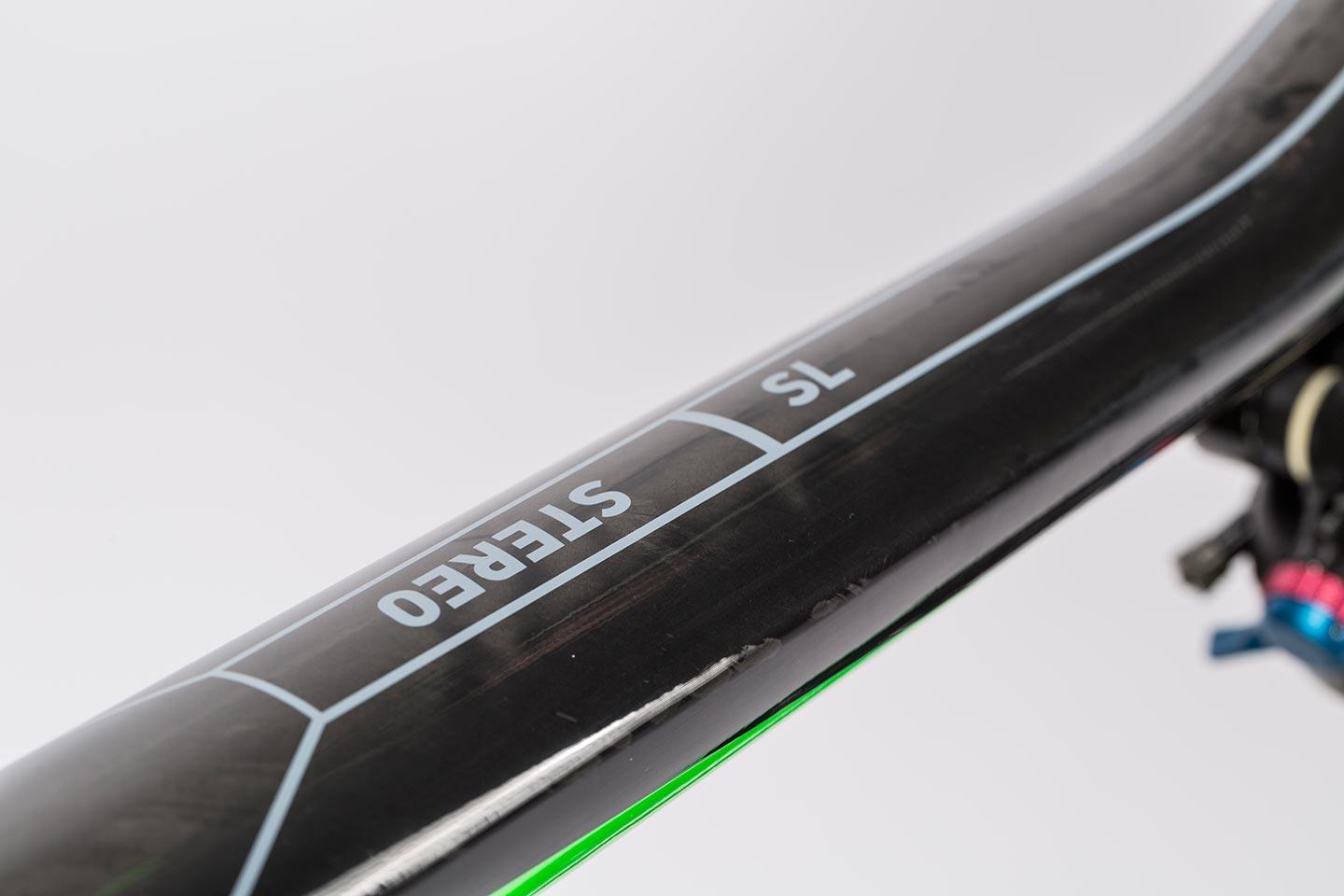

| FRAME | C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |

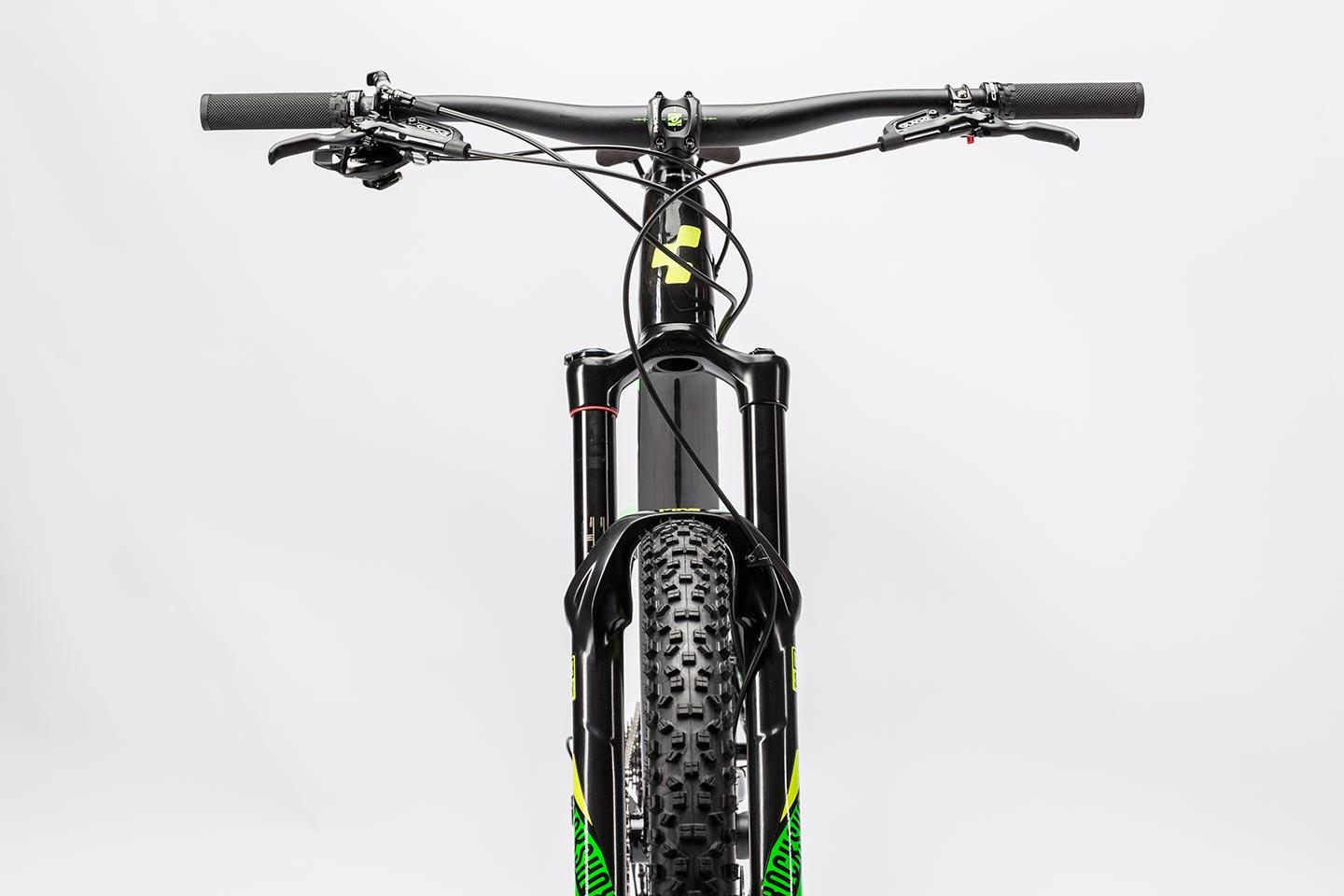

| FORK | Rock Shox Pike RC Solo Air, 15QR Maxle, Tapered, 150mm |

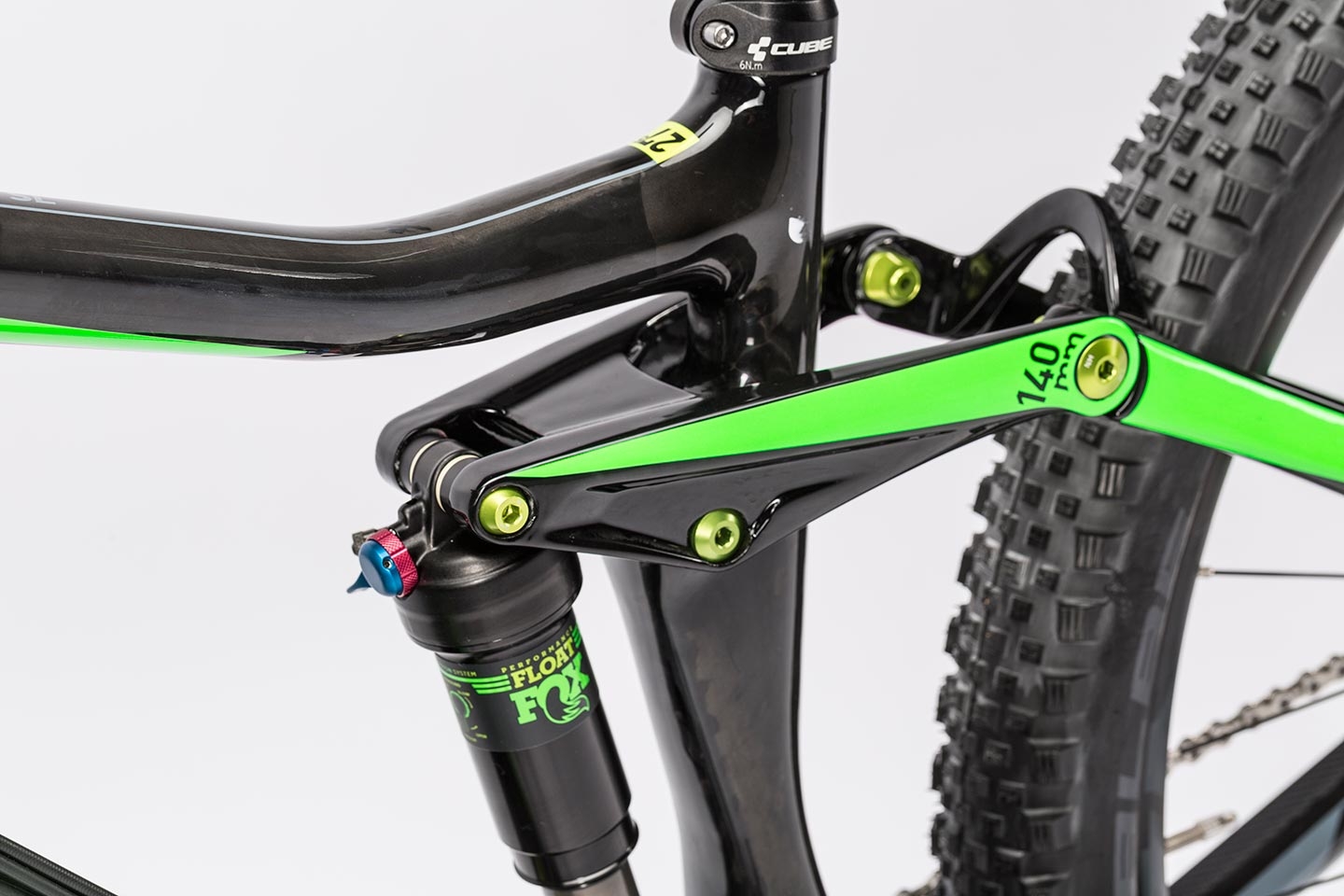

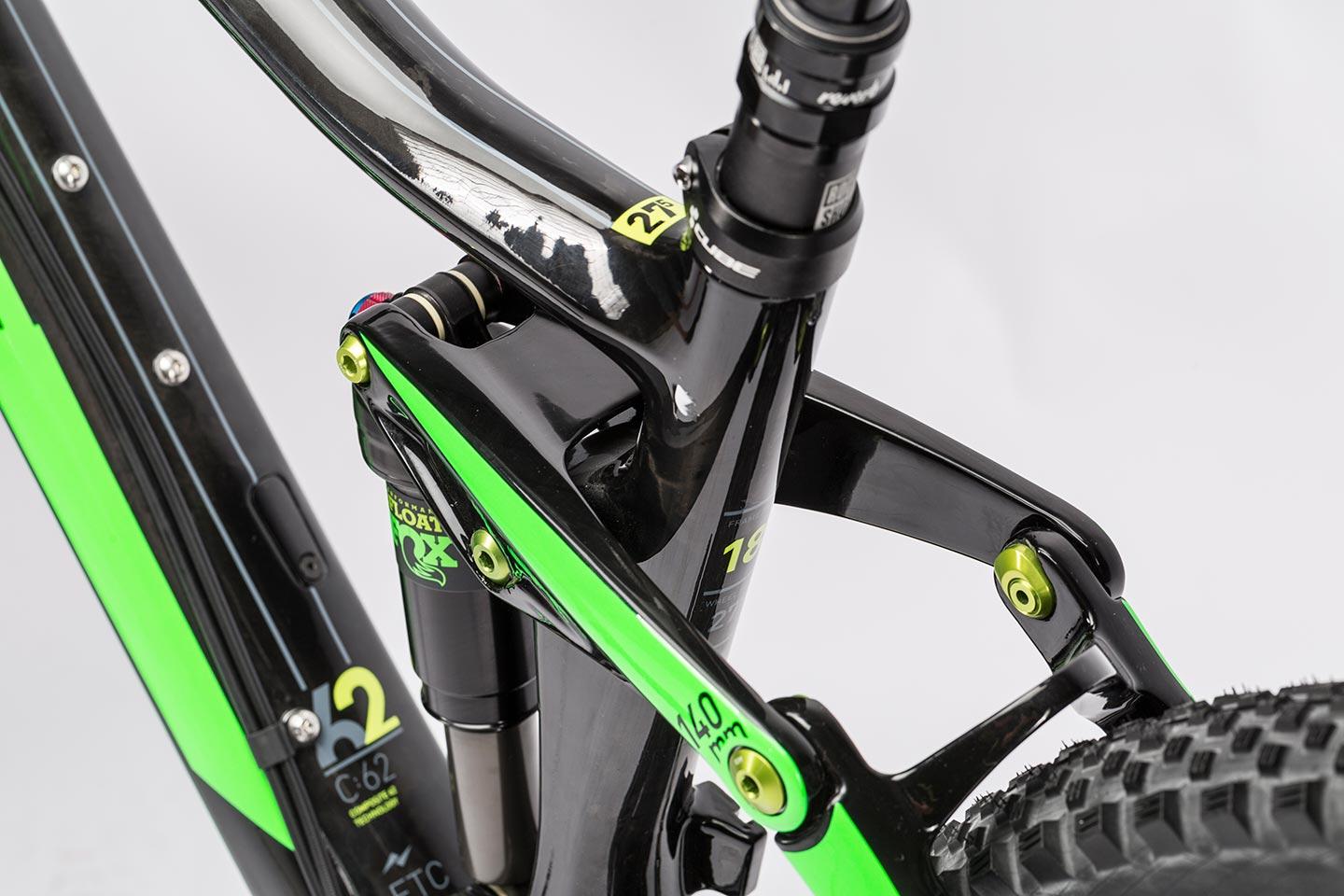

| SHOCK | Fox Float DPS, 200x57mm, Open/Medium/Firm Mode, LV Air Canister |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 22x8mm |

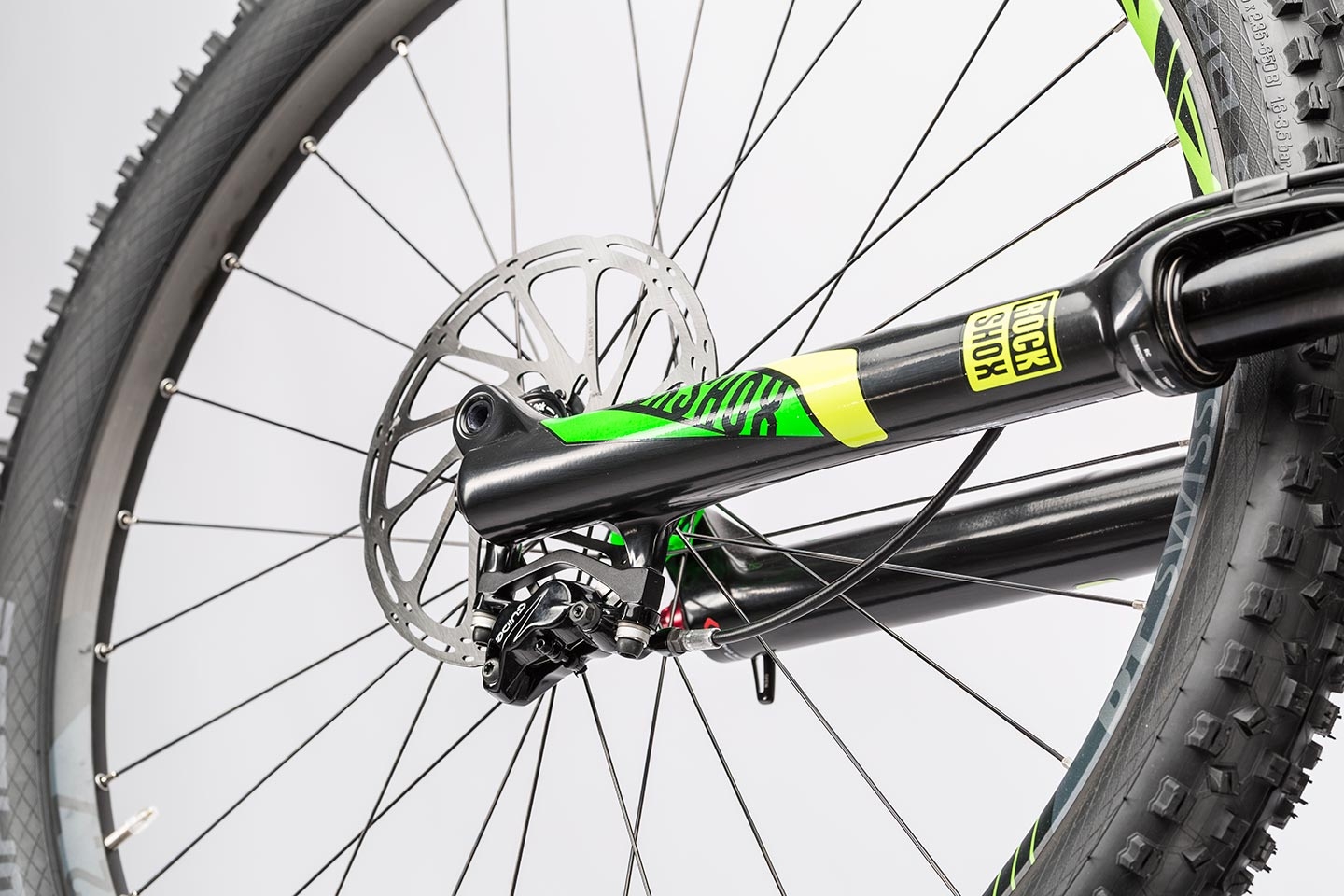

| BRAKE SYSTEM | Sram Guide R, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Sram XO1, Type2.1, 11-Speed |
| SHIFTERS | Sram XO1 Trigger |
| CRANKSET | Race Face Æffect SL 32T, 175mm |
| CASSETTE | Sram XG-1175, 10-42T |
| CHAIN | KMC X11 L |
| WHEELSET | DT CSW AM 2.7 Straightpull Wheelset, 28/28 Spokes, 15QR/X12, 584x23C Tubeless-Ready Rim |
| FRONT TIRE | Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy |
| REAR TIRE | Schwalbe Rock Razor Kevlar 2.35, PaceStar, Tubeless Easy |

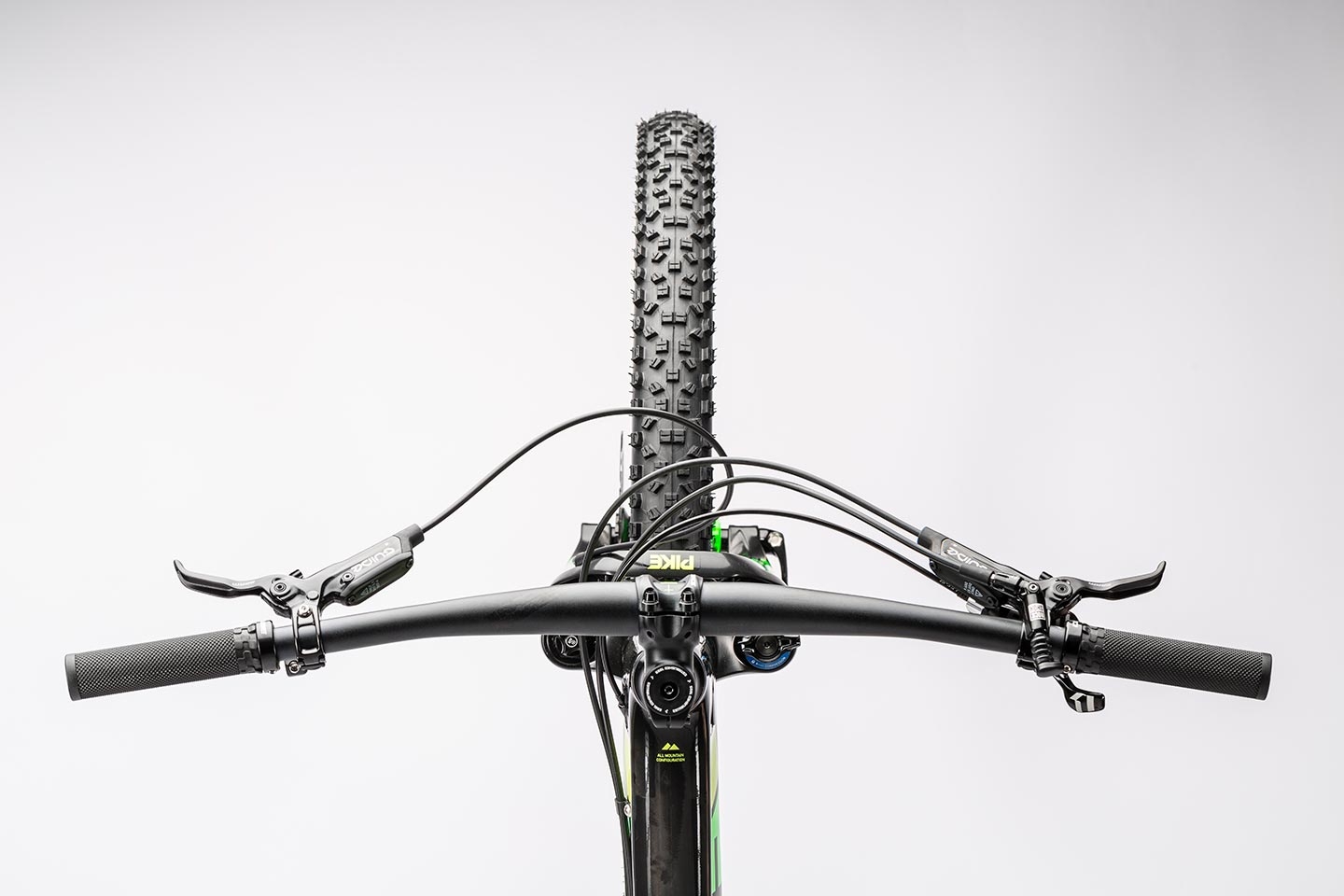

| HANDLEBAR | Race Face Ride 35 Riser, 760mm |
| GRIPS | CUBE Race Grip, 1-Clamp |
| SEAT POST | Rock Shox Reverb Stealth 31.6mm, 430x150mm (380x125mm for smallest frame size) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | SDG Circuit MTN |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 12.15 kg |
| COLOR | carbon´n´green |
| BAR KODAS | 756400 |

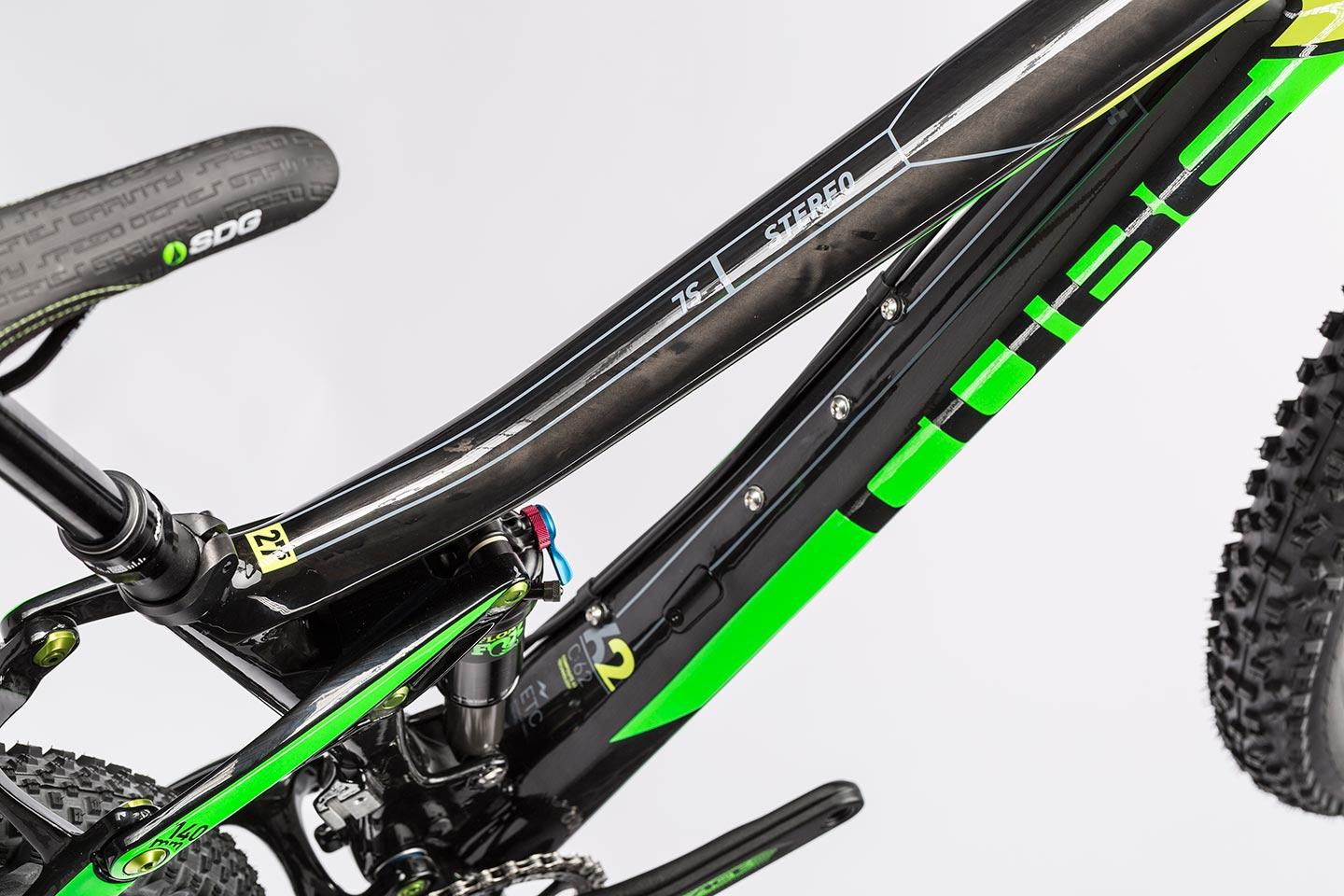

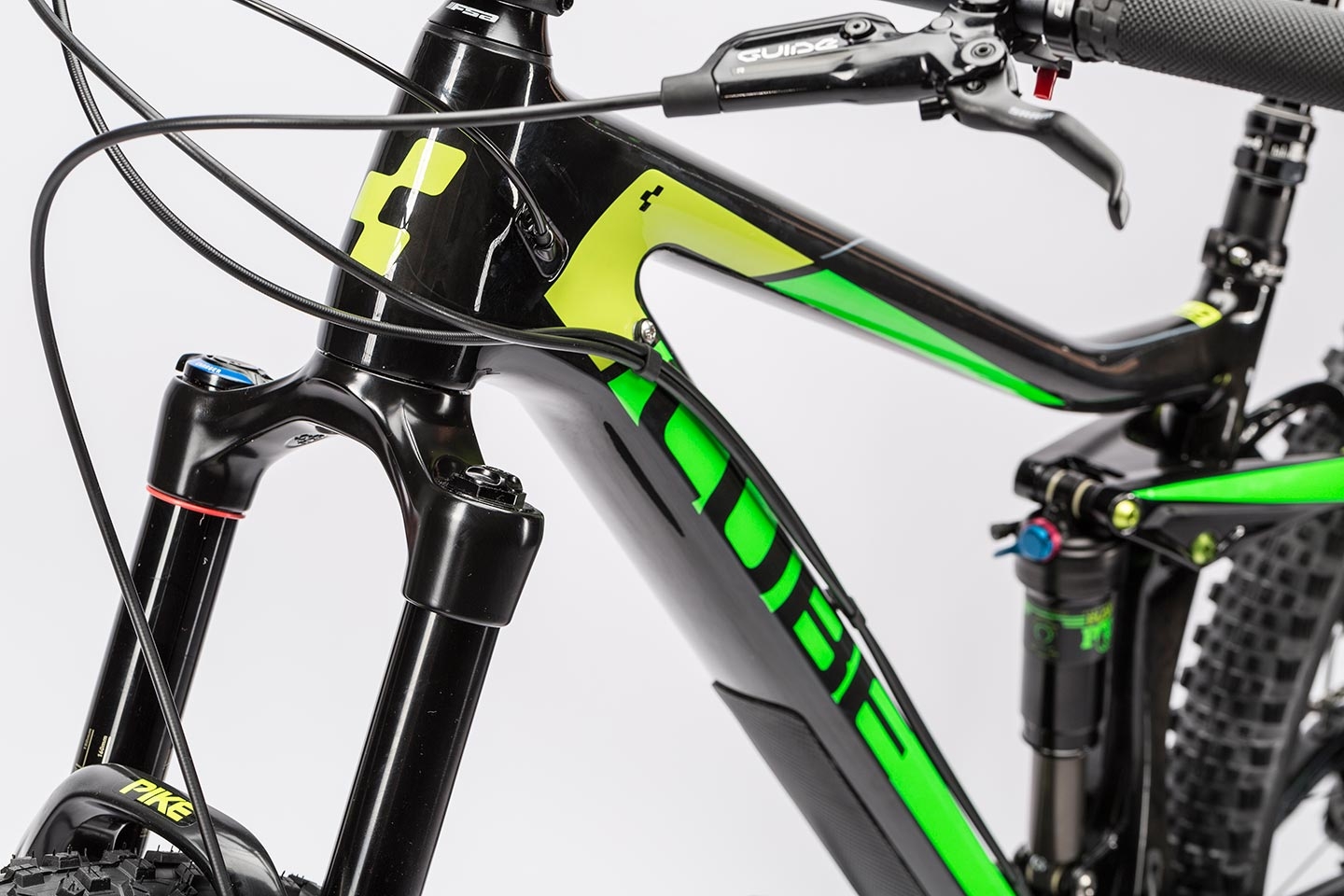

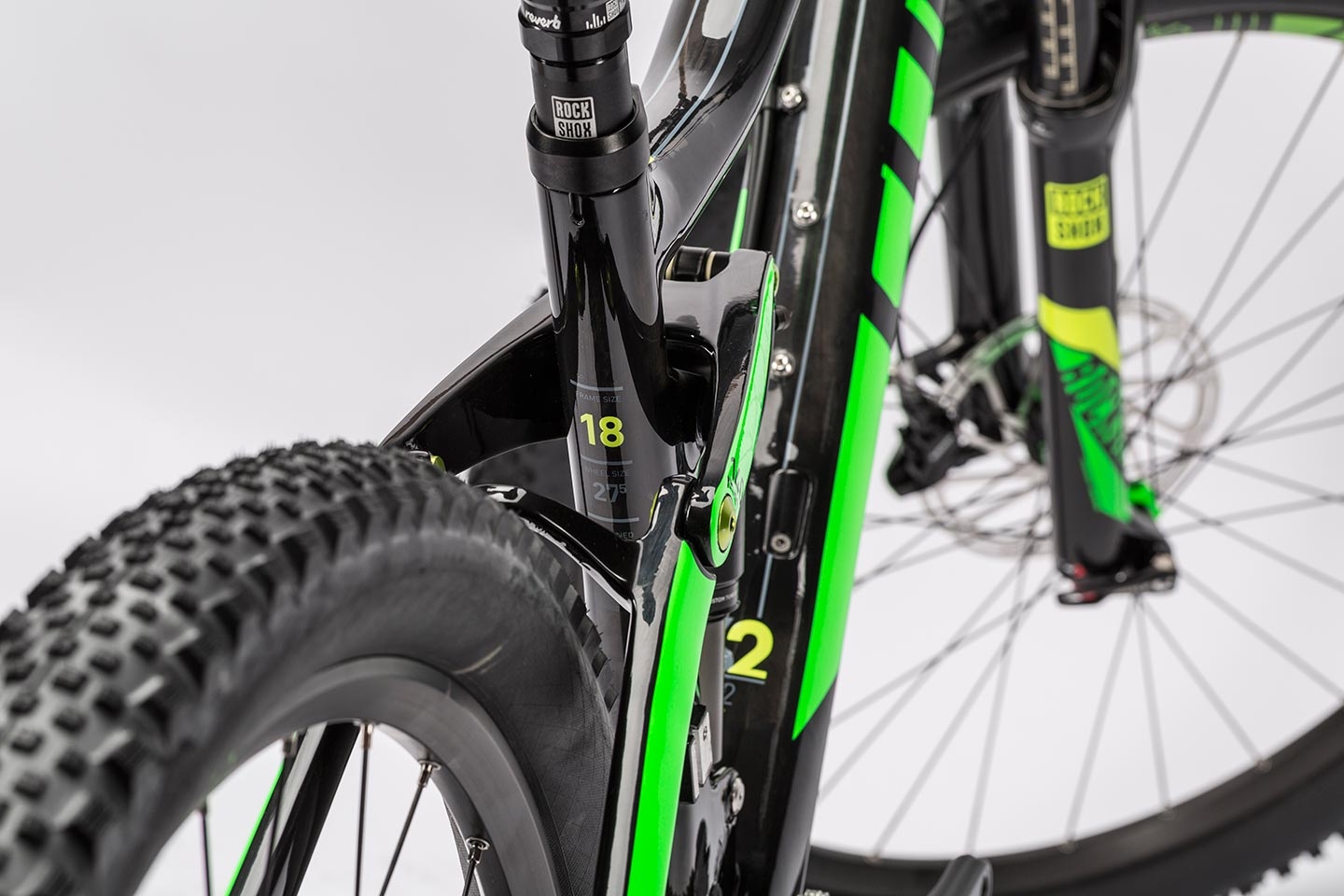

Matured over the years, every detail refined and tweaked to perfection. With its full carbon frame constructed using the Advanced Twin Mould technique, 140mm of superbly efficient and comfortable ETC suspension and a lively ride feel courtesy of our Agile Trail Geometry (ATG), we reckon there's not much room left for improvement. We've built in the lowest standover for its travel class, meaning you'll have more confidence on technical trails. And as for attention to detail, we've got it covered: high strength 7075 aluminium hardwared in the chainstay bearings, a stiff and lightweight full carbon linkage rocker and well thought out internal cable routing.
