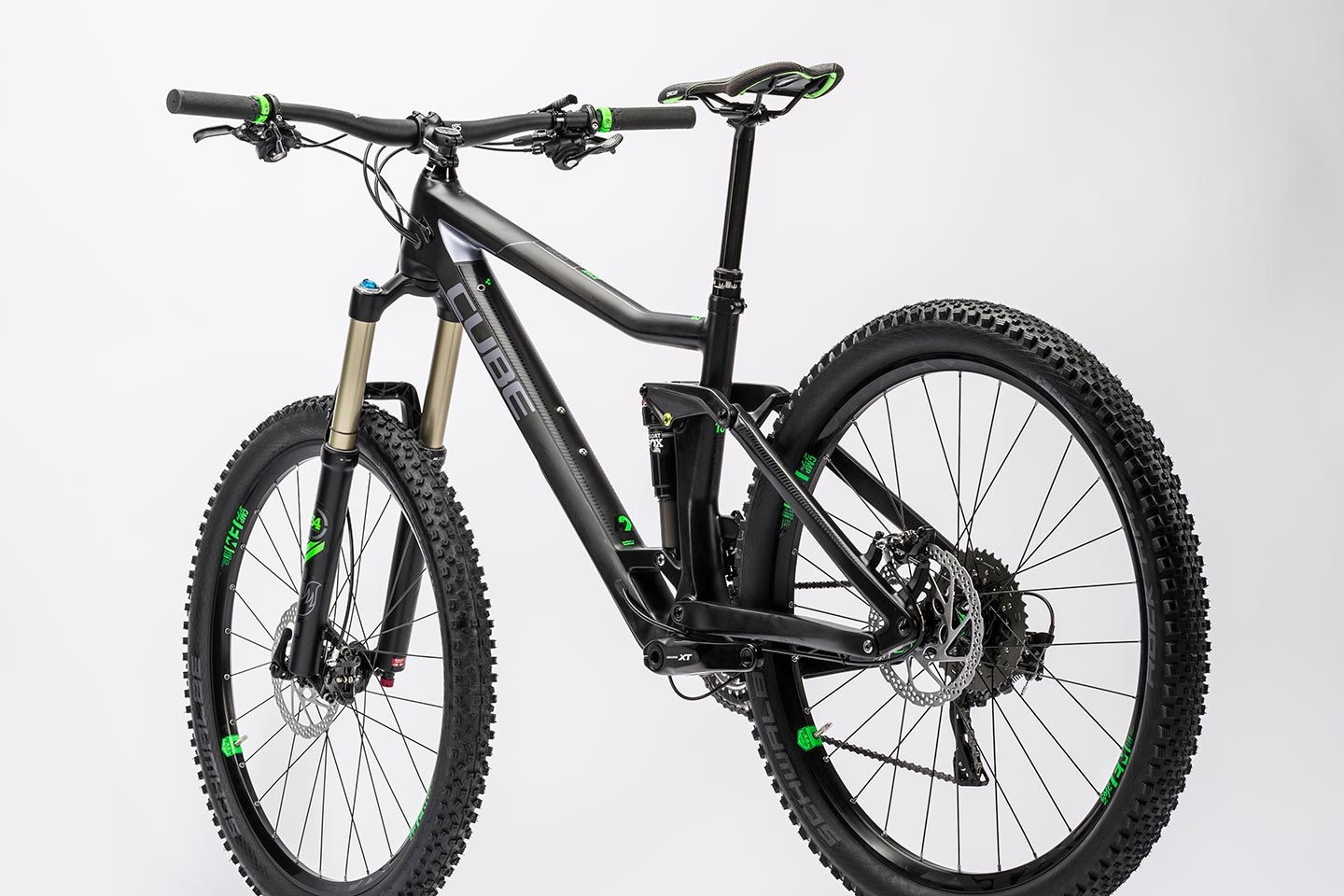

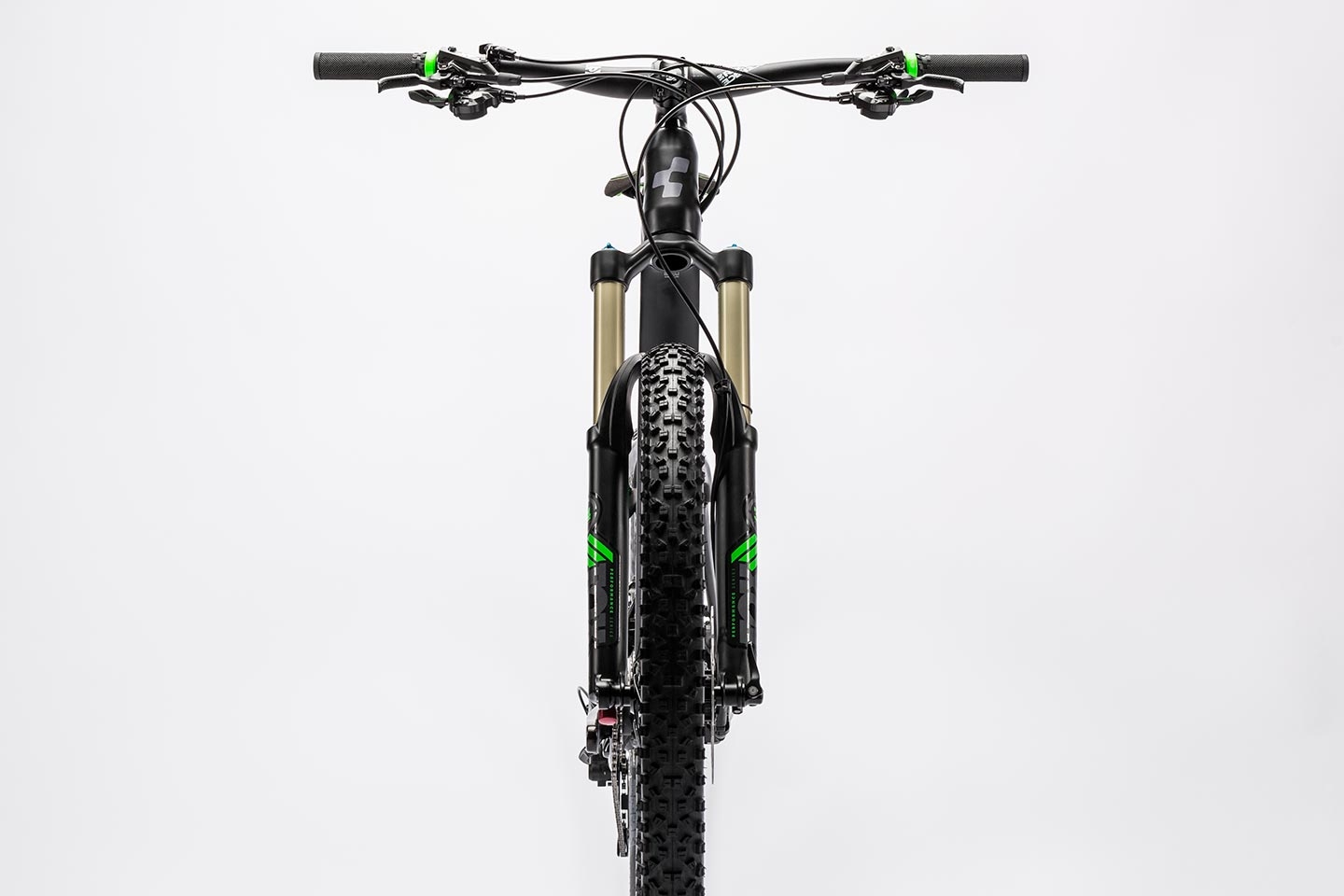

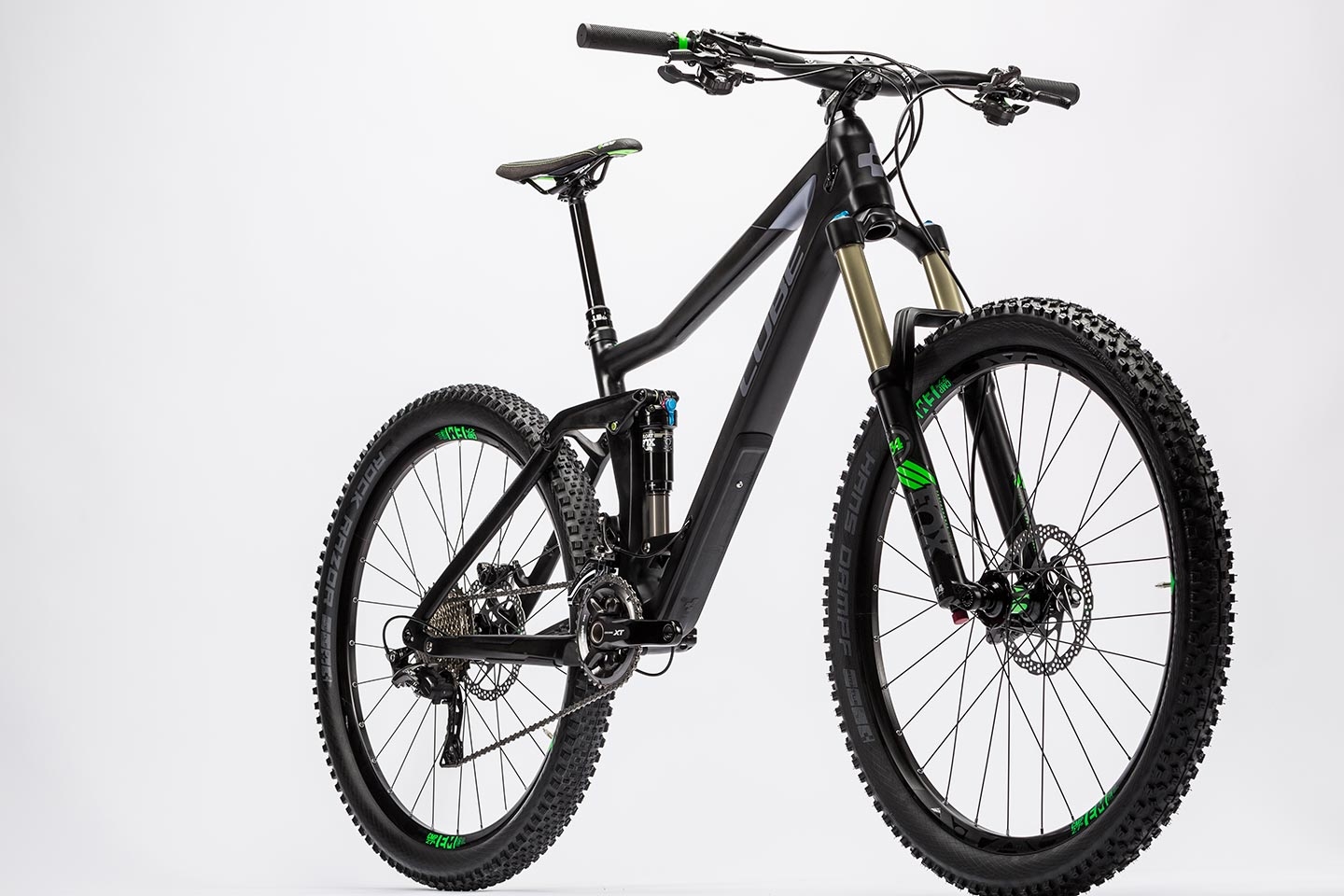

stereo 160 C:62
Race 27.5

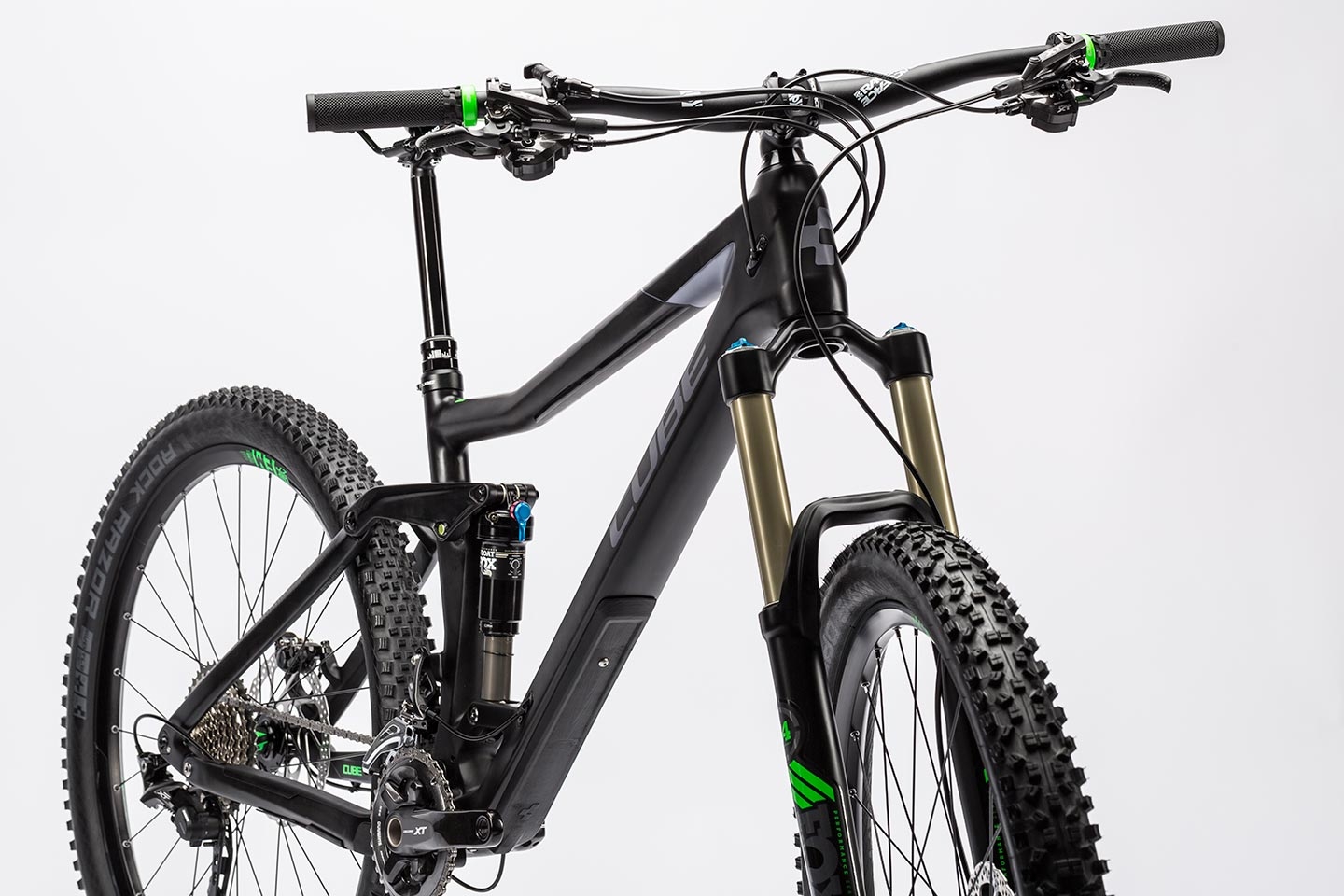

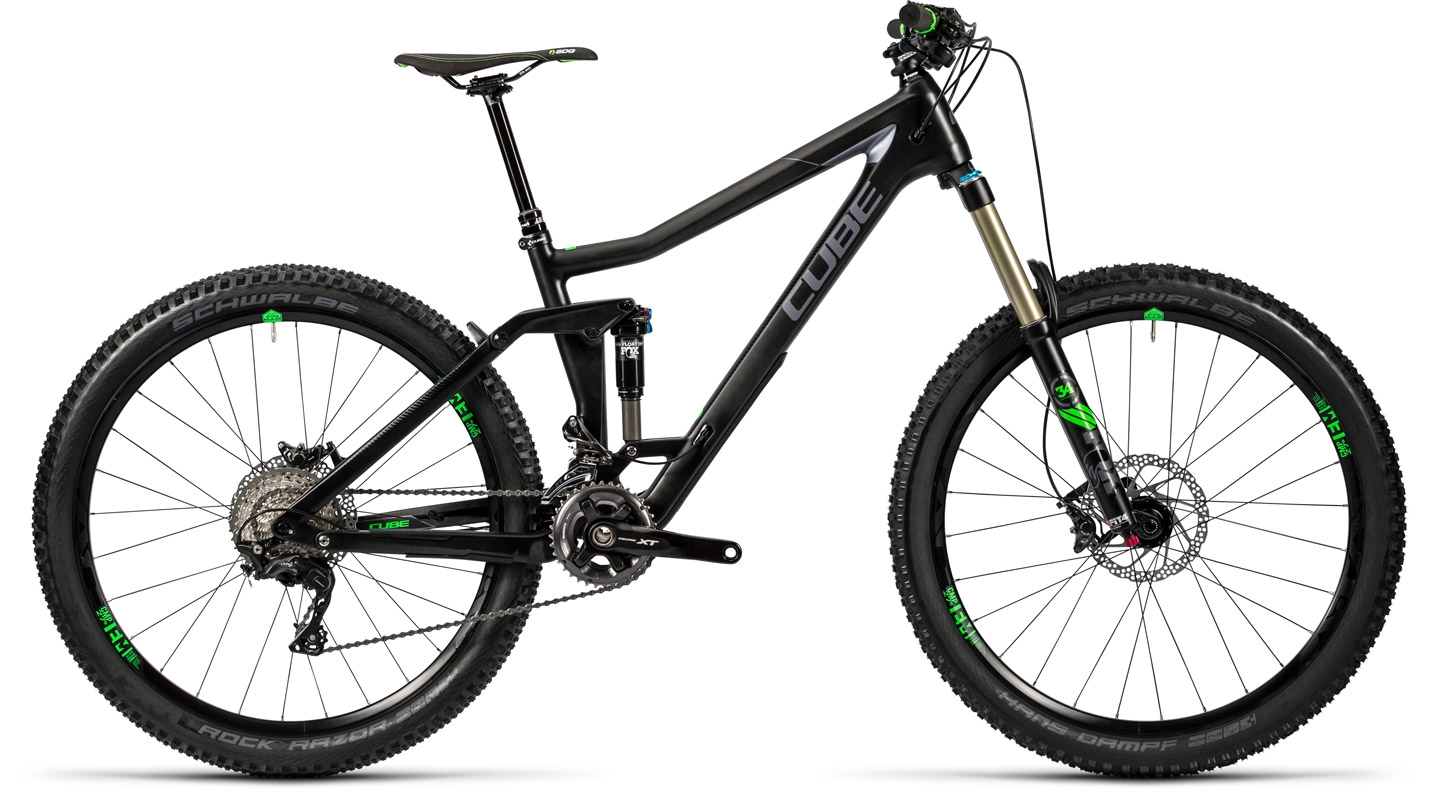

Our brand new Stereo 160 27.5 is packed with the latest technology. It's all that the keen enduro rider will ever need - we poured everything we know about carbon frames into this bike. Equipped with superbly functional kit like the new Shimano 2x11 XT groupset, Reverb dropper post and next generation Fox suspension technology, you won't be able to wipe the smile from your face out on the trails.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, AXH, Boost148 |
|---|---|
| SIZE | 16", 18", 20", 22" |

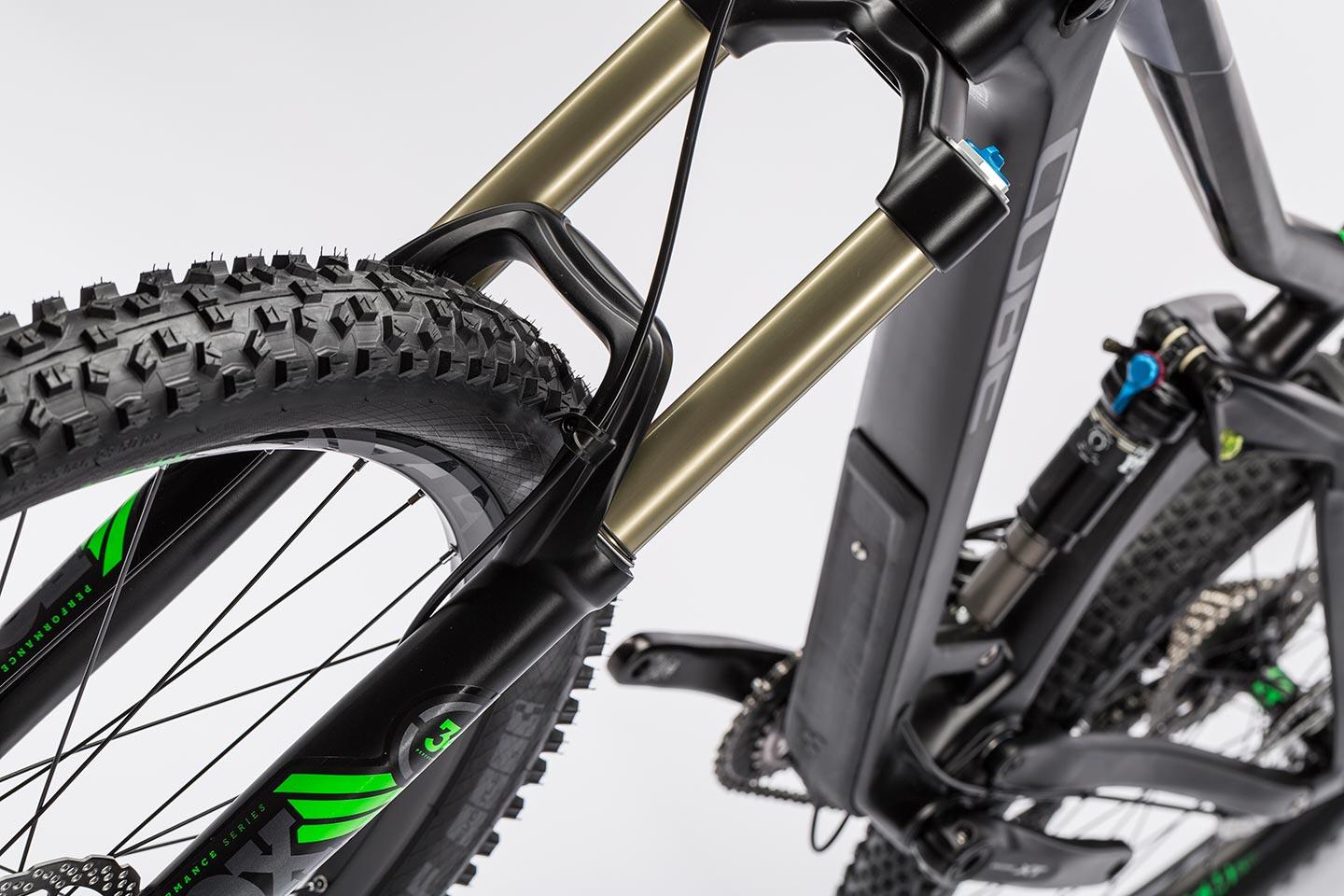

| FORK | Fox 34 Float FIT4, Open/Medium/Firm Mode, Tapered, 15QR, 160mm |

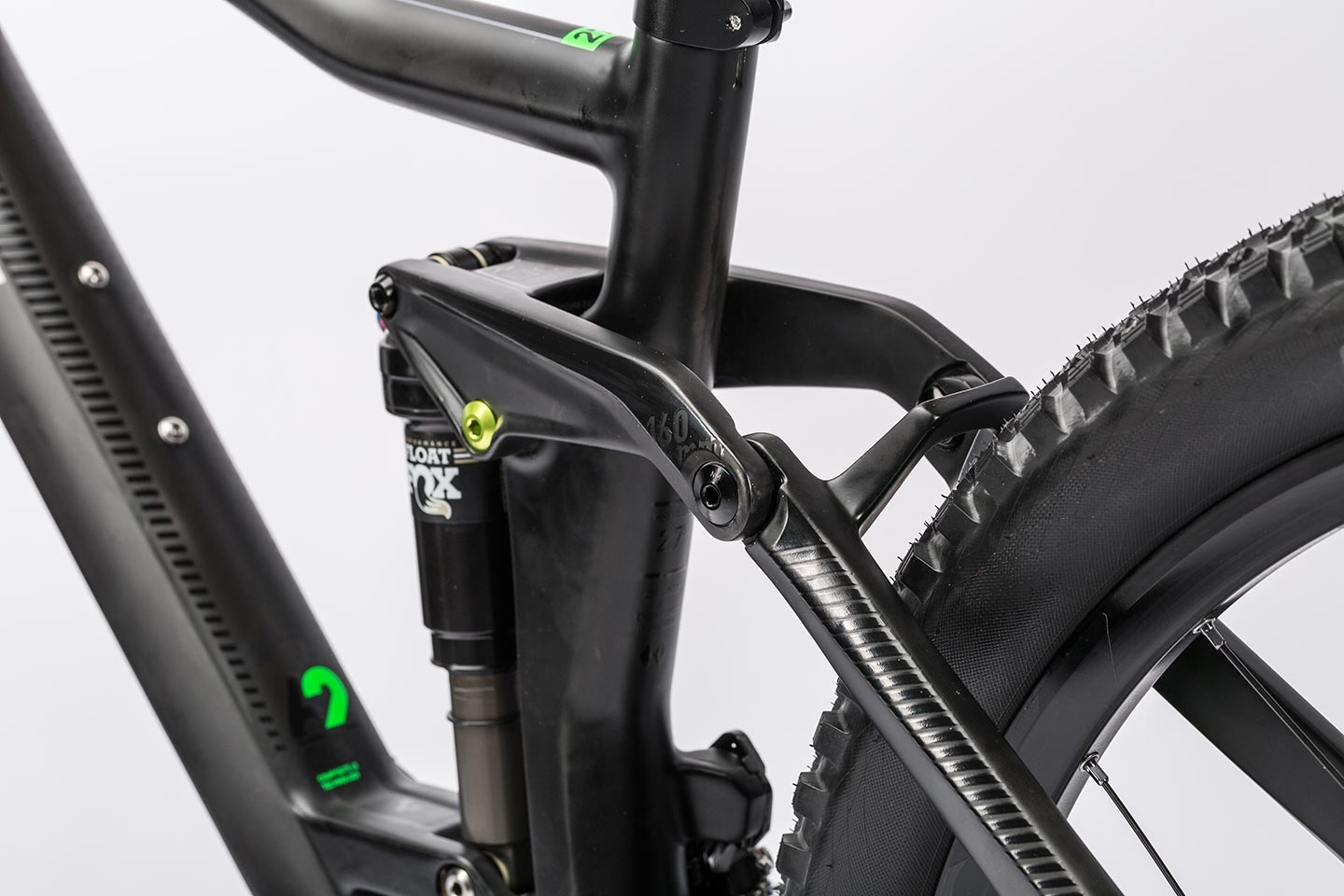

| SHOCK | Fox Float DPS, 200x57mm, Open/Medium/Firm Mode, LV Air Canister |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8000, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| FRONT DERAILLEUR | Shimano XT FD-M8020-D, Direct Mount, Side Swing |
| SHIFTERS | Shimano XT SL-M8000-I, Direct Attach |

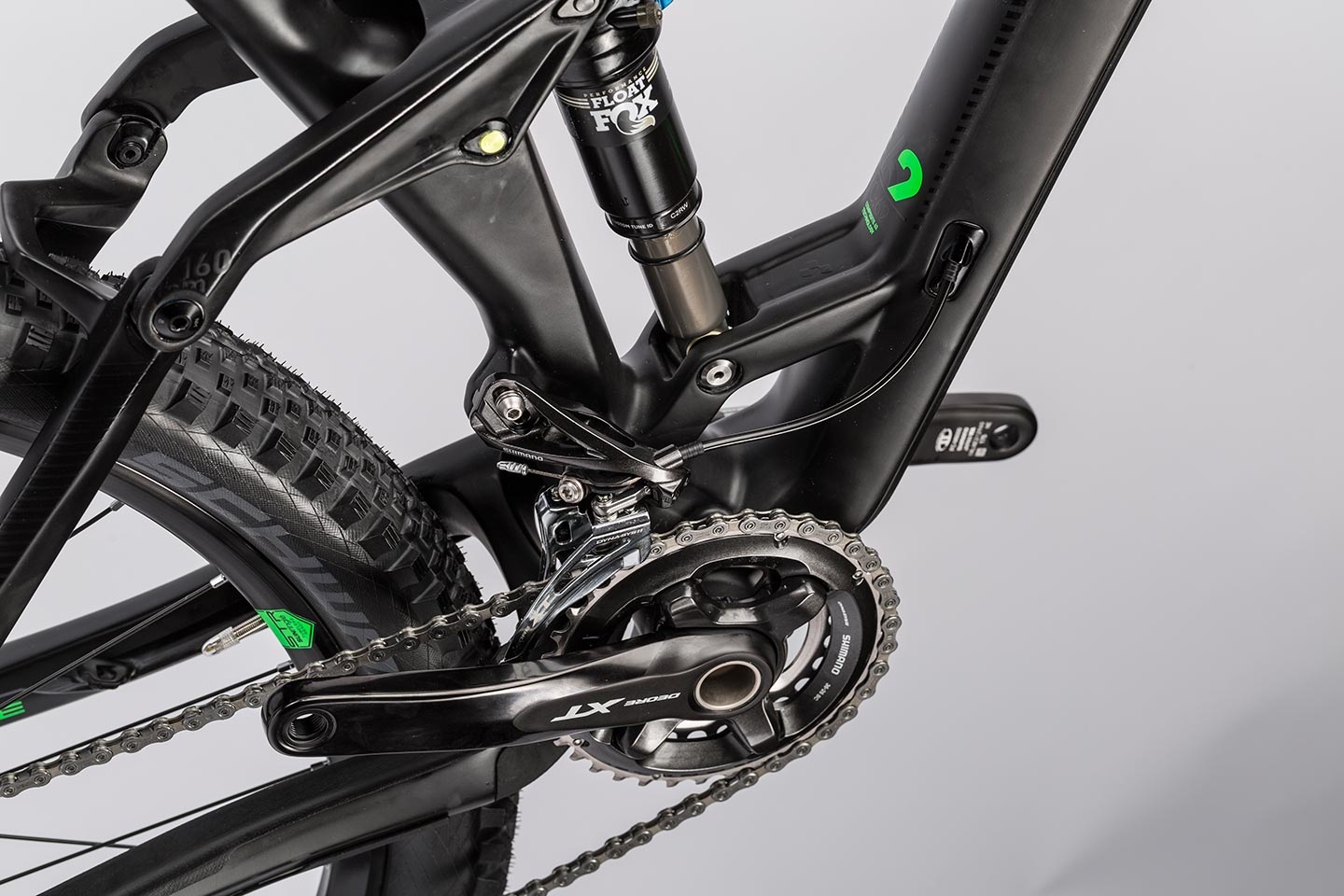

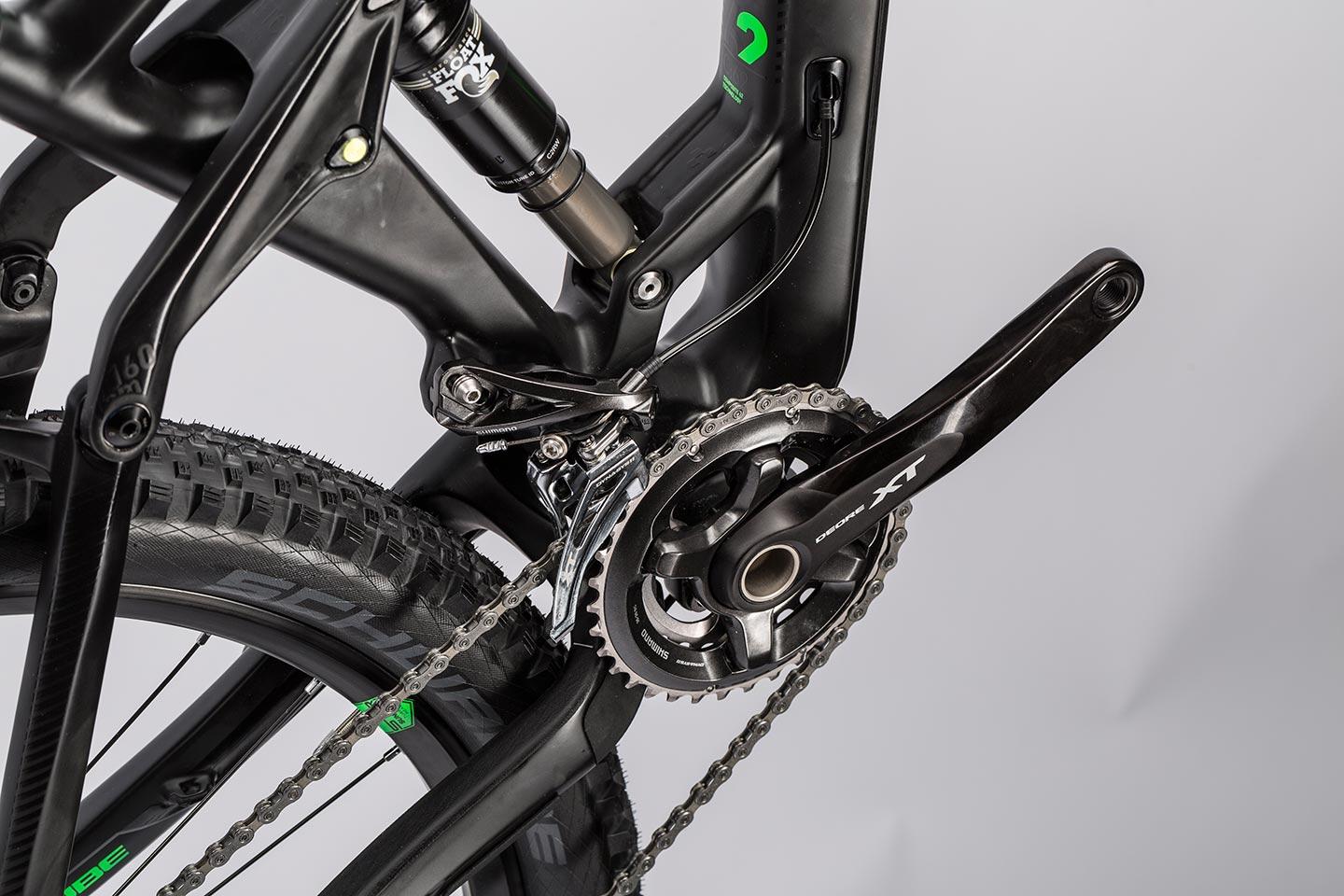

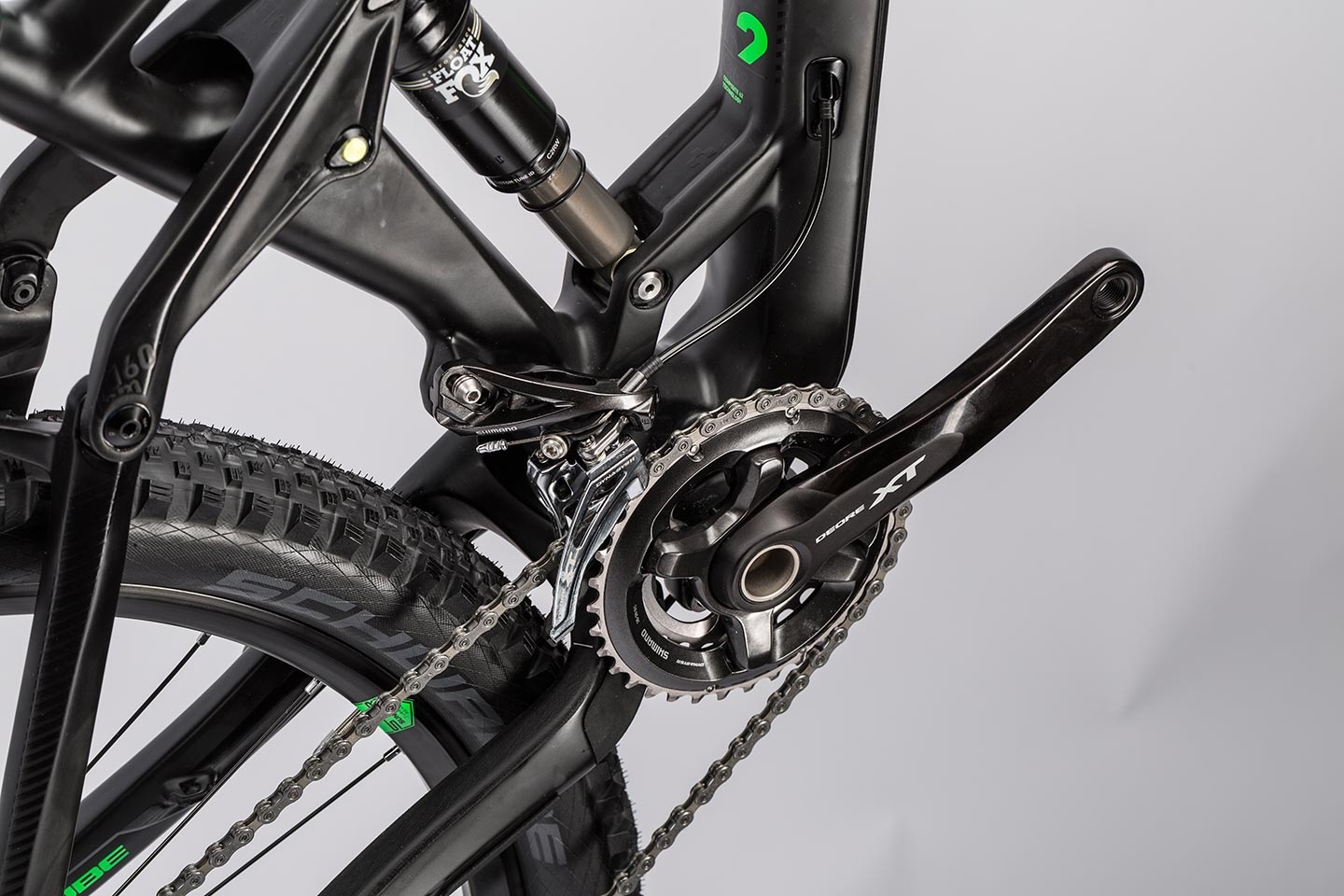

| CRANKSET | Shimano XT FC-M8000-B2, Boost, 36x26T, 175mm |
| CASSETTE | Shimano XT CS-M8000, 11-40T |
| CHAIN | Shimano CN-HG600-11 |
| WHEELSET | Answer Atac EM, QR15 / Boost148 X12, Tubeless-Ready 584x25C Rims |
| FRONT TIRE | Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy |
| REAR TIRE | Schwalbe Rock Razor Kevlar 2.35, PaceStar, Tubeless Easy |

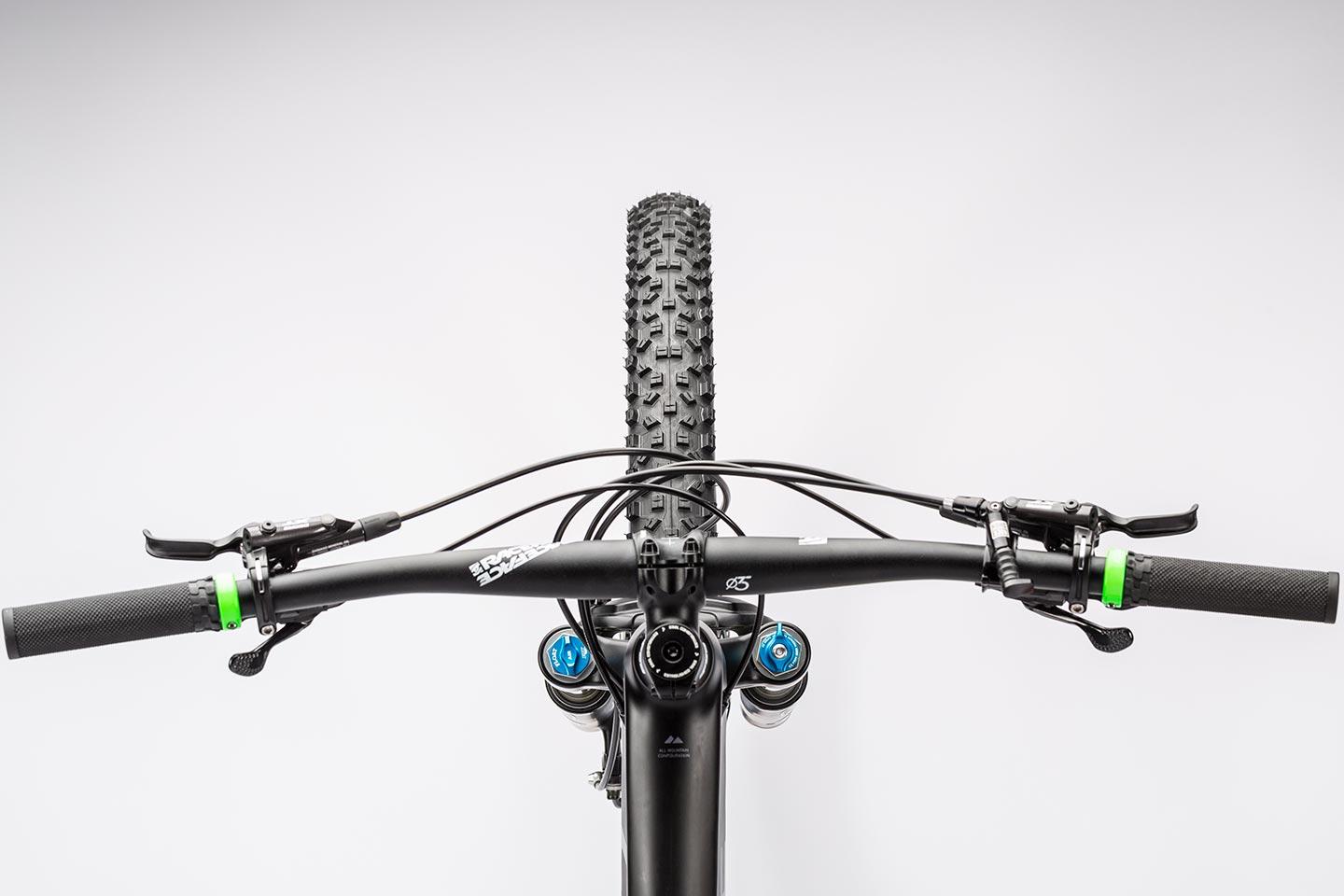

| HANDLEBAR | Race Face Ride 35 Riser, 760mm |
| GRIPS | CUBE Race Grip, 1-Clamp |
| SEAT POST | Rock Shox Reverb Stealth 31.6mm, 430x150mm (380x125mm for smallest frame size) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | SDG Circuit MTN |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 12.8 kg |
| COLOR | carbon´n´green |
| BAR KODAS | 761300 |

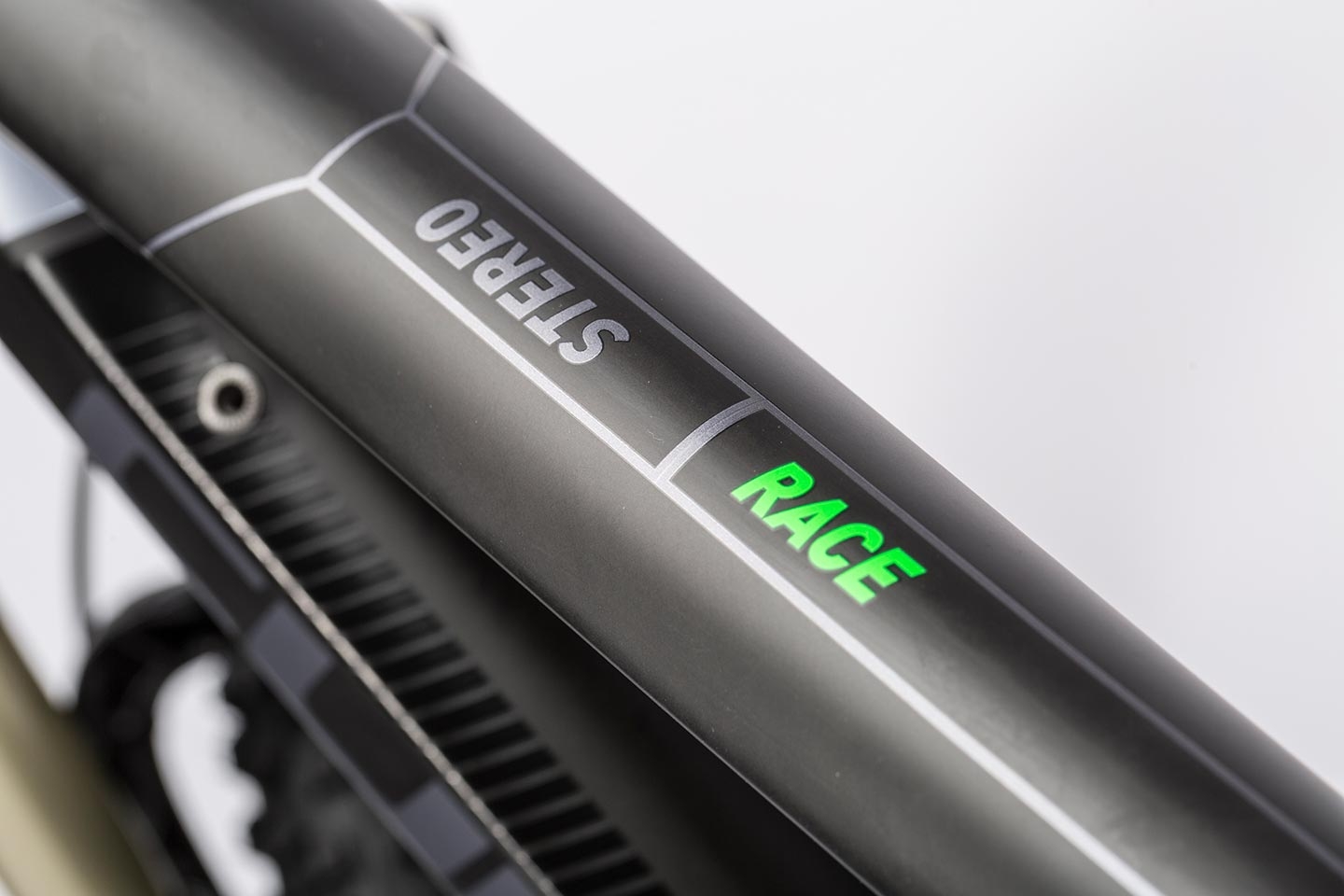

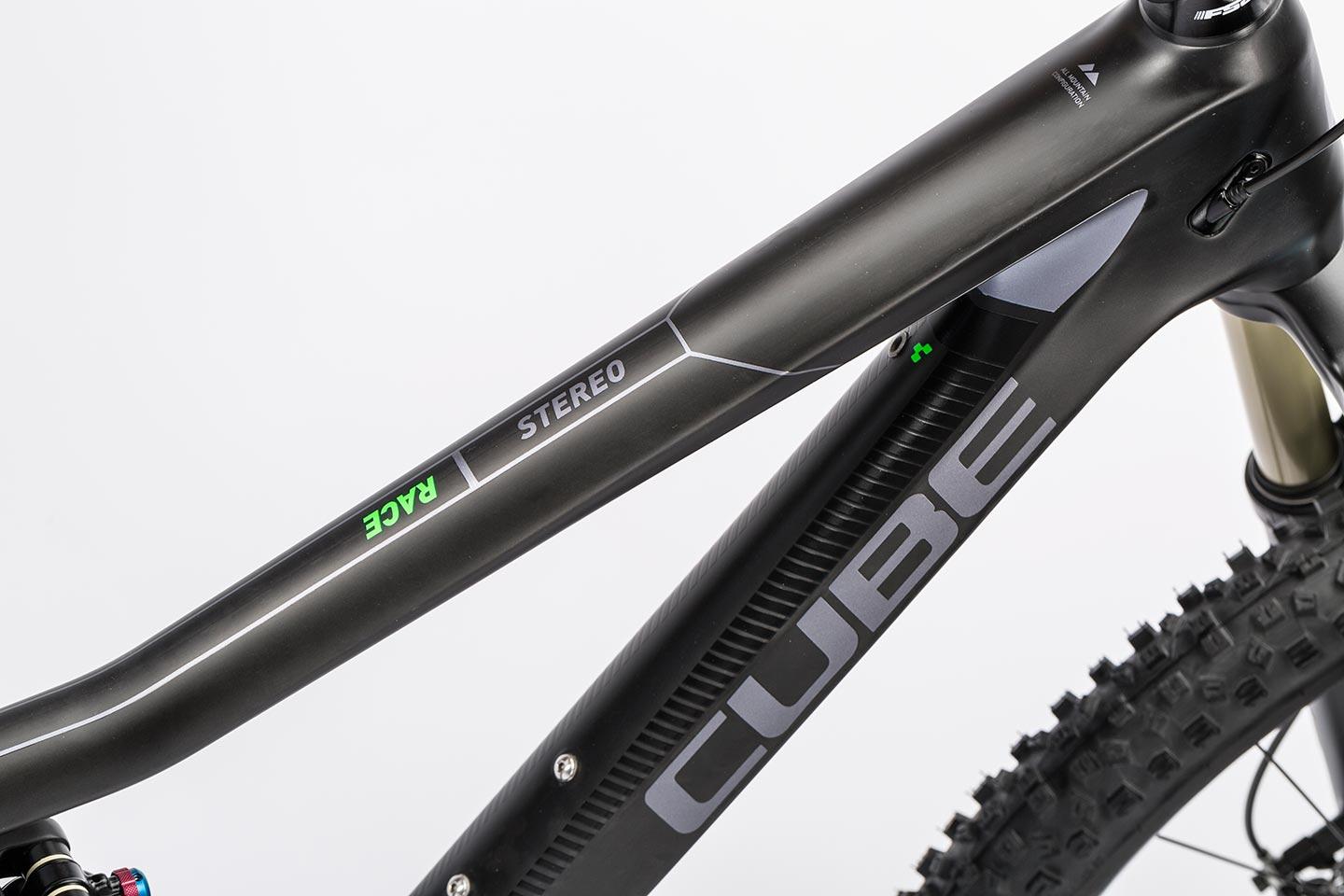

The new-from-the-ground-up Stereo 160 C:62 full carbon chassis sets new standards for weight and performance. We've optimised the frame design to allow greater freedom of movement, as well as lenghening the top tube a little. We were able to combine incredible stiffness with record-breaking light weight by using our advanced Twin Mould technology, 7075 aluminium hardware and a Boost148 rear axle. We even made room for a rear shock with a piggyback reservoir, and the frame is ready to accept electronic components like Shimano's Di2 shift technology. Reworked Agile Trail Geometry (ATG) gives the bike fast and precise responses, even on twisty trails, and rough terrain is smoothed easily through our Efficient Trail Control (ETC) system.
