STEREO 120
PRO 29

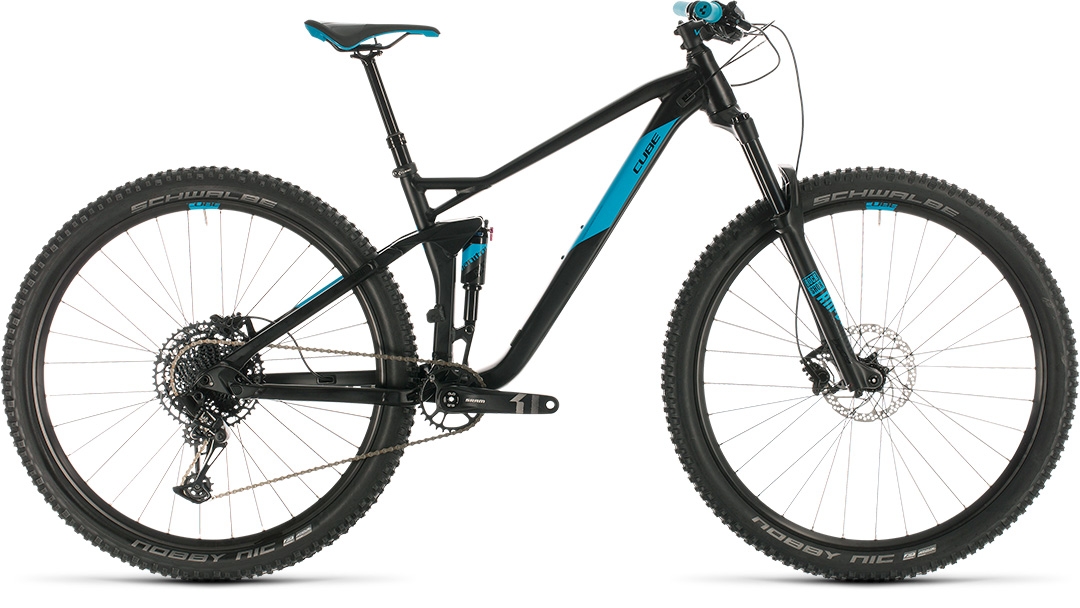

The Stereo 120 Pro 29 sets a new standard for comfort, control and agility on the trail. Smooth-rolling 29er wheels, Agile Trail Geometry and a sleek frame design make taming any trail a pleasure, wherever your weekend adventures take you. Triple-butted aluminium tubes - carefully shaped to combine low weight with superb strength - are honed into a chassis that's as good to look at as it is to ride, and we've chosen reliable, durable components and incorporated features like internal cable routing, so that you can concentrate on the ride rather than worrying about maintenance and adjustments. The easily adjustable Manitou Radium Expert rear shock serves up 120mm of smooth, progressive rear wheel travel while the plush RockShox Judy Silver fork offers super-precise, confidence-inspiring steering and 130mm of rock- and root-swallowing performance. And, because each uses an air spring, it's incredibly simple to set up according to your weight and preferred stiffness. We've added Sram's Eagle 1x12 transmission with its easy gear selection and incredibly wide, mountain-swallowing range, and fitted Shimano MT500 hydraulic disc brakes to ensure you're always in full control. It all adds up to a package that's guaranteed to put a smile on your face, ride after ride.
AUSSTATTUNG
| RĖMAS | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
|---|---|
| DYDIS | 16", 18", 20", 22" |
| ŠAKĖ | RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm, Lockout |

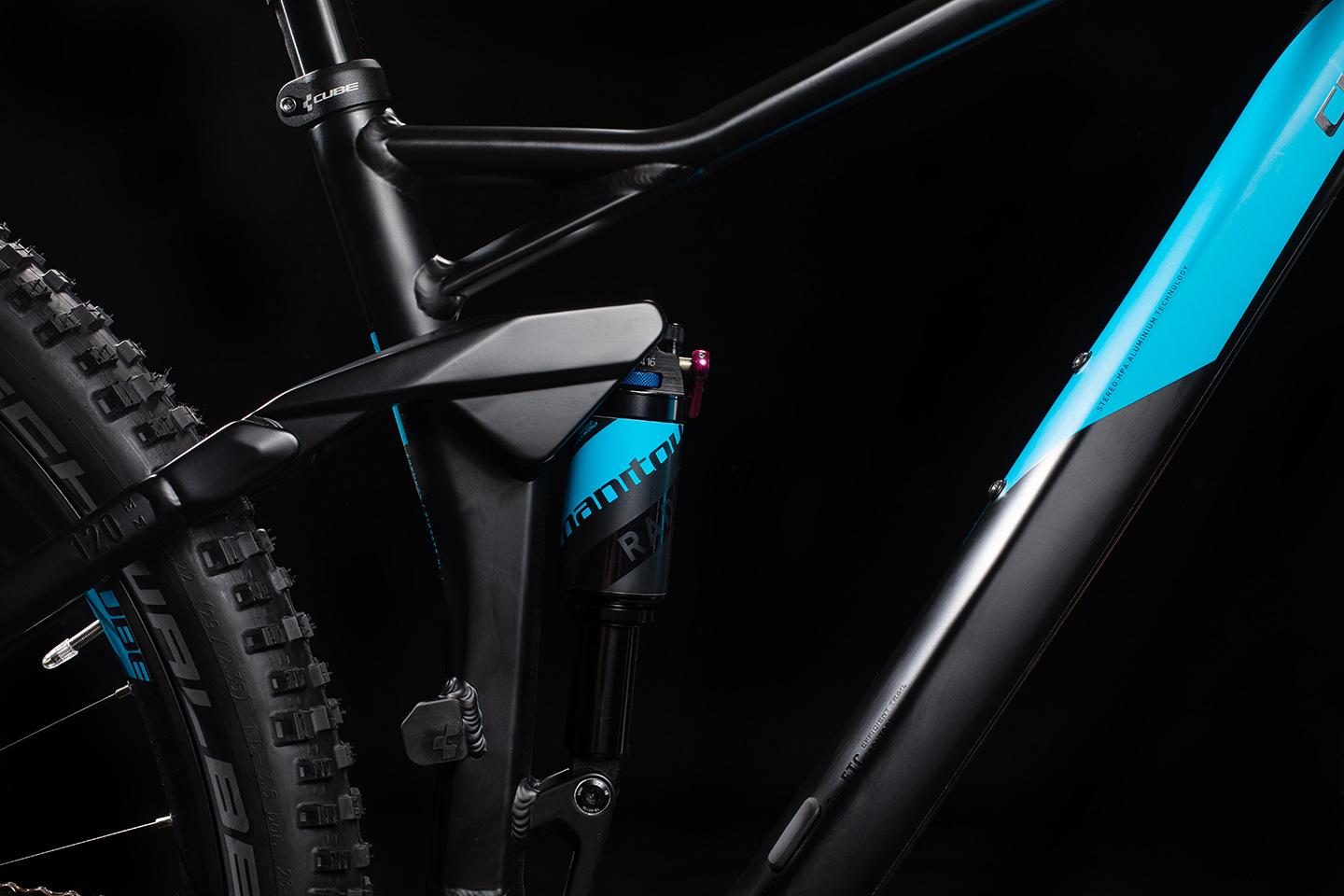

| GALINIS AMORTIZATORIUS | Manitou Radium Expert RL, 190x45mm, Rebound Adjust, Lockout |
| GALINIO AMORTIZATORIAUS DALYS | Top: 40x8mm, Bottom: 22x8mm |
| STABDŽIŲ SISTEMA | Shimano BR-MT500, Hydr. Disc Brake (180/180) |
| GALINIS PAVARŲ PERJUNGĖJAS | Sram NX Eagle™, 12-Speed |
| PAVARŲ PERJUNGIMO RANKENĖLĖS | Sram SX Eagle™ Trigger |
| PRIEKINIS ŽVAIGŽDŽIŲ BLOKAS | Sram X1 1000 Eagle™ DUB 30T, Boost, 175mm |
| GALINIS ŽVAIGŽDŽIŲ BLOKAS | Sram XG-1230 Eagle™, 11-50T |
| GRANDINĖ | Sram SX Eagle™ |
| PRIEKINĖ ĮVORĖ | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| GALINĖ ĮVORĖ | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| RATLANKIAI | CUBE EX25, 32H, Disc |
| PADANGOS | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35 |
| VAIRAS | Newmen Evolution 318.20, 760mm |
| VAIRO RANKENĖLĖS | Cube Race SL Grip 29.5mm, 1-Clamp |
| BALNELIO LAIKIKLIS | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 425x130mm (403x120mm for smallest frame size) |
| BALNELIO LAIKIKLIO UŽVERŽĖJAS | CUBE Screwlock, 34.9mm |
| BALNELIS | Natural Fit Venec |
| VAIRO KOLONĖLĖ | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| SVORIS | 14,9 kg |
| SPALVA | black´n´blue |
| BAR KODAS | 353100 |
Geometrija
The Stereo 120's clean, dynamic looks aren't an accident. Drawing on experience gained from building super-efficient long-travel bikes, we've been able to give this frame a performance boost without adding weight. For example, geometry based around a 130mm fork gives even greater comfort and control, while the hydroformed chassis boasts ultra-sleek looks, thanks to careful tube profiling and a new rocker linkage with hidden bearings. Triple butting and intelligent design puts extra material where it's needed and takes it away where it isn't. This doesn't just save precious grammes; it also improves steering precision and pedalling efficiency. And the whole lot is designed around our Efficient Trail Control kinematics and the stable but fun handling of our new Agile Trail Geometry. It's the complete, comfortable trail-taming package for long days out in the mountains.
