STEREO 170
TM 29
It wasn't too long ago when people laughed at 29er wheels. Well, with the Stereo 170 TM 29 they're definitely not laughing now. A mountain-flattening machine with surprisingly agile handling and an ability to swallow daunting trail obstacles whole and spit them out in manageable-sized chunks, it's proof that you can have your cake and eat it. We've ploughed all our experience of building great-riding four-bar full-suspension bikes into engineering this frame, resulting in a big-travel big wheeler that defies both gravity and expectations. As usual, the devil is in the detail - and we've sweated those to provide longer travel up front and more progressive shock performance at the rear. How? The 180mm RockShox Lyrik fork is complemented by an angle-set in the slack position for better handling, while the TwistLoc actuated RockShox Super Deluxe rear shock's flip chip gives hard-charging riders the control and progression they need on the big hits. The short rocker, covered pivots and rock solid e*thirteen bar and stem combo all help keep everything on track even when the trail's getting rowdy, so you can just concentrate on nudging your limits. A dropper post ensures you can laugh in the face of 'impossible' lines, while powerful four-piston Shimano XT hydraulic disc brakes haul the e*thirteen wheelset and 2.35in tyre combo to a stop in any weather and on any trail and the 1x12 Shimano XT transmission gives you the gear range you need to tackle any trail, down or - yes - up. Is this bike all things to all riders? No. But if you like your trails steep, relentless and fast, the Stereo 170 TM 29 has got your back. And that's got to feel good, right?
AUSSTATTUNG
RĖMAS | HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH |
---|---|
DYDIS | 18", 20", 22" |
ŠAKĖ | RockShox Lyrik Ultimate RC2, 110x15mm, Tapered, 180mm |
GALINIS AMORTIZATORIUS | RockShox Super Deluxe Coil Ultimate Remote, 230x65mm, TwistLoc Remote Lever |
GALINIO AMORTIZATORIAUS DALYS | Top: 40x8mm, Bottom: 28x8mm |
STABDŽIŲ SISTEMA | Shimano XT BR-M8120, Hydr. Disc Brake (203/180) |
GALINIS PAVARŲ PERJUNGĖJAS | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
PAVARŲ PERJUNGIMO RANKENĖLĖS | Shimano SLX SL-M7100-I, Direct Attach |
PRIEKINIS ŽVAIGŽDŽIŲ BLOKAS | Shimano XT FC-M8100, 30T, Boost, 170mm |
GRANDINĖS GIDAS | e*thirteen TRS+ |
GALINIS ŽVAIGŽDŽIŲ BLOKAS | e*thirteen TRS+, 9-50T |
GRANDINĖ | Shimano CN-M7100 |
RATAI | e*thirteen LG1 EN Plus, 15x110mm / 12x148mm, Tubeless Ready |
PRIEKINĖ PADANGA | e*thirteen LG1 EN A/T Race, 42A/52A Compound, Apex, 2.35 |
GALINĖ PADANGA | e*thirteen LG1 EN A/T Plus, 52A/66A Compound, Apex, 2.35 |
VAIRAS | e*thirteen Plus 35, 800mm |
VAIRO RANKENĖLĖS | RockShox TwistLoc w/ fixed grip |
BALNELIO LAIKIKLIS | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 480x150mm |
BALNELIO LAIKIKLIO UŽVERŽĖJAS | CUBE Screwlock, 34.9mm |
BALNELIS | SDG Radar |
VAIRO KOLONĖLĖ | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment |
SVORIS | 15,4 kg |
SPALVA | grey´n´red |
BAR KODAS | 356200 |
Geometrija

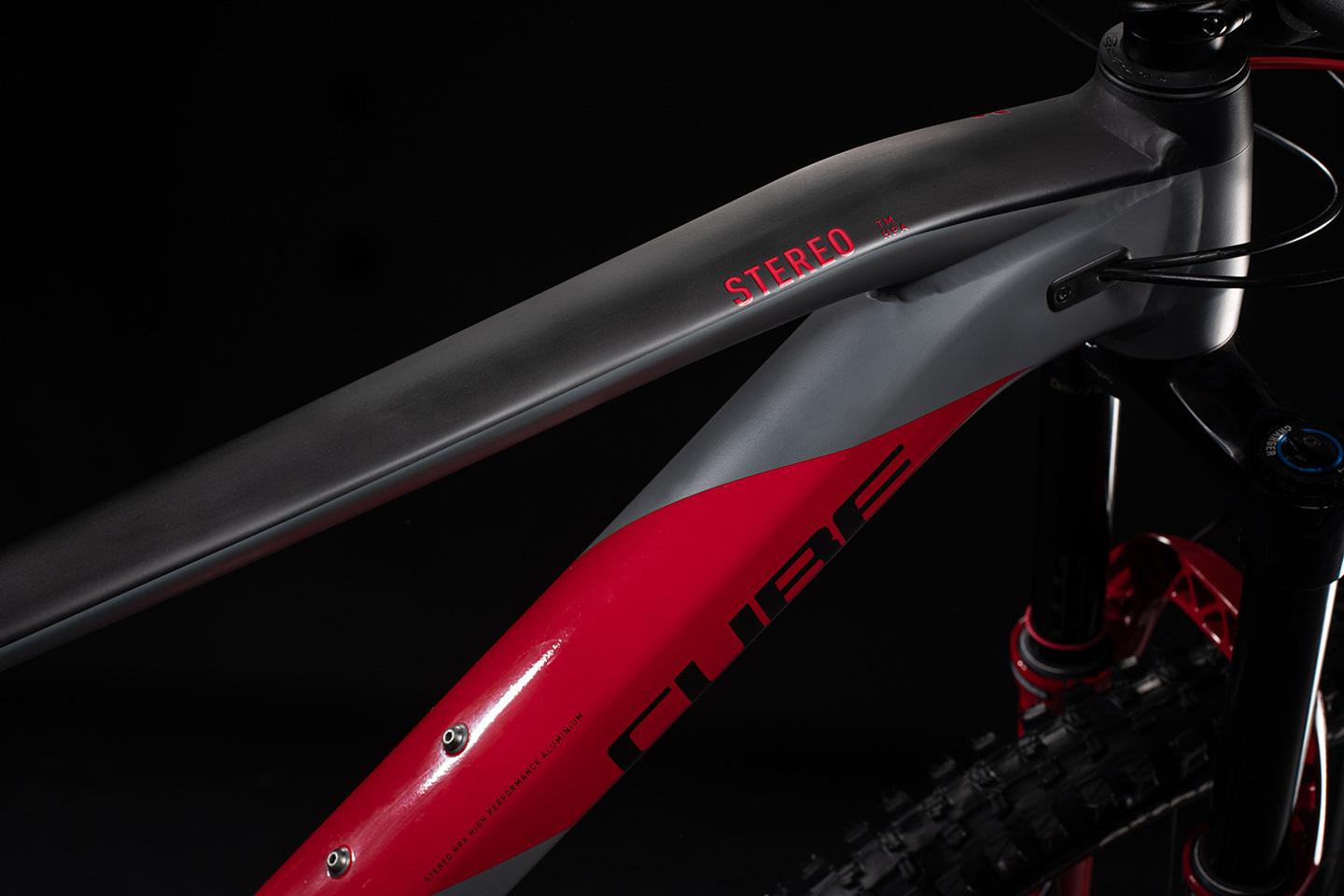

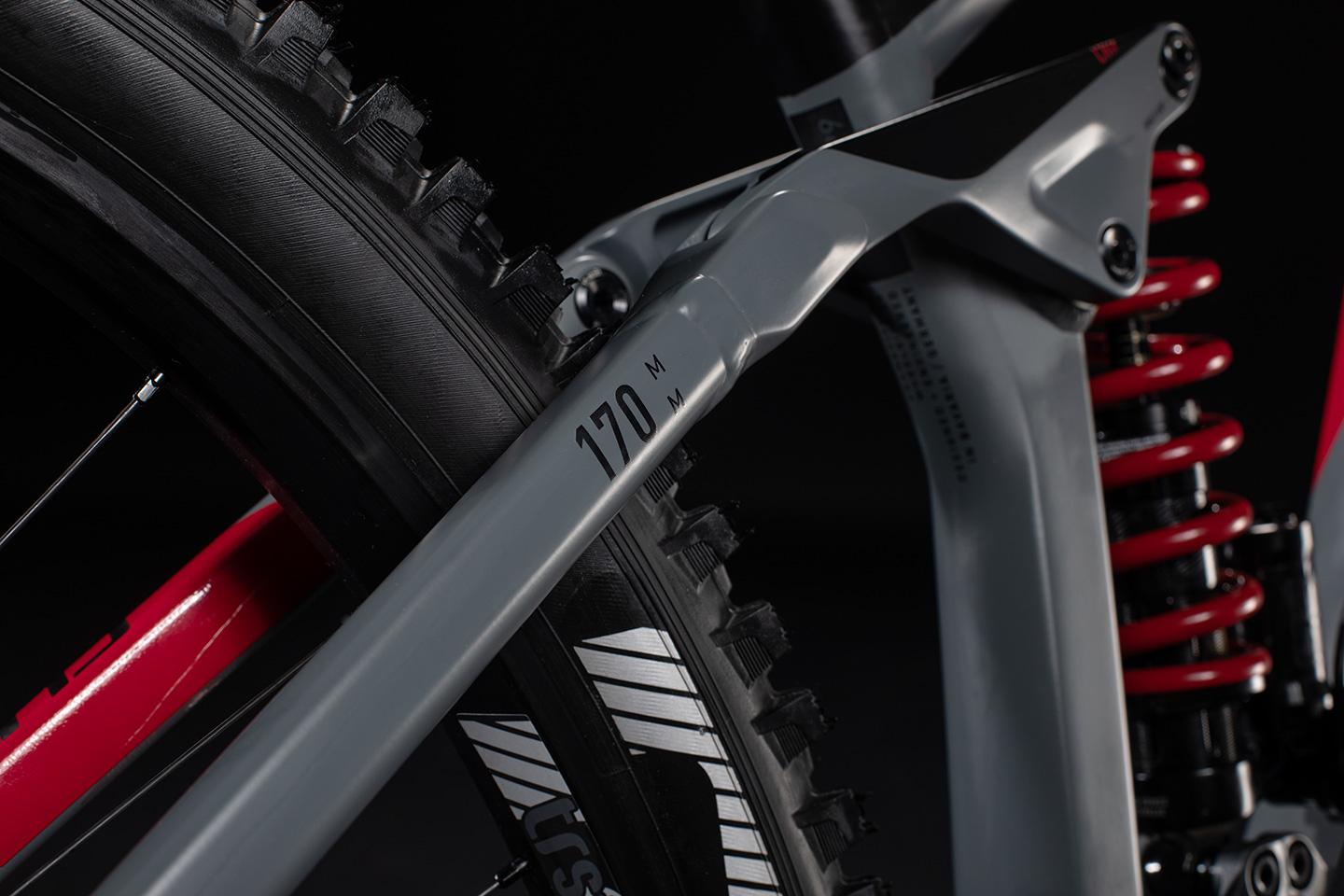

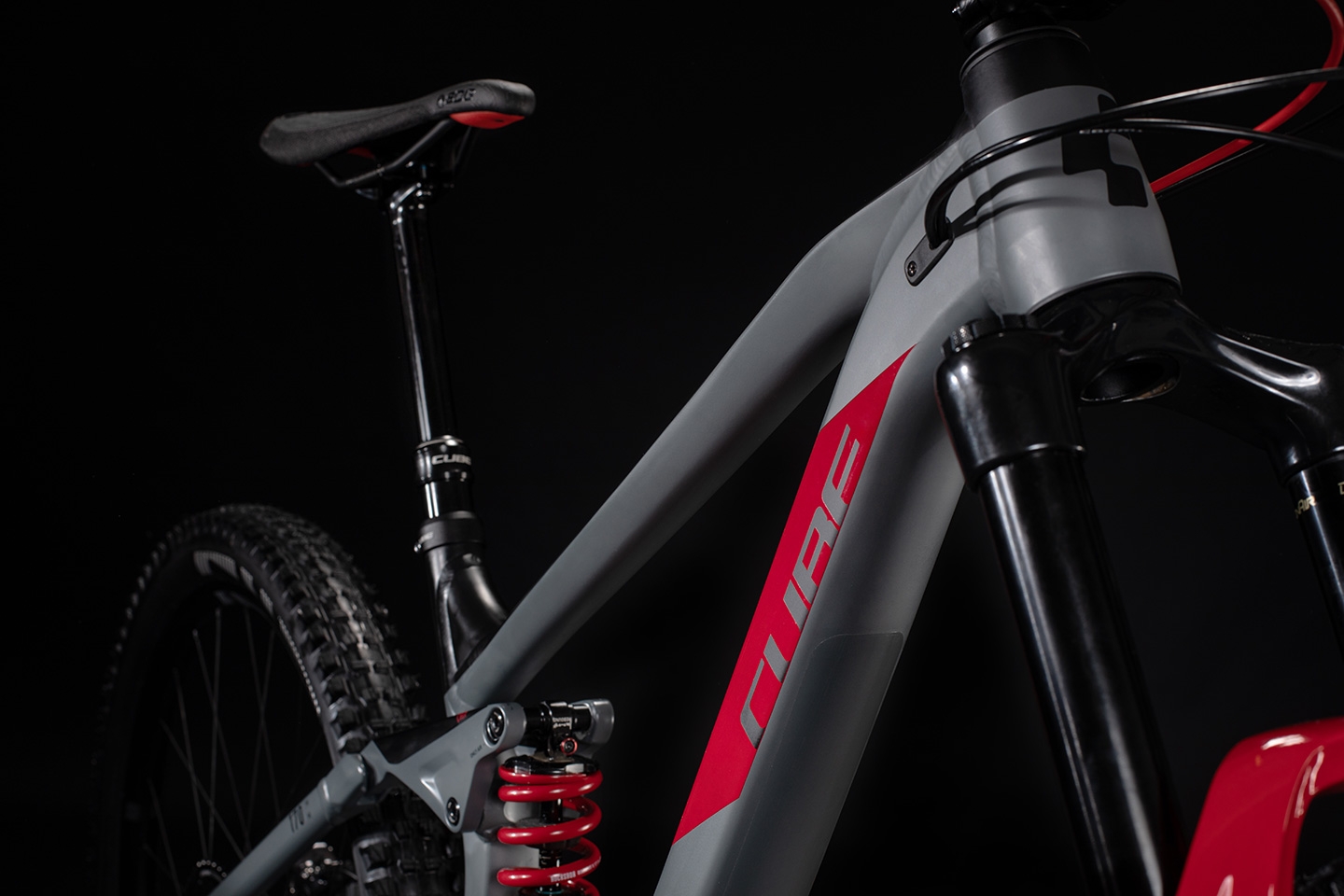

There's nothing our engineering team like more than a challenge. So when we asked them to create a genuine big hit-capable full-suspension frame with clearance for wide 29er tyres, they didn't look at us as though we were mad. They just got down to work. Using all the experience they've gained from years of refining our four-bar suspension design, they tweaked the position of every linkage and frame joint until they were happy with the result, then refined every tube profile for the optimum blend of weight, strength and efficiency. With a short linkage, shock mount and covered bearings, it's clearly part of the CUBE full suspension family. Agile Trail Geometry and advanced suspension kinematics result in an exceptionally adept mountain tamer, with progressive suspension and a confidence-inspiring feeling on the trail. Hydroformed tubes, internally routed cables and our design team's usual fastidious attention to detail mean that it looks as good as it rides. So the only remaining question is, will you accept the challenge and push your boundaries? Because this is a frame that proves it can be done.
