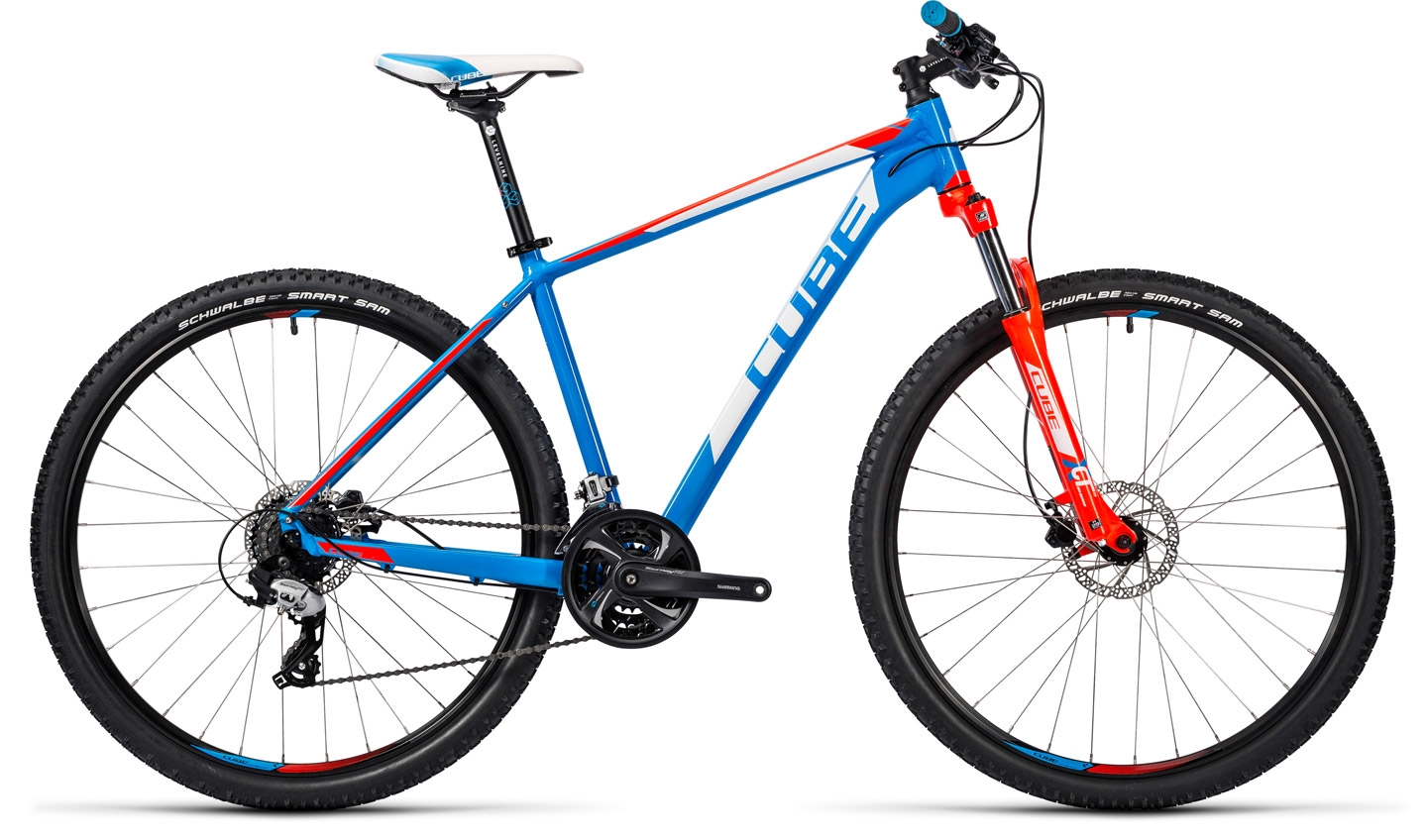

aim

Pro

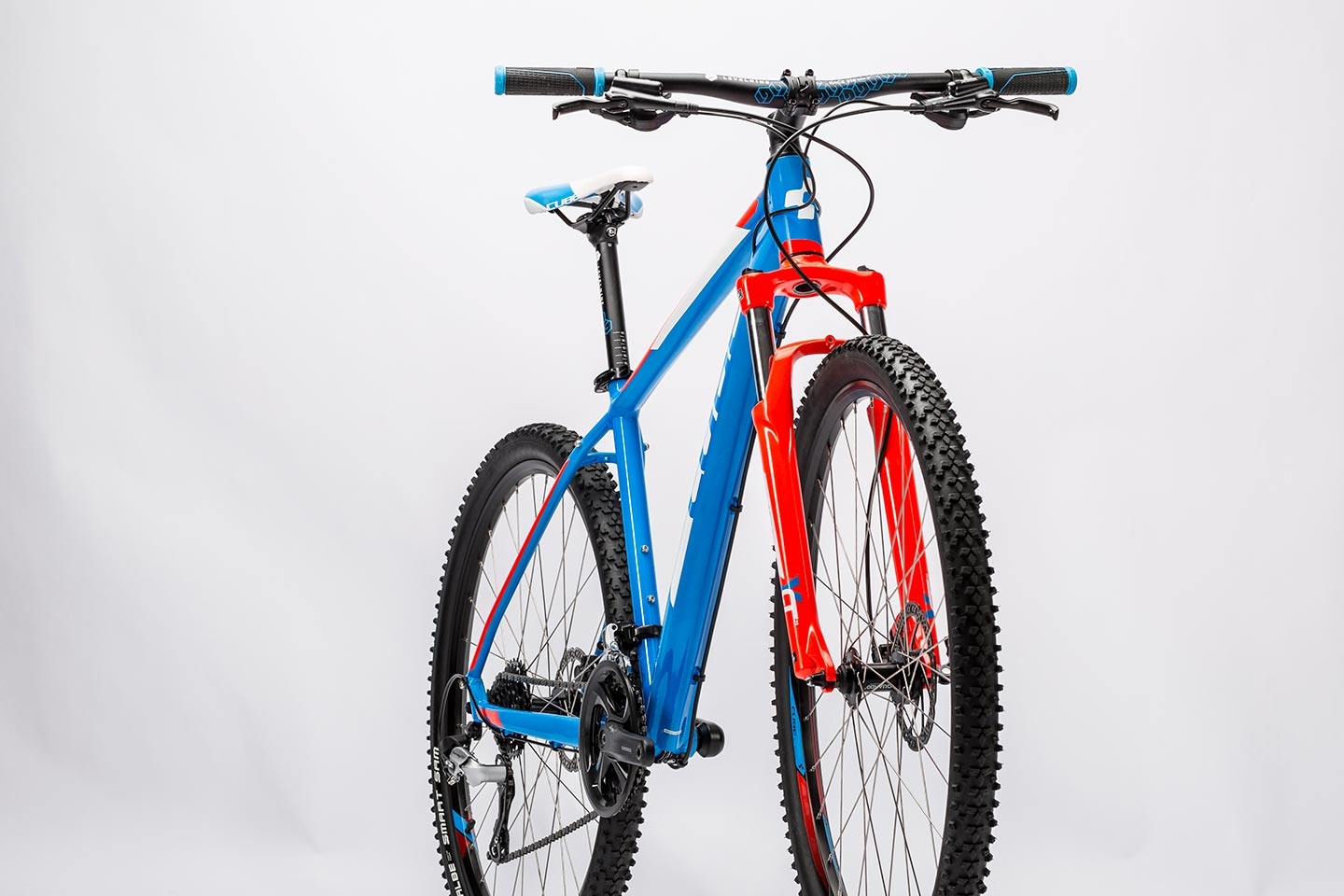

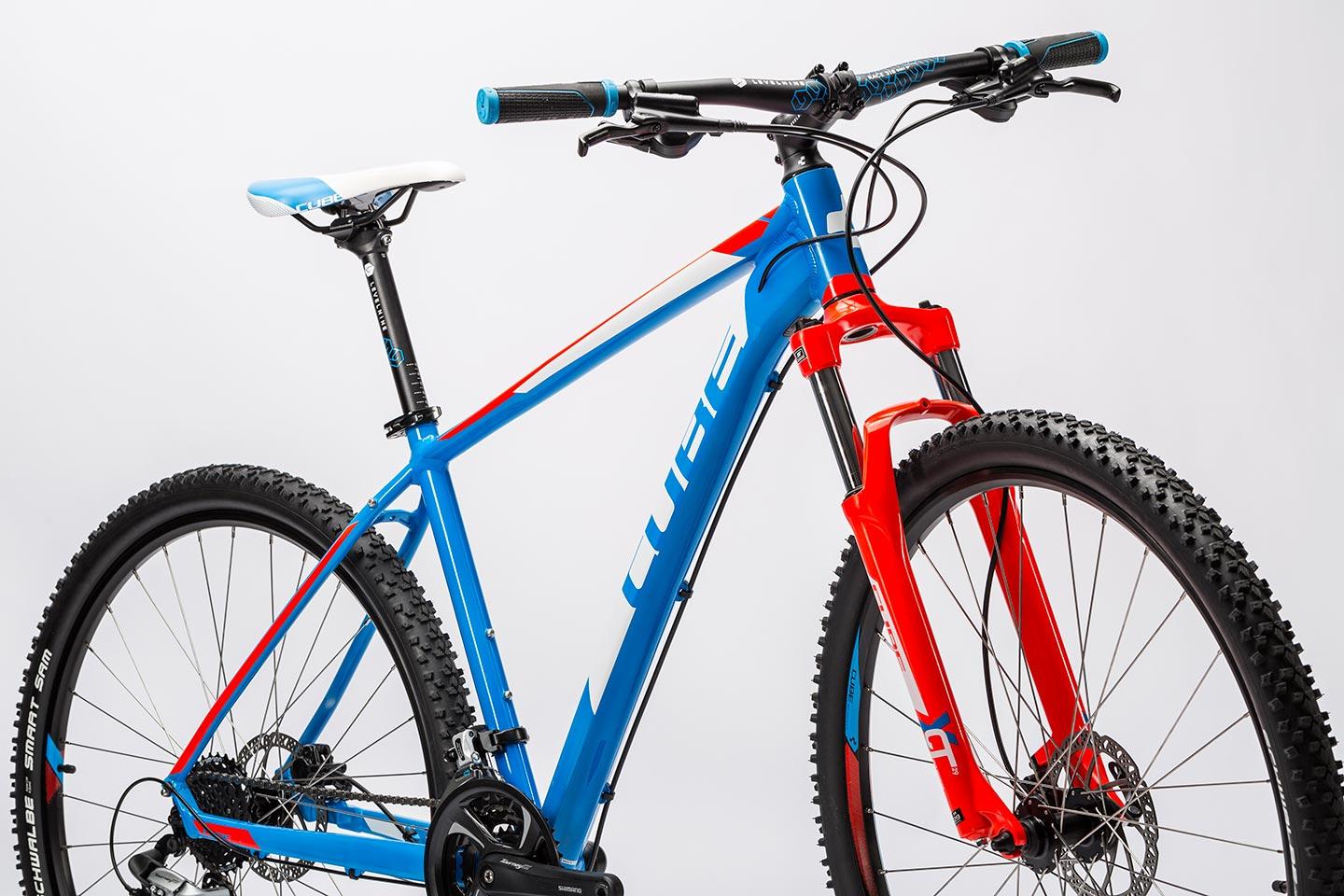

For 2015 the Aim series gets a completely new frame in a choice of 27.5" or 29" wheel sizes. With features not normally found on such a bike and a quality component spec the Aim easily competes with other bikes in its class and offers exceptional ride quality.

AUSSTATTUNG

FRAMEAluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
SIZE27.5: 14", 16", 18" // 29er: 17", 19", 21", 23"

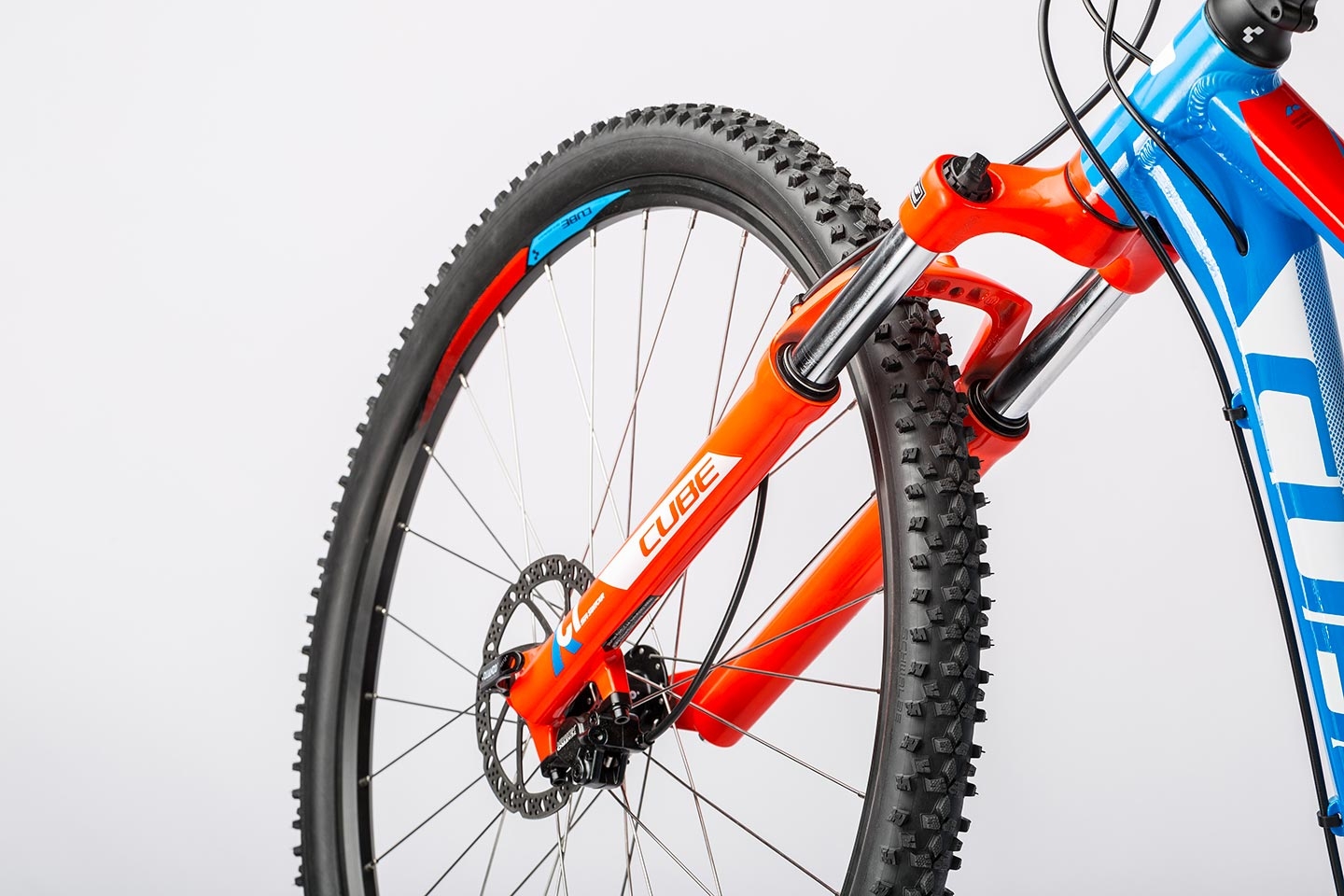

FORKSR Suntour XCT Disc, 100mm

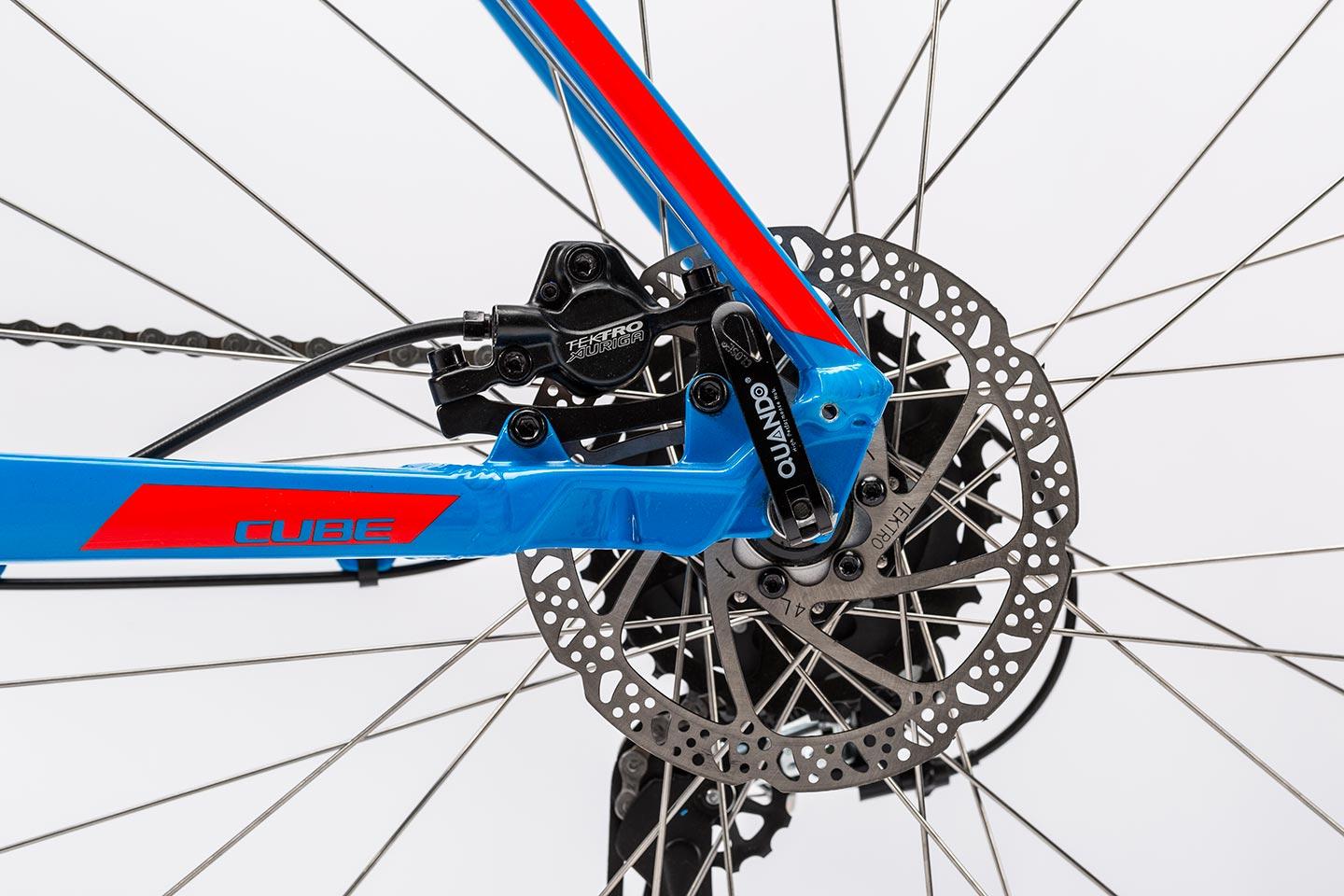

BRAKE SYSTEMTektro HD-M290, Hydr. Disc Brake (160/160)
REAR DERAILLEURShimano Tourney RD- TX800, 8-Speed
FRONT DERAILLEURShimano Altus FD-M313-M6, Downswing
SHIFTERSShimano SL-M310, Rapidfire-Plus
CRANKSETShimano Tourney FC-TX801, 42x32x22T, 170mm
CASSETTEShimano CS-HG200, 12-32T
CHAINKMC Z7
FRONT HUBCUBE Disc Hub, 6-Bolt
REAR HUBCUBE Disc Hub, 6-Bolt
RIMSCUBE SX, Disc
TIRESSchwalbe Smart Sam Active, 2.1"

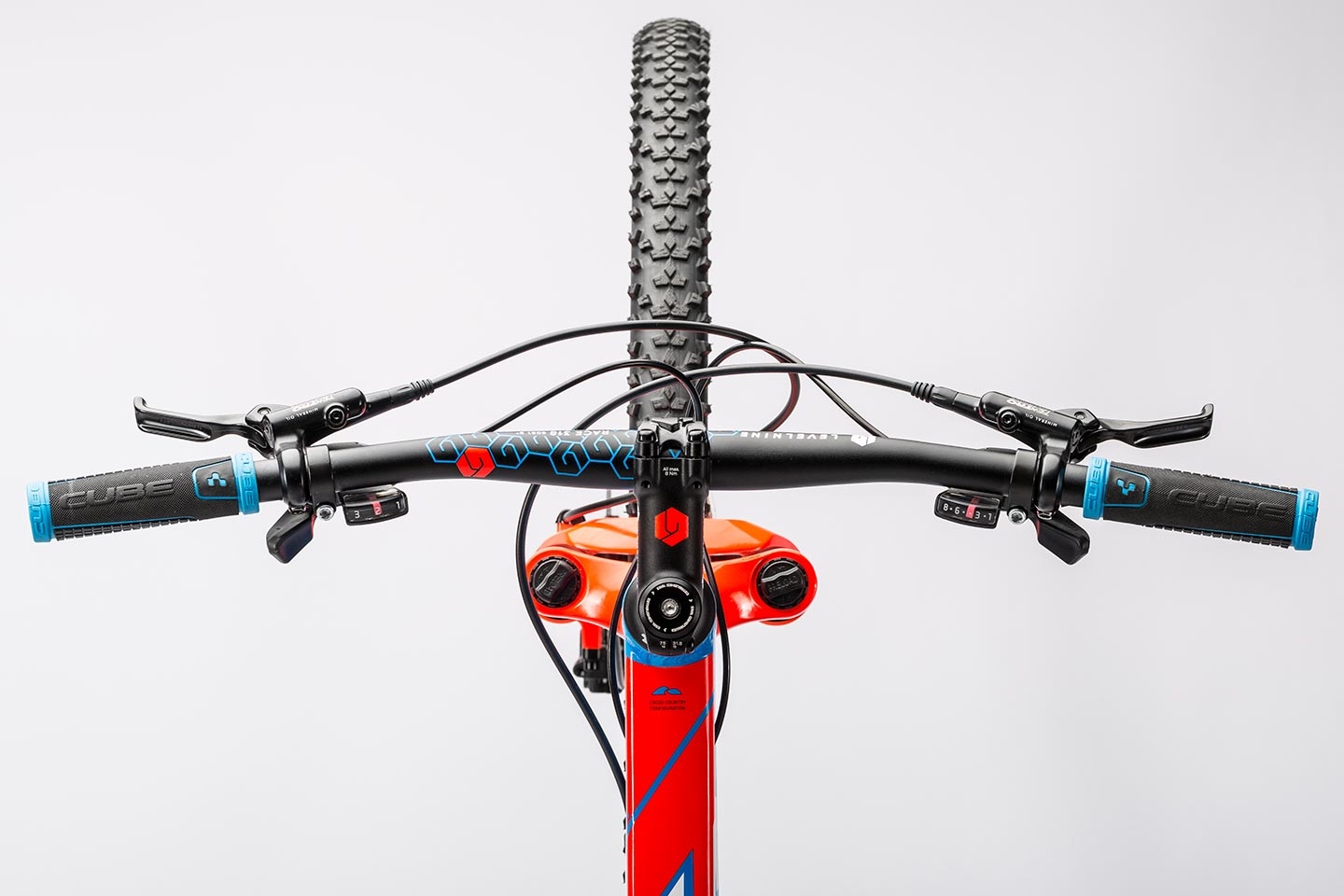

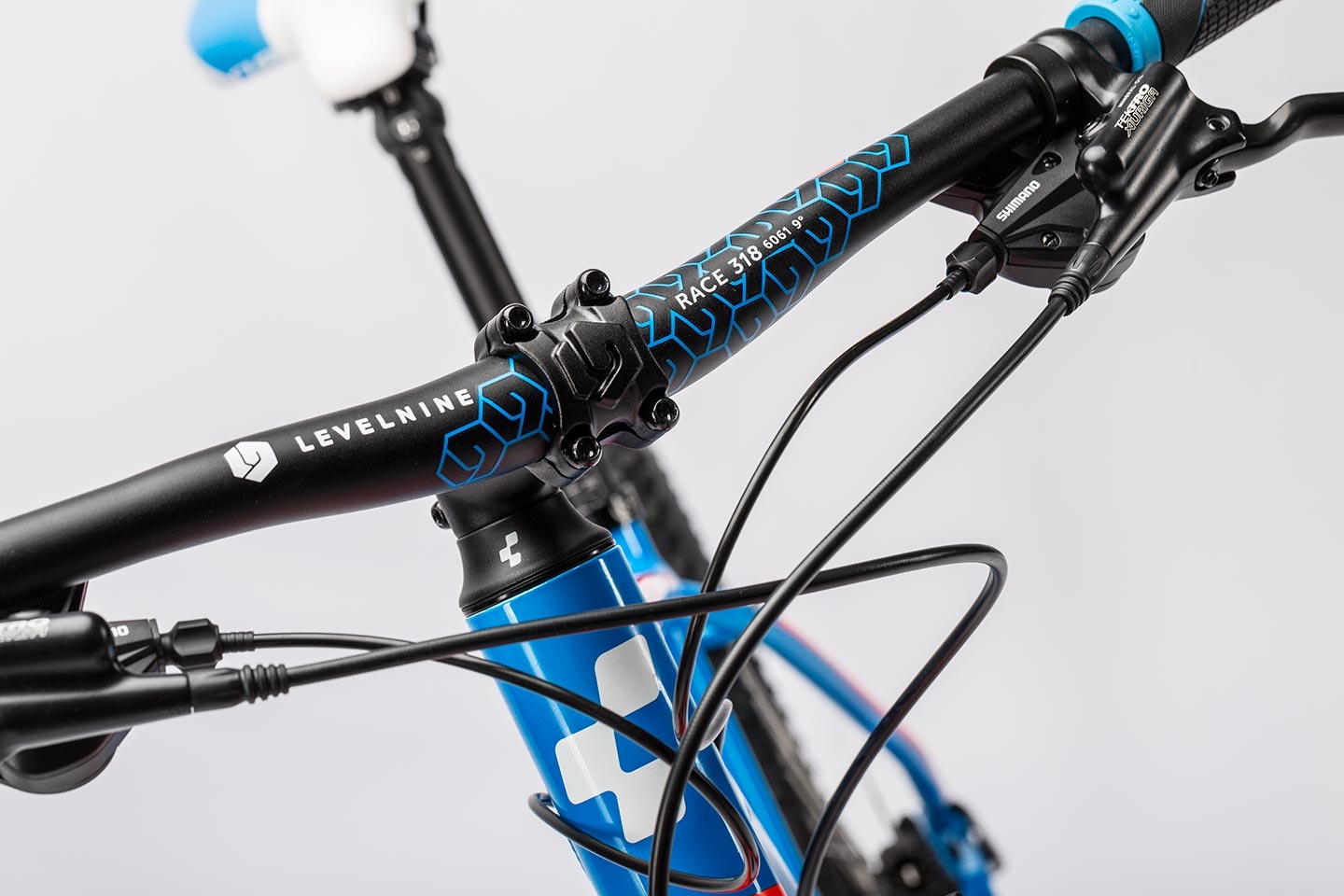

HANDLEBARLevel 9 Riser Bar, 660mm
GRIPSCUBE Performance Grips

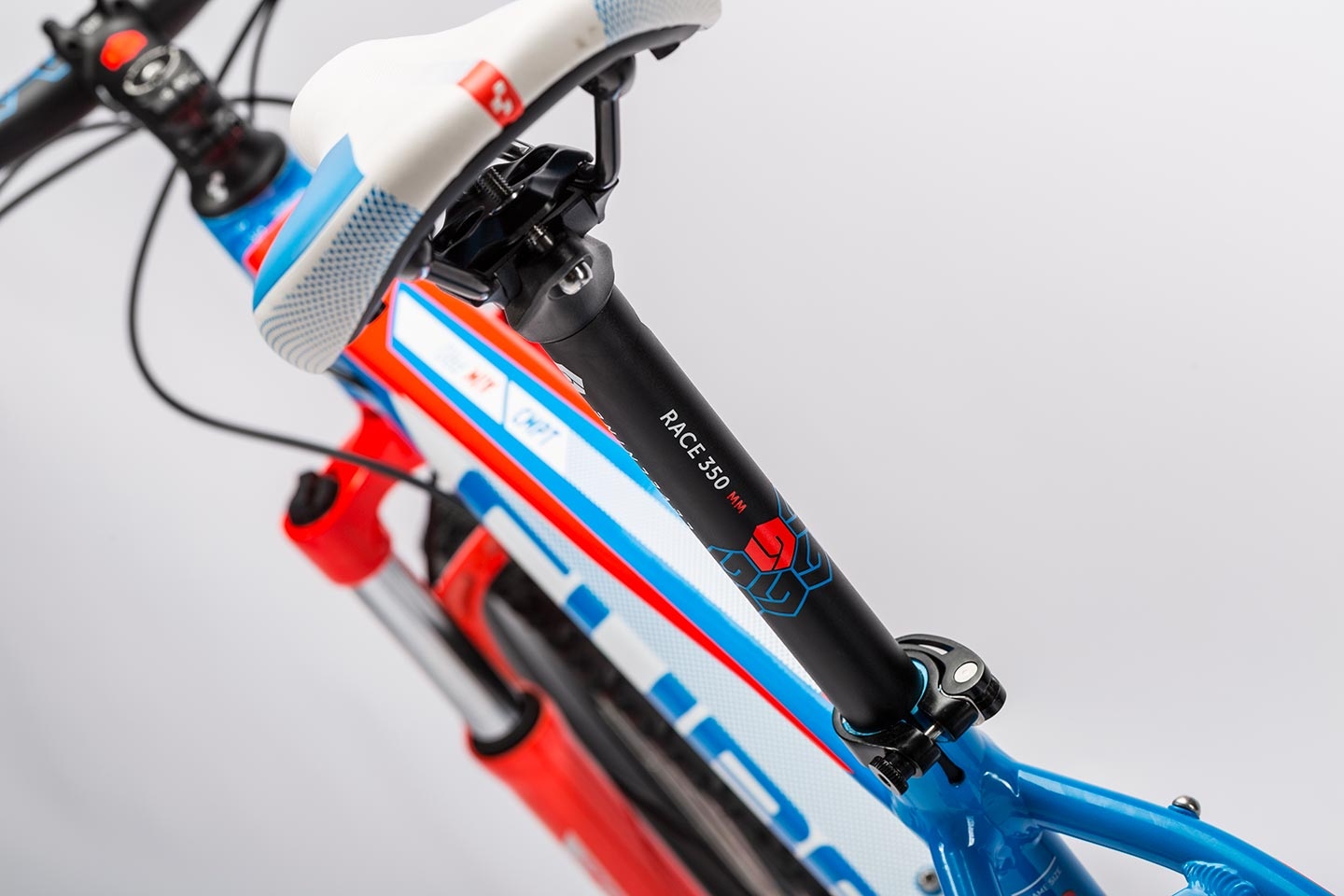

SEAT POSTLevel 9 Post, 27.2mm
SEATCLAMPCUBE Varioclose, 31.8mm
SADDLECUBE Active 1.1
HEADSETCUBE No.10 Semi-Integrated
PEDALSCUBE PP MTB
WEIGHT14.0 kg
COLORblack´n´grey´n´red
ARTIKELNUMMER701001

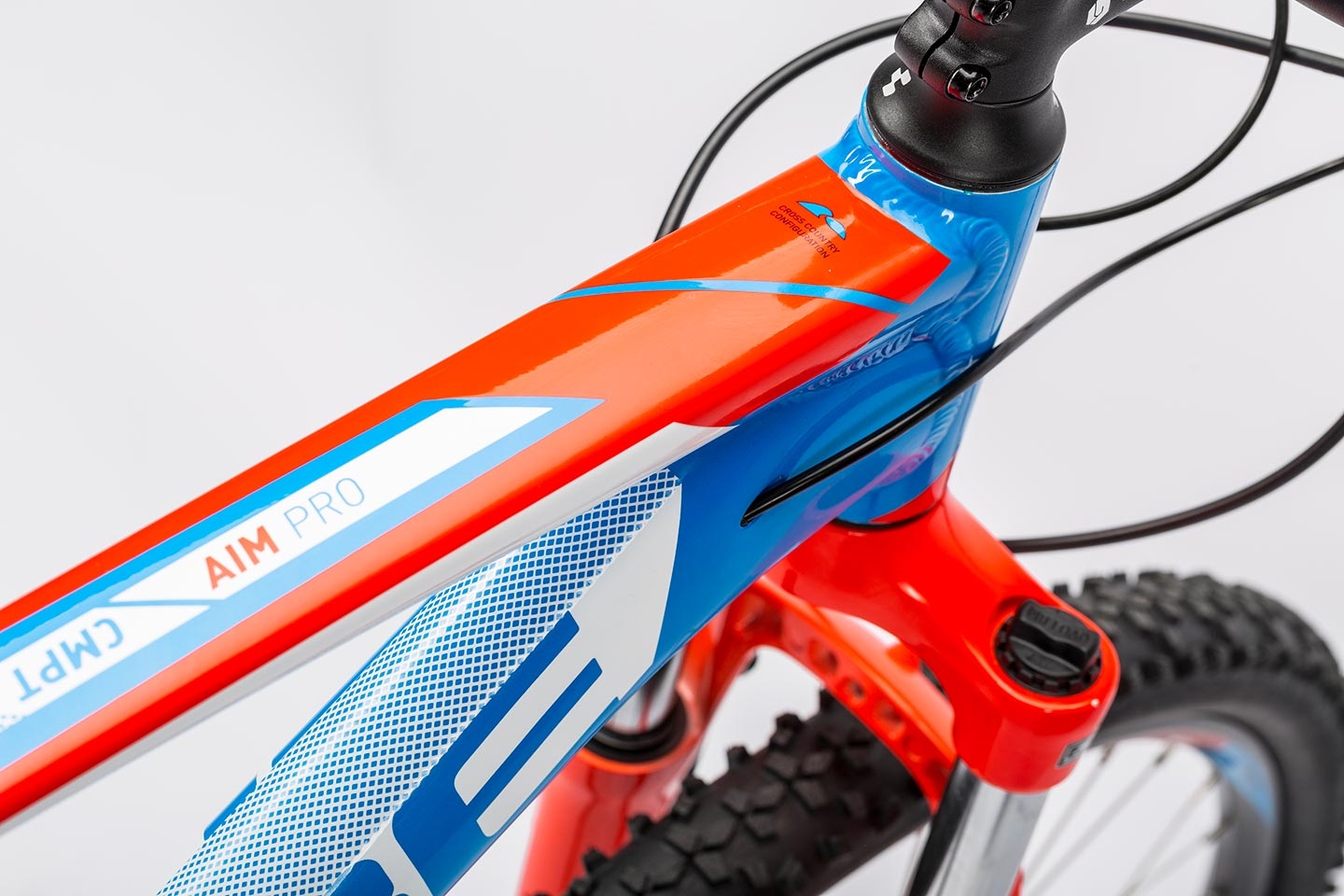

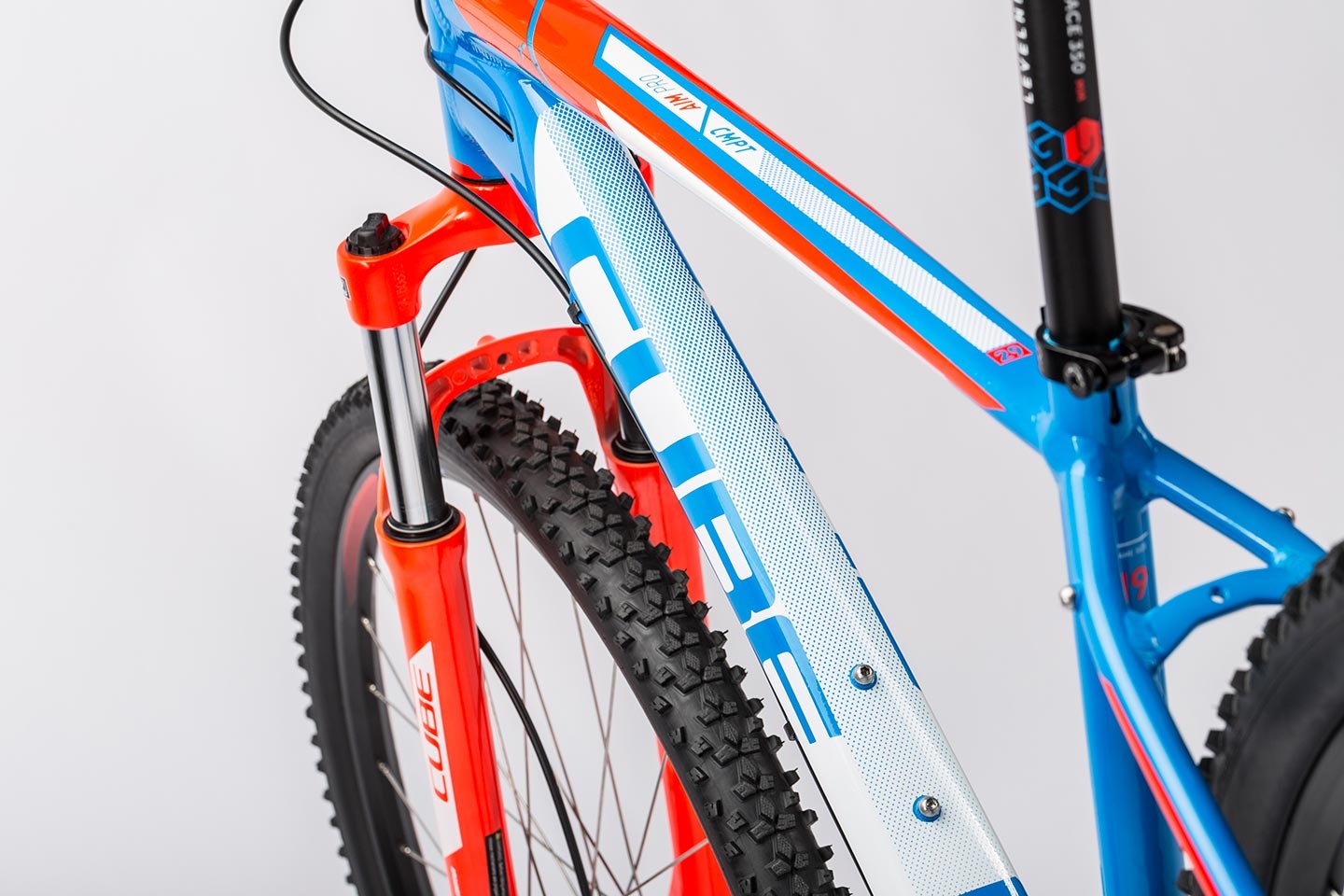

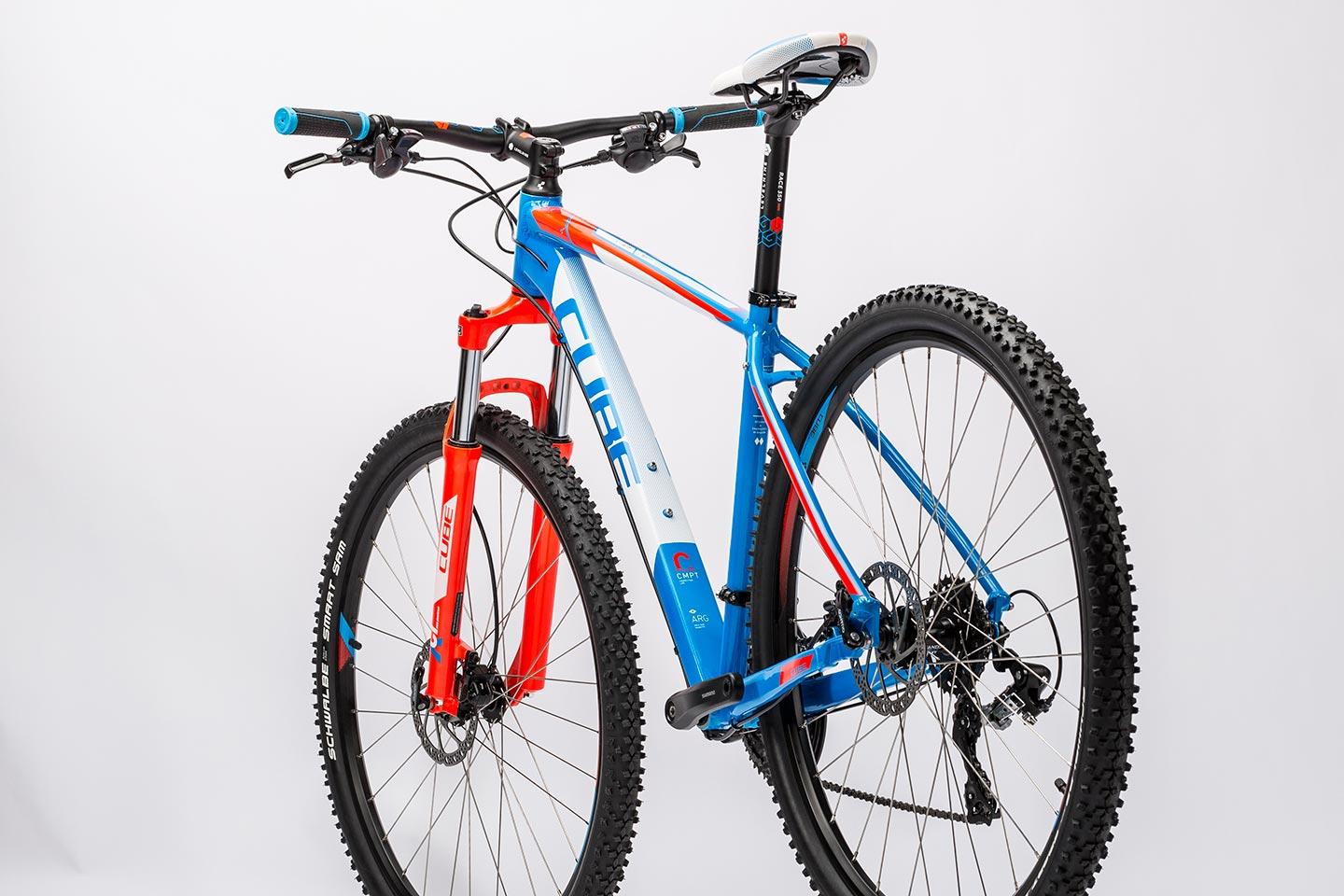

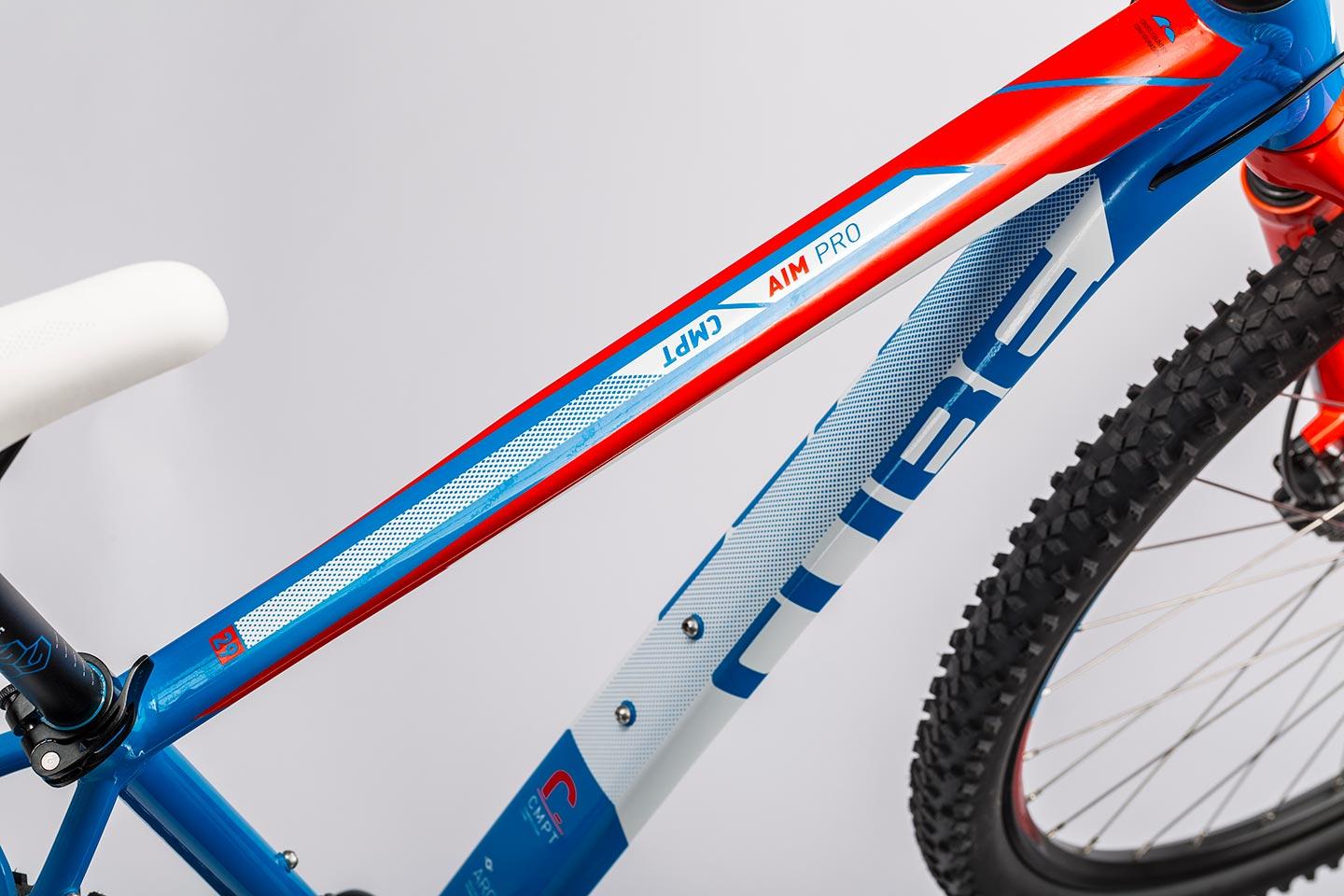

The Aim Pro frame features several advanced details, both in the 27.5" and 29" models. Not only did we use a 6061 aluminium tube set with mechanically formed top and down tubes to get the frame stiffer and lighter, we also included internal cable routing inside the down tube and tucked the IS disc mounts between seat and chain stays. The integrated kickstand mount within the left drop outs adds every-day versatility. Our Agile Ride Geometry - specifically modified for each wheel size - helps the Aim Pro to be efficient and responsive, while maintaining very stable handling. For a truly joyful ride experience on the trail and on longer rides alike.

Bike details

detail_image_0
detail_image_1
detail_image_2
detail_image_3
detail_image_4
detail_image_5
detail_image_6
detail_image_7
detail_image_8
detail_image_9
detail_image_10
detail_image_11
detail_image_12
