aim
SL

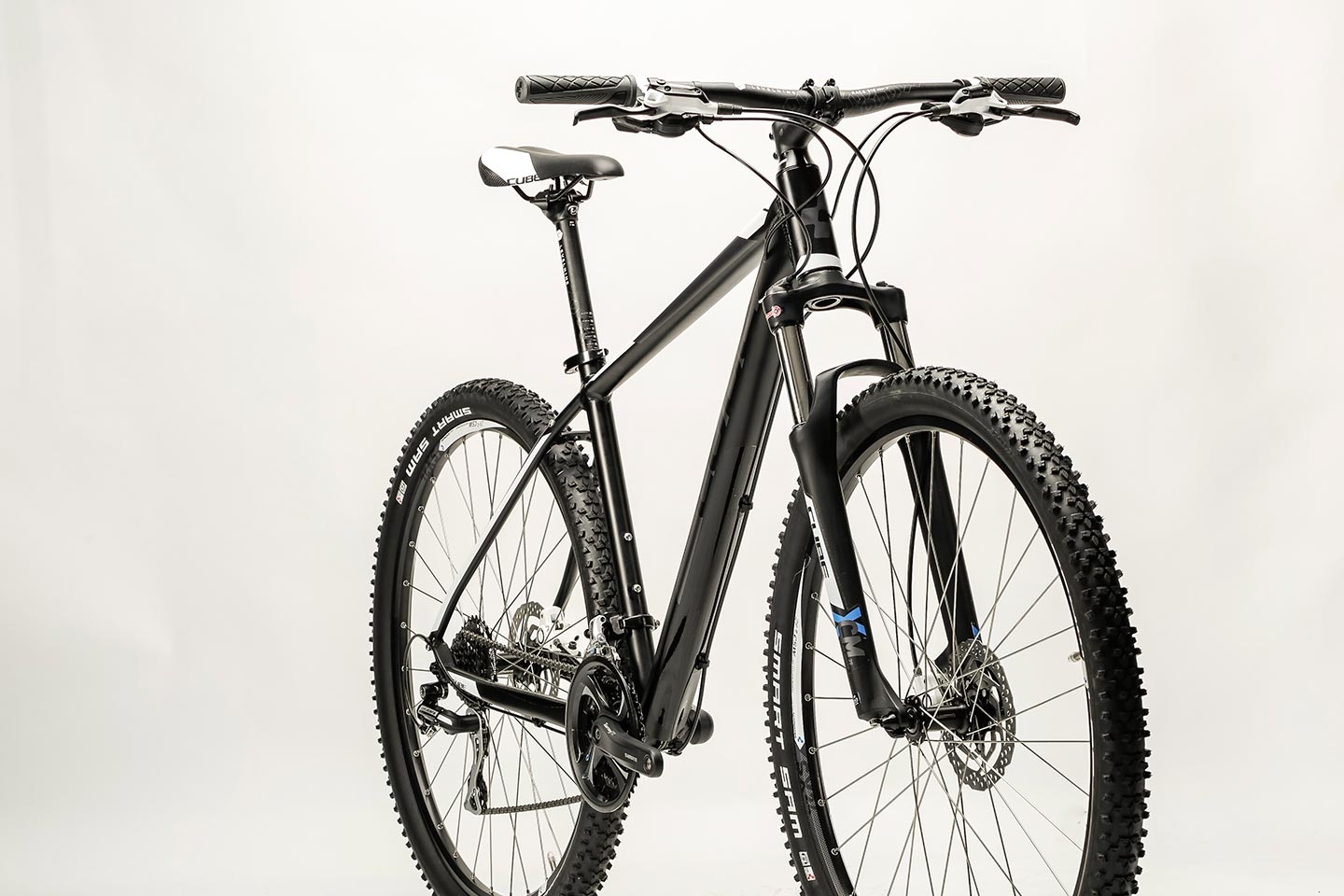

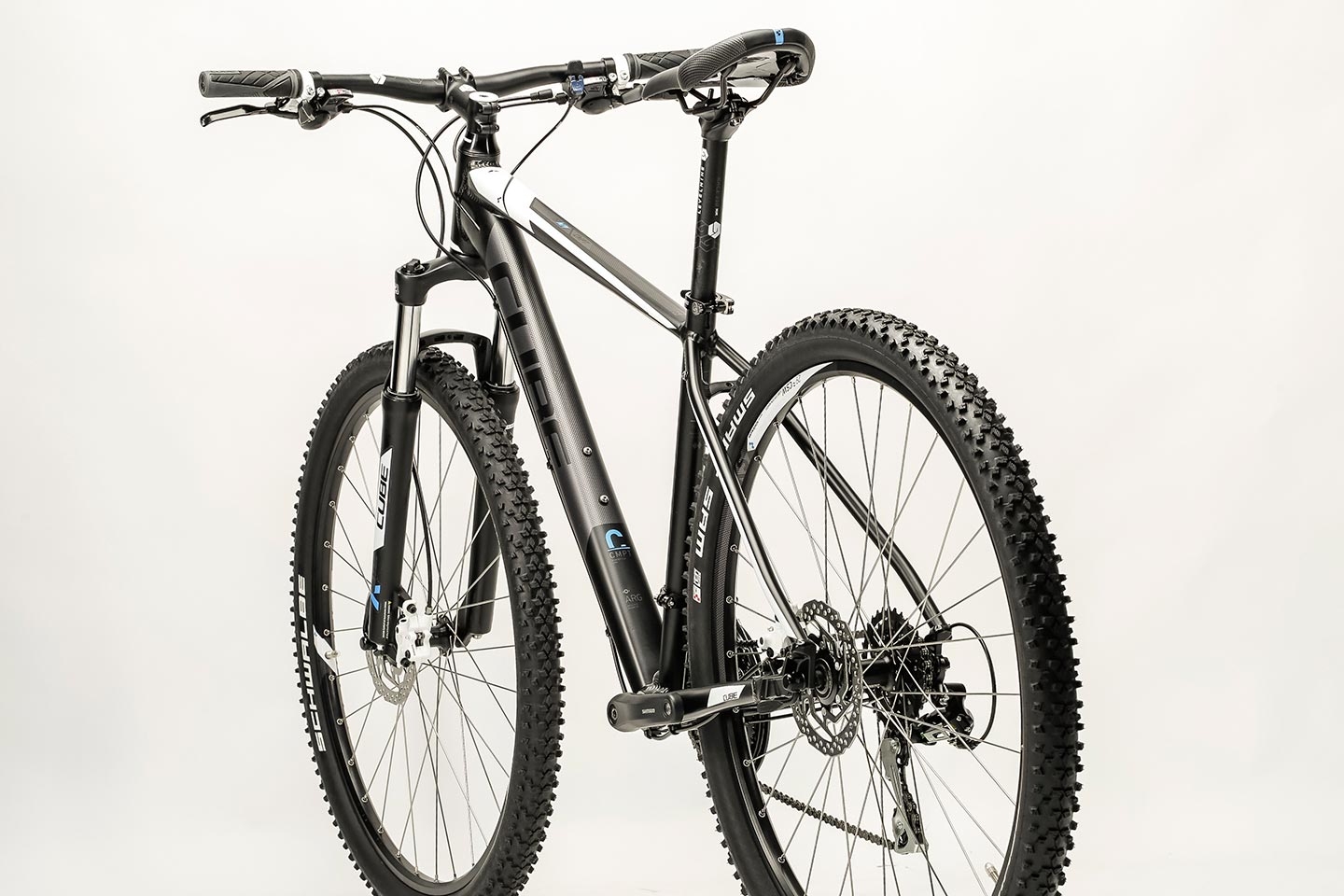

The Aim SL is perfect for an evening ride on your favourite trail - but it's also so much more than that. The range-topping Aim has a high quality, lightweight aluminium chassis with exclusive details and outstanding handling, making it the perfect foundation for riders who demand performance right from the trailhead.
AUSSTATTUNG

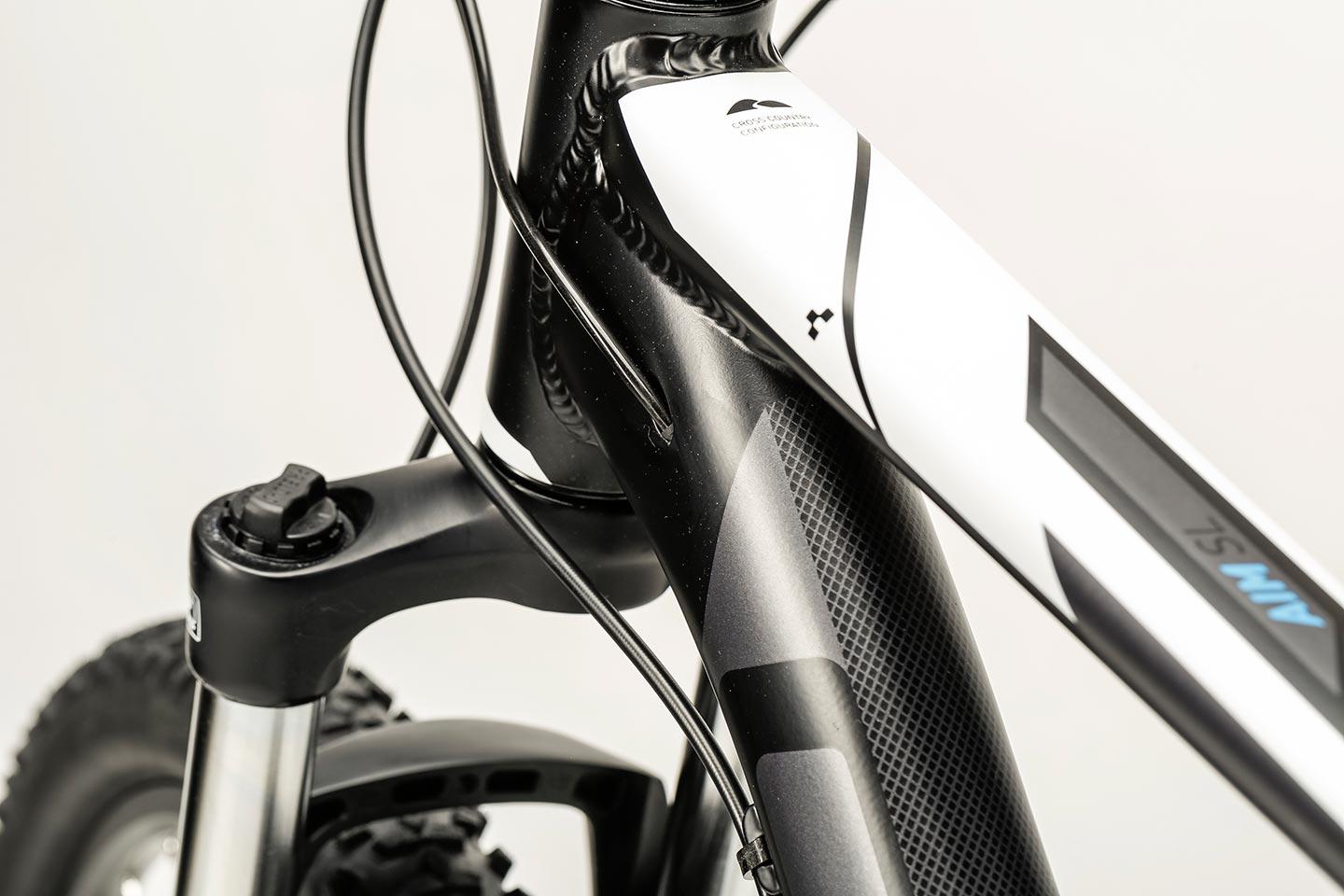

| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | 27.5: 14", 16", 18" // 29er: 17", 19", 21", 23" |

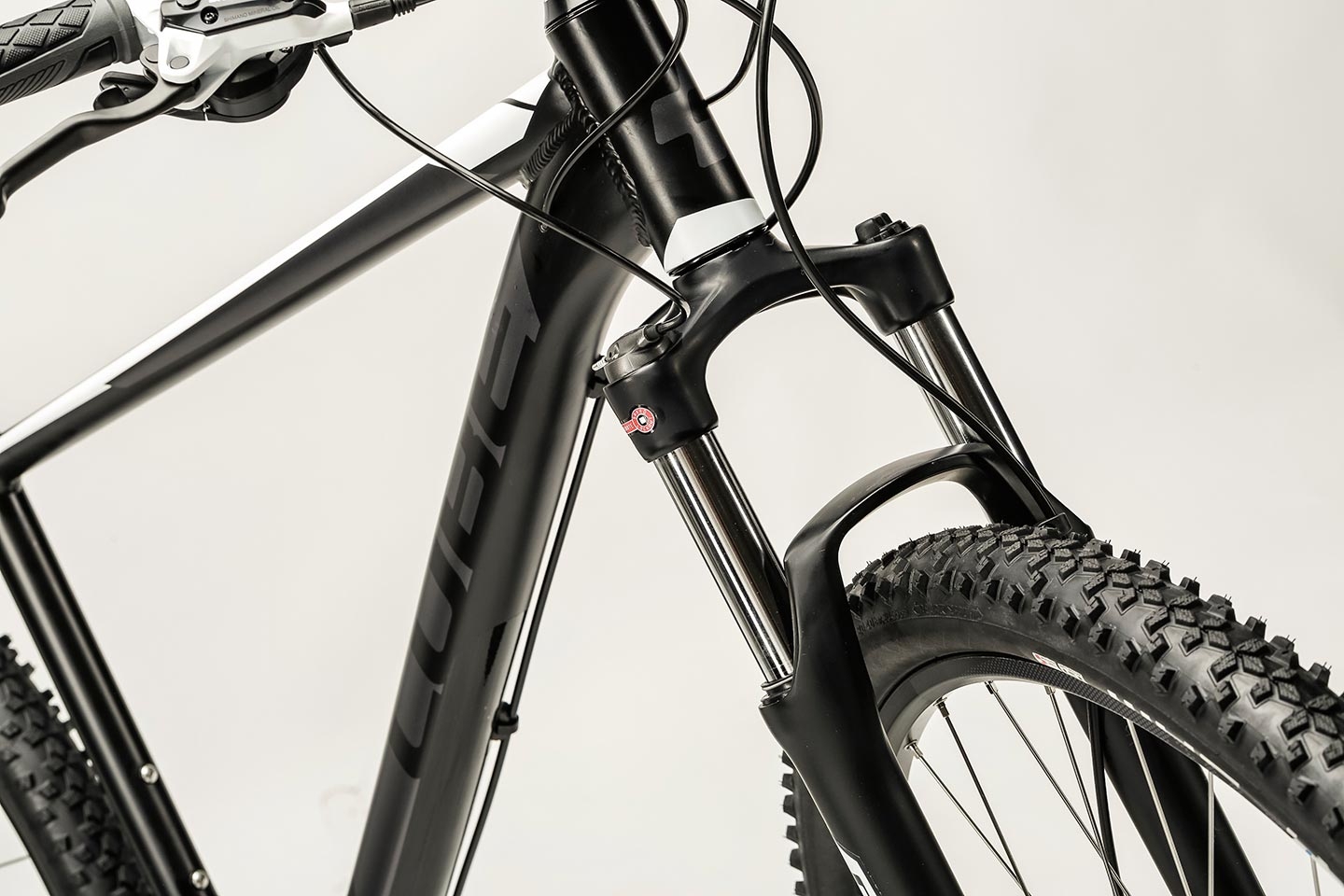

| FORK | SR Suntour XCM RL Disc, Remote Lockout, 100mm |
| BRAKE SYSTEM | Shimano BR-M355, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M360, 8-Speed |
| FRONT DERAILLEUR | Shimano Altus FD-M313-M6, Downswing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M310, Rapidfire-Plus |
| CRANKSET | Shimano Tourney FC-TX801, 42x32x22T, 170mm |
| CASSETTE | Shimano CS-HG200, 12-32T |
| CHAIN | KMC Z51 |
| FRONT HUB | Shimano HB-TX505 |
| REAR HUB | Shimano FH-TX505 |
| RIMS | CUBE SX24 |
| TIRES | Schwalbe Smart Sam, Active, 2.1" |
| HANDLEBAR | Level 9 Riser Bar, 660mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | Level 9 Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Active 1.0 |
| HEADSET | FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14.0 kg |
| COLOR | black´n´white |
| ARTIKELNUMMER | 701002 |

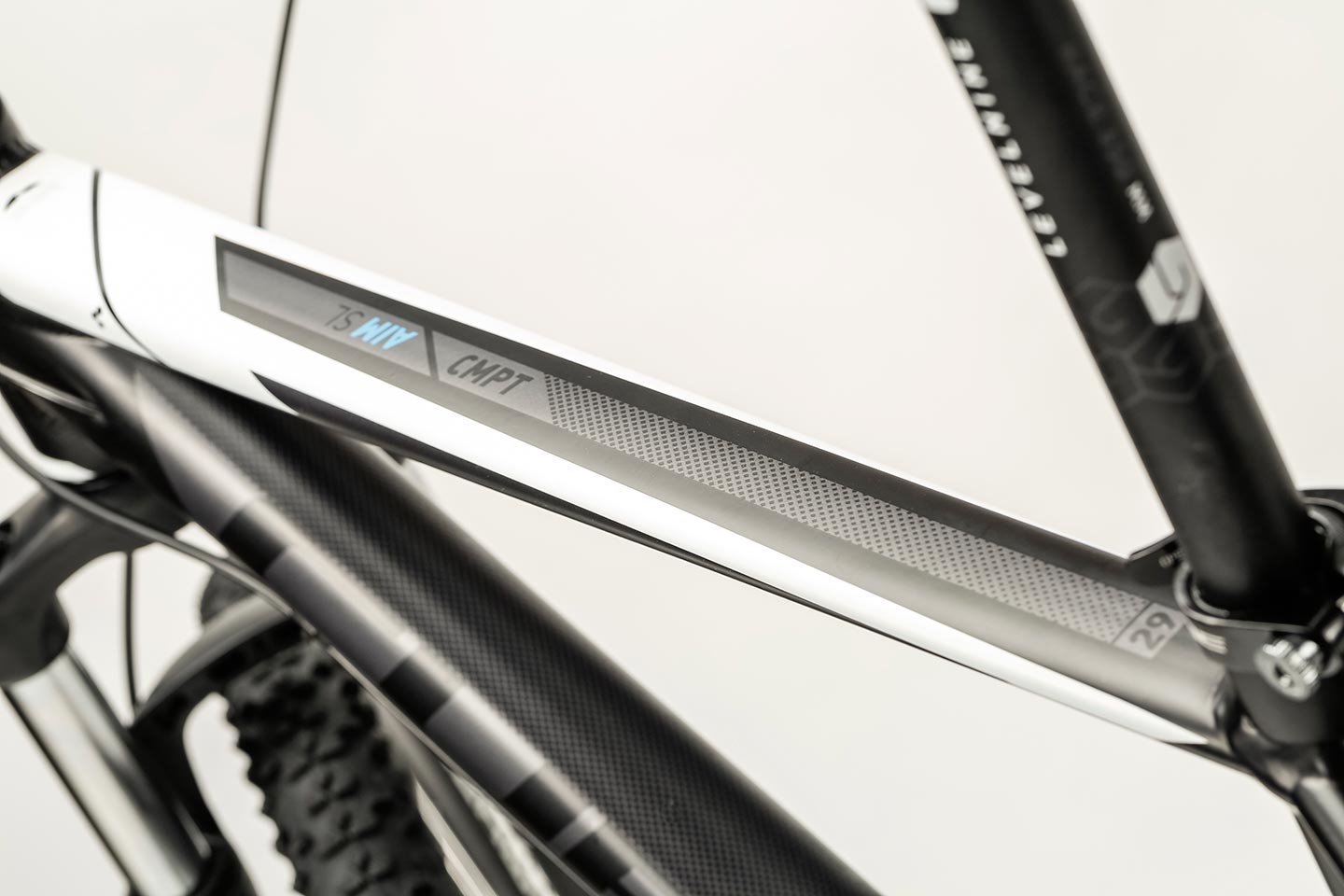

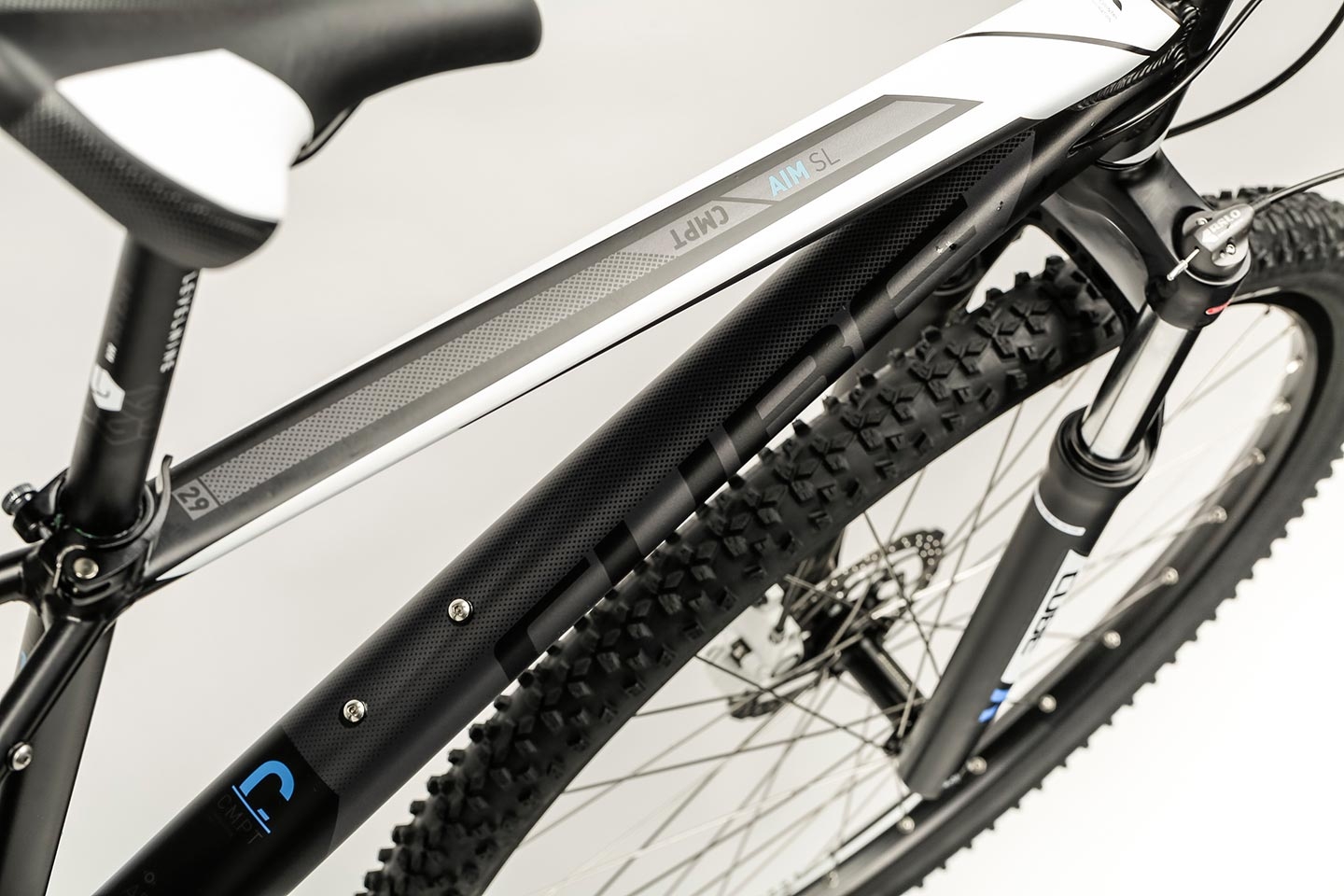

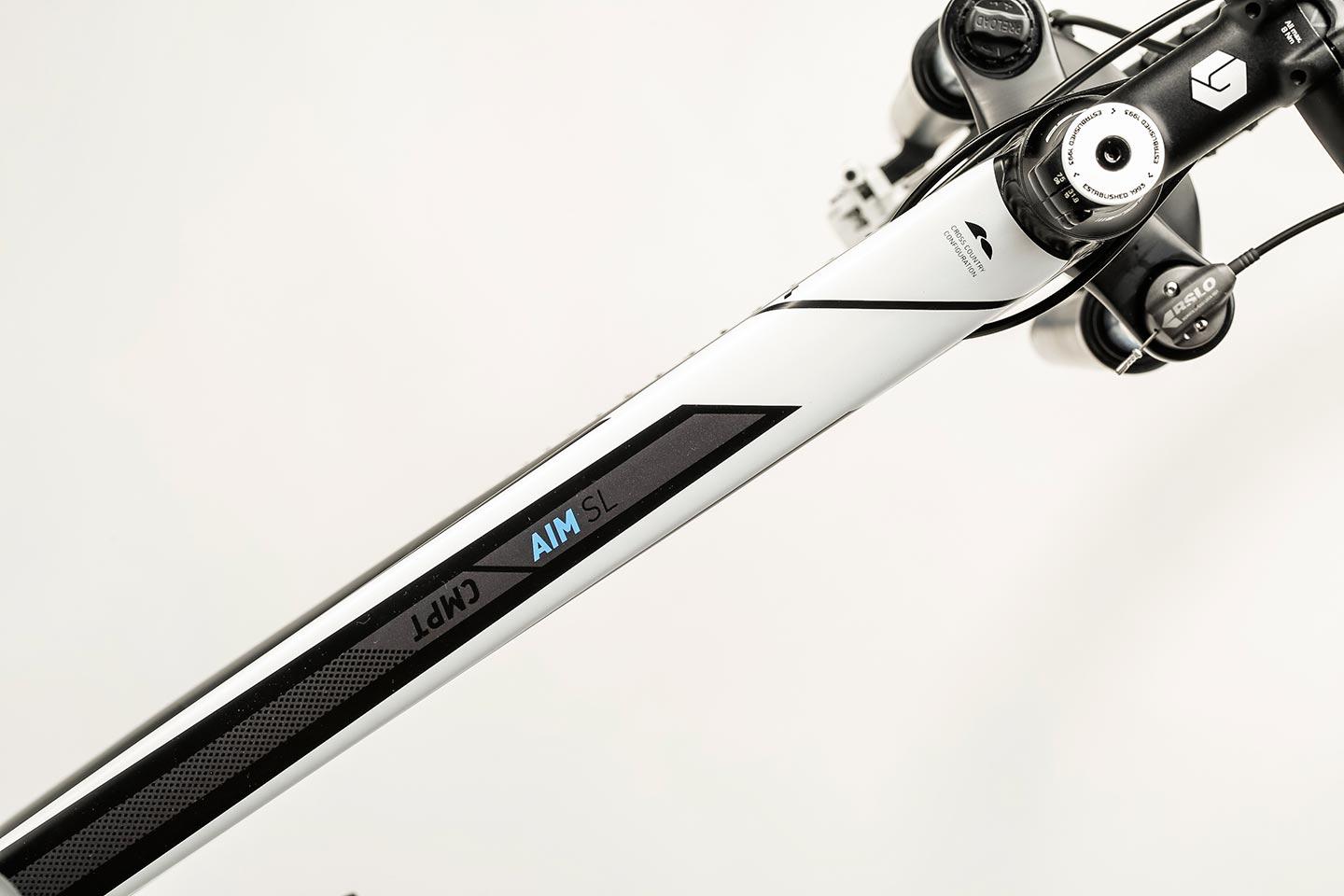

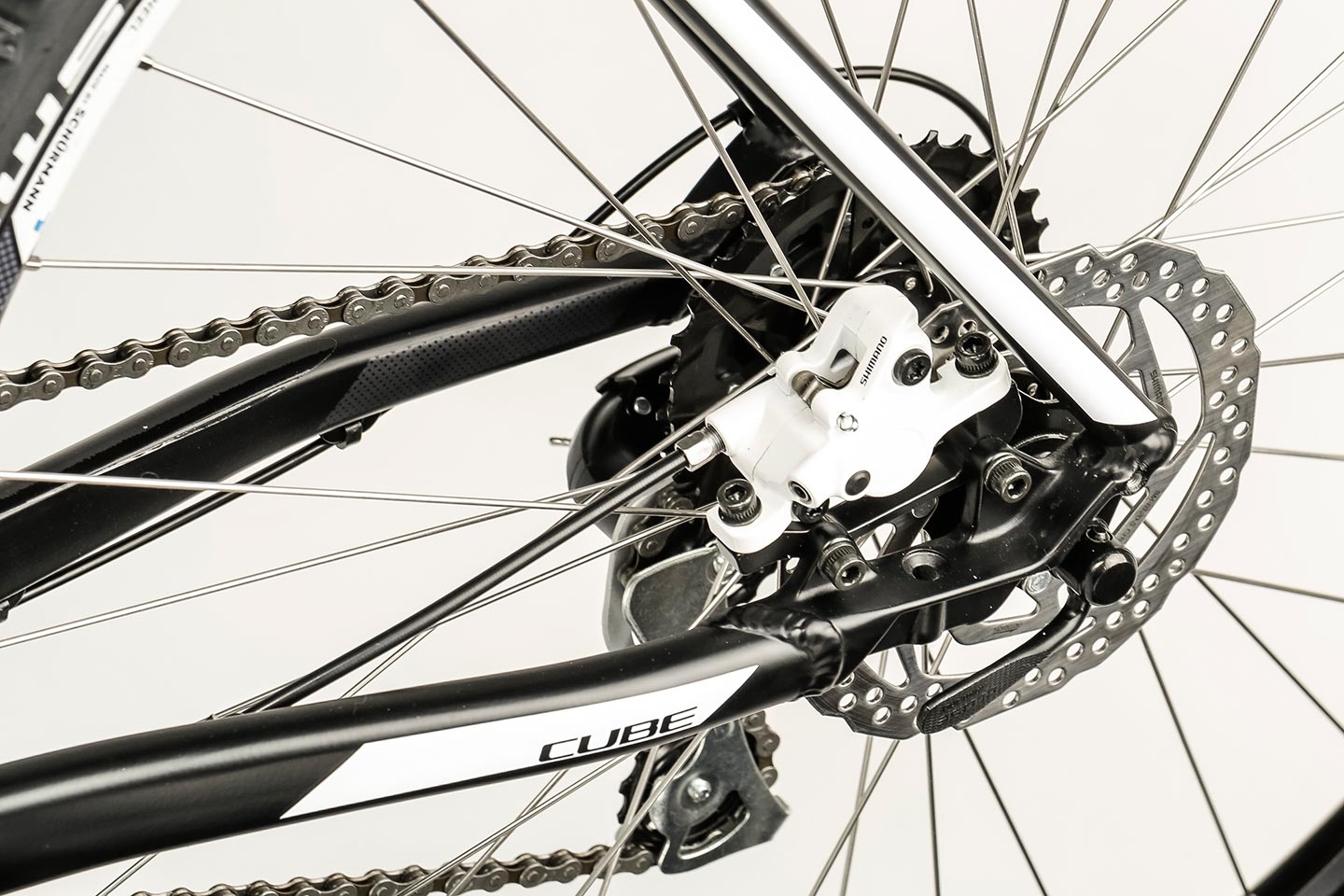

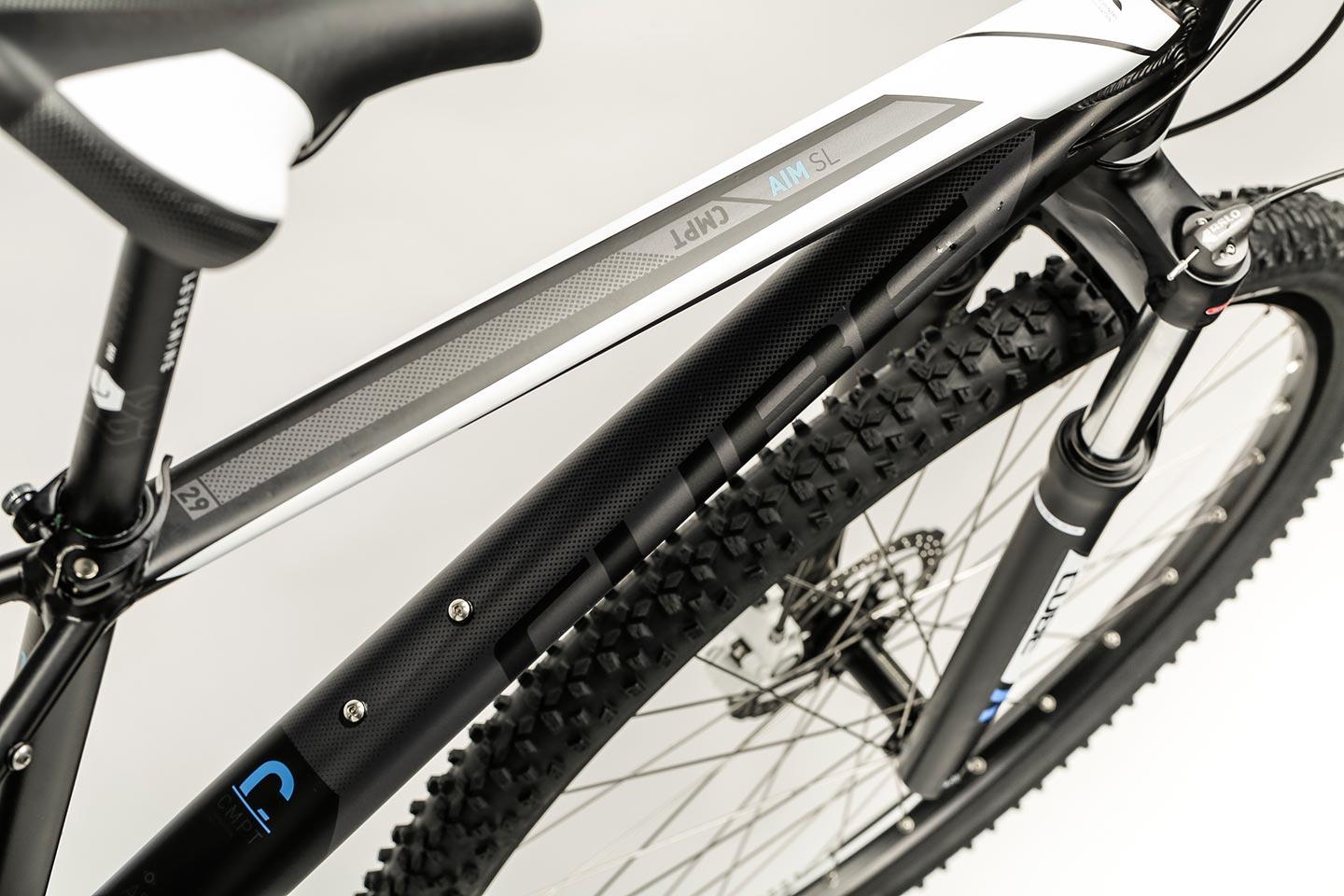

This bike is both light and strong thanks to a high quality 6061 aluminium tube set with complex profile, mechanically formed top and down tubes. Outstandingly well thought out details include the integrated IS disc mount between seat and chainstays, while eyeletted dropouts also make the Aim SL suitable for daily use. Our widely admired Agile Ride Geometry adds yet another reason to choose this bike: uniquely balanced handling that combines liveliness with comfort.
