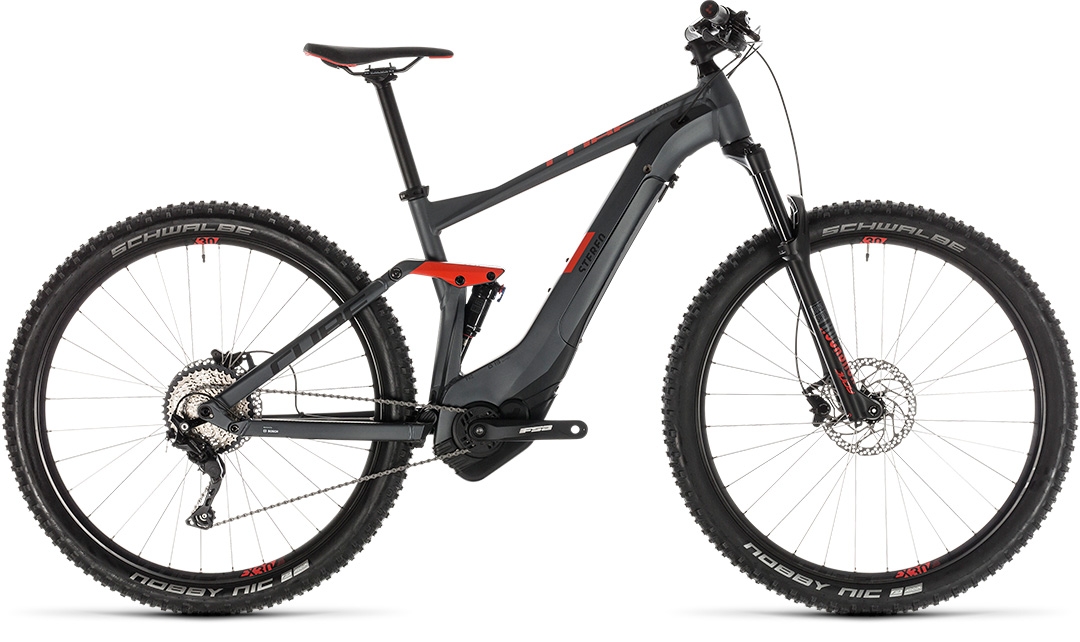

STEREO HYBRID 120
Pro 500
Our ever-popular trail-taming full suspension Stereo Hybrid 120 Pro is a hit with riders for a good reason. Well, several reasons, actually. It's comfortable, stable, surprisingly light, sleek and an incredibly effective way to expand your range off-road: a Bosch e-bike for explorers. The integrated battery can be charged without removing it from the frame if you wish, and there's even room for a water bottle on the down tube for those longer rides into the hills. Our Agile Ride Geometry and a custom shock tune give you all the inspiring control and ground-hugging comfort you'll need out on the trail, whether it's a long fire road climb or a fast, twisty, rocky and rooty singletrack descent. With a smooth, easily adjustable RockShox Judy Silver fork, matching RockShox Monarch shock and slick-shifting Shimano 10 speed gears mated to Bosch's powerful CX drive unit, it has everything you need to explore further.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery |
|---|---|
| SIZE | Size Split: 27.5: 16" // 29: 17", 19", 21", 23" |
| FORK | RockShox Judy Silver TK Air, Tapered, 15x110mm, 120mm, eMTB Approved, Lockout |

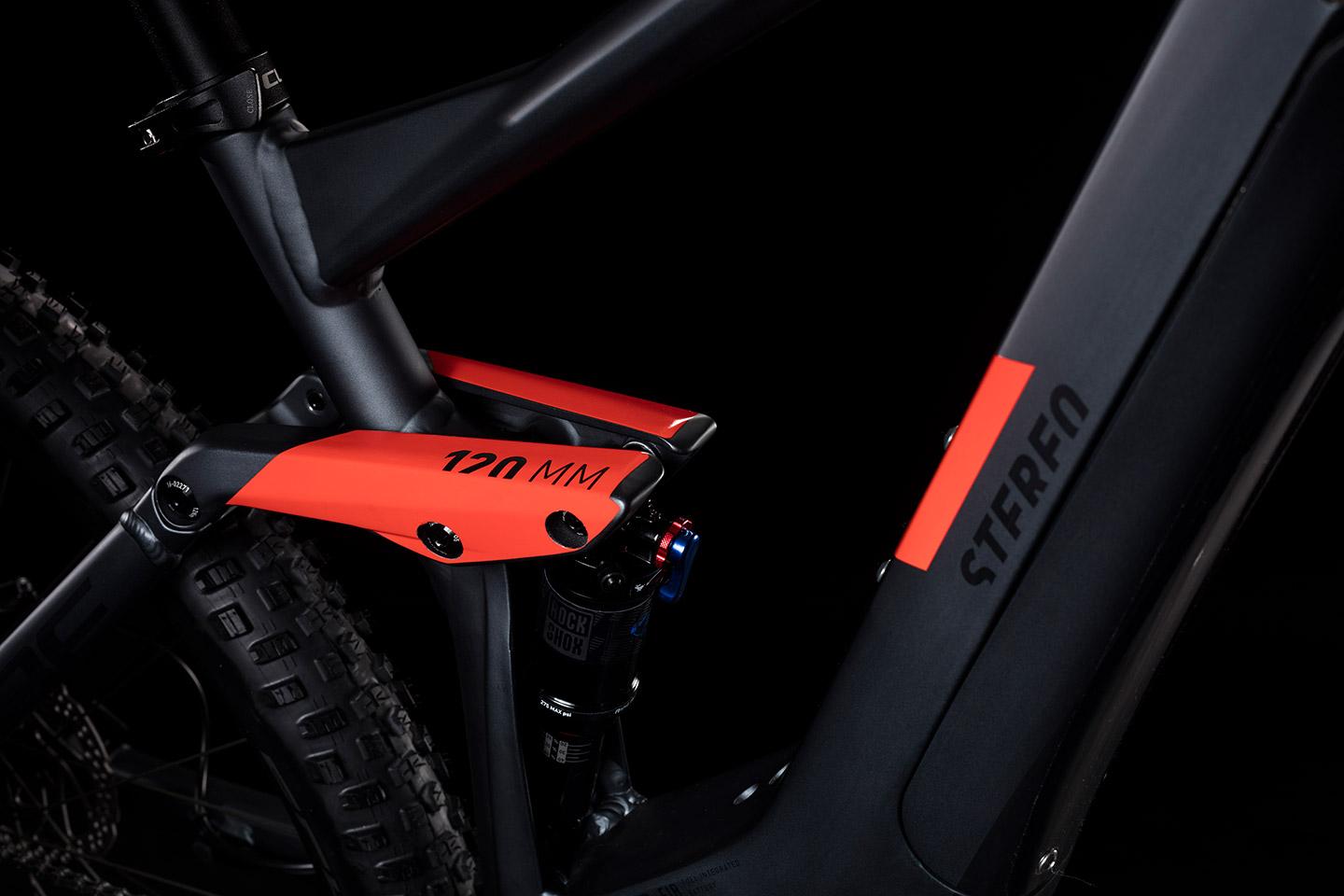

| SHOCK | RockShox Monarch RL, 184x44mm |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano BR-MT400, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | FSA CK-745, 15T, 170mm |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano HB-MT400-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, PerfL, 2.60 |
| HANDLEBAR | Newmen Evolution 318.20, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Active |
| HEADSET | FSA 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| WEIGHT | 23,9 kg |
| COLOUR | iridium´n´red |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 235050 |
Geometrie

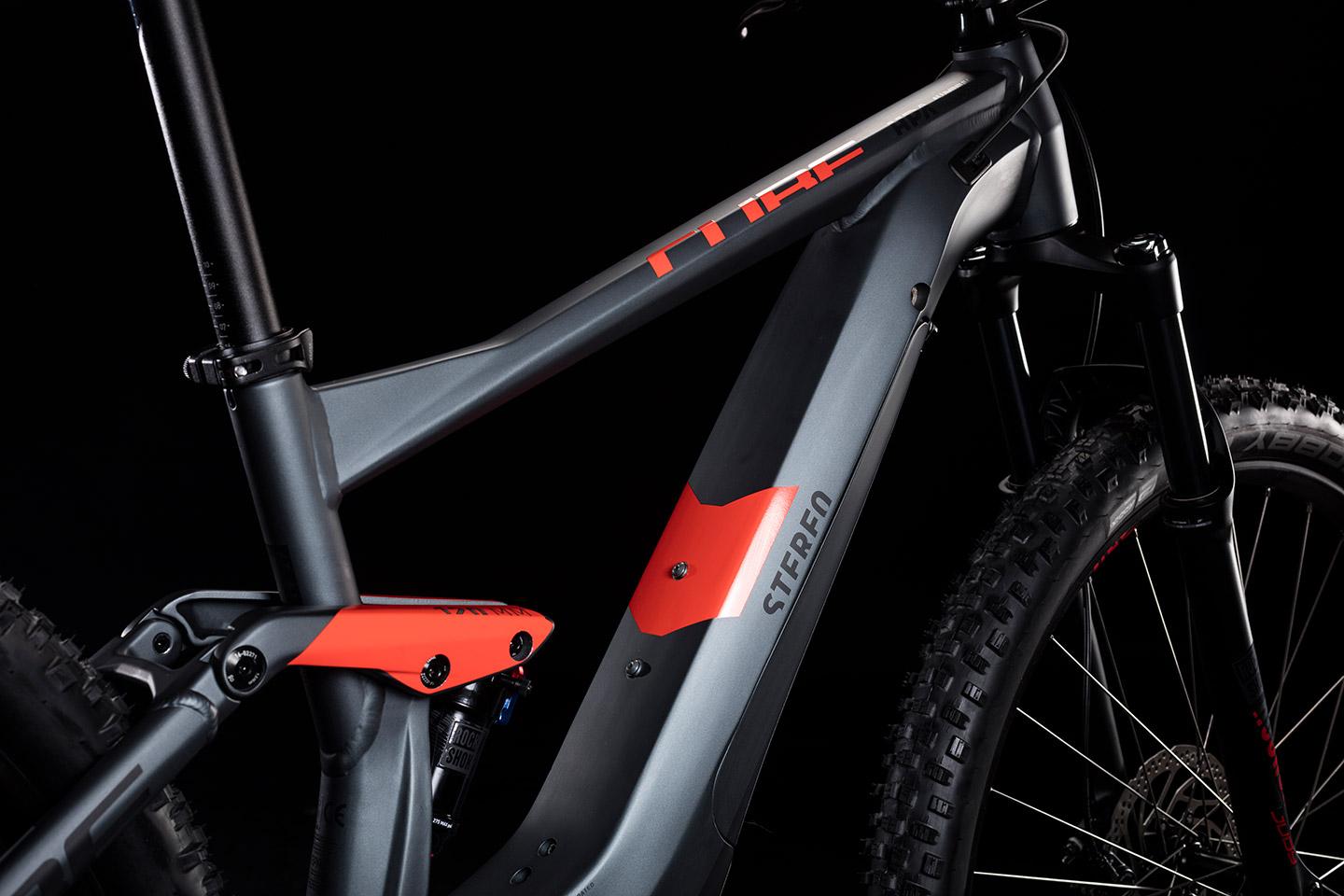

Those good looks aren't just for show. Making use of Bosch's PowerTube battery concept, our design team crafted a one-piece, gravity cast down tube and combined it with a motor cover to fully enclose both drive unit and battery. This sleek backbone protects the Bosch system from the elements and trail debris impact. It also contributes to an exceptionally rigid chassis for precise handling and efficient power transfer, aided and abetted by the12x148mm Boost rear axle and tapered head tube. Speaking of which, the long head tube and higher bottom bracket improve comfort on long rides and ground clearance respectively, and we even allowed for the extra weight of battery and motor with a custom, more progressive shock tune. Cables are routed internally to complement the frame's clean æsthetic, and it's ready to accept a stealth dropper post upgrade too.
