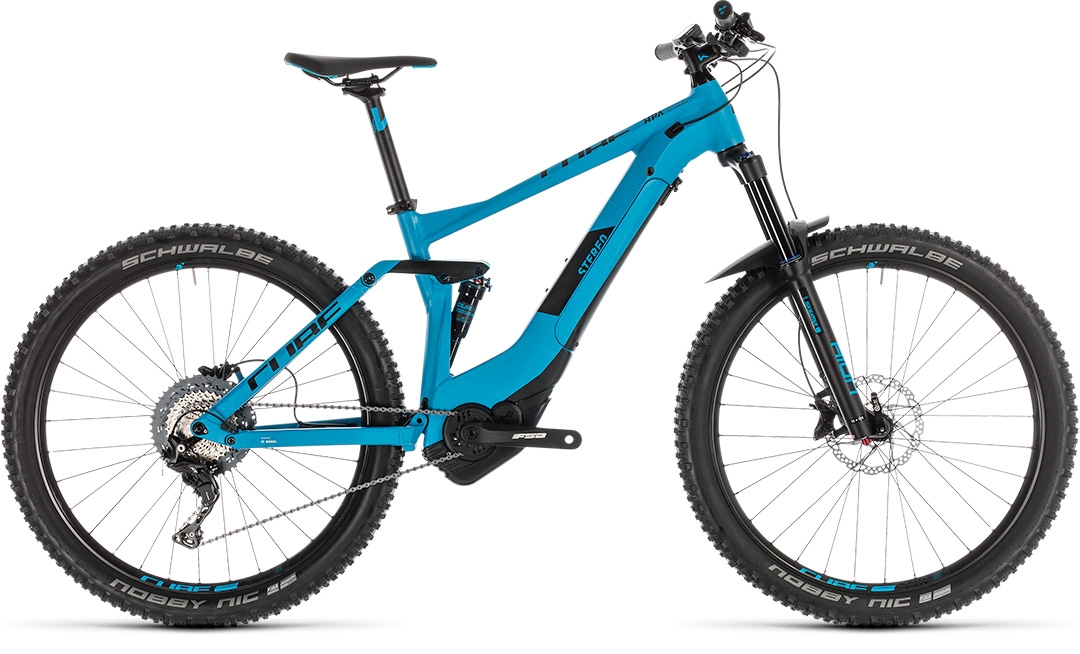

STEREO HYBRID 140
Pro 500 27.5
At CUBE we're always striving for perfection, but we're also great believers in not fiddling with a winning recipe. Our Stereo Hybrid 140 Pro has been widely lauded as a great-handling all-mountain Bosch e-bike capable of taking on just about any trail. Which is exactly what we set out to achieve. By combining the kind of trail manners you'd expect from a regular 140mm bike with the power and flexibility of Bosch's drive system, more and more riders are finding out for themselves the answer to the question, "why e-MTB?". Sleek looks, superb suspension performance from the Suntour Aion fork and matching DUAir shock, epic grip courtesy of Schwalbe's 2.6in Nobby Nic tyres and flawless shifting performance from Shimano's XT 11 speed transmission add up to a great mountain-taming package. Newmen finishing kit and a slightly more progressive suspension tune are the icing on the electric-assist cake. We suggest you try a slice - you'll like it, we promise.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | SR Suntour Aion RC, Tapered, 15x110mm, 140mm |
| SHOCK | SR Suntour DUAir LOR8, 190x50mm |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano SLX SL-M7000 |
| CRANKSET | FSA CK-745, 15T, 170mm |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e, EcoProTeQ |
| FRONT HUB | Shimano HB-MT400-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, Addix Performance, 2.60 |
| HANDLEBAR | Newmen Evolution 318.20, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | Newmen Evolution, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Active |
| HEADSET | FSA 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| WEIGHT | 23,7 kg |
| COLOUR | blue´n´black |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 236110 |
Geometrie
The secret to the Stereo Hybrid 140 Pro's intuitive handling lies in a combination of our Agile Ride Geometry, carefully tuned suspension kinematics and a frame design that integrates the Bosch drive system so seamlessly, you'll soon find yourself forgetting that it's there. By incorporating the PowerTube battery into the one piece, gravity cast down tube, we've achieved several goals. First, it's protected from water and dirt. Second, the centre of gravity is lowered for even better handling. Third, there's space for an accessory cage, so you can carry a tool pack or water bottle for longer rides. Fourth, you can recharge the battery without removing it from the frame. And finally, the down tube is the incredibly stiff backbone that connects the Boost 148 rear axle at the rear to the tapered head tube at the front, delivering efficient power transfer and incredibly precise steering. Cables are routed internally for longer life and smoother shifting, and we've even allowed for a quick and easy stealth dropper post upgrade. This is the CUBE way: attention to every detail, so you can concentrate on the ride.
