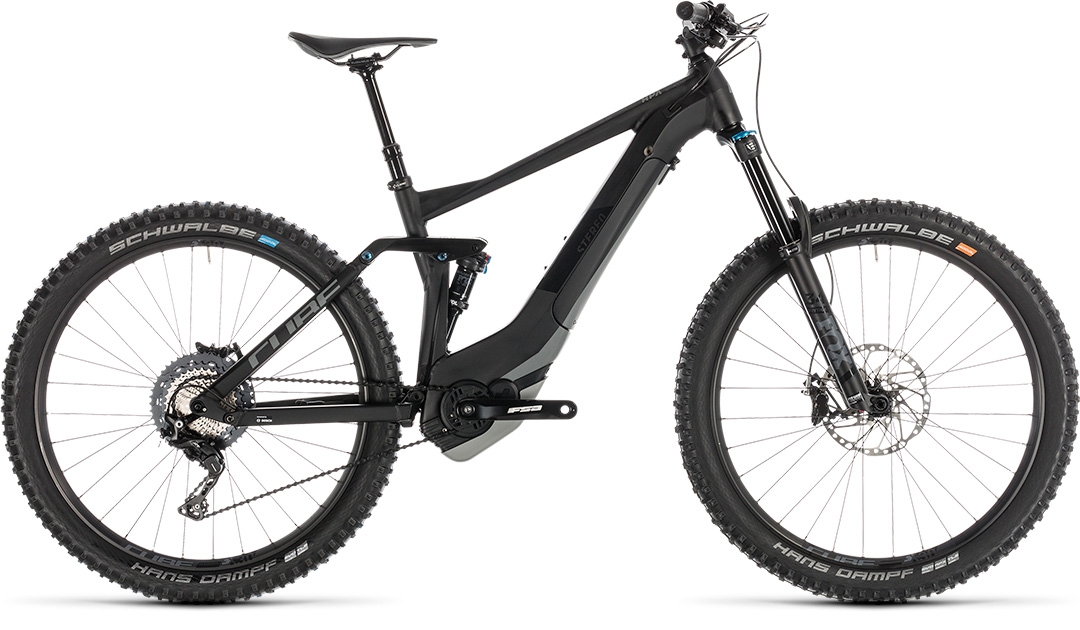

STEREO HYBRID 140

SL 500 KIOX 27.5

When you've run out of excuses, when only the best all-mountain Bosch e-bike will do... that's when you're ready to move up to the Stereo Hybrid 140 SL. We've sunk all our experience of building awesome trail-taming full suspenion hybrids into this elegant, comprehensively equipped bike. With a frame built around Bosch's PowerTube battery technology, Fox 34 Float fork and matching rear shock, remote dropper post, powerful Shimano XT hydraulic disc brakes with a 4 piston front caliper and 203mm rotors front and rear, and slick-shifting XT 11 speed gears, the Stereo Hybrid 140 SL has everything you need for great days out in the mountains... and nothing that you don't. All-mountain perfection, redefined.

AUSSTATTUNG

FRAMEAluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
SIZE16", 18", 20", 22"
FORKFox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 140mm
SHOCKFox Float DPS EVOL, 190x50mm, Open/Medium/Firm Mode
SHOCK HARDWARETop: 30x8mm, Bottom: 30x8mm
BRAKE SYSTEMShimano XT BR-M8020/BR-M8000, Hydr. Disc Brake (203/180)
REAR DERAILLEURShimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
SHIFTERSShimano XT SL-M8000-I, Direct Attach
CRANKSETFSA CK-745, 15T, 170mm
CASSETTEShimano SLX CS-M7000, 11-46T
CHAINKMC X11e, EcoProTeQ
FRONT HUBShimano XT HB-M8010-B, 15QR, Boost, Centerlock
REAR HUBShimano XT FH-M8010-B, 12mm, Boost, Centerlock
RIMSCUBE EX30, 32H, Disc, Tubeless Ready
TYRESSchwalbe Hans Dampf 2.60, Addix Soft, Apex, Tubeless Easy
HANDLEBARNewmen Evolution 318.20, 760mm
GRIPSCUBE Race Grip 31mm, 1-Clamp
SEAT POSTCUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
SEATCLAMPCUBE Screwlock, 34.9mm
SADDLENatural Fit Active Race
HEADSETFSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALSCUBE PP MTB
WEIGHT23,9 kg
COLOURblack´n´grey
DRIVE UNITBosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
BATTERYBosch PowerTube 500
DISPLAYBosch Kiox
CHARGERBosch 4A
ČÍSLO VÝROBKU236301

Geometrie

Lots of details contribute to the Stereo Hybrid 140 SL's impeccable on-trail performance. From the Boost 148 rear axle to the tapered steerer, the frame is designed to maximise power transfer and steer precisely and intuitively, no matter how steep or rocky the trail. Progressive kinematics help keep the wheels glued to the trail for maximum traction, comfort and control, and of course our Agile Ride Geometry ties the whole lot together for handling that'll have you coming back for more. The fully enclosed PowerTube battery, housed in a one piece, gravity cast down tube, is protected and can be charged without removing it from its housing but is also easy to remove completely. And internally routed cables complement the frame's elegant looks, whilst keeping gear shifts smooth and crisp in even the filthiest of riding conditions. Like we said, it's the details that count.

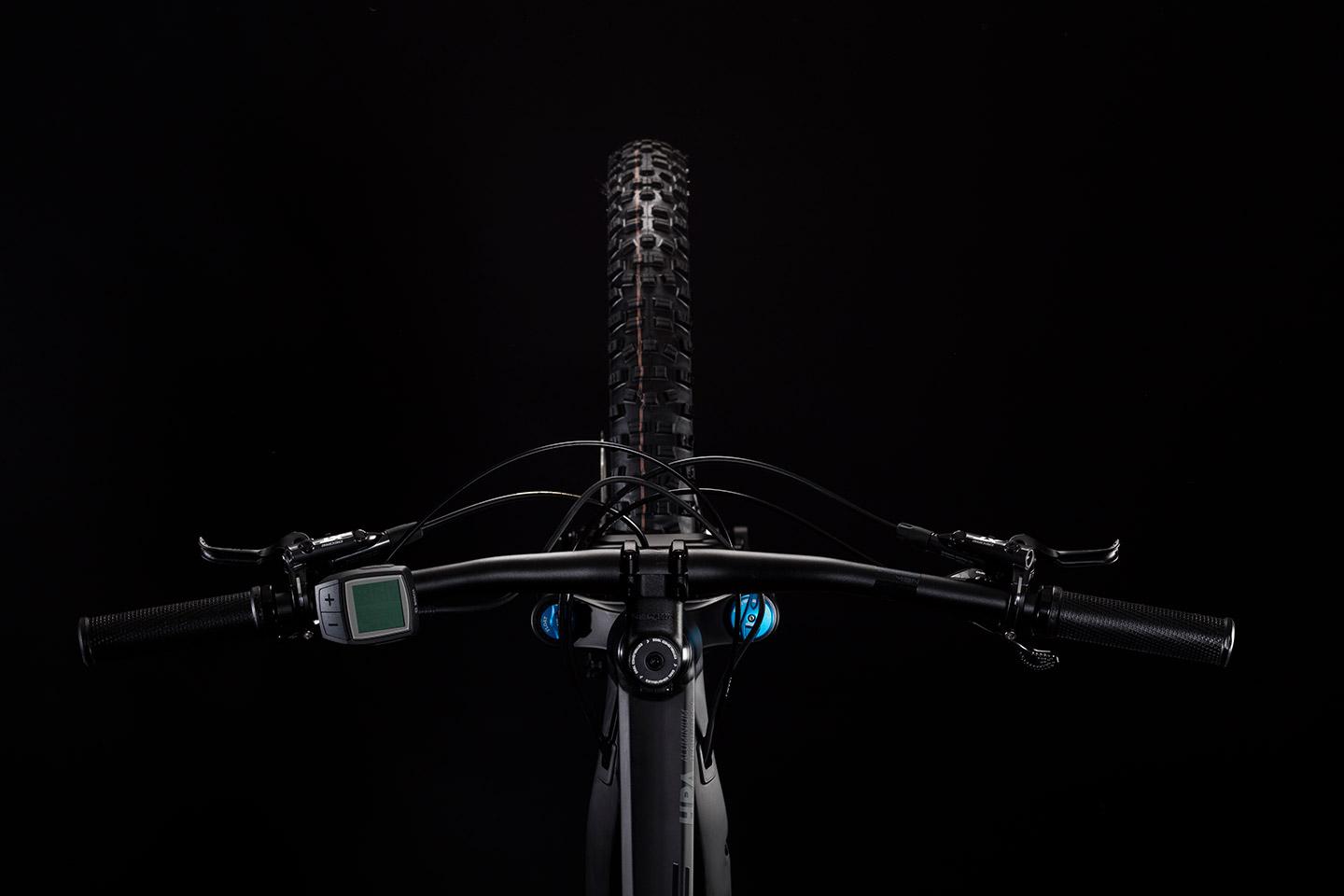

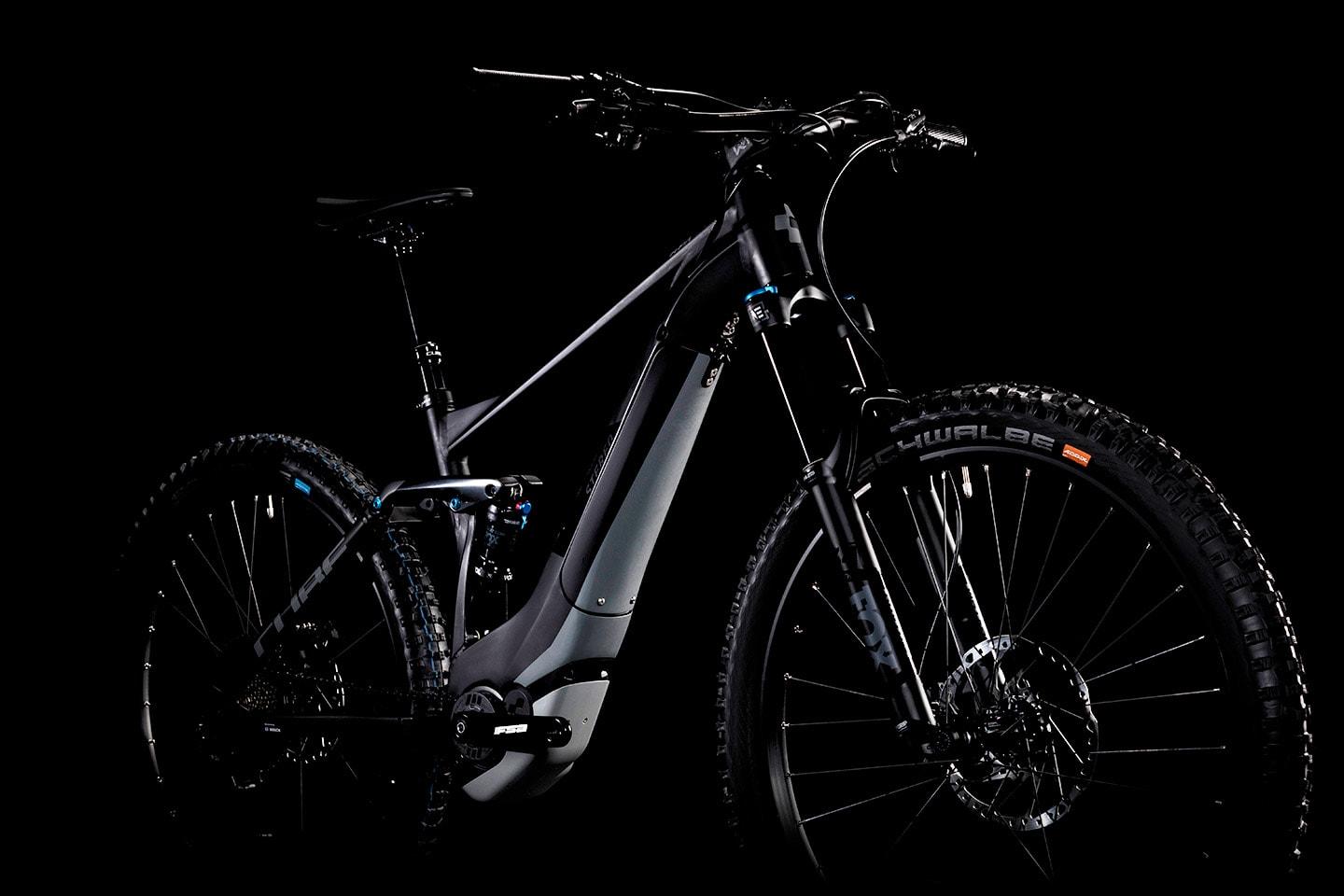

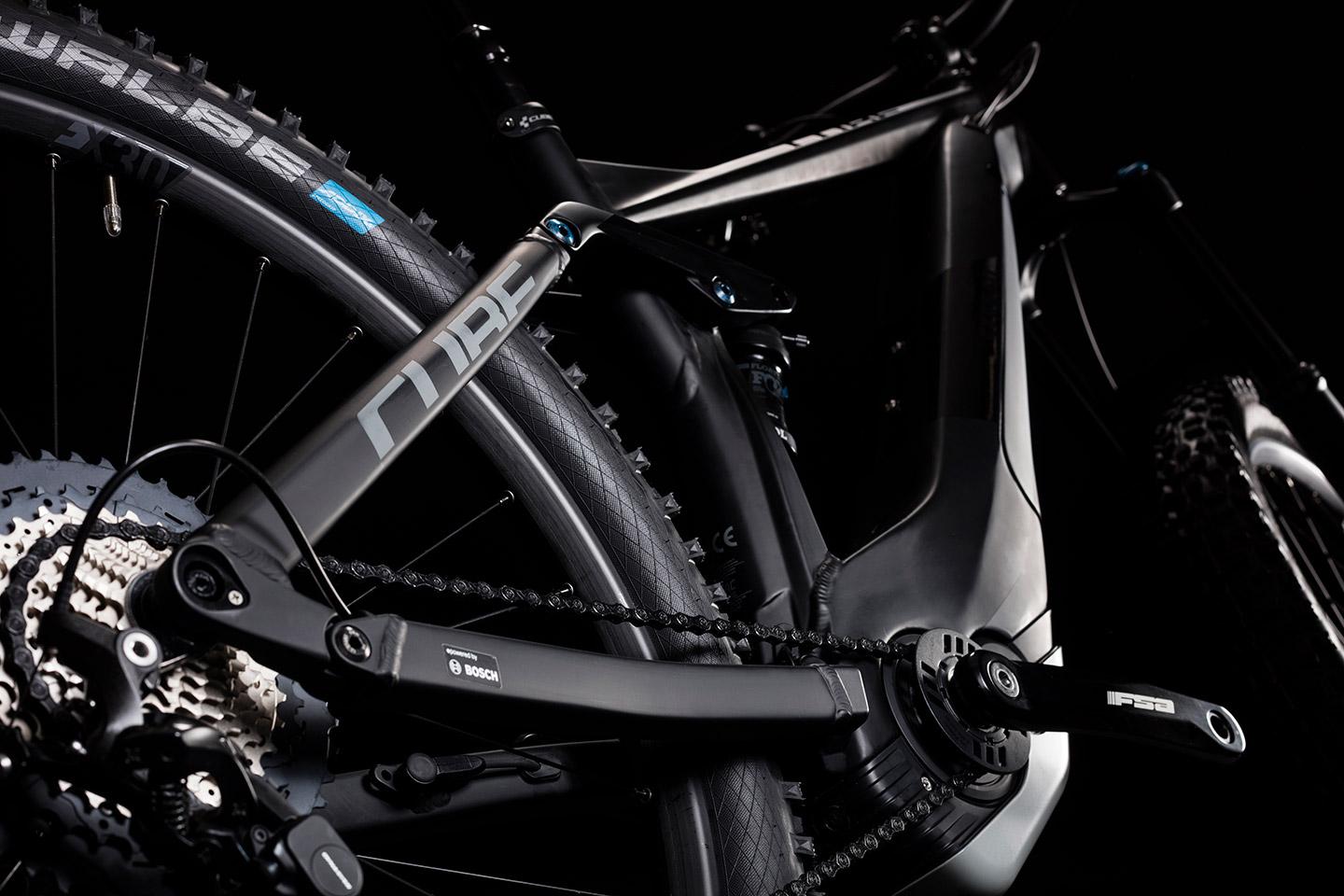

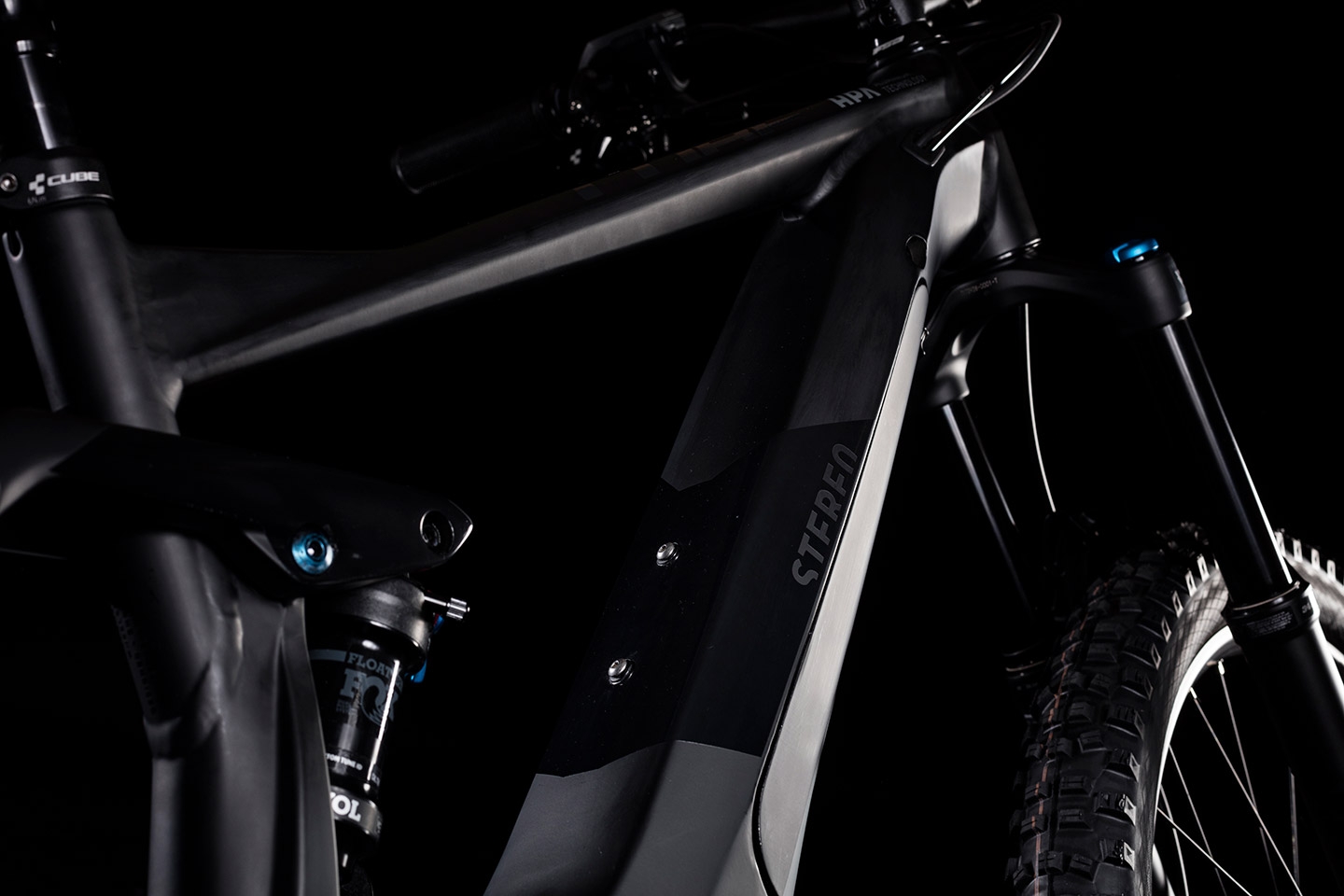

Bike details

porn_image
detail_image_0
detail_image_1
detail_image_2
detail_image_3

VÍCE MODELŮ Z TÉTO SÉRIE

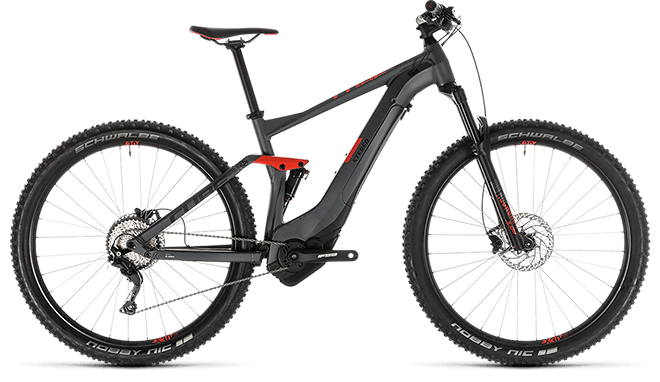

CUBE Stereo Hybrid 120 Pro 500 iridium´n´red 2019
