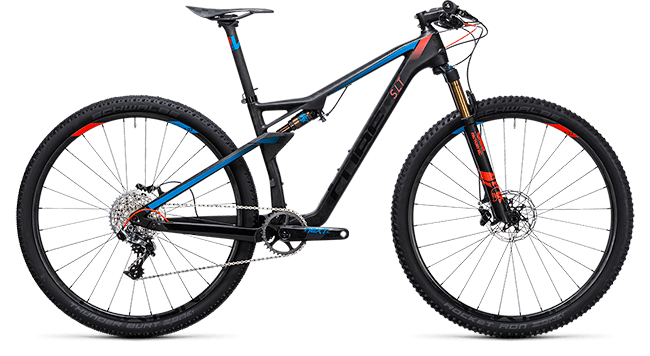

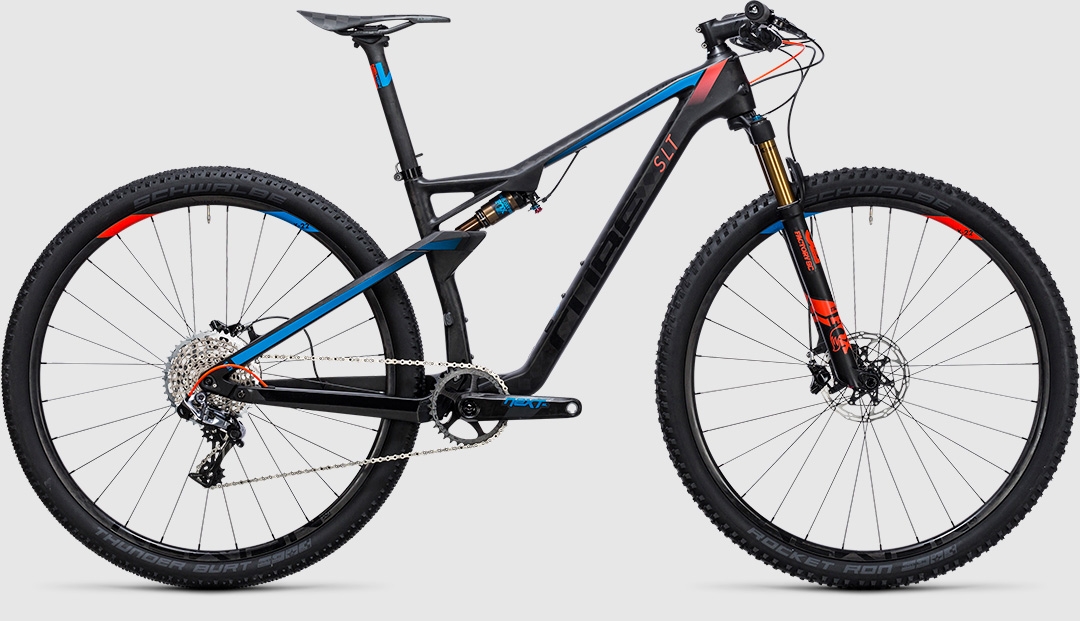

AMS 100 C:68

SLT 29

The best riders demand the best performance from their bikes. We created the CUBE AMS 100 C:68 SLT 29 with this in mind, blending our brand new cross-country race chassis with hand-picked components from Fox and Sram to create the ultimate trail-devouring machine. If there's a faster, lighter, more efficient and more reliable cross-country race bike, we'd like to see it.

AUSSTATTUNG

FRAMEC:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost148, AXH
SIZE16", 18", 20", 22"

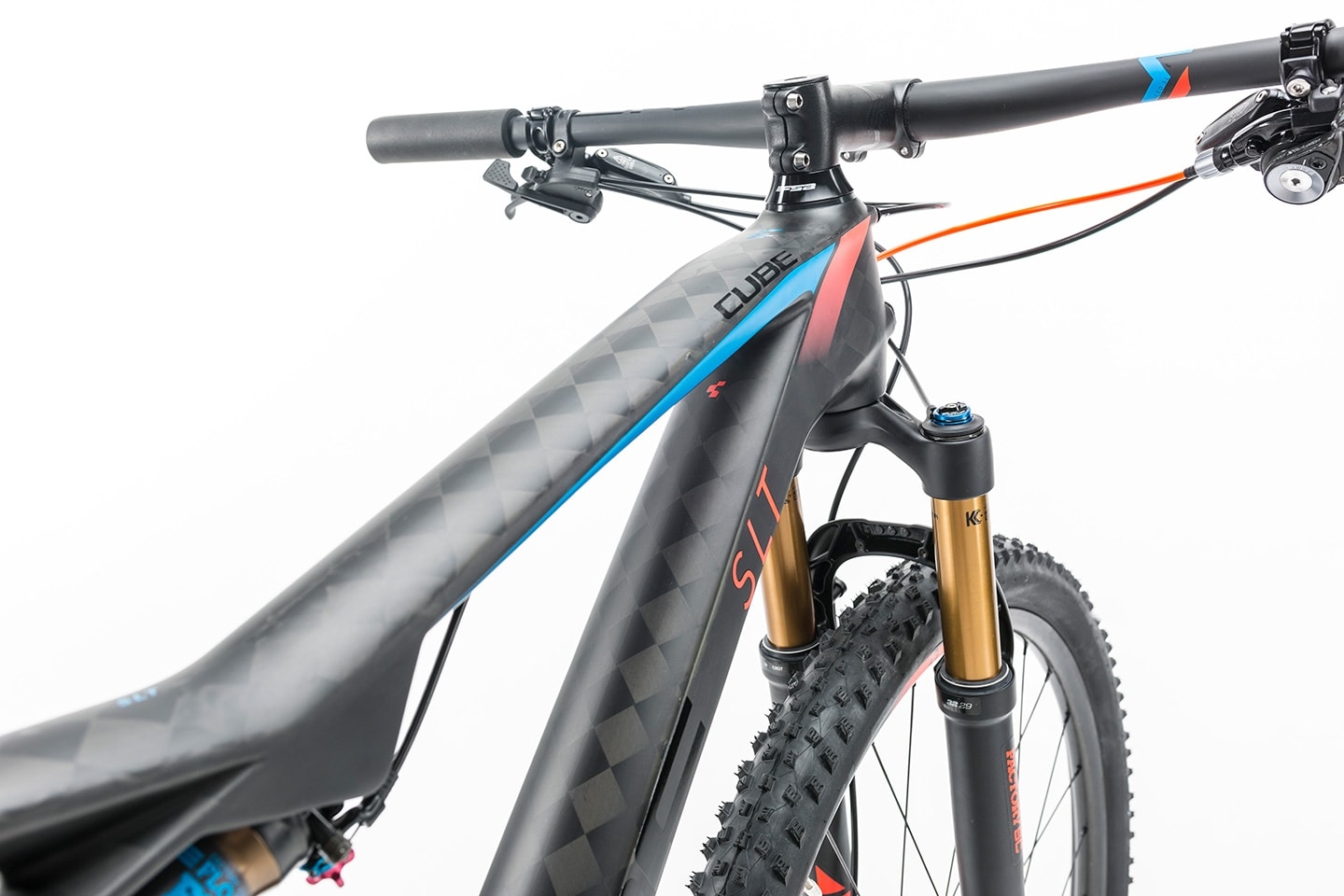

FORKFox 32 Float SC FIT4 Factory, 2-Position Remote Lever, Tapered, 15mm Boost, Kashima Coated, 100mm

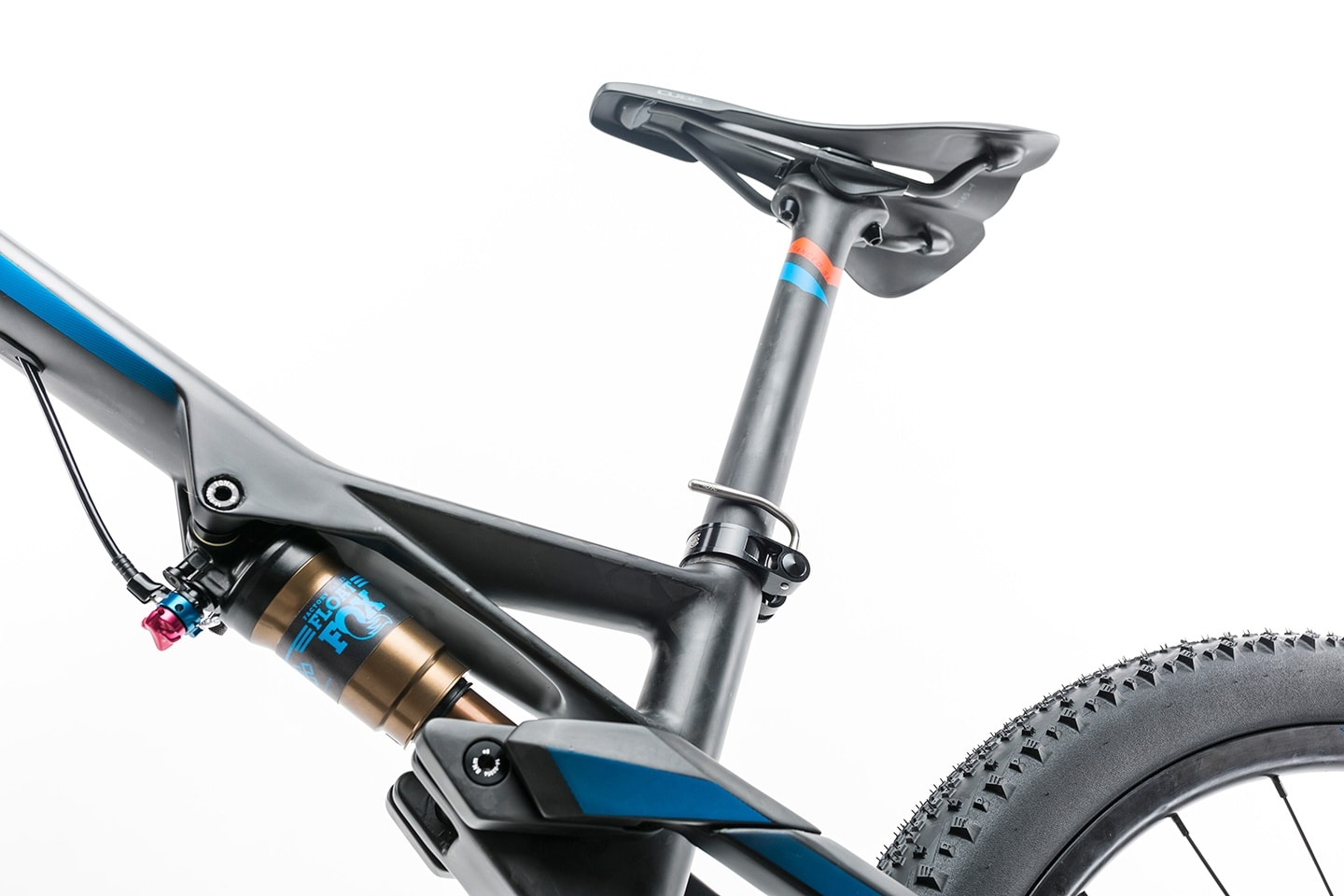

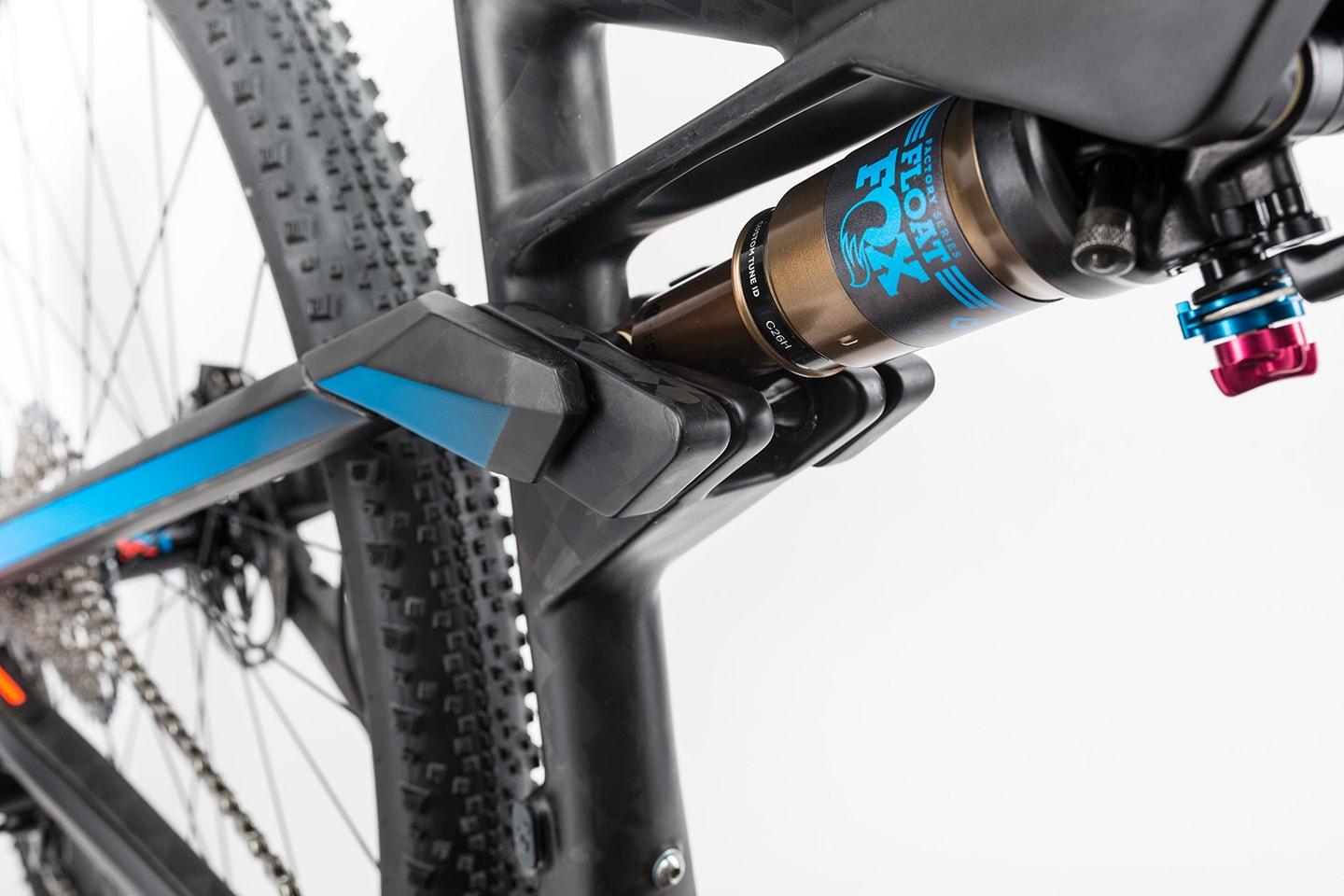

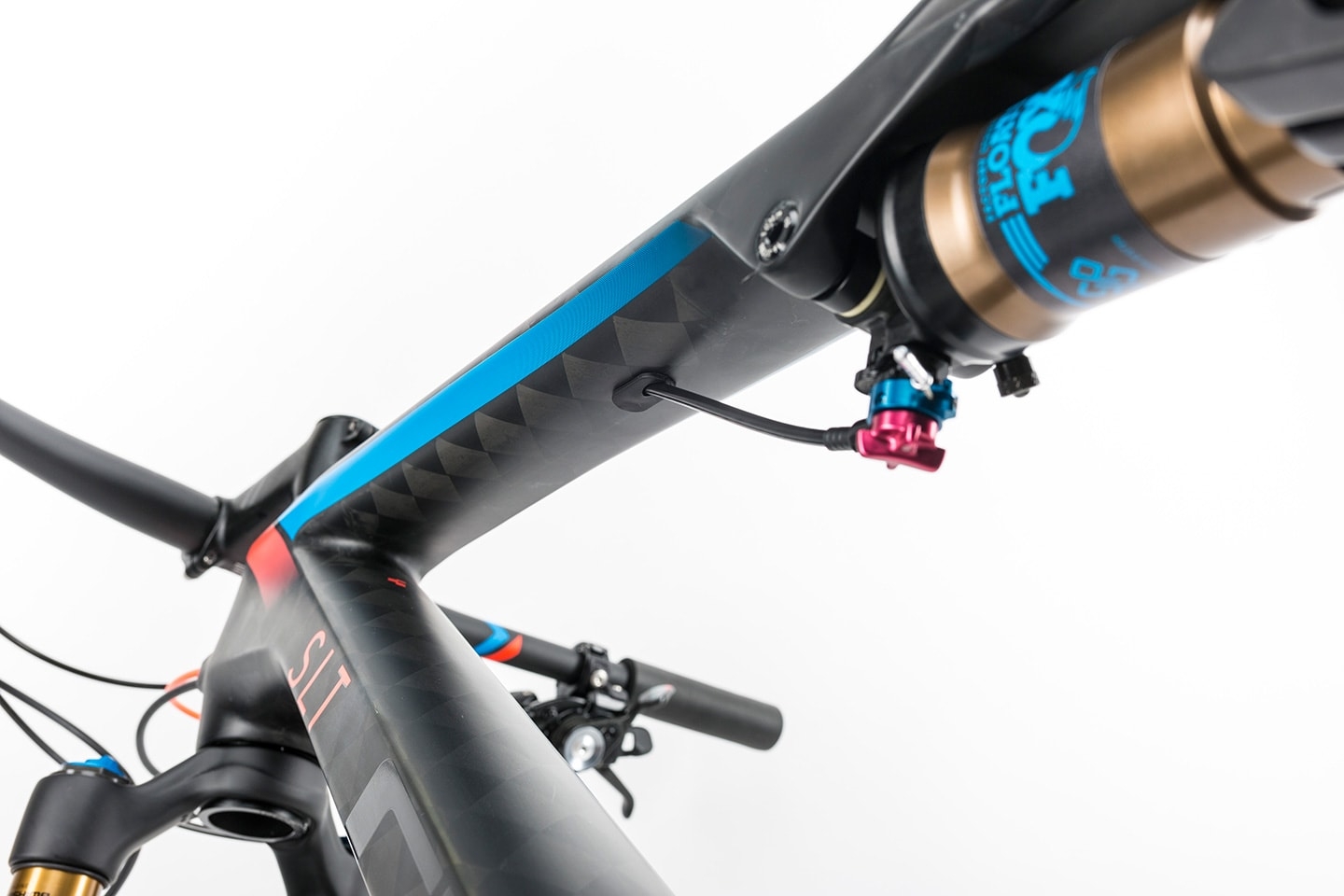

SHOCKFox Float DPS Factory Remote, 165x38mm, 2-Position Remote Lever, Kashima Coated
SHOCK HARDWAREFront: 30x8mm, Rear: 30x8mm
BRAKE SYSTEMSram Level Ultimate, Hydr. Disc Brake (160/160)
REAR DERAILLEURSram XX1, 11-Speed
SHIFTERSSram XX1 Trigger

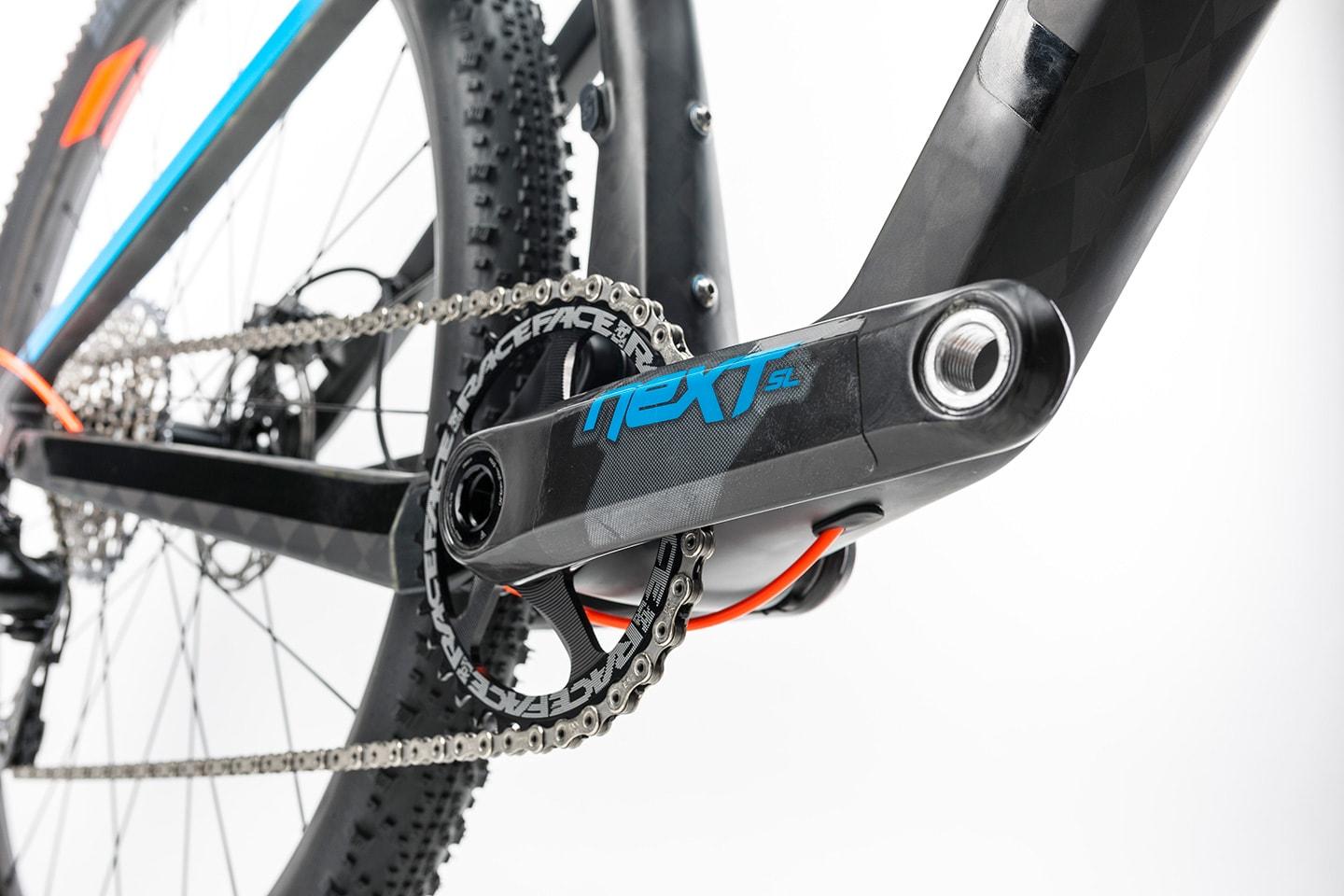

CRANKSETRace Face Next SL Carbon 34T, 175mm, Oversized Aluminum Axle
CASSETTESram XG-1199, 10-42T
CHAINSram PC-XX1

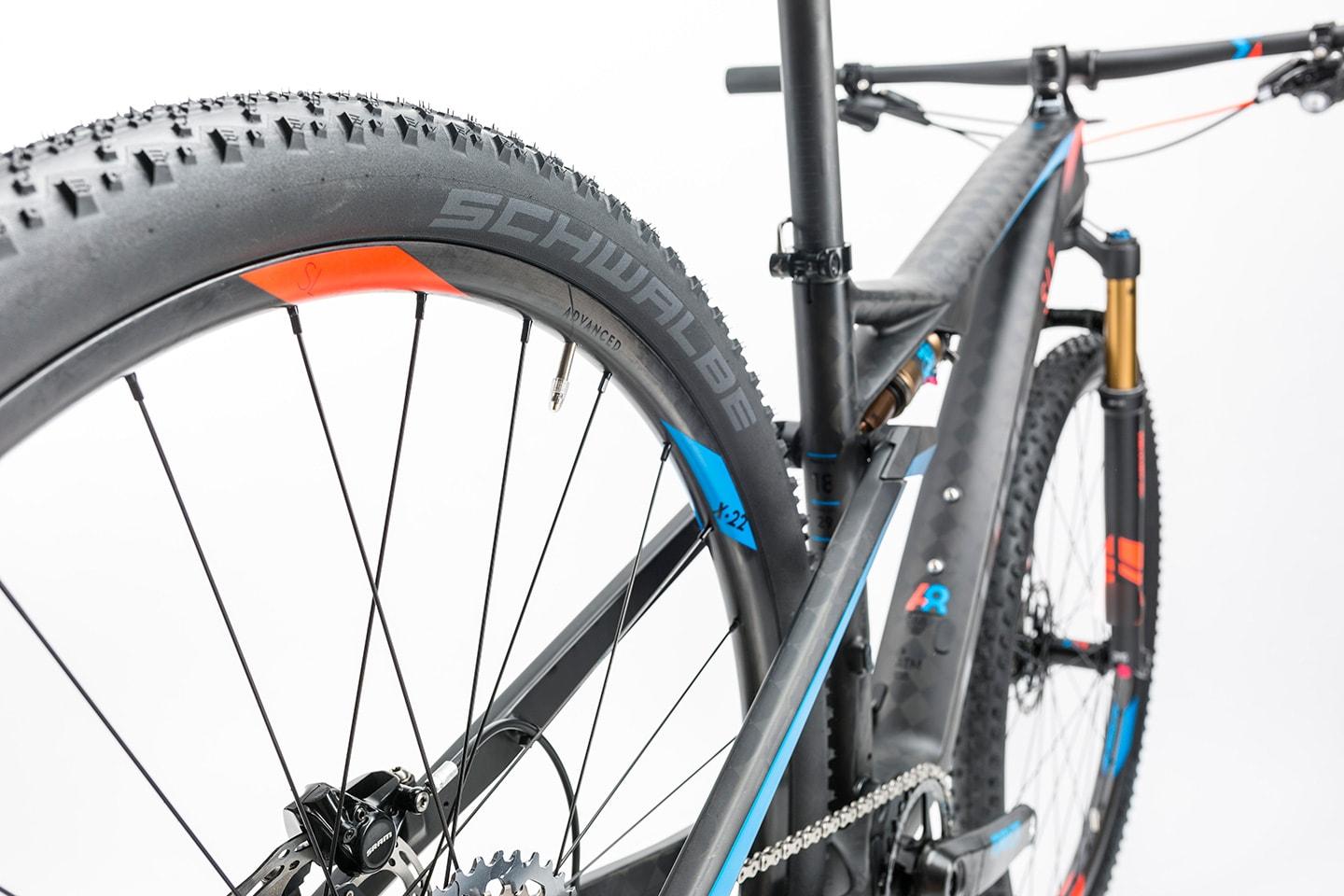

WHEELSETNewmen Advanced SL X.22 Carbon, 28/28 Spokes, 15mm / Boost X12, Tubeless Ready
FRONT TIRESchwalbe Rocket Ron, Kevlar, 2.1, LiteSkin
REAR TIRESchwalbe Thunder Burt, Kevlar, 2.1, LiteSkin

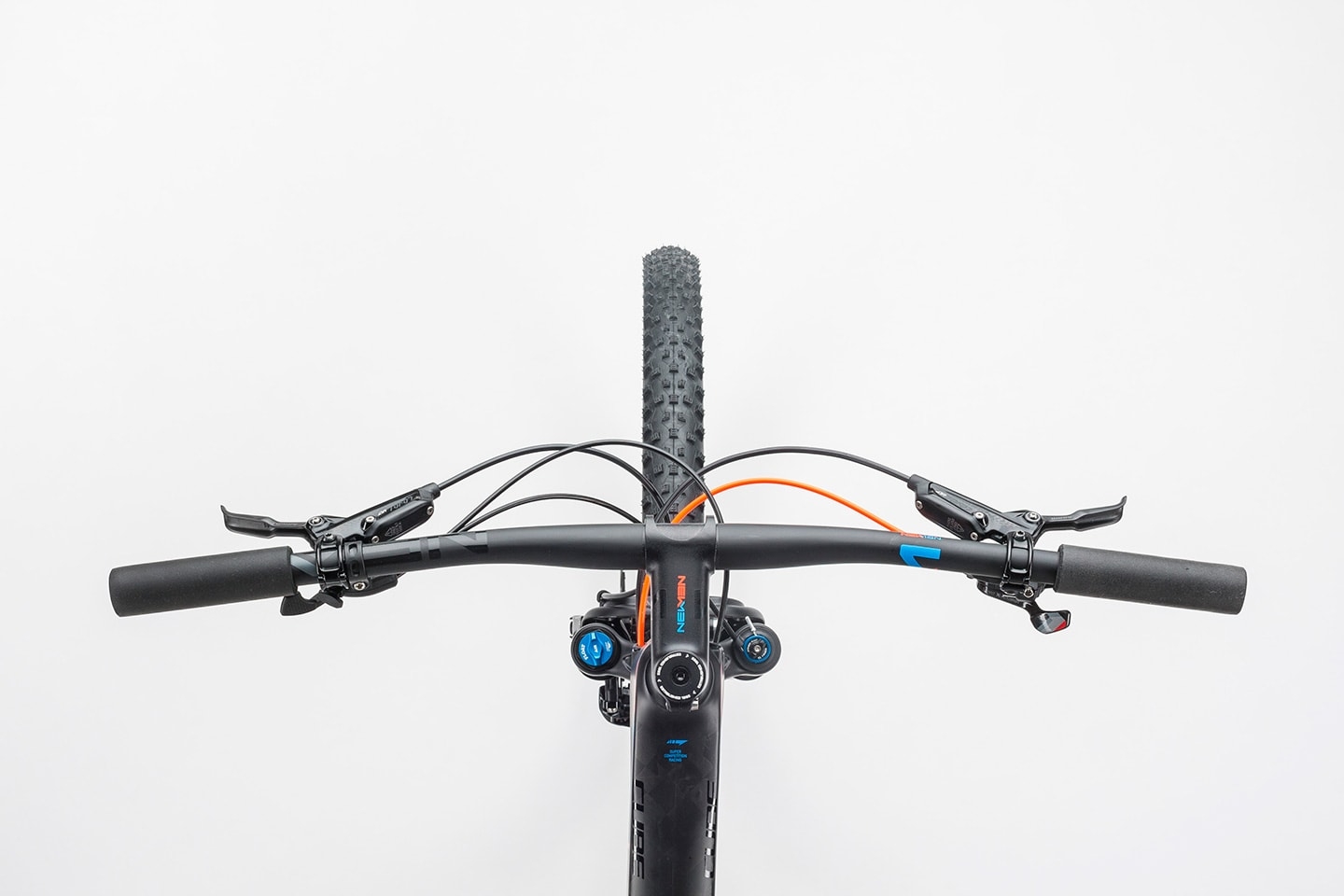

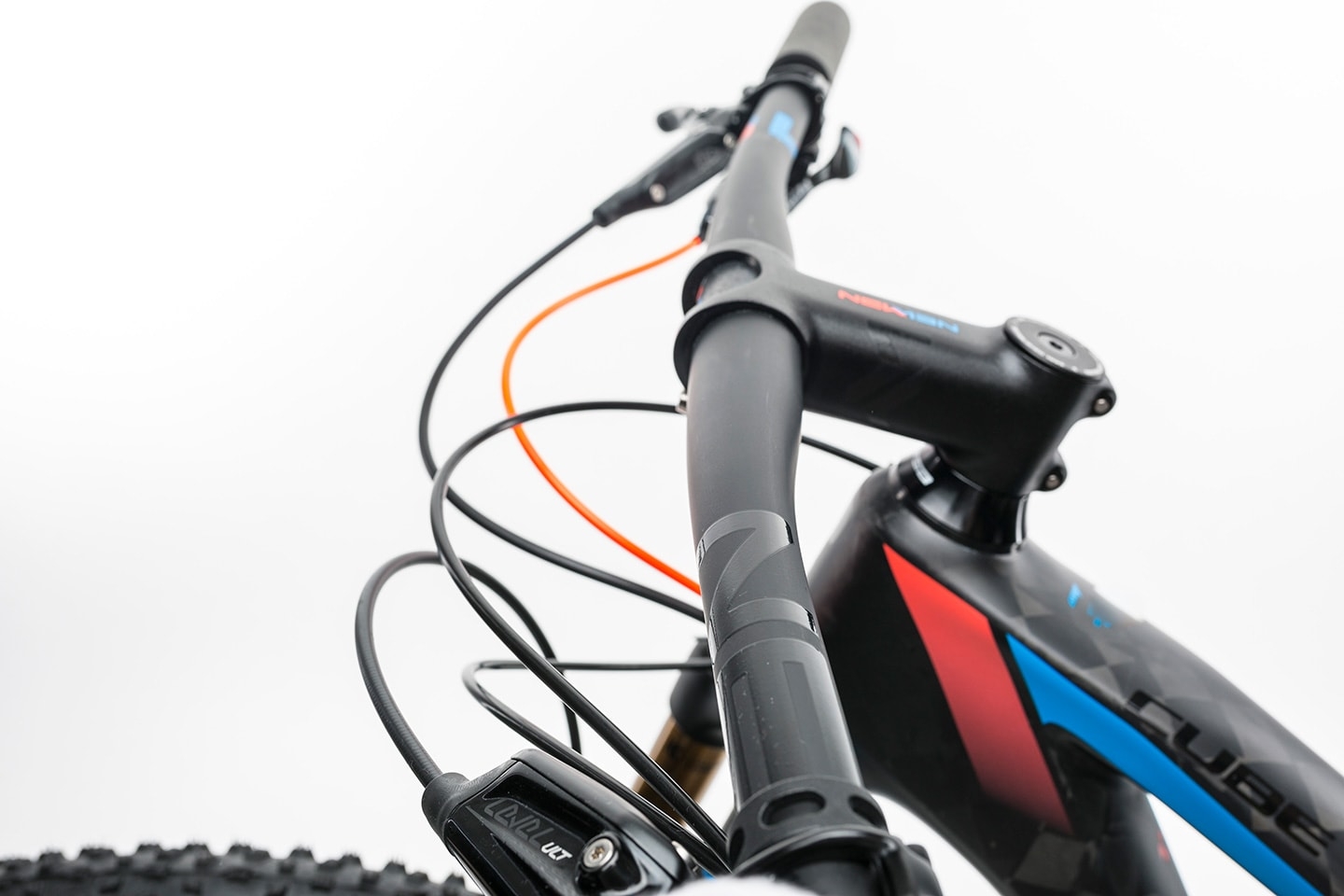

HANDLEBARNewmen Advanced SL 318.0 Carbon, 740mm
GRIPSCUBE SCR
SEAT POSTNewmen Advanced SL Carbon, 31.6mm
SEATCLAMPTune Würger, 34.9mm

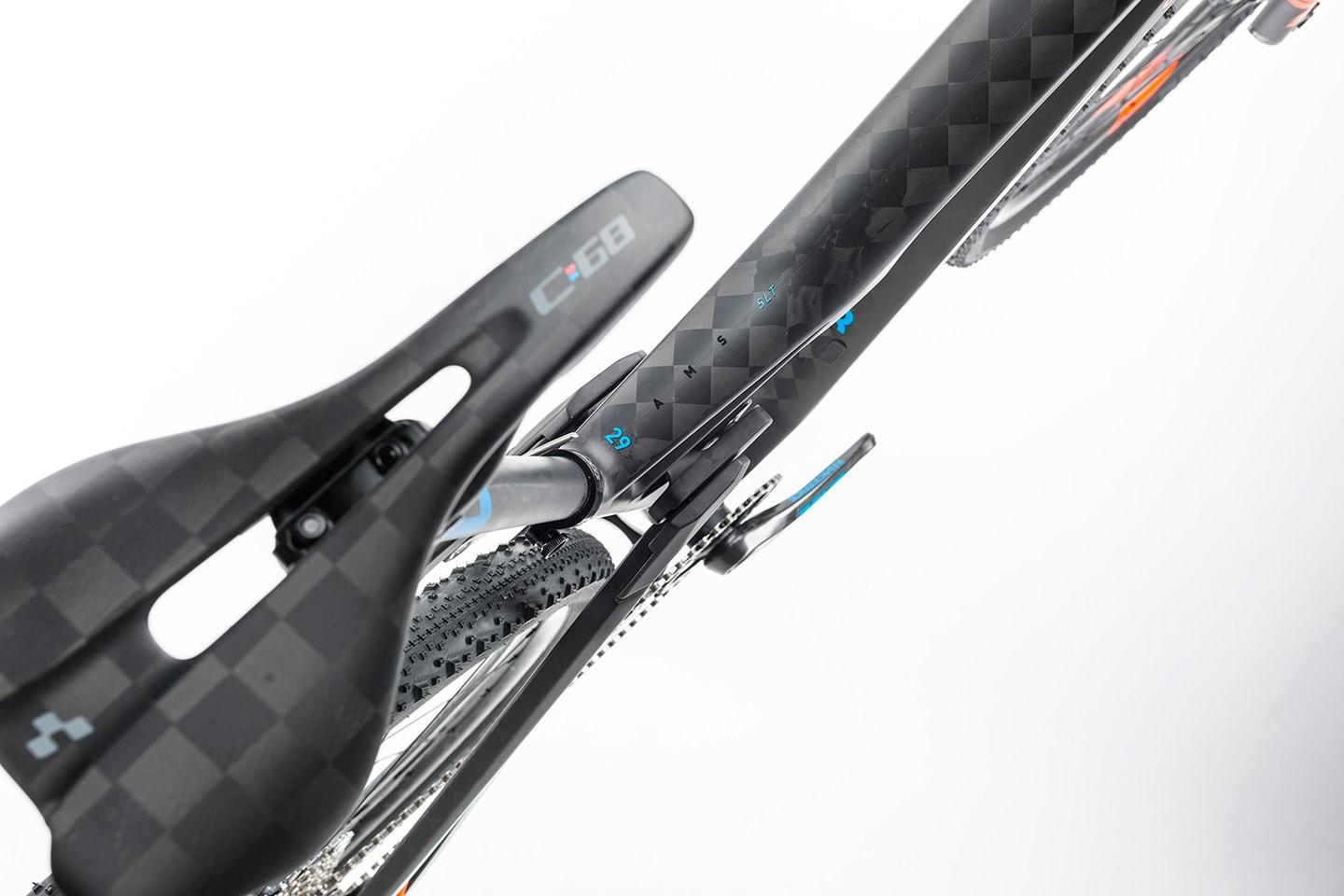

SADDLECUBE SLT Zero Carbon
HEADSETFSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
WEIGHT8.9 kg
COLORzeroblack
ART. NO852500

GEOMETRY

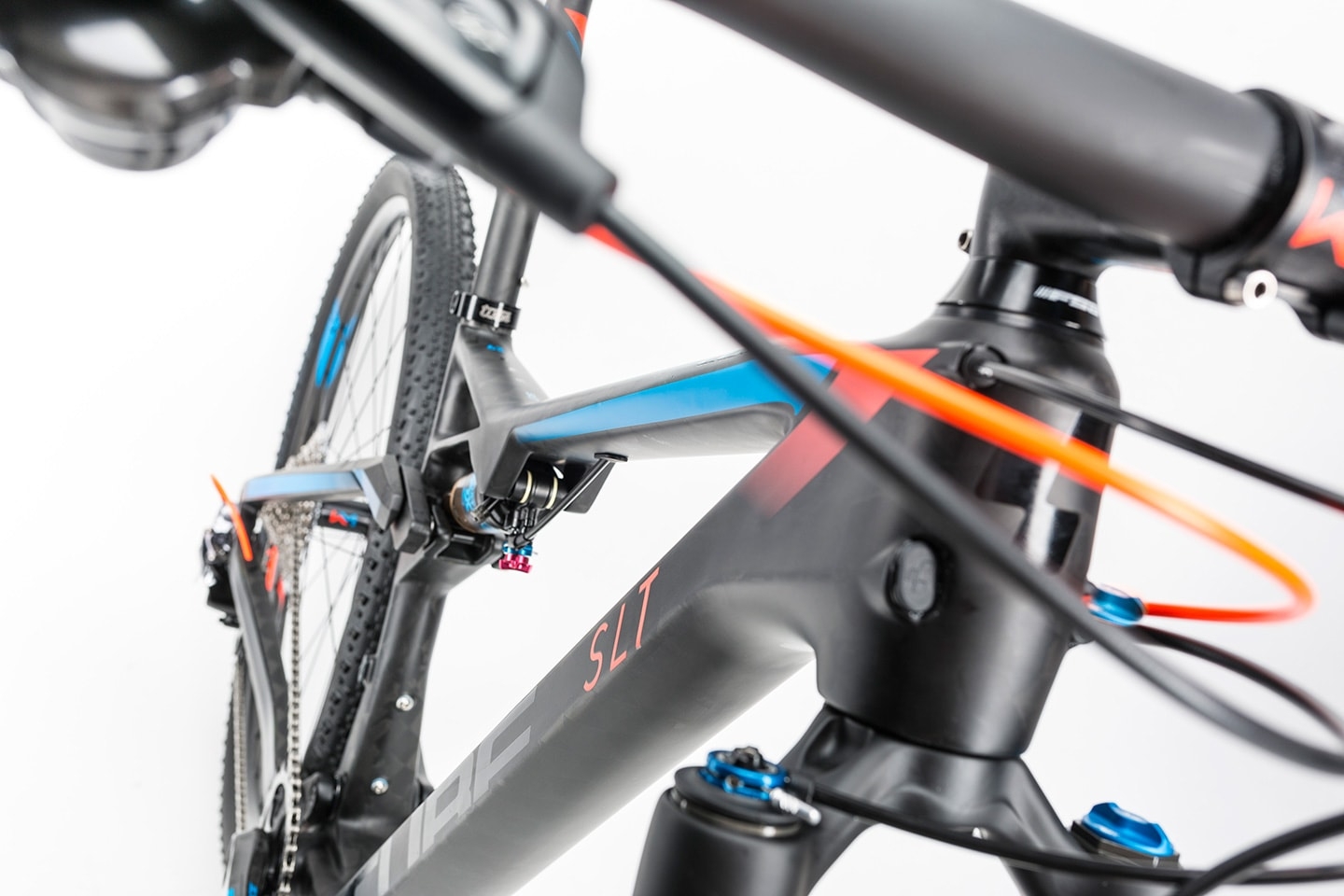

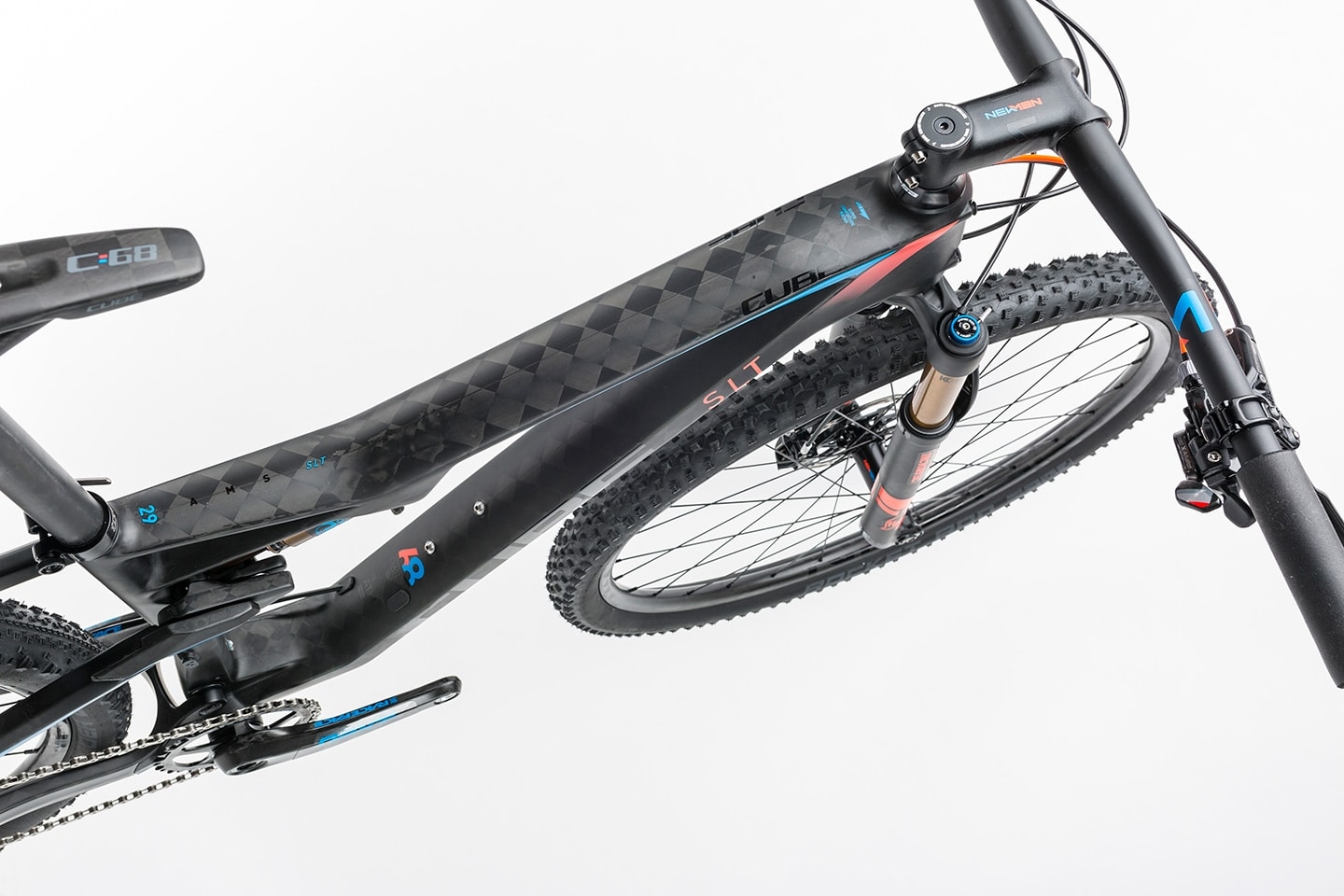

If it looks right, it often is right. Of course, there's a lot more to designing the ultimate cross-country race chassis than that, but it's a truth that holds for our designers. That's why, for example, the seatstays blend seamlessly into the shock mount on this frame. It's also the reason you won't see any exposed bolts or bearings, and why we routed cables internally (including provision for Di2). As for the stuff you can't see, it's the high tech Advanced Twin Mold C:68 carbon you'd expect, crafted into a structure that sets new standards for low weight and high stiffness. Boost148? Check. Tapered head tube? Present and correct. We've sweated the details, so you can concentrate on the ride.

Bike details

detail_image_0
detail_image_1
detail_image_2
detail_image_3
detail_image_4
detail_image_5
detail_image_6
detail_image_7
detail_image_8
detail_image_9
detail_image_10

MORE MODELS OF THIS SERIES

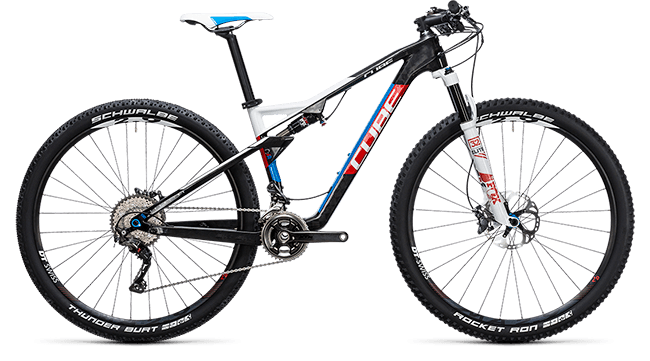

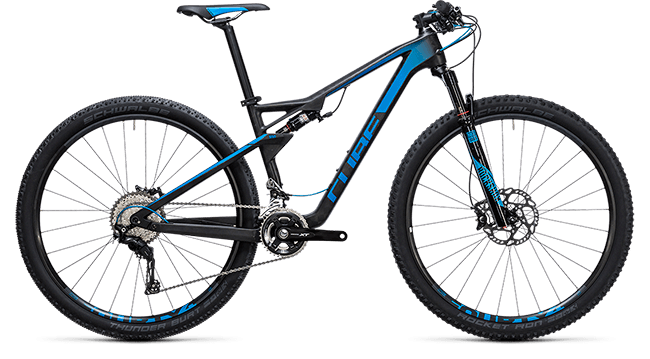

CUBE AMS 100 C:68 Race 29 blue carbon 2017
