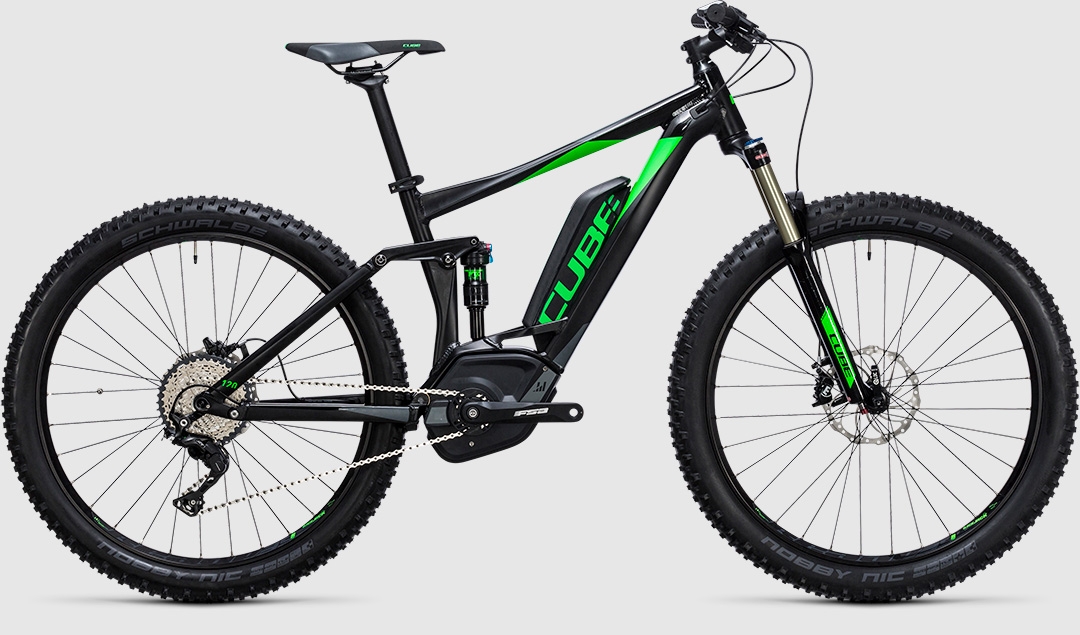

STEREO HYBRID 120 HPA
Race 500 27.5+
As the mountain bike continues to evolve, we take the best of the new technologies and apply the unique experience of CUBE's engineering team to create something special. The result, in this case, is the Stereo Hybrid HPA 120 Race 27.5+. It's a bike that blends powerful Bosch e-bike technology with the smooth rolling of 27.5+ wheel to create a versatile all-rounder. Mountain biking has never been this much fun.
AUSSTATTUNG

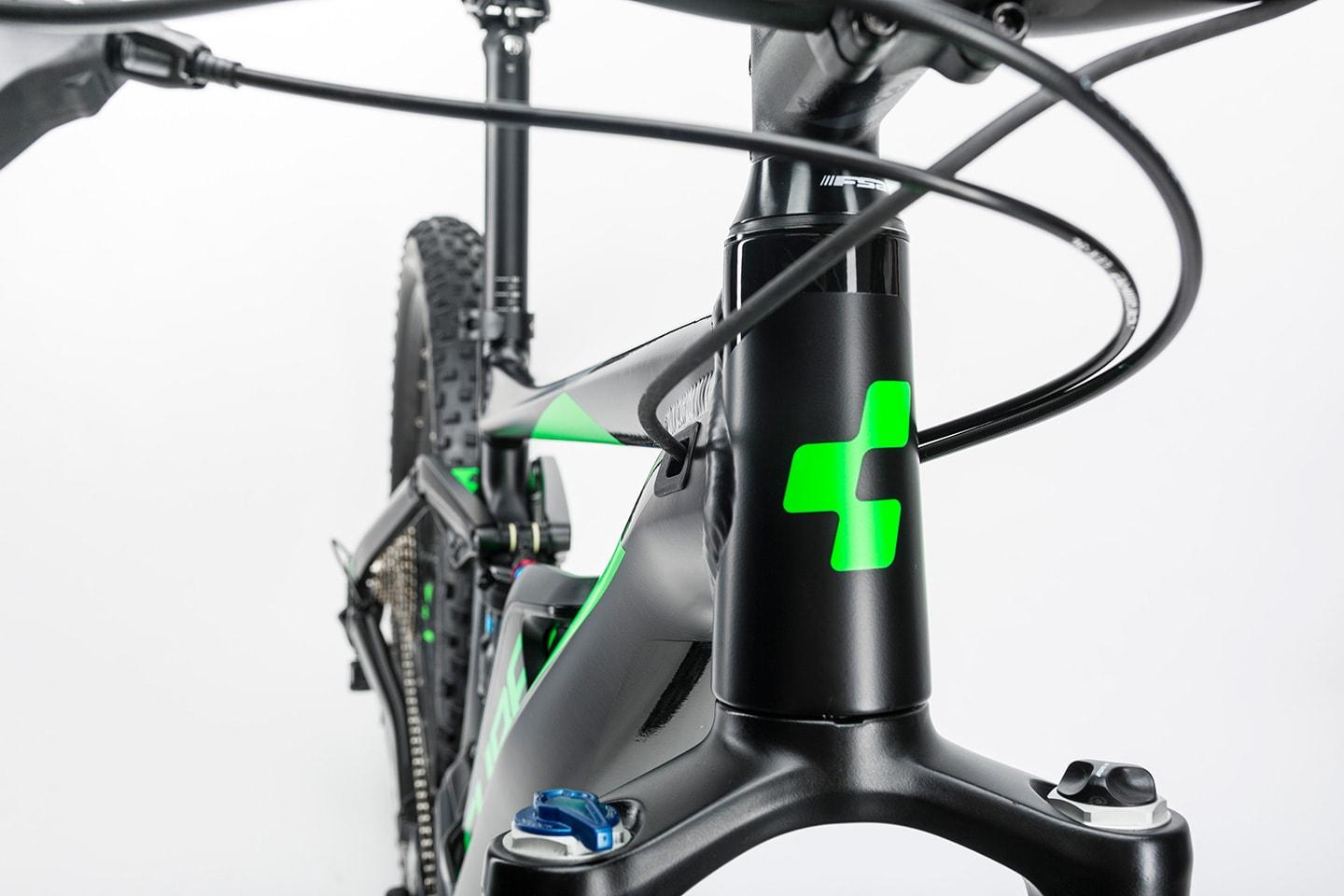

| FRAME | HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH, Plus Ready |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | SR Suntour Raidon 32 Air LO-R DS, Tapered, 120mm, Boost |

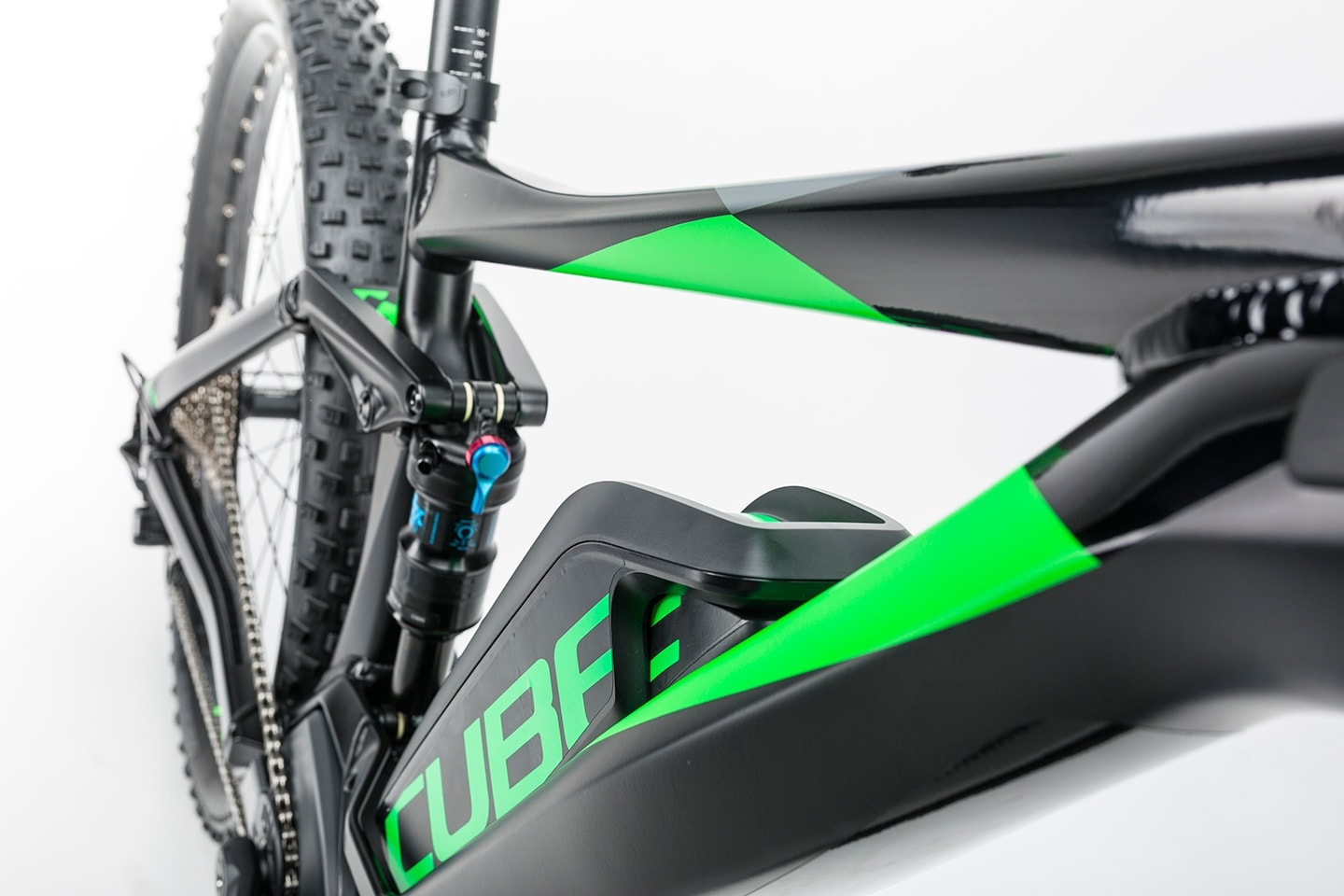

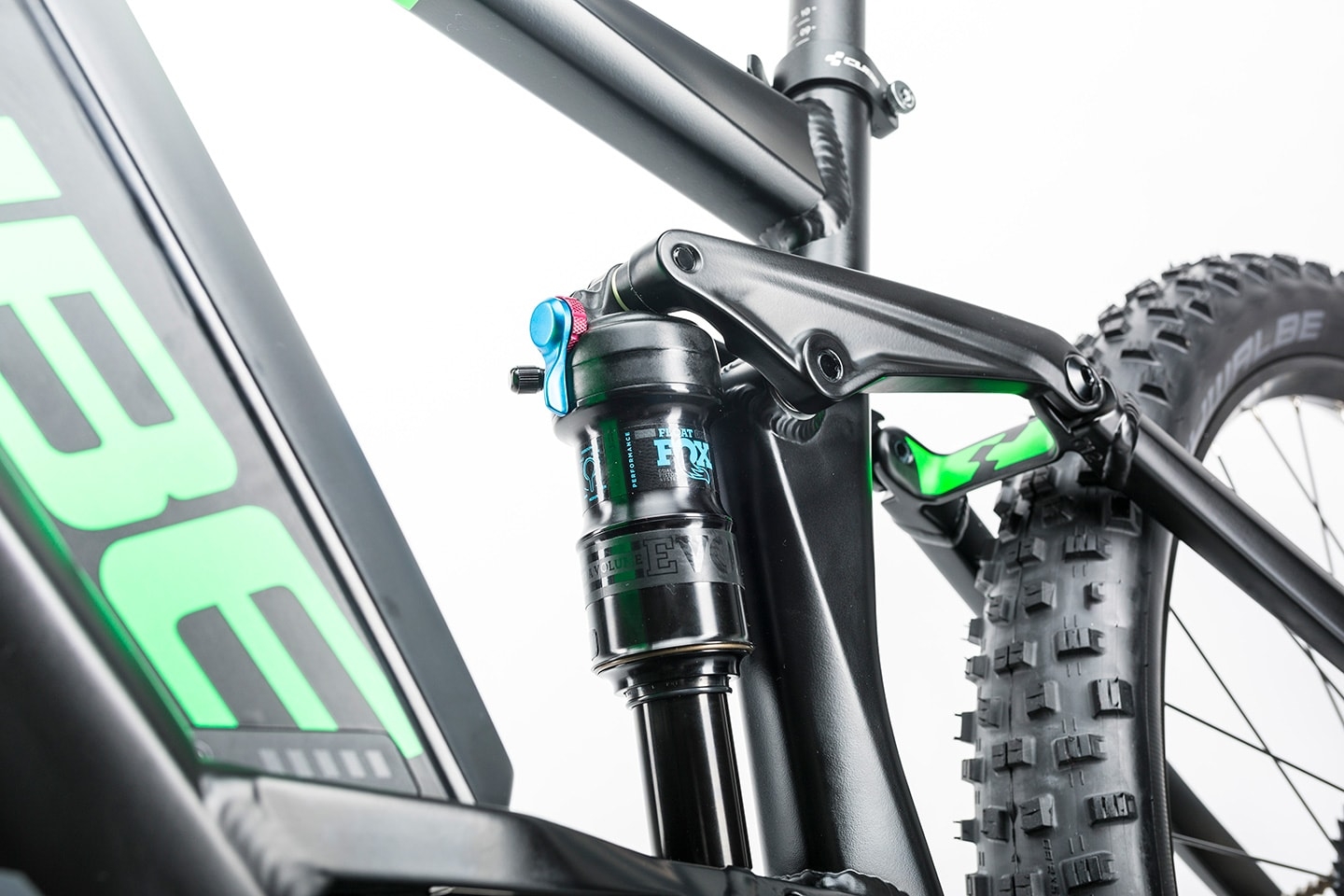

| SHOCK | Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, EVOL Air Sleeve |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Magura MT Trail Custom (180/180) |

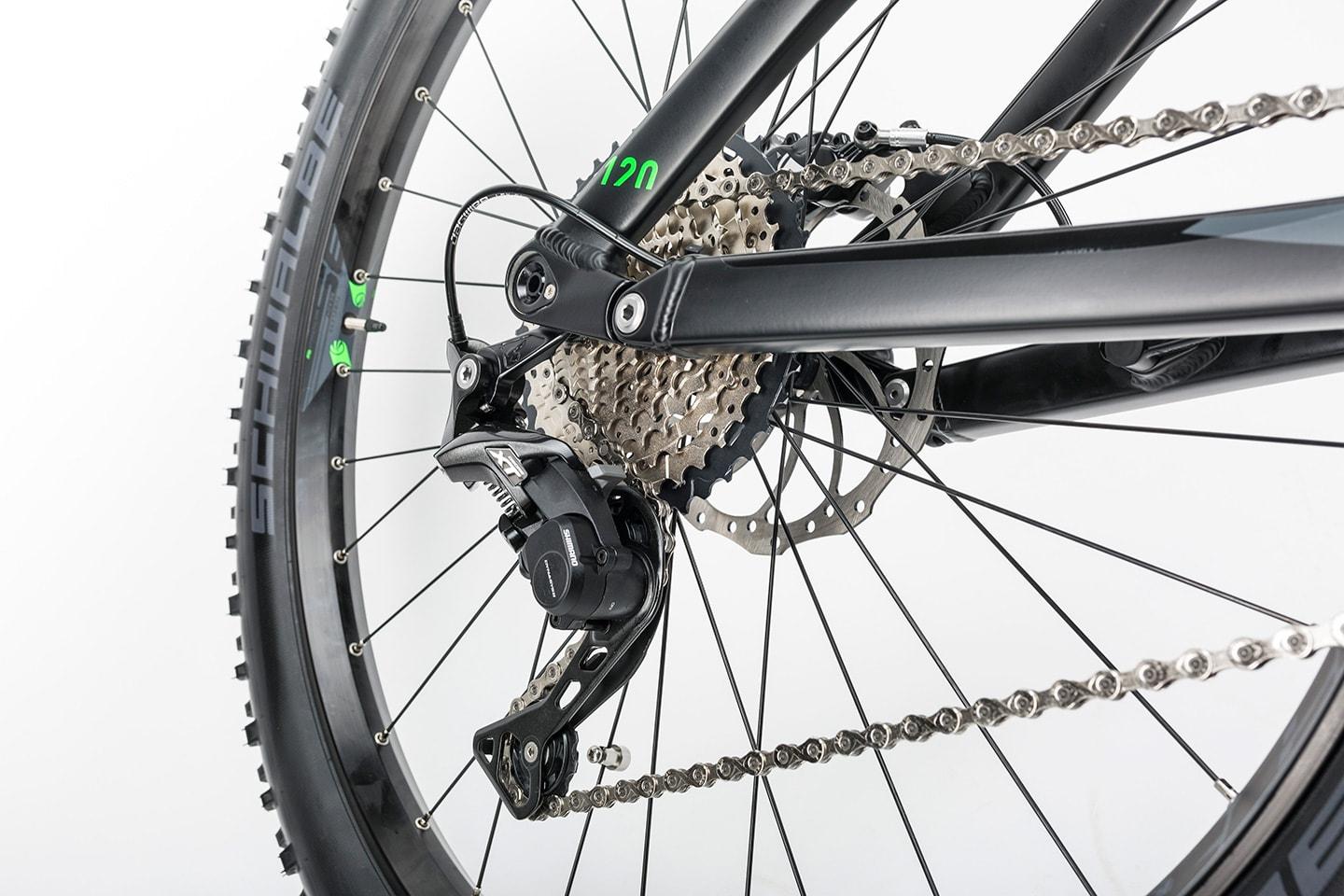

| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| SHIFTERS | Shimano SLX SL-M7000 |
| CRANKSET | FSA CK-745, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-42T |
| CHAIN | KMC X11e, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-M618-B, QR15, Boost |

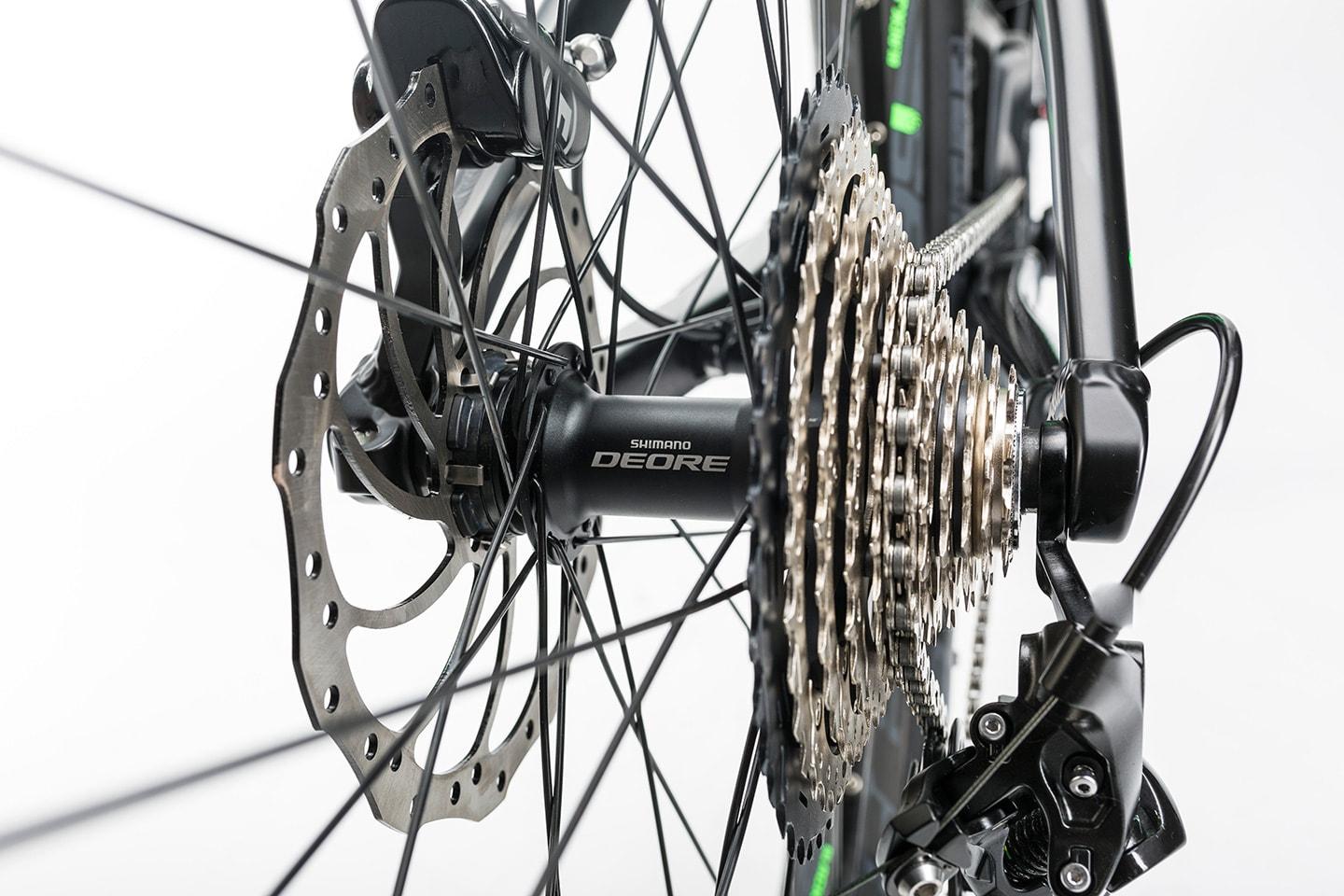

| REAR HUB | Shimano Deore FH-M618-B, X12, Boost |
| RIMS | CUBE Ready 35, Disc, 32H |

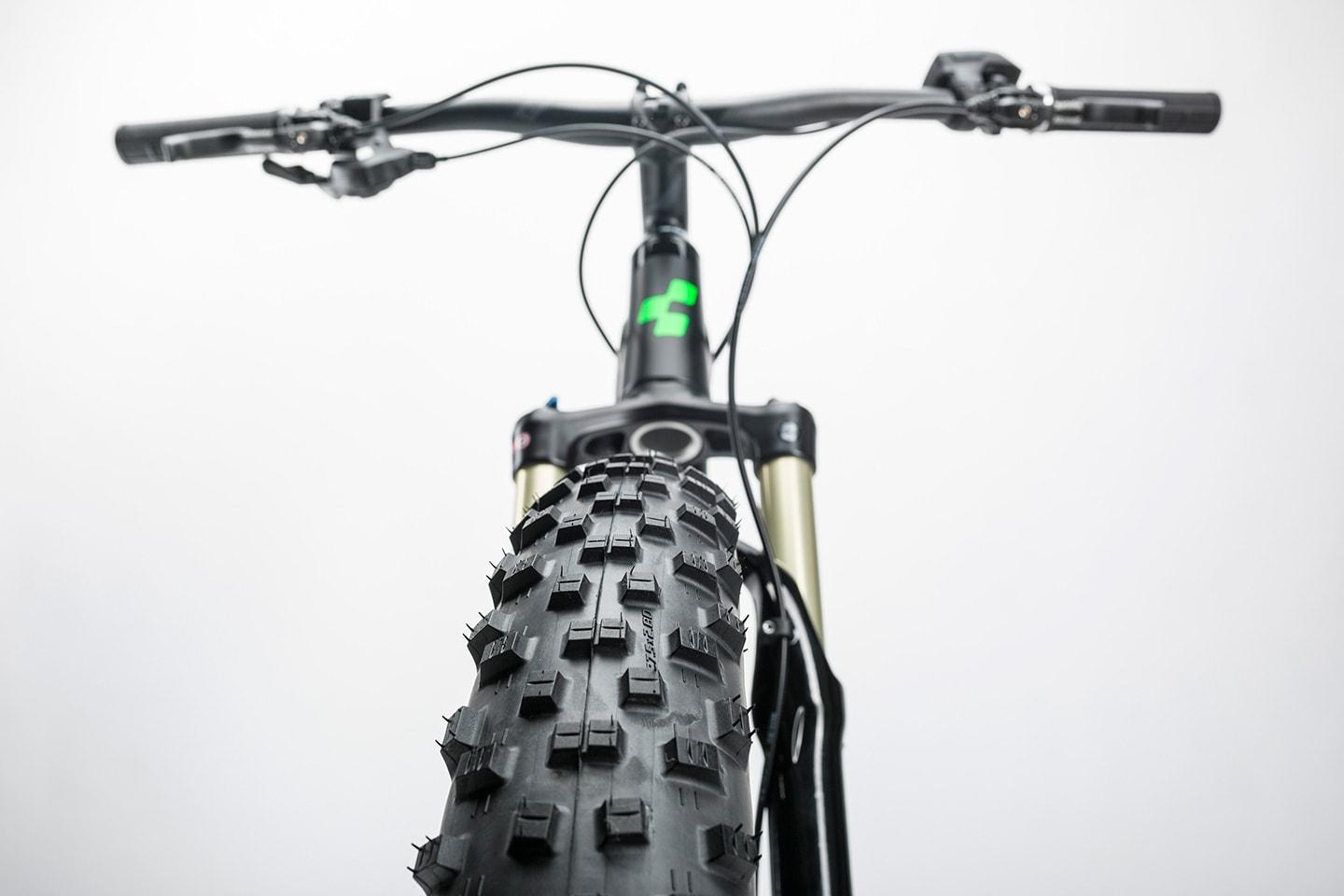

| FRONT TIRE | Schwalbe Nobby Nic Kevlar 2.8, TrailStar, Apex, Tubeless Easy |
| REAR TIRE | Schwalbe Nobby Nic Kevlar 2.8, PaceStar, Apex, Tubeless Easy |
| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Selle Royal MTB |
| HEADSET | FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2" |
| WEIGHT | 22.8 kg |
| COLOR | black´n´green |

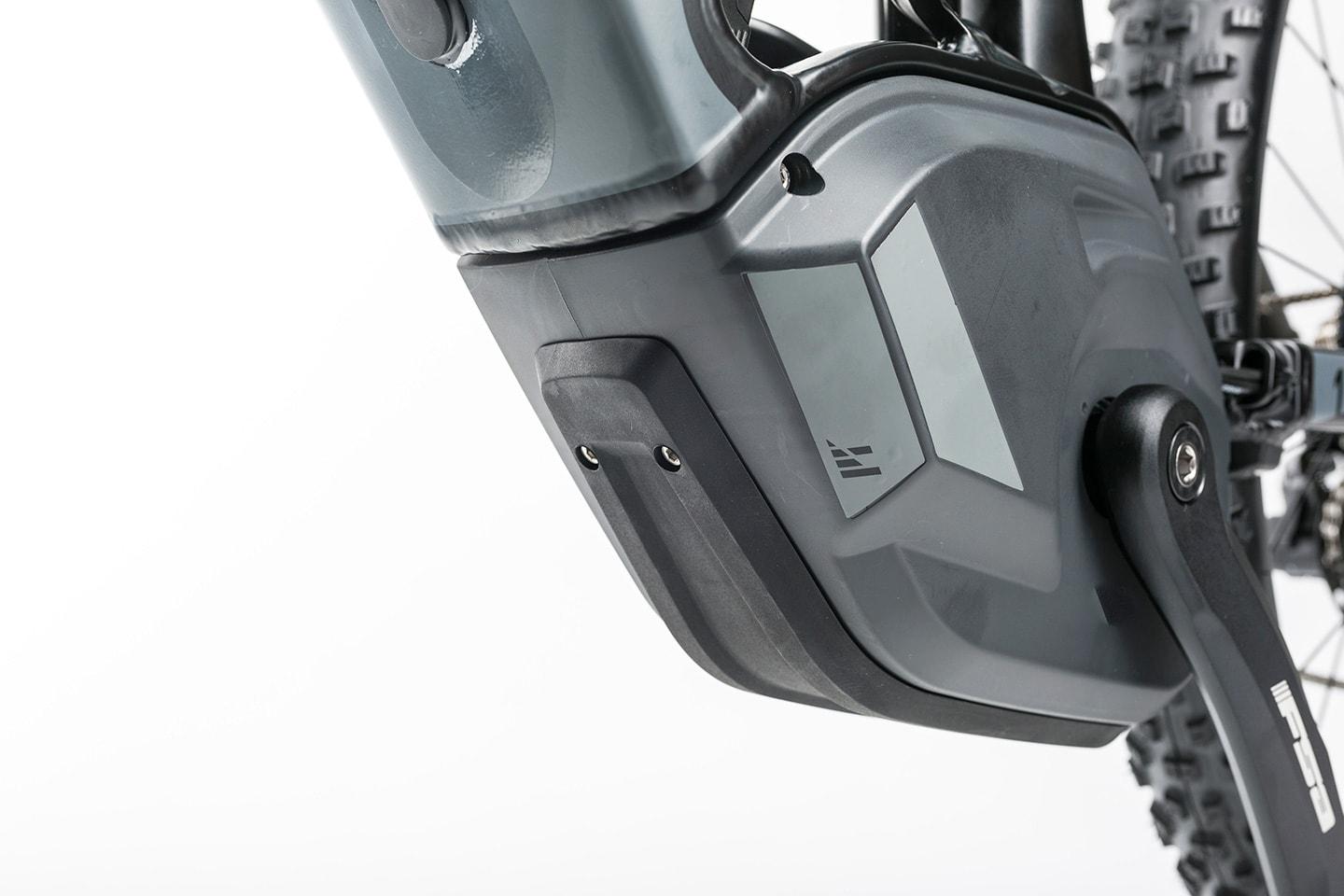

| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

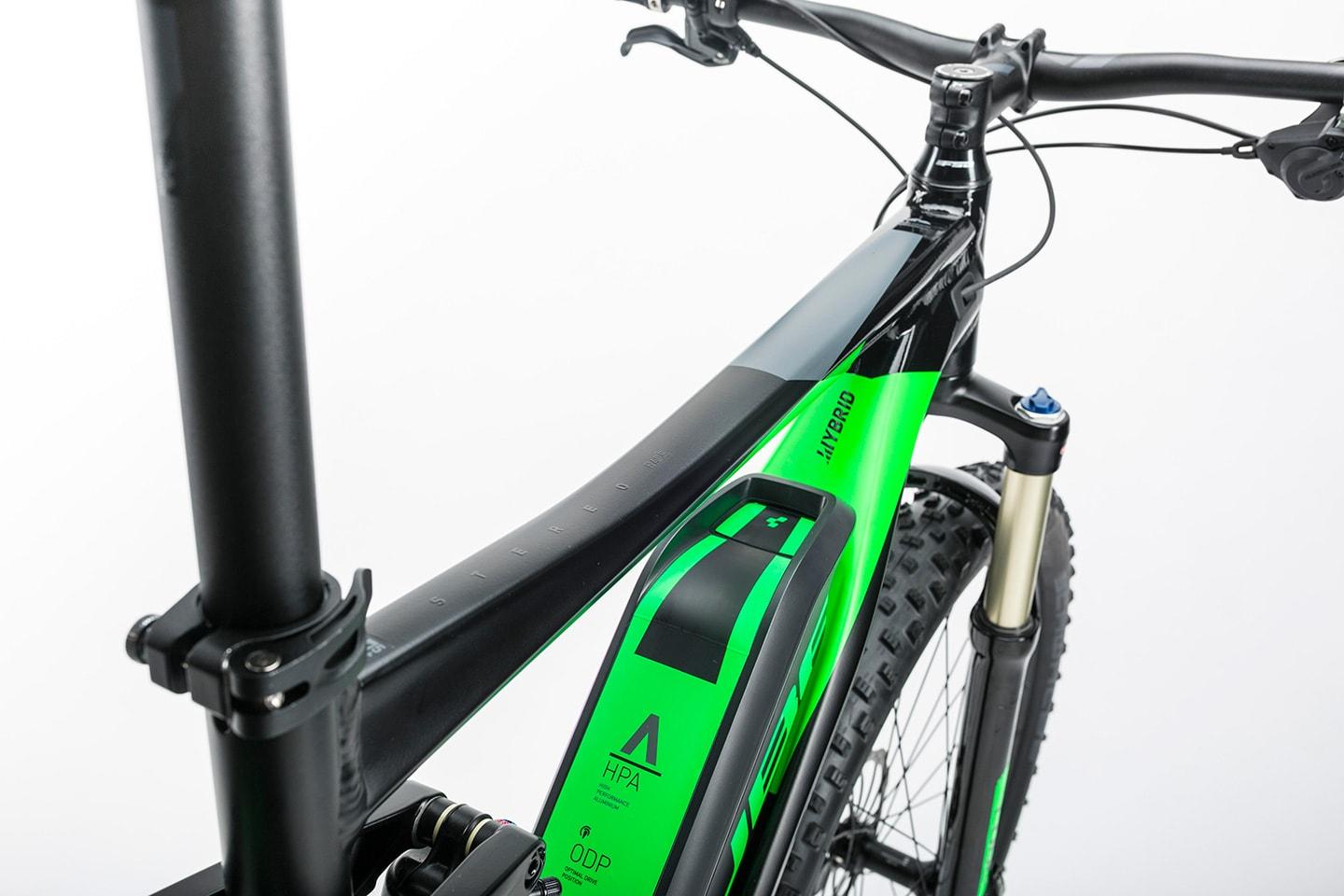

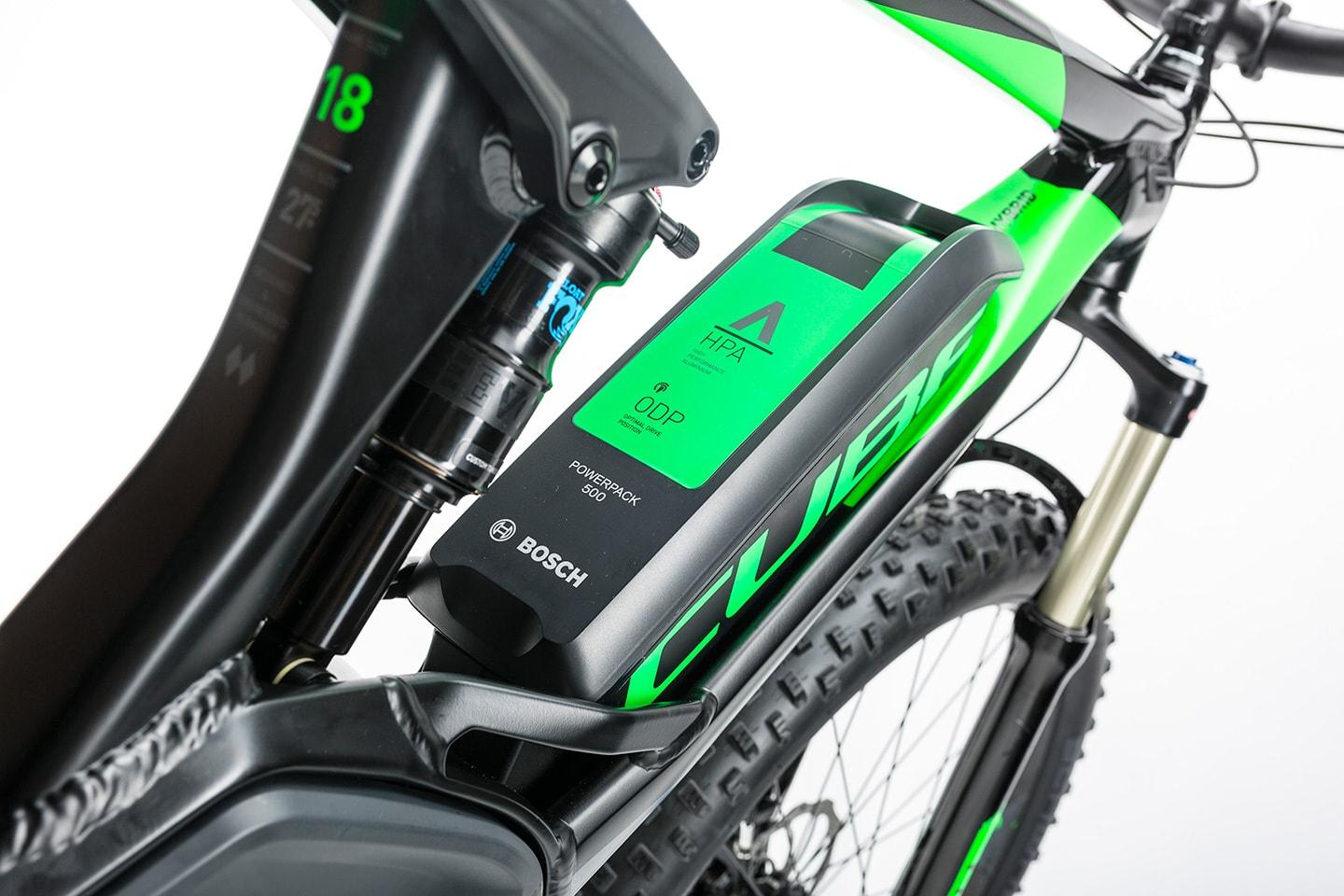

| BATTERY | Bosch PowerPack 500 |

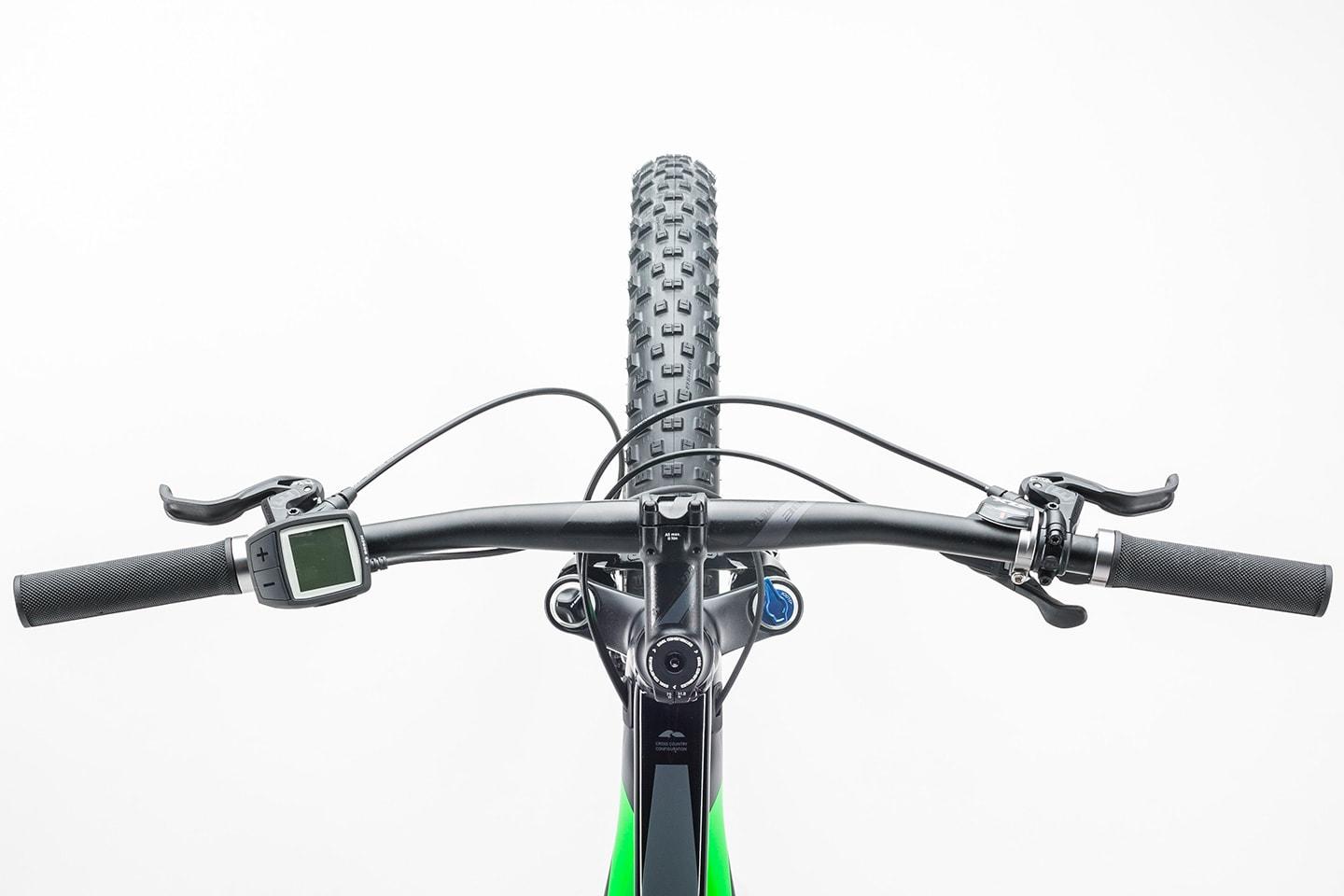

| DISPLAY | Bosch Purion |
| Bosch 4A | |
| ART. NO | 875770 |
GEOMETRY

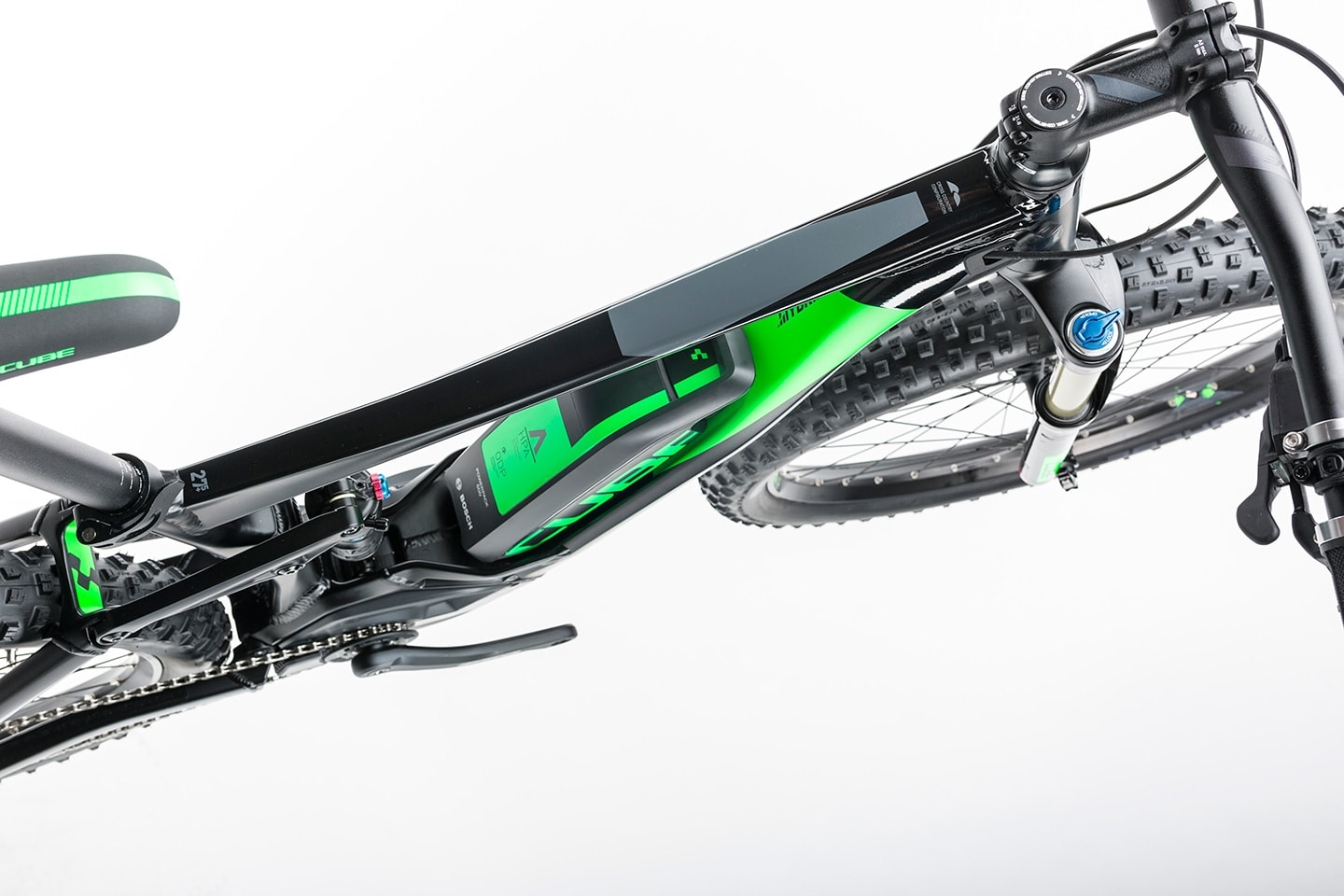

Frame: The Bosch drive system, 120mm of travel and plus sized tires all have their own specific requirements. That's why we crafted the chassis using all our experience and know-how, to create a structure that's stiff, light and strong. With Boost hubs to increase steering and tracking precision, complex hydroformed tubes and the unique combination of our proprietary Agile Ride Geometry and Efficient Trail Control kinematics, you can be assured of a bike that will do exactly what you ask for it.
