STEREO HYBRID 120 C:62
SLT 500 29

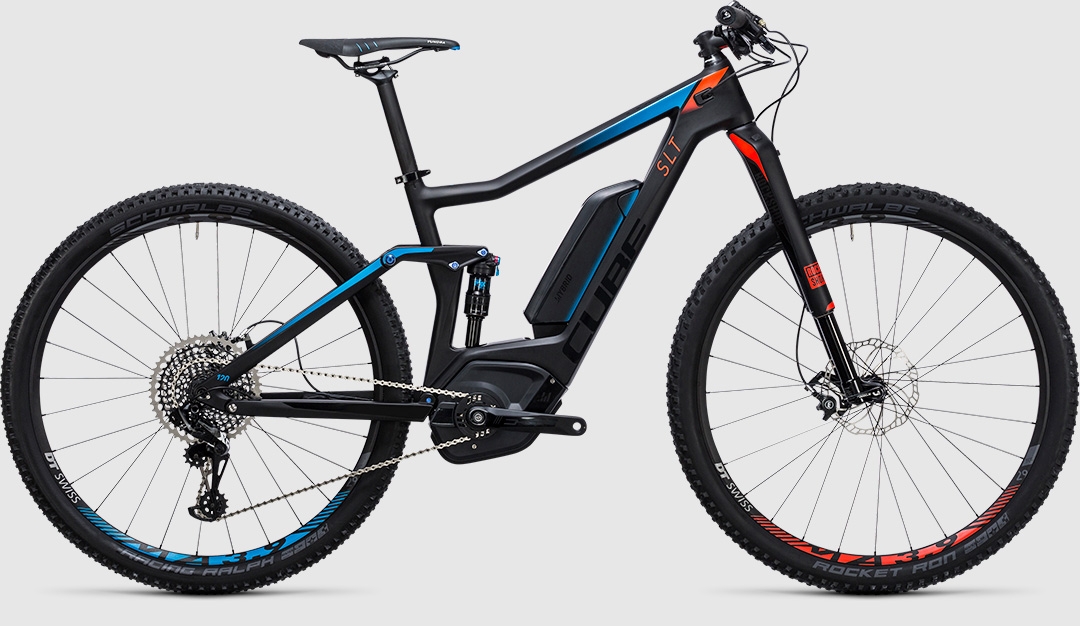

When we set out to design the ultimate full suspension e-MTB, we realised we needed a completely new approach. So we took all the knowledge we've accumulated from building some of the world's most acclaimed Bosch-powered bikes, added our engineers' unparalleled expertise in carbon frame technology, and came up with the bike you see here - the Stereo Hybrid C:62 120 SLT. E-MTBs don't come any lighter, faster or more accomplished than this.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH |
|---|---|
| SIZE | 17", 19", 21" |

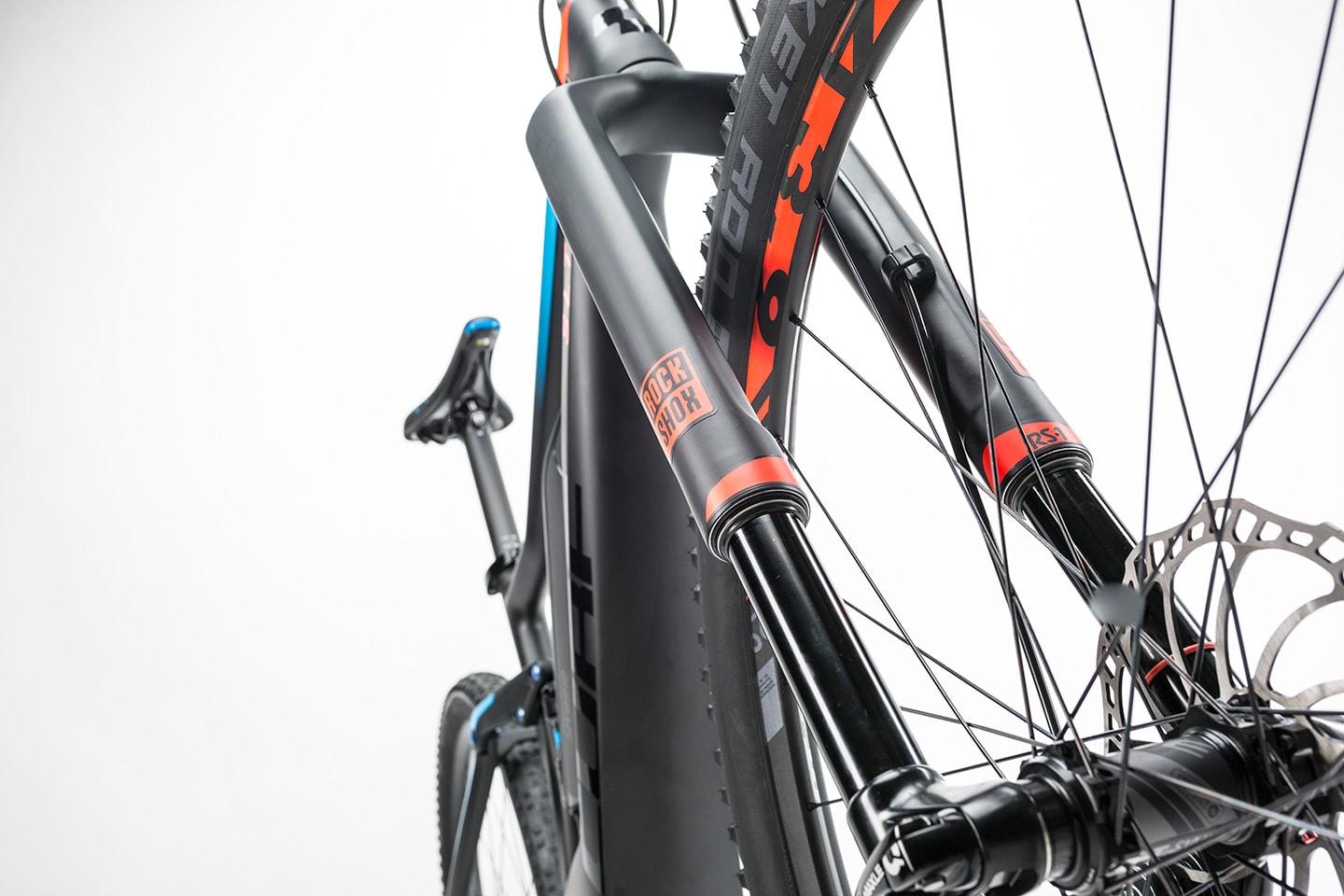

| FORK | Rock Shox RS-1, Carbon Upside-Down, Hydraulic X-Loc, Predictive Steering®, Tapered, 120mm |

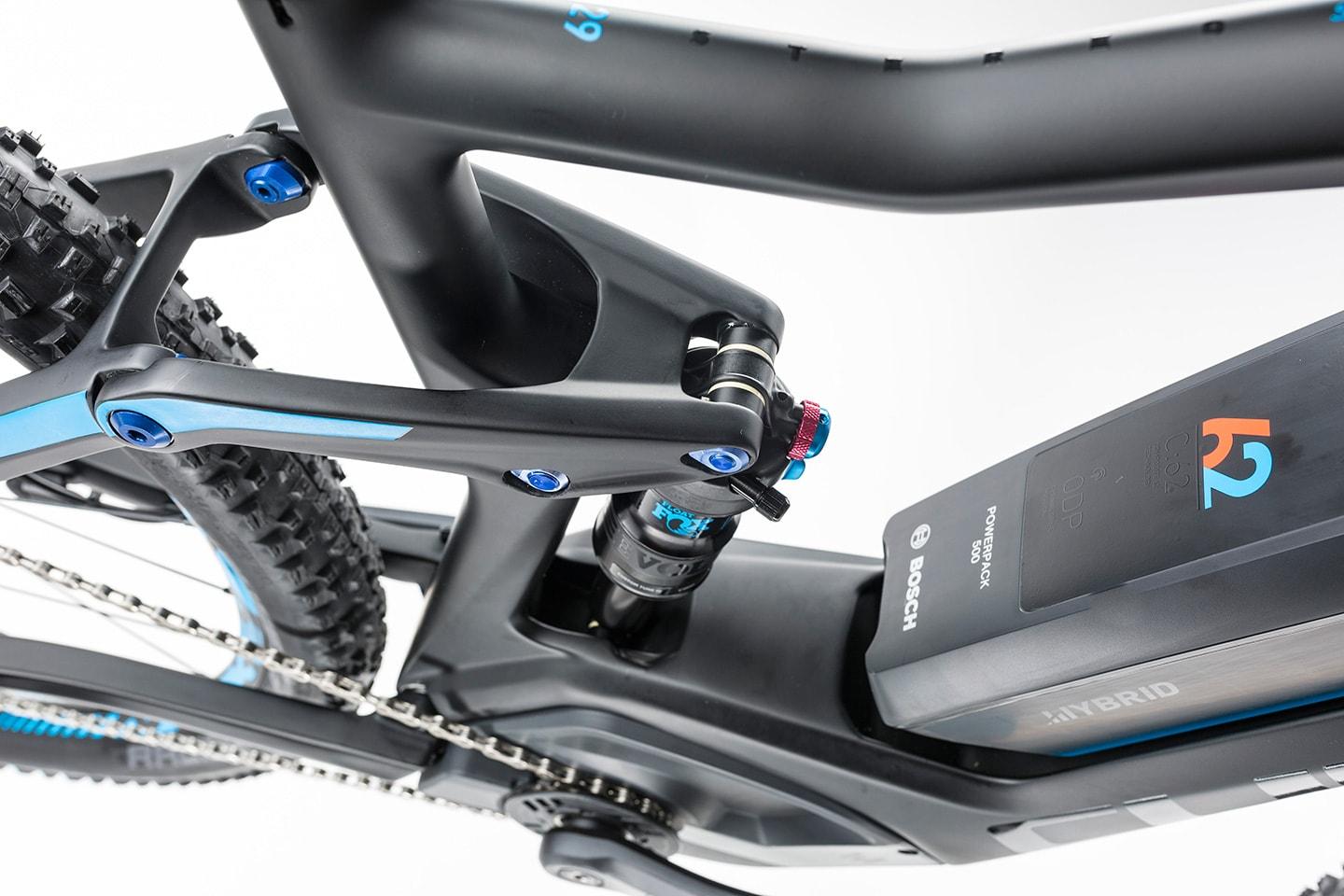

| SHOCK | Fox Float DPS Performance, 184x44mm, Open/Medium/Firm Mode, EVOL Air Sleeve |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |

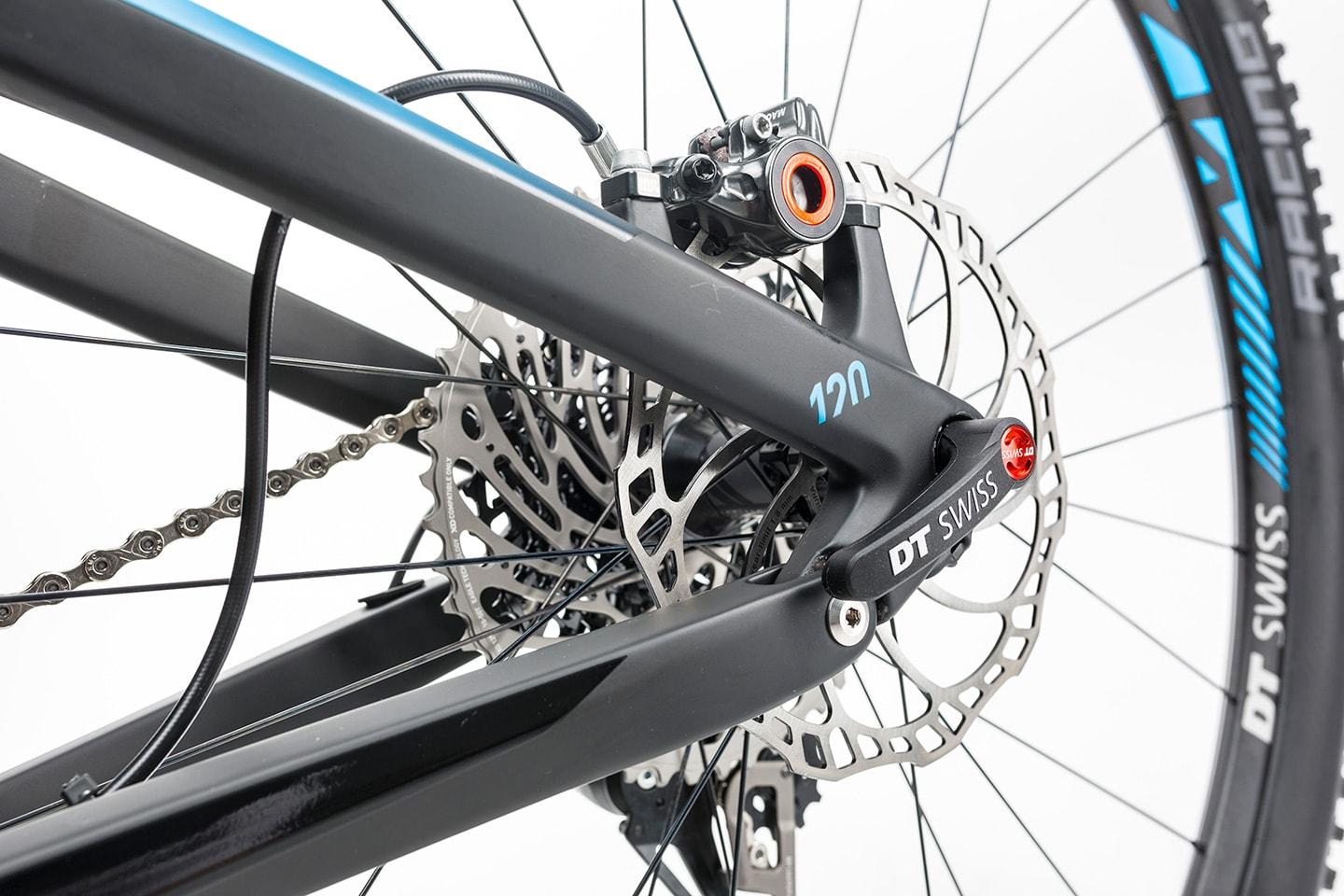

| BRAKE SYSTEM | Magura MT8, Hydr. Disc Brake (180/180) |

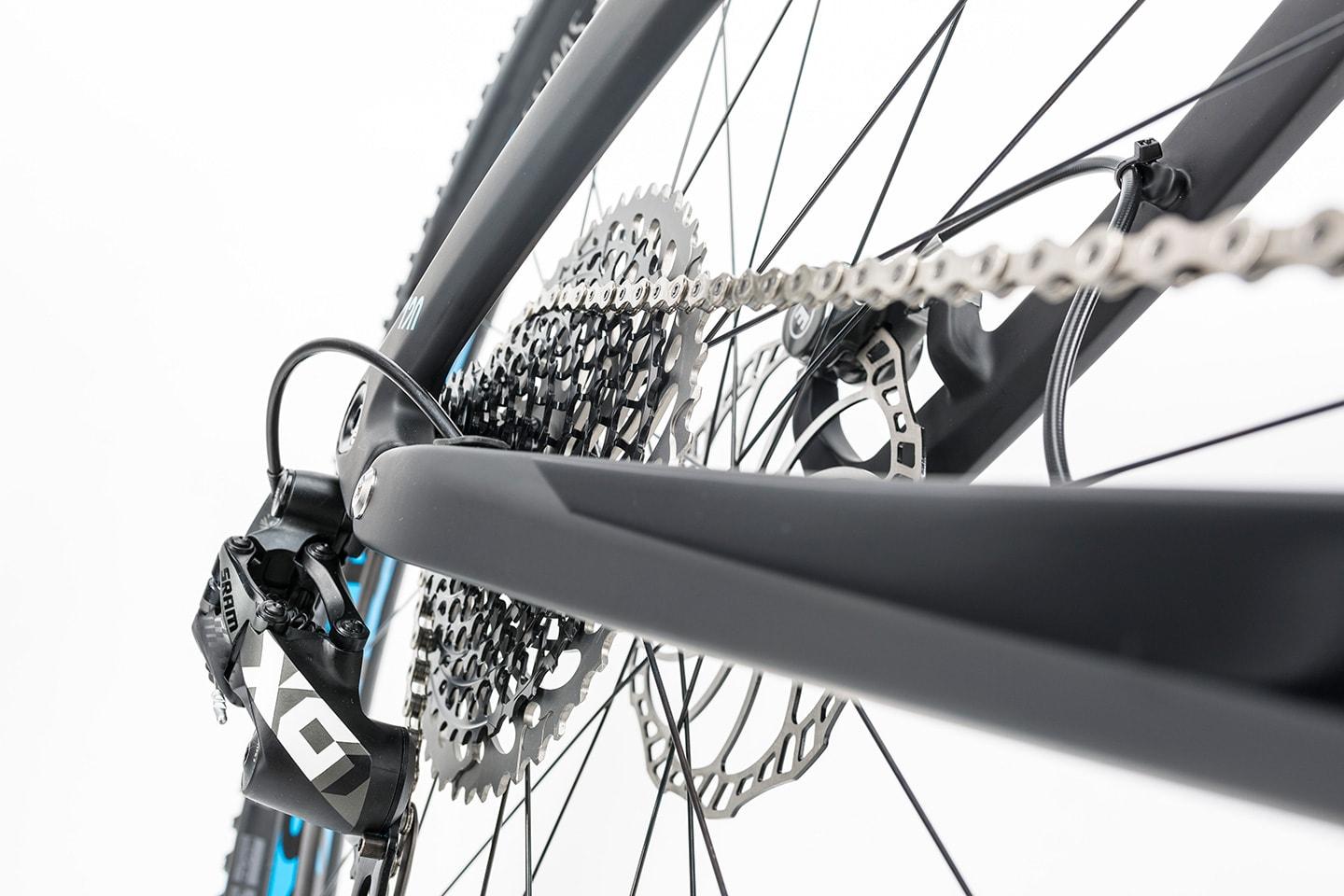

| REAR DERAILLEUR | Sram XO1 Eagle, 12-Speed |
| SHIFTERS | Sram XO1 Eagle Trigger |
| CRANKSET | FSA CK-745, 16T |
| CASSETTE | Sram XG-1295, 10-50T |
| CHAIN | Sram PC-XO1 Eagle |
| WHEELSET | DT CSW MA 3.9 Straightpull Wheelset, 28/32 Spokes, 15QR/X12, 622x20C Tubeless Ready, DT SWISS Pro Head® Reinforcement System, Squorx® Alloy Nipples, Boost, Predictive Steering® |
| FRONT TIRE | Schwalbe Rocket Ron, Kevlar, 2.25, LiteSkin |

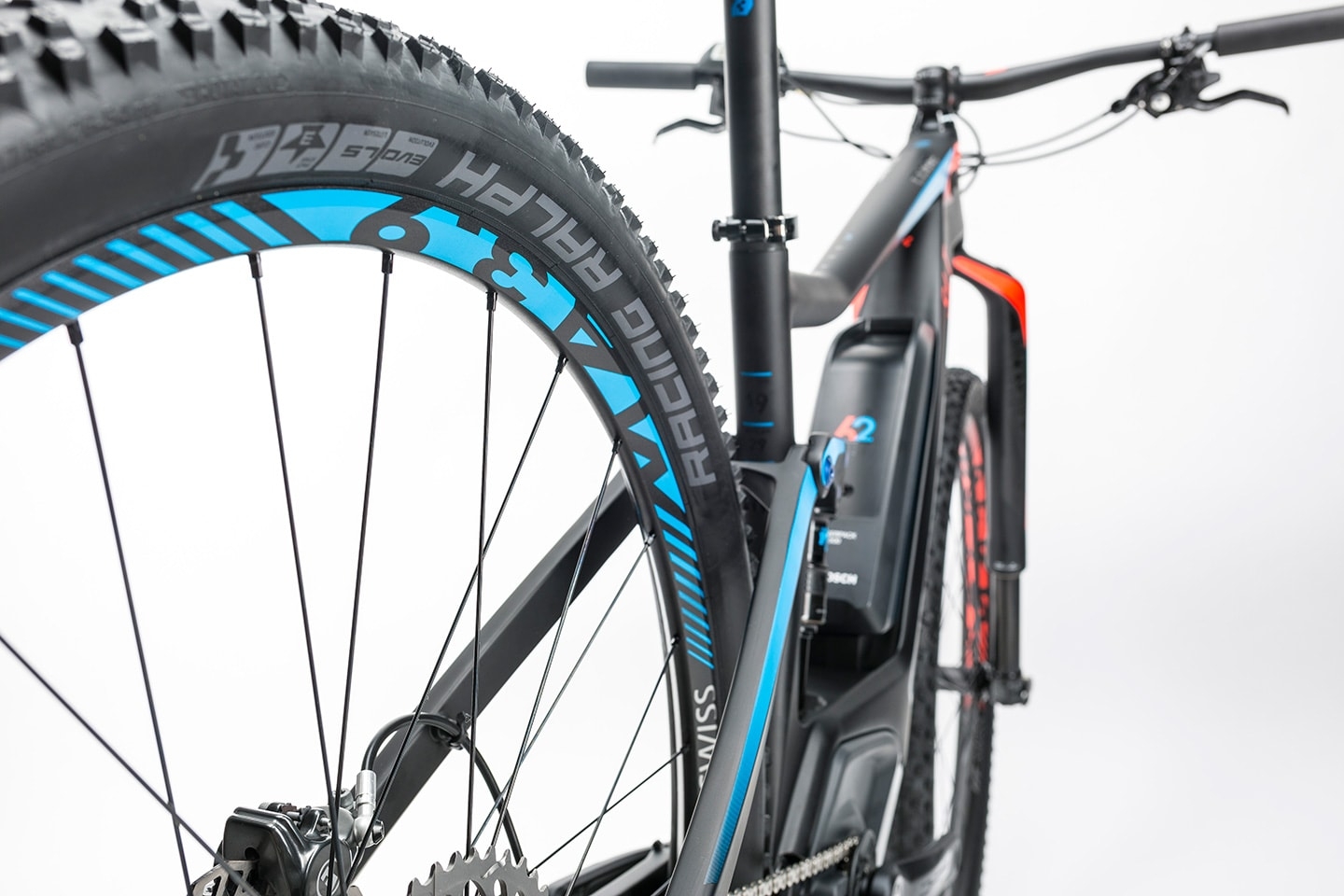

| REAR TIRE | Schwalbe Racing Ralph, Kevlar, 2.25, LiteSkin |

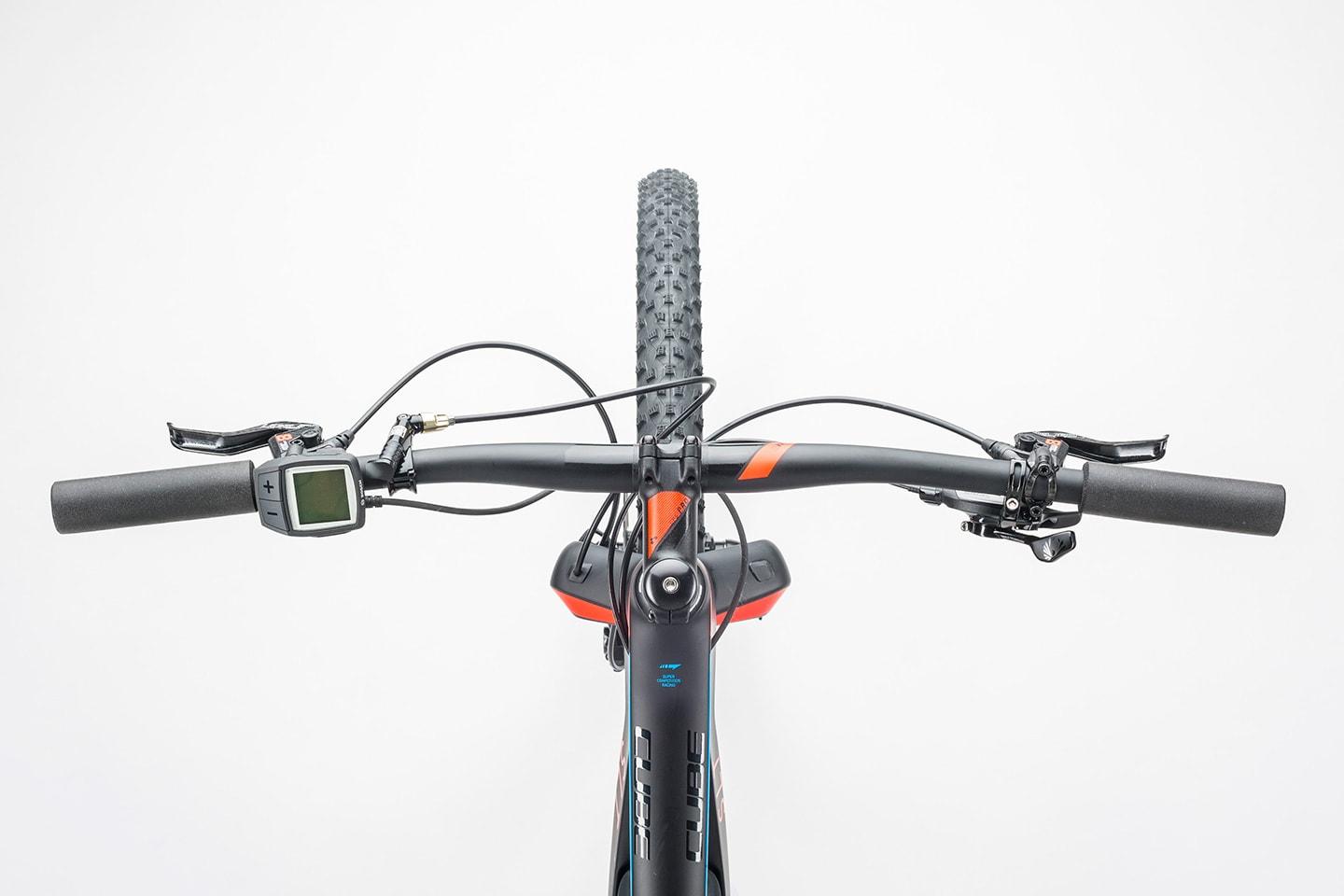

| HANDLEBAR | CUBE Rise Trail Bar Pro Carbon, 750mm |
| GRIPS | CUBE SCR |
| SEAT POST | CUBE Performance Motion Post Carbon, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Fi`zi:k Tundra M5 |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 18.6 kg |
| COLOR | zeroblack |
| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

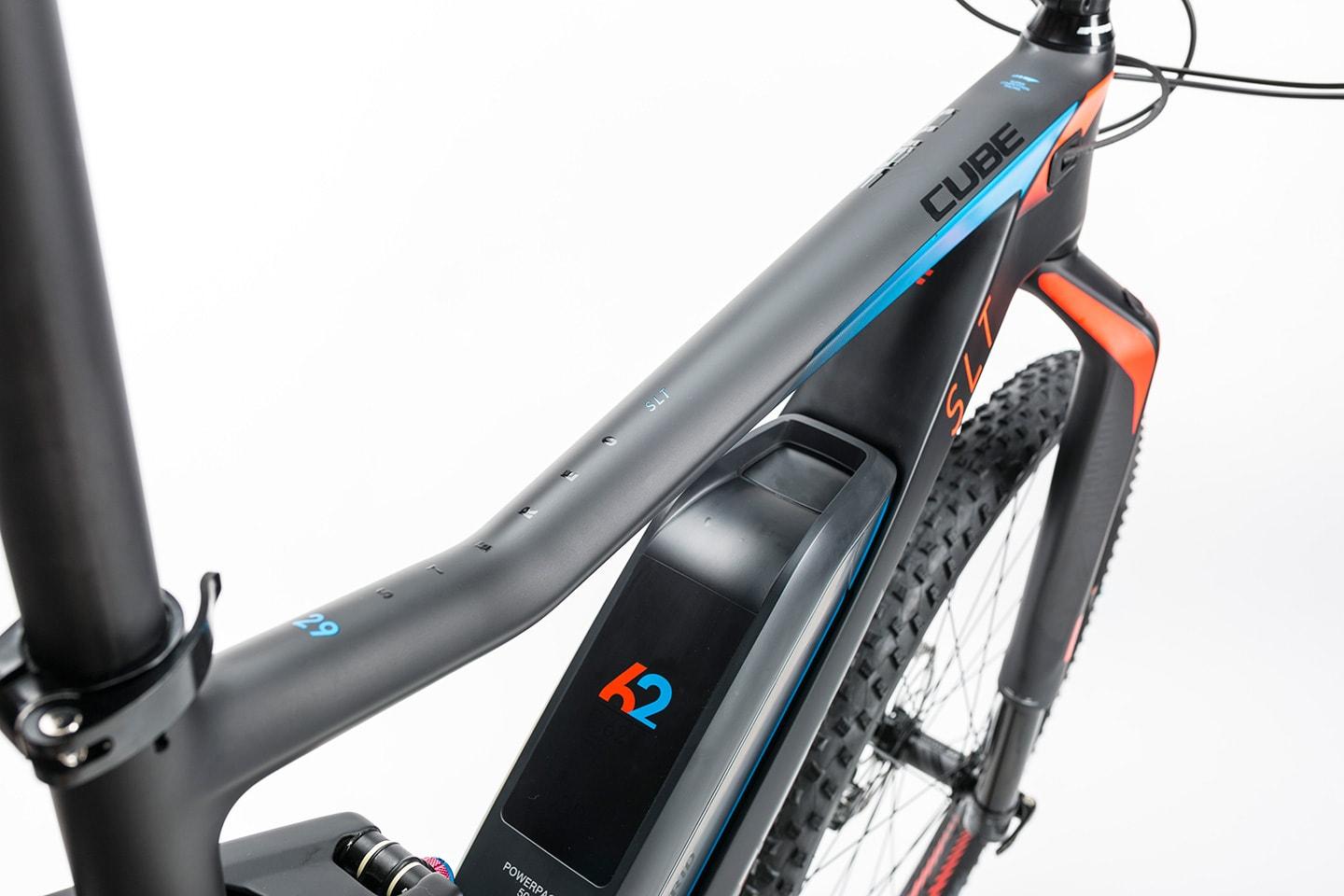

| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Purion |
| Bosch 4A | |
| ART. NO | 875950 |
GEOMETRY

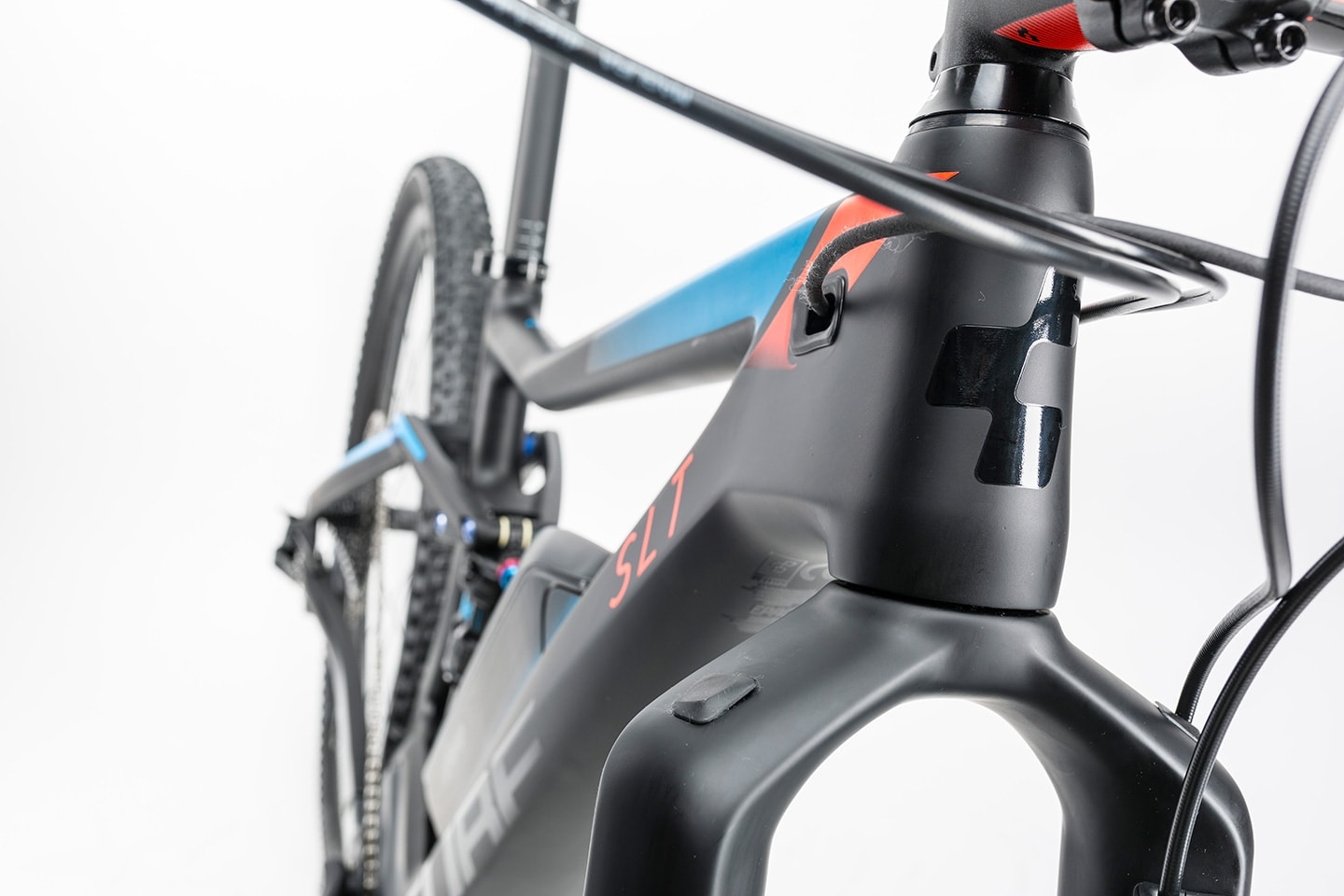

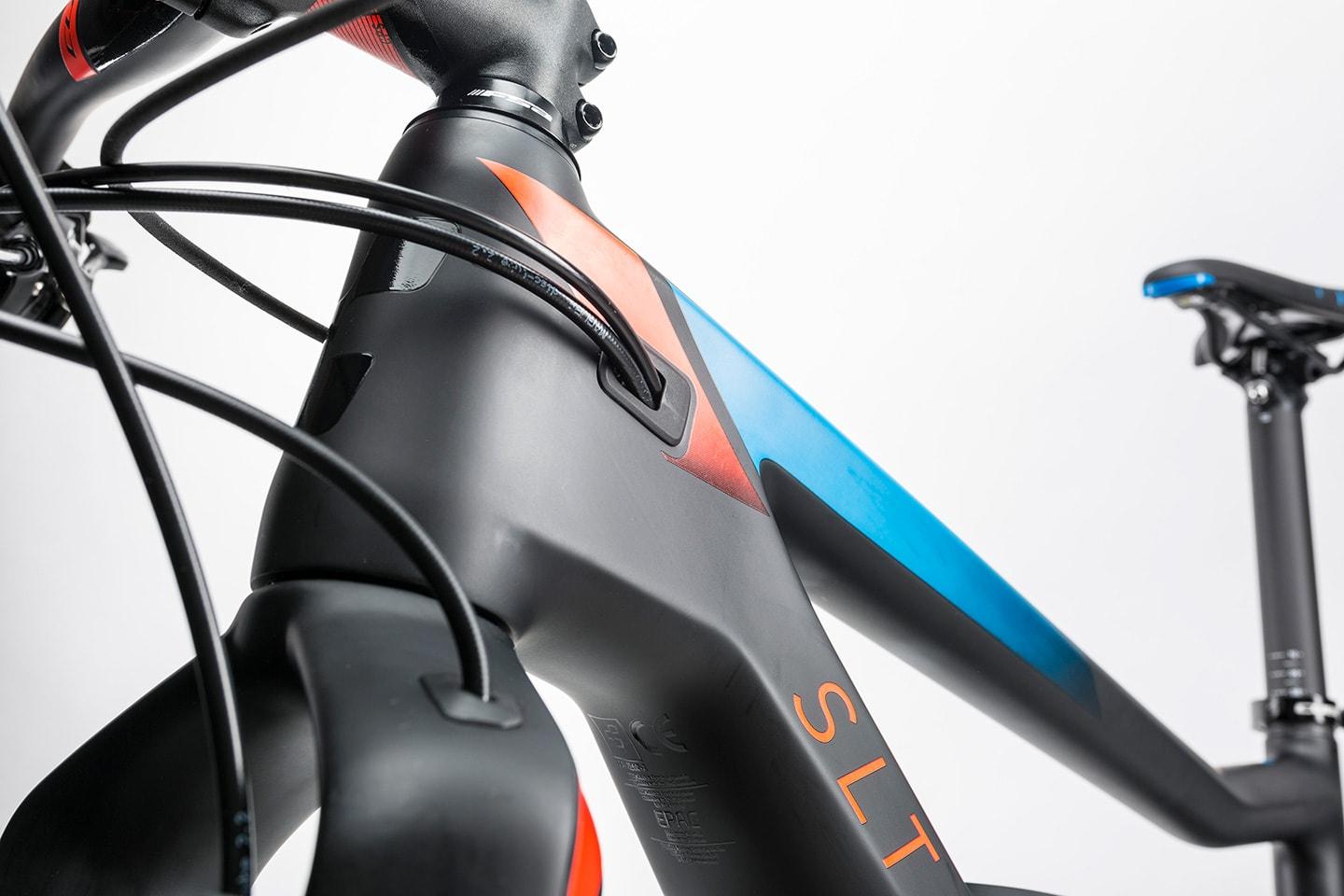

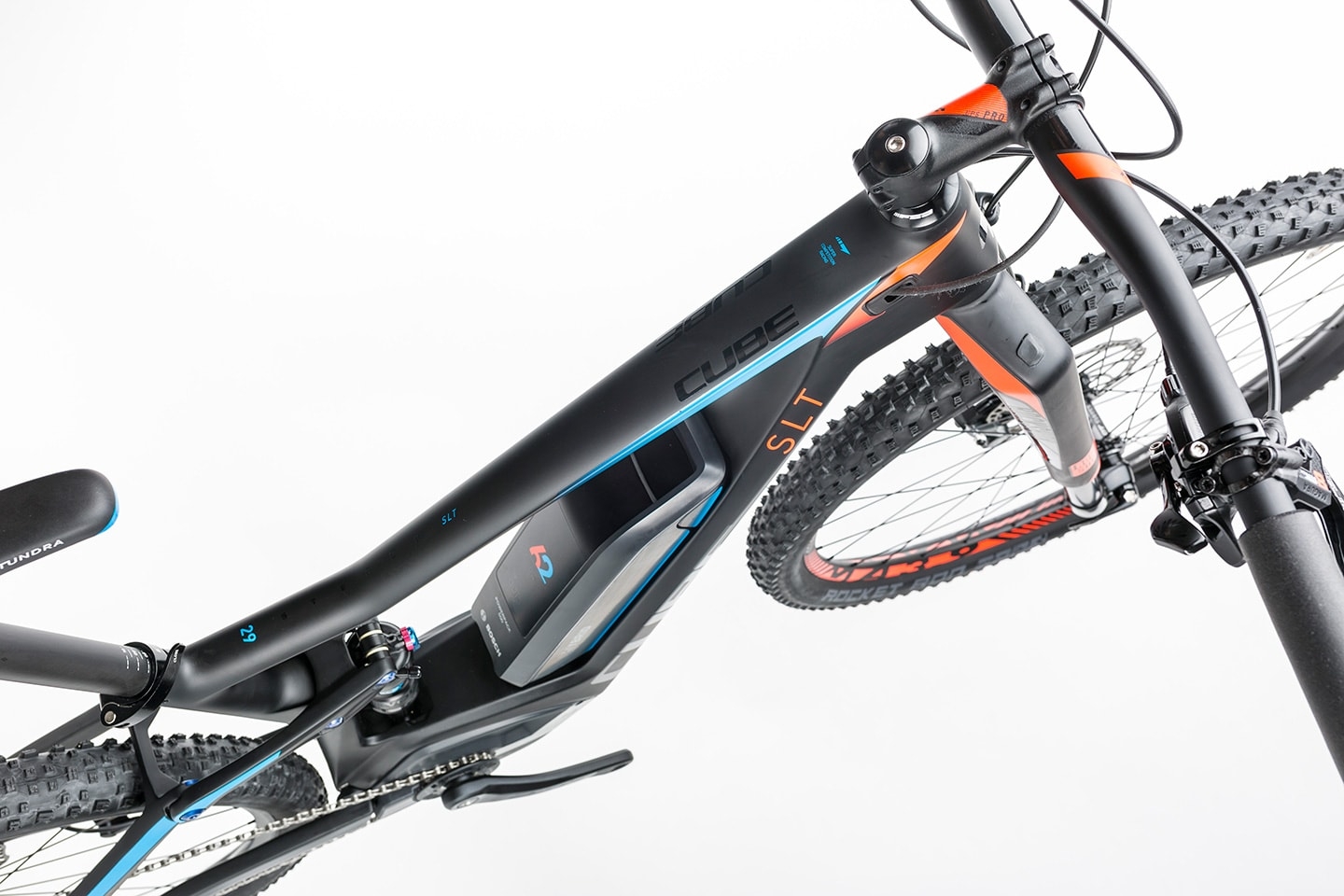

Frame: Our carbon frame building technology makes use of Cube's proprietary Advanced Twin Mould process. It's a way of optimising the carbon layup and curing process, so that - like all our C:62 and C:68 frames - the Stereo Hybrid C:62 120 SLT has the perfect blend of stiffness, strength and low weight. Combined with our acclaimed Agile Ride Geometry (AGM) and features like Tuned Drive Position (TDP), we've given this high performance chassis absolutely the best characteristics to ensure that it handles intuitively and reliably, whatever the circumstances. And, as you'd expect, we've included a tapered steerer and Boost rear end to extract every ounce of performance out of both rider and drive unit. The ultimate e-MTB chassis? We certainly think so.
