STEREO 170
RACE 29

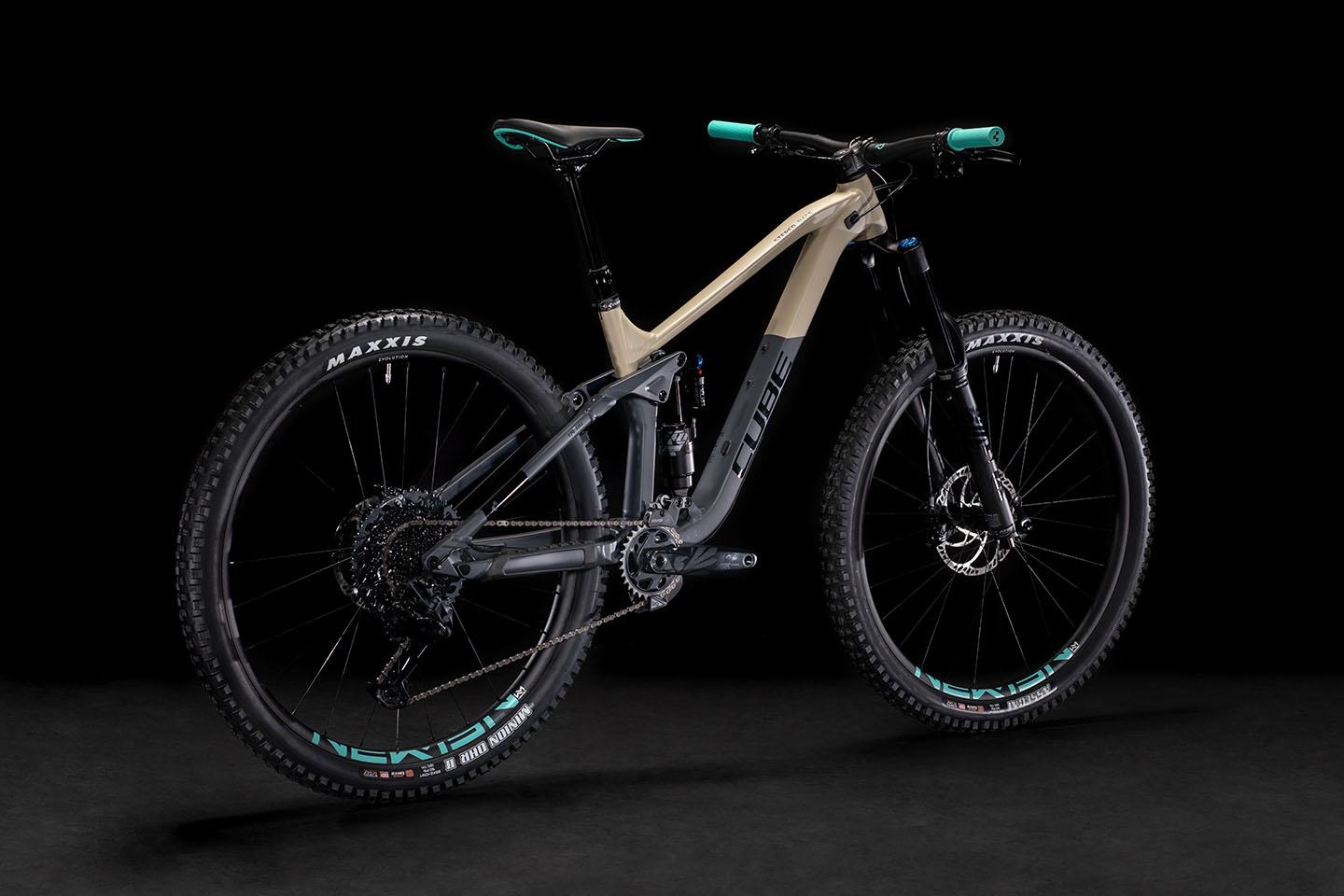

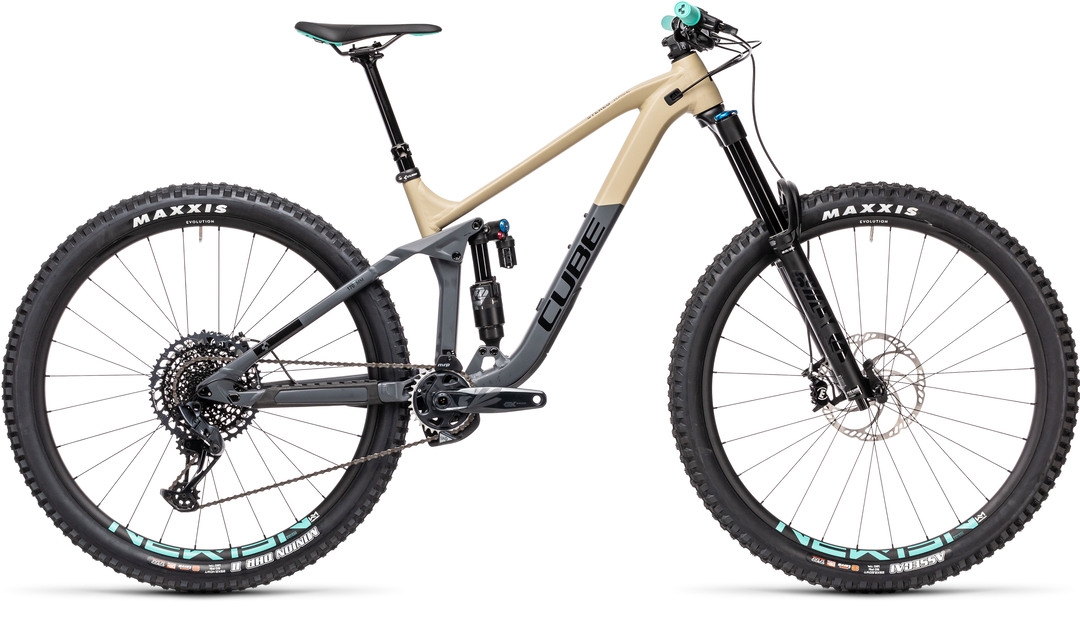

People who tell you that you can't have it all? They're wrong. The Stereo 170 Race 29's precise handling and boulder-swallowing suspension performance starts with Fox's stiff, accurate 38 Performance fork and Float X2 Performance shock. Mountain-taming ability is handled by Sram's new Eagle GX 1x12 gears with 52-tooth sprocket, combined with Magura's powerful MT5 hydraulic disc brakes. A Newmen Evolution 29er wheelset is wrapped with grippy Maxxis Assegai and Minion DHR II tyres. And there's a dropper post too, for ultimate control.
AUSSTATTUNG

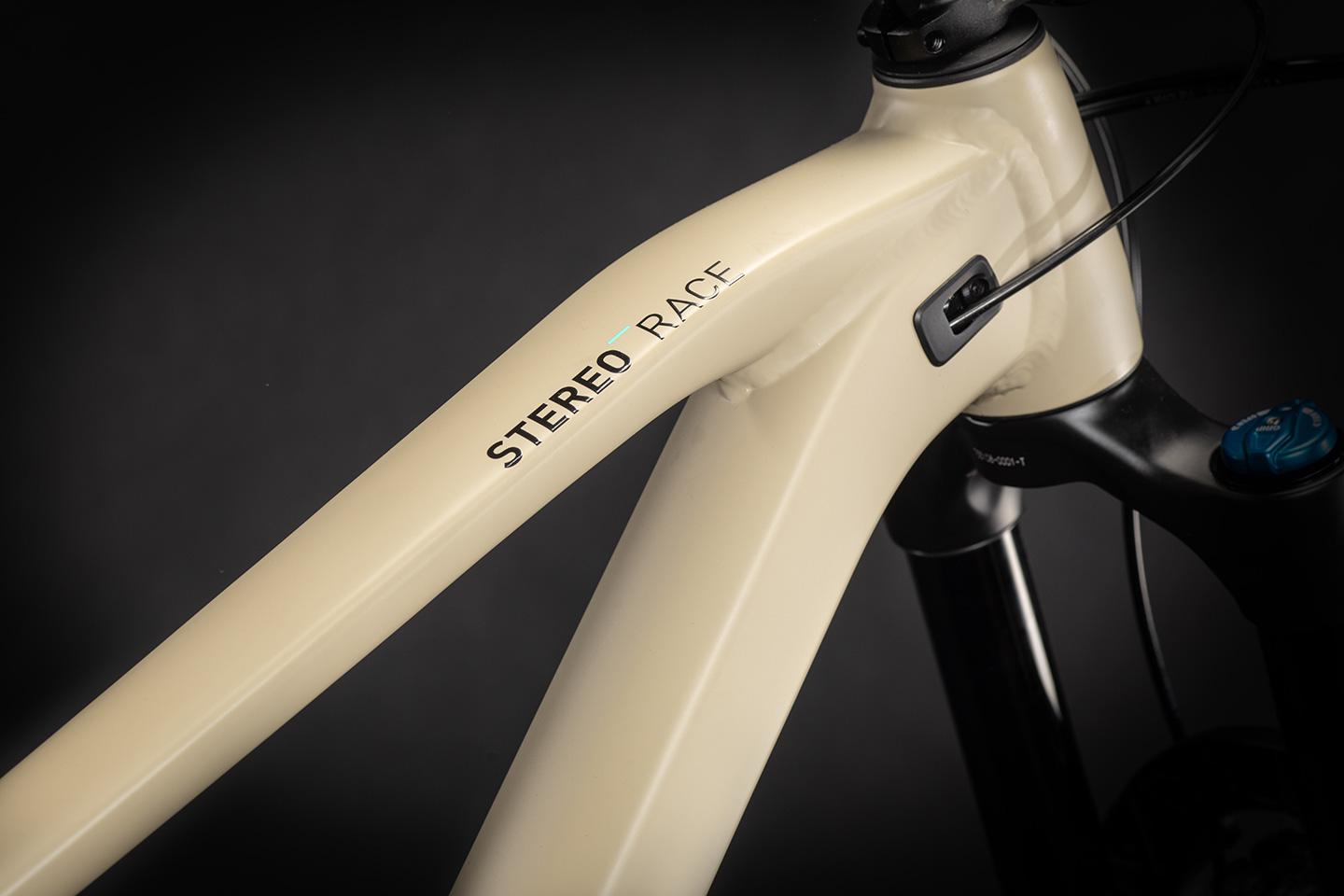

| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH |
|---|---|
| SIZE | 29: M, L, XL |
| FORK | Fox 38 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 170mm |

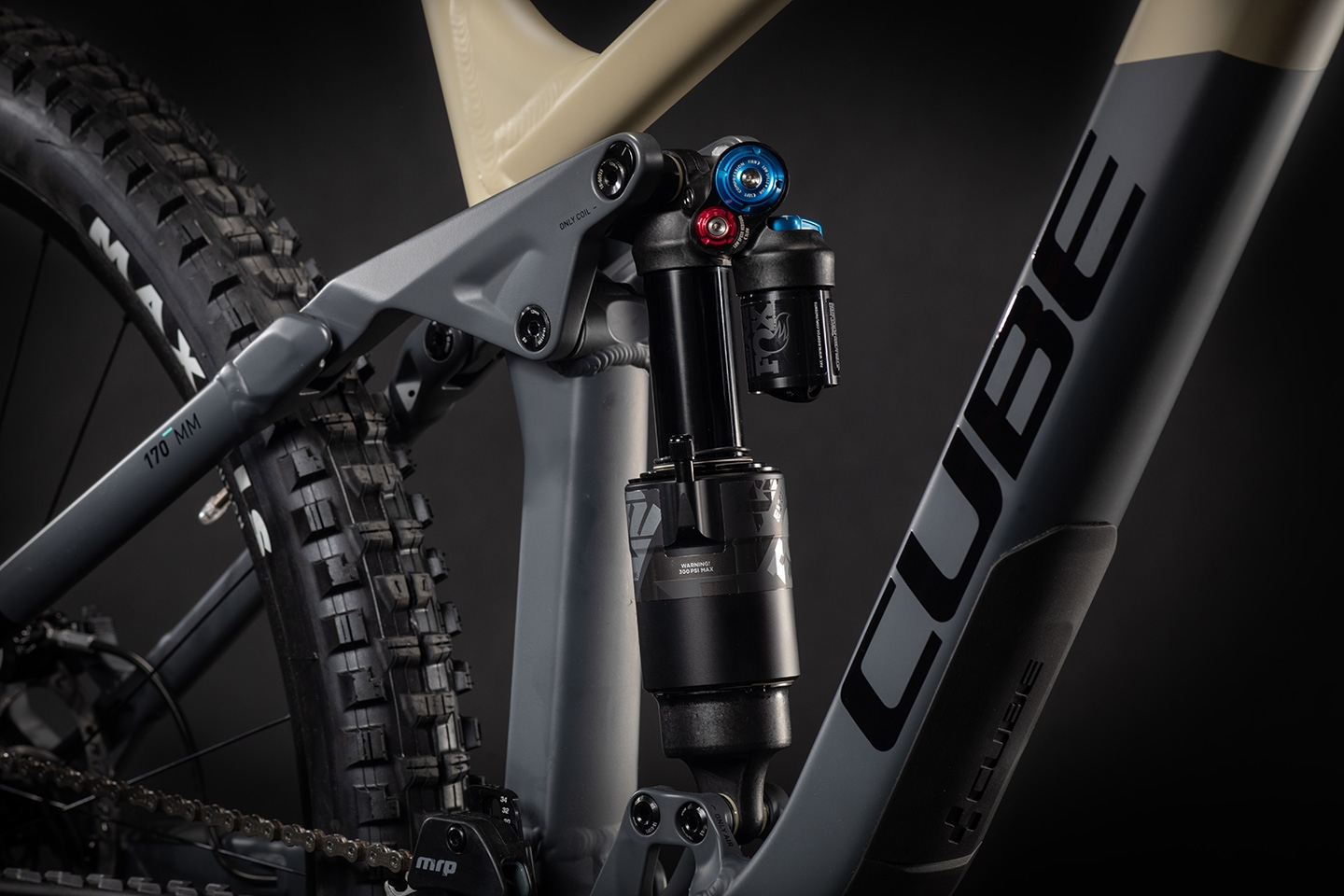

| SHOCK | Fox Float X2, 230x62.5mm, Low Speed Rebound & Compression w/ 2-Position Lever |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 20x8mm |
| BRAKE SYSTEM | Magura MT5, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Sram GX Eagle™, 12-Speed |
| SHIFTERS | Sram NX Eagle™ Trigger |
| CRANKSET | Sram GX Eagle™ 30T, 170mm |
| CHAIN GUIDE | MRP SXg Chain Guide |
| CASSETTE | Sram XG-1275, 10-52T |
| CHAIN | Sram SX Eagle™ |
| WHEELSET | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| FRONT TIRE | Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT |

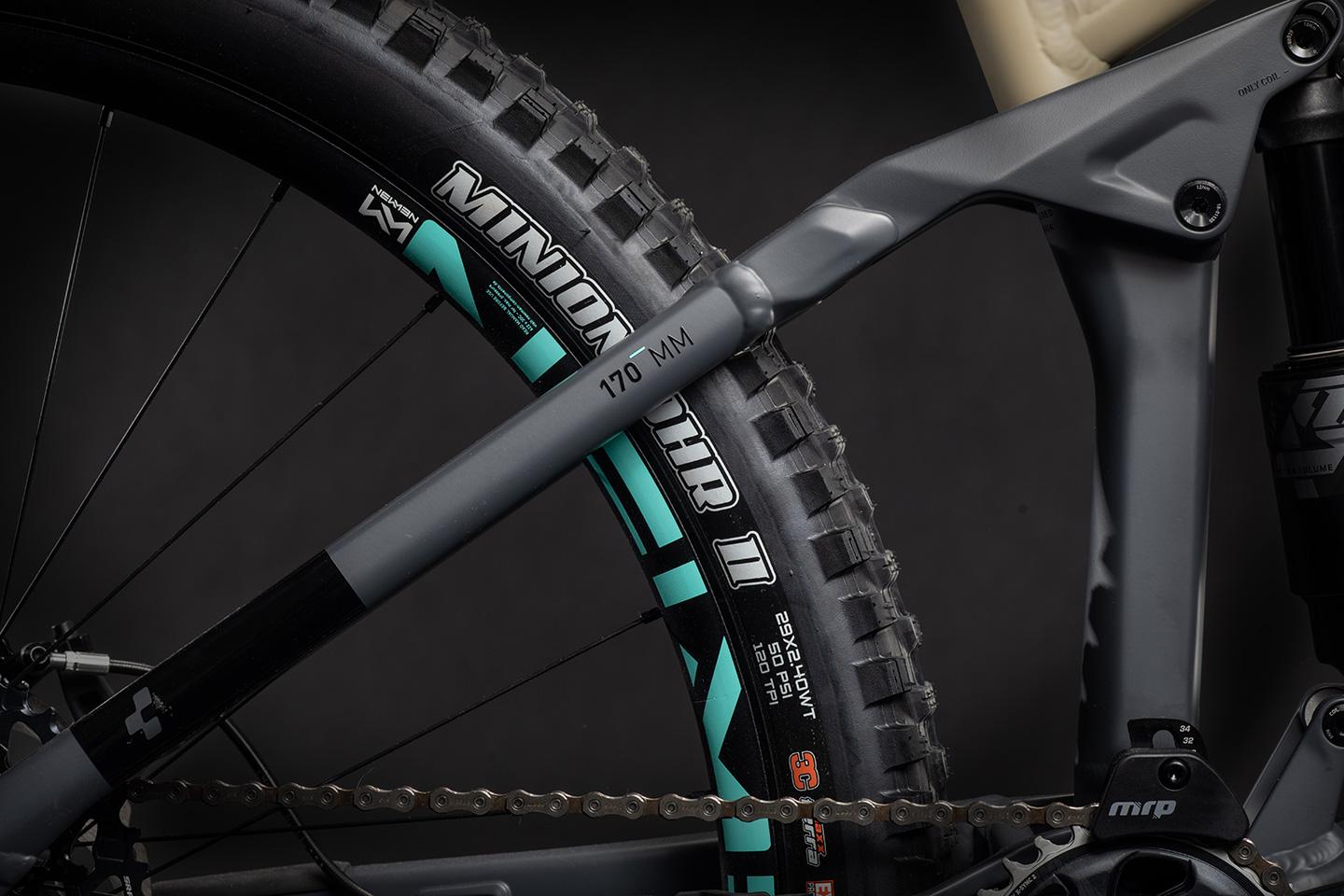

| REAR TIRE | Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT |
| STEM | Race Face Aeffect R 35 |

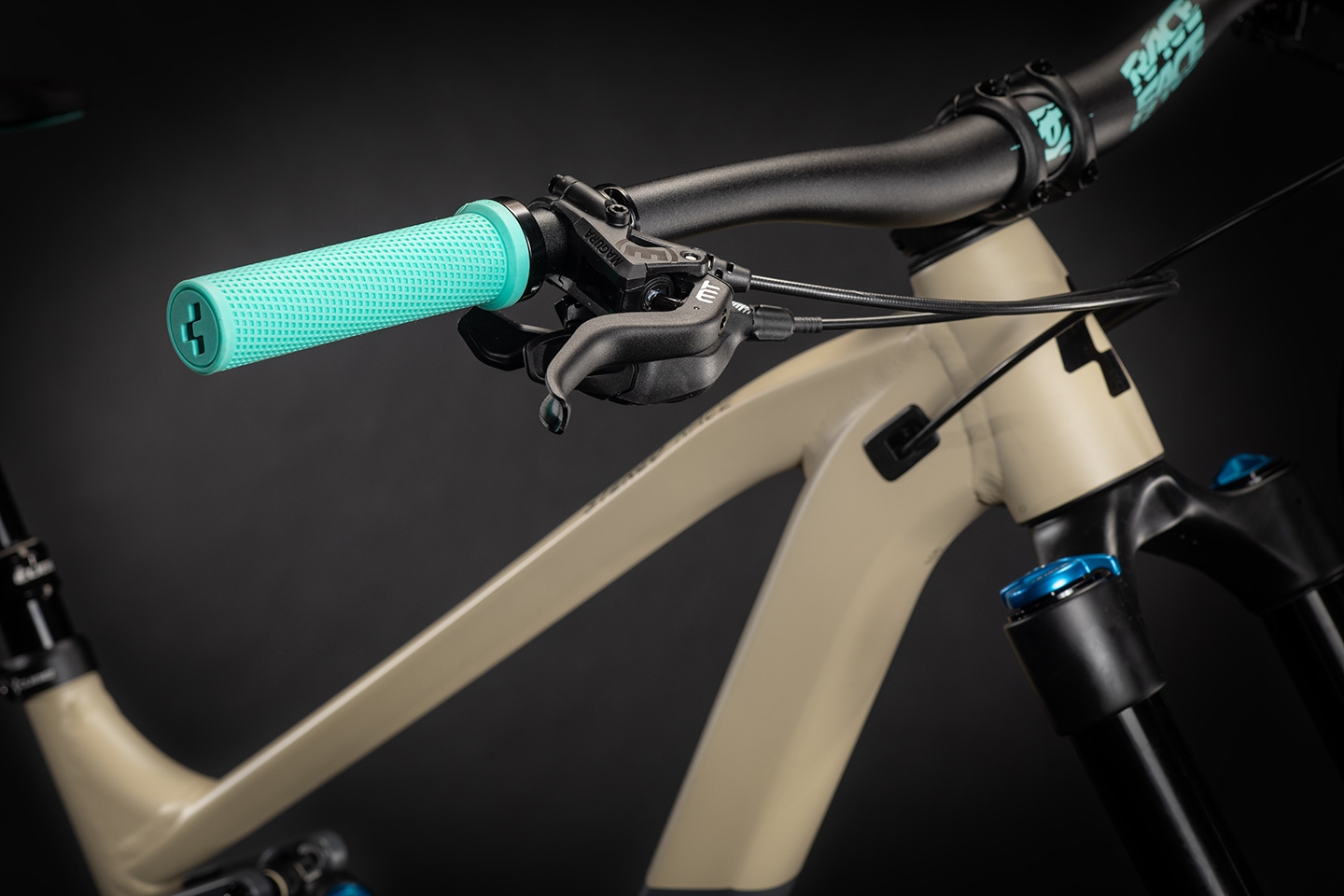

| HANDLEBAR | Race Face Chester 35, 780mm |
| GRIPS | CUBE Race SL Grip 29.5mm, 1-Clamp |
| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 150mm |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment |
| WEIGHT | 15,8 kg |
| COLOUR | desert´n´grey |
| ART. NO | 456100 |
GEOMETRY
Big wheels, big travel: it's a design conundrum that's defeated many. But not us. The Stereo 170 29's frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling. The short linkage and covered bearings contribute to its precision and low-maintenance requirements. And hydroformed tubes and internally routed cables mean that it looks as good as it rides. It'll redefine your expectations of what a big-travel, big-wheeled bike can do.
