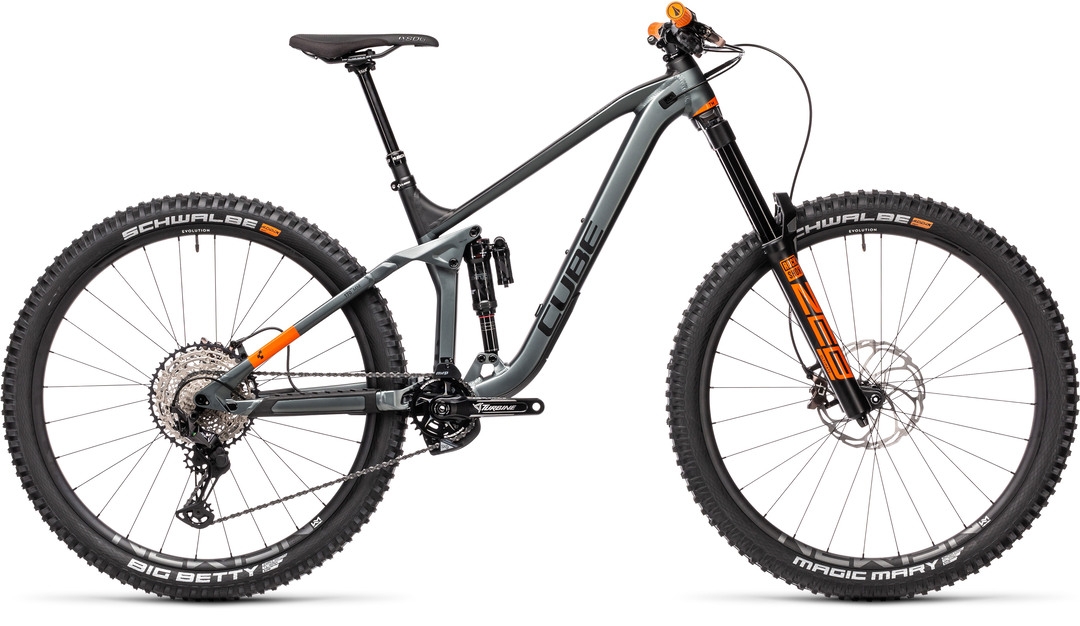

STEREO 170
TM 29
Remember when people were lauging at 29er wheels? Well, they're not laughing now. For the Stereo 170 TM we began with the new RockShox Zeb Ultimate fork - with 38mm stanchions for precise handling - and Super Deluxe Ultimate shock. Then we selected a set of Hayes Dominion A4 hydraulic disc brakes, for their awesome stopping power and light lever feel. We threw in Shimano's peerless XT 1x12 transmission, with its precise shifting and incredible reliablity. And finished with a Newmen Evolution wheeelset shod with Schalbe's new Magic Mary SuperTrail and revised Big Betty SuperGravity 2.4in tyres to help you keep the rubber side down.
AUSSTATTUNG
| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH |
|---|---|
| SIZE | 29: M, L, XL |

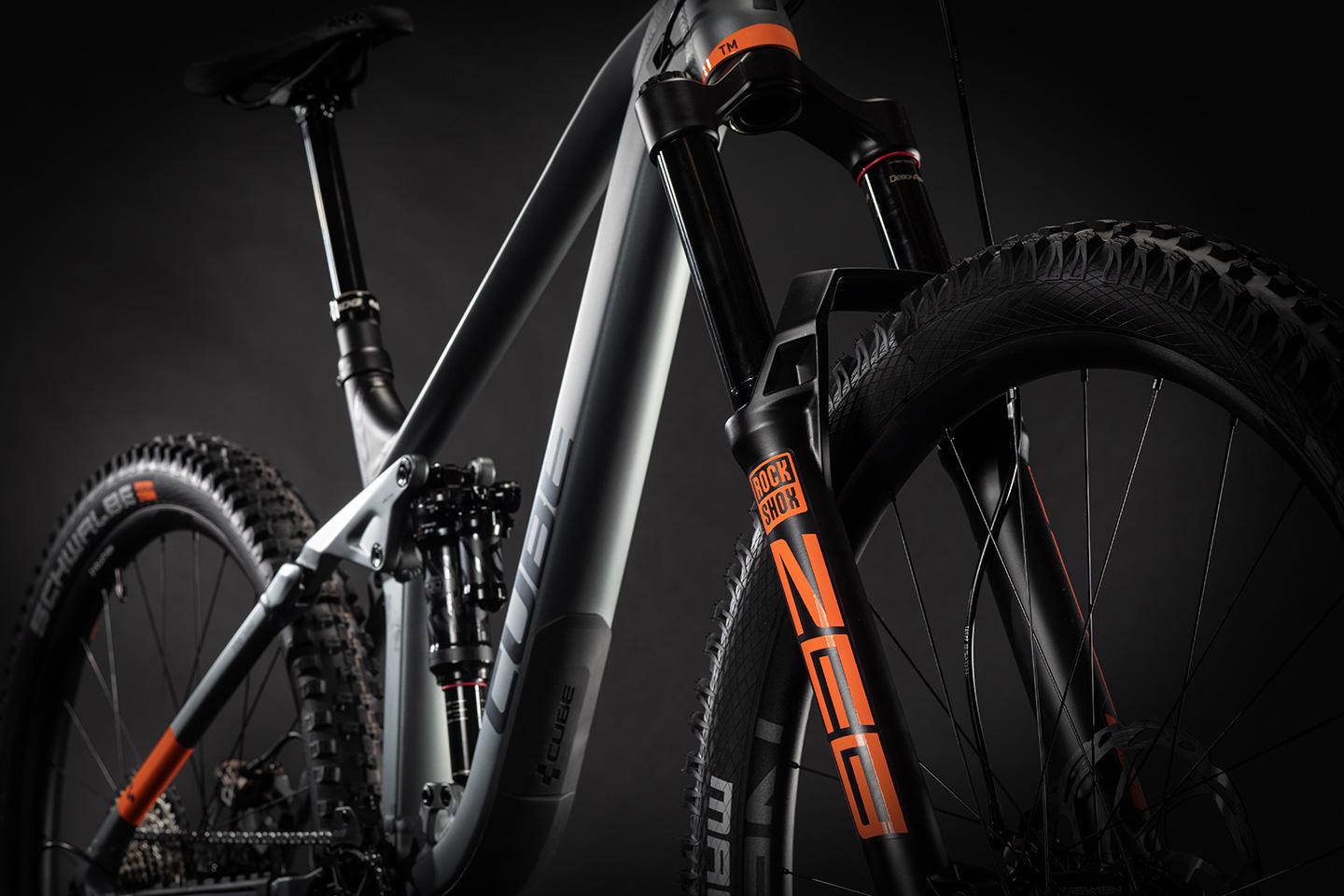

| FORK | RockShox ZEB Ultimate RC2, 110x15mm, Tapered, 180mm |

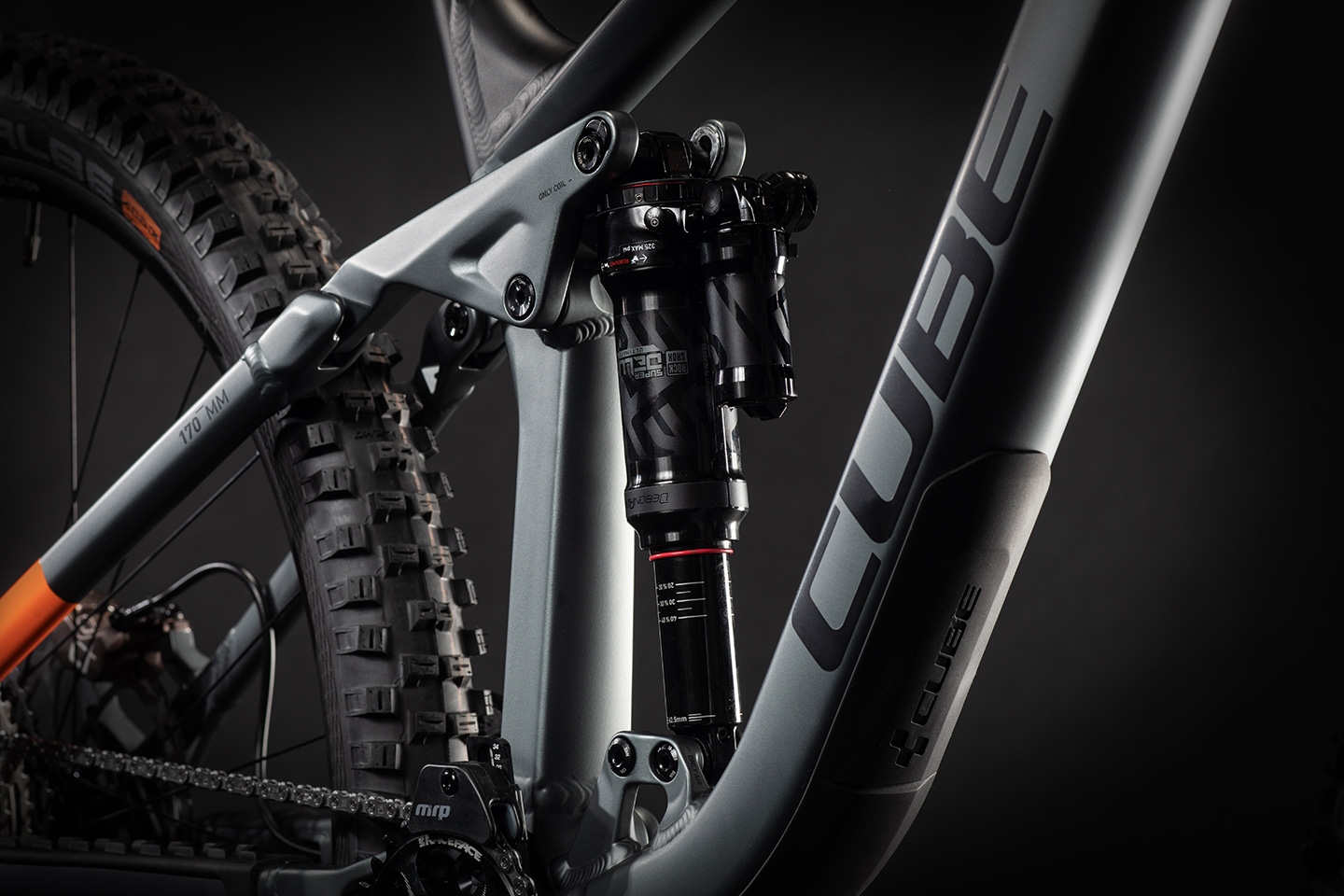

| SHOCK | RockShox Super Deluxe Ultimate, 230x62.5mm, Rebound & Low Speed Compression Adjust w/ 2-Position Lever |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 20x8mm |
| BRAKE SYSTEM | Hayes Dominion A4, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano XT SL-M8100 |

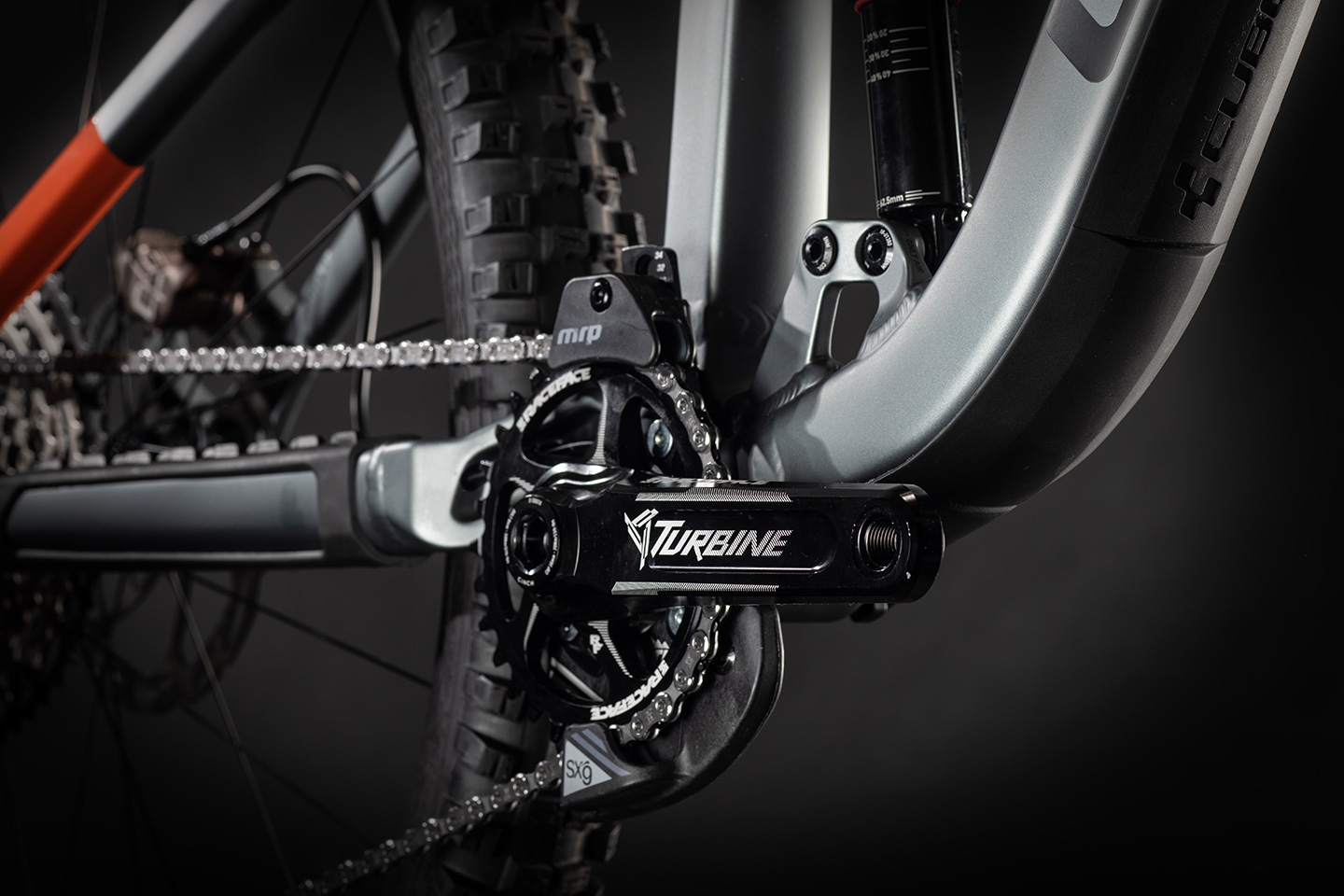

| CRANKSET | Race Face Turbine, 30T, 170mm |
| CHAIN GUIDE | MRP SXg Chain Guide |
| CASSETTE | Shimano SLX CS-M7100, 10-51T |
| CHAIN | Shimano CN-M6100 |
| WHEELSET | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 |
| REAR TIRE | Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4 |
| STEM | Race Face Turbine R 35 |
| HANDLEBAR | Race Face Turbine R 35, 800mm |
| GRIPS | SDG Thrice |
| SEAT POST | SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm, 170mm (150mm for size M) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | SDG Radar |

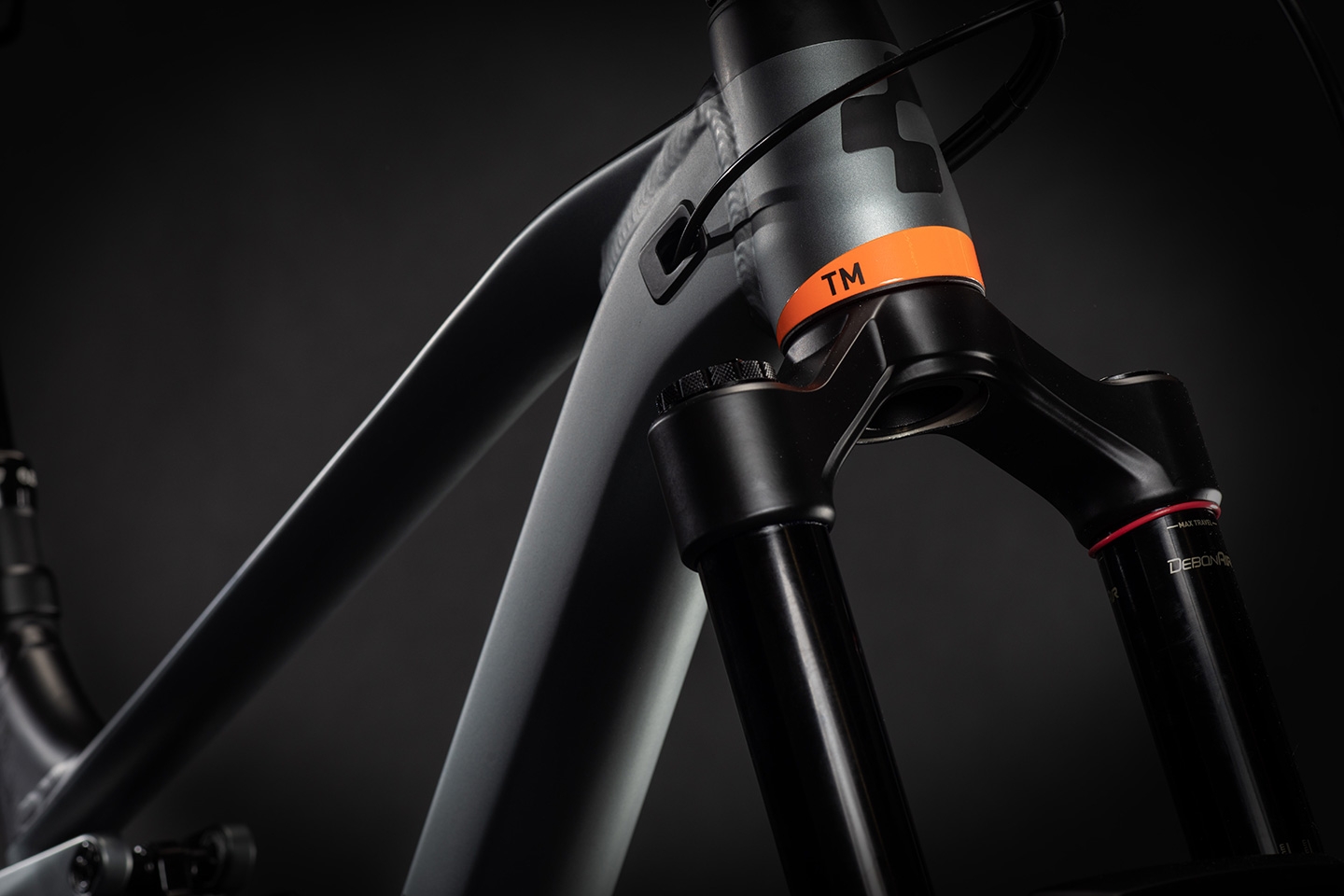

| HEADSET | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment |
| WEIGHT | 15,8 kg |
| COLOUR | flashgrey´n´orange |
| ART. NO | 456200 |
GEOMETRY
Big wheels, big travel: it's a design conundrum that's defeated many. But not us. The Stereo 170 29's frame is based on our proven four bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling. The short linkage and covered bearings contribute to its precision and low maintenance requirements. And hydroformed tubes and internally routed cables mean that it looks as good as it rides. It'll redefine your expectations of what a big travel, big wheeled bike can do.
