STEREO 170
SL 29

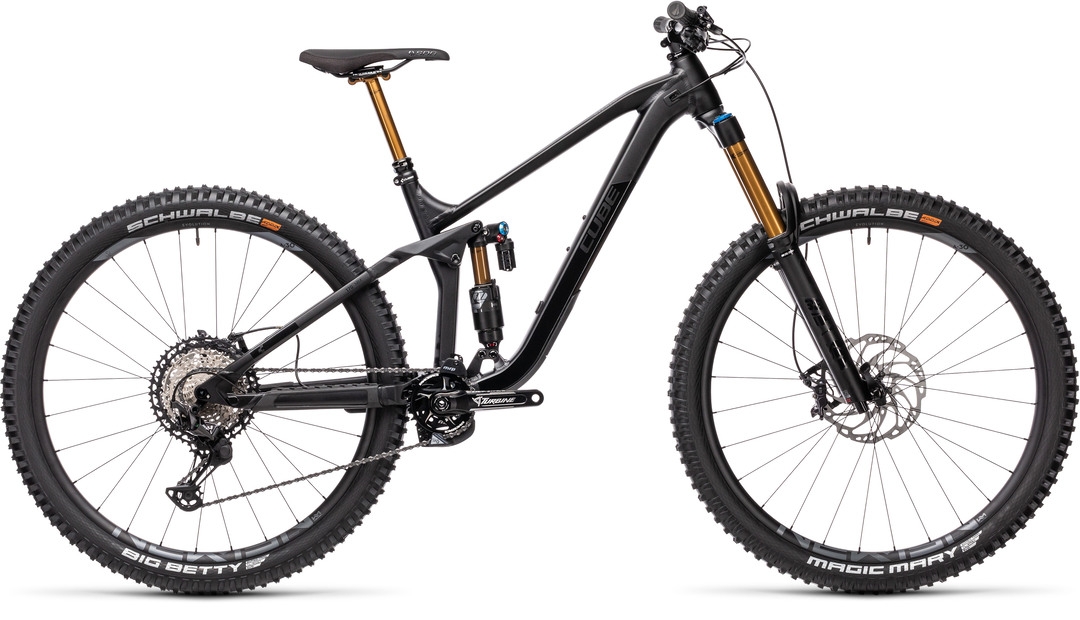

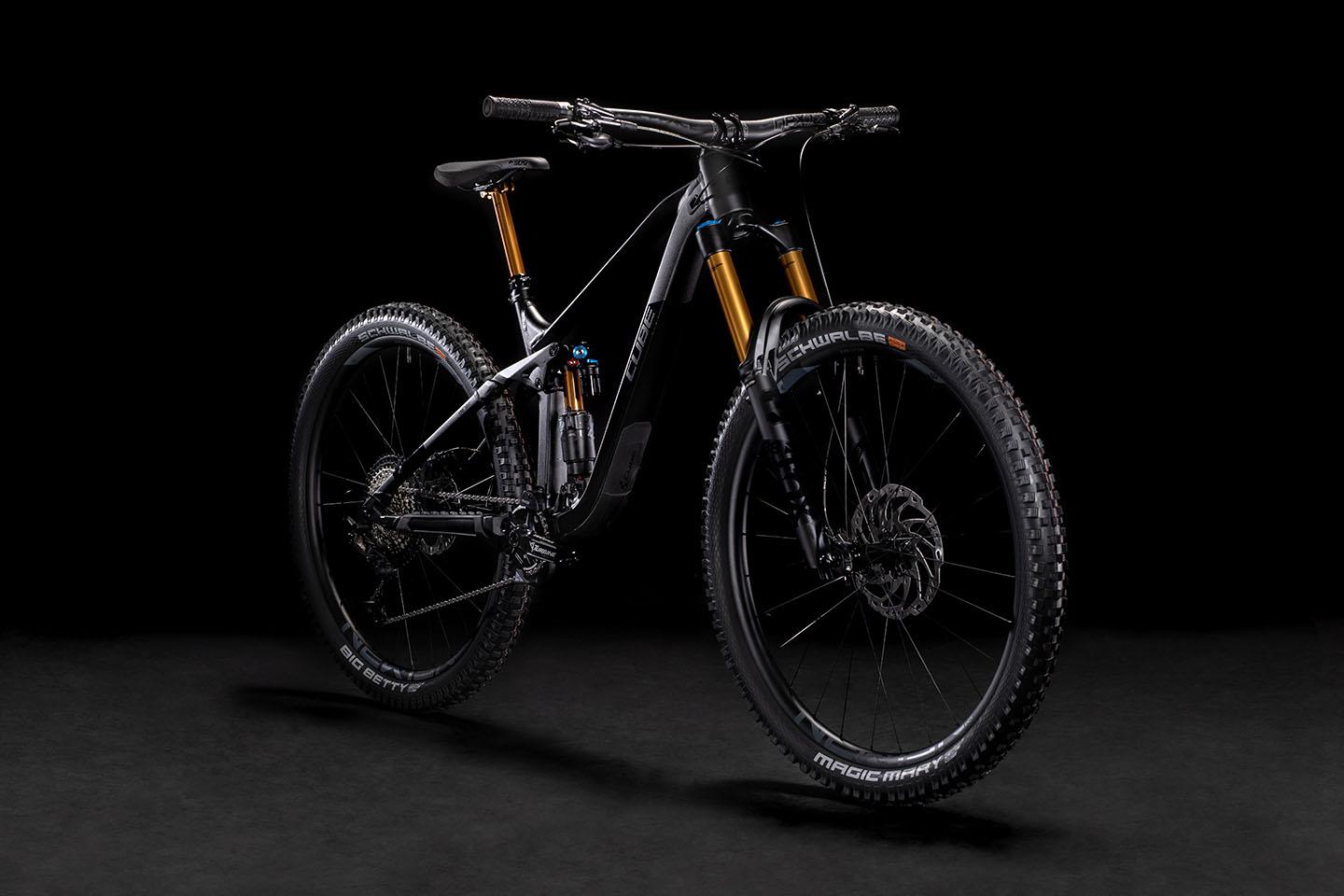

The Stereo 170 SL 29 grabs the big-travel suspension rule book, rips it up and throws it off the nearest available cliff. Newmen Evolution wheels shod with Schwalbe's new Magic Mary and Big Betty SuperTrail 2.4in tyres - and powered by Shimano's ultra-slick 1x12 gears - make light work of any trail, up or down. Powerful Shimano XT hydraulic disc brakes help you keep your speed in check. And a precise Fox 38 Factory fork, Float X2 Factory shock and Transfer Factory dropper post mean you can tame the rowdiest of trails.
AUSSTATTUNG
| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH |
|---|---|
| SIZE | 29: M, L, XL |
| FORK | Fox 38 Float FIT GRIP2 Factory, Tapered, 15x110mm, 170mm, Kashima Coated |

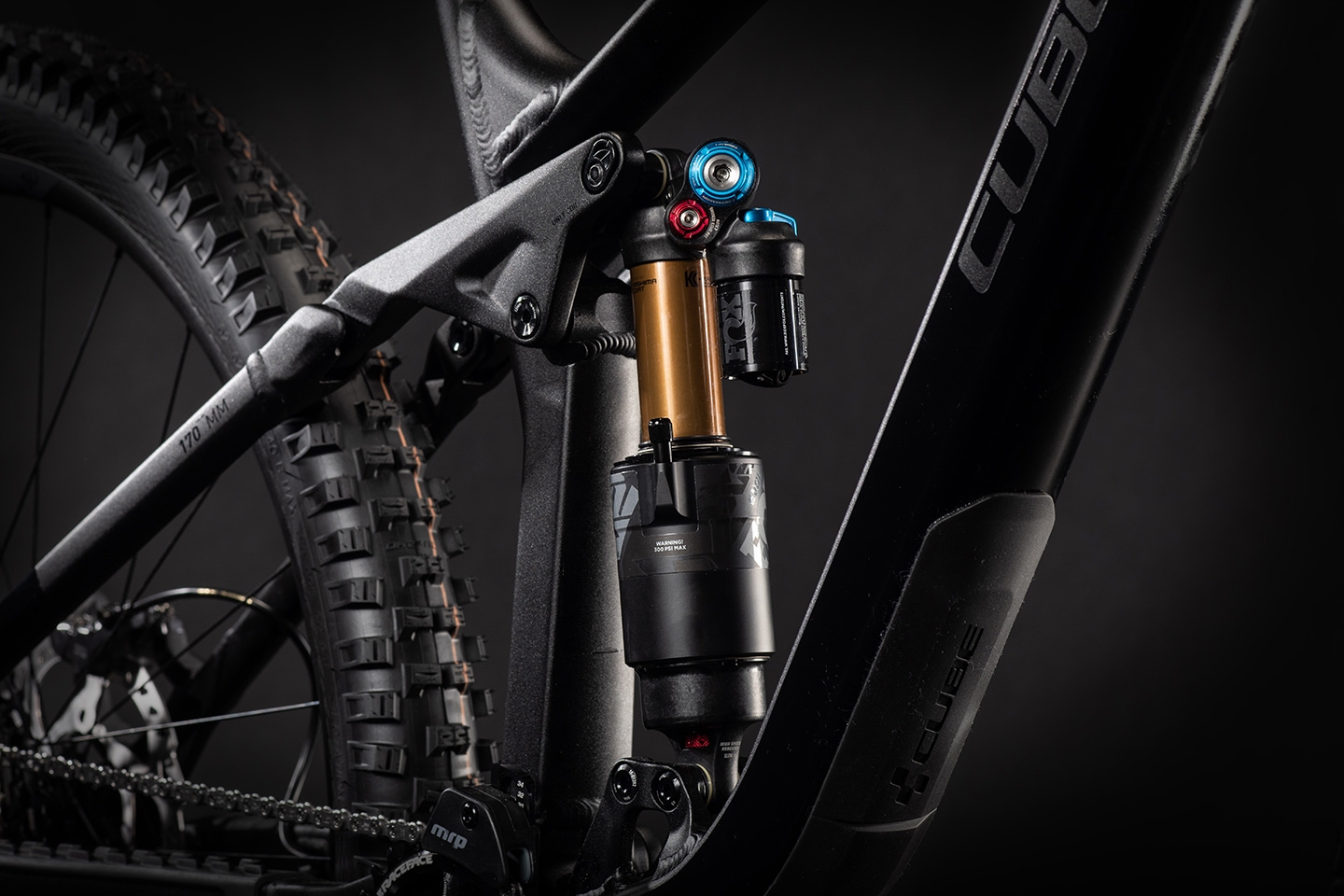

| SHOCK | Fox Float X2 Factory, 230x62.5mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 20x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8120, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano XT SL-M8100-IR, Direct Attach |

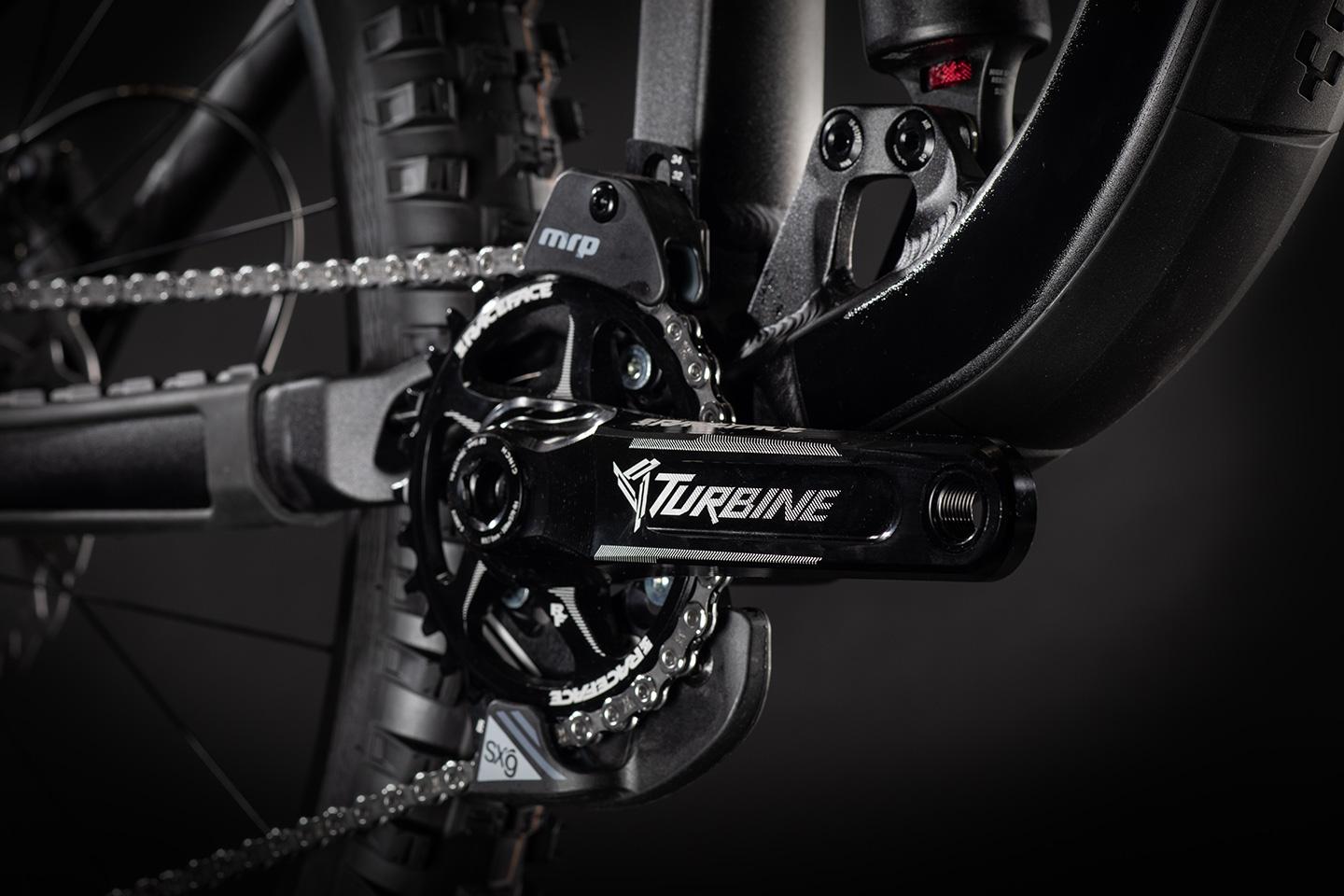

| CRANKSET | Race Face Turbine, 30T, 170mm |
| CHAIN GUIDE | MRP SXg Chain Guide |
| CASSETTE | Shimano XT CS-M8100, 10-51T |
| CHAIN | Shimano CN-M6100 |
| WHEELSET | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 |
| REAR TIRE | Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4 |
| STEM | Race Face Turbine R 35 |
| HANDLEBAR | Race Face Next R 35 Carbon, 800mm |
| GRIPS | SDG Thrice |
| SEAT POST | Fox Transfer Factory 31.6mm, Kashima Coated, 175mm (150mm for size M) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | SDG Radar |
| HEADSET | ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment |
| WEIGHT | 15,7 kg |
| COLOUR | black anodized |
| ART. NO | 456300 |
GEOMETRY
Big wheels, big travel: it's a design conundrum that's defeated many. But not us. The Stereo 170 29's frame is based on our proven four bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling. The short linkage and covered bearings contribute to its precision and low maintenance requirements. And hydroformed tubes and internally routed cables mean that it looks as good as it rides. It'll redefine your expectations of what a big travel, big wheeled bike can do.
