STING WS 140 HPC
SL

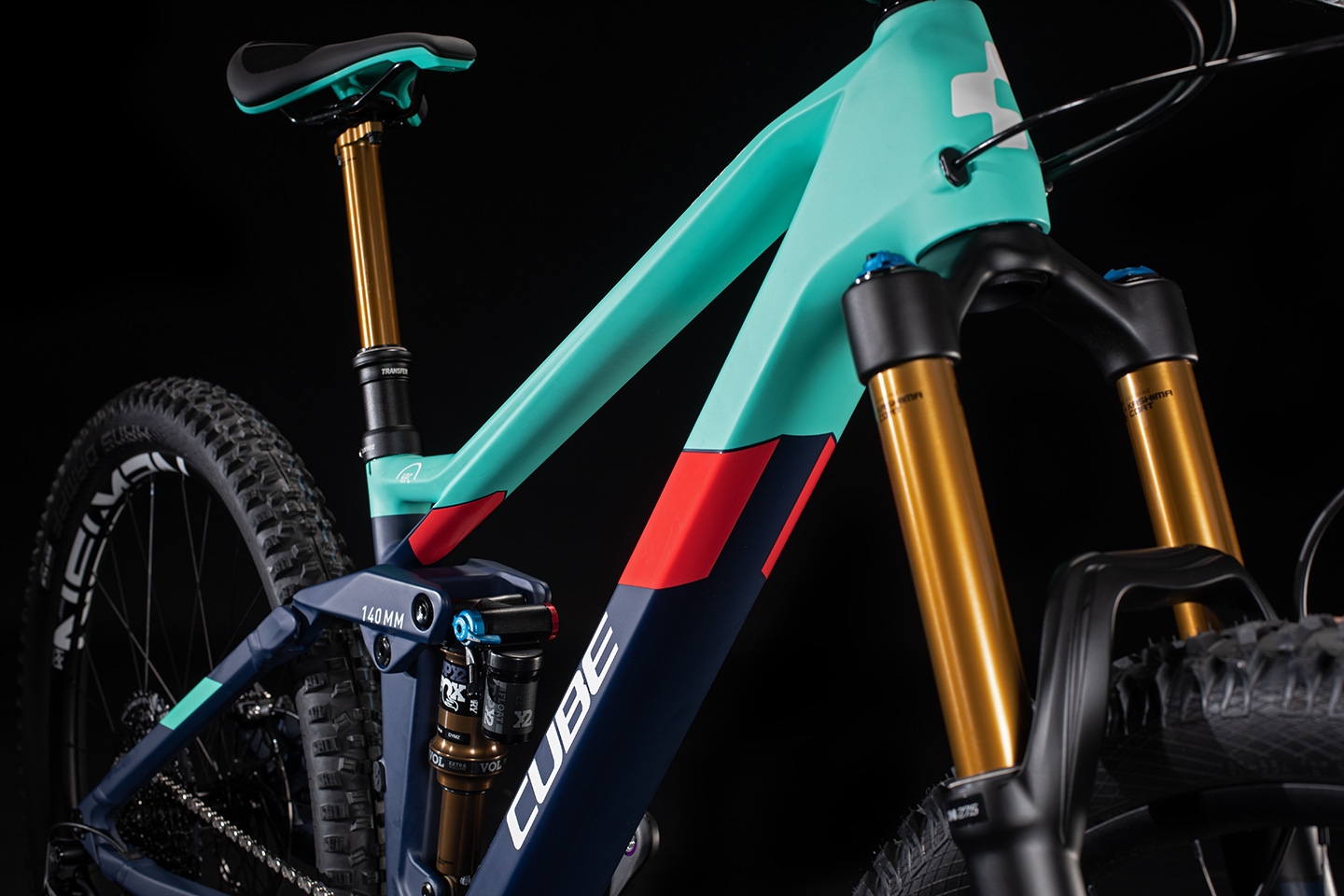

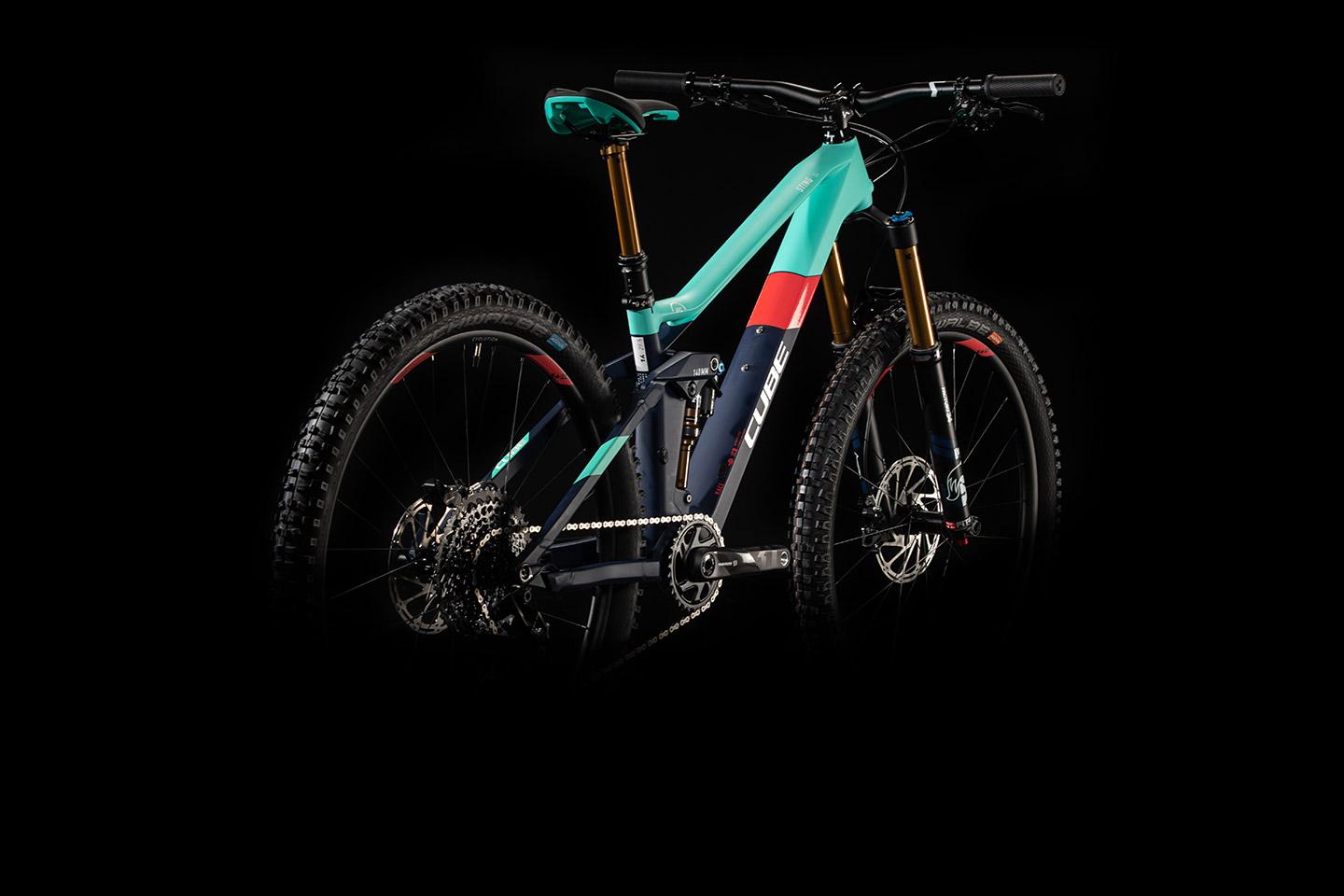

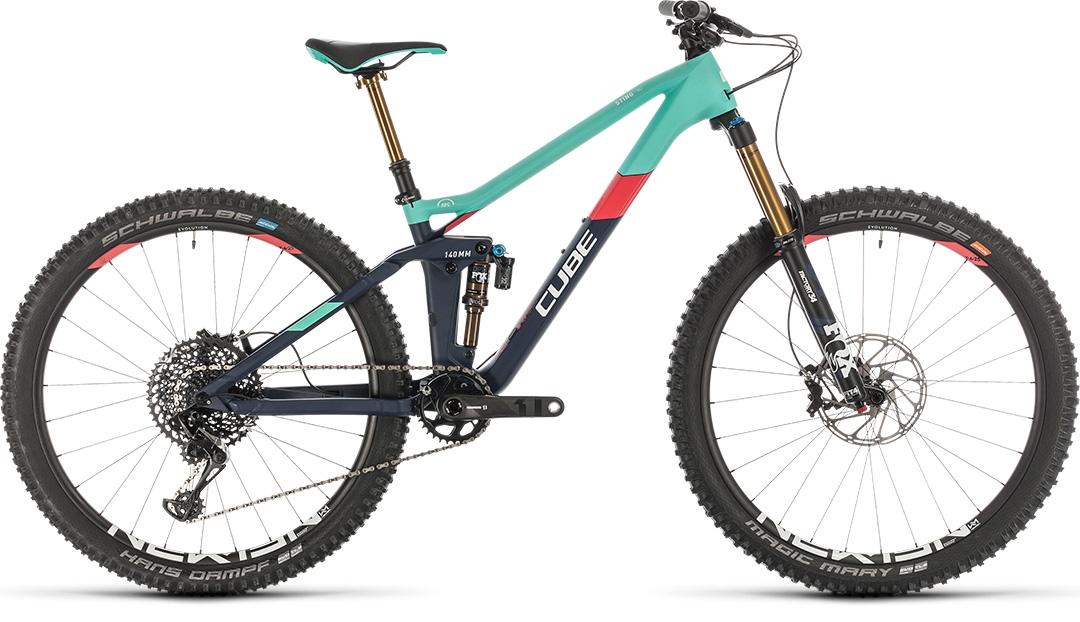

If you appreciate the finer things in life - like shredding prime singletrack - then you're sure to like this. The Sting WS 140 HPC SL is an uncompromisingly light, stiff, fast and agile suspension bike built with one goal in mind: to be the best of its kind. To that end, there's some clever stuff going on in its carbon and aluminium frame. Short chain stays, a steep seat angle, lots of reach and a head angle designed for 150mm forks are just some of the ingredients we've thrown into this trail-taming recipe. The result is a bike that climbs as well as it descends - which is to say, brilliantly. And with that kind of performance, it'll come as no surprise that our designers went to town in kitting this bike out. From the Fox Float Factory 34 fork and matching Fox Float DPX2 rear shock to the Newmen wheelset and Sram X01 1x12 transmission with Sram G2 RSC hydraulic disc brakes, we've selected only the best of the best so that you can ride at your best, too. We even included a Fox Transfer Factory dropper post to help with tackling those especially tricky steep, technical lines. And, with frame sizes starting at 13.5 inch, there's bound to be a Sting WS 140 HPC SL with your name on it. Like all the best things in life, it won't let you down.
AUSSTATTUNG
| FRAME | HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH |
|---|---|
| SIZE | 13,5", 16", 18", 20" |
| FORK | Fox 34 Float Factory, Tapered, 15x110mm, 150mm, 3-Position Micro-Adjust GRIP Damper |

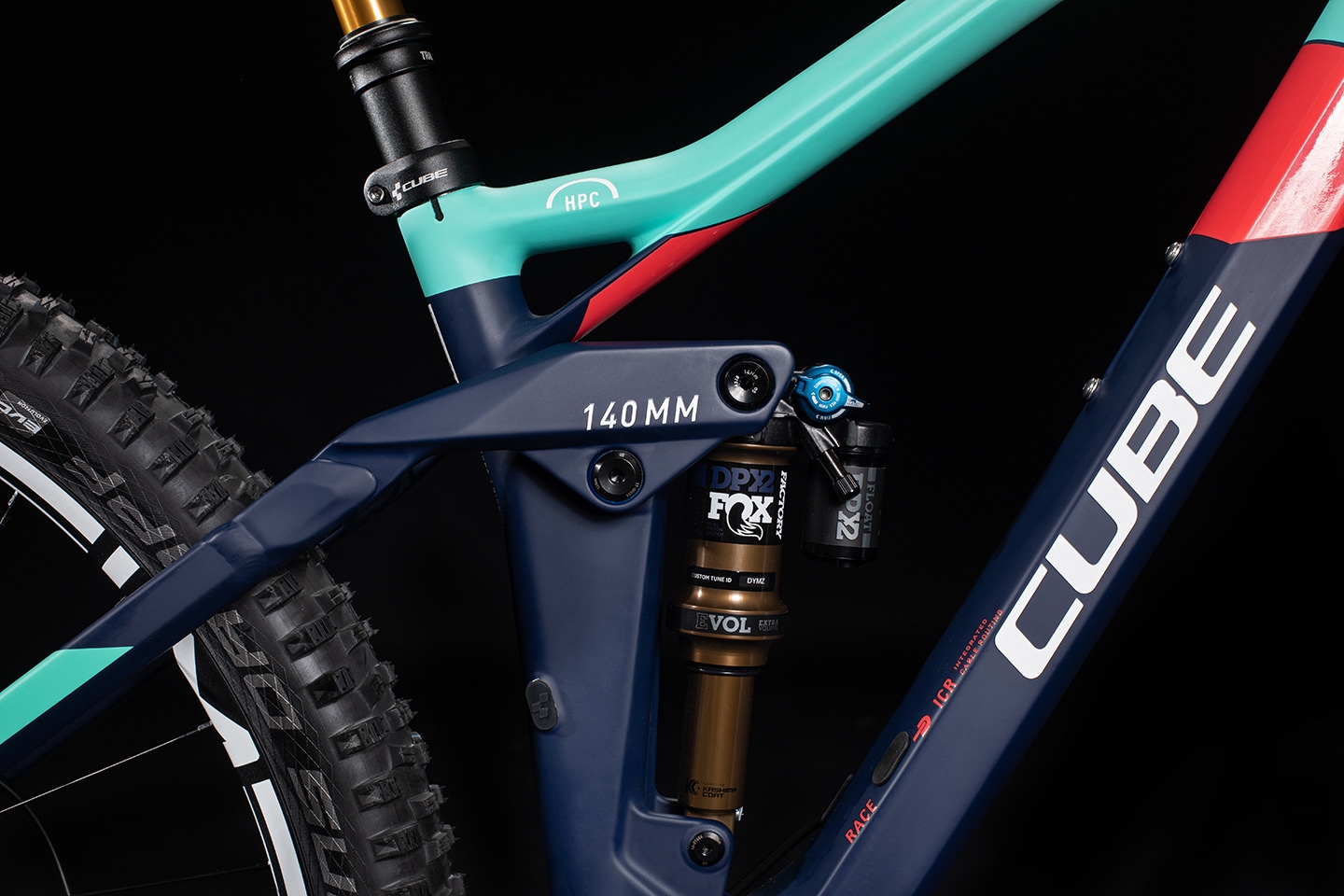

| SHOCK | Fox Float DPX2 Factory EVOL, 185x52.5mm Trunnion Mount, Open(Adjustable)/Medium/Firm |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 22x8mm |
| BRAKE SYSTEM | Sram G2 RSC, Hydr. Disc Brake (200/180) |
| REAR DERAILLEUR | Sram XO1 Eagle™, 12-Speed |
| SHIFTERS | Sram GX Eagle™ Trigger |
| CRANKSET | Sram X1 Eagle™ Carbon, 32T, 170mm |
| CASSETTE | Sram XG-1275 Eagle™, 10-50T |
| CHAIN | Sram GX Eagle™ |
| WHEELSET | Newmen Evolution SL X.A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary, Addix Soft, Kevlar, Tubeless Easy, 2.35 |
| REAR TIRE | Schwalbe Hans Dampf, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35 |
| HANDLEBAR | Newmen Evolution 318.20, 760mm |
| GRIPS | CUBE Race SL Grip 29.5mm, 1-Clamp |
| SEAT POST | Fox Transfer Factory 31.6mm, Kashima coated, 13.5" 356x100mm, 16" 406x125mm, 18" & 20" 456x150mm |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | Natural Fit Venec WS |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 12,4 kg |
| COLOUR | team ws |
| ART. NO | 328400 |
GEOMETRY

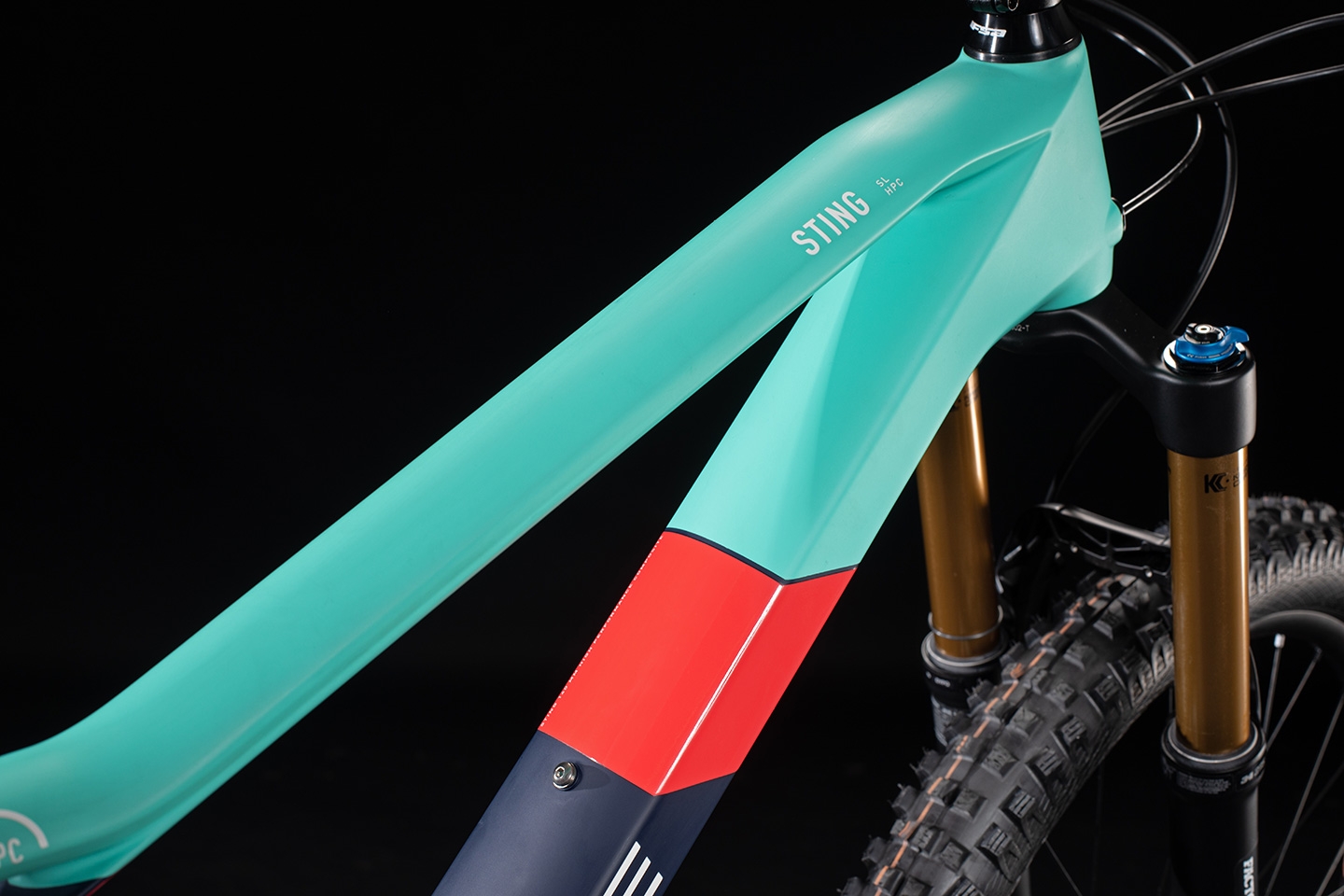

All our carbon frame-building expertise is poured into the Sting 140 HPC's elegant, light and incredibly stiff front triangle. Internal cable routing keeps your gear shifts clean and your time clear for riding, not fiddling with maintenance tasks. The tapered head tube and refined geometry are designed to cater specifically for the demands of a 150mm fork - so you'll always be in full control, no matter how tough the trail. At the rear, we've applied all our aluminium know-how into a stiff, strong and lightweight structure that works seamlessly with the rest of the frame. Short chain stays serve up superb climbing performance, and the steep seat angle and long reach are part of the package that we designed specifically to deliver sharp, safe and confidence-inspiring handling. Ride more, whatever that means for you.
