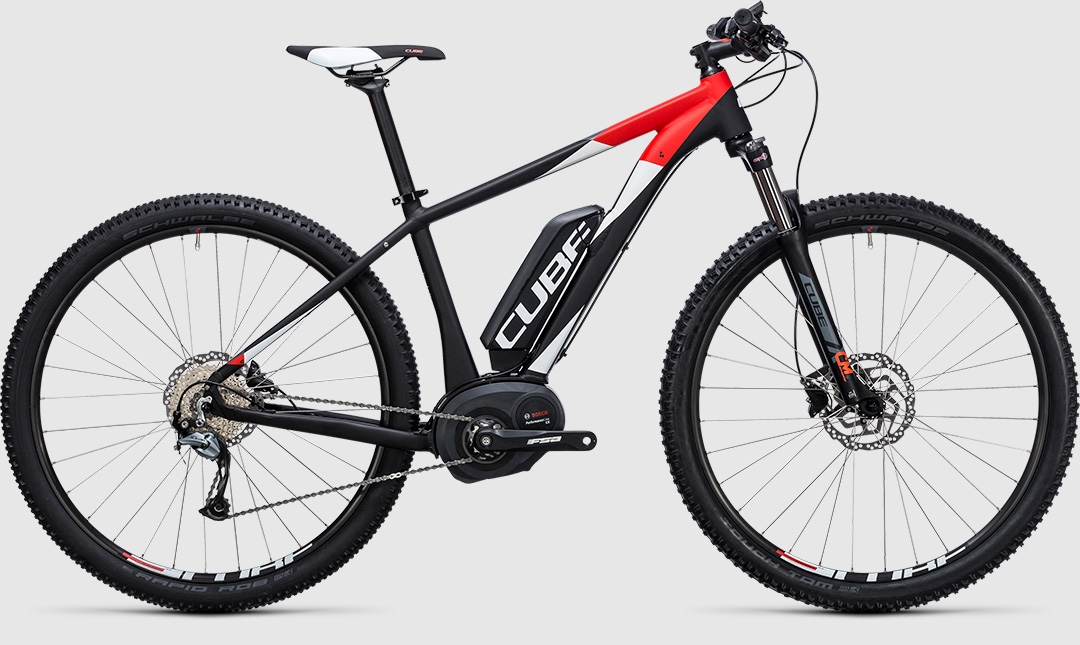

REACTION HYBRID ONE
500
What if you could have the versatility and go-anywhere potential of a real mountain bike, but with extra power when you need it most? With the Reaction Hybrid ONE, it's now a reality. We've taken everything we know about e-MTBs and distilled it into a superbly affordable, Bosch-powered bike that'll take you to places you never thought possible.
AUSSTATTUNG

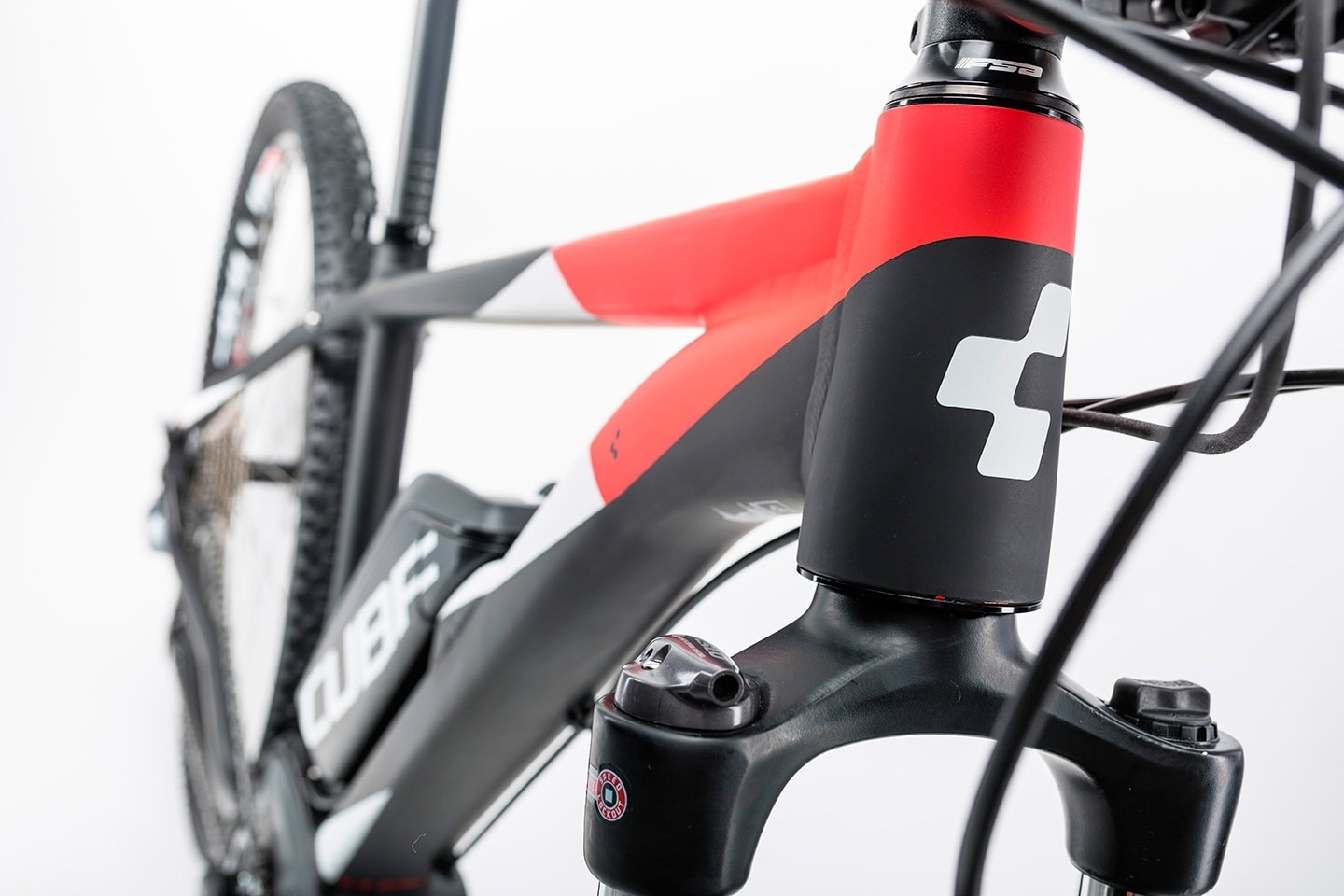

| FRAME | Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing |
|---|---|
| SIZE | 27.5: 14", 16", 18" // 29: 17", 19", 21", 23" |
| FORK | SR Suntour XCM32 DS, 100mm |

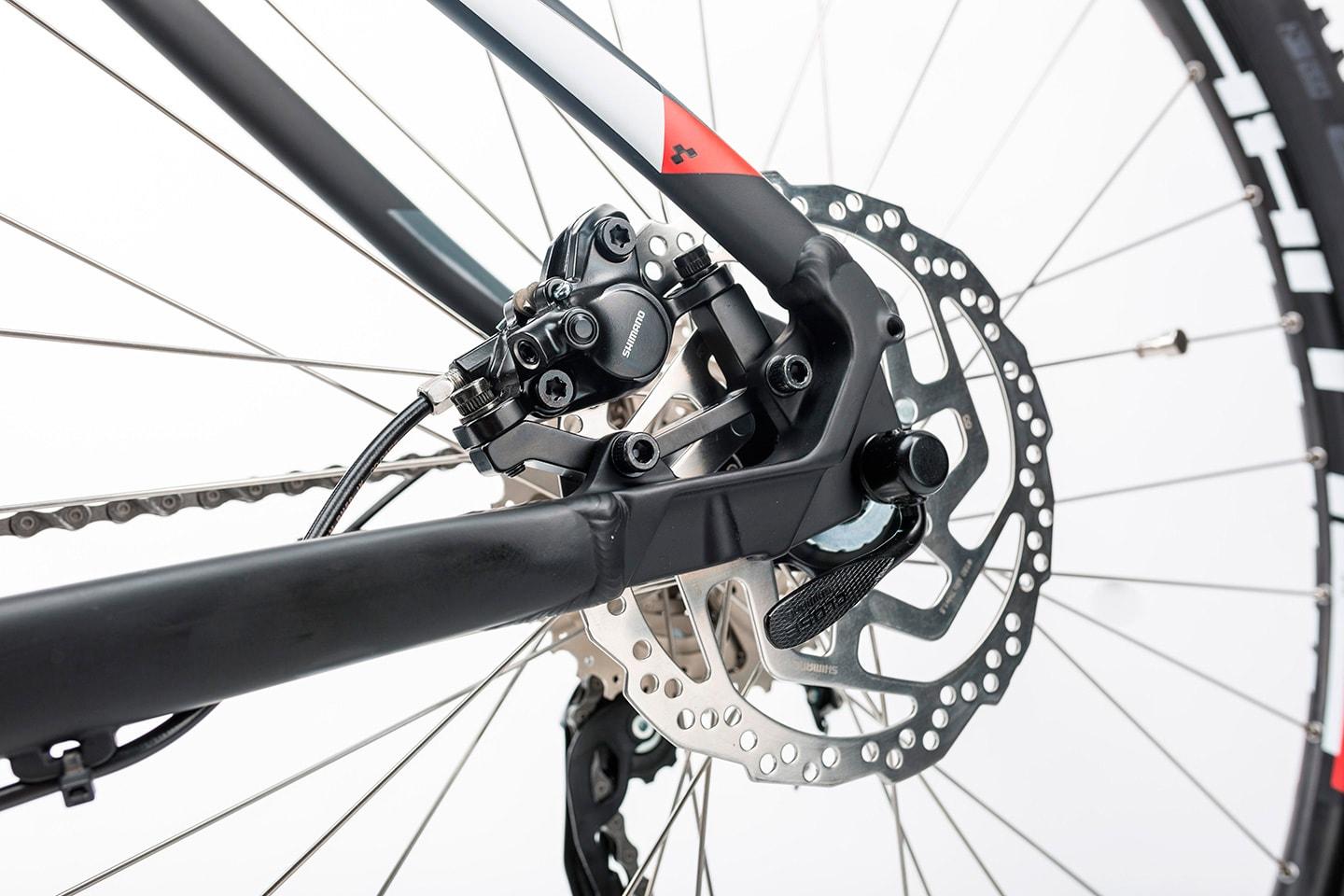

| BRAKE SYSTEM | Shimano BR-M315, Hydr. Disc Brake (180/180) |

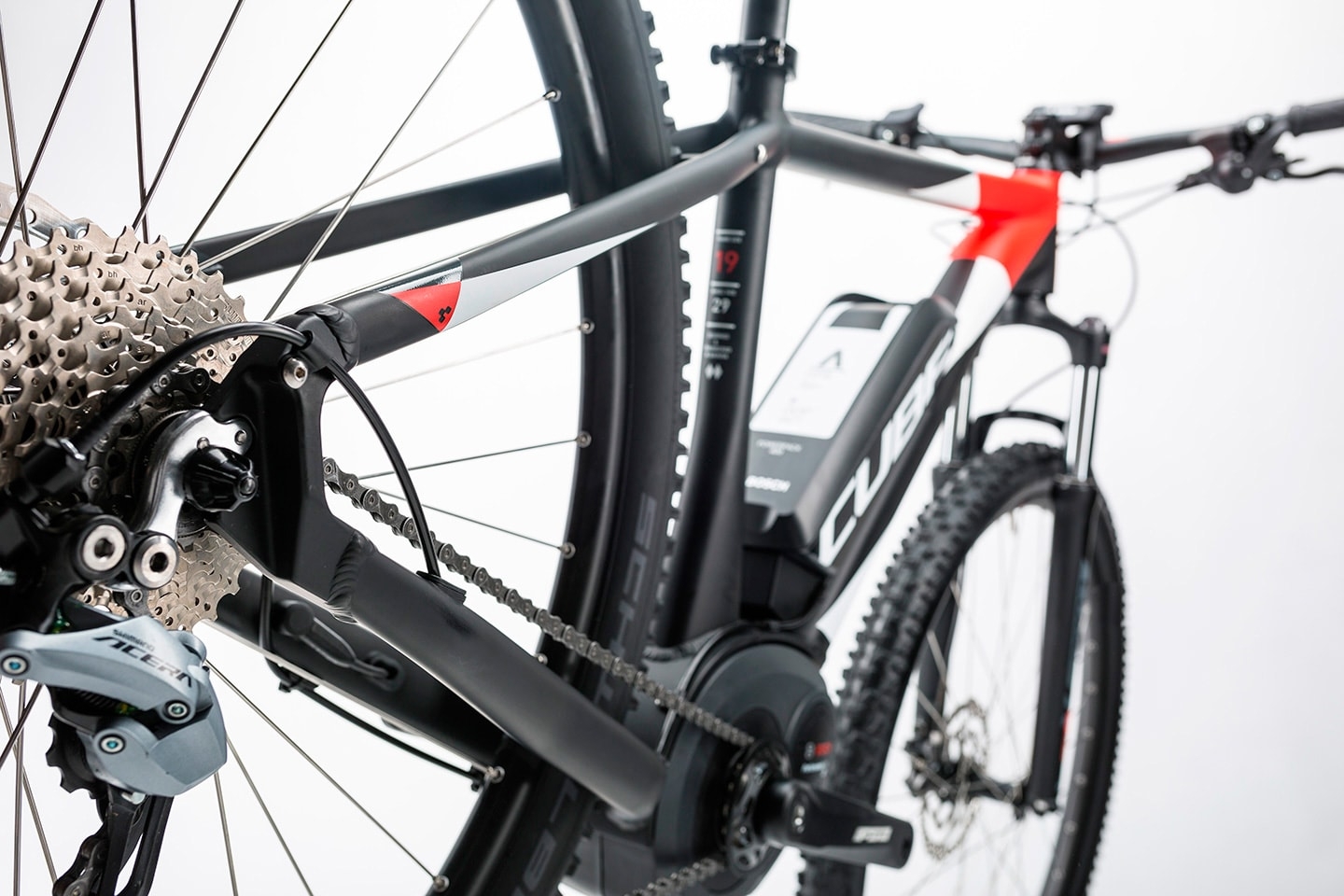

| REAR DERAILLEUR | Shimano RD-M3000, 9-Speed |
| SHIFTERS | Shimano SL-M370, Rapidfire-Plus |
| CRANKSET | FSA CK-745, 15T |
| CASSETTE | Shimano CS-HG300, 12-36T |
| CHAIN | KMC X9 |
| FRONT HUB | Shimano HB-TX505, QR |
| REAR HUB | Shimano FH-TX505, QR |
| RIMS | CUBE ZX20, 32H, Disc |
| FRONT TIRE | Schwalbe Tough Tom, Active, 2.25 |
| REAR TIRE | Schwalbe Rapid Rob, Active, 2.25 |

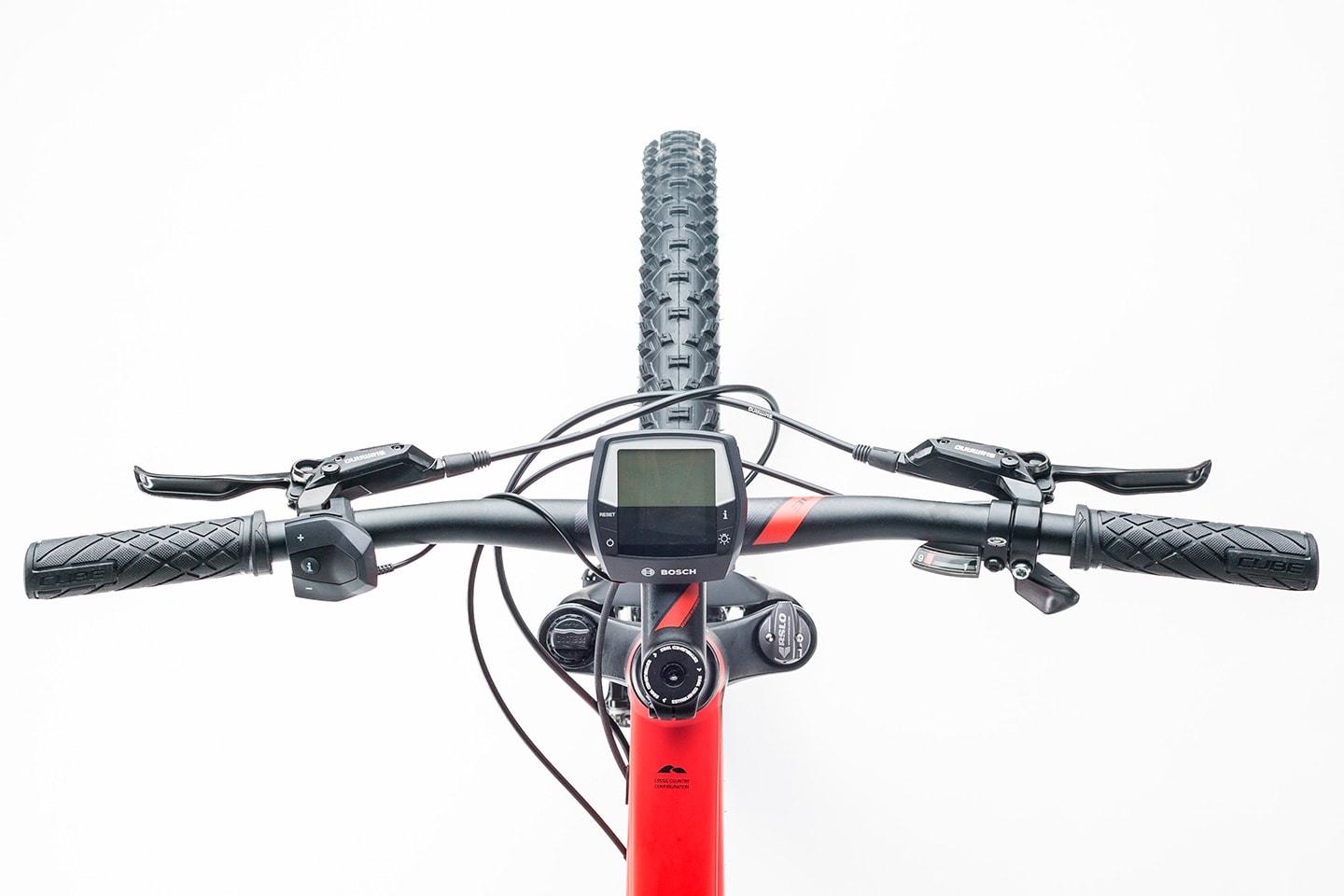

| HANDLEBAR | CUBE Rise Trail Bar, 660mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |

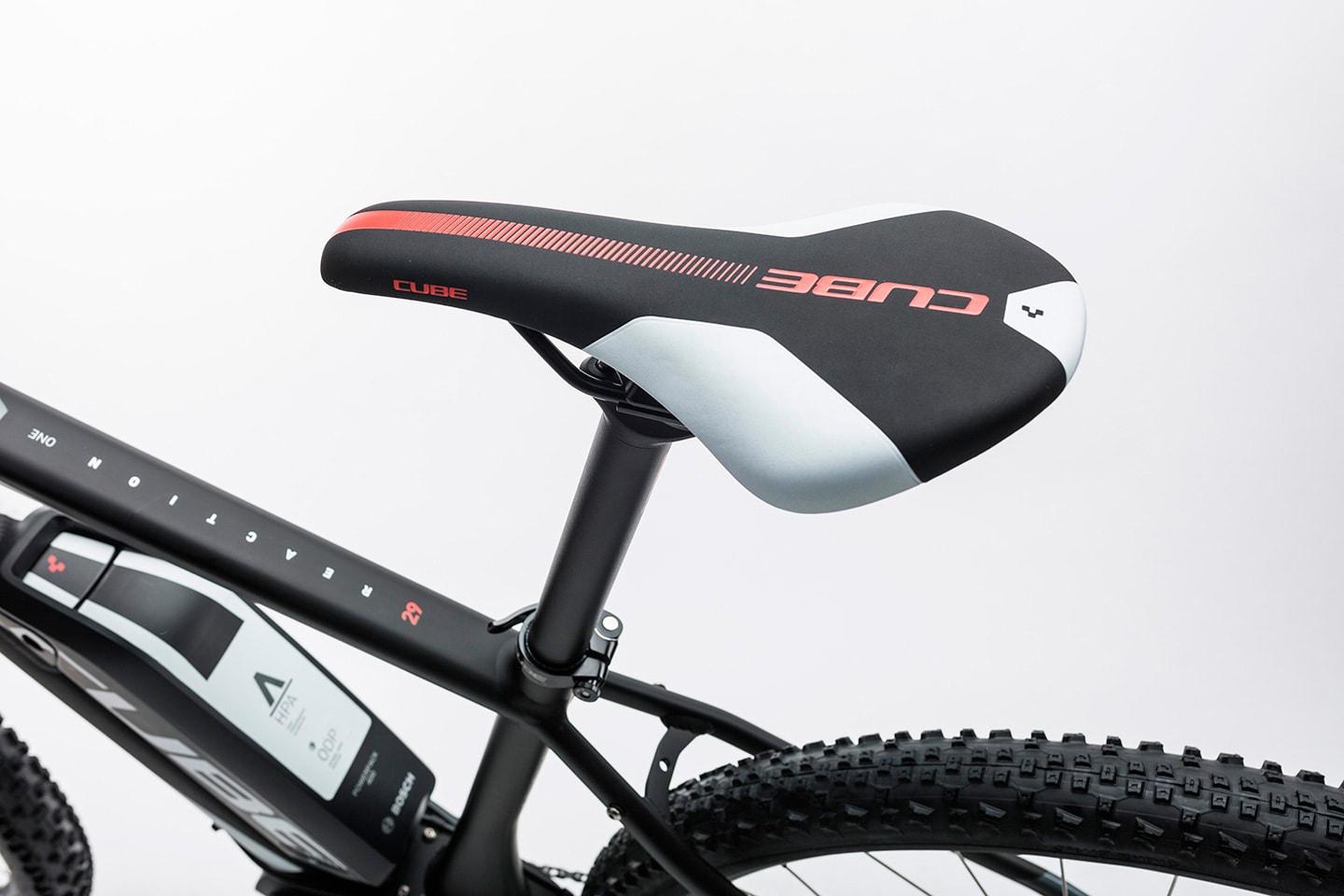

| SADDLE | Selle Royal MTB |
| HEADSET | FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 21.1 kg |
| COLOR | black´n´white |

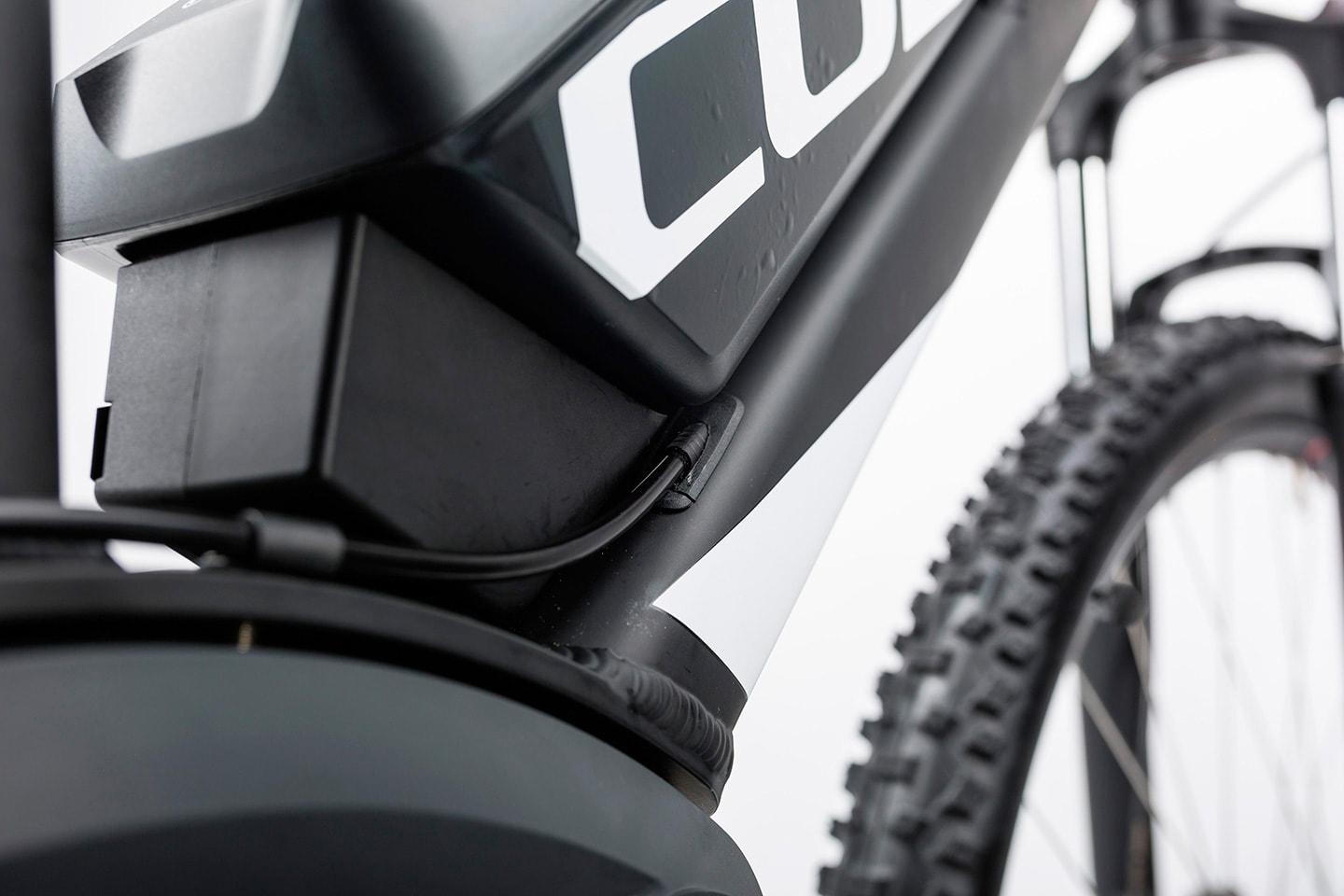

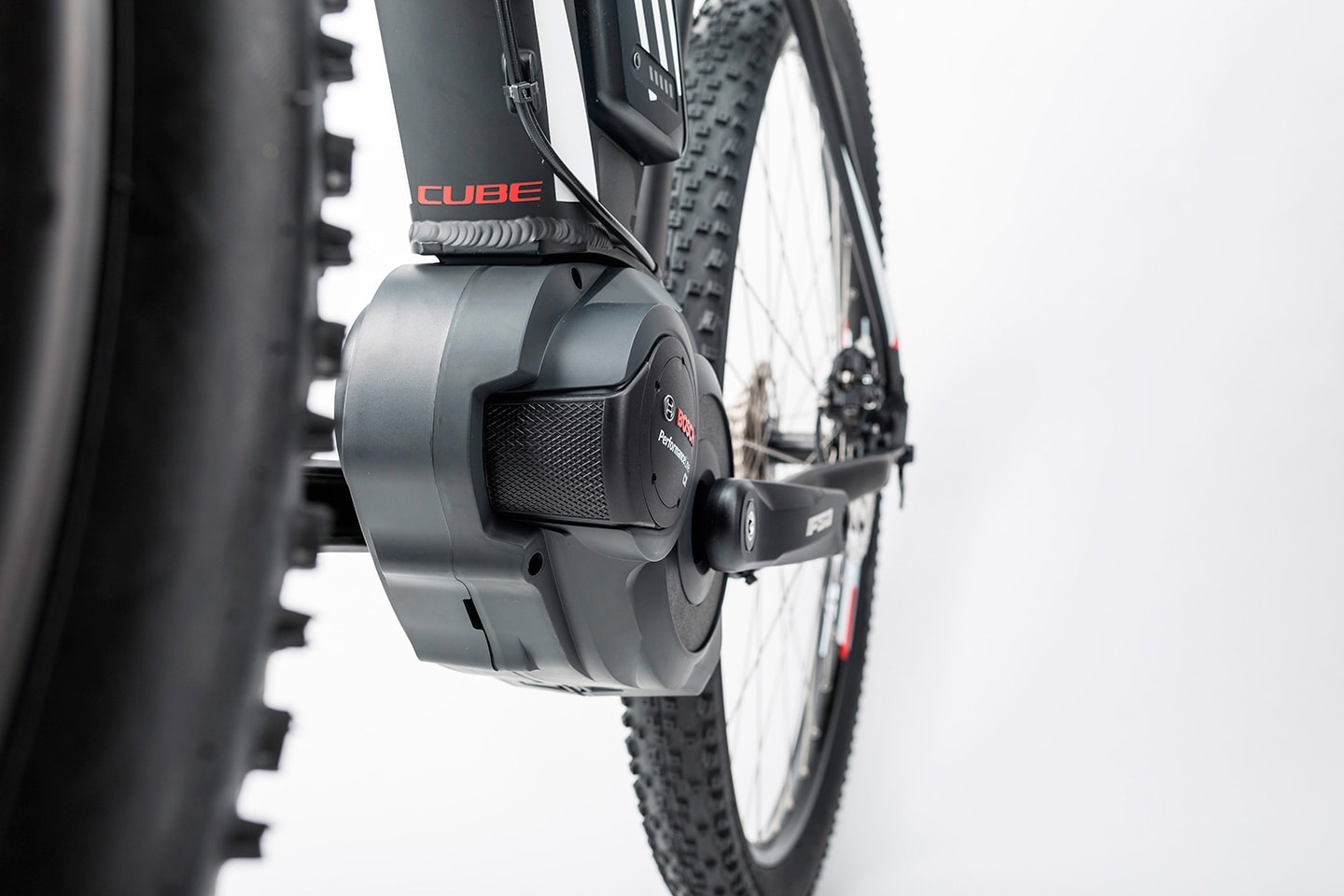

| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 500 |

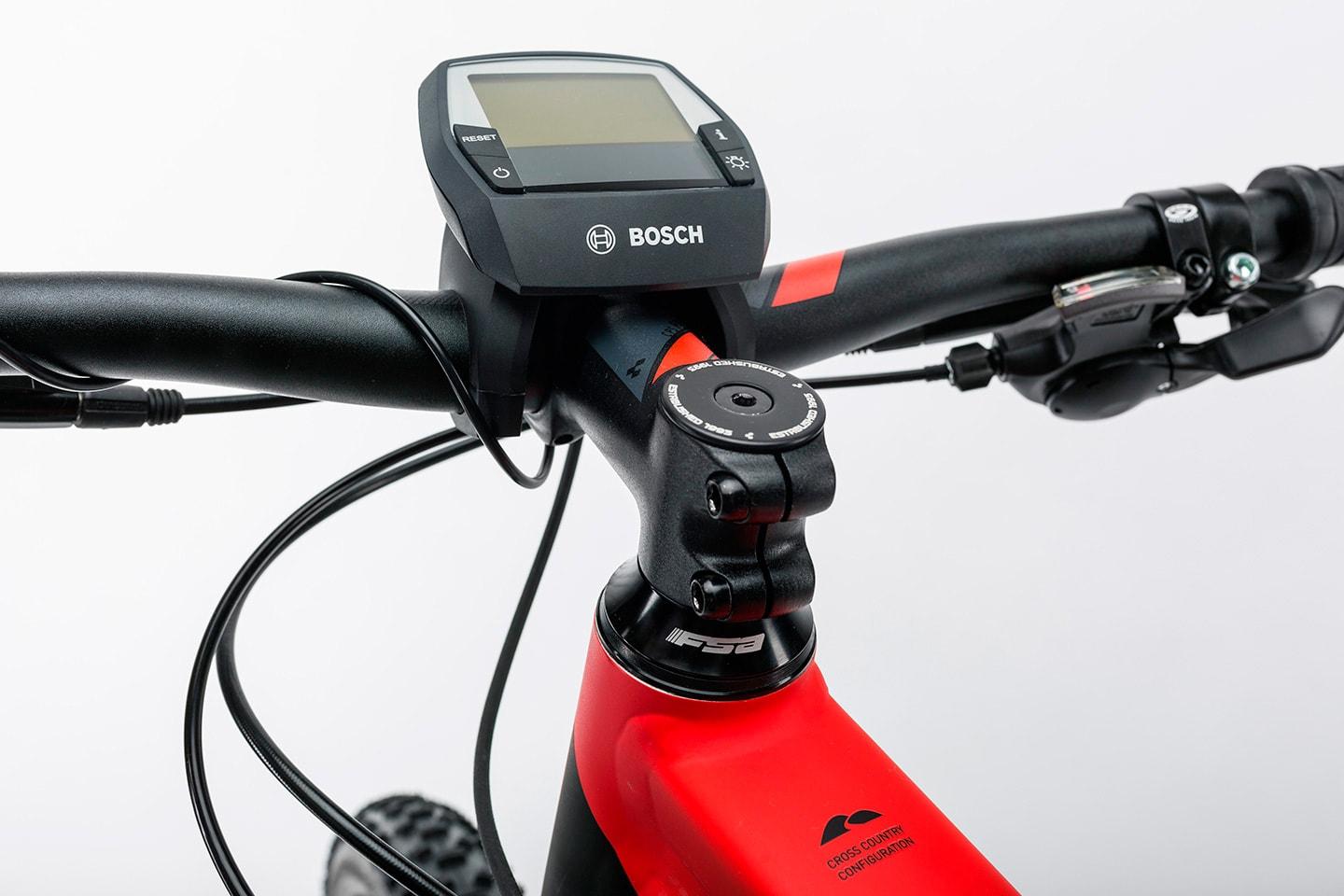

| DISPLAY | Bosch Intuvia |
| Bosch 2A | |
| BAR KODAS | 806012 |
Geometrija

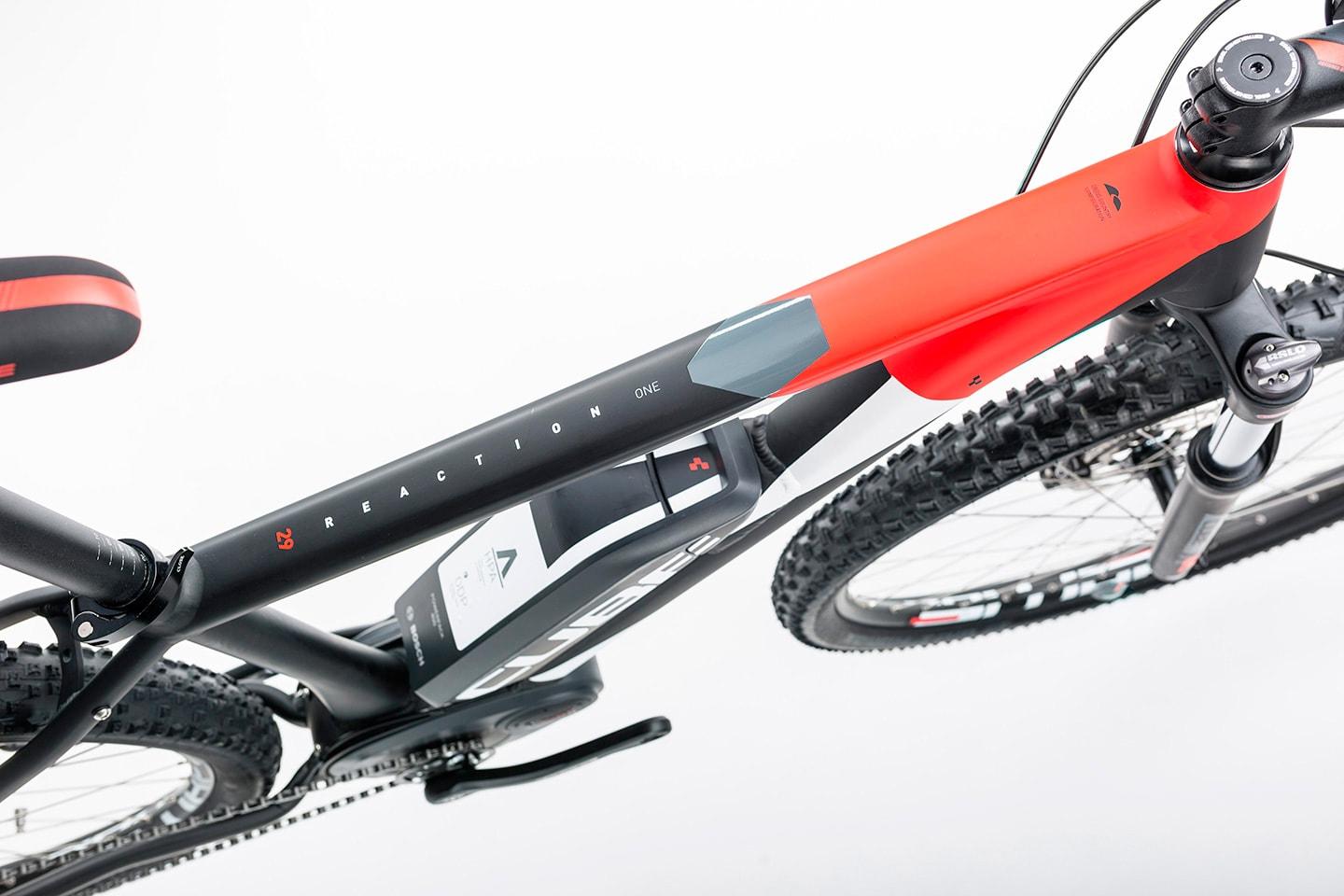

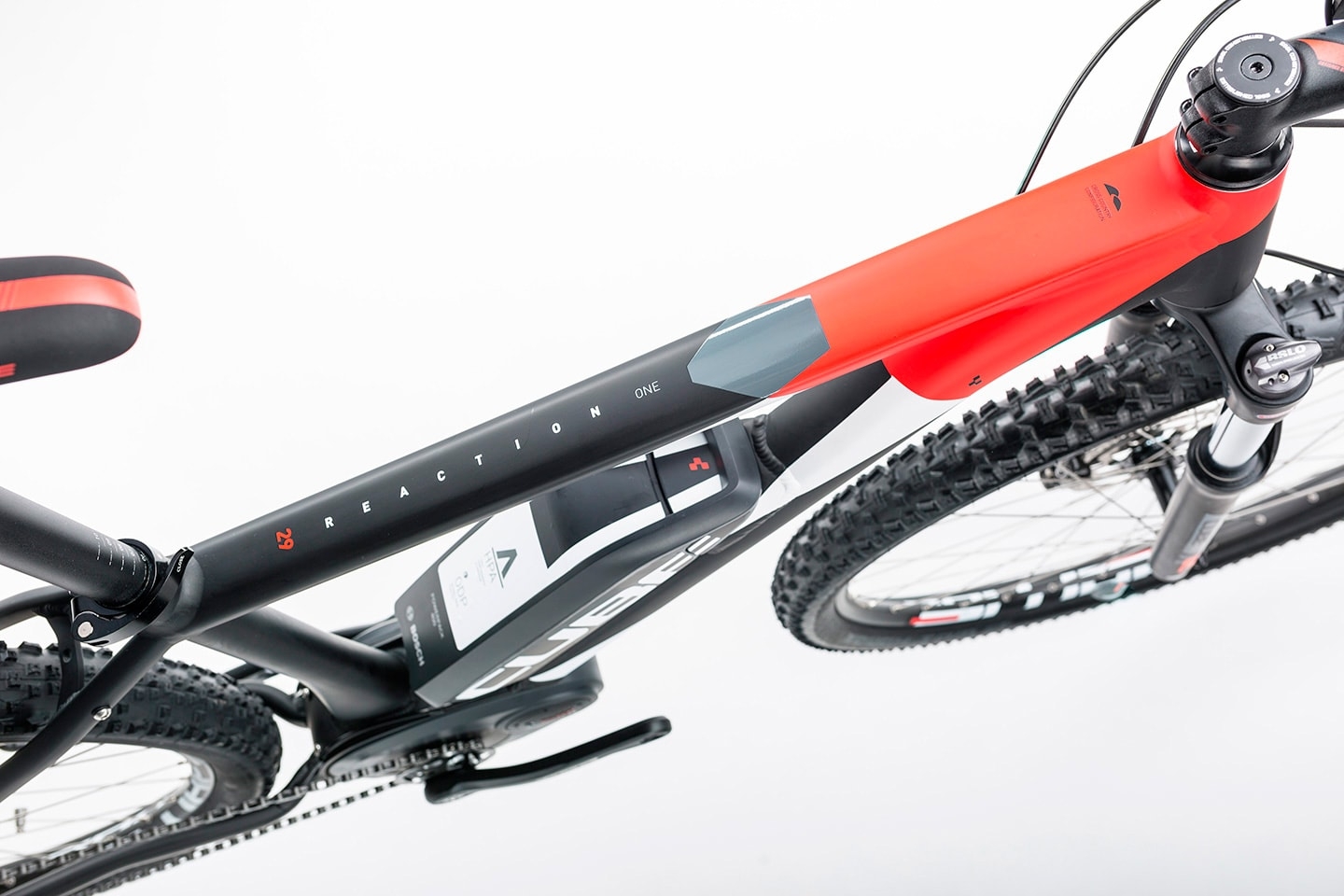

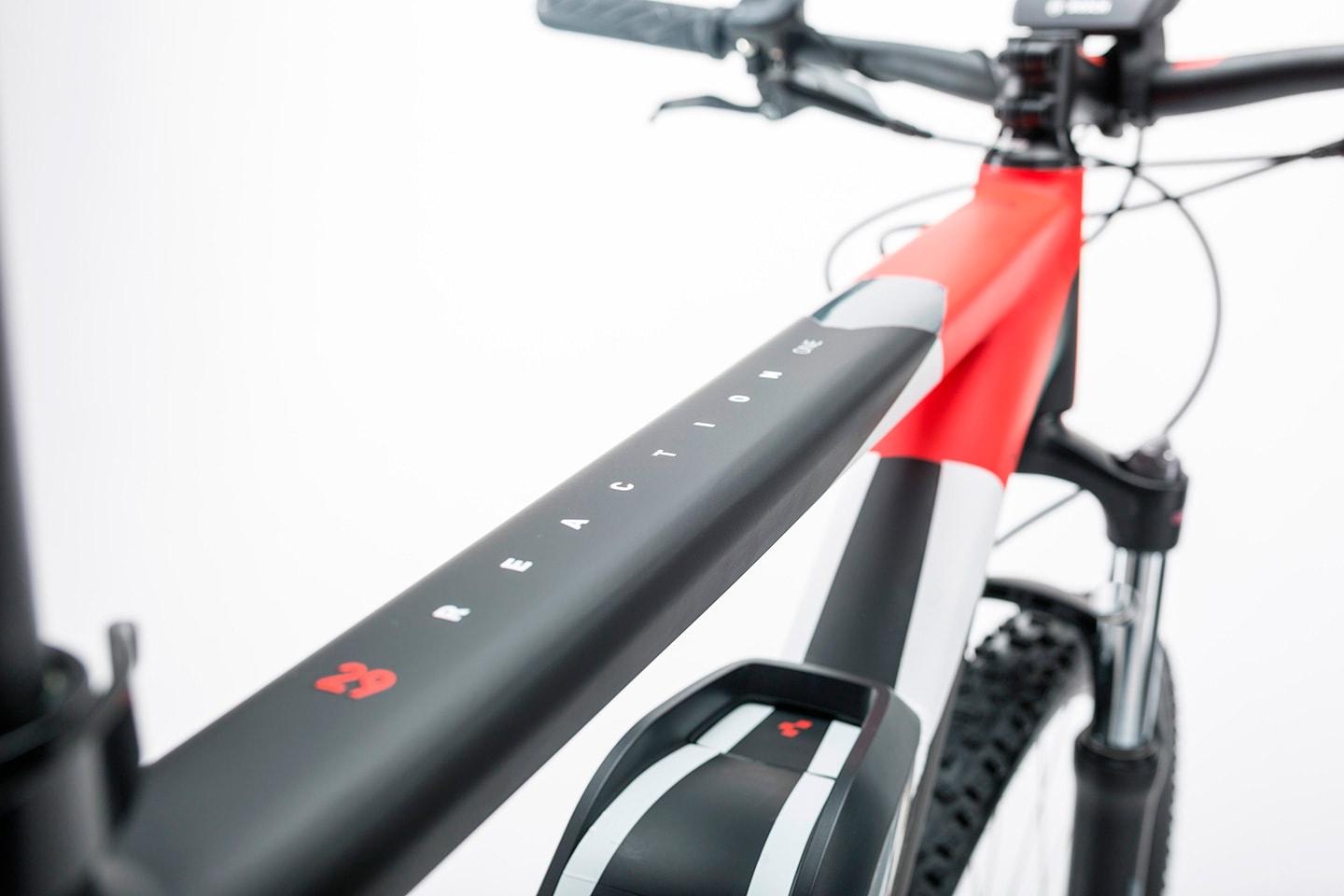

Frame: There's no cutting corners with our e-MTBs. The Reaction Hybrid ONE's frame uses our aluminium Superlite technology, built specifically to meet the needs of Bosch's superb drive system. With Optimal Drive Position and Agile Ride Geometry, that means incredible efficiency, suprisingly low weight and a lively ride feel. Frame sizes span the range from 14, 16 and 18 inch with 27.5 inch wheels, to 17, 19, 21 and 23 inch with 29er wheels - so there's a frame to suit everybody. We've even designed the dropouts to make it easy to mount a kickstand and, of course, there's room for mudguards - which means the Reaction Hybrid ONE will cope as well on the commute or school run as it will out in the hills.
