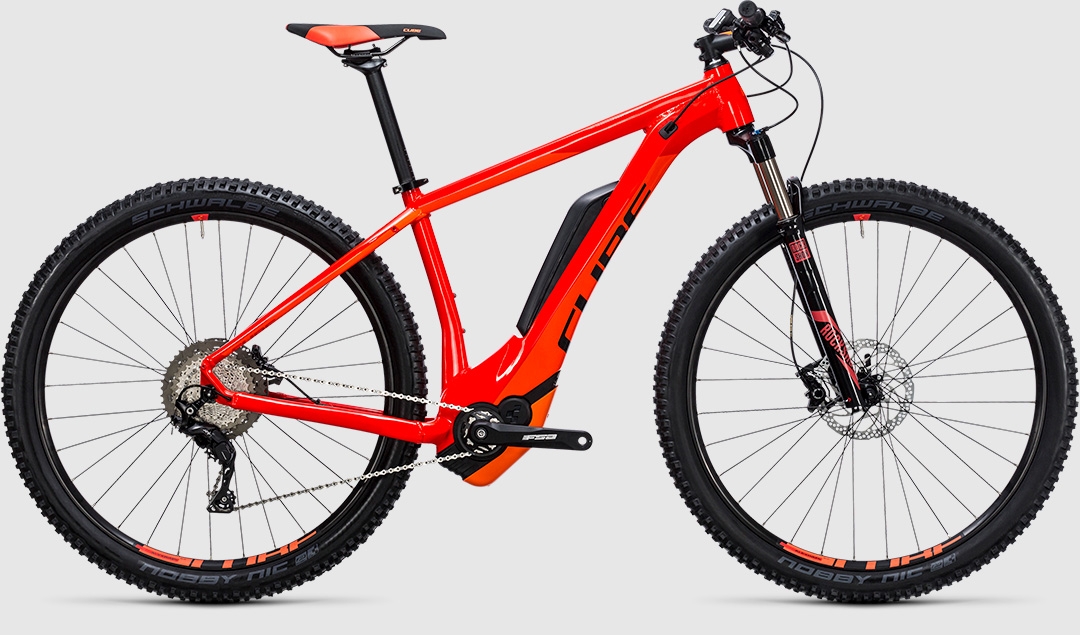

REACTION HYBRID HPA
SL 500

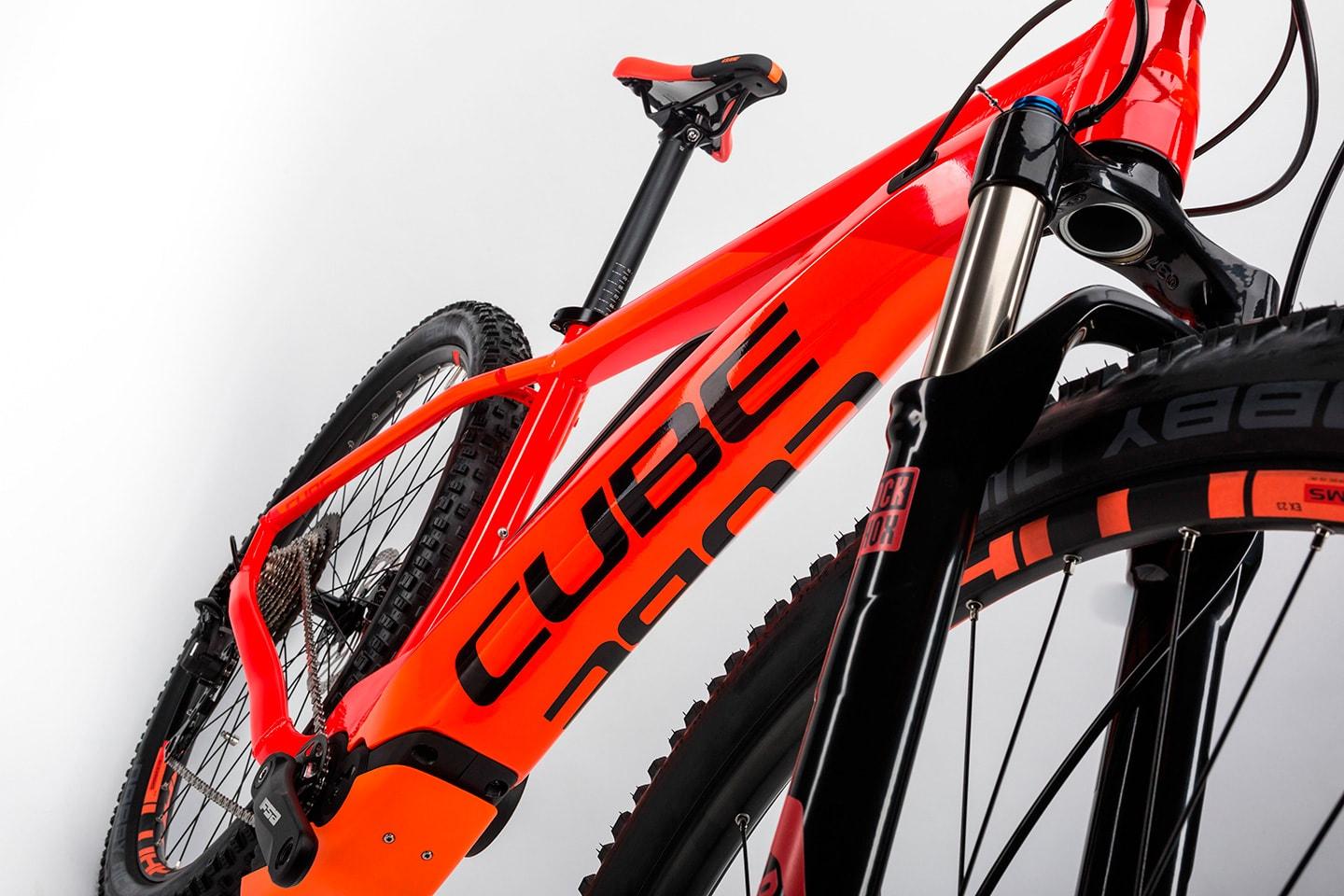

Nothing combines ease of use and fun quite as well as an e-MTB - and few e-MTBs can match the CUBE Reaction Hybrid SL for value and performance. Blending all our engineers' accumulated experience in a beautifully crafted frame designed to get the best out of the Bosch drive unit, this is a bike that will keep you smiling, mile after mile.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Integrated Drive Unit, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing |
|---|---|
| SIZE | 27.5: 16", 18" // 29: 17", 19", 21", 23" |

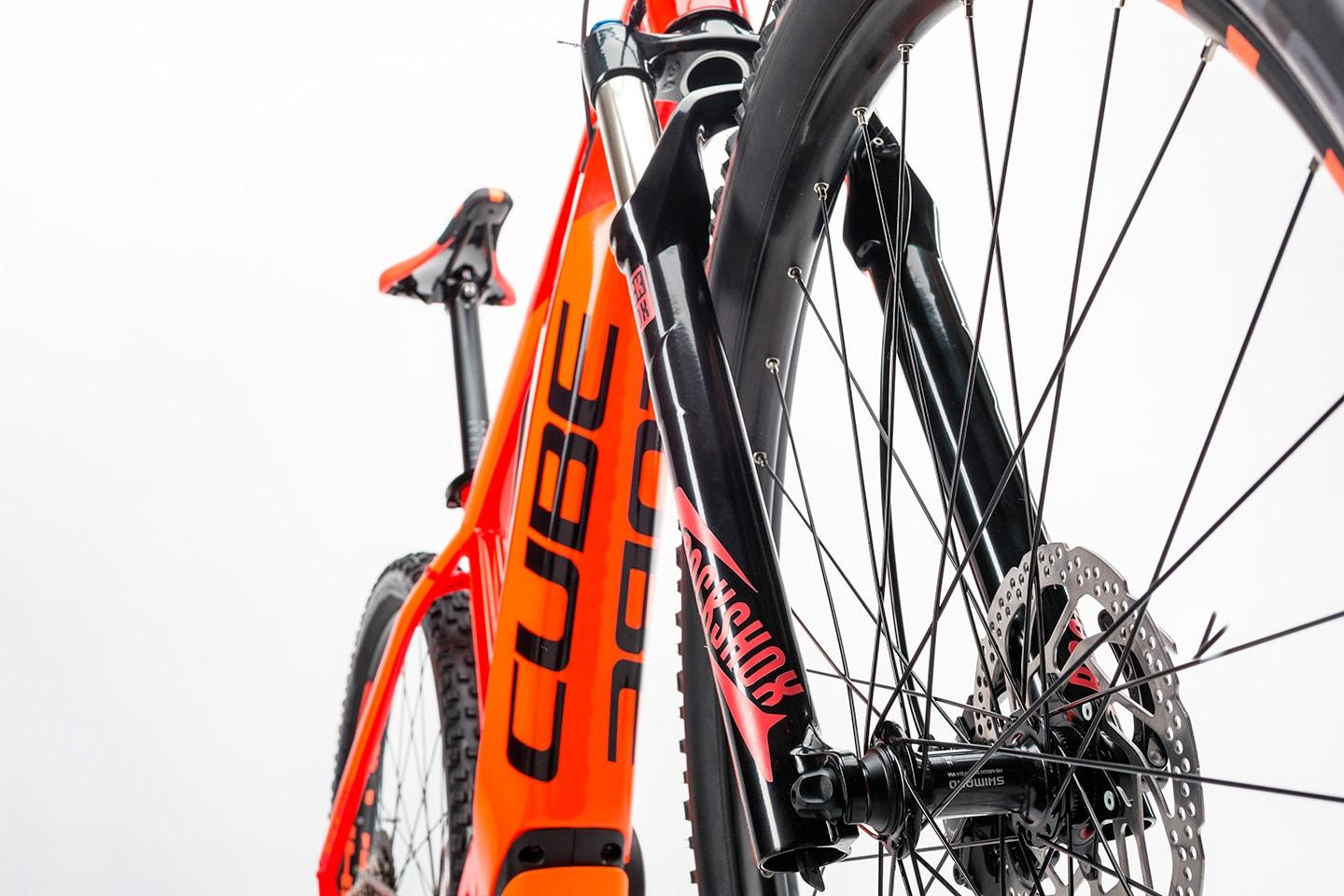

| FORK | Rock Shox Recon Silver TK Air, 100mm, PopLoc |

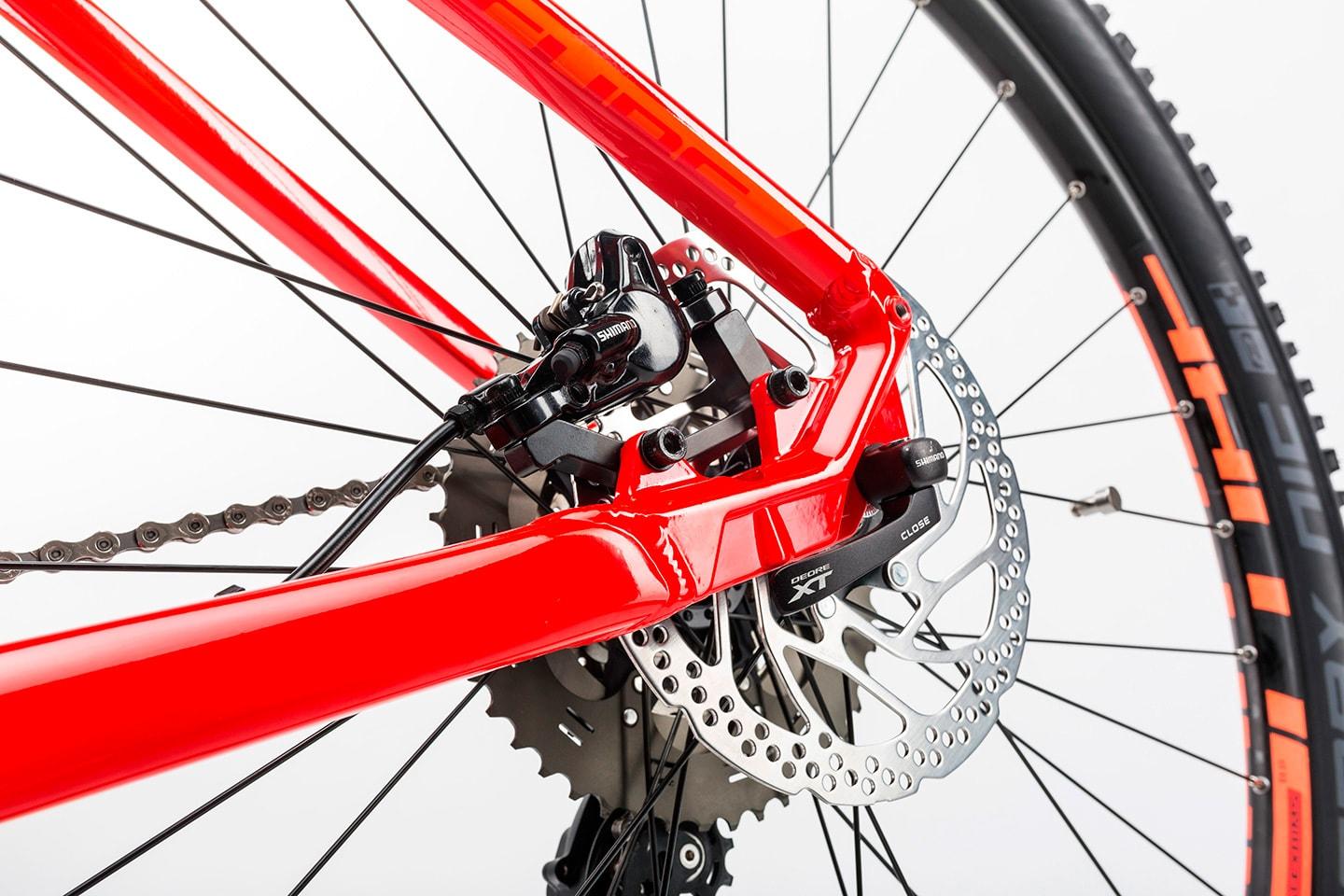

| BRAKE SYSTEM | Shimano Deore BR-M615, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-GS, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000-B-I, Direct Attach |

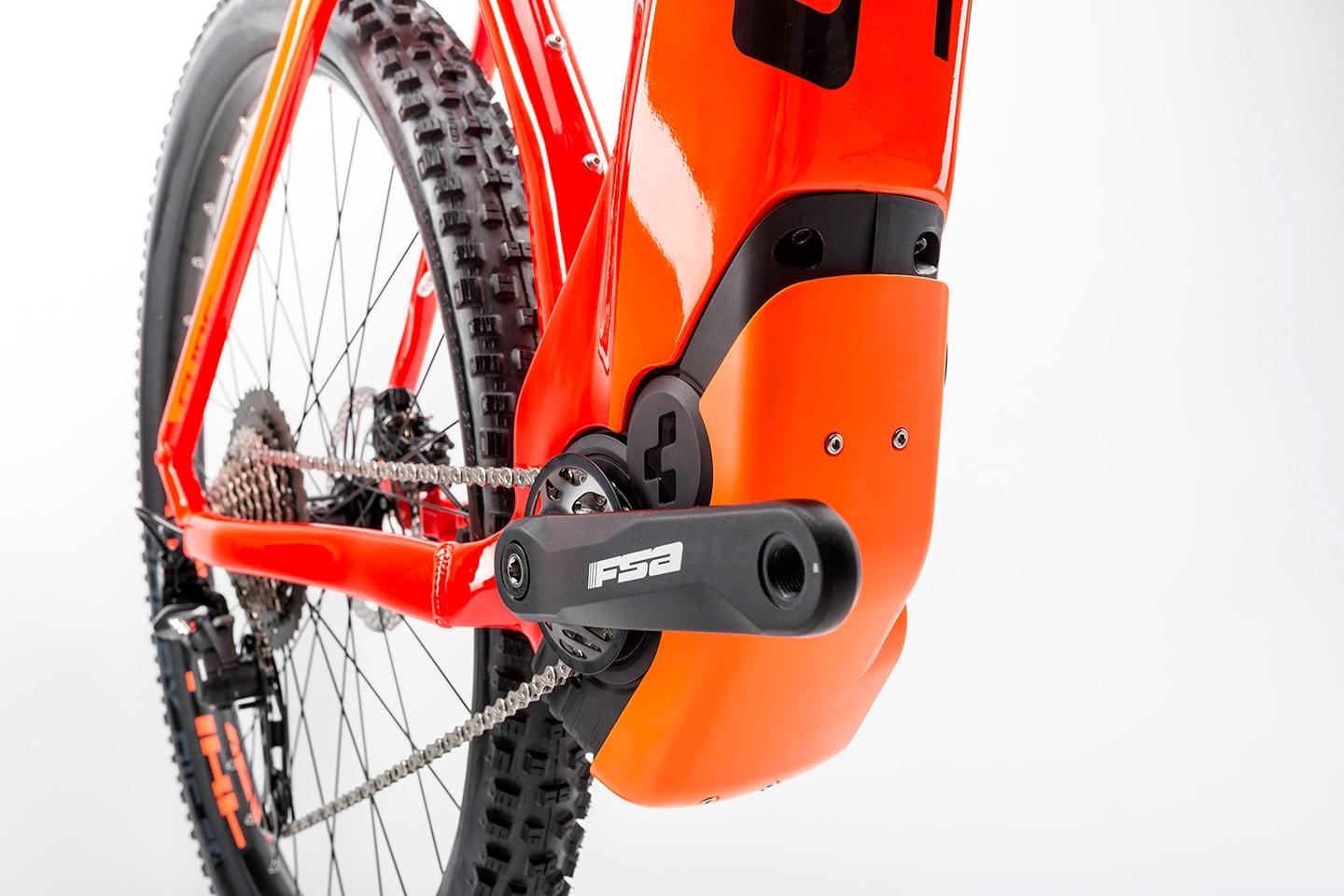

| CRANKSET | FSA CK-745, 16T |

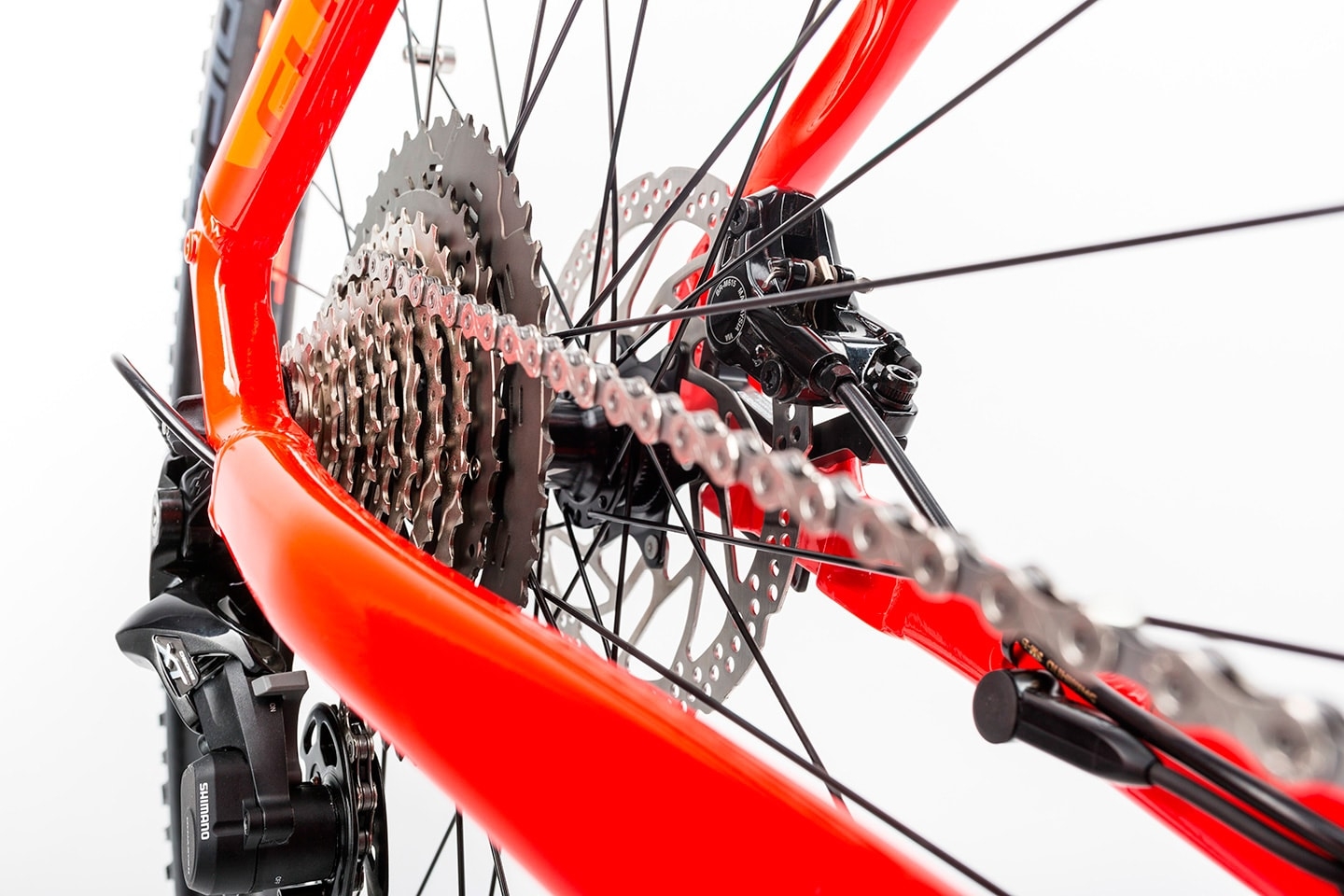

| CASSETTE | Shimano XT CS-M8000, 11-46T |
| CHAIN | KMC X11 |
| FRONT HUB | Shimano XT HB-M8000, QR, Centerlock |
| REAR HUB | Shimano XT FH-M8000, QR, Centerlock |
| RIMS | CUBE EX23, 32H, Disc, Tubeless Ready |
| TIRES | Schwalbe Nobby Nic, PerfL, 2.35 |

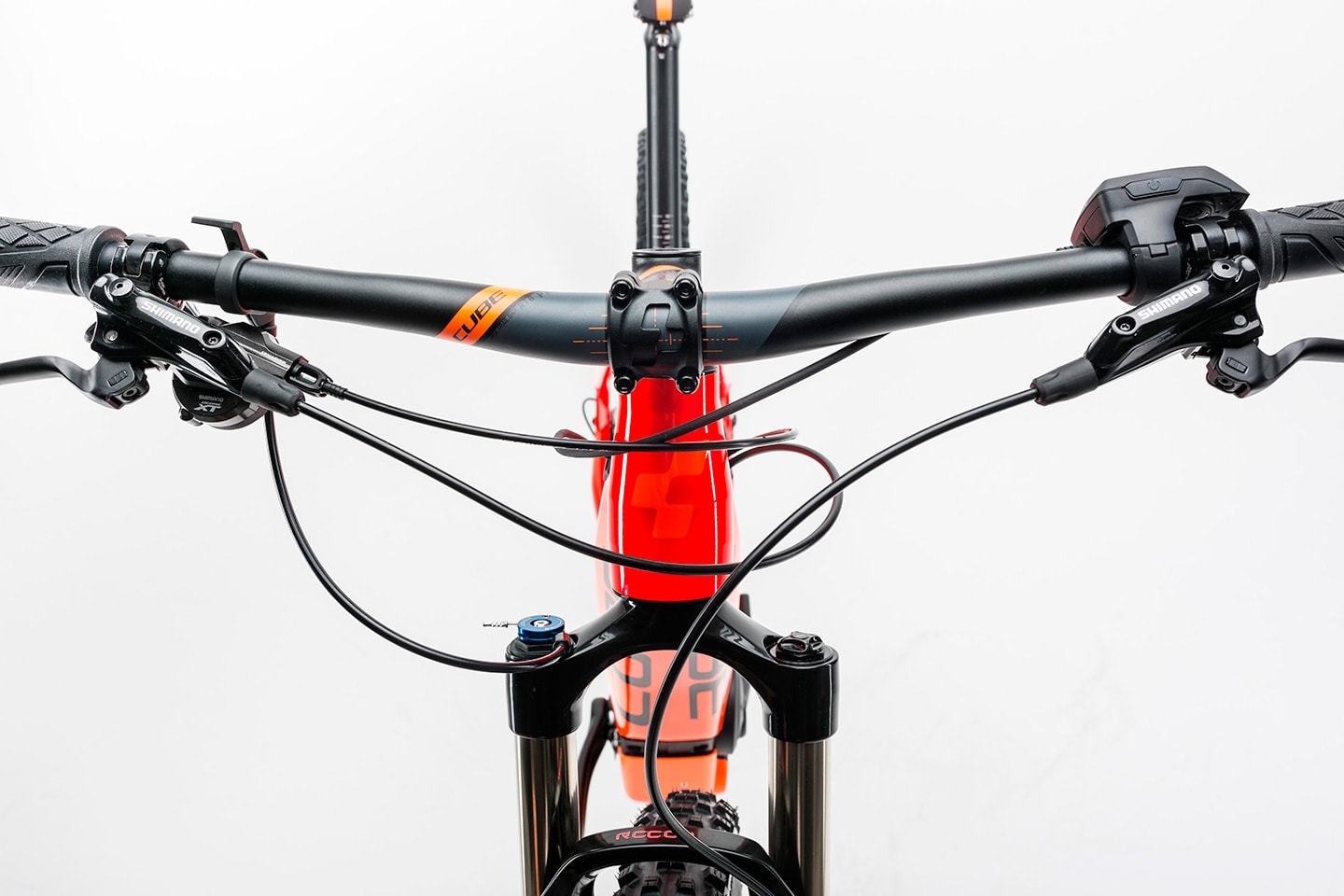

| HANDLEBAR | CUBE Rise Trail Bar Pro, 720mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Selle Royal MTB |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 21.5 kg |
| COLOR | red´n´flashorange |
| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

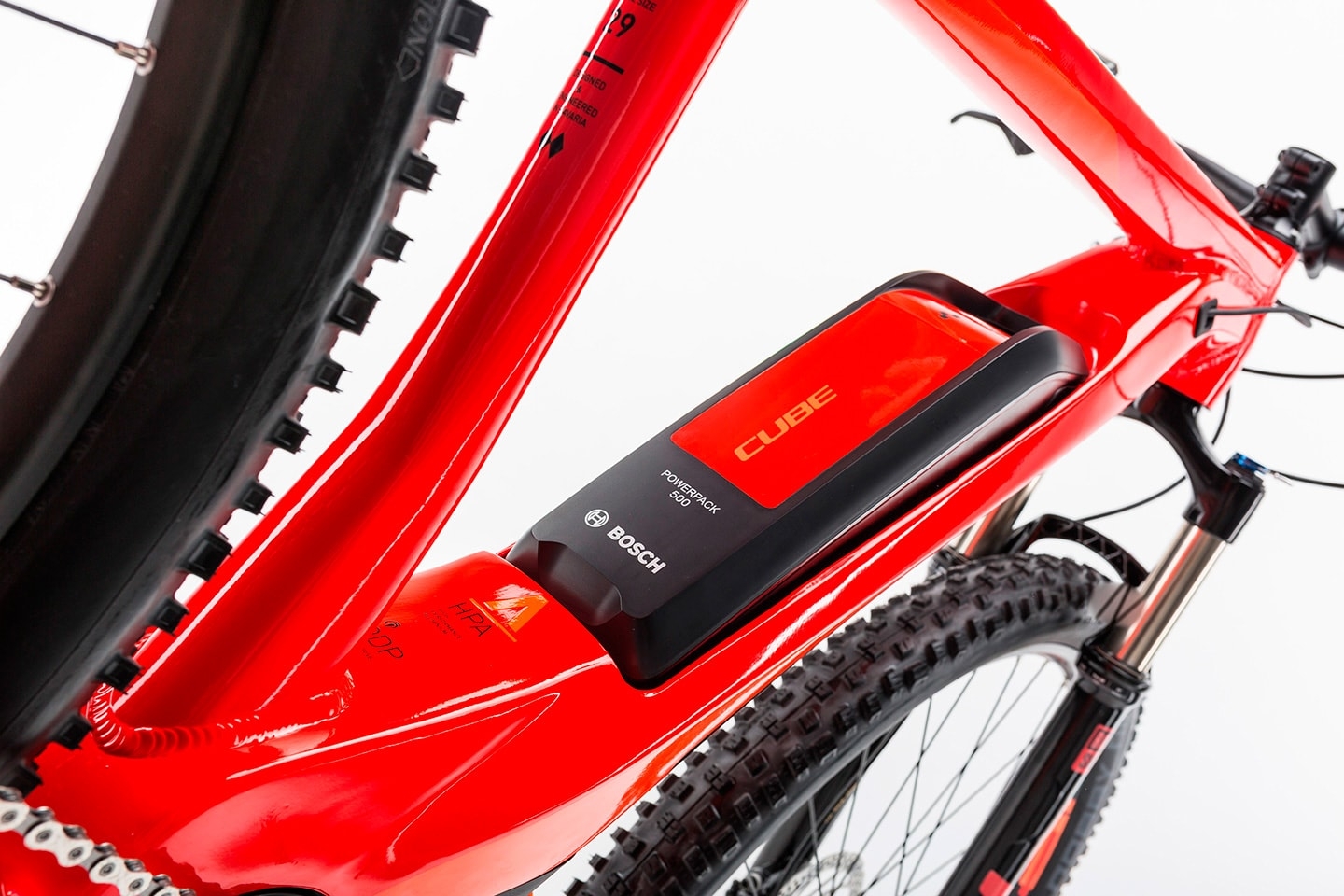

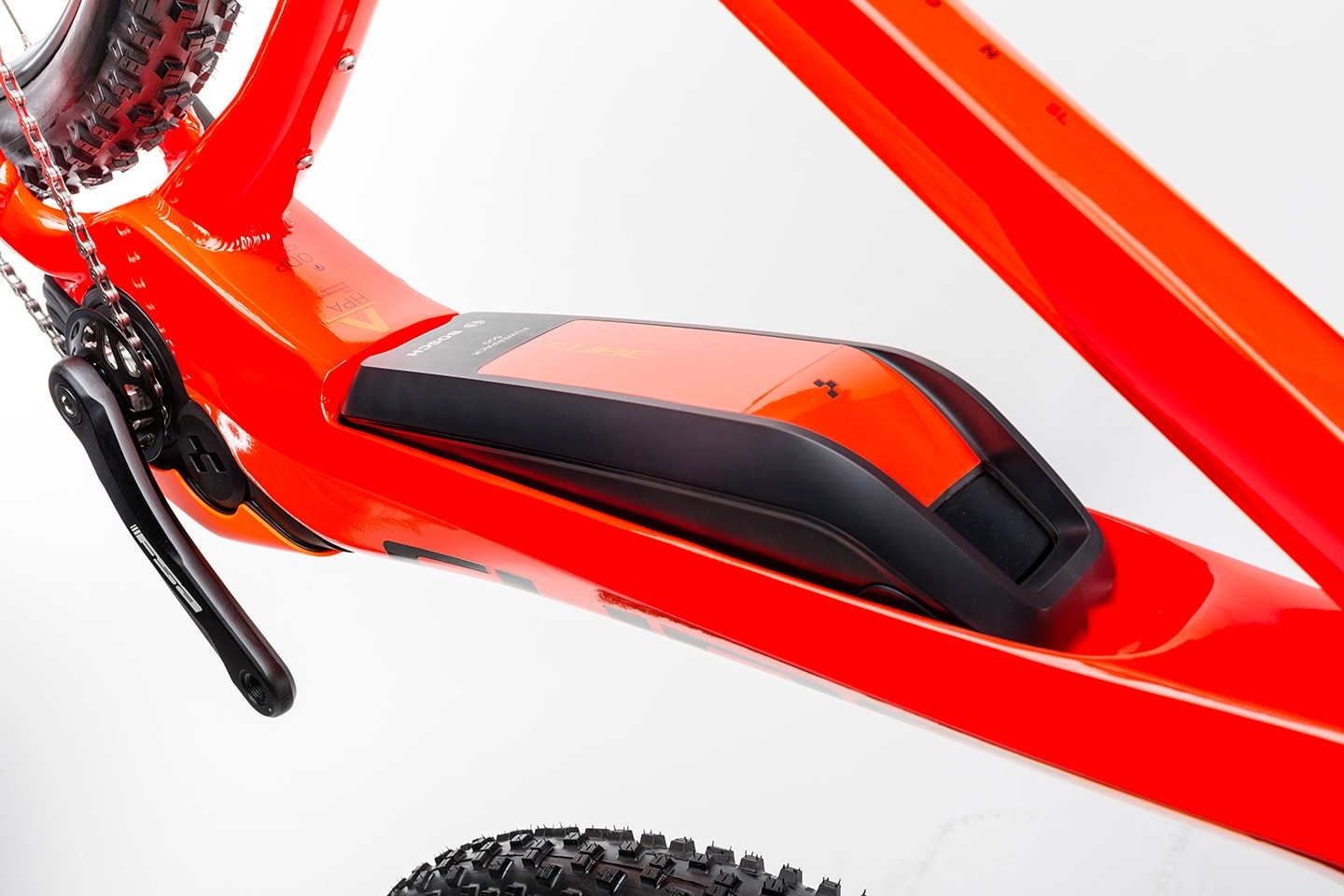

| BATTERY | Bosch PowerPack 500 |

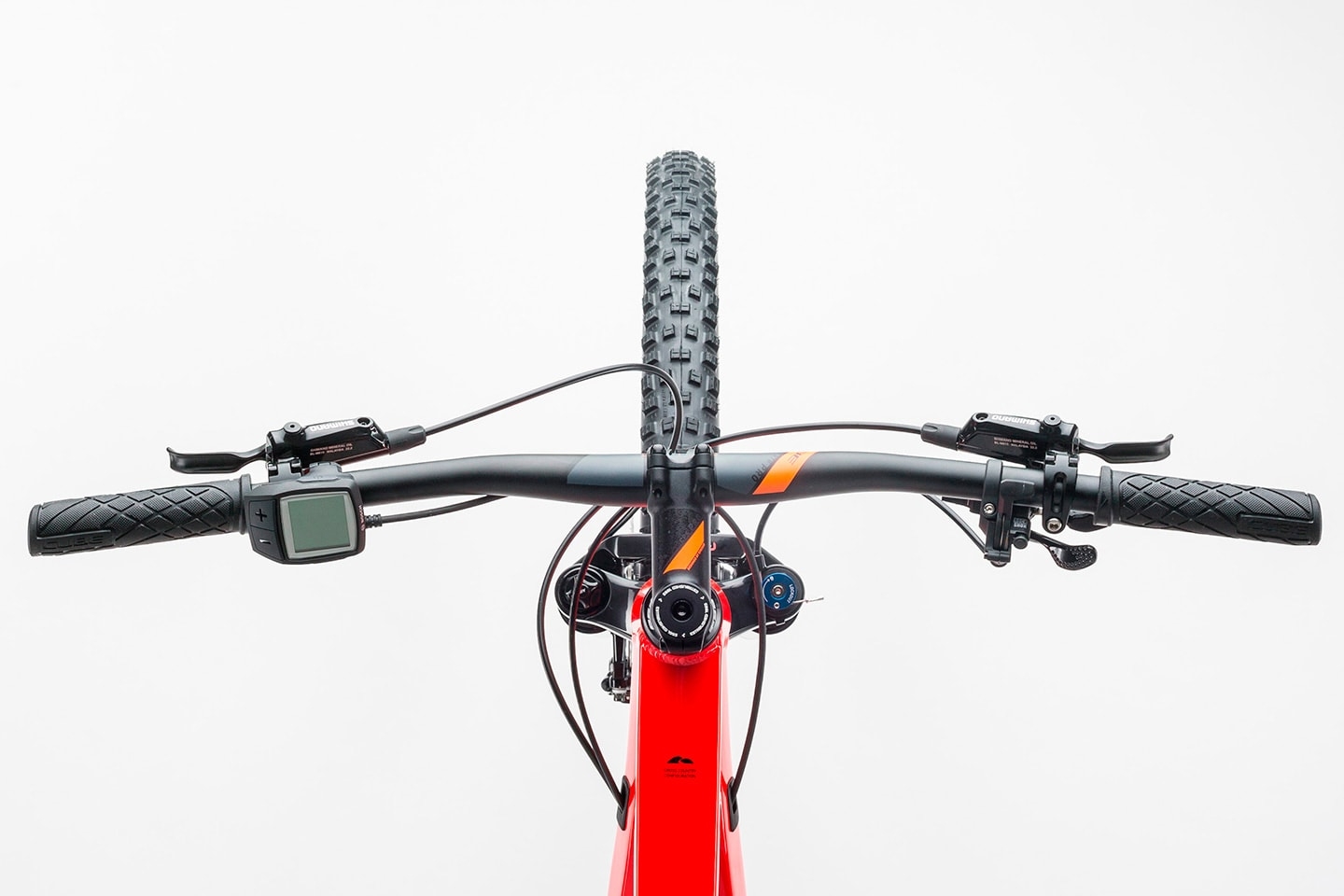

| DISPLAY | Bosch Purion |
| Bosch 4A | |
| BAR KODAS | 865171 |
Geometrija

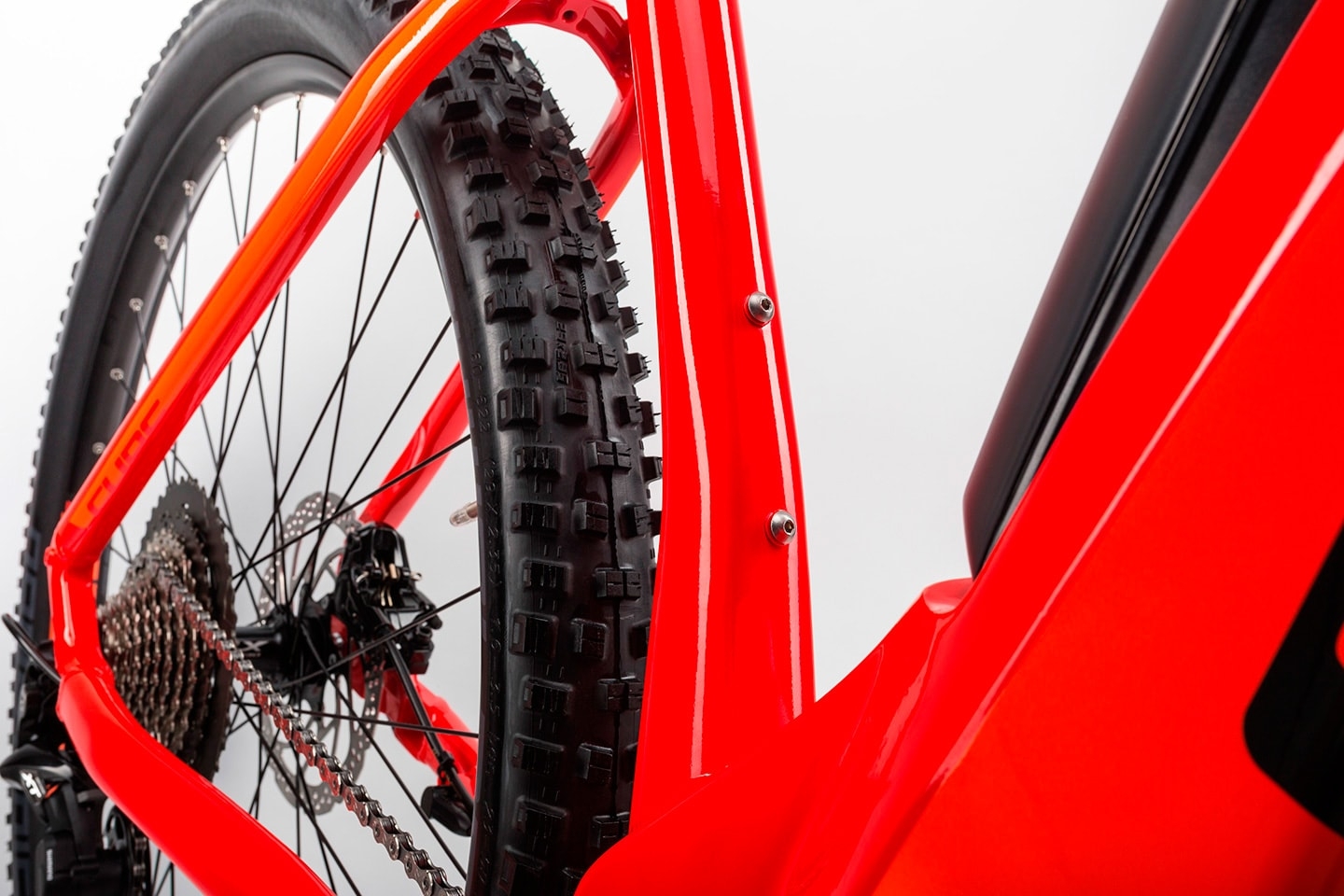

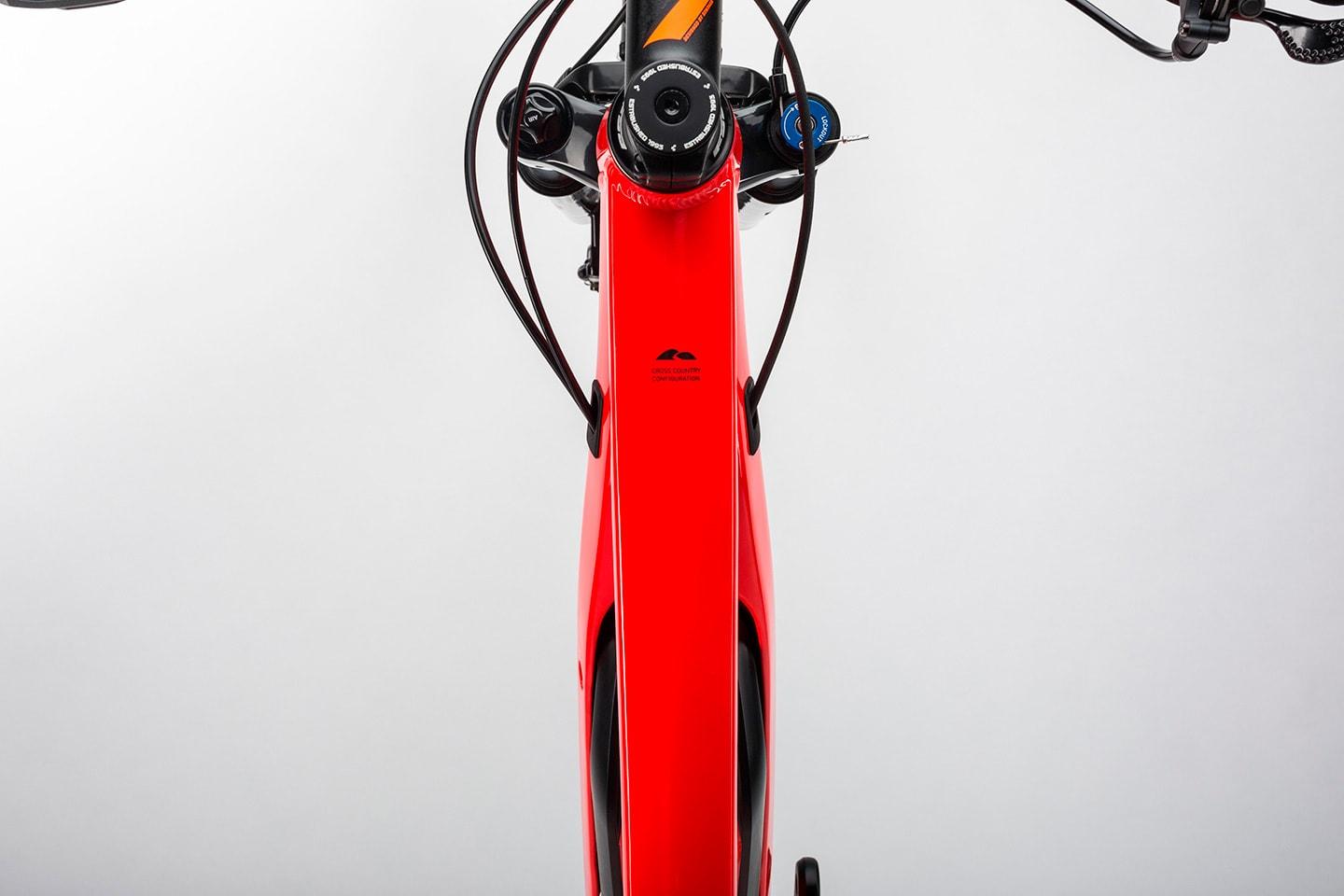

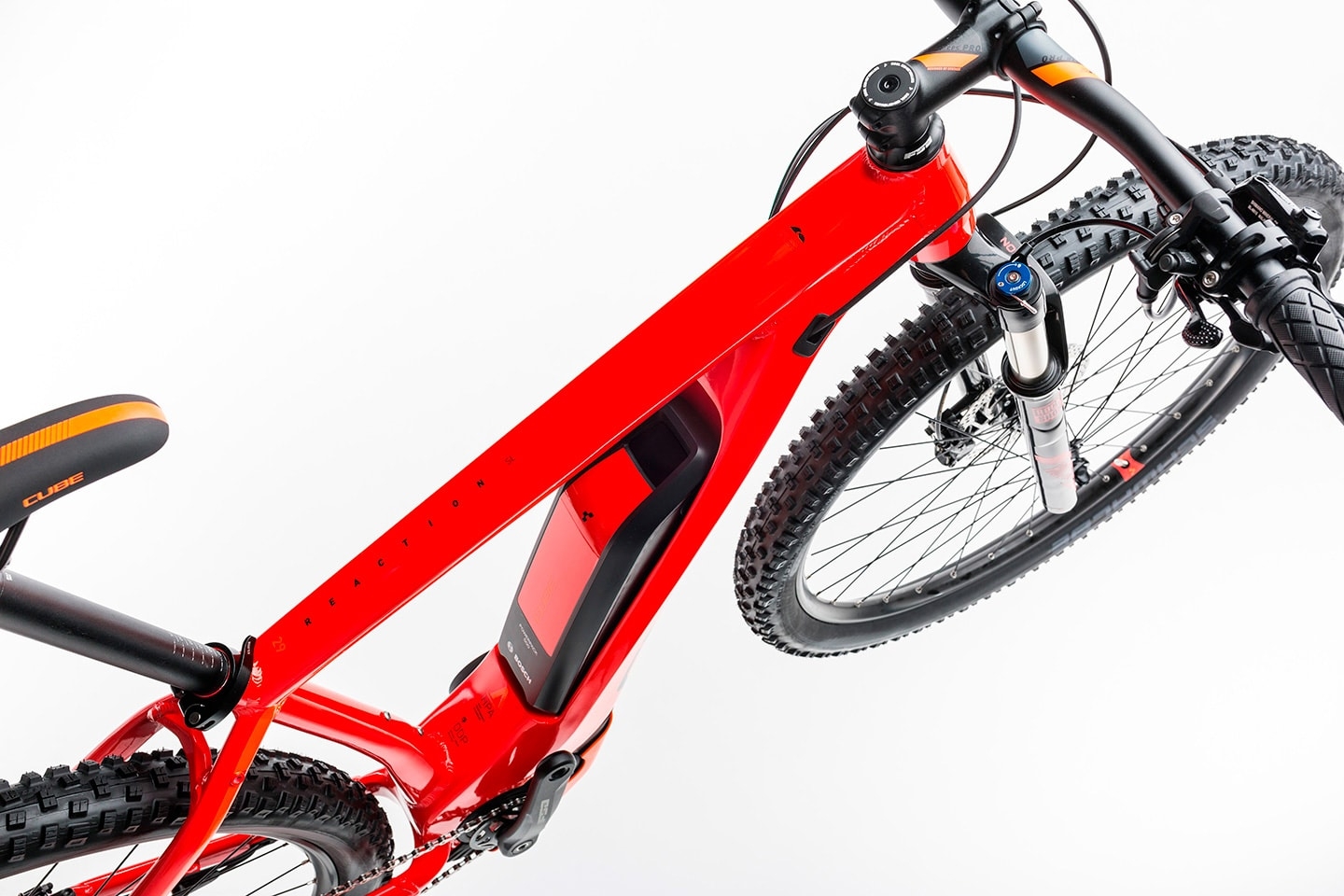

Frame: Our e-MTBs were already widely regarded as amongst the best out there, but we're always looking for improvements. So we started from the ground up for 2017, focussing our attention on integrating the Bosch motor and battery even more seamlessly into the frame. The result is cleaner looks, even better handling and easy-to-live-with touches like the ability to charge the battery without removing it from the frame. As you'd expect, CUBE's acclaimed Agile Ride Geometry continues to set the standard for e-bike handling, with a lower centre of gravity and the perfect blend of liveliness and stability. We even routed cables inside the frame, to protect them from damage.
