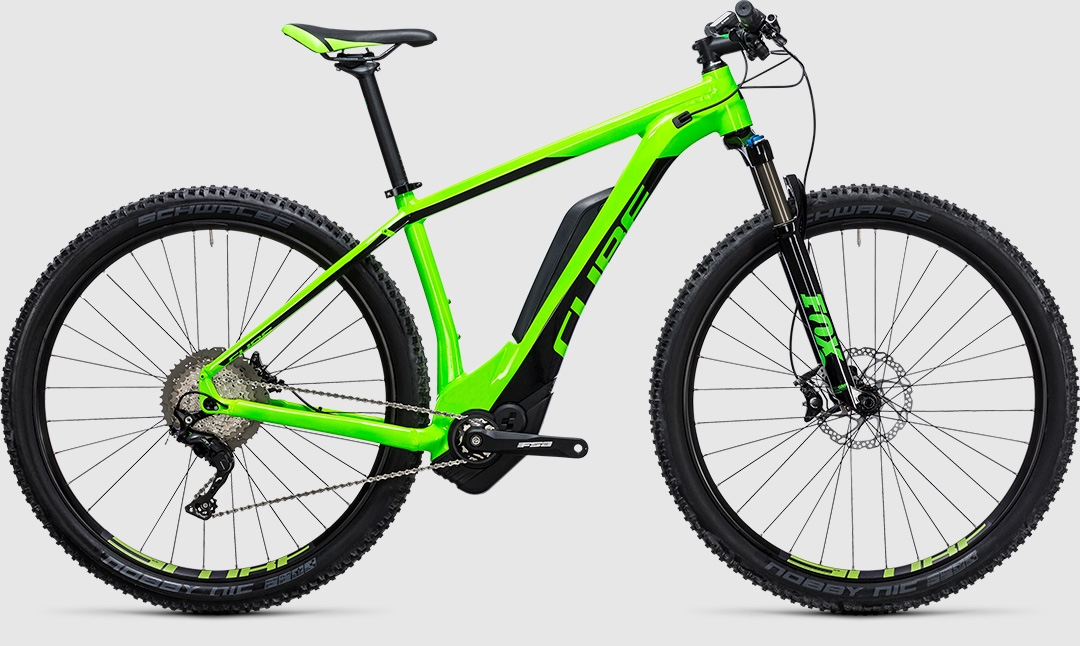

REACTION HYBRID HPA
SLT 500
The CUBE Reaction Hybrid SLT represents the state of the art in aluminium e-MTB technology. Whether it's the ultimate drivetrain performance or the best bike handling experience you're interested in, it all comes together here in a package that blends all our e-bike expertise in a single, exceptional hardtail. And with our Size Split setup you'll always be able to find the right frame and wheel size combination, whatever your height.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Boost, X12, Internal Cable Routing |
|---|---|
| SIZE | 27.5: 16", 18" // 29: 17", 19", 21", 23" |

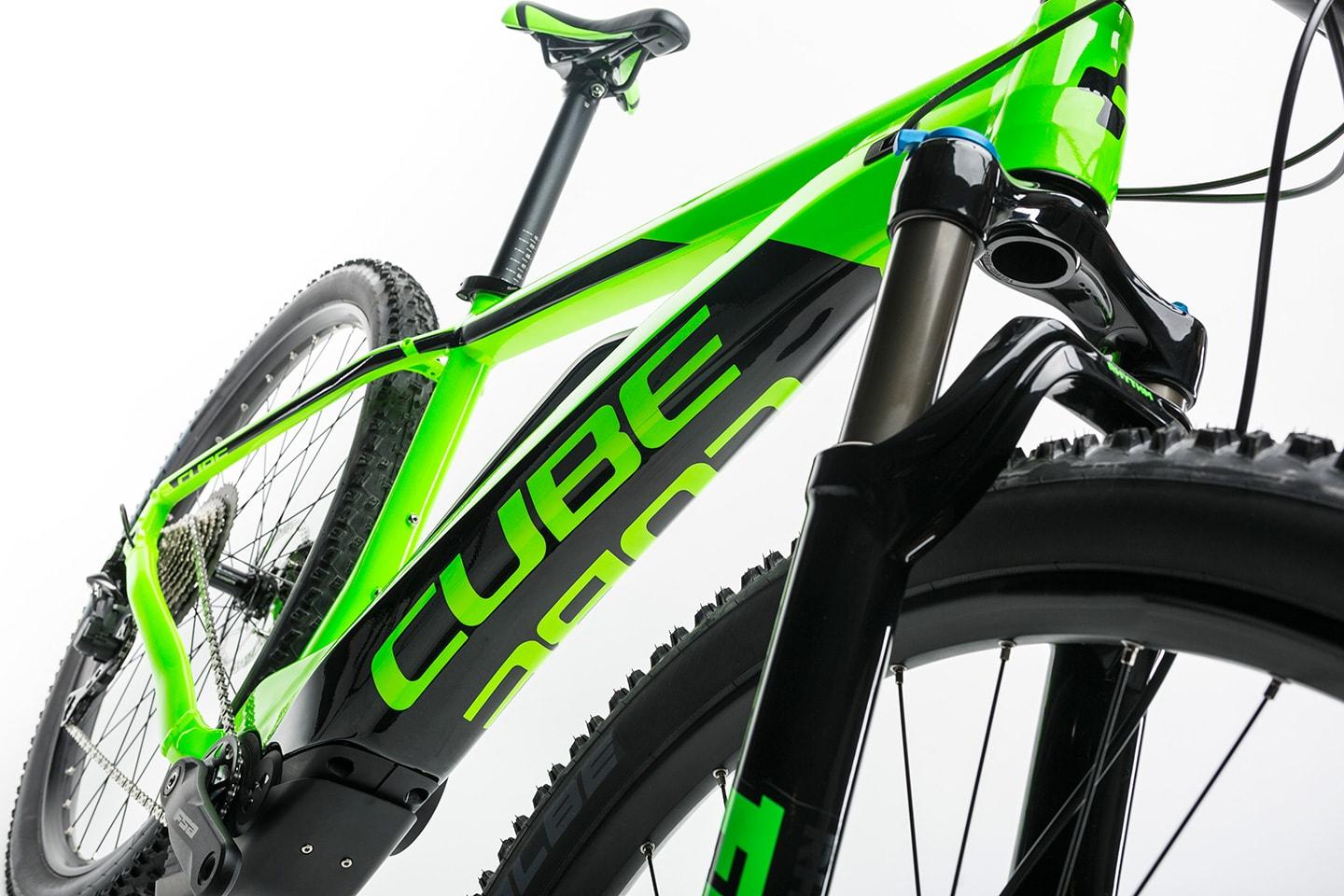

| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, Boost 15QR, 100mm |

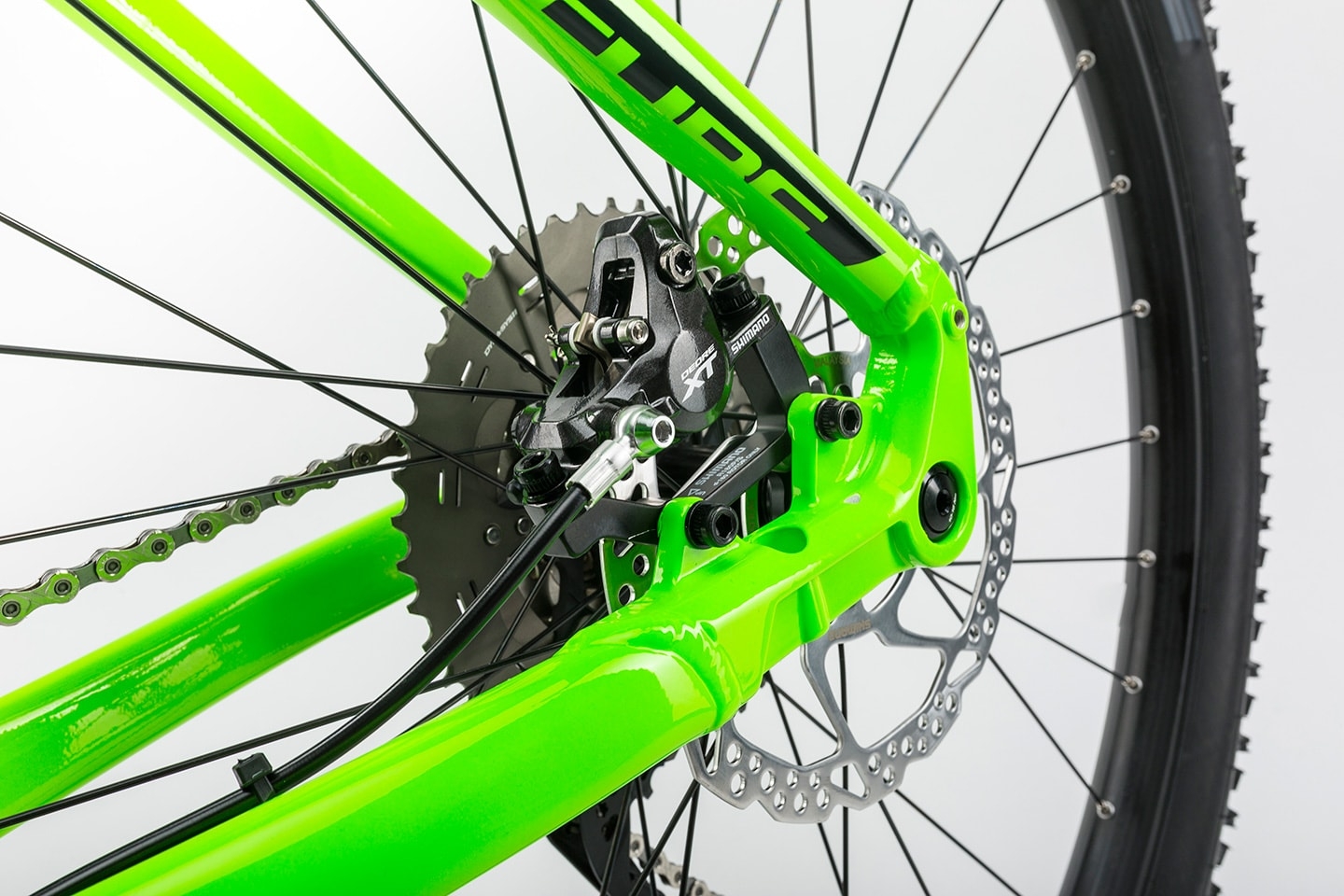

| BRAKE SYSTEM | Shimano XT BR-M8000, Hydr. Disc Brake (180/180) |

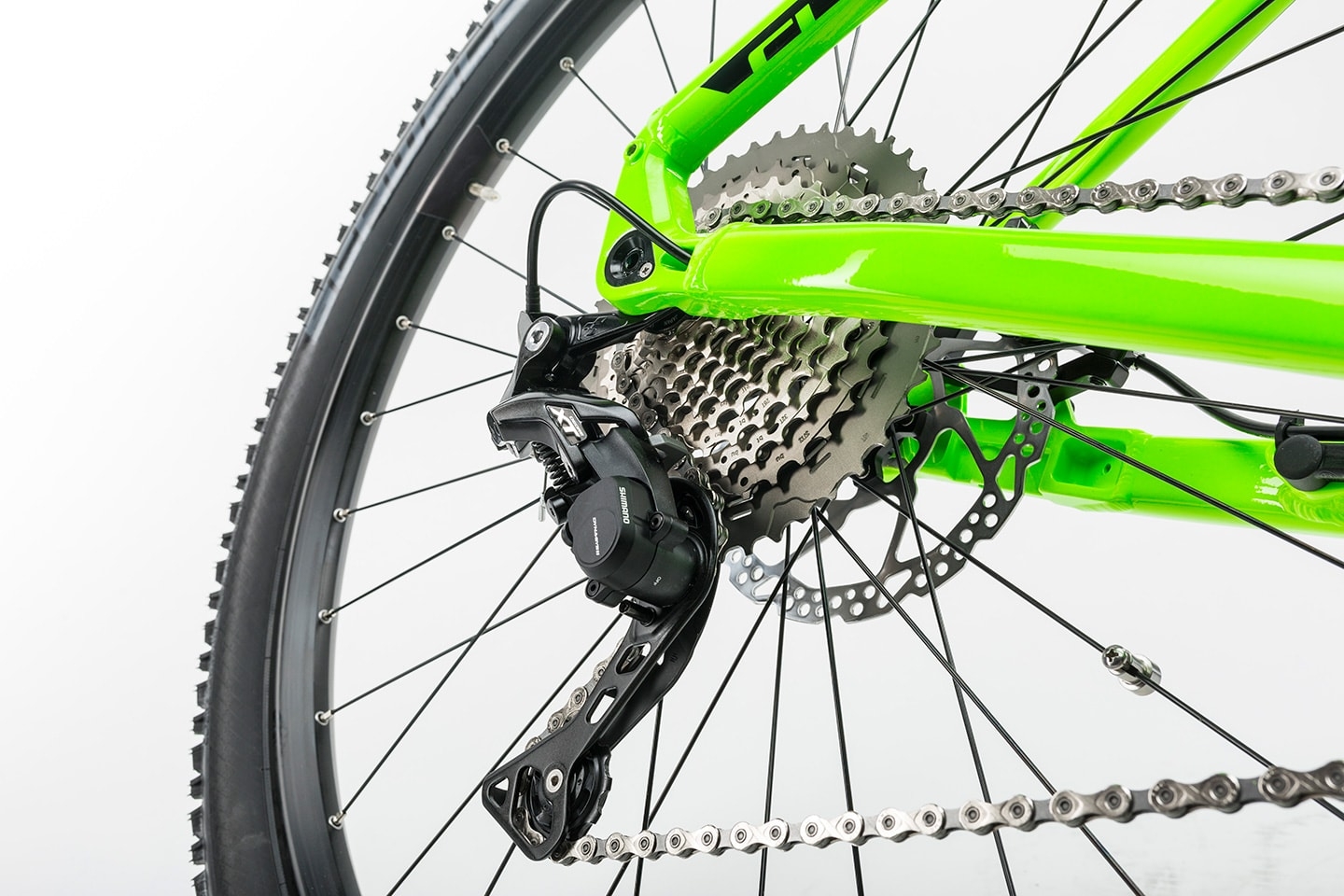

| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| SHIFTERS | Shimano XT SL-M8000-I, Direct Attach |
| CRANKSET | FSA CK-745, 16T |
| CASSETTE | Shimano XT CS-M8000, 11-46T |
| CHAIN | KMC X11 |
| FRONT HUB | Shimano XT FH-M8010-B, 15QR, Boost |

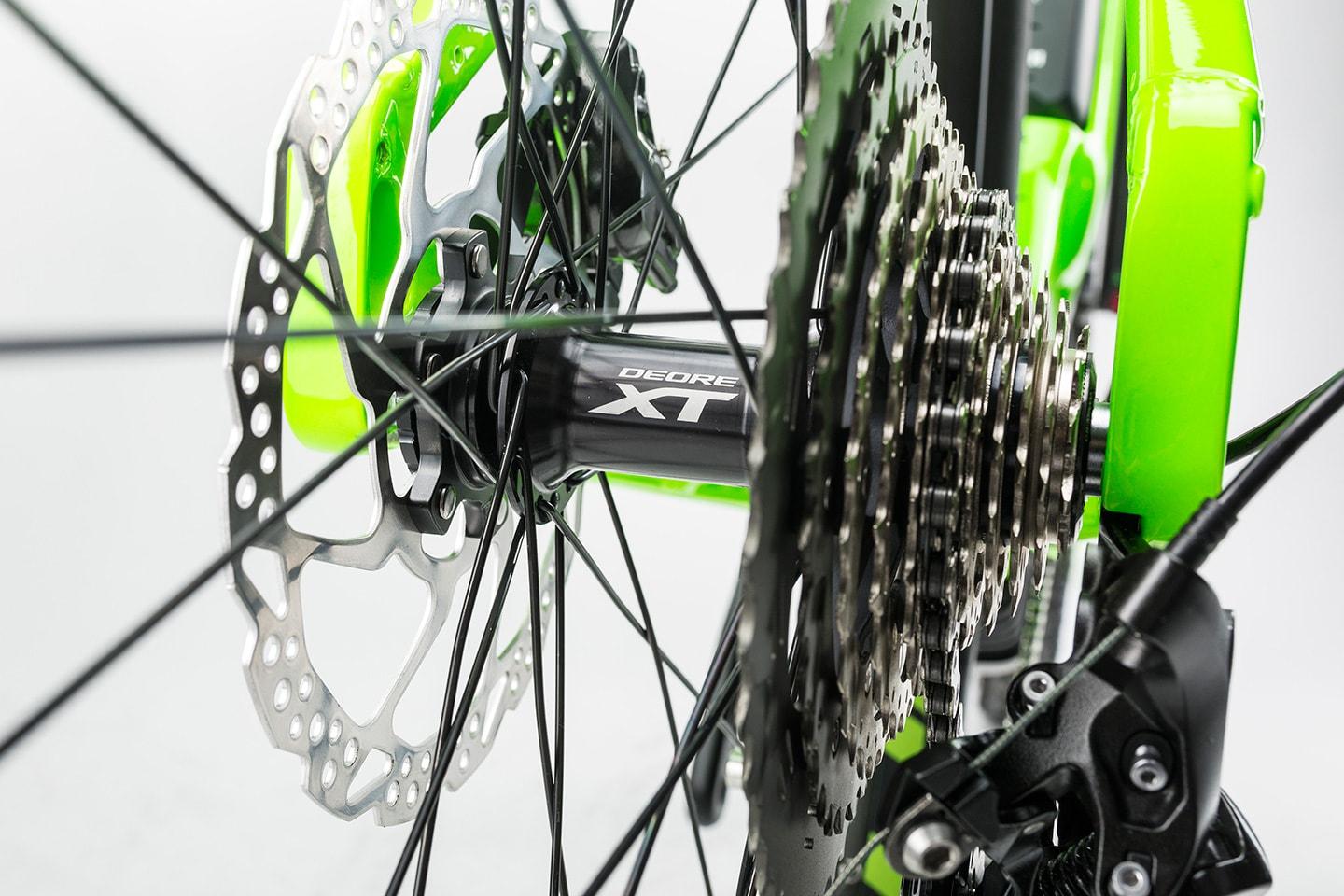

| REAR HUB | Shimano XT FH-M8010-B, X12, Boost |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| FRONT TIRE | Schwalbe Nobby Nic Kevlar 2.6, TrailStar, Tubeless Easy |
| REAR TIRE | Schwalbe Nobby Nic Kevlar 2.6, PaceStar, Tubeless Easy |

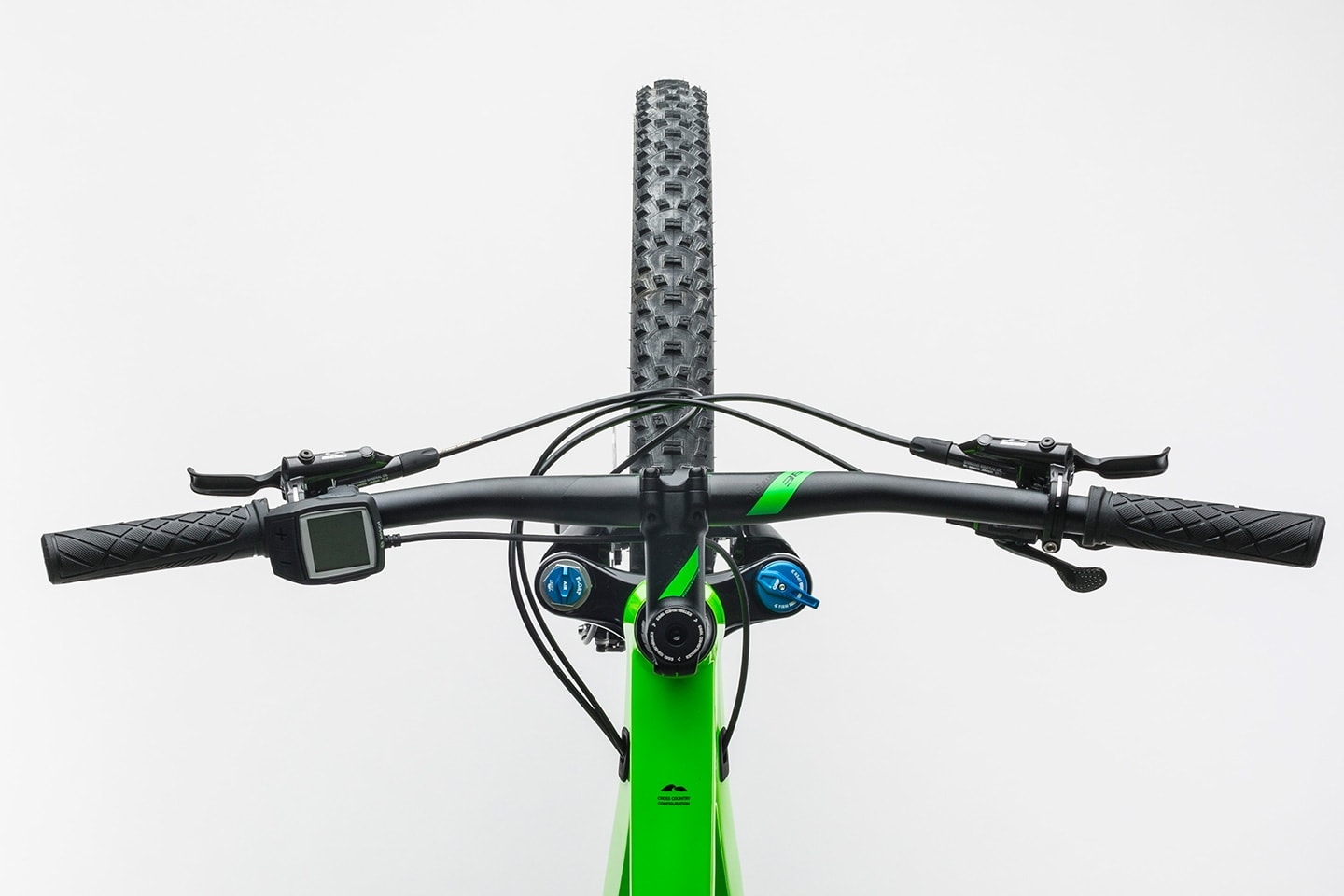

| HANDLEBAR | CUBE Rise Trail Bar Pro, 720mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Selle Royal VOGA |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 21.2 kg |
| COLOR | green´n´flashgreen |

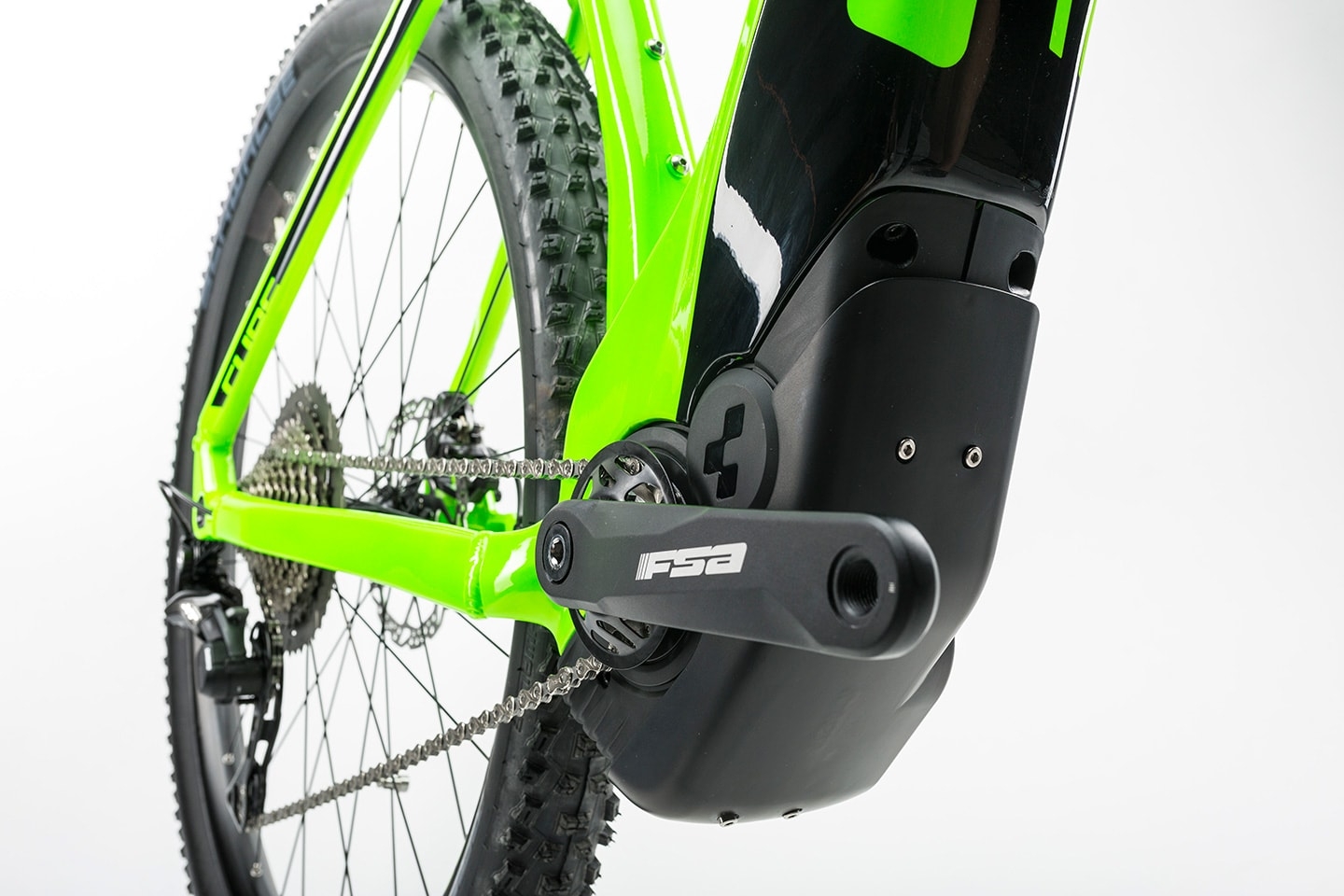

| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

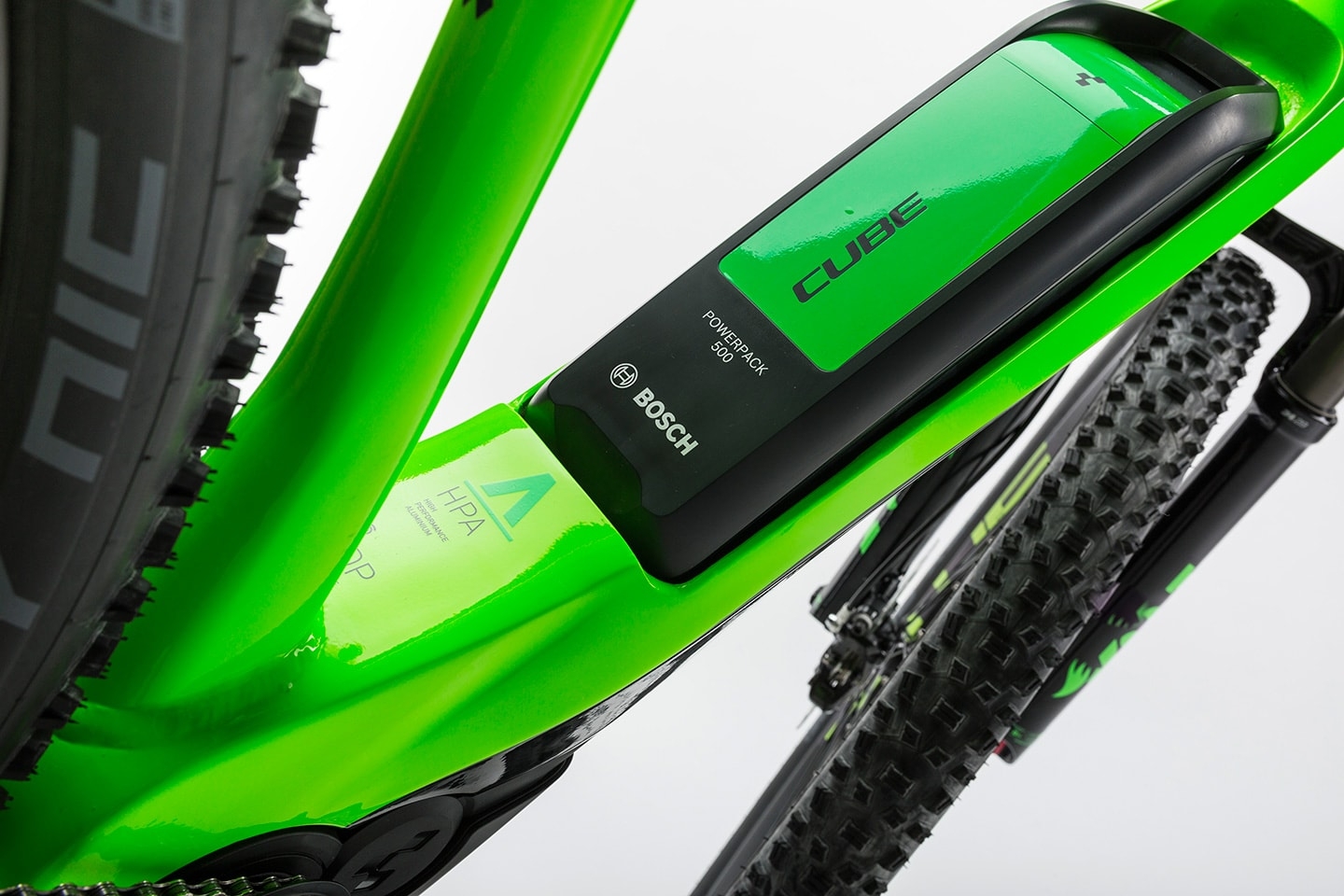

| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Purion |
| Bosch 4A | |
| BAR KODAS | 865250 |
Geometrija

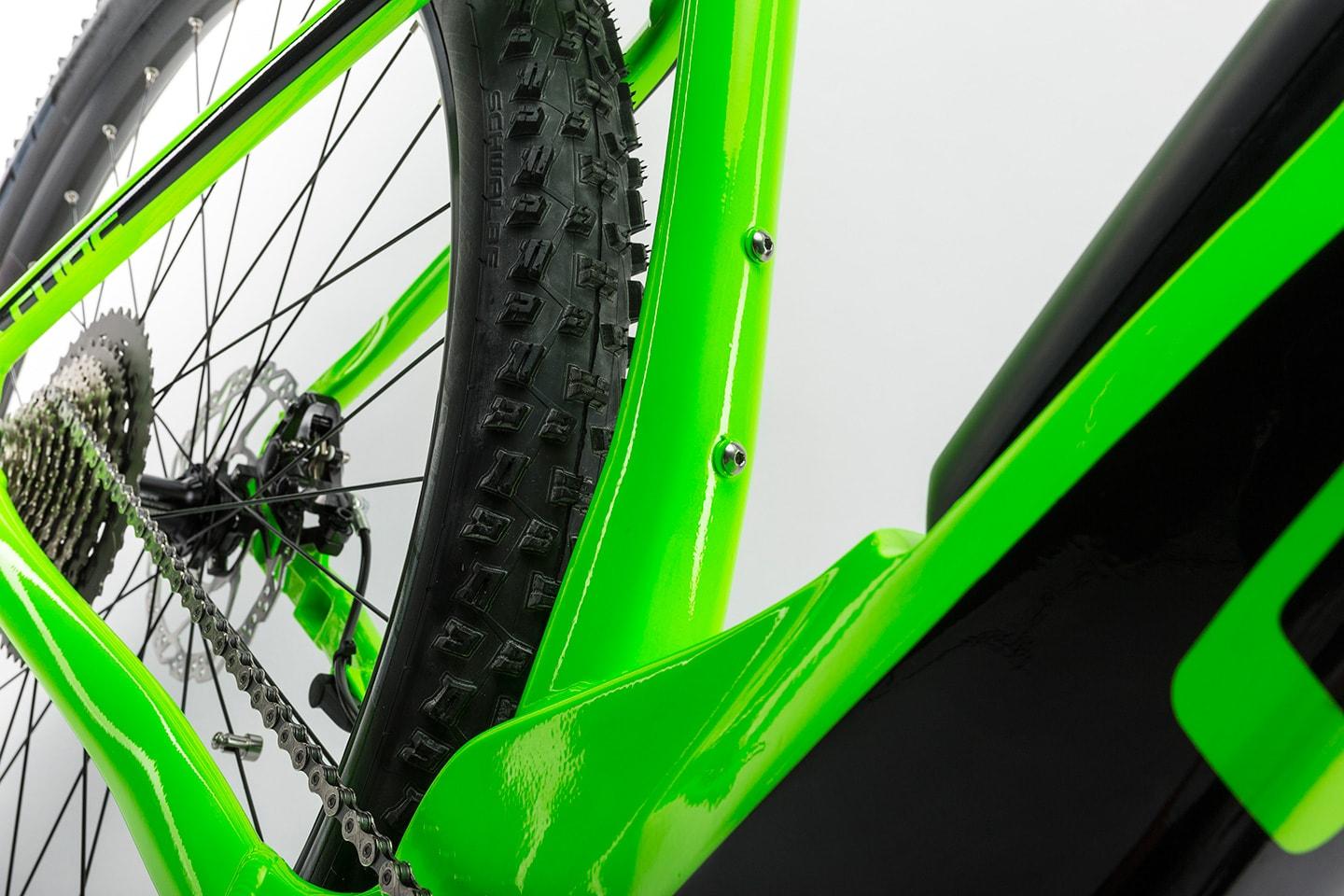

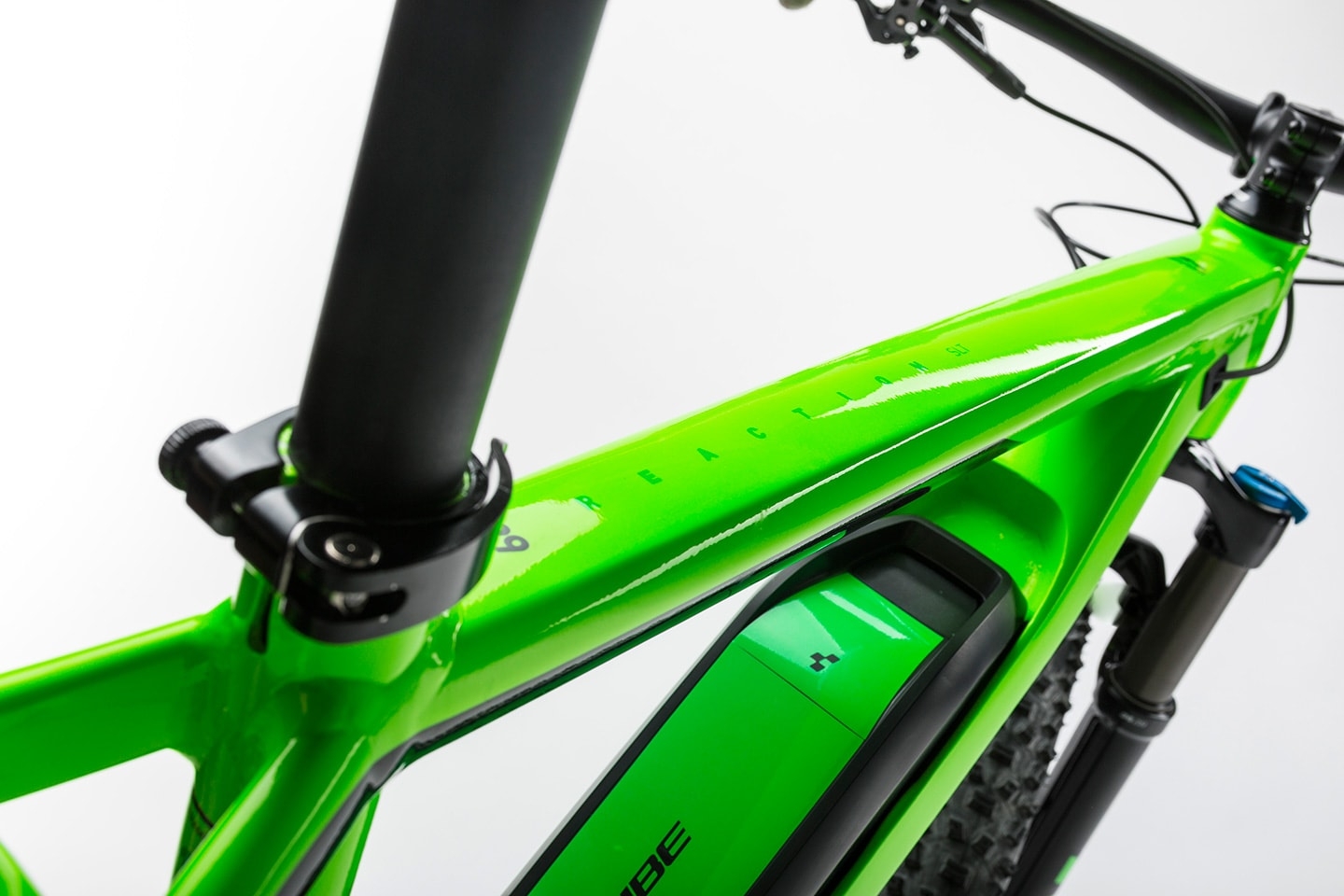

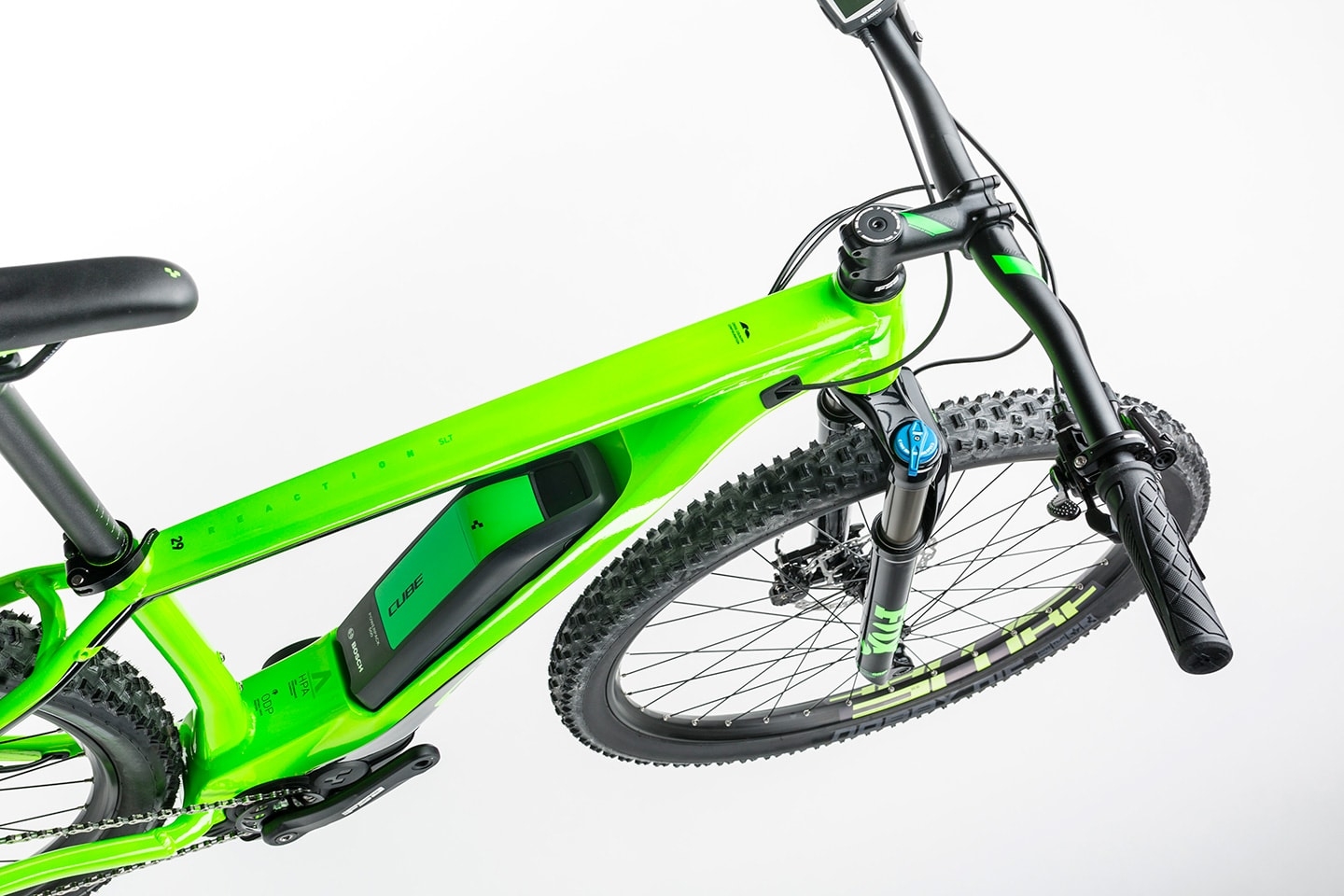

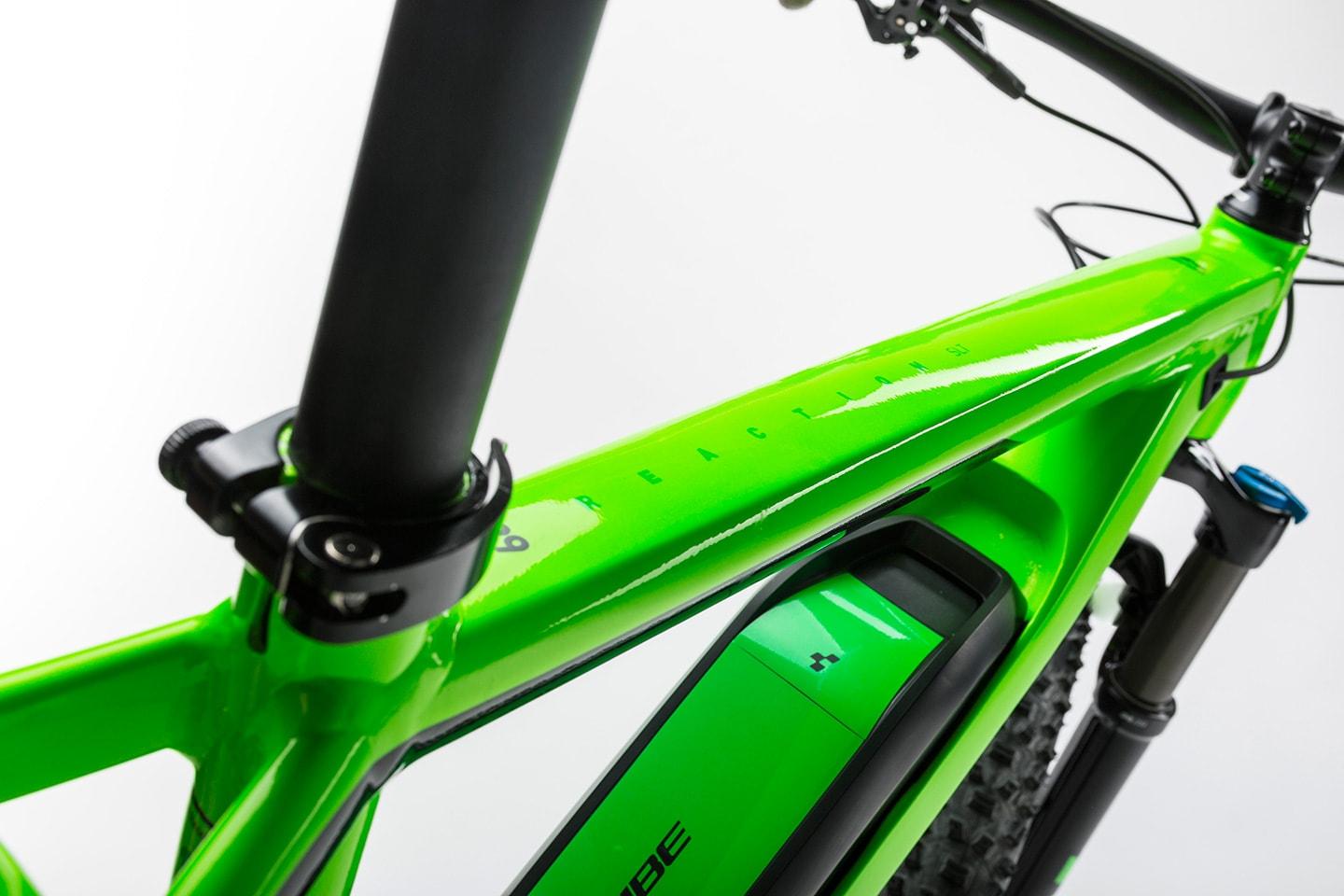

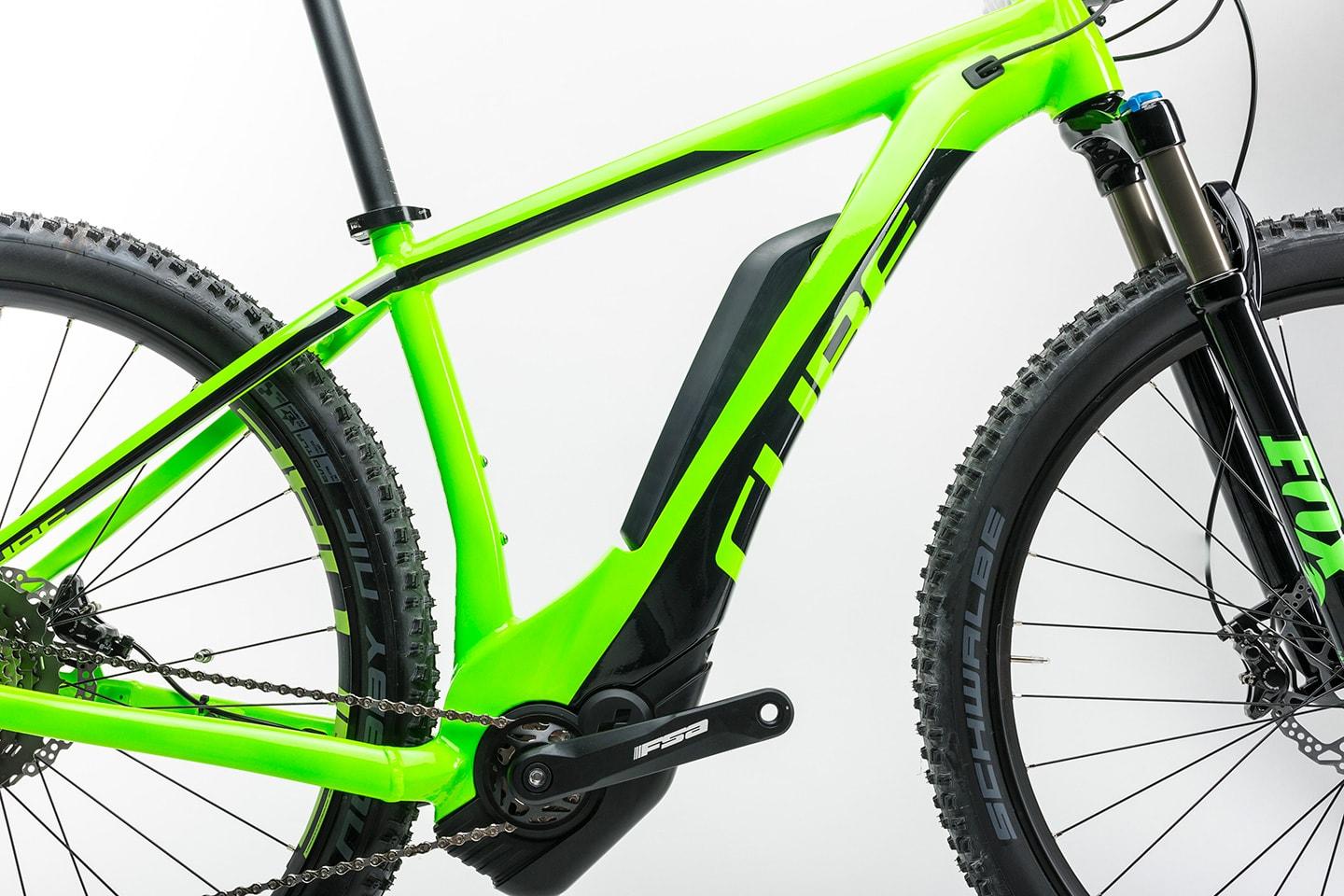

Frame: The evolution continues with a completely redesigned chassis for 2017. We took everything we know about building e-MTBs and started from scratch, integrating the Bosch motor and battery unit into the bottom bracket and down tube for better looks, improved functionality and handling that will surpass your expectations. Our Agile Ride Geometry has always ensured a great combination of stability and liveliness, but a lower centre of gravity and shorter chainstays for 2017 make the results even better. You can even leave the battery in place in the frame for charging, while internal cable routing protects the gear shift cable against damage and enables easy and comfortable gear shifting.
