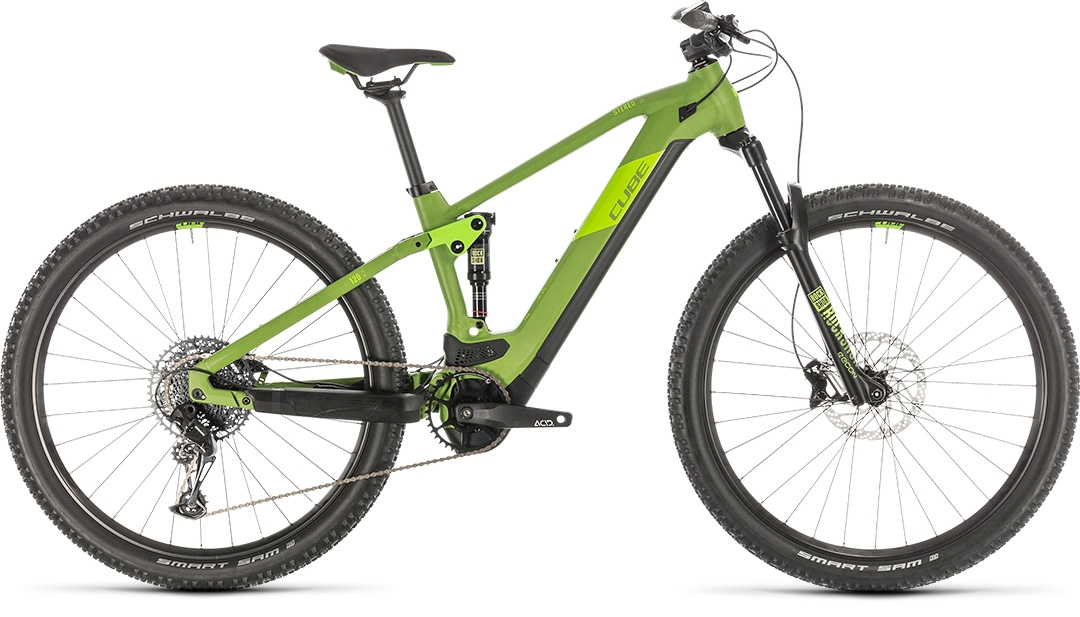

STEREO HYBRID 120
PRO 500 29
When your off-road ambitions begin to shift from exploring to adventure, it helps to have a bike that'll make your life a little easier. Our ever-popular, trail-taming Stereo Hybrid 120 Pro is that bike. Completely redesigned for 2020, its comfortable, stable handling, smooth Bosch drive unit and plush CUBE suspension system add up to an incredibly effective way to expand your trail riding horizons: a Bosch e-bike for explorers. Our brand-new CUBE Modular Battery System houses the power unit discreetly in the gravity cast down tube, with a push-button battery cover and hidden lock. This doesn't just look great, it also keeps it safe from dirt and water, and gives the option of an even bigger capacity battery for extended range. The brand-new, fourth-generation Bosch motor is housed in a vented enclosure with easy one-screw access, seamlessly super-charging your pedalling by transferring its power to the Boost 148 rear end via Sram's easy-to-use, incredibly wide-ranging SX Eagle 12-speed transmission. Agile Comfort Geometry puts you in charge and looks after your comfort, too, thanks to our sophisticated four-bar suspension design and Trunnion RockShox Deluxe Select shock and RockShox Recon RL air fork. And, when it comes to descending the climb you've just breezed up in less time than you thought possible, powerful Shimano hydraulic disc brakes combined with 2.6in Schwalbe Smart Sam tyres ensure that you've got all the grip and control that you need. We even made the frame kickstand-ready, so you don't need to rely on the nearest wall or tree. Wherever your riding takes you, the Stereo Hybrid 120 Pro gives you the inspiring control, ground-hugging comfort and Bosch e-power boost you need to explore further.
AUSSTATTUNG

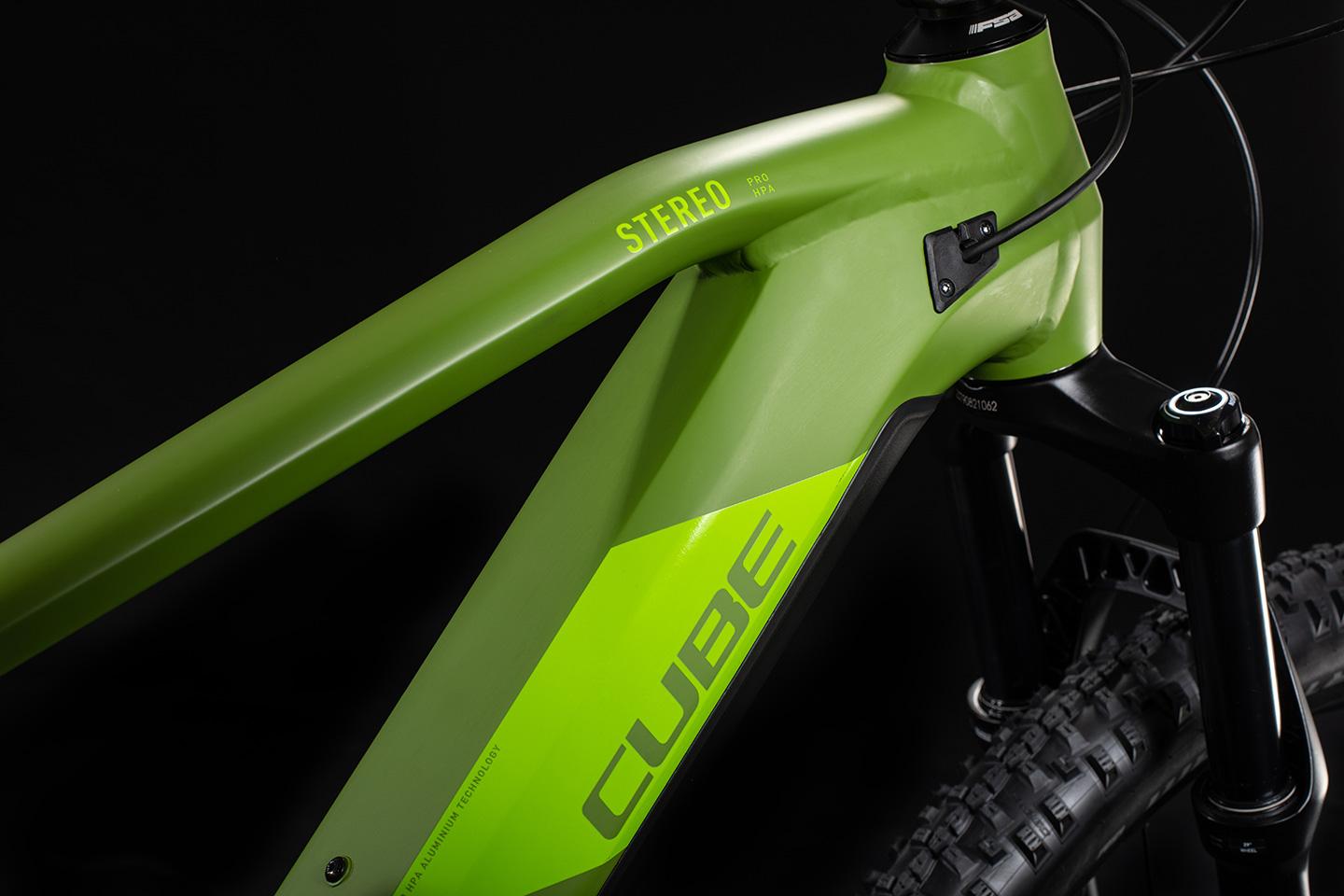

| FRAME | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | RockShox Recon RL Air, Tapered, 15x110mm, eMTB Approved, 120mm |

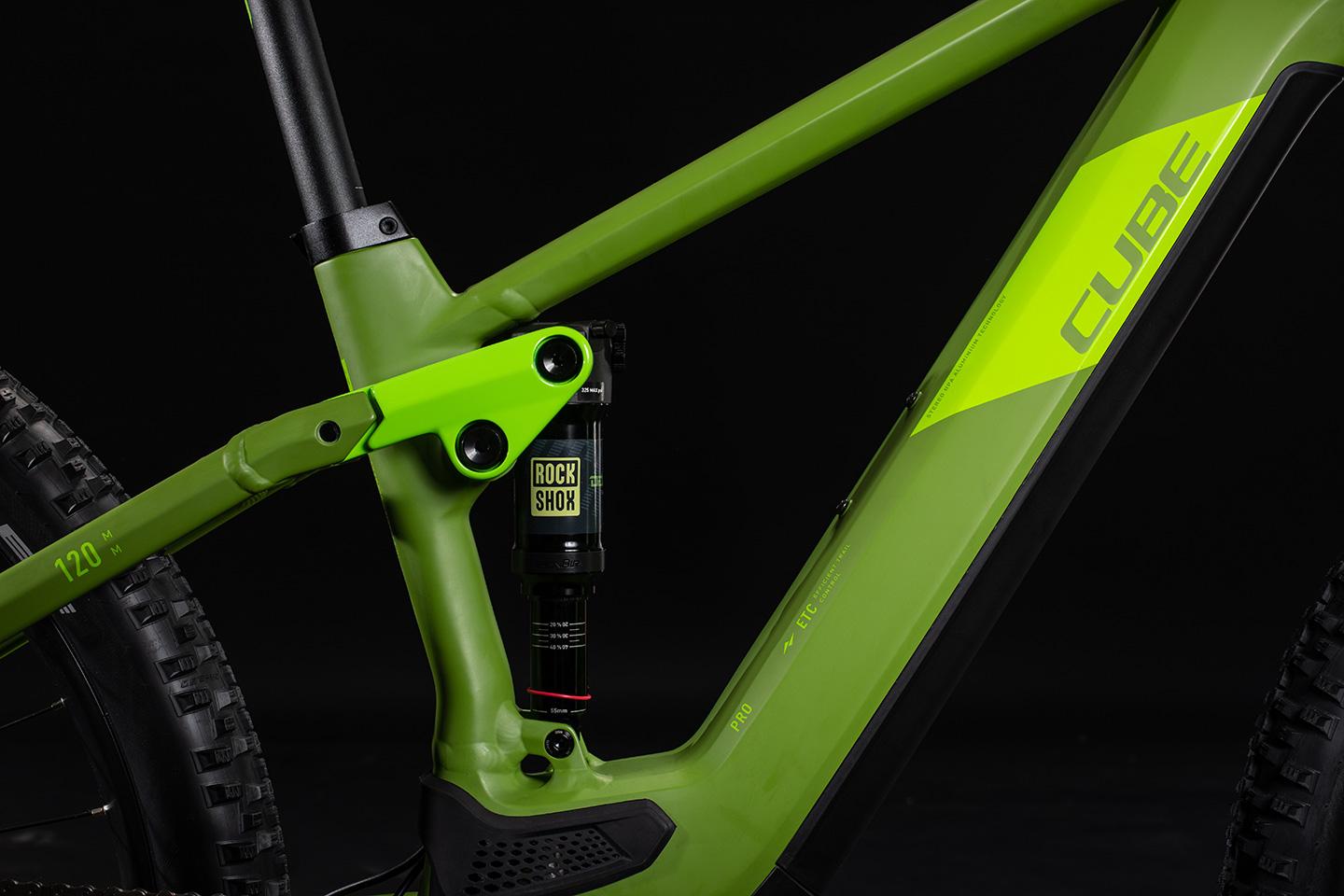

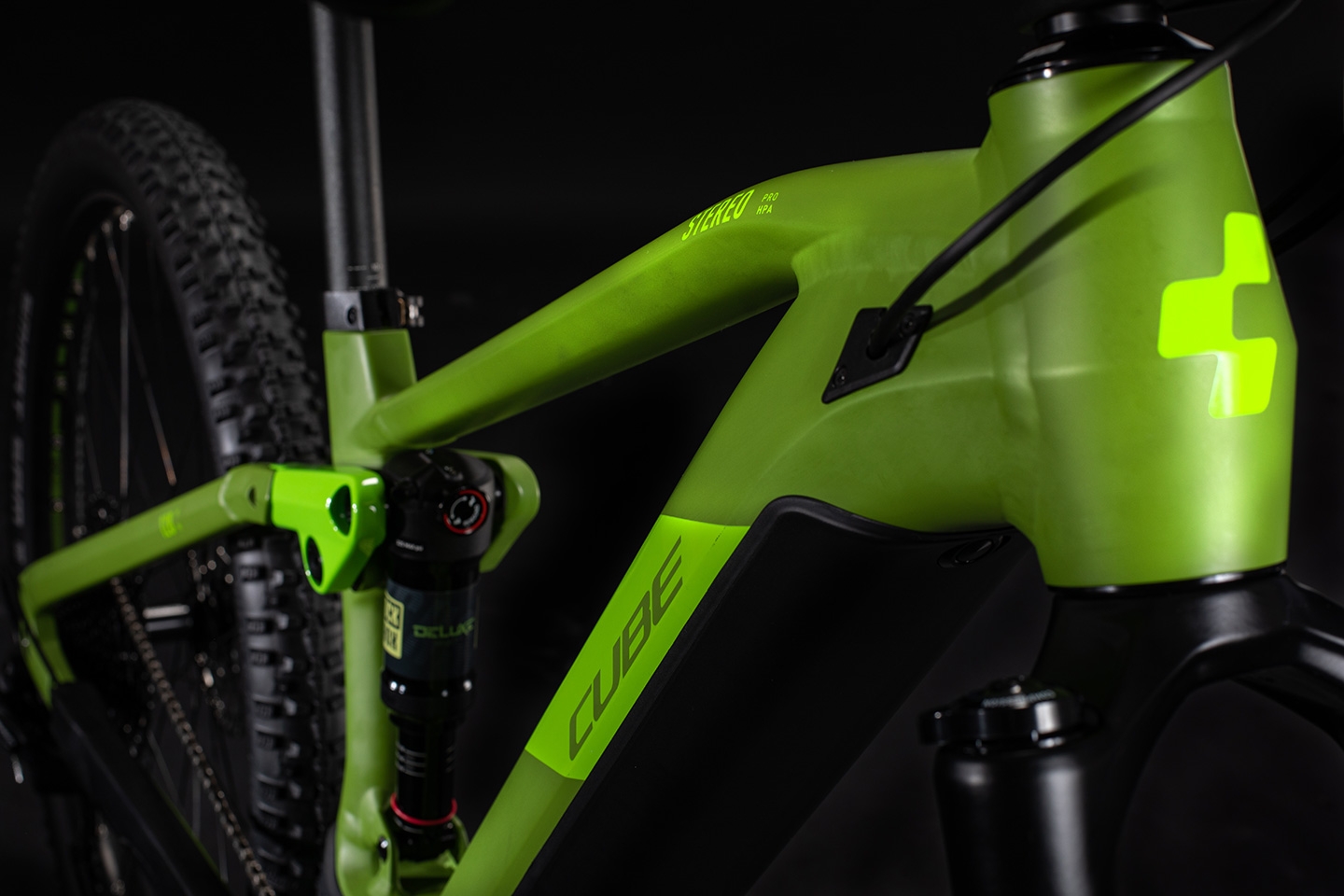

| SHOCK | RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano BR-MT420/MT400, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Sram SX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger, Single Click |

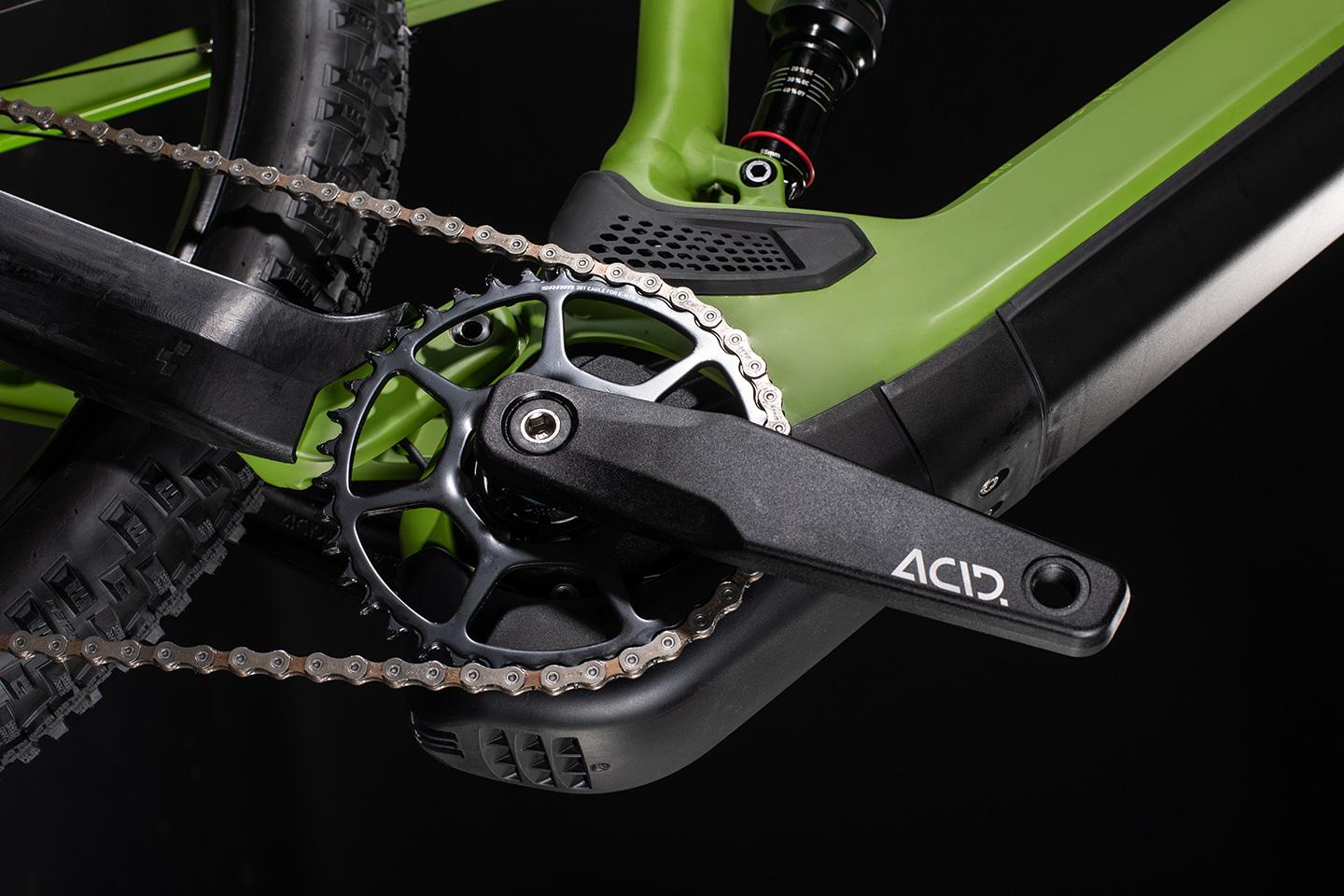

| CRANKSET | ACID E-Crank, 38T, 170mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Active, 2.60 |

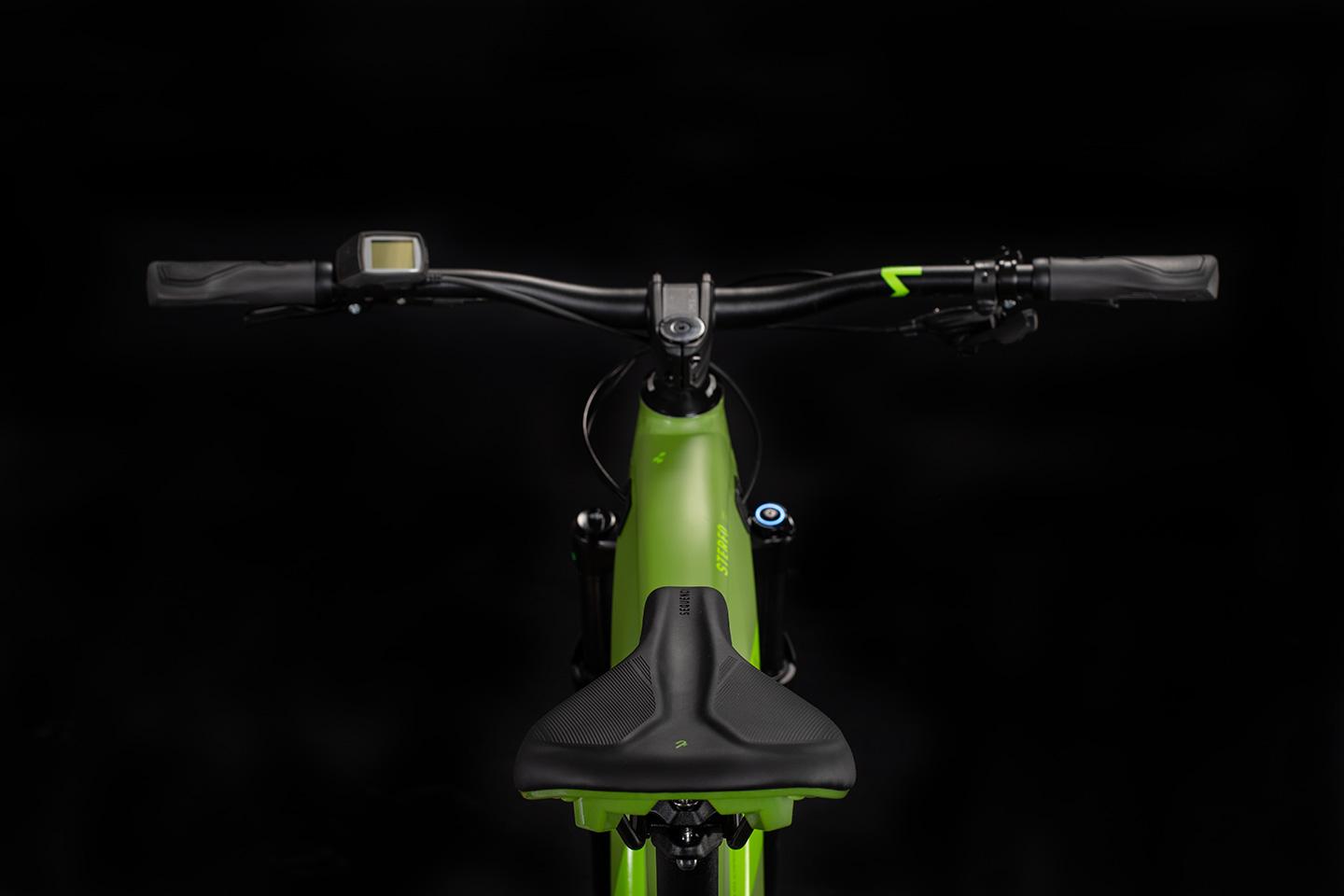

| HANDLEBAR | Newmen Evolution SL 318.25, 760mm |
| GRIPS | Natural Fit All Terrain |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose Semi Integrated, 34.9mm |
| SADDLE | Natural Fit Sequence |
| HEADSET | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| WEIGHT | 24,3 kg |
| COLOUR | green´n´green |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 335061 |
GEOMETRY
When you've got a successful formula, it's very tempting to stick with it. The versatile Stereo Hybrid 120 was widely admired by riders and the cycling press alike, but the launch of Bosch's fourth-generation drive system gave us the opportunity to make a legend even better. Based around our new Modular Battery System, the new frame is even sleeker, more practical and better handling. Hidden behind a push-button battery cover with integrated lock, the Bosch power unit integrates so neatly into the frame that it's hard to believe it's even a hybrid. It's not just about looks, though, because the new design also enabled our engineers to free up enough room for the option of a bigger capacity battery for extended range. It's all wrapped up in our Comfort Geometry - making the most of our refined four-bar suspension design to ensure a plush, confidence-inspiring ride, wherever your curiosity leads you - and backed up by the knowledge that, like all our bikes, it's passed our strict in-house safety testing with flying colours. For added versatility, we also made it easy to add a luggage carrier, mudguards and even a kickstand - so you can set up your bike exactly the way you want - commute, trail or tour. The new Stereo Hybrid 120 is your passport to riding freedom. Where will it take you next?
