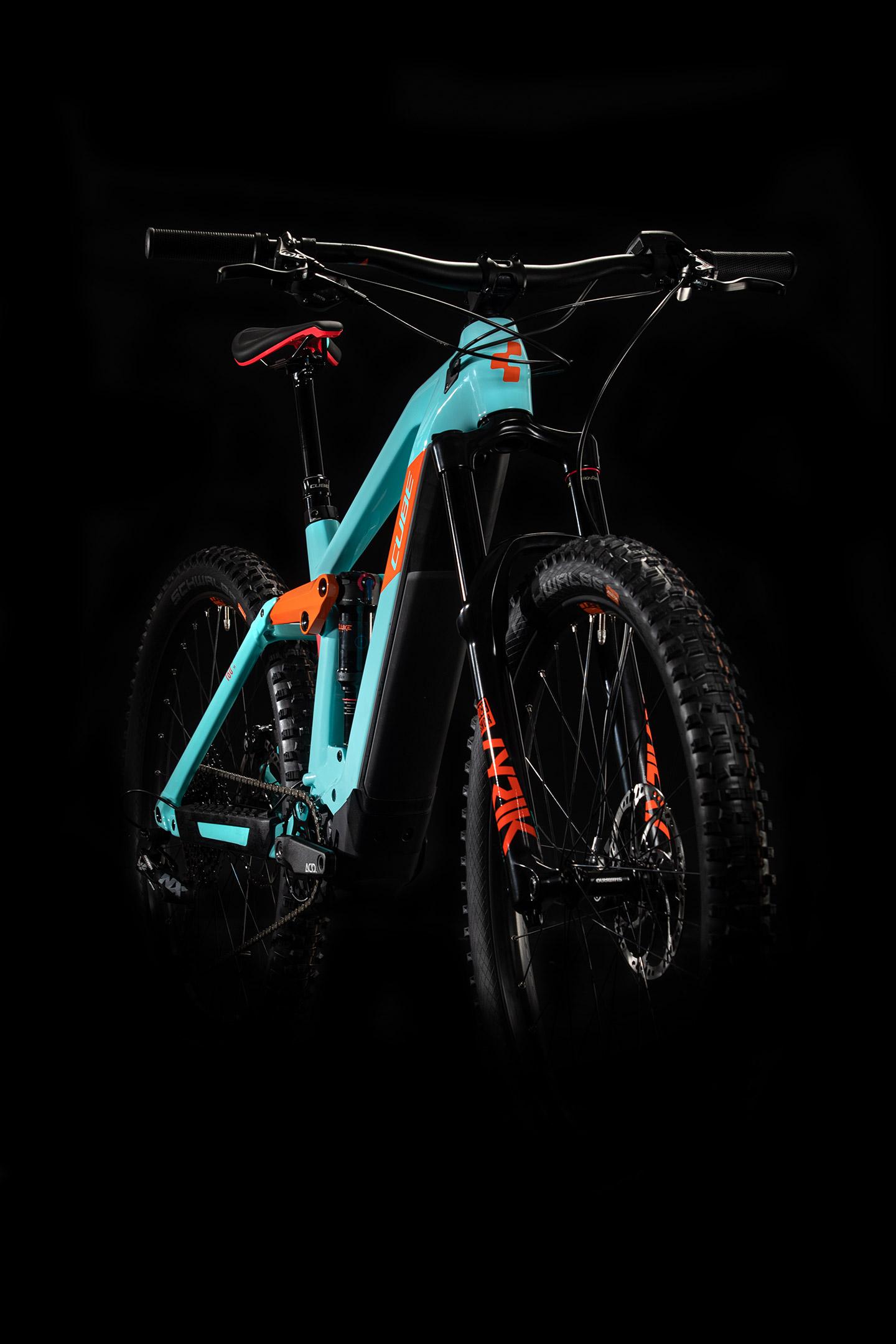

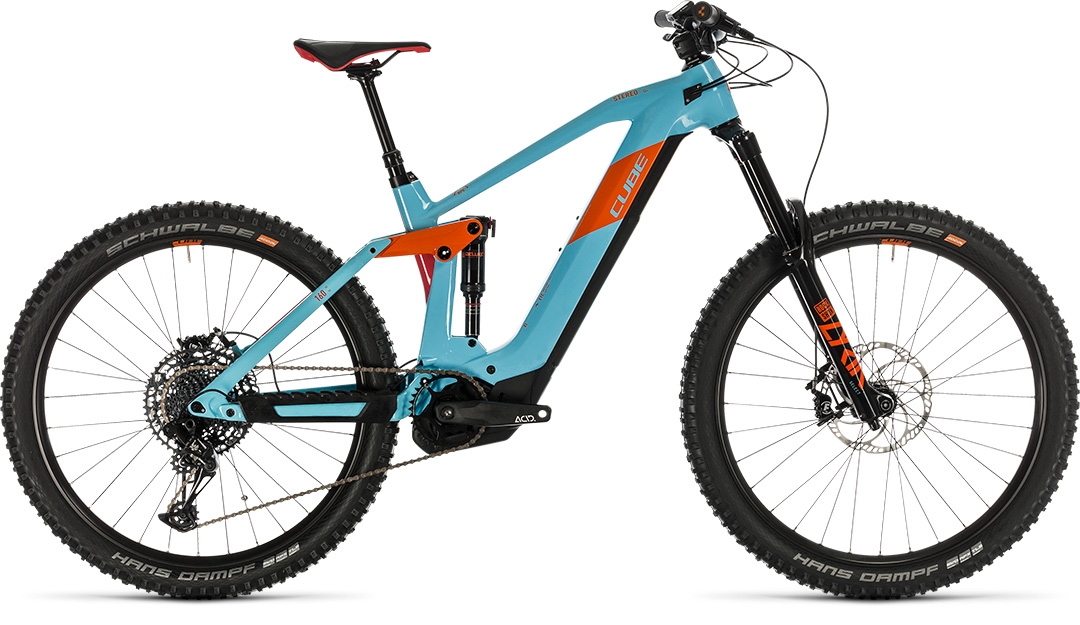

STEREO HYBRID 160 HPC
SL 625 27.5

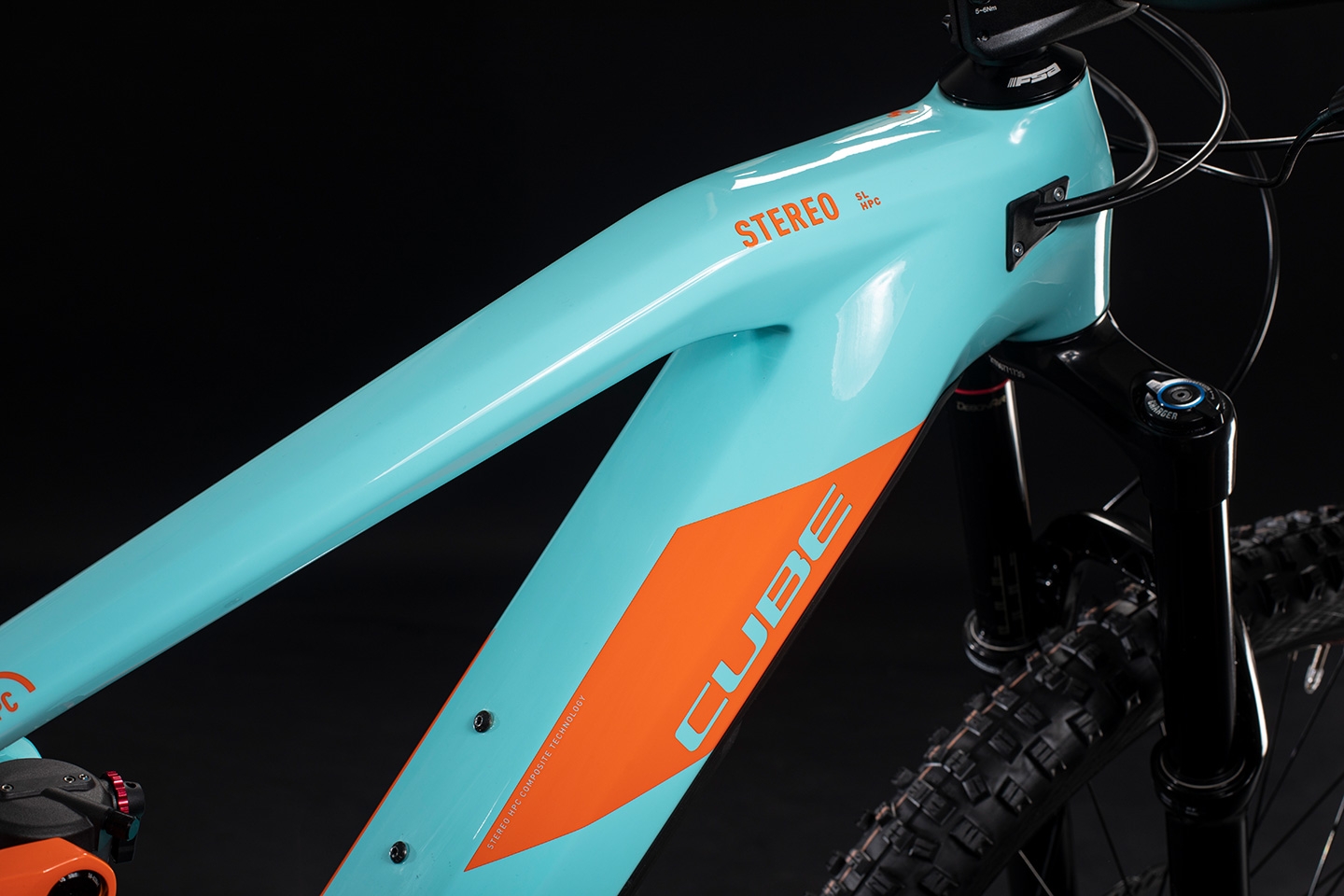

Welcome to the all-new Stereo Hybrid 160 HPC SL - a bike that redefines what's possible. Building a world-beating enduro bike isn't easy. Building one that combines genuine enduro performance with the ease of use of Bosch's amazing drive system is even harder. Luckily, CUBE's years of experience at the Enduro World Series, as well as building class-leading Bosch e-bikes, helps make the job a tiny bit easier. Our engineering team was able to draw on their extensive hybrid, carbon and full suspension design experience to create something remarkable: a 160mm travel bike with carbon main frame, progressive suspension kinematics and an aggressive geometry designed specifically for 170mm forks and tough enduro courses, plus seamless Bosch power. The new CUBE Modular Battery System encloses the Bosch power unit in the down tube, hidden behind a shock-, moisture- and dust-proof cover that features a push button for access, as well as a hidden lock. It's not just neat, it also enables us to increase the battery's capacity for even greater range out in the mountains. Larger bearings, hidden cable routing, chain guide compatibility and space for a bottle cage mount are just some of the details that set this bike apart. As for the spec, it would have been easy to cut a few corners... but that's not the CUBE way. So you'll find a RockShox Deluxe Select+ shock and matching RockShox Lyrik Select fork up front, working together to deliver up to 170mm of boulder-swallowing travel. A remote dropper post opens up new line choices, while Sram's NX Eagle 12-speed transmission ensures you can ride every bit of the link stages. And Magura MT Fifty hydraulic disc brakes, combined with big-volume and super-grippy Schwalbe Hans Dampf tyres, give you all the power you need to control your speed on the timed stages. Combined with Bosch's fourth-generation drive unit, it's all the excuse you need to head out into the mountains and smash out some new personal bests. Are you ready? Because the Stereo Hybrid 160 HPC SL definitely is.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | RockShox Lyrik Select Charger RC, 15x110mm, eMTB Approved, 170mm |

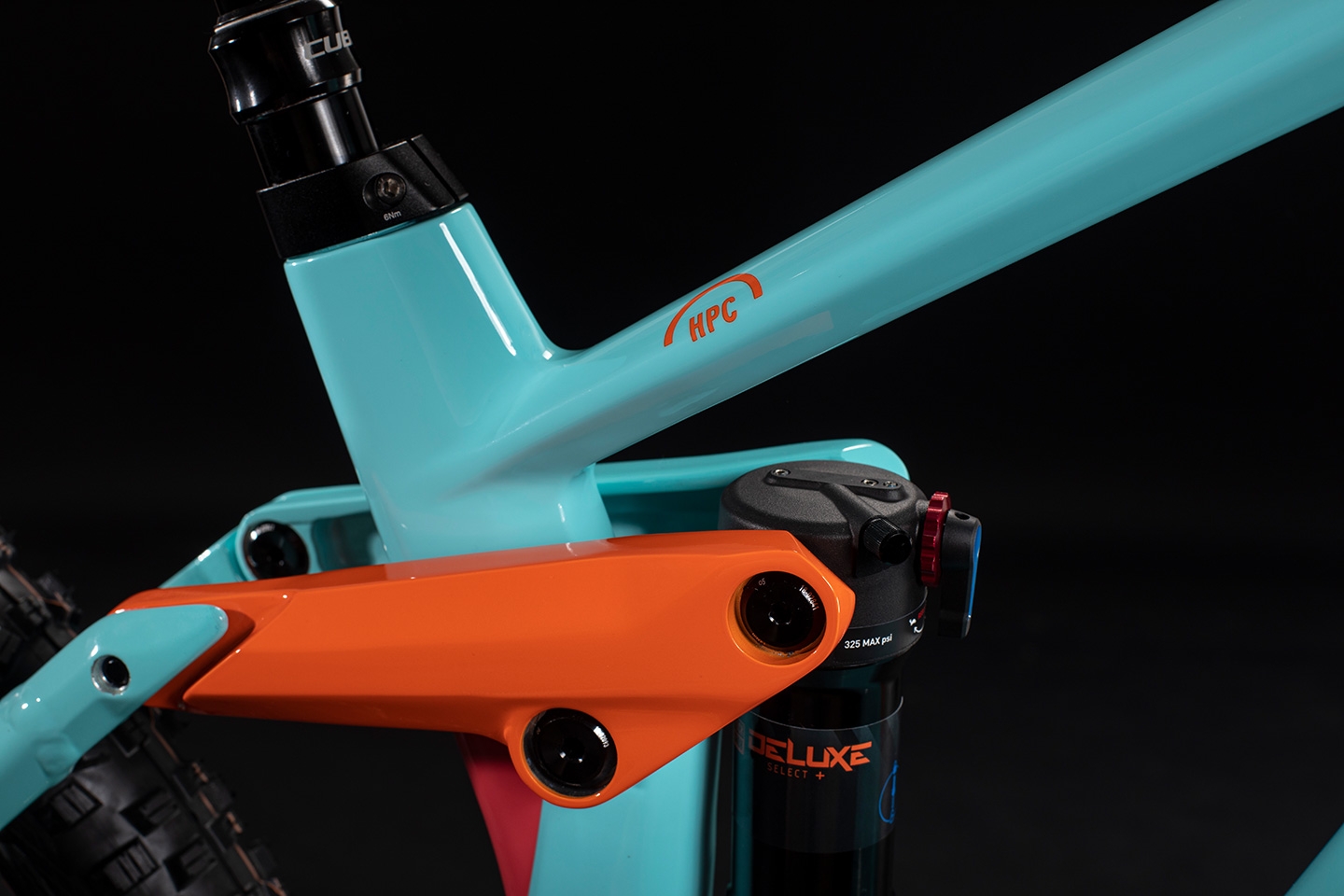

| SHOCK | Rock Shox Deluxe Select+, 205x60mm, Trunnion Mount |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| BRAKE SYSTEM | Magura MT Thirty, Front 4-Piston/ Rear 4-Piston, Hydr. Disc Brake (203/203) |
| REAR DERAILLEUR | Sram NX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger, Single Click |
| CRANKSET | ACID E-Crank, 36T, 165mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Hans Dampf Kevlar, Addix Soft, Apex, Tubeless Easy, 2.60 |
| HANDLEBAR | Newmen Evolution SL 318.25, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |

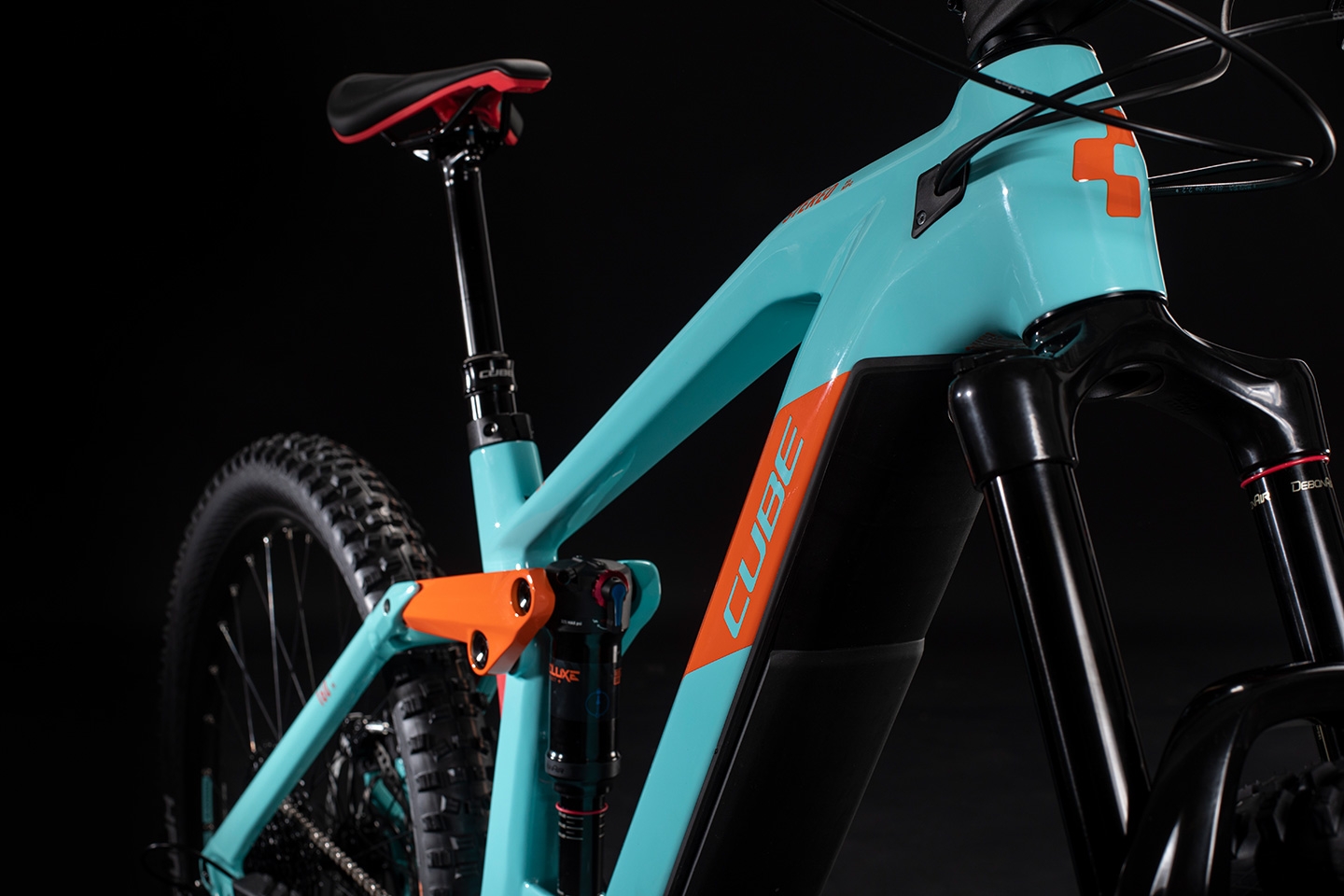

| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm) |
| SEATCLAMP | CUBE Srewlock Semi Integrated, 34.9mm |
| SADDLE | Natural Fit Venec |
| HEADSET | FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 23,3 kg |
| COLOUR | glacierblue´n´orange |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 625 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 337122 |
GEOMETRY
Some people laughed when we said we could build a hybrid enduro bike capable of taking on the world's toughest EWS trails. Well, they're not laughing now. The new Stereo Hybrid 160 HPC rewrites the rules, blending the big-hit ability of a dialled big-mountain machine with the ride-anywhere versatility of Bosch's fourth-generation drive system. There's literally no mountain too high, or too steep, for this bike. Key to its success is a brand-new main frame constructed from carbon. The versatility of this material allowed our engineers to create an entirely new setup - the Modular Battery System - to house the Bosch power unit entirely within the down tube. Hidden by a double-layer cover with shock protection, push-button access and a hidden lock, the new system has freed up enough space for the Stereo Hybrid 160 HPC to accommodate a larger capacity 625Wh battery, for significantly extended range - so you can ride further, higher and faster, confident that you've got the juice to keep going. The trunnion shock mount, big bearings and Boost 148 rear axle of the aluminium rear triangle work with the 1.5in head tube to deliver efficient power transfer and millimetre-perfect steering precision, whilst aggressive geometry gives you the advantage you need to show the trails exactly who's boss. We even remembered to add a bottle cage mount and make it chain guide compatible, so you can tailor your Stereo Hybrid 160 HPC exactly the way you want it. Enduro is exciting, but Bosch hybrid power takes it to a new level. Are you up for it?
