STEREO HYBRID 120
PRO 500 ALLROAD 29

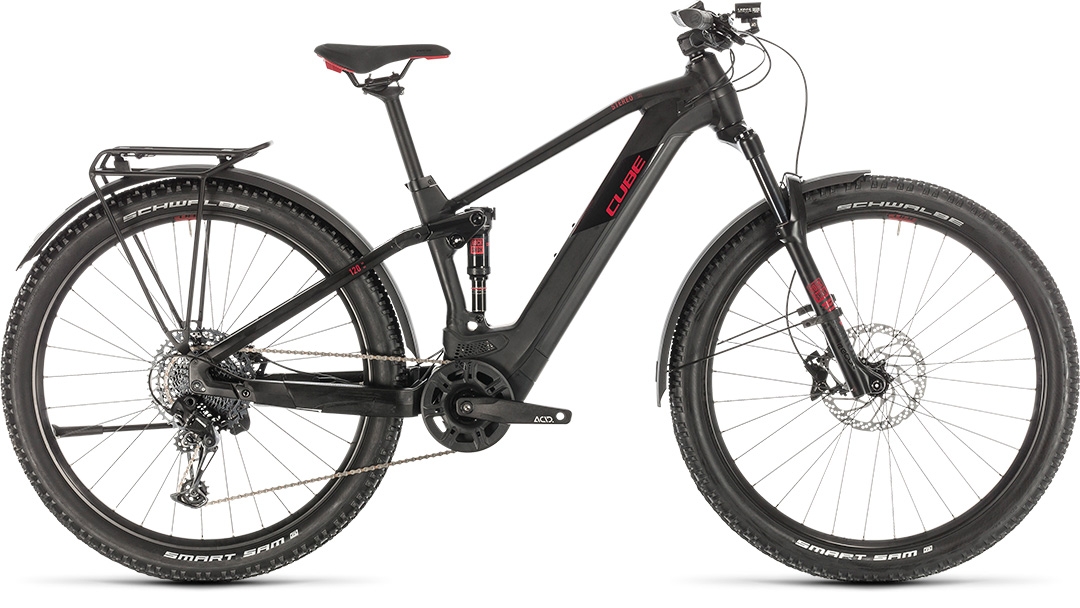

One bike, all reasons: an impossible ask? Not when you've got the CUBE design team on the case. The brand-new Stereo Hybrid 120 Pro Allroad is quite possibly one of the most versatile bikes we've ever created - a comfortable, fully equipped Bosch e-bike with the benefits of our acclaimed four-bar suspension, components specially picked for their off-road ability, and accessories that mean it can tackle just about any job on two wheels you care to throw its way. The included mudguards help keep spray at bay when the weather's bad, whilst the luggage carrier allows you to tackle your daily commute or bring extra luggage with you for an extended weekend tour. We even added a bell, kickstand and front and rear lights powered from the Bosch battery. As for the rest of the bike, it's unadulterated CUBE perfection. The CUBE Modular Battery System tucks the power unit neatly away out of sight in the down tube, safe from dirt and water ingress but easily accessible thanks to a push-button cover with a hidden lock. It also gave our engineers the extra space they needed to offer the option of an even more powerful battery, for extended range. The Boost 148 rear end and 1.5in head tube provide the stiff, accurate platform needed to deliver the brand-new Bosch drive unit's smooth, quiet torque to the rear wheel, and our Agile Comfort Geometry works seamlessly with the RockShox Deluxe Select shock and Recon RL air fork to smooth out the trail and put you in full control, at all times. Sram's SX Eagle 12-speed transmission offers an incredible range of gears to put any hill within easy reach, while powerful Shimano hydraulic disc brakes and wide, comfortable Schwalbe tyres serve up epic quantities of grip. If there's a journey on two wheels that can't be tackled by the Stereo Hybrid 120 Pro, we can't think of it.
AUSSTATTUNG
| FRAME | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | RockShox Recon RL Air, Tapered, 15x110mm, eMTB Approved, 120mm |

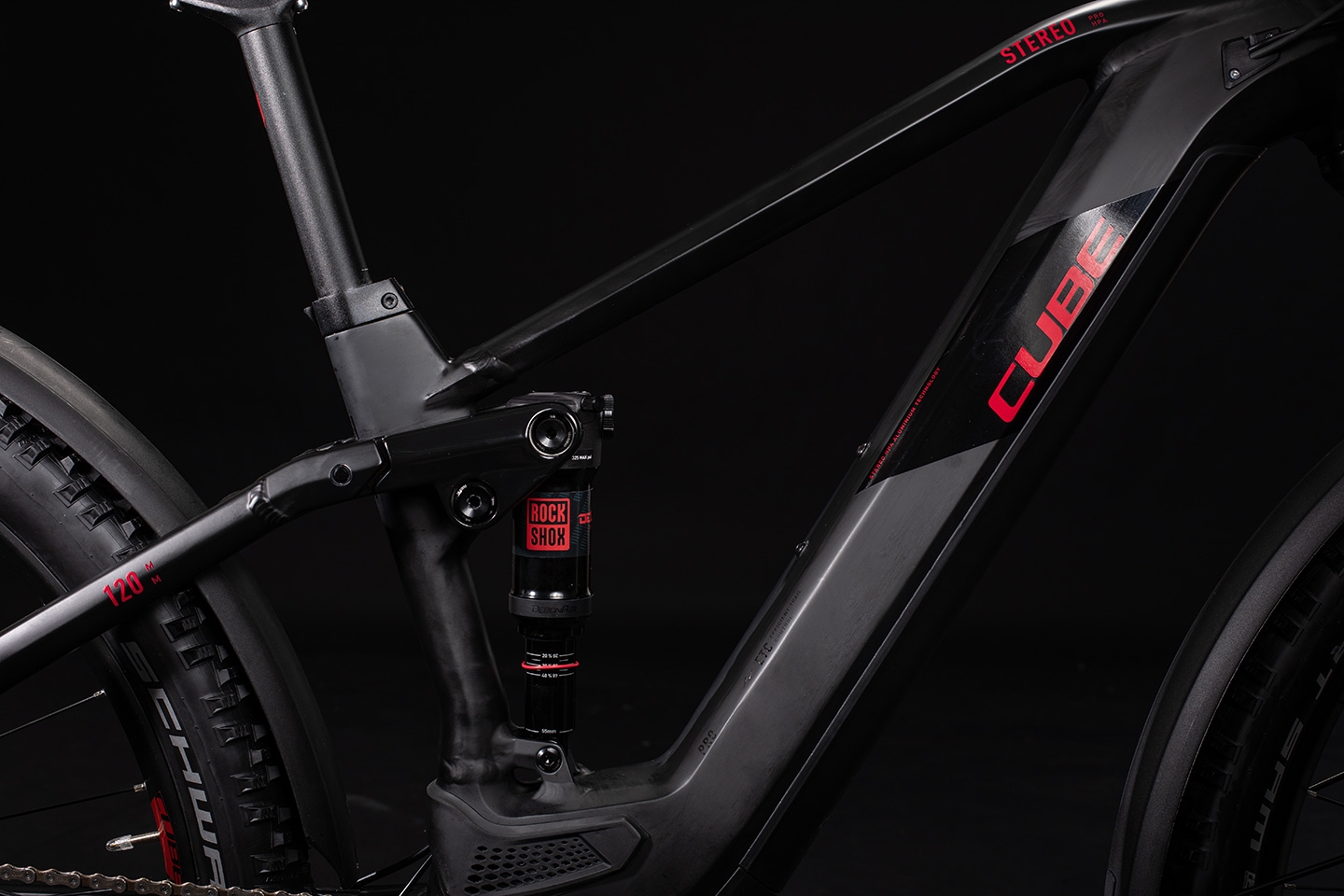

| SHOCK | RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano BR-MT420/MT400, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Sram SX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger, Single Click |
| CRANKSET | ACID E-Crank, 38T, 170mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm , Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Active, 2.35 |

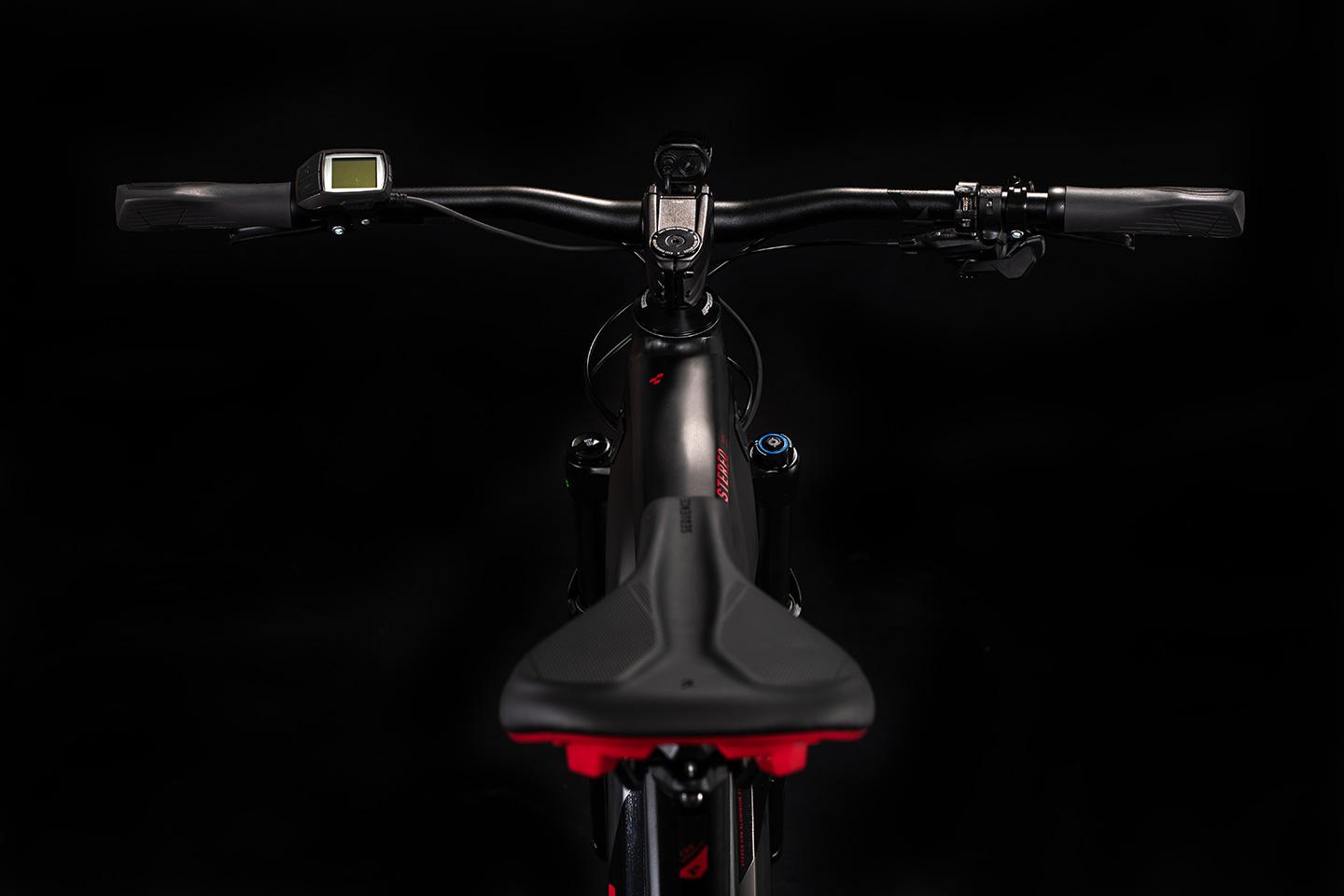

| HANDLEBAR | Newmen Evolution SL 318.25, 760mm |
| GRIPS | Natural Fit All Terrain |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose Semi Integrated, 34.9mm |
| SADDLE | Natural Fit Sequence |
| HEADSET | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | Lezyne Power E115, Handlebar Mount, 6-12V, DC |
| REAR LIGHT | Busch&Müller Xeltec, DC |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | ACID 75 |
| BELL | Knog Oi |

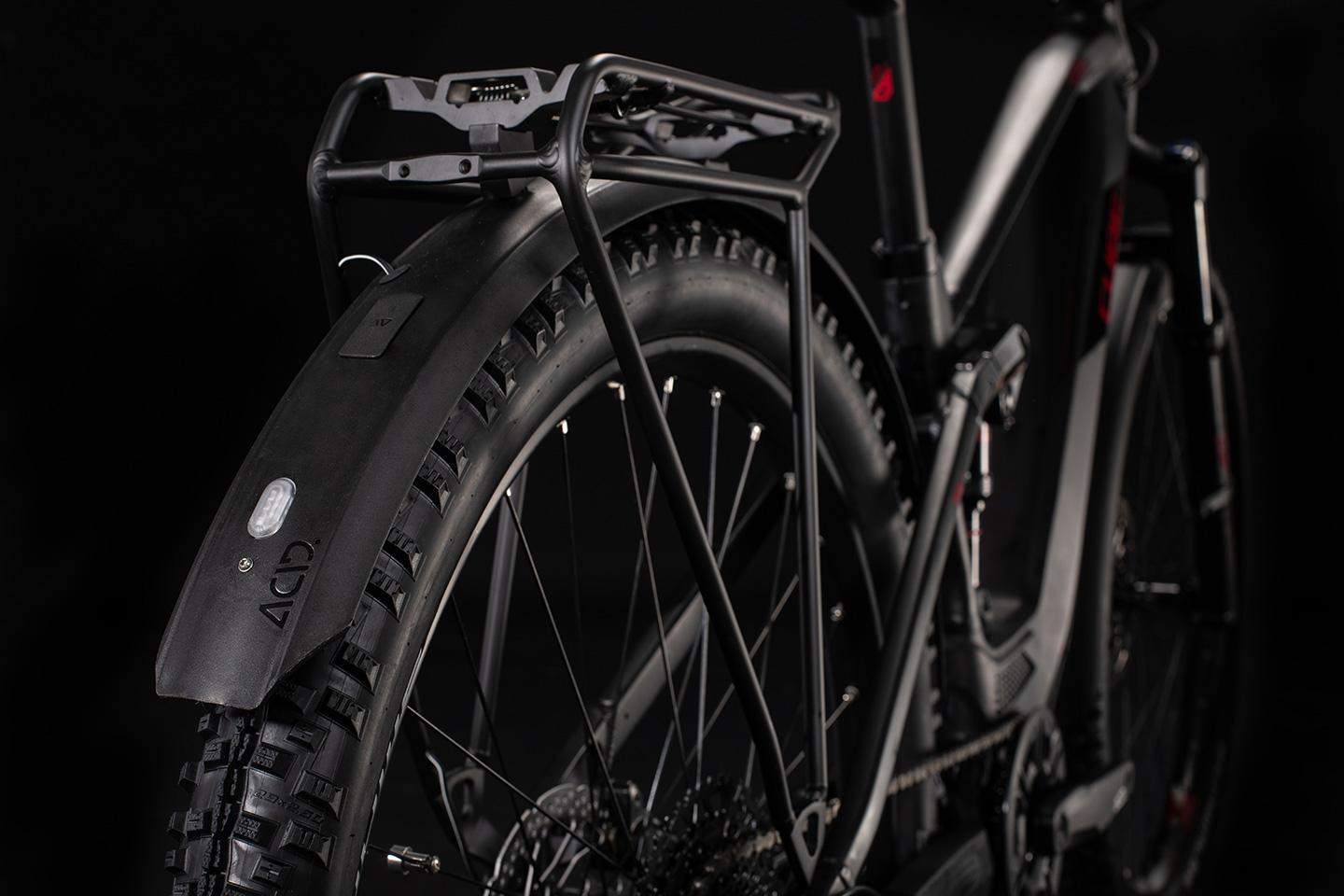

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 25,7 kg |
| COLOUR | black´n´red |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 335101 |
GEOMETRY
When you've got a successful formula, it's very tempting to stick with it. The versatile Stereo Hybrid 120 was widely admired by riders and the cycling press alike, but the launch of Bosch's fourth-generation drive system gave us the opportunity to make a legend even better. Based around our new Modular Battery System, the new frame is even sleeker, more practical and better handling. Hidden behind a push-button battery cover with integrated lock, the Bosch power unit integrates so neatly into the frame that it's hard to believe it's even a hybrid. It's not just about looks, though, because the new design also enabled our engineers to free up enough room for the option of a bigger capacity battery for extended range. It's all wrapped up in our Comfort Geometry - making the most of our refined four-bar suspension design to ensure a plush, confidence-inspiring ride, wherever your curiosity leads you - and backed up by the knowledge that, like all our bikes, it's passed our strict in-house safety testing with flying colours. For added versatility, we also made it easy to add a luggage carrier, mudguards and even a kickstand - so you can set up your bike exactly the way you want - commute, trail or tour. The new Stereo Hybrid 120 is your passport to riding freedom. Where will it take you next?
