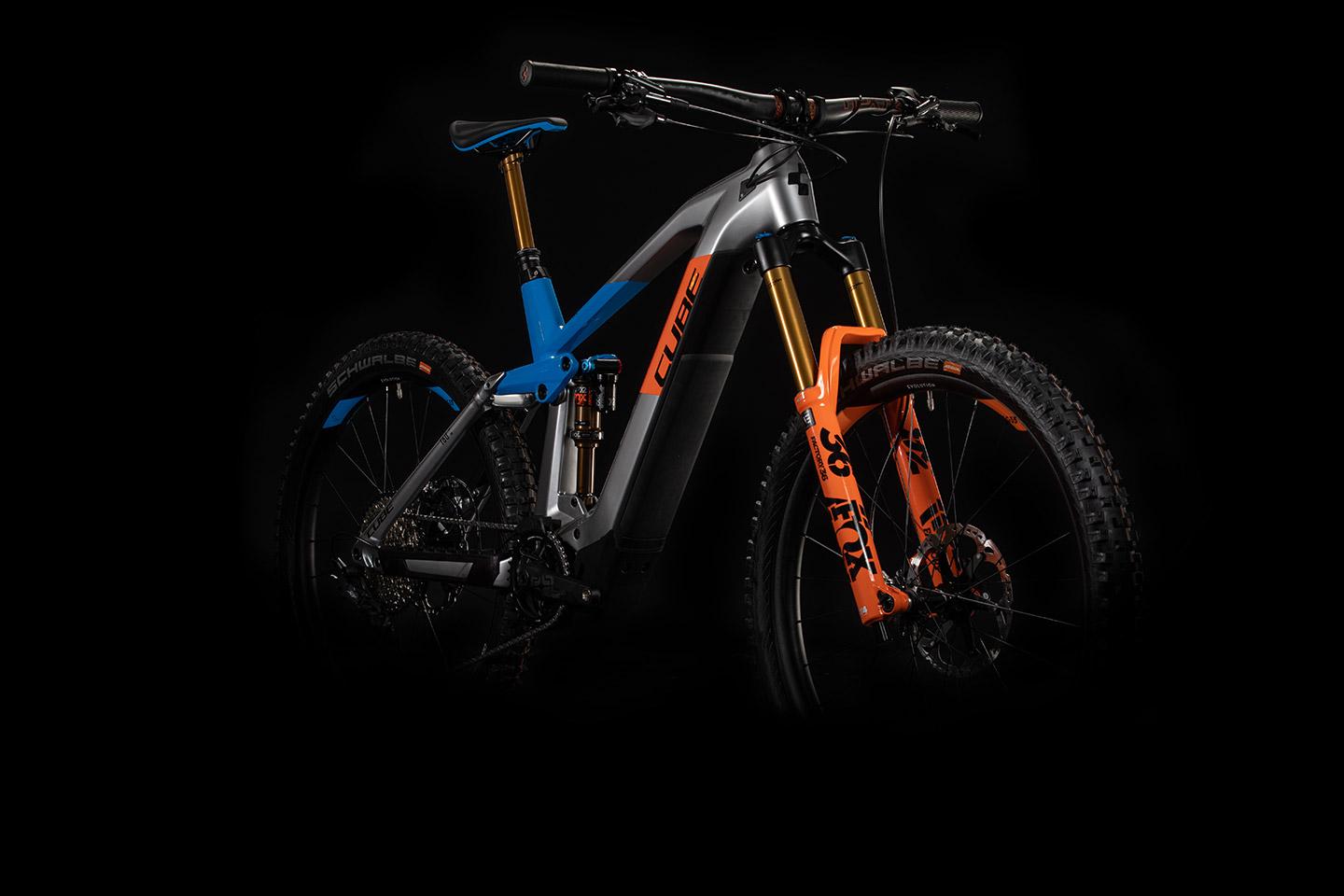

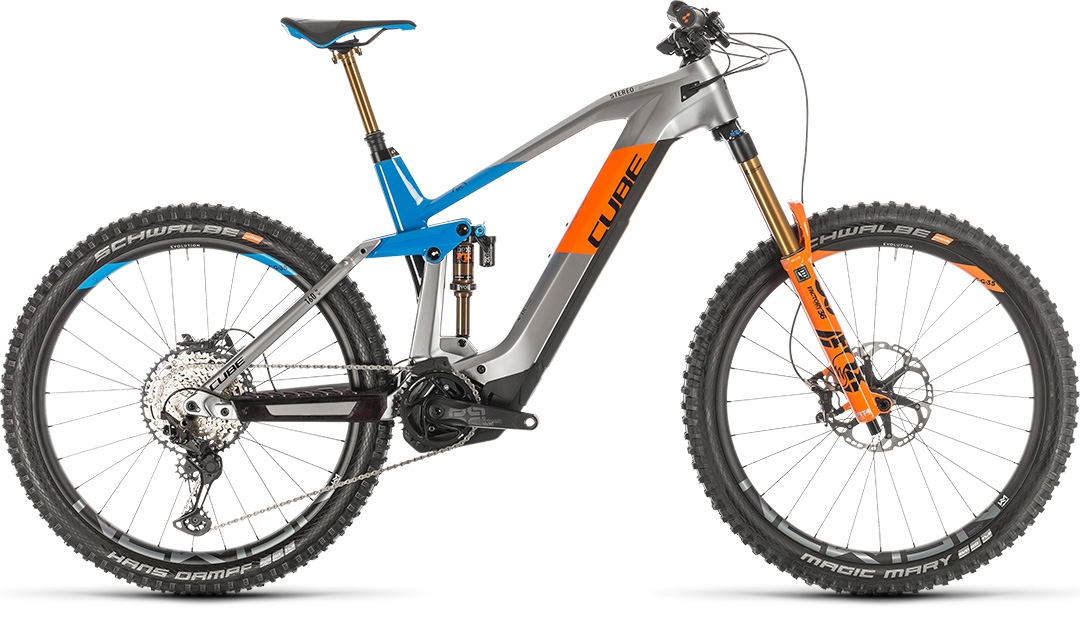

STEREO HYBRID 160 HPC
ACTIONTEAM 625 27.5
Anyone who tells you that pros don't ride e-bikes has got it wrong. Case in point: the all-new Stereo Hybrid 160 HPC Actionteam. Decked out with a full complement of team issue components and race-tested kit, it combines the mountain-taming, race-proven ability of our enduro bikes with the smooth power delivery and extended versatility of Bosch's fourth-generation drive system. Wish-list parts include Fox Factory shocks - a Float DPX2 Factory at the rear, combined with a 36 Float Factory fork at the front for buttery smooth, progressive and controllable travel in any riding situation - and a Fox Transfer Factory dropper post. There's a Shimano 12-speed transmission with XT derailleur and shifters, offering the widest possible gear range and unmatched reliability. Matching Shimano XT hydraulic disc brakes clamp to 203mm rotors for added cooling and ultimate power and control on even the longest, steepest descents, whilst light and strong Newmen rims wrapped with Schwalbe's Magic Mary and Hans Dampf Super Gravity 2.6in tyres grip tenaciously to the trail. Bosch's smooth, powerful, Kiox-controlled CX drive unit sits in a housing accessed by a single-bolt cover, and the high-capacity power unit - for extended range - is housed in the down tube behind a shock-, moisture- and dust-proof cover. Hidden cable routing, chain guide compatibility, oversized bearings and the proven strength and durability of our carbon main frame - tested rigorously by our own in-house torture testing lab - are the finishing touches that help make the difference. With aggressive geometry designed around 170mm forks and riders who aren't afraid to push their limits, we've covered all the bases to build an enduro e-bike that establishes a completely new benchmark for performance. Our pros know it. And it's available for you to discover, too.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated |
| SHOCK | Fox Float DPX2 Factory EVOL, Open(Adjustable)/Medium/Firm Mode, 205x60mm, Trunnion Mount, Kashima Coated |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano XT SL-M8100-IR, Direct Attach |
| CRANKSET | e*thirteen Plus Crank, 36T, 165mm |
| CHAIN GUIDE | e*thirteen Plus e*spec |
| CASSETTE | Shimano SLX CS-M7100, 10-51T |
| CHAIN | Shimano SLX CN-M7100 |
| FRONT HUB | Shimano XT HB-M8110-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano XT FH-M8110-B, 12mm, Boost, Centerlock |
| RIMS | Newmen Evolution SL E.35, 28H, Disc, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary Kevlar, Addix Soft, Super Gravity, Tubeless Easy, 2.60 |
| REAR TIRE | Schwalbe Hans Dampf Kevlar, Addix Speedgrip, Super Gravity, Tubeless Easy, 2.60 |
| HANDLEBAR | Race Face Next R 35 Carbon, 800mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | Fox Transfer Factory 31.6mm, Kashima Coated (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm) |
| SEATCLAMP | CUBE Srewlock Semi Integrated, 34.9mm |
| SADDLE | Natural Fit Venec |
| HEADSET | FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 23,5 kg |
| COLOUR | actionteam |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 625 |
| DISPLAY | Bosch Kiox |
| CHARGER | Bosch 4A |
| ART. NO | 337252 |
GEOMETRY

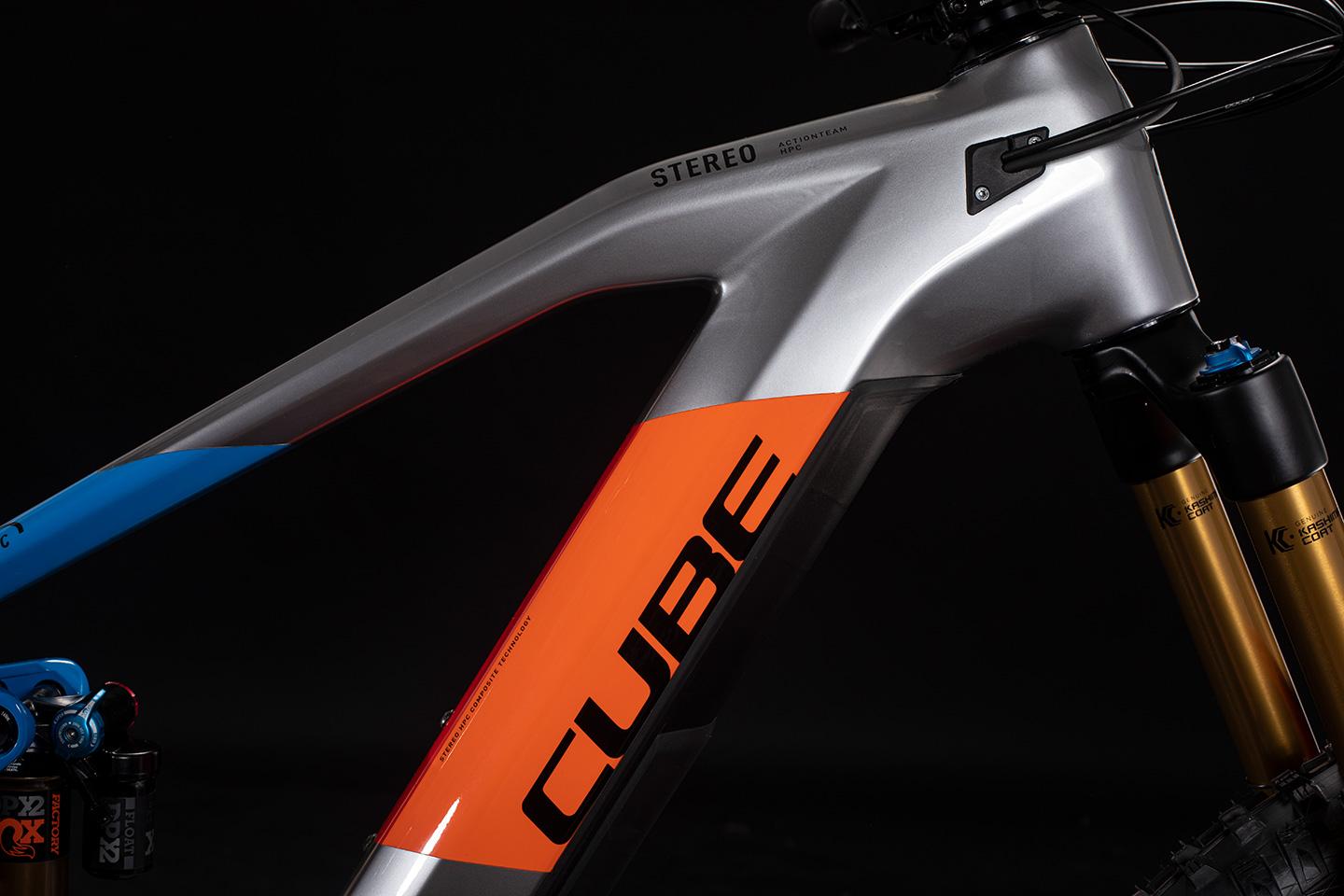

Some people laughed when we said we could build a hybrid enduro bike capable of taking on the world's toughest EWS trails. Well, they're not laughing now. The new Stereo Hybrid 160 HPC rewrites the rules, blending the big-hit ability of a dialled big-mountain machine with the ride-anywhere versatility of Bosch's fourth-generation drive system. There's literally no mountain too high, or too steep, for this bike. Key to its success is a brand-new main frame constructed from carbon. The versatility of this material allowed our engineers to create an entirely new setup - the Modular Battery System - to house the Bosch power unit entirely within the down tube. Hidden by a double-layer cover with shock protection, push-button access and a hidden lock, the new system has freed up enough space for the Stereo Hybrid 160 HPC to accommodate a larger capacity 625Wh battery, for significantly extended range - so you can ride further, higher and faster, confident that you've got the juice to keep going. The trunnion shock mount, big bearings and Boost 148 rear axle of the aluminium rear triangle work with the 1.5in head tube to deliver efficient power transfer and millimetre-perfect steering precision, whilst aggressive geometry gives you the advantage you need to show the trails exactly who's boss. We even remembered to add a bottle cage mount and make it chain guide compatible, so you can tailor your Stereo Hybrid 160 HPC exactly the way you want it. Enduro is exciting, but Bosch hybrid power takes it to a new level. Are you up for it?
