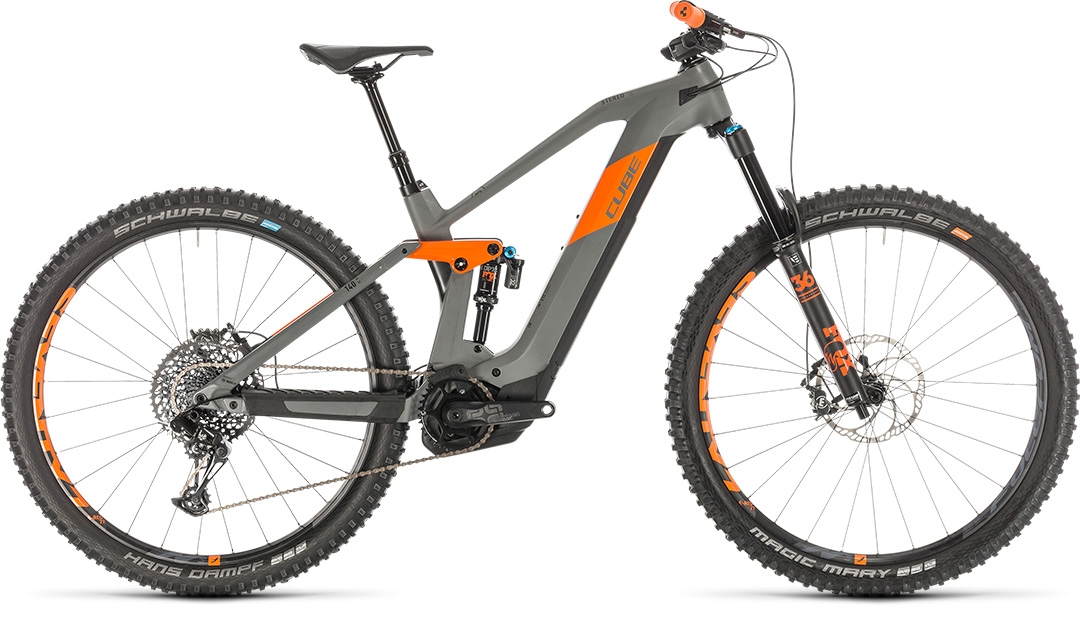

STEREO HYBRID 140 HPC

TM 625 29

How do you build a better mountain-taming e-MTB? Simple. Give the CUBE design team a blank sheet of paper and tell them not to compromise. And here's the result: the brand-new Stereo Hybrid 140 HPC TM. Completely redesigned from head tube to Boost 148 rear axle, it's the culmination of years of suspension, carbon and Bosch e-bike design experience. With fast-rolling 29er wheels, 150mm of front wheel travel from the Fox 36 Float Performance fork and 140mm at the rear courtesy of the Fox Float DPX2 Performance shock, it's got the cojones to take on any trail. Fulcrum E-Metal wheels and Schwalbe Super Gravity 2.6in Magic Mary and Hans Dampf tyres have the strength and grip to take on any mountain route, and the remote dropper post means you can roll through even the steepest chutes. Bosch's Kiox-controlled, fourth-generation CX drive unit delivers mile after mile of mountain-taming torque to the rear wheel via Sram's NX Eagle transmission, giving you the range you need to keep climbing when others have long since given up. And speaking of range, our new Modular Battery System - which encloses the Bosch power unit inside the sleek, carbon down tube - gave our engineers the room they needed to increase the battery's capacity for even longer days in the mountains. The shock-proof, dust- and moisture-resistant cover is easily accessed via a push button with hidden lock, and we even left room for a bottle cage mount. Larger bearings, chain guide compatibility and chain stay protection with integrated cable routing are just some of the other neat design touches that you'll appreciate. Although, to be honest, you'll probably be too busy enjoying the Agile Trail Geometry's dialled handling to worry about the finer details. Because, after all, that's what we're here for: to sweat the details, so that you can just enjoy the ride.

AUSSTATTUNG

FRAMEC:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
SIZE16", 18", 20", 22"
FORKFox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 150mm
SHOCKFox Float DPX2 EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount
SHOCK HARDWARETop: 54mm Trunnion Mount, Bottom: 22.2x8mm
BRAKE SYSTEMMagura MT7, Hydr. Disc Brake (203/203)
REAR DERAILLEURSram NX Eagle™, 12-Speed
SHIFTERSSram NX Eagle™ Trigger, Single Click
CRANKSETe*thirteen Plus Crank, 34T, 165mm
CHAIN GUIDEe*thirteen Plus e*spec
CASSETTESram XG-1275 Eagle™, 10-50T
CHAINSram SX Eagle™
WHEELSETFulcrum E-Metal 700, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
FRONT TIRESchwalbe Magic Mary, Addix Soft, Super Gravity, Tubeless Easy, 2.60
REAR TIRESchwalbe Hans Dampf, Addix Speedgrip, Super Gravity, Tubeless Easy, 2.60
HANDLEBARNewmen Evolution SL 318.25, 780mm
GRIPSCUBE Race Grip 31mm, 1-Clamp
SEAT POSTCUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
SEATCLAMPCUBE Srewlock Semi Integrated, 34.9mm
SADDLENatural Fit Venec
HEADSETFSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
WEIGHT24,1 kg
COLOURgrey´n´orange
DRIVE UNITBosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
BATTERYBosch PowerTube 625
DISPLAYBosch Kiox
CHARGERBosch 4A
ART. NO336202

GEOMETRY

Mountain bike hybrid versatility has a new name, and that name is Stereo Hybrid 140 HPC. Built around Bosch's new, fourth-generation drive system and drawing on our extensive experience of hybrid power, carbon frame construction and efficient suspension kinematics, it represents a new breed of all-mountain e-MTBs. Our engineering team developed a brand-new concept for this frame, building the CUBE Modular Battery System to hide the Bosch power unit completely inside the sleek carbon down tube. A tough cover provides protection and shock absorption for the battery, whilst push-button access and a hidden lock make it both easy to use and secure from unwelcome attention. Even better, the new system frees up enough space for the option of a higher capacity battery than before, which translates to extended range and longer days out in the mountains. The fourth-generation Bosch CX drive unit sits in its own housing, while the aluminium rear triangle features a Boost 148 axle for efficient power transfer, larger bearings for longer life and a linkage designed to fit a trunnion shock. Our All Mountain Geometry is specifically designed to work with the suspension kinematics and Bosch drive system, offering handling that only our fully integrated design is capable of doing - stable, confidence-inspiring and fun. And of course it's chain guide compatible, there's a bottle cage mount for carrying tools or water, and integrated cable routing ensures that gears carry on shifting smoothly with minimal maintenance. Because who wants to spend time fiddling with their bike, when another day in the mountains beckons? All Mountain versatility, redefined: that's the Stereo Hybrid HPC 140.
