STEREO HYBRID 120

ONE 500

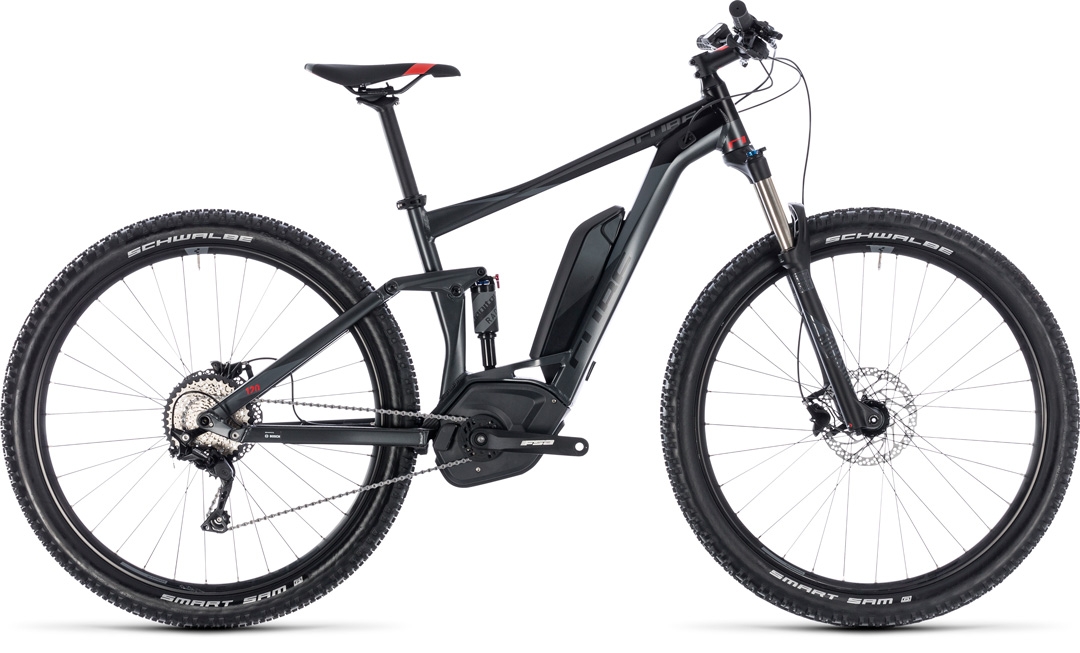

If you're looking for the ultimate in e-MTB full suspension value, the Stereo Hybrid 120 ONE fits the bill perfectly. Our award-winning 120mm trail-tamer just got even more affordable with no loss in performance, thanks to a combination of Bosch's superb CX drive unit, a 10-speed Shimano transmission and reliable Shimano disc brakes. Add the smooth RockShox Judy Silver air fork and our renowned Agile Ride Geometry, and the result is an e-MTB that's hard to beat in it´s class.

AUSSTATTUNG

FRAMEHPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH
SIZE27.5: 16", 18" // 29: 17", 19", 21", 23"
FORKRockShox Judy Silver TK Air, Tapered, 15x110mm, 120mm, Lockout
SHOCKManitou Radium Expert RL, 184x44mm, Rebound, Lockout
SHOCK HARDWARETop: 30x8mm, Bottom: 30x8mm
BRAKE SYSTEMShimano BR-M315, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
SHIFTERSShimano Deore SL-M6000, Rapidfire-Plus
CRANKSETFSA CK-745, 170mm, 15T
CASSETTEShimano Deore CS-HG500, 11-42T
CHAINKMC X10e EcoProTeQ
FRONT HUBCUBE, 15QR, Boost, Centerlock
REAR HUBShimano Deore FH-M6010-B, 12mm, Boost, Centerlock
RIMSCUBE EX30, 32H, Disc, Tubeless Ready
TYRESSchwalbe Smart Sam, Active, 2.60
HANDLEBARCUBE Rise Trail Bar Pro, 740mm
GRIPSCUBE Race Grip, 1-Clamp
SEAT POSTCUBE Performance Post, 31.6mm
SEATCLAMPCUBE Varioclose, 34.9mm
SADDLESelle Royal MTB
HEADSETFSA Orbit Z-t ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
WEIGHT23,7 kg
COLOURiridium´n´red
DRIVE UNITBosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
BATTERYBosch PowerPack 500
DISPLAYBosch Purion
CHARGERBosch 2A
ČÍSLO VÝROBKU135050

Geometrie

With a high quality 7005 High Performance Aluminium chassis, this exceptional e-bike combines precise steering with suprisingly low weight. Positioning the Bosch drive in precisely the right place lowers the centre of gravity which, together with our tried and tested Agile Ride Geometry (ARG), contributes to an extraordinariliy nimble feel. Drive-neutral and sensitive Efficient Trail Control (ETC) suspension design guarantees optimal performance for all frame sizes. And of course it features all the current standards, like tapered head tube and 12x148mm through-axle.
