STEREO HYBRID 140
TM 500 27.5

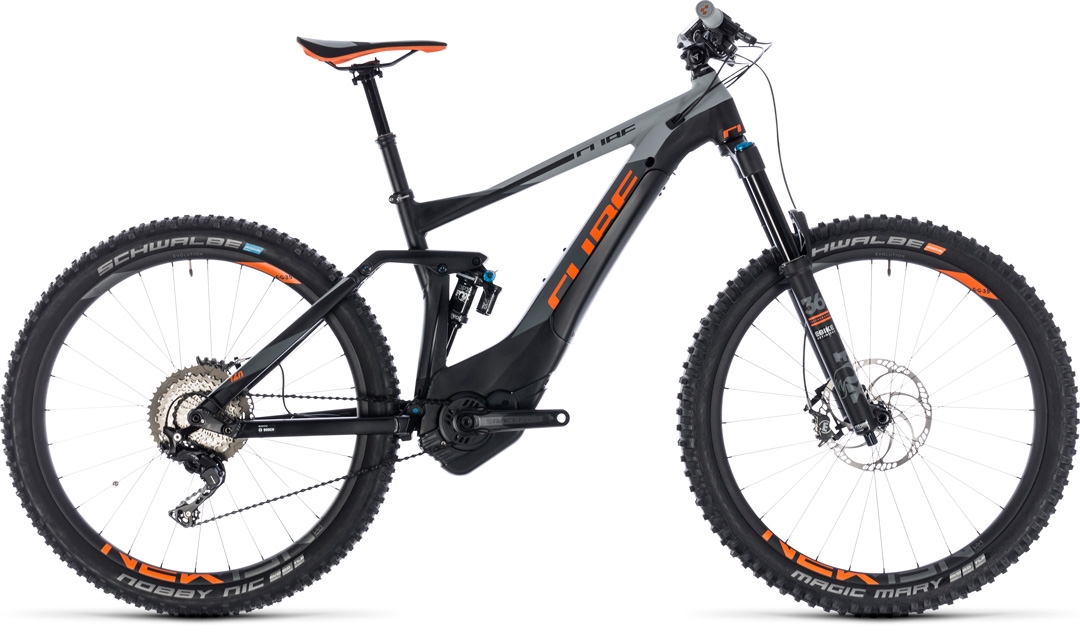

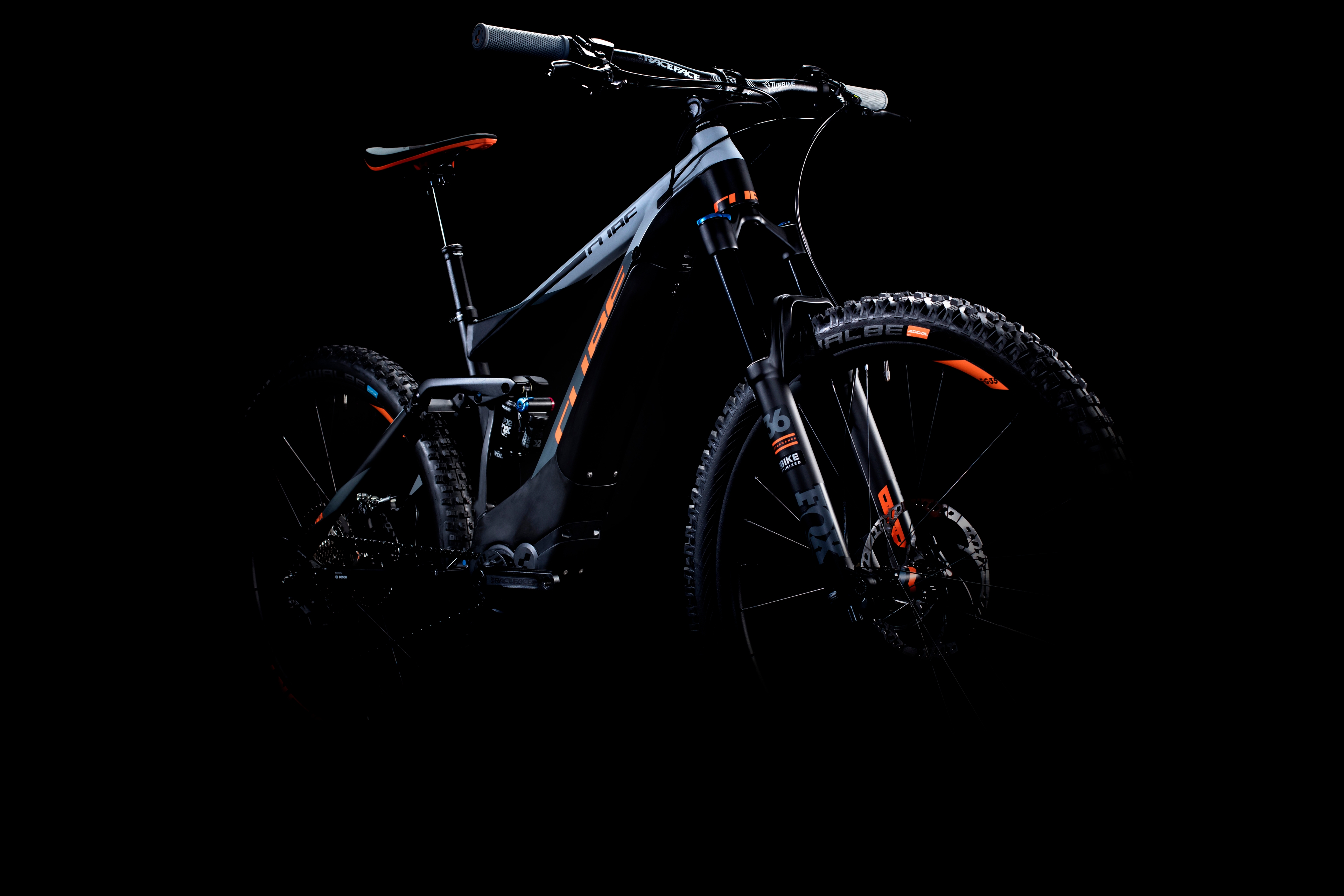

How do you build the ultimate mountain-taming e-mtb? Simple. Give the CUBE design team a blank sheet of paper and tell them not to compromise. And here's the result: the Stereo Hybrid 140 TM - an all-new, high performance aluminium e-mtb combining 140mm of travel with absolutely the very best equipment we could lay our hands on. Naturally, power comes from Bosch's CX Intube drive system and Shimano's 11 speed XT transmission, while braking is handled by Magura MT7 hydraulic discs. A Fox 36 Float Performance fork and Float DPX2 Performance EVOL shock provide almost limitless quantities of easily adjustable, boulder-swallowing smoothness, while a Transfer Performance Elite dropper post means no line is off-limits. And we topped it all off with Race Face finiishing components and a Newmen Evolution SL E.35 wheelset shod with grippy Schwalbe tyres. If you've been looking for the best all-mountain e-mtb... you just found it.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, Ebike Optimized, 15x110mm, 150mm |

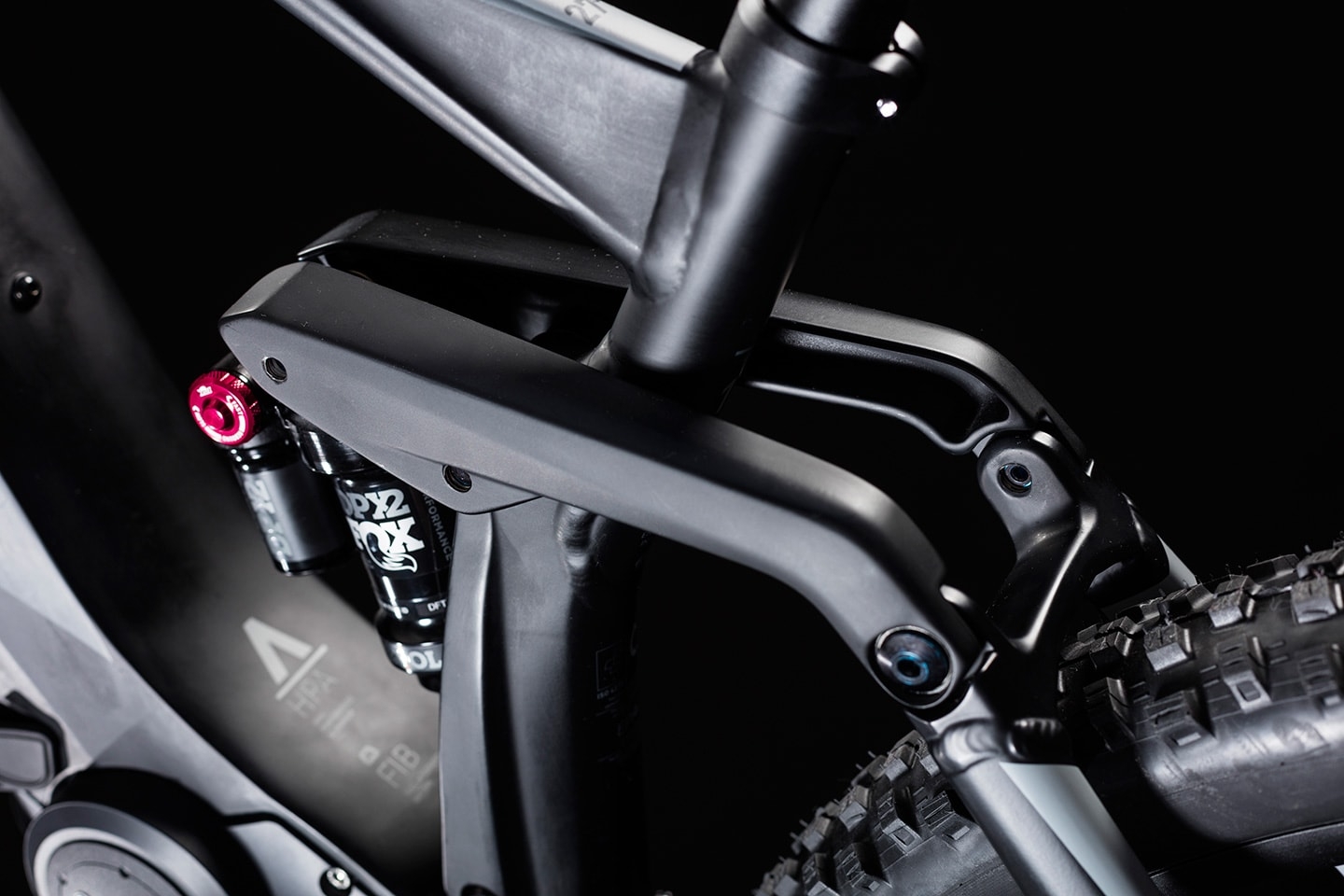

| SHOCK | Fox Float DPX2 EVOL, 190x50mm, Open(Adjustable)/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Magura MT7, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000, 11-Speed |
| CRANKSET | Race Face Aeffect, 165mm, 15T |
| CASSETTE | Shimano XT CS-M8000, 11-46T |
| CHAIN | KMC X11e Turbo |
| WHEELSET | Newmen Evolution SL E.35, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity |
| REAR TIRE | Schwalbe Nobby Nic 2.60, Addix Speedgrip, Tubeless Easy, Super Gravity |
| HANDLEBAR | Race Face Turbine 35, 760mm |
| GRIPS | CUBE Race Grip 31, 1-Clamp |
| SEAT POST | Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |

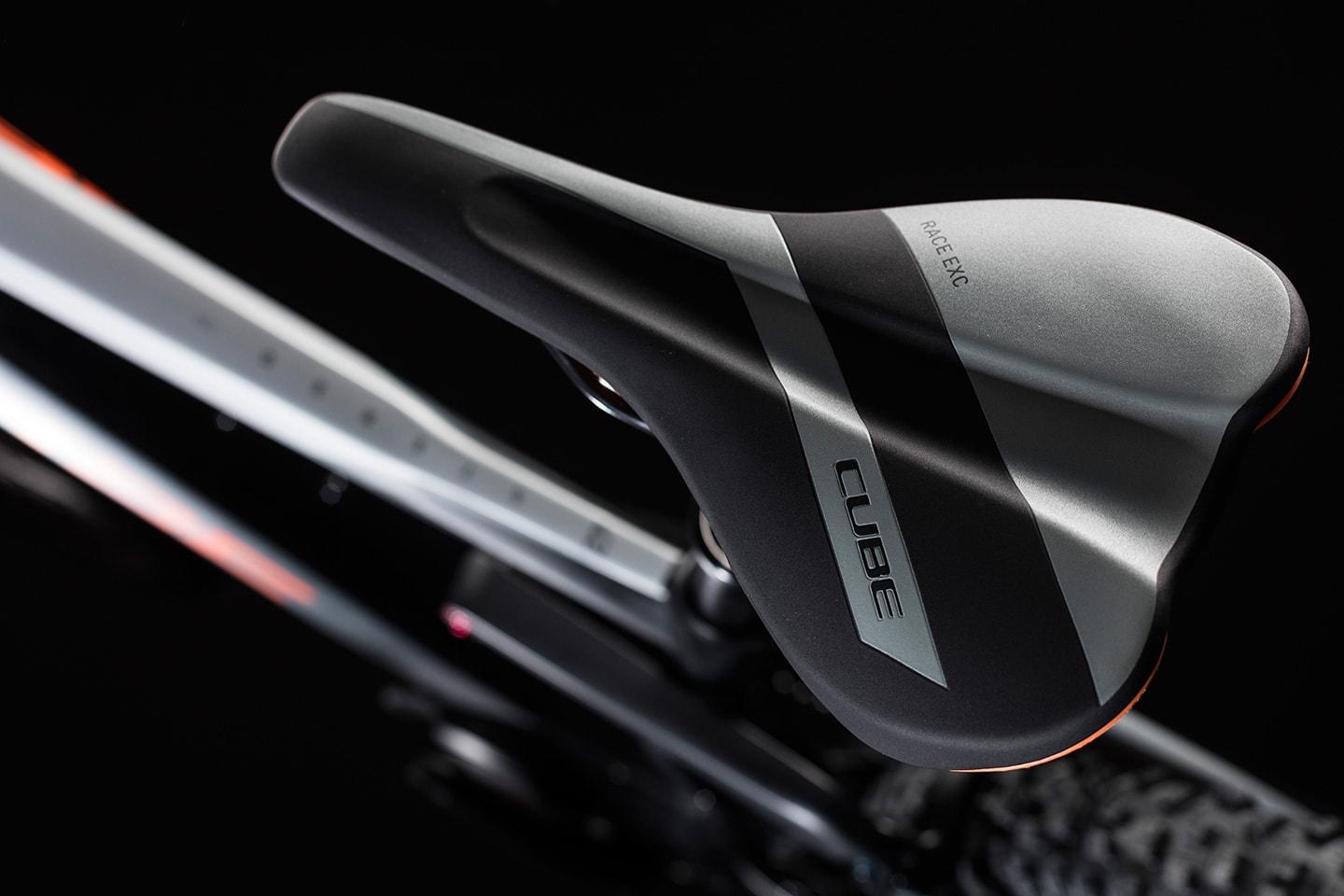

| SADDLE | CUBE Race EXC 145 |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 23,3 kg |
| COLOUR | black´n´orange |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 4A |
| ČÍSLO VÝROBKU | 136400 |
Geometrie

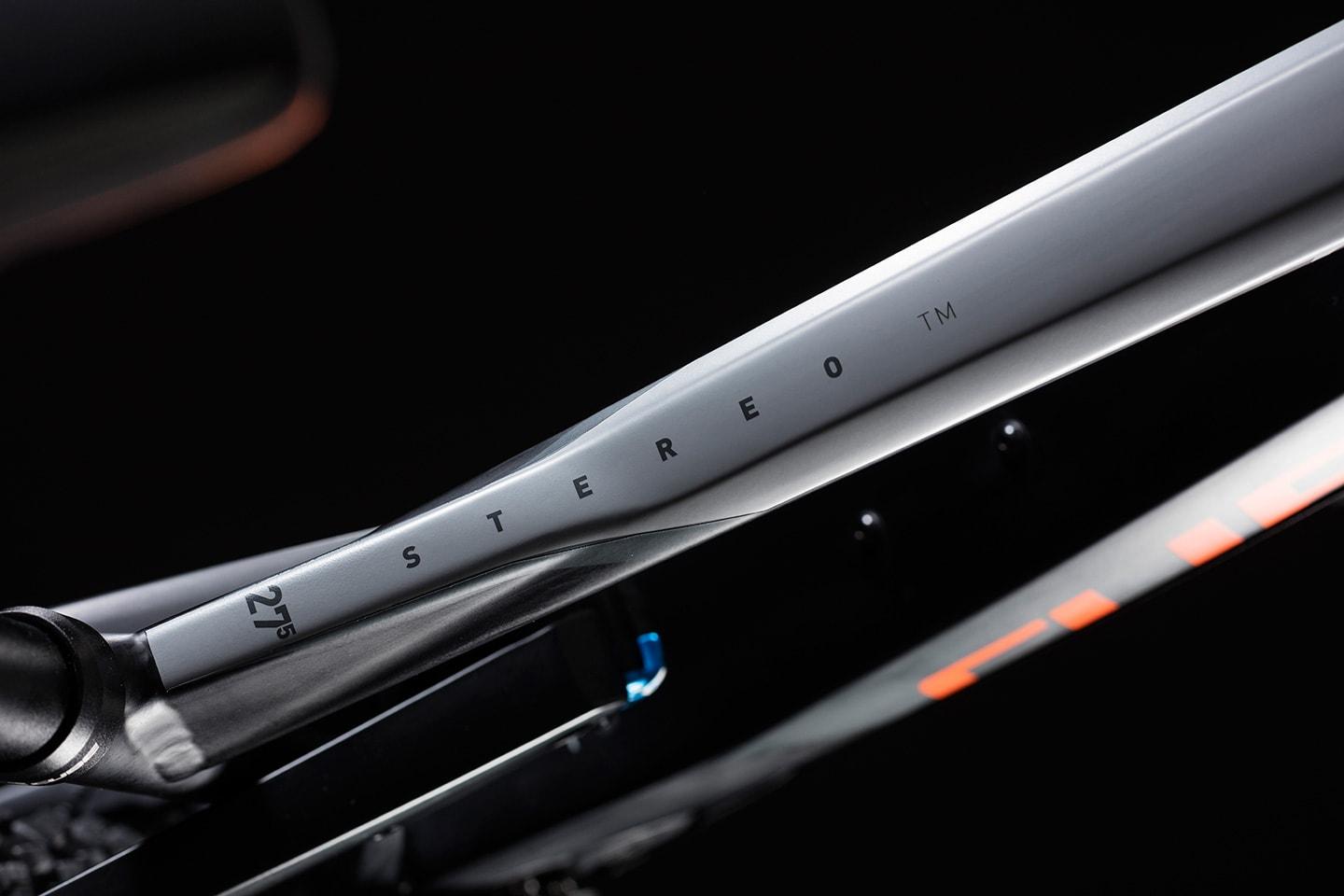

The powerful Bosch drive system has its own unique needs. Fortunately, we've been working with it for years and understand it inside out. That's why our engineering team developed a brand new, super-rigid, one piece gravity cast down tube for the Stereo Hybrid 140 TM. It fully encloses the battery beneath a removable cover, while the powerful CX drive unit is protected from impact damage by a bash plate. There's room for a bottle cage on the down tube and the battery can be recharged without removing it from the frame, if that's what you prefer. The sleekly elegant rear end features a Boost through axle, and the shock is protected from rear wheel splash-back by the seat tube. Internal cable routing extends to the dropper post, helping to protect cables and keeping the looks as clean as possible.
