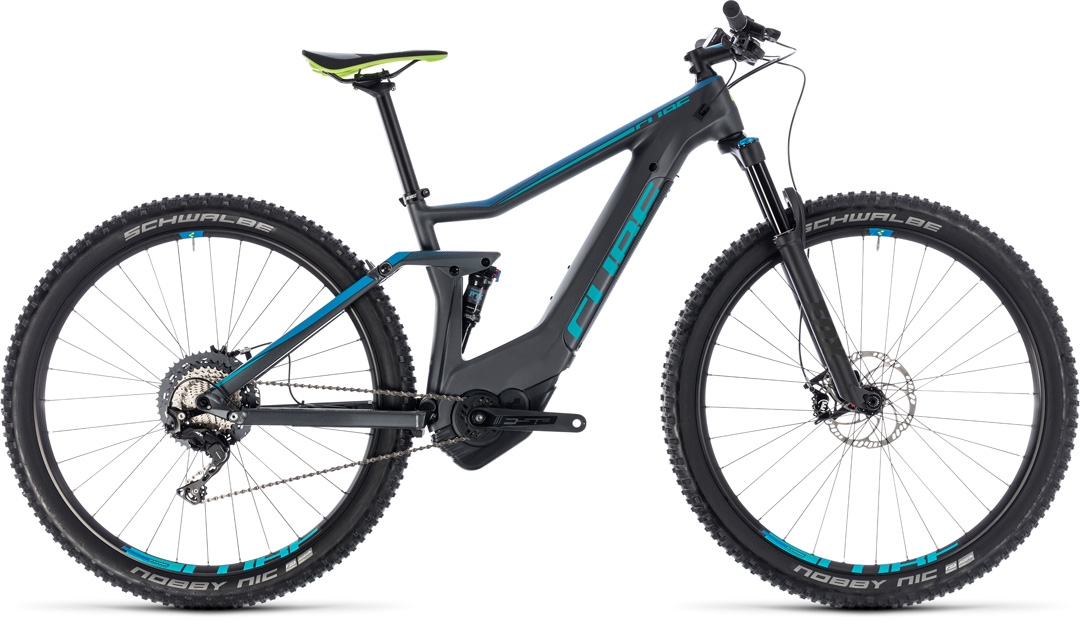

STEREO HYBRID 120 HPC
Race 500
Our range-topping full-suspension bike just took another huge leap forward. Building on the success of its illustrious forbears, we completely reworked the frame for 2018 and fully integrated the Bosch drive unit along with the brand-new Bosch PowerTube battery. The Stereo Hybrid 120 HPC Race is now lighter, stiffer, more comfortable and better handling than ever thanks to our tried-and-tested Twin Mold manufacturing technology. No climb is too steep, no descent too tricky. The Stereo Hybrid 120 HPC Race comes equipped with powerful Magura MT Trail Custom hydraulic disc brakes and smooth, precise Shimano XT 11-speed transmission. And to make sure you're in full control at all times – with enough comfort for extended days in the saddle – we specced a Fox 34 Rhythm fork at the front and matching shock at the rear.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology FT, HPA RT, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB |
|---|---|
| SIZE | 27.5: 16" // 29: 18", 20", 22" |
| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 120mm |
| SHOCK | Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Magura MT Trail Custom, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano SLX SL-M7000 |
| CRANKSET | FSA CK-745, 170mm, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, Performance (27.5: 2.60 // 29: 2.35) |
| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | CUBE Race EXC 145 |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 21,8 kg |
| COLOUR | iridium´n´blue |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 135260 |
Geometrie
As tricky as it is to improve on something that's already so good, our engineers set out to better every aspect of the Stereo Hybrid 120 HPC Race's frame. The one-piece carbon down tube houses the Bosch battery and drive unit making them all but invisible in an elegant enclosure that's stiff, light and protects the electrical system from the elements, while bash plate protects the motor from trail debris and impact. You can even charge the battery without removing it from the frame. Revised geometry includes a more progressive shock rate, higher bottom bracket and longer head tube for better stability, greater comfort and a nimbleness that will surprise you. Stealth dropper post-ready cable routing is standard, as are a stiffness-enhancing Boost rear end and maintenance-reducing internal cable routing. With a lower centre of gravity, lighter weight and sleek looks, the Stereo Hybrid 120 HPC Race just raised the bar another notch.
