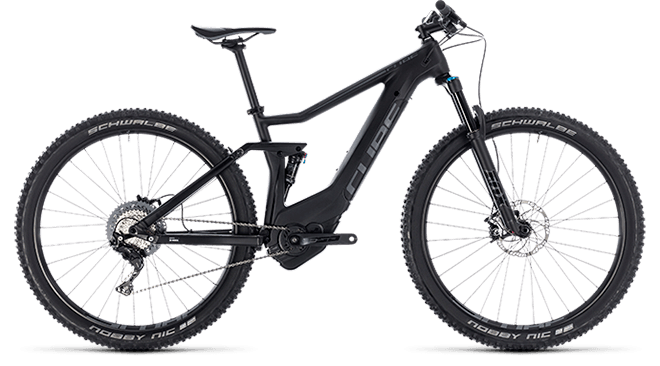

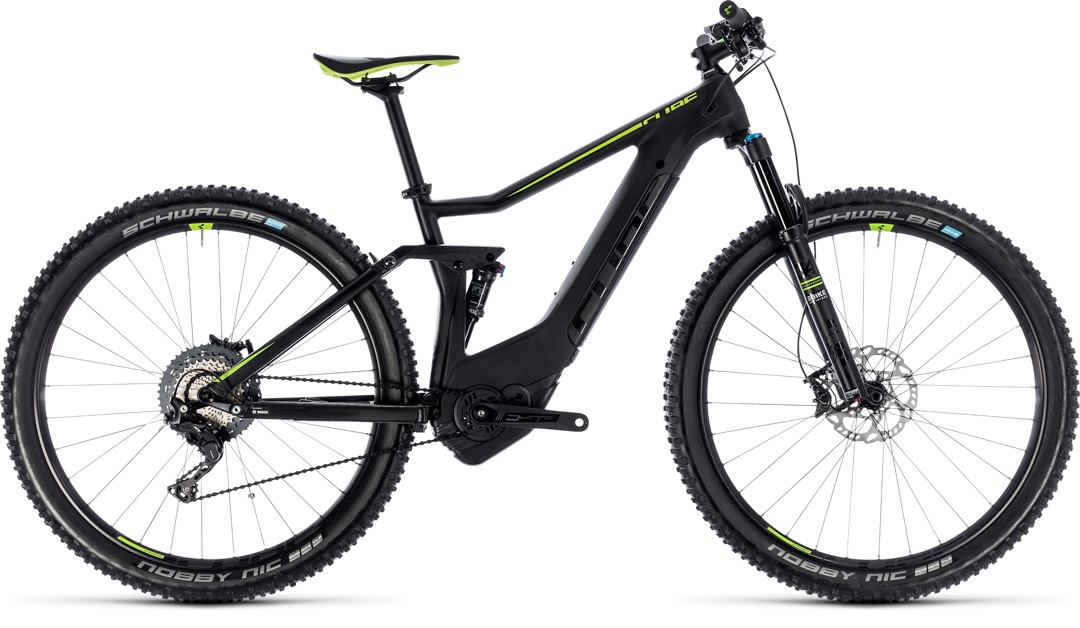

STEREO HYBRID 120 HPC
SL 500
For our brand new Stereo Hybrid 120 SL model we took everything we know about building high performance e-MTBs, and combined it with our engineers' experience in carbon frame construction. The result? A uniquely light, sleek and lively hybrid full suspension bike that will redefine your expectations. Using Bosch's in-tube technology to incorporate the battery and motor into the down tube, we were able to reduce weight, improve handling and boost comfort levels even further than before. Combined with a spec sheet that includes a Fox 34 fork with matching shock, plus Shimano's peerless XT gears and brakes for the ultimate in performance and reliability, it makes for a bike that will take you further - and faster - than you thought possible.
AUSSTATTUNG

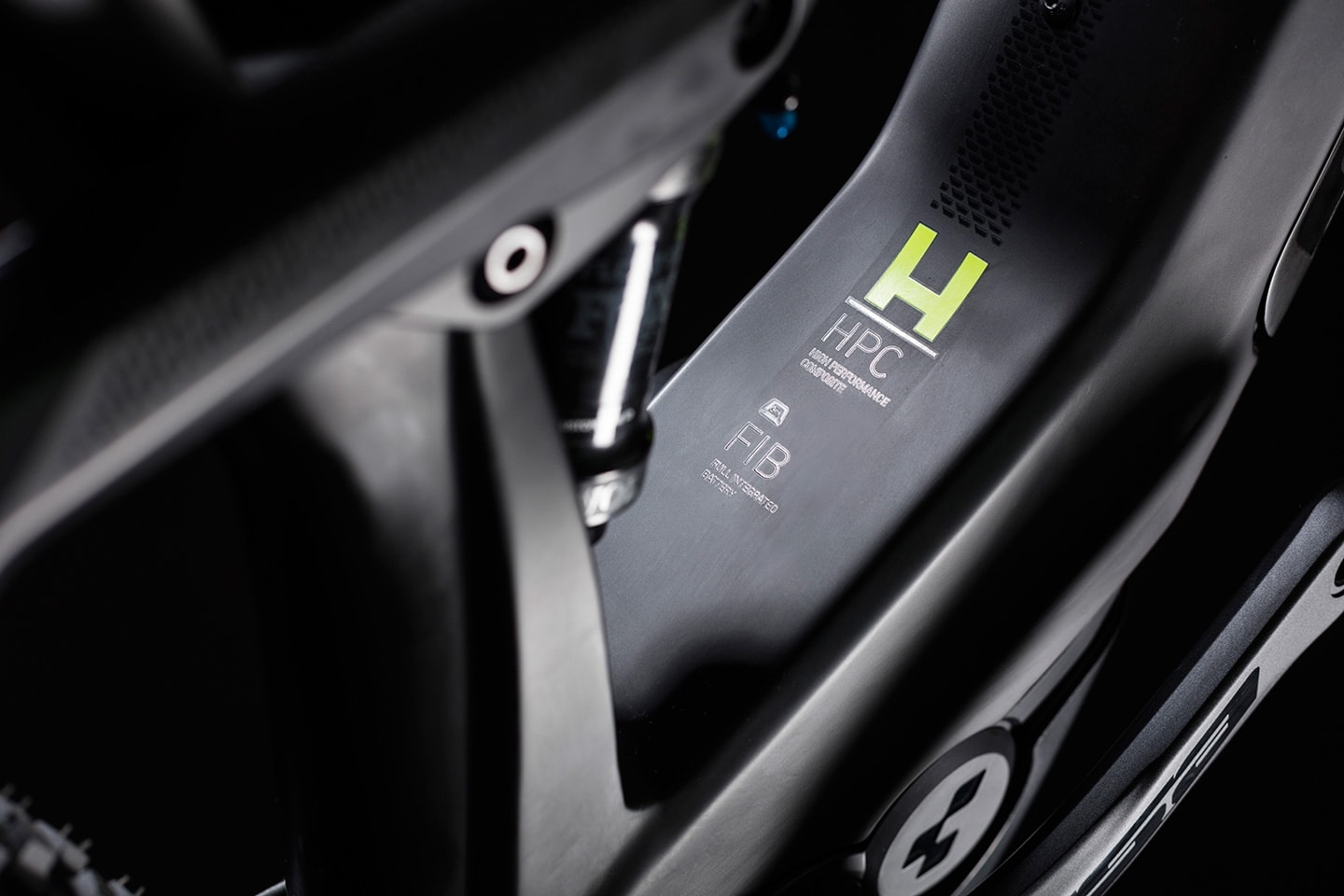

| FRAME | C:62 Monocoque Advanced Twin Mold Technology FT, HPA RT, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB |
|---|---|
| SIZE | 27.5: 16" // 29: 18", 20", 22" |
| FORK | Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, Ebike Optimized, 15x110mm, 120mm |
| SHOCK | Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8000, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000-I, Direct Attach |
| CRANKSET | FSA CK-745, 170mm, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e Turbo |
| FRONT HUB | Shimano XT HB-M8000, 15QR, Boost, Centerlock |
| REAR HUB | Shimano XT FH-M8010-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic Kevlar, Addix Speedgrip, Apex, Tubeless Easy (27.5: 2.60 // 29: 2.35) |
| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | CUBE Race SL 145 |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 22,3 kg |
| COLOUR | black´n´green |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 4A |
| ČÍSLO VÝROBKU | 135300 |
Geometrie

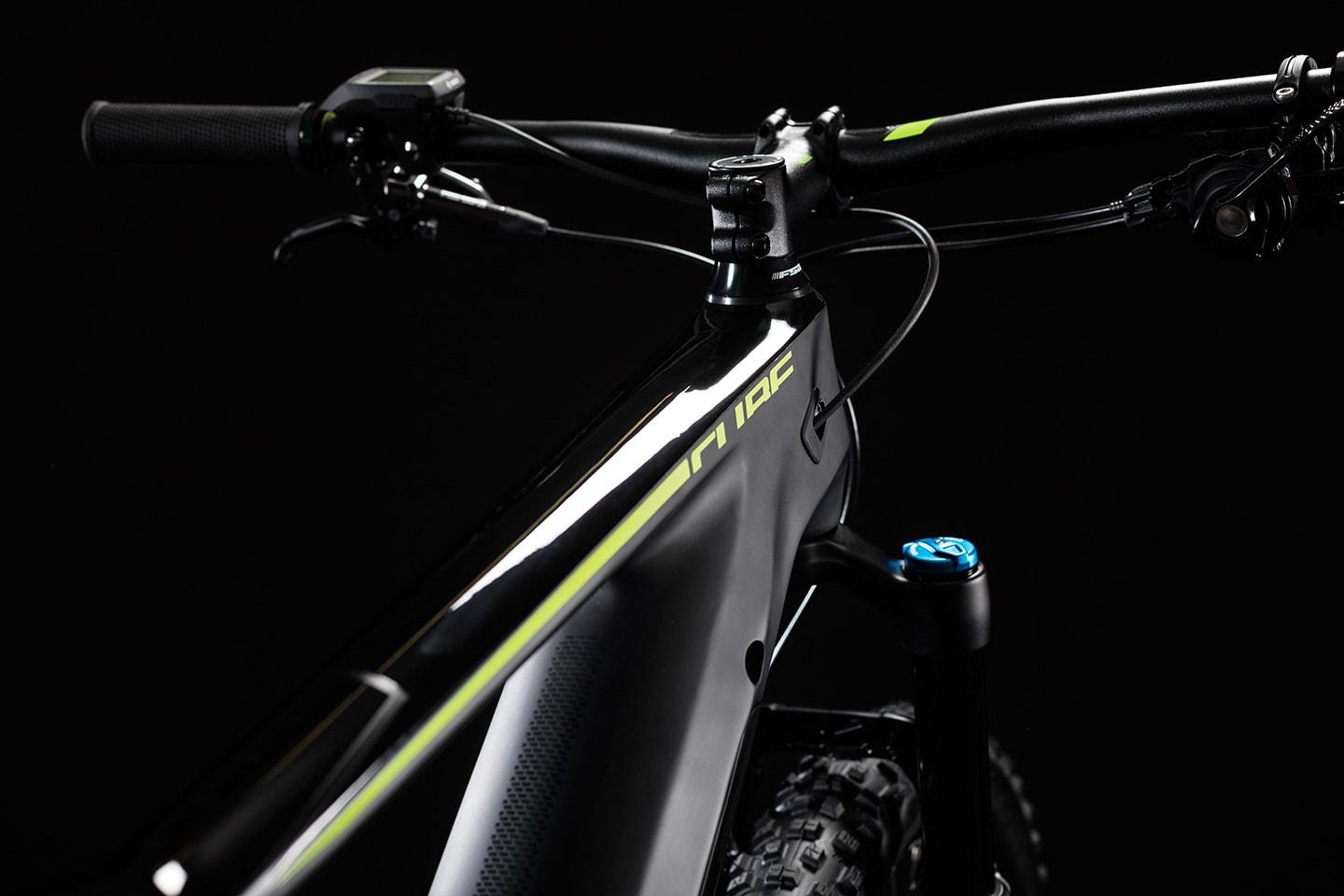

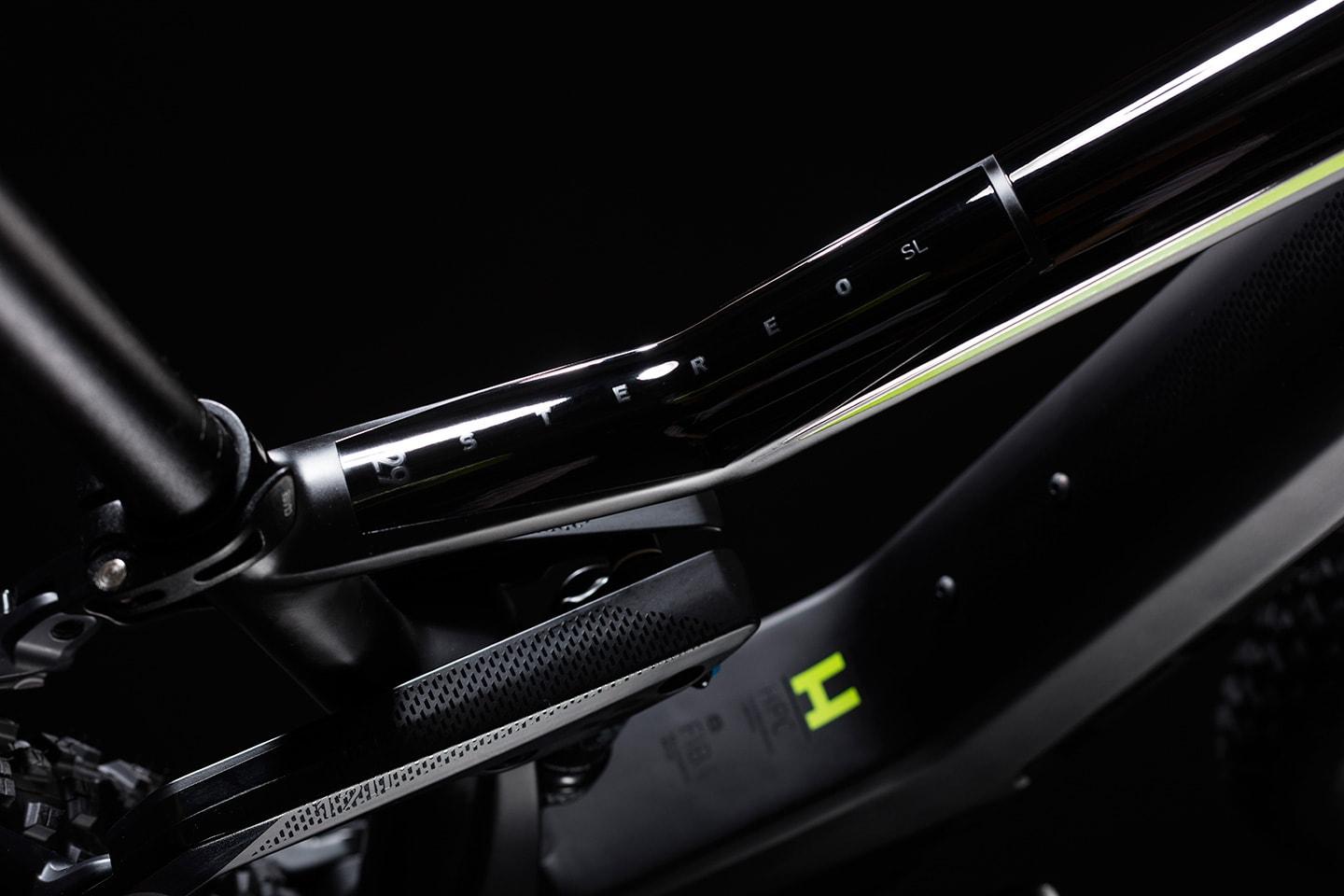

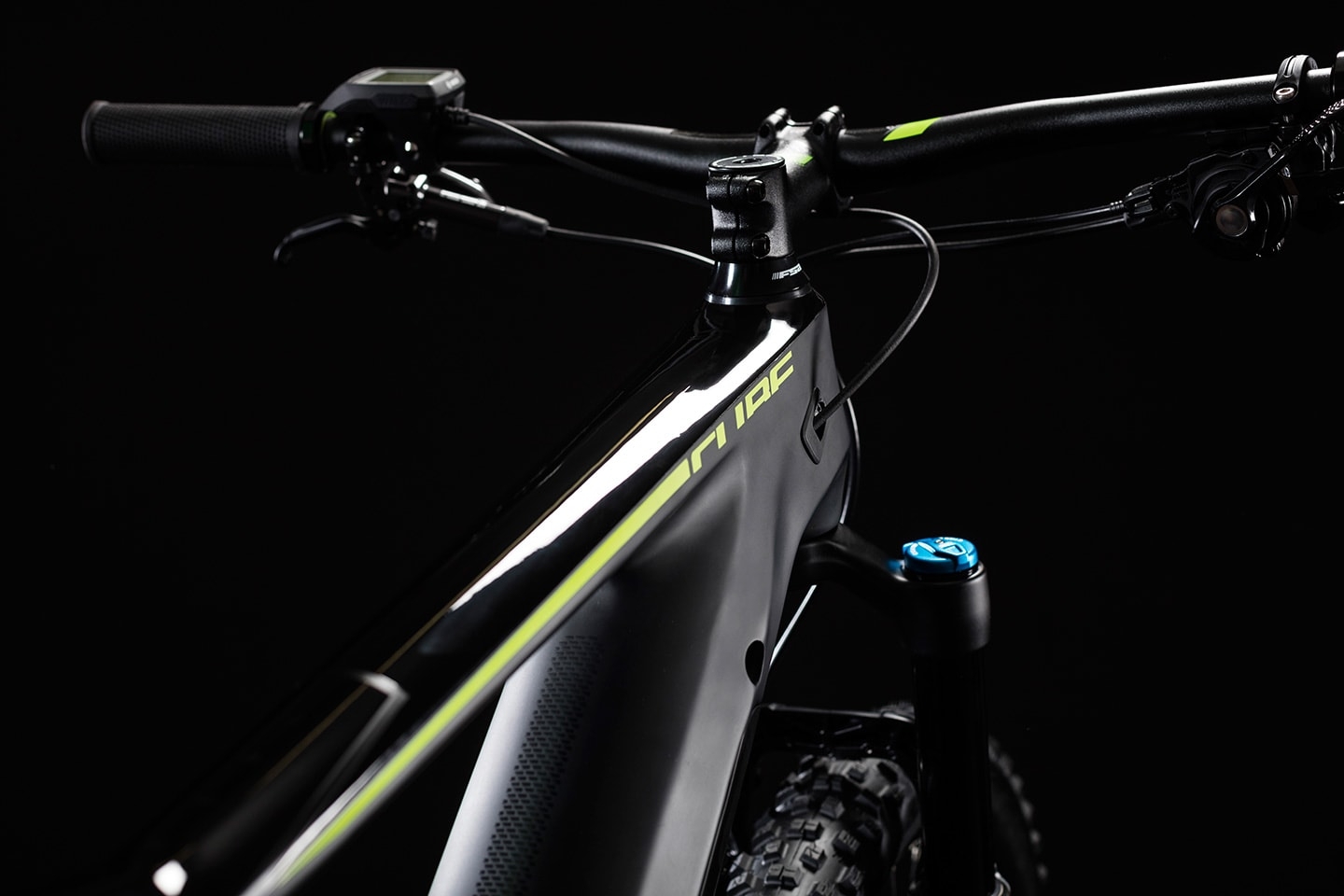

There's no doubt that designing a trail-ready carbon full suspension e-MTB is a major challenge, but that's the kind of thing that gets our engineers all fired up. With a clean sheet of paper and a brief to improve on everything that we'd done before, they started by building a sleek down tube that fully encases the battery and, with a bash plate, the motor too. Protected from dust, water and rocks, the new setup doesn't just look good, it reduces the bike's centre of gravity too, for greater comfort and livelier handling in all trail conditions. Internal cable routing keeps gears shifting cleanly for longer with minimal maintenance, while the Boost rear end helps improve steering precision no matter how rough the trail. As you'd expect, our renowned Agile Ride Geometry means that this is a bike that rides as good as it looks, with precisely the right blend of agility and stability to keep you coming back for more.
