STEREO HYBRID 140
detail_0
detail_1
detail_2

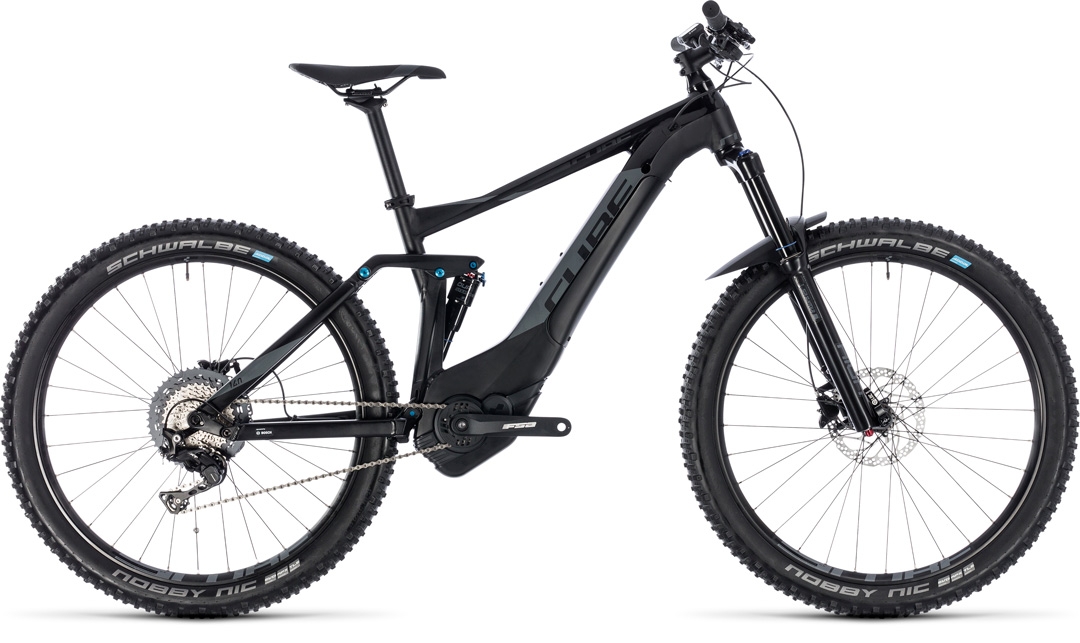

STEREO HYBRID 140

Pro 500 27.5

Every once in a while a bike comes along that changes everything. We didn't realise it at the time, but our Stereo Hybrid 140 Pro has turned out to be one of those game-changing bikes - and we've completely redesigned it for 2018. By combining great handling and the kind of trail manners you'd expect from a regular 140mm bike with the power and flexibility of Bosch's drive system, more and more riders are discovering the answer to the question, ''why e-MTB?''. With a newly integrated battery and motor unit, better handling and revised kinematics, the Stereo Hybrid 140 Pro's 11 speed Shimano transmission and smooth, easily adjustable Suntour suspension components are the icing on the electric cake. Try a slice - you'll like it, we promise.

AUSSTATTUNG

FRAMEAluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB
SIZE16", 18", 20", 22"
FORKSR Suntour Aion RC-PCS, Tapered, 15x110mm, 140mm
SHOCKSR Suntour DUAir LOR8, 190x50mm
SHOCK HARDWARETop: 30x8mm, Bottom: 30x8mm
BRAKE SYSTEMShimano BR-M315, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
SHIFTERSShimano SLX SL-M7000
CRANKSETFSA CK-745, 170mm, 15T
CASSETTEShimano SLX CS-M7000, 11-46T
CHAINKMC X11e, EcoProTeQ
FRONT HUBShimano Deore HB-M6010-B, 15QR, Boost, Centerlock
REAR HUBShimano Deore FH-M6010-B, 12mm, Boost, Centerlock
RIMSCUBE EX30, 32H, Disc, Tubeless Ready
TYRESSchwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy
HANDLEBARCUBE Rise Trail Bar Pro, 740mm
GRIPSCUBE Race Grip, 1-Clamp
SEAT POSTCUBE Performance Post, 31.6mm
SEATCLAMPCUBE Varioclose, 34.9mm
SADDLESelle Royal MTB
HEADSETFSA 1.5B ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
WEIGHT23,1 kg
COLOURblack´n´grey
ČÍSLO VÝROBKU136100

Geometrie

New for 2018, Bosch's Intube battery system has enabled our engineers to completely re-think the Stereo Hybrid 140 Pro's frame. By incorporating the battery into the one piece gravity cast down tube, we've achieved several things. First, the battery is protected from water and dirt. Second, we've lowered the centre of gravity for even better handling. Third, there's now room to fit a water bottle cage, so you can stay hydrated on those long rides. Fourth, it's possible to recharge the battery without removing it from the frame, if you wish. Finally, the new down tube structure is superbly stiff. Combined with revised geometry and a more progressive rear end with Boost axle, it makes for a potent All Mountain configuration that's capable of taking on any trail, any time. Internal cable routing - including for a dropper post - completes the kind of attention to detail for which our engineers are famed.

Bike details

detail_image_0
detail_image_1
detail_image_2
