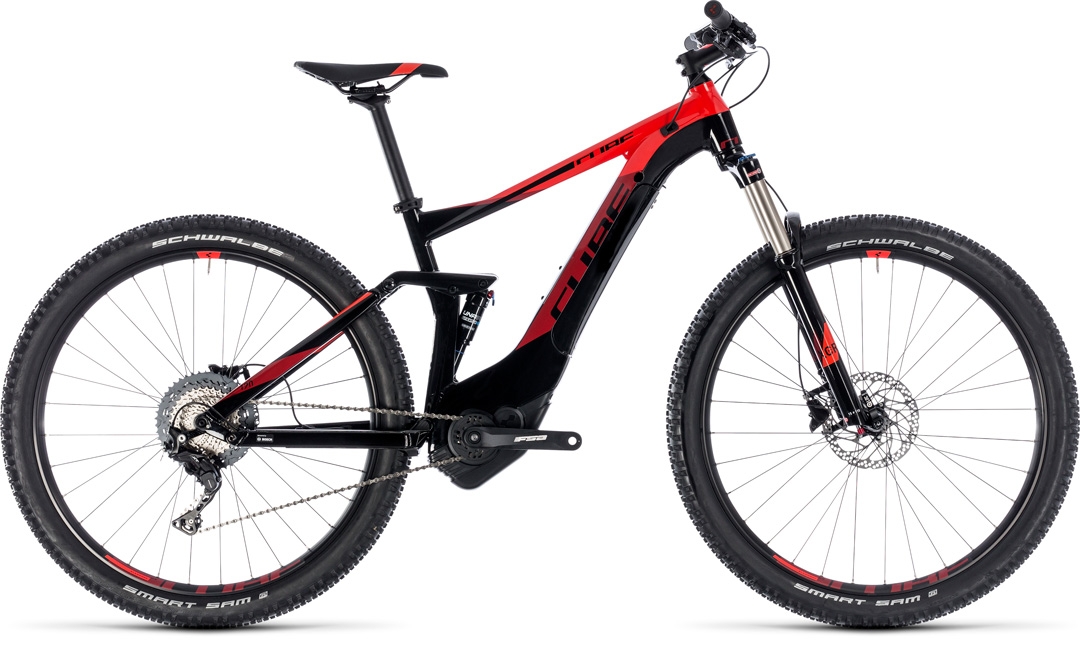

STEREO HYBRID 120
Pro 500
Our ever-popular, trail-taming full suspension Stereo Hybrid 120 Pro continues its evolution with a completely revised frame for 2018. We've made it more comfortable, more stable, lighter, sleeker and easier to use. The integrated battery can be charged without removing it from the frame if you wish, and there's even room for a water bottle on the down tube for those longer rides into the hills. Entirely new Agile Ride Geometry and a custom shock tune give you all the inspiring control and ground-hugging comfort you'll need on any trail, from long fire road climbs to fast, twisting, rooty and rocky descents. With a smooth, easily adjustable Suntour fork and shock and slick-shifting Shimano 10 speed transmission, this is an e-bike that'll extend your off-road adventures further afield than you thought possible.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB |
|---|---|
| SIZE | 27.5: 16" // 29: 17", 19", 21", 23" |
| FORK | SR Suntour XCR34 Air LO-R, Tapered, 15x110mm, 120mm |
| SHOCK | SR Suntour UNAir LOR8, 184x44mm |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano BR-M315, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano SLX SL-M7000 |
| CRANKSET | FSA CK-745, 170mm, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Active, 2.60 |
| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |

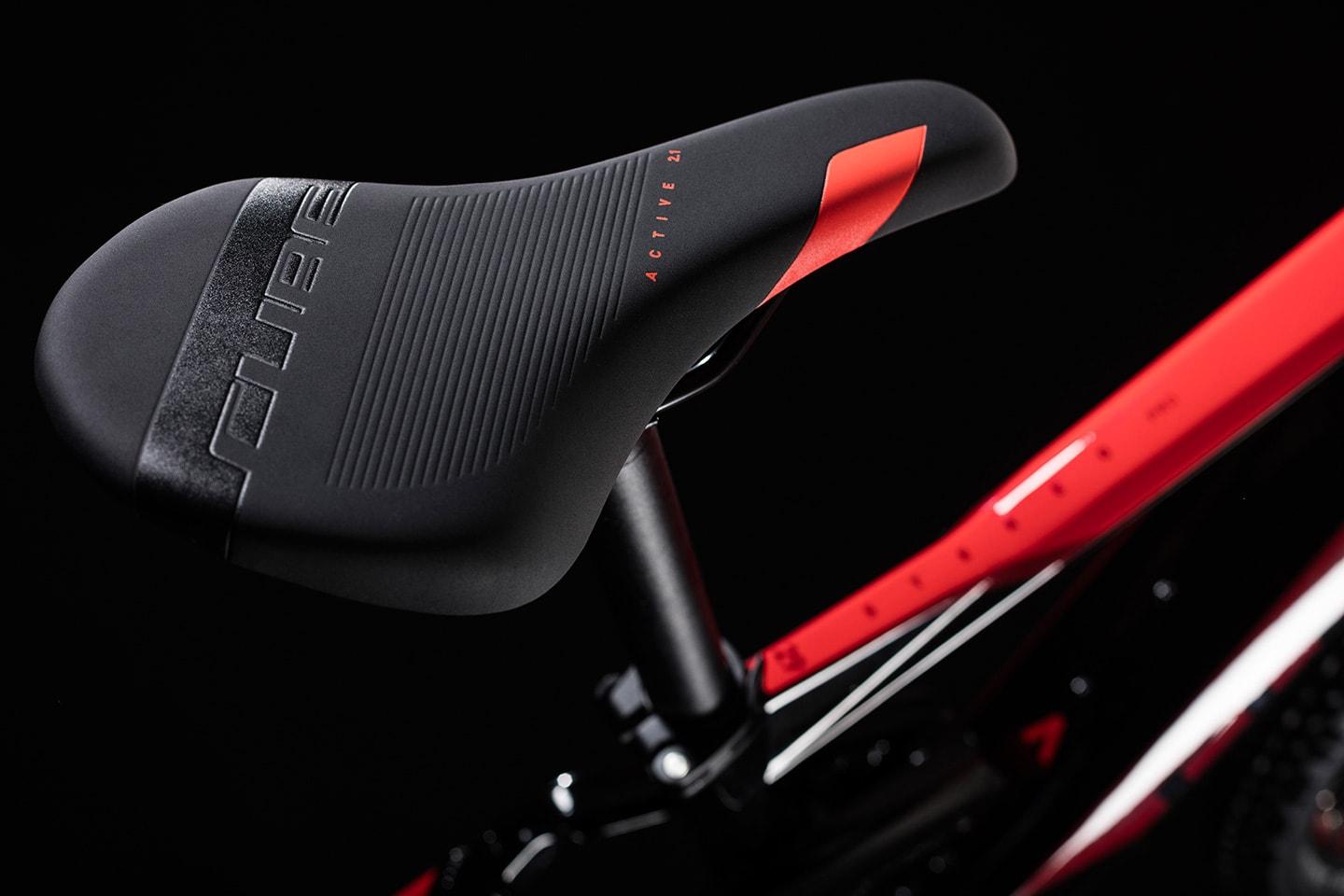

| SADDLE | Selle Royal MTB |
| HEADSET | FSA 1.5B ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 23,8 kg |
| COLOUR | black´n´red |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 135110 |
Geometrie
Where to start? Given a clean sheet of paper, our engineering team went to town on the new Stereo Hybrid 120. Making use of Bosch's new in-tube battery concept, we began with a one-piece gravity case down tube. Together with the CUBE design motor cover, this sleek backbone encompasses the entire Bosch drive system, protecting it from the elements and trail debris impact while providing a sleek, integrated appearance. A longer head tube and higher bottom bracket improve comfort on long rides and ground clearance respectively, and we even allowed for the additional weight of motor and battery with a custom, more progressive shock setup. Cables are routed internally to keep the appearance as clean as possible - and this frame is ready to accept a Stealth dropper post, too. The whole chassis is incredibly stiff, thanks to the X12 Boost rear end and careful design.
