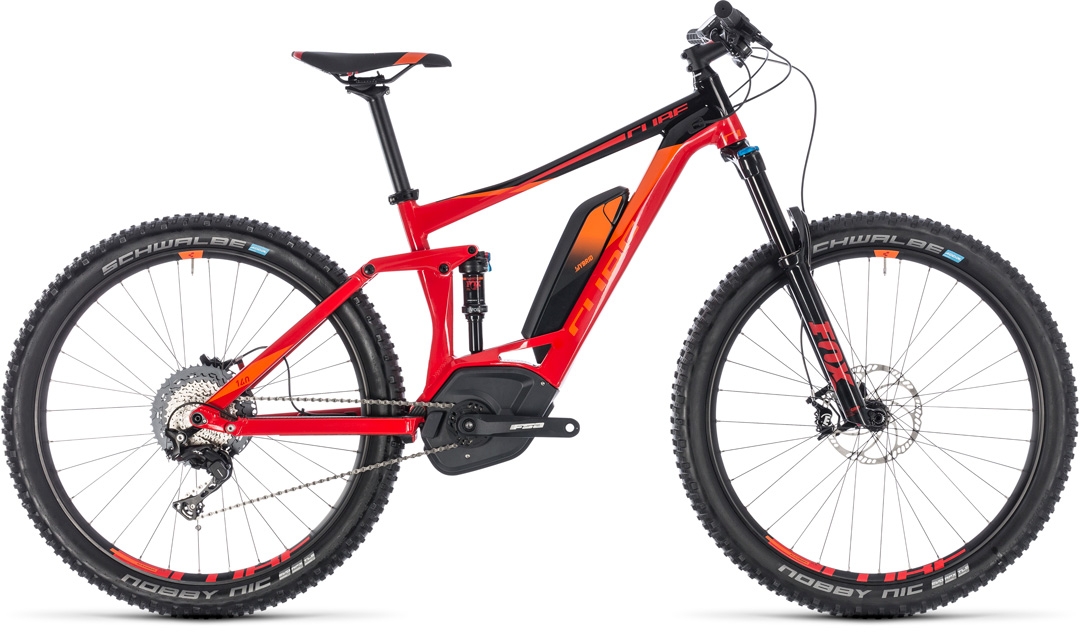

STEREO HYBRID 140
Race 500 27.5
Our Stereo Hybrid 140 Race set a new benchmark for All Mountain e-MTBS when it was first launched - and that still holds true. Whether it's the frame's exceptional balance and low weight, the superb trail manners of our Agile Ride Geometry or the reliability of the components, this is a bike that stands out above the competition. Features like the Magura hydraulic disc brakes, wide-ranging 11 speed Shimano transmission and smooth, easily adjustable Fox suspension components mean that this is a bike that's just crying out for epic singletrack adventures. Will you rise to the challenge?
AUSSTATTUNG
| FRAME | HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 140mm |

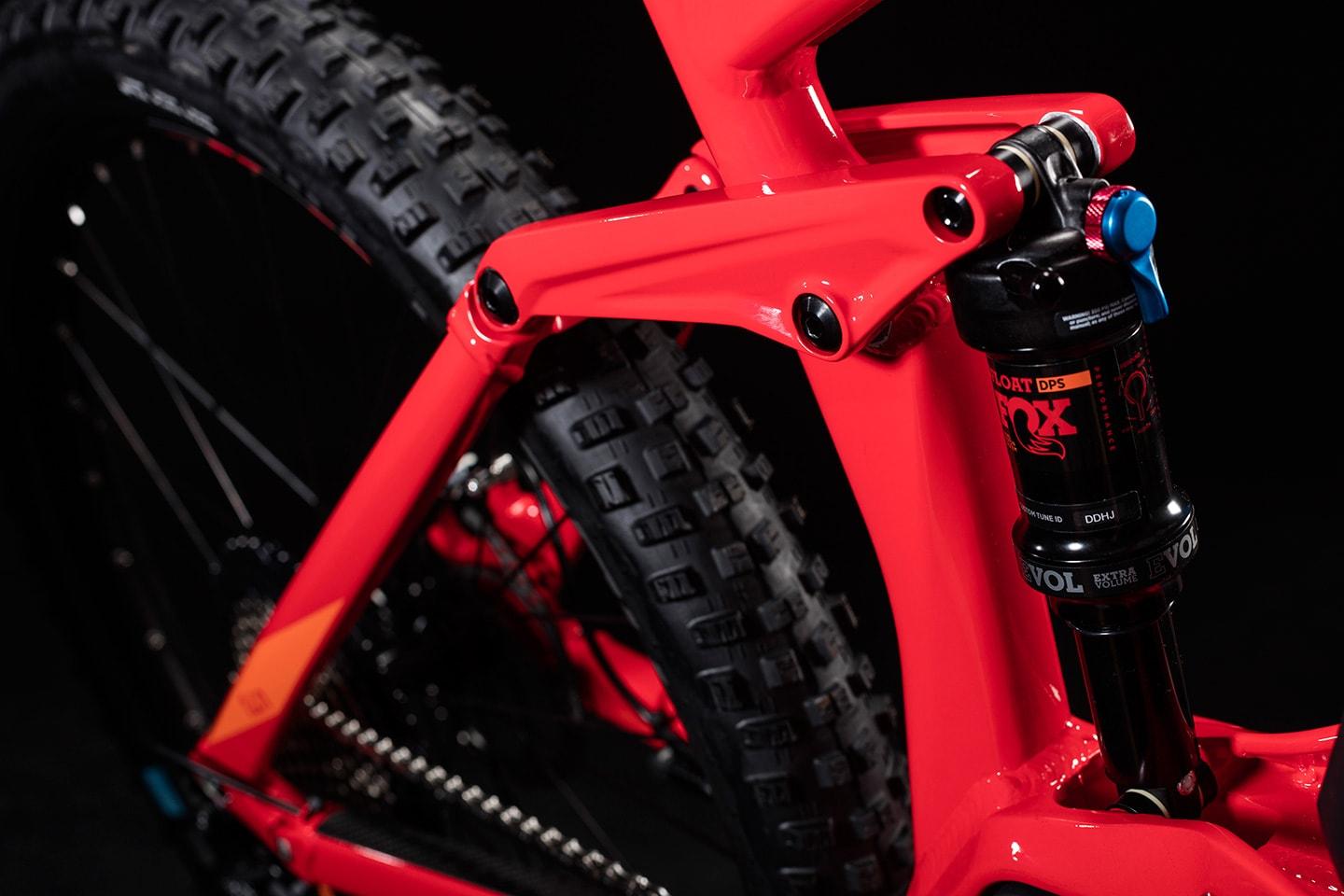

| SHOCK | Fox Float DPS EVOL, 190x50mm, Open/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Magura MT Trail Custom, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000, 11-Speed |
| CRANKSET | FSA CK-745, 170mm, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock |
| REAR HUB | Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy |
| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Selle Royal MTB |
| HEADSET | FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2" |
| WEIGHT | 22,5 kg |
| COLOUR | red´n´orange |

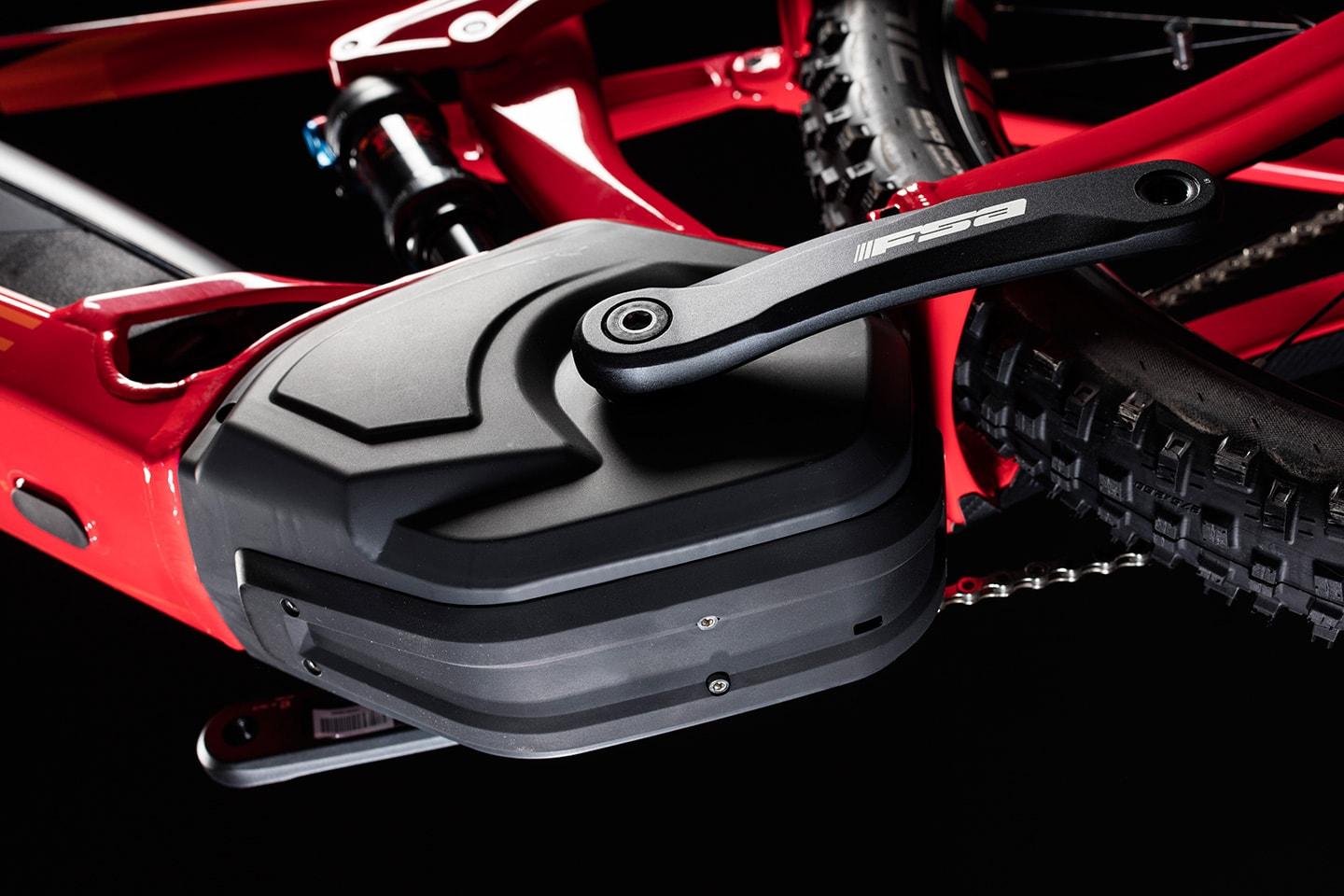

| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 136210 |
Geometrie
The CUBE way of doing things is simple: maximum performance, zero compromise. With the Stereo Hybrid 140 Race we've built on well-known features like our lauded Agile Trail Geometry (ATG) and Efficient Trail Control (ETC) kinematics, tweaking and refining until our engineers were satisfied that this is the best frame of its kind that they could possibly build. Tuned Drive Position (TDP) places the Bosch drive unit in the best possible position, allowing us to reduce chainstay length for better handling while maintaining plenty of tyre clearance for grippy, comfortable performance. The Boost rear end with 148mm axle increases steering precision on even the roughest of descents, while we've positioned the battery as low as possible in the frame to improve handling. We've not forgotten the details, either - cables run internally for smoother shifts with reduced maintenance.
