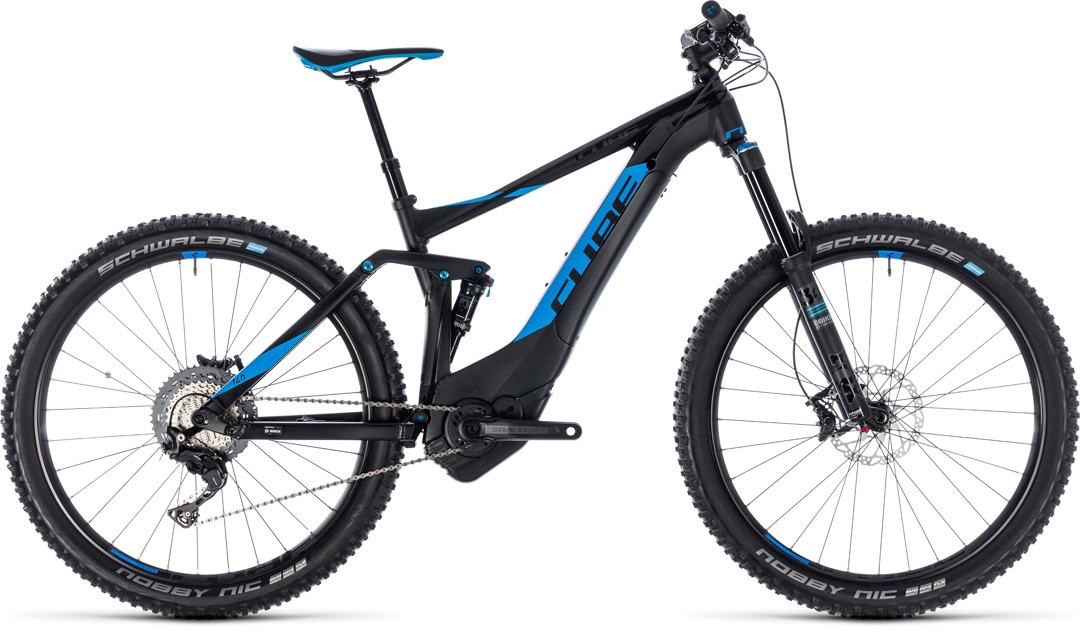

STEREO HYBRID 140

SL 500 27.5

When you've run out of excuses, when only the best all-mountain e-MTB will do... you're ready to move up to the all-new Stereo Hybrid 140 SL. Completely revised for 2018, we've sunk all our experience of building awesome trail-taming full suspension hybrids into this bike. With a completely new frame built around Bosch's Intube battery technology, Fox 34 Float fork and matching rear shock, remote dropper post, and powerful Shimano XT hydraulic disc brakes with slick-shifting XT gears, the Stereo Hybrid 140 SL has everything you need for great days out in the mountains... and nothing you don't. All-mountain perfection, redefined.

AUSSTATTUNG

FRAMEAluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB
SIZE16", 18", 20", 22"
FORKFox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, Ebike Optimized, 15x110mm, 140mm
SHOCKFox Float DPS EVOL, 190x50mm, Open/Medium/Firm Mode
SHOCK HARDWARETop: 30x8mm, Bottom: 30x8mm
BRAKE SYSTEMShimano XT BR-M8000, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
SHIFTERSShimano XT SL-M8000-I, Direct Attach
CRANKSETRace Face Aeffect, 170mm, 15T
CASSETTEShimano SLX CS-M7000, 11-46T
CHAINKMC X11e, EcoProTeQ
FRONT HUBShimano XT HB-M8000, 15QR, Boost, Centerlock
REAR HUBShimano XT FH-M8010-B, 12mm, Boost, Centerlock
RIMSCUBE EX30, 32H, Disc, Tubeless Ready
TYRESSchwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy
HANDLEBARCUBE Rise Trail Bar Pro, 740mm
GRIPSCUBE Race Grip 31, 1-Clamp
SEAT POSTCUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16", 18": 400x120mm; 20", 22": 458x150mm)
SEATCLAMPCUBE Screwlock, 34.9mm
SADDLECUBE Race EXC 145
HEADSETFSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
WEIGHT22,7 kg
COLOURblack´n´blue
ČÍSLO VÝROBKU136300

Geometrie

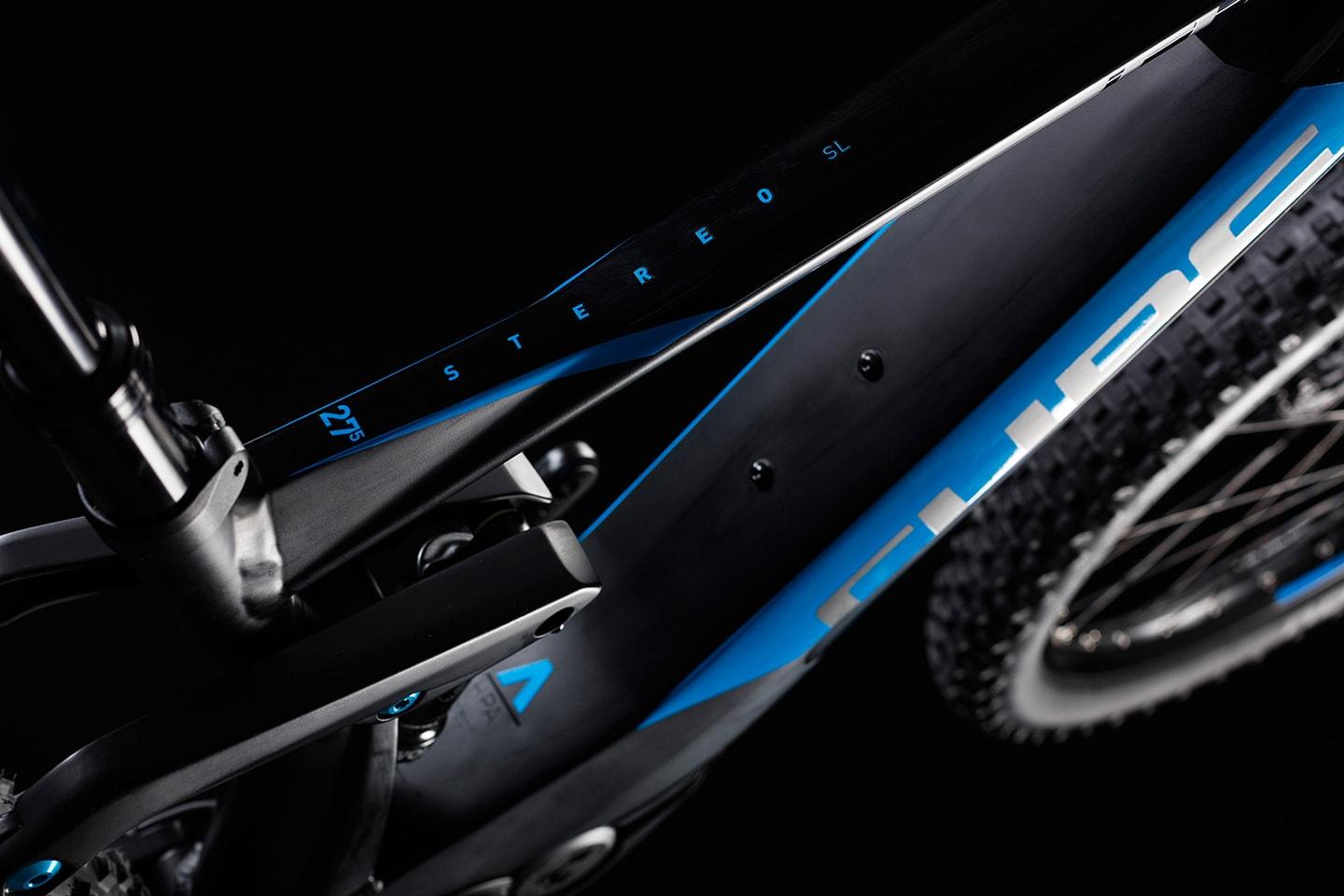

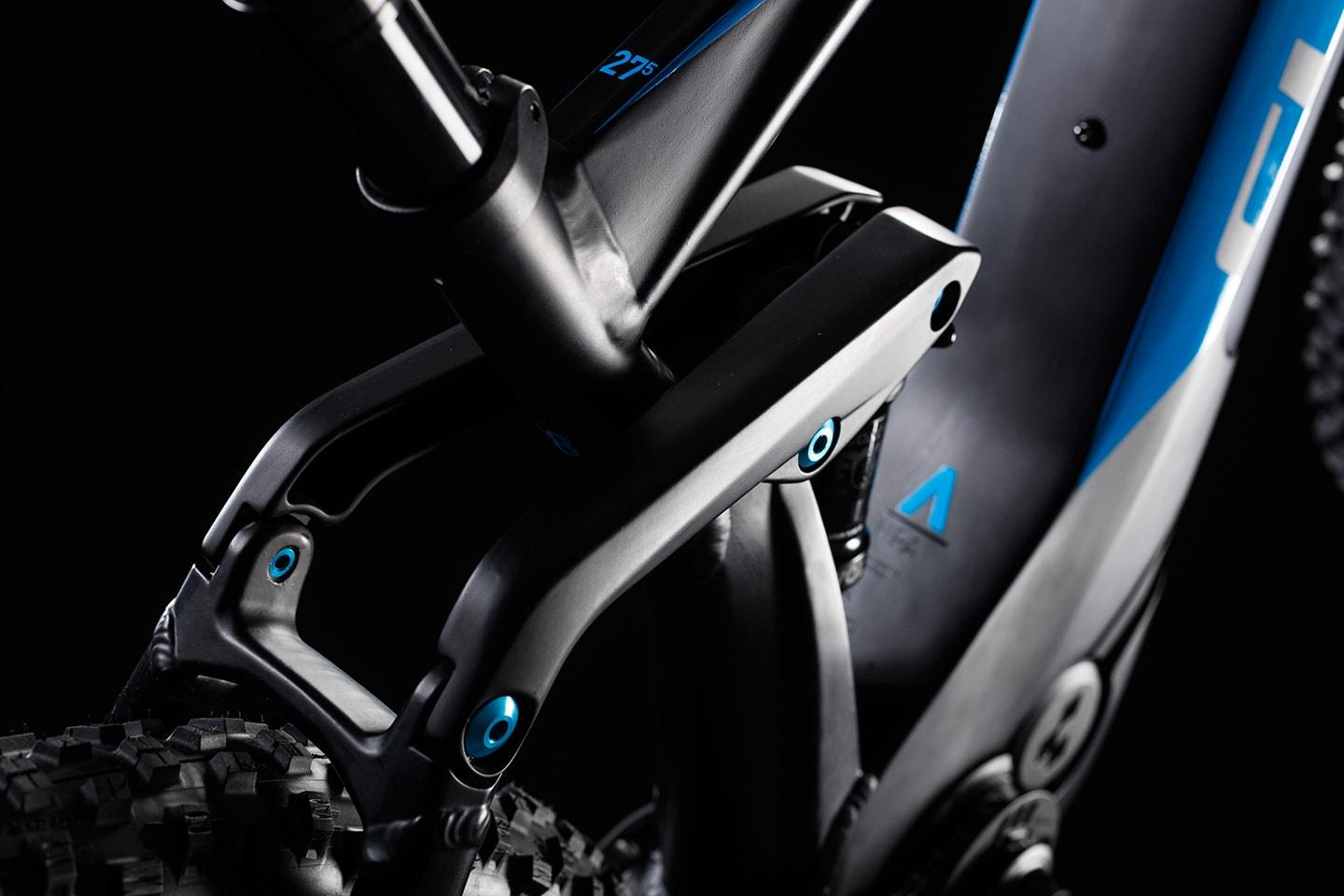

Centrepiece of the Stereo Hybrid 140 SL's chassis is undoubtedly the one piece, gravity cast down tube. This incredibly rigid structure provides the backbone for the entire bike, but also houses the Bosch Intube battery and CX drive unit. A bash plate protects the motor from trail debris impact, while the easily removeable battery cover protects the electrics from dirt and water. You can even charge the battery without removing it from the bike, should you wish. The sleek looks continue to the rear, where the seat tube protects the rear shock from water and mud thrown up by the rear wheel. A more progressive rear end makes the most of all 140mm of available travel, and we've tweaked the geometry to provide that perfect blend of pace, balance and agility that defines the very best full suspension trail bikes. As you'd expect, the rear end is Boost compatible for improved steering accuracy, and we've routed gear cables internally to keep shifts cleaner for longer.
